Cooper Lighting LLC CPK1825 Specifications

COOPER LIGHTING - METALUX

®

LAMPS CONTAIN MERCURY. DISPOSE ACCORDING TO

LOCAL, STATE OR FEDERAL LAWS

Safe and convenient means of

disconnecting power.

CEILING COMPATIBILITY

COOPER LIGHTING

EB Ballast & STD Lamps

128T8 (28), 228T8 (49), 328T8 (98)
132 (32), 232 (61), 332 (91),
T1BX40 (70), T2BX40 (140),
T1BX50 (106), T1 BX55 (110)

LER = FL65
Catalog Number: 2RDI-IC-232RP

Yearly Cost of 1000 lumens,
3000 hrs at .08 KWH = $3.69

*Reference the lamp/ballast data in the
Technical Section for specific lamp/ballast
requirements.

**Consult Pre Sales Technical Support.

2RDI-IC

128T8

132

228T8

232

328T8

332

T1BX,T2BX

T8 OR BIAXIAL LAMPS

2' X 4' Recessed

Direct/Indirect

Center-Mount

For Use in

Insulated Ceilings.

ENERGY DATA

Input Watts:

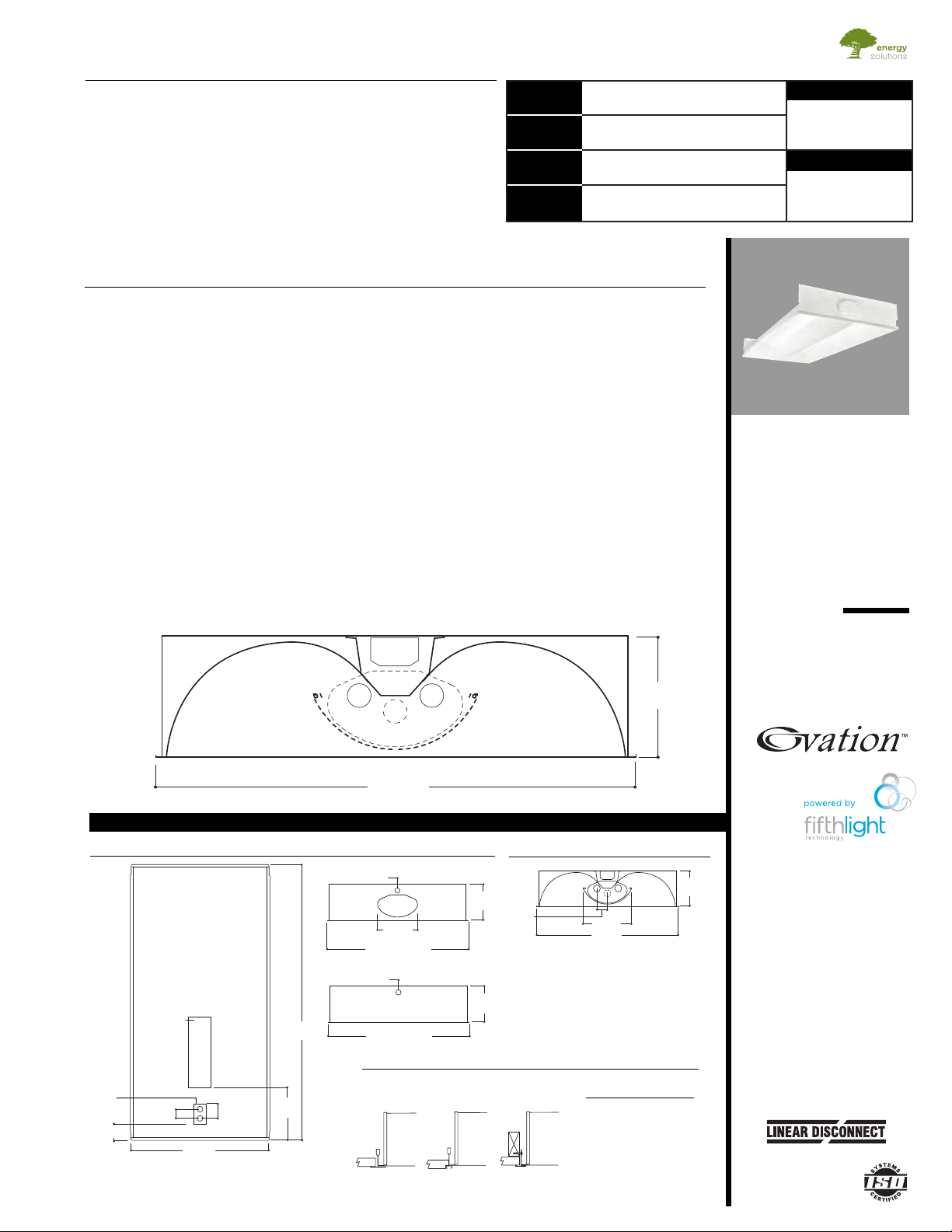

MOUNTING DATA

LAMP CONFIGURATIONS

ADF110363

Ceiling Trim
Type** Type

Exposed Grid G
Concealed T G or T
Slot Grid G or T
Flange ***

G

Grid/Lay-in
Standard

T

Slot GridFDrywall

Frame Kit

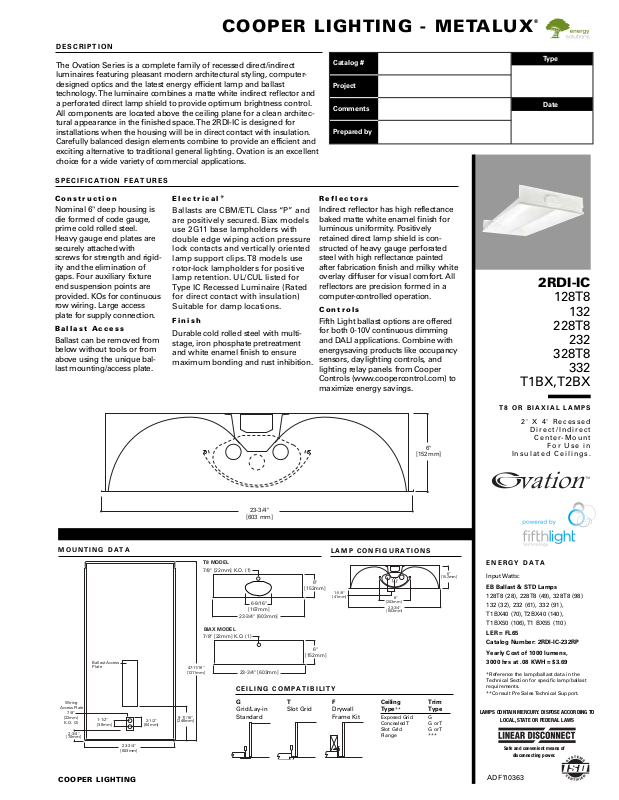

DESCRIPTION

The Ovation Series is a complete family of recessed direct/indirect
luminaires featuring pleasant modern architectural styling, computer­designed optics and the latest energy efficient lamp and ballast
technology. The luminaire combines a matte white indirect reflector and
a perforated direct lamp shield to provide optimum brightness control.
All components are located above the ceiling plane for a clean architec­tural appearance in the finished space. The 2RDI-IC is designed for
installations when the housing will be in direct contact with insulation.
Carefully balanced design elements combine to provide an efficient and
exciting alternative to traditional general lighting. Ovation is an excellent
choice for a wide variety of commercial applications.

SPECIFICATION FEATURES

Construction

Nominal 6" deep housing is
die formed of code gauge,
prime cold rolled steel.
Heavy gauge end plates are
securely attached with
screws for strength and rigid­ity and the elimination of
gaps. Four auxiliary fixture
end suspension points are
provided. KOs for continuous
row wiring. Large access
plate for supply connection.

Ballast Access

Ballast can be removed from
below without tools or from
above using the unique bal­last mounting/access plate.

Electrical*

Ballasts are CBM/ETL Class “P” and
are positively secured. Biax models
use 2G11 base lampholders with
double edge wiping action pressure
lock contacts and vertically oriented
lamp support clips. T8 models use
rotor-lock lampholders for positive
lamp retention. UL/CUL listed for
Type IC Recessed Luminaire (Rated
for direct contact with insulation)
Suitable for damp locations.

Finish

Durable cold rolled steel with multi­stage, iron phosphate pretreatment
and white enamel finish to ensure
maximum bonding and rust inhibition.

Reflectors

Indirect reflector has high reflectance
baked matte white enamel finish for
luminous uniformity. Positively
retained direct lamp shield is con­structed of heavy gauge perforated
steel with high reflectance painted
after fabrication finish and milky white
overlay diffuser for visual comfort. All
reflectors are precision formed in a
computer-controlled operation.

Controls

Fifth Light ballast options are offered
for both 0-10V continuous dimming
and DALI applications. Combine with
energysaving products like occupancy
sensors, daylighting controls, and
lighting relay panels from Cooper
Controls (www.coopercontrol.com) to
maximize energy savings.

Catalog #

Project

Comments

Prepared by

Type

Date

Ballast Access
Plate

Wiring

Access Plate

7/8"

[22mm]

K.O. (2)

[70mm]

2-3/4"

1-1/2"
[38mm]

[603mm]

23-3/4"

2-1/2"

[64mm]

9-11/16"

[246mm]

47-11/16"

[1211mm]

T8 MODEL

7/8" [22mm] K.O. (1)

23-3/4" [603mm]

BIAX MODEL

7/8" [22mm] K.O. (1)

23-3/4" [603mm]

23-3/4"

[603 mm]

6-9/16"

[167mm]

6"

[152mm]

1-5/8"

[41mm]

6"

[152mm]

6"

[152mm]

8"

[203mm]

23-3/4"

[603mm]

6"

[152mm]

Visit our web site at www.cooperlighting.com

Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX [phone] ADF110363

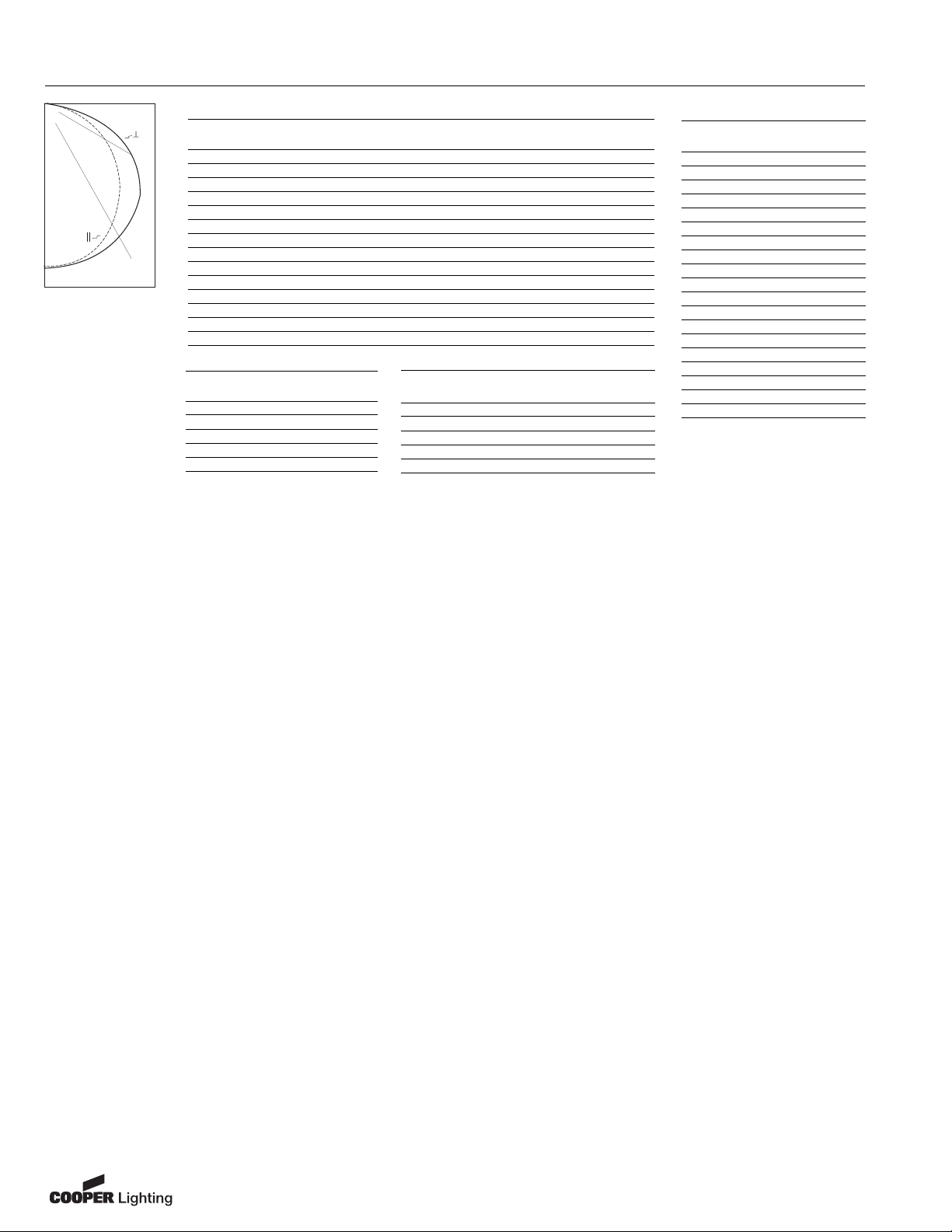

Candela

Angle Along II 45° Across 
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90

1372 1372 1372
1367 1370 1374
1348 1357 1365
1316 1334 1351
1273 1302 1332
1216 1261 1304

1148 1212 1271

1071 1156 1231

984 1092 1182
889 1021 1125
785 941 1053
678 853 958
564 753 846
448 632 702
335 498 539
232 342 384
139 205 228

58 85 94

0 0 0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 70% 50% 30% 10% 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

0
1
2
3
4
5
6
7
8
9

10

PHOTOMETRICS

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture
0-30
0-40
0-60
0-90
0-180

2RDI-IC-232RP

Electronic Ballast

F032/830/XP3 Lamps
3100 Lumens

Spacing criterion:
(II) 1.2 x mounting
height, (⊥) 1.4 x
mounting height

Efficiency 70.7 %

Test Report:
2RDI-IC-232RP.IES

LER = FL61

Yearly Cost of 1000
lumens, 3000 hrs at
.08 KWH = $3.93

1088.56 17.6 24.8

1810.67 29.2 41.3

3339.06 53.9 76.2

4383.85 70.7 100.0

4383.85 70.7 100.0

84 84 84 84 82 82 82 82 79 79 79 75 75 75 72 72 72 71
77 73 70 67 75 71 68 66 68 66 64 66 64 62 63 61 60 58
69 63 58 54 67 62 57 53 59 55 52 57 54 51 55 52 50 48
63 55 49 44 61 54 48 44 52 47 43 50 46 42 48 45 42 40
57 49 42 37 56 48 42 37 46 41 36 44 40 36 43 39 35 34
53 43 37 32 51 42 36 32 41 35 31 39 35 31 38 34 31 29
48 39 32 28 47 38 32 27 37 31 27 36 31 27 34 30 27 25
45 35 29 24 44 34 28 24 33 28 24 32 27 24 31 27 24 22
42 32 26 21 41 31 25 21 30 25 21 30 25 21 29 24 21 20
39 29 23 19 38 29 23 19 28 23 19 27 22 19 26 22 19 18
36 27 21 17 36 27 21 17 26 21 17 25 20 17 24 20 17 16

2RDI-IC

Luminance Data

Average Average Average
Angle 0-Deg 45-Deg 90-Deg
in Deg cd/sm cd/sm cd/sm

0-30
0-40
0-60
0-90
0-180

1801 2068 2279
1693 2130 2393
1519 2142 2380
1284 1893 2125

953 1397 1545

Visit our web site at www.cooperlighting.com

Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX [phone] ADF110363

2RDI-IC-132RP 30 lbs.
2RDI-IC-128T8RP 30 lbs.
2RDI-IC-232RP 30 lbs.
2RDI-IC-228T8RP 30 lbs.
2RDI-IC-332RP 30 lbs.
2RDI-IC-328T8RP 30 lbs.
2RDI-IC-T1BX40 31 lbs.
2RDI-IC-T2BX40 31 lbs.

SHIPPING INFORMATION

Catalog No. Wt.

2RDI-IC

NOTES:

(1)

Biax 50 or 55W only available in tandem 1 lamp option.

(2)

Products also available in non-US

voltages and frequencies for international markets.

(3)

An EQ Grid Clip is recommended for all 9/16" ceiling

systems. Four required per fixture.

(4)

Not available in UNV voltages. Must specify voltage.

(5)

For a complete

listing of Fifthlight Technology products and other solutions from Cooper Controls, visit www.coopercontrol.com.

(6)

0-10V ballast do not include DALI feature. Please select DALI ballast for use with Fifth Light system.

(7)

Specification grade 0-10V dimming ballast are NEMA premium and CEE listed. They are compatible with low

mercury and energy saving lamps.

(8)

Specification Grade 0-10V ballast not available for Biax lamps.

(9)

Specification Grade 0-10V ballast not offered in 3 or 4-lamp versions.

(10)

Standard 0-10V ballast not available

for Biax lamps.

(11)

Standard 0-10V ballast not available for 28W T8 lamps.

(12)

Voltage must be specified for

Standard 0-10V 32W 3 and 4-lamp ballast. 4-lamp ballast versions must be 277V.

For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions sub­ject to change without notice. Consult your Cooper Lighting Representative for availability and ordering
information.

ORDERING INFORMATION

SAMPLE NUMBER: 2RDI-IC-232RP-120V-EB51-U

Number
of Lamps
1=1 Lamp
2=2 Lamp
3=3 Lamp
T1=2' x 4'

Fixture
with One
Biax Lamp
at Each
End

(1)

T2=2' x 4'

Fixture
with Two
Biax
Lamps at
Each End

Wattage
28T8=28W T8 (48")
32=32W T8 (48")
BX40=40W Biax (24")
BX50=50W Biax (24")

(1)

BX55=55W Biax (24")

(1)

Voltage

(2)

120V=120 Volt
277V=277 Volt
347V=347 Volt
UNV=Universal

Voltage 120-277

Lamp Shield
RP=Round

Perforated
White Steel

Options
GL=Single Element Fuse
GM=Double Element Fuse
Lamps=Lamps Installed
Flex=Flex Installed
EL=Emergency Installed

Options
RLS=Rotor-Lock Socket

(T8 Lamps Only)
RIF1=Radio Interference
Suppressor

REP=Riveted Endplates
LSC=Lamp Shield Cable
ST=Semi-Specular

Tannenbaum

Packaging
U=Unit Pack
PALC=

Palletized Fixtures in
Carton

ACCESSORIES

EQ=T-BAR Safety

Earthquake Clips

(3)

DF-24-W=Drywall Frame Kit

Rating
Blank=

Standard
NY=New York
City Rated
ATW-SW4=
Chicago
Rated

Trim Type
Leave Blank=Grid/Lay-in

(Standard)

Width
2=2' Width

Series
RDI=Ovation Series

(Recessed
Direct/Indirect)

Lamp Position
Leave Blank=Center Mounted

Lamps (Standard)

Type
IC=IC Rated

Ballast Type
Blank=Standard Magnetic Biax Ballast

EB8

=T8 Electronic Start.

Total Harmonic Distortion < 10%

EB8

/PLUS= T8 Electronic Start.

Total Harmonic Distortion < 10%.
High Ballast Factor > 1.15.

ER8

=T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%

EB5

=T5 Biax Electronic Instant Start.

Total Harmonic Distortion < 20%

(4)

TEB5 =T5 Biax Electronic Instant Start.

Total Harmonic Distortion < 10%

(4)

ER5 =T5 Biax Electronic Program Rapid Start.

Total Harmonic Distortion < 10%

High Performance T8 Ballasts
HB8

=T8 Electronic Instant Start.

Total Harmonic Distortion < 10%.
Standard Ballast Factor .86 – .88

HB8

L=T8 Electronic Instant Start.

Total Harmonic Distortion < 10%.
Low Ballast Factor .77 – .82

HB8

N=T8 Electronic Instant Start.

Total Harmonic Distortion < 10%.
Normal Ballast Factor 1.0

HB8

H=T8 Electronic Instant Start.

Total Harmonic Distortion < 10%.
High Ballast Factor 1.15 – 1.20

HR8

T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%.
Standard Ballast Factor .86 – .88

HR8

DIM=T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%.
Step Dimming. Ballast Factor .88

HR8

L=T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%.
Low Ballast Factor .71 – .79

HR8

H=T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%.
High Ballast Factor 1.15 – 1.20

0-10V Dimming Ballasts

(6)

5LTV8 =T8 0-10V Program Rapid Start.

Total Harmonic Distortion < 10%.
Ballast Factor 0.87

(10), (11), (12)

5LTVS8 =T8 0-10V Spec Grade Program Rapid Start.

Total Harmonic Distortion < 10%.
Ballast Factor 0.87

(7), (8), (9)

Fifth Light DALI Ballasts

(5)

5LT8 =T8 DALI Program Rapid Start.

Total Harmonic Distortion < 10%.
Ballast Factor 1.0

5LT5B

=T5 Biax DALI Program Rapid Start.

Total Harmonic Distortion < 10%.
Ballast Factor 1.0

Number of Ballasts
1=1 Ballast
2=2 Ballasts
3=3 Ballasts
