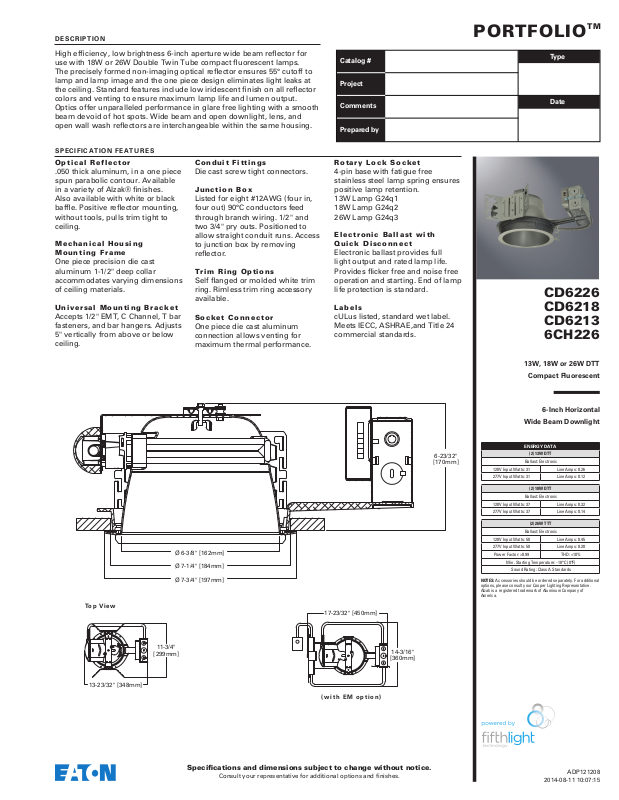

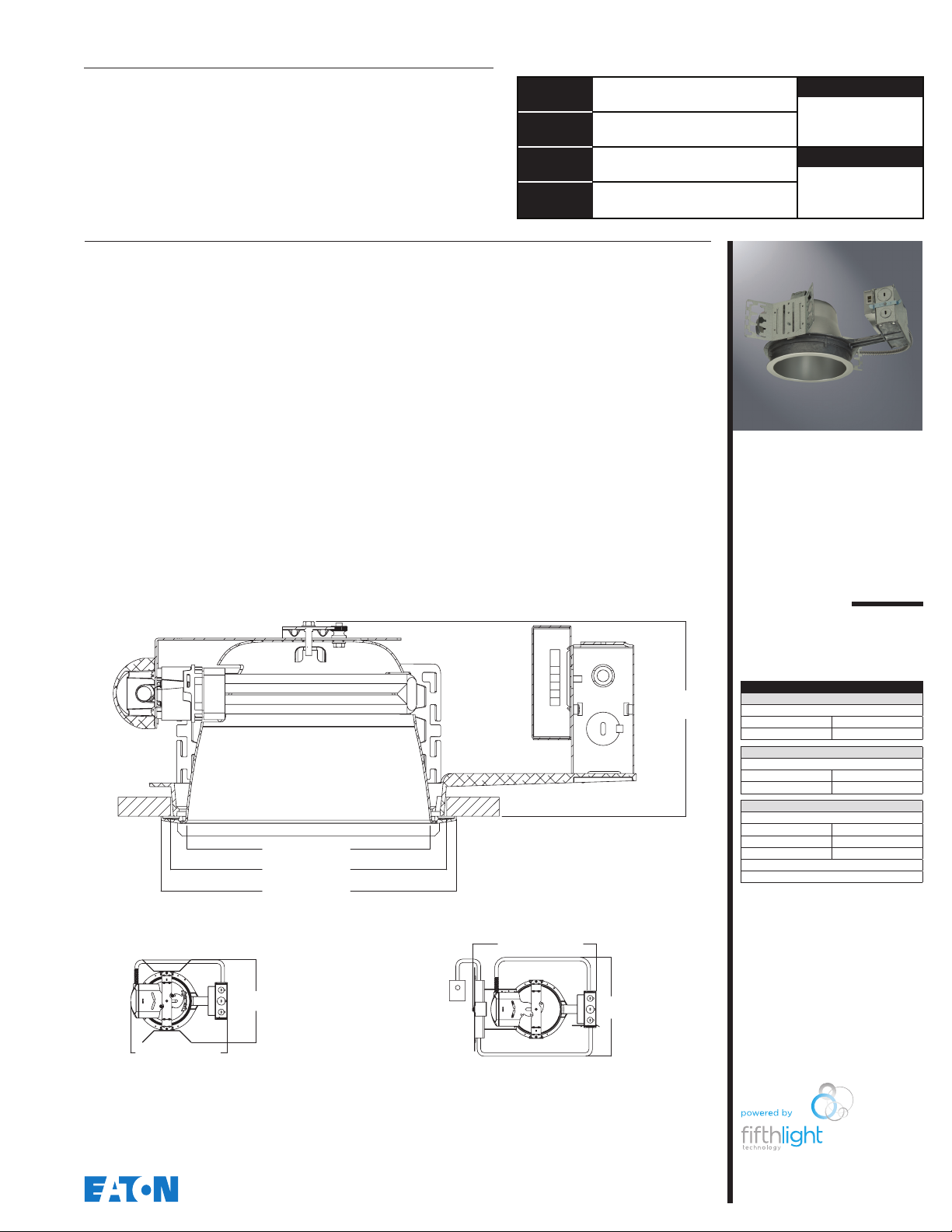

Page 1
DESCRIPTION
70mm]
(with EM option)
High efficiency, low brightness 6-inch aperture wide beam reflector for
use with 18W or 26W Double Twin Tube compact fluorescent lamps.
The precisely formed non-imaging optical reflector ensures 55° cutoff to
lamp and lamp image and the one piece design eliminates light leaks at
the ceiling. Standard features include low iridescent finish on all reflector
colors and venting to ensure maximum lamp life and lumen output.
Optics offer unparalleled performance in glare free lighting with a smooth
beam devoid of hot spots. Wide beam and open downlight, lens, and
open wall wash reflectors are interchangeable within the same housing.
SPECIFICATION FEATURES
Optical Reflector
.050 thick aluminum, in a one piece
Conduit Fittings
Die cast screw tight connectors.
spun parabolic contour. Available
in a variety of Alzak® finishes.
Also available with white or black
baffle. Positive reflector mounting,
without tools, pulls trim tight to
ceiling.
Junction Box
Listed for eight #12AWG (four in,
four out) 90°C conductors feed
through branch wiring. 1/2" and
two 3/4" pry outs. Positioned to
allow straight conduit runs. Access
Mechanical Housing
Mounting Frame
One piece precision die cast
aluminum 1-1/2" deep collar
accommodates varying dimensions
of ceiling materials.
to junction box by removing
reflector.
Trim Ring Options
Self flanged or molded white trim
ring. Rimless trim ring accessory
available.
Universal Mounting Bracket
Accepts 1/2" EMT, C Channel, T bar
fasteners, and bar hangers. Adjusts
5" vertically from above or below
ceiling.
Socket Connector
One piece die cast aluminum
connection allows venting for
maximum thermal performance.
Catalog #
Project
Comments
Prepared by
Rotary Lock Socket
4-pin base with fatigue free
stainless steel lamp spring ensures
positive lamp retention.
13W Lamp G24q1
18W Lamp G24q2
26W Lamp G24q3
Electronic Ballast with
Quick Disconnect
Electronic ballast provides full
light output and rated lamp life.
Provides flicker free and noise free
operation and starting. End of lamp
life protection is standard.
Labels
cULus listed, standard wet label.
Meets IECC, ASHRAE,and Title 24
commercial standards.
PORTFOLIO
Type
Date
CD6226
CD6218
CD6213
6CH226
TM
Top View
11-3/4"
[299mm]
Ø 6-3/8" [162mm]
Ø 7-1/4" [184mm]
Ø 7-3/4" [197mm]
17-23/32" [450mm]
14-3/16"
[360mm]
6-23/32"
[1
13W, 18W or 26W DTT
Compact Fluorescent
STEPREPEAT>
6-Inch Horizontal
Wide Beam Downlight
ENERGY DATA
(2) 13W DTT
120V Input Watts: 31 Line Amps: 0.26
277V Input Watts: 31 Line Amps: 0.12
120V Input Watts: 37 Line Amps: 0.32
277V Input Watts: 37 Line Amps: 0.14
120V Input Watts: 50 Line Amps: 0.45
277V Input Watts: 50 Line Amps: 0.20
Power Factor: >0.99 THD: <10%
NOTES: Accessories should be ordered separately. For additional
options, please consult your Cooper Lighting Representative.
Alzak is a registered trademark of Aluminum Company of
America.
Ballast: Electronic
(2) 18W DTT
Ballast: Electronic
(2) 26W TTT
Ballast: Electronic
Min. Starting Temperature: -18°C (0°F)
Sound Rating: Class A Standards
13-23/32" [348mm]
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
ADP121208
2014-08-11 10:07:15
Page 2

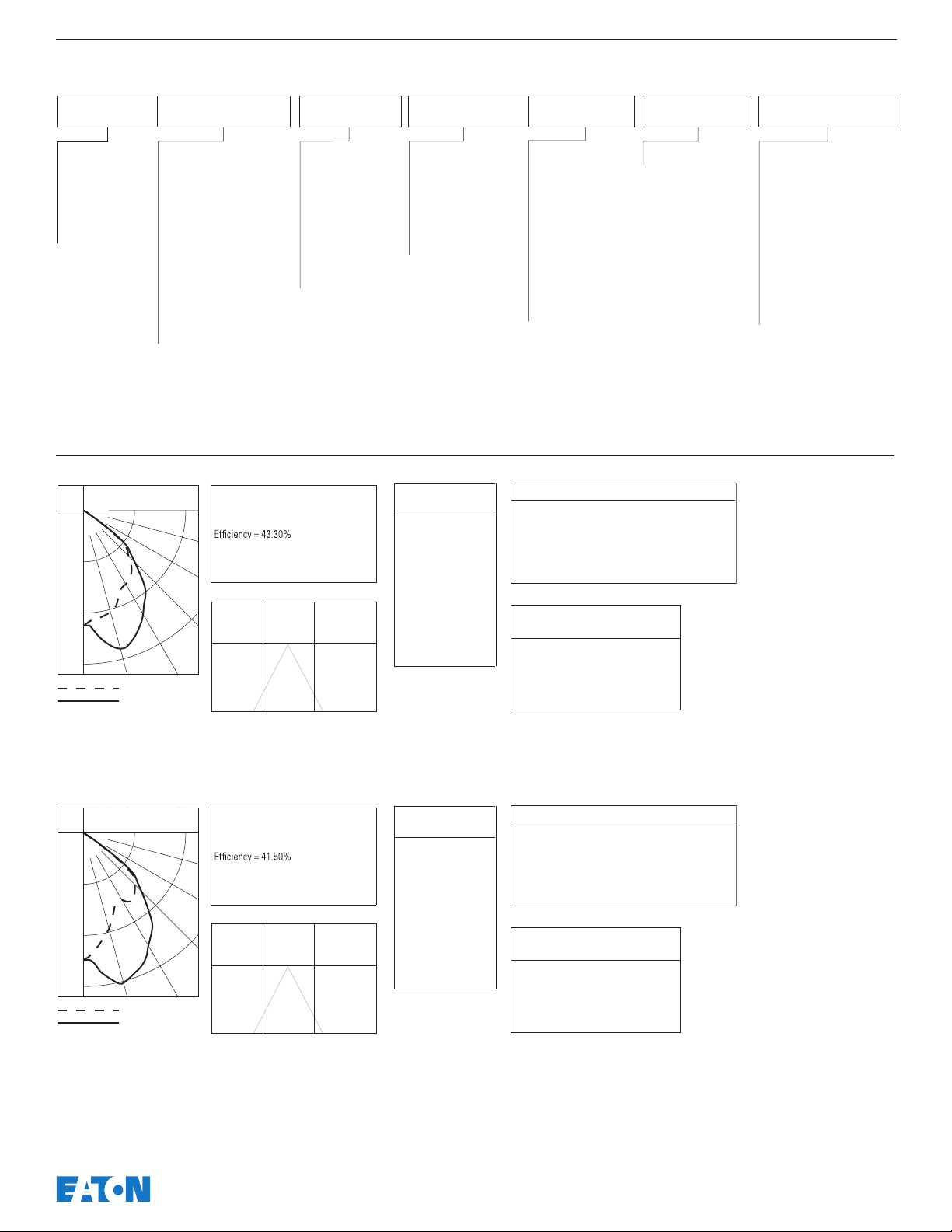

EXAMPLE
ORDERING INFORMATION
Candela Distribution
Zonal Lumen Summary
Candlepower
Candlepower
: CD6226E 6CH226W1LI
Housing
Ballast
Options Trims Finish Option
CD6226 CD6218 CD6213 6CH226
Accessories
CD6226=6"
Horizontal 2-lamp
26W DTT
CD6218=6"
horizontal 2-lamp
18W DTT
CD6213=6"
horizontal 2-lamp
13W DTT
Notes: 1 Order trim with polymer trim ring. 2 Not available with Chicago Plenum.
3 Not available with 13W.
(Consult specification sheet for ordering information and options).
E=120/277V 50/60
Hz Electronic
3E=347V 50/60 Hz
Electronic
D5LT=18 or 26W 120-277V
Fifth Light (DALI) Dimming 3
3D5LT=26W 347V Fifth
Light (DALI) Dimming 3
D=120-277V Dimming,
Lutron EcoSystem/3-Wire
Control (Factory Wired for
3-Wire) 3
DMARKVII=18W or 26W
120-277V Advance MARK 7
1DMARKX=18W or 26W
120V Advance MARK 10
2DMARKX=18W or 26W
277V Advance MARK 10
CP=Chicago Plenum
EM=Emergency
Module with remote
test switch 2
IEM=Emergency
Module with Integral
Test Switch 2
2C=(2) ballasts for
HI-Low switching
2CMS=2 circuit
master satellite (2
housings, order 2
trims)
PHOTOMETRICS
Distribution Curve
Downlight
300
Test No. P13404
CD6226E 6CH226W1LI
90˚
Lumens = 3400
75˚
Lamp = 26W DTT
SC = 1.10 - 1.44
60˚
Cone of Light
600
900
0°
90°
Distance
Fixture to
45˚
Lighted Plane
5.5'
7.5'
30°15°0°
8'
10'
12'
Initial
Footcandles
at Nadir
25
14
12
8
5
L / W
7'
6.2'
9.6'
8.5'
10.2'
9.2'
12.8'
11.4'
15.4'
13.7'
6CH2261=6" reflector
self flanged
6CH2260=6" reflector
polymer trim ring
6CH2261E=6" reflector
self flanged, for integral
emergency
6CH2260E=6" reflector
polymer trim ring, for
integral emergency
Degrees Candela
Vertical
0 669
5 638
15 612
25 508
35 469
45 367
55 118
65 10
75 1
85 3
90 0
Alzak® Finishes
LI=Specular Clear
H=Semi-Specular Clear
WMH=Warm Haze
G=Gold
WH=Wheat
WHH=Wheat Haze
GP=Graphite
GPH=Graphite Haze
B=Black
Painted Finishes
W=Gloss White
WB=White Baffle (polymer
trim ring only)
BB=Black Baffle (polymer
trim ring only)
WF=White Painted
Flange
Zone Lumens %Fixture
0-30 612 41.6
0-40 993 67.5
0-60 1457 99.1
0-90 1471 100.0
90-180 0 0.0
0-180 1471 100.0
Luminance
Average Candela/M
2
Degrees Avg. 0° Luminance
45 25195
55 9987
65 1149
75 188
85 1671
HB26=C Channel Bar
Hangers, 26" Long, Pair
HB50=C Channel Bar
Hangers, 50" Long, Pair
TRMC6P=White Metal
Trim Ring 1
TRRC6=Rimless Trim Ring,
White 1
FK5=5 Amp Field Installable
Fuse Kit 300V Max
RMB22=Wood Joist Bar
Hanger, 22" Long, Pair
HSAC6=Slope Adapter for 6"
Aperture Housings, Specify
Slope
TRMC6=CFL Metal Trim Ring 1
180
360
540
Distribution Curve
Downlight
90˚
75˚
60˚
45˚
30°15°0°
0°
90°
Zonal Lumen Summary
Zone Lumens %Fixture
0-30 400 40.2
0-40 660 66.3
0-60 984 98.9
0-90 995 100.0
90-180 0 0.0
0-180 995 100.0
Luminance
Average Candela/M
2
Degrees Avg. 0° Luminance
45 17506
55 6432
65 689
75 375
85 0
Test No. P13405
CD621E 6CH226W1LI
Lumens = 2400
Lamp = 1W DTT
SC = .4 - 1.44
Cone of Light
Distance
Fixture to
Lighted Plane
5.5'
7.5'
8'
10'
12'
Initial
Footcandles
at Nadir
18
10
8
5
4
5.8'
7.9'
8.4'
10.5'
12.6'
Candela Distribution
Degrees Candela
Vertical
0 444
5 410
15 347
25 271
35 291
45 255
55 76
9.6'
7'
65 6
75 2
85 0
90 0
L / W
10.2'
12.8'
15.4'
Specifications and dimensions subject to change without notice.
Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX 770 468.4801
ADP121208
2014-08-11 10:07:15
