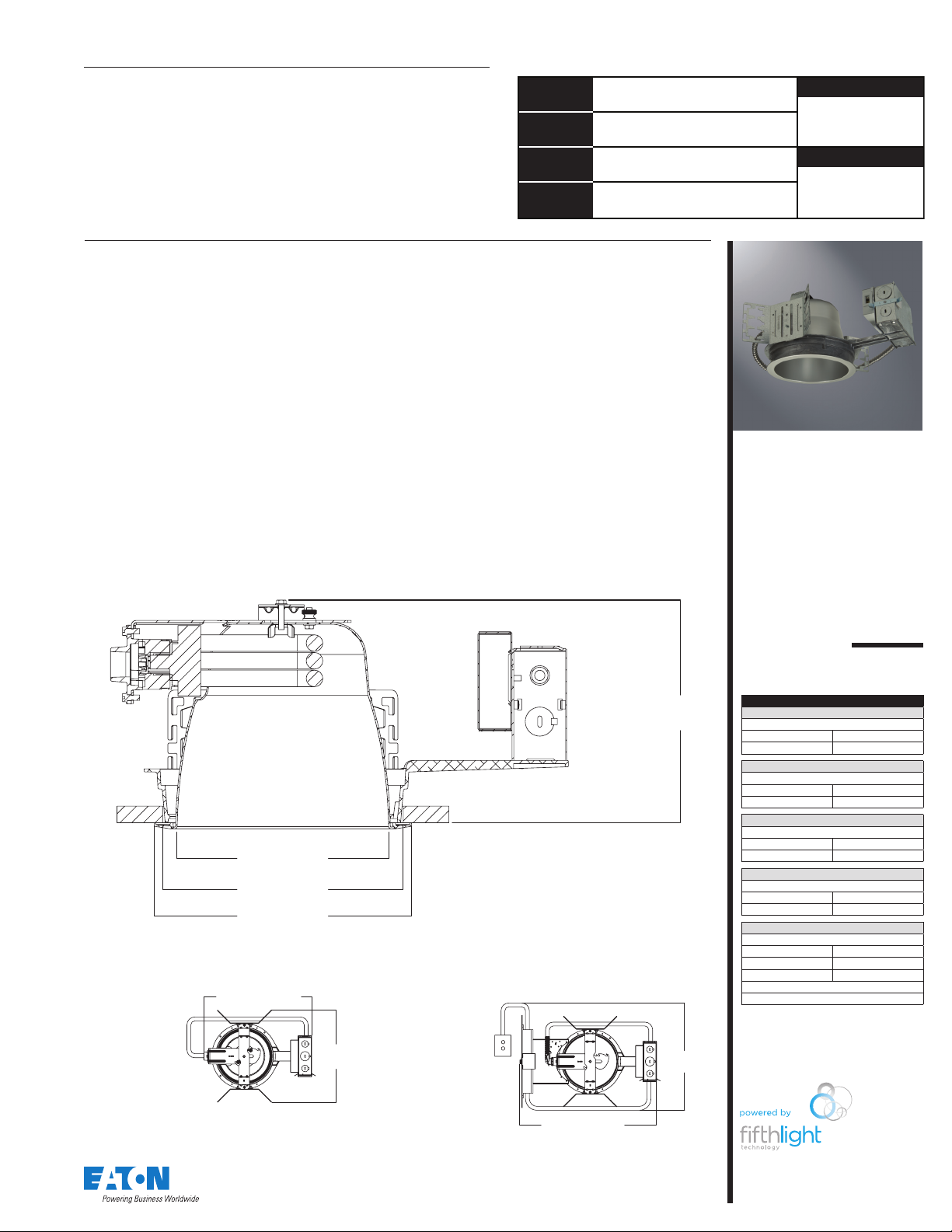

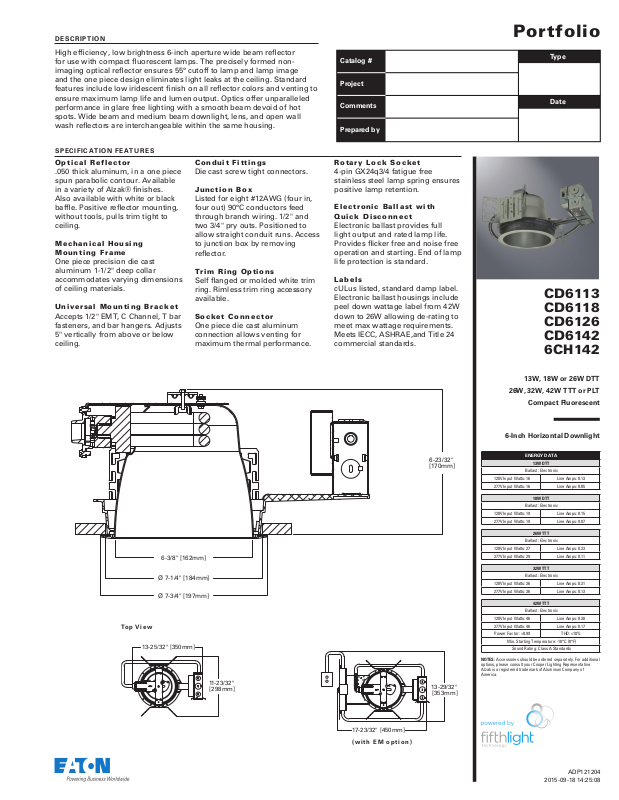

Page 1
DESCRIPTION
(with EM option)
High efficiency, low brightness 6-inch aperture wide beam reflector
for use with compact fluorescent lamps. The precisely formed nonimaging optical reflector ensures 55° cutoff to lamp and lamp image
and the one piece design eliminates light leaks at the ceiling. Standard
features include low iridescent finish on all reflector colors and venting to
ensure maximum lamp life and lumen output. Optics offer unparalleled
performance in glare free lighting with a smooth beam devoid of hot
spots. Wide beam and medium beam downlight, lens, and open wall
wash reflectors are interchangeable within the same housing.
SPECIFICATION FEATURES
Optical Reflector
.050 thick aluminum, in a one piece
Conduit Fittings
Die cast screw tight connectors.
spun parabolic contour. Available
in a variety of Alzak® finishes.
Also available with white or black
baffle. Positive reflector mounting,
without tools, pulls trim tight to
ceiling.
Junction Box
Listed for eight #12AWG (four in,
four out) 90°C conductors feed
through branch wiring. 1/2" and
two 3/4" pry outs. Positioned to
allow straight conduit runs. Access
Mechanical Housing
Mounting Frame
One piece precision die cast
aluminum 1-1/2" deep collar
accommodates varying dimensions
of ceiling materials.
to junction box by removing
reflector.
Trim Ring Options
Self flanged or molded white trim
ring. Rimless trim ring accessory
available.
Universal Mounting Bracket
Accepts 1/2" EMT, C Channel, T bar
fasteners, and bar hangers. Adjusts
5" vertically from above or below
ceiling.
Socket Connector
One piece die cast aluminum
connection allows venting for
maximum thermal performance.
Catalog #
Project
Comments
Prepared by
Rotary Lock Socket
4-pin GX24q3/4 fatigue free
stainless steel lamp spring ensures
positive lamp retention.
Electronic Ballast with
Quick Disconnect
Electronic ballast provides full
light output and rated lamp life.
Provides flicker free and noise free
operation and starting. End of lamp
life protection is standard.
Labels
cULus listed, standard damp label.
Electronic ballast housings include
peel down wattage label from 42W
down to 26W allowing de-rating to
meet max wattage requirements.
Meets IECC, ASHRAE,and Title 24
commercial standards.
Portfolio
Type
Date
CD6113
CD6118
CD6126
CD6142
6CH142
To p View
13-25/32" [350mm]
6-3/8" [162mm]
Ø 7-1/4" [184mm]
Ø 7-3/4" [197mm]
11-23/32"
[298mm]
6-23/32"
[170mm]
13-29/32"
[353mm]
13W, 18W or 26W DTT
26W, 32W, 42W TTT or PLT
Compact Fluorescent
STEPREPEAT>
6-Inch Horizontal Downlight
ENERGY DATA
13W DTT
120V Input Watts: 16 Line Amps: 0.13
277V Input Watts: 16 Line Amps: 0.05
120V Input Watts: 19 Line Amps: 0.15
277V Input Watts: 19 Line Amps: 0.07
120V Input Watts: 27 Line Amps: 0.23
277V Input Watts: 29 Line Amps: 0.11
120V Input Watts: 36 Line Amps: 0.31
277V Input Watts: 36 Line Amps: 0.13
120V Input Watts: 46 Line Amps: 0.38
277V Input Watts: 46 Line Amps: 0.17
Power Factor: >0.99 THD: <10%
NOTES: Accessories should be ordered separately. For additional
options, please consult your Cooper Lighting Representative.
Alzak is a registered trademark of Aluminum Company of
America.
Ballast: Electronic
18W DTT
Ballast: Electronic
26W TTT
Ballast: Electronic
32W TTT
Ballast: Electronic
42W TTT
Ballast: Electronic
Min. Starting Temperature: -18°C (0°F)
Sound Rating: Class A Standards
17-23/32" [450mm]
ADP121204
2015-09-18 14:25:08

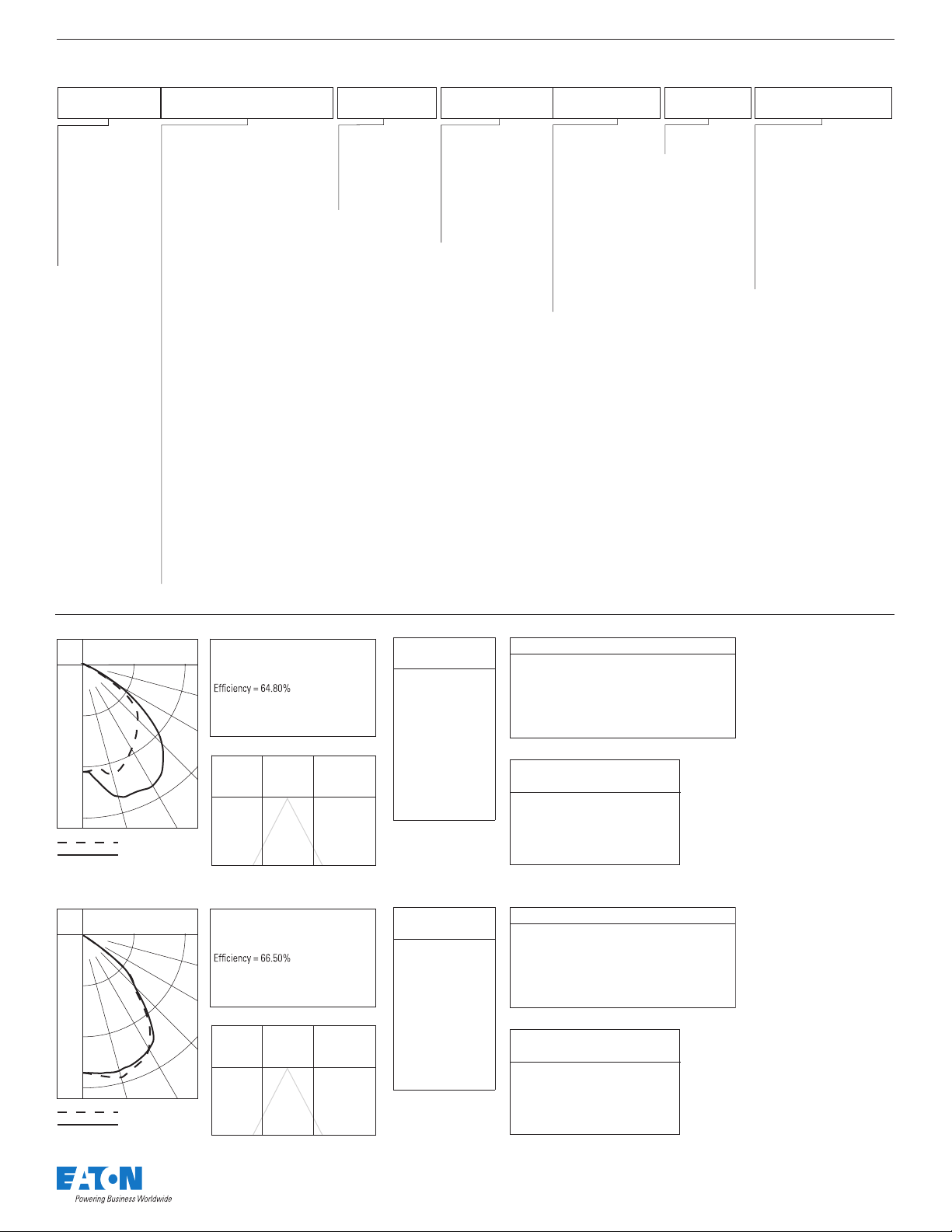

Page 2
EXAMPLE: CD6142E 6CH1421LI
1
ORDERING INFORMATION
Candela Distribution
Zonal Lumen Summary
Candlepower
Candlepower
CD6113 CD6118 CD6126 CD6142 6CH142
Housing
CD6142=6"
Horizontal 26/32/42W
TTT Lamp
CD6126=6"
Horizontal 26W DTT
Lamp
CD6118=6"
Horizontal 18W DTT
Lamp=6"
CD6113
Horizontal 13W DTT
Lamp
PHOTOMETRICS
Distribution Curve
Downlight
250
500
750
0°
90°
Ballast
E=120/277V 50/60 Hz Electronic
3E=347V 50/60 Hz Electronic
EDR26=26W Derated label electronic
EDR32=32W Derated label electronic
D5LT=18 or 26W 120-277V Fifth Light
(DALI) Dimmingfor (CD6118 or
CD6126 only)
D5LT42=42W 120-277V Fifth Light
(DALI) Dimming
D5LT32=32W 120-277V Fifth Light
(DALI) Dimming (CD6142 only)
D5LT26=26W 120-277V Fifth Light
(DALI) Dimming (CD6142 only)
3D5LT32=32W 347V Fifth Light
(DALI) Dimming (CD6142 only)
3D5LT26=26W 347V Fifth Light
(DALI) Dimming (CD6142 only)
3D5LT=26W 347V Fifth Light
(DALI) Dimming for (CD6126 only)
D42=42W 120-277V Dimming,
Lutron EcoSystem/3-Wire
Control (Factory Wired for 3-Wire)
D26/32=26 or 32W 120-277V
Dimming, Lutron EcoSystem/3-Wire
Control (Factory Wired for 3-Wire)
D=120-277V Dimming Lutron EcoSystem/
3-Wire Control (Factory Wired for 3-Wire)
D26MARKVII=26W 120-277V Advance MARK7
D32MARKVII=32W 120-277V Advance MARK7
D42MARKVII=42W 120-277V Advance MARK7
DMARKVII=18W or 26W 120-277V Advance MARK 7
(CD6118 or CD6126 only)
1D26MARKX=26W 120V Advance MARK 10
1D32MARKX=32W 120V Advance MARK 10
1D42MARKX=42W 120V Advance MARK 10
2D26MARKX=26W 277V Advance MARK 10
2D32MARKX=32W 277V Advance MARK 10
2D422MARKX=42W 277V Advance MARK 10
1DMARKX=18W or 26W 120V Advance MARK 10 (CD6118 or CD6126 only)
2DMARKX=18W or 26W 277V Advance MARK 10 (CD6118 or CD6126 only)
Test No. P13391
CD6142E 6CH1421LI
90˚
Lumens = 2400
75˚
Lamp = 32W PLT
SC (parallel - perpendicular) = 1.46 - 1.71
60˚
Cone of Light
Distance
Fixture to
45˚
Lighted Plane
5.5'
7.5'
30°15°0°
8'
10'
12'
Initial
Footcandles
at NadirL / W
20
7.1'
11
9.8'
10
10.4'
6
13.1'
4
15.7'
Options Trims Finish Option
CP=Chicago Plenum
EM=Emergency
Module with remote
test switch 2
IEM=Emergency
Module with Integral
test switch 2
6CH1421=6" Reflector
Self Flanged
6CH1420=6" Reflector
Polymer Trim Ring
6CH1421E=6" Reflector
Self Flanged,
for Integral Emergency
6CH1420E=6" Reflector
Polymer Trim Ring, for
Integral Emergency
Degrees Candela
Vertical
0 524
5 518
15 552
25 513
35 443
45 377
55 247
65 27
75 0
85 1
8.6'
90 0
11.8'
12.6'
15.6'
18.8'
Accessories
Alzak® Finishes
LI=Specular Clear
H=Semi-Specular Clear
WMH=Warm Haze
G=Gold
WH=Wheat
WHH=Wheat Haze
GP=Graphite
GPH=Graphite Haze
B=Black
Painted Finishes
W=Gloss White
WB=White Baffle (polymer
trim ring only)
BB=Black Baffle (polymer
trim ring only)
Notes: 1 Order trim with polymer trim ring. 2 Not available with Chicago Plenum.
(Consult specification sheet for ordering information and options).
WF=White Painted
Flange
HB26=C Channel Bar
Hangers, 26" Long, Pair
HB50=C Channel Bar
Hangers, 50" Long, Pair
TRRC6=Rimless Trim Ring,
White 1
FK5=5 Amp Field Installable
Fuse Kit 300V Max
RMB22=Wood Joist Bar
Hanger, 22" Long, Pair
HSAC6=Slope Adapter for 6"
Aperture Housings, Specify
Slope
TRMC6=CFL Metal Trim Ring
Zone Lumens %Fixture
0-30 516 33.2
0-40 881 56.6
0-60 1506 96.8
0-90 1556 100.0
90-180 0 0.0
0-180 1556 100.0
Luminance
Average Candela/M
2
Degrees Avg. 0° Luminance
45 25881
55 20904
65 3101
75 0
85 557
300
600
900
Distribution Curve
Downlight
90˚
75˚
60˚
45˚
30°15°0°
0°
90°
Test No. P13384
CD6142E 6CH1421LI
Lumens = 2400
Lamp = 32W TTT
SC (parallel - perpendicular) = 1.29 - 1.39
Cone of Light
Distance
Fixture to
Lighted Plane
5.5'
7.5'
8'
10'
12'
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Initial
Footcandles
at NadirL / W
27
6.9'
14
9.6'
13
10.2'
8
12.8'
6
15.4'
7.6'
10.2'
13.8'
16.6'
Specifications and
dimensions subject to
change without notice.
Candela Distribution
Degrees Candela
Vertical
0 802
5 817
15 859
25 812
35 686
45 427
55 154
65 9
75 2
85 1
90 0
11'
Zonal Lumen Summary
Zone Lumens %Fixture
0-30 673 42.1
0-40 1095 68..6
0-60 1583 99.1
0-90 1596 100.0
90-180 0 0.0
0-180 1596 100.0
Luminance
Average Candela/M
2
Degrees Avg. 0° Luminance
45 29314
55 13033
65 1034
75 375
85 557
ADP121204
2015-09-18 14:25:08
