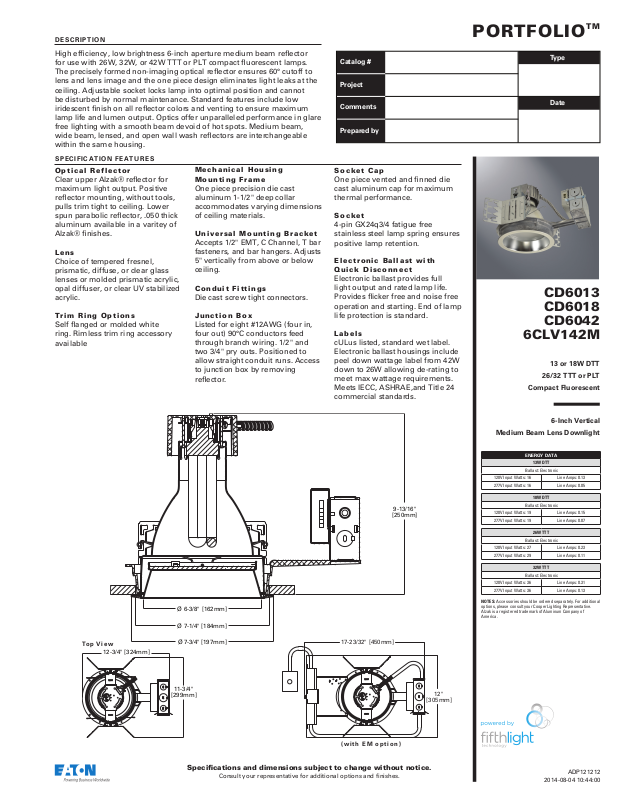

Page 1
DESCRIPTION
High efficiency, low brightness 6-inch aperture medium beam reflector
for use with 26W, 32W, or 42W TTT or PLT compact fluorescent lamps.
The precisely formed non-imaging optical reflector ensures 60° cutoff to
lens and lens image and the one piece design eliminates light leaks at the
ceiling. Adjustable socket locks lamp into optimal position and cannot
be disturbed by normal maintenance. Standard features include low
iridescent finish on all reflector colors and venting to ensure maximum
lamp life and lumen output. Optics offer unparalleled performance in glare
free lighting with a smooth beam devoid of hot spots. Medium beam,
wide beam, lensed, and open wall wash reflectors are interchangeable
within the same housing.
SPECIFICATION FEATURES
Optical Reflector
Clear upper Alzak® reflector for
maximum light output. Positive
reflector mounting, without tools,
pulls trim tight to ceiling. Lower
spun parabolic reflector, .050 thick
Mechanical Housing
Mounting Frame
One piece precision die cast
aluminum 1-1/2" deep collar
accommodates varying dimensions
of ceiling materials.
aluminum available in a varitey of
Alzak® finishes.
Universal Mounting Bracket
Accepts 1/2" EMT, C Channel, T bar
Lens
Choice of tempered fresnel,
prismatic, diffuse, or clear glass
fasteners, and bar hangers. Adjusts
5" vertically from above or below
ceiling.
lenses or molded prismatic acrylic,
opal diffuser, or clear UV stabilized
acrylic.
Trim Ring Options
Self flanged or molded white
ring. Rimless trim ring accessory
available
Conduit Fittings
Die cast screw tight connectors.
Junction Box
Listed for eight #12AWG (four in,
four out) 90°C conductors feed
through branch wiring. 1/2" and
two 3/4" pry outs. Positioned to
allow straight conduit runs. Access
to junction box by removing
reflector.
Catalog #
Project
Comments
Prepared by
Socket Cap
One piece vented and finned die
cast aluminum cap for maximum
thermal performance.
Socket
4-pin GX24q3/4 fatigue free
stainless steel lamp spring ensures
positive lamp retention.
Electronic Ballast with
Quick Disconnect
Electronic ballast provides full
light output and rated lamp life.
Provides flicker free and noise free
operation and starting. End of lamp
life protection is standard.
Labels
cULus listed, standard wet label.
Electronic ballast housings include
peel down wattage label from 42W
down to 26W allowing de-rating to
meet max wattage requirements.
Meets IECC, ASHRAE,and Title 24
commercial standards.
PORTFOLIO
Type
Date
CD6013
CD6018
CD6042
6CLV142M
13 or 18W DTT
26/32 TTT or PLT
Compact Fluorescent
STEPREPEAT>
6-Inch Vertical
Medium Beam Lens Downlight
TM

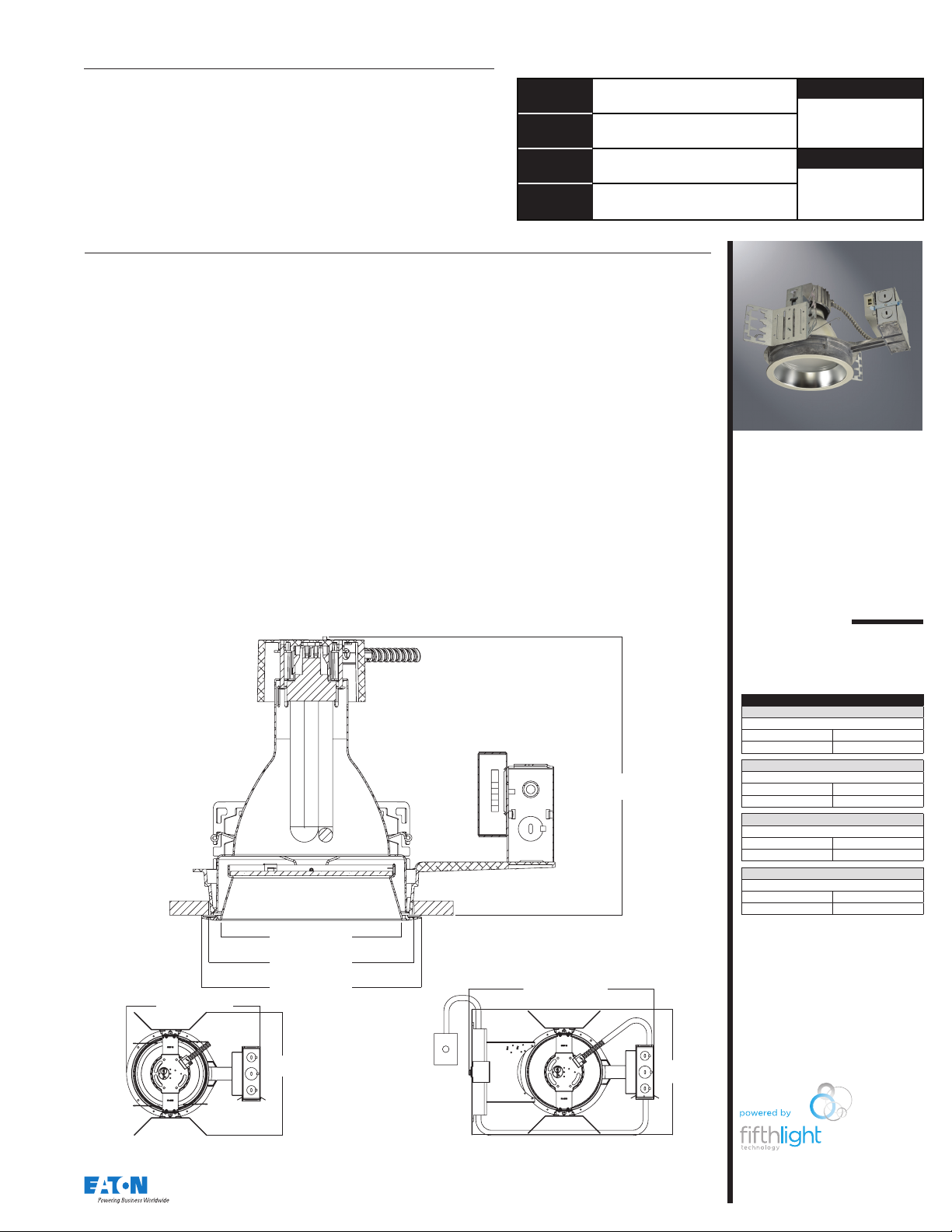

Top View
12-3/4" [324mm]
Ø 6-3/8" [162mm]
Ø 7-1/4" [184mm]
Ø 7-3/4" [197mm]
11-3/4"
[299mm]
[250mm]
17-23/32" [450mm]
(with EM option)
9-13/16"
12"
[305mm]
ENERGY DATA
13W DTT
120V Input Watts: 16 Line Amps: 0.13
277V Input Watts: 16 Line Amps: 0.05
120V Input Watts: 19 Line Amps: 0.15
277V Input Watts: 19 Line Amps: 0.07
120V Input Watts: 27 Line Amps: 0.23
277V Input Watts: 29 Line Amps: 0.11
120V Input Watts: 36 Line Amps: 0.31
277V Input Watts: 36 Line Amps: 0.13
NOTES: Accessories should be ordered separately. For additional
options, please consult your Cooper Lighting Representative.
Alzak is a registered trademark of Aluminum Company of
America.
Ballast: Electronic
18W DTT
Ballast: Electronic
26W TTT
Ballast: Electronic
32W TTT
Ballast: Electronic
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
ADP121212
2014-08-04 10:44:00

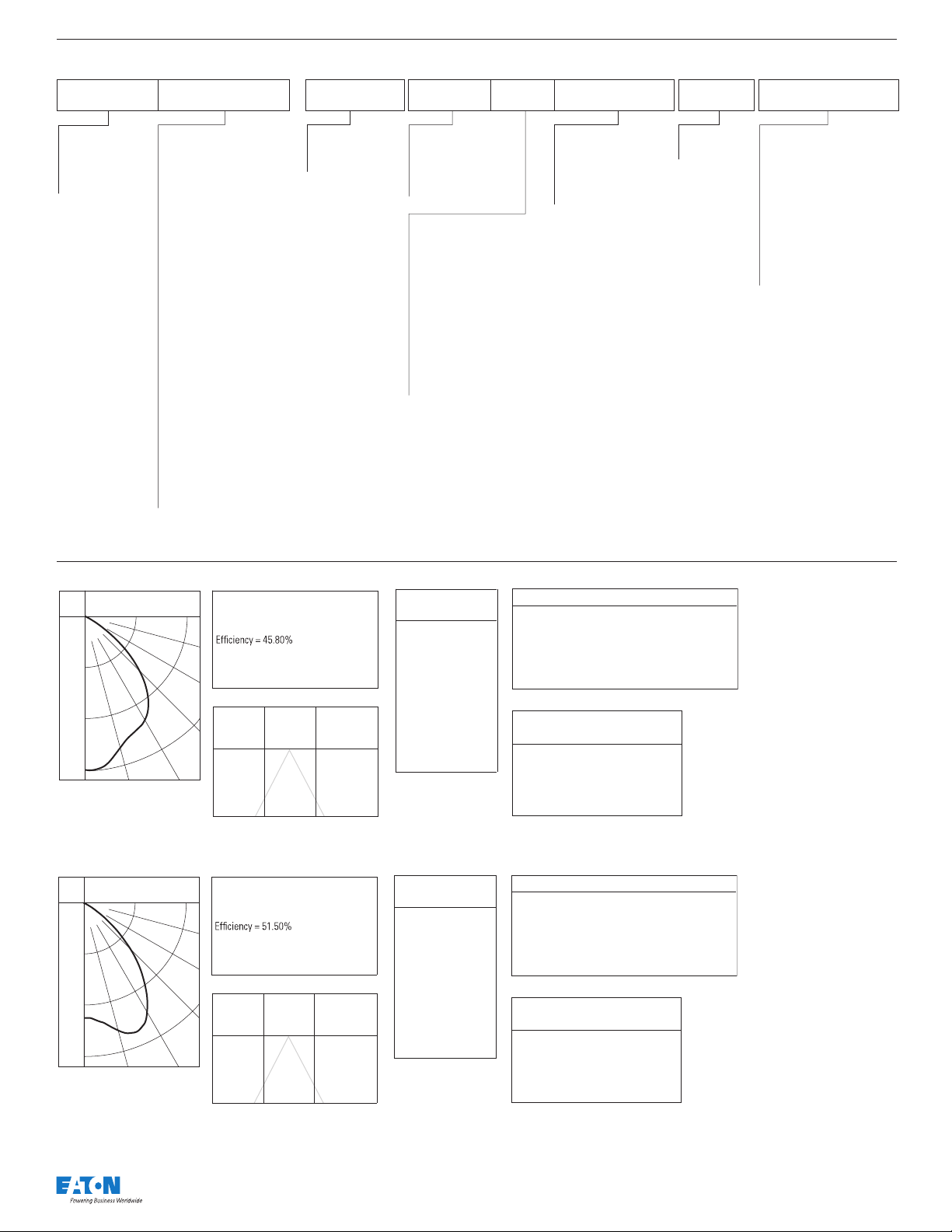

Page 2
Zonal Lumen Summary
ORDERING INFORMATION
EXAMPLE: CD6042E 6CLV042M1LI
Housing
Ballast
OptionsTrims Finish
Lens
CD6013 CD6018 CD6042 6CLV142M
Option
Accessories
CD6013=6" vertical
13W DTT lamp
CD6018=6" vertical
18W DTT lamp
CD6042=6" vertical
26/32/42 TTT lamp
E=120/277V 50/60 Hz Electronic
3E=347V 50/60 Hz Electronic
EDR26=26W Derated label
electronic
EDR32=32W Derated label
electronic
D5LT=18W 120-277V Fifth
Light (DALI Dimming) (CD6018 only)
D5LT32=32W 120-277V
Fifth Light (DALI) Dimming
D5LT26=26W 120-277V
Fifth Light (DALI) Dimming
3D5LT32=32W 347V Fifth
Light (DALI) Dimming
3D5LT26=26W 347V Fifth
Light (DALI) Dimming
D26/32=26W or 32W
120-277V Dimming, Lutron EcoSystem/
3-Wire Control (Factory Wired for 3-Wire)
D=120-277V Dimming Lutron EcoSystem/
3-Wire Control (Factory Wired for 3-Wire)
D26MARKVII=26W 120-277V Advance MARK7
D32MARKVII=32W 120-277V Advance MARK7
D42MARKVII=42W 120-277V Advance MARK7
DMARKVII=18W 120-277V Advance MARK 7
(CD6018 only)
1D26MARKX=26W 120V Advance MARK 10
1D32MARKX=32W 120V Advance MARK 10
1D42MARKX=42W 120V Advance MARK 10
2D26MARKX=26W 277V Advance MARK 10
2D32MARKX=32W 277V Advance MARK 10
2D422MARKX=42W 277V Advance MARK 10
1DMARKX=18W 120V Advance MARK 10 (CD6018 only)
2DMARKX=18W 277V Advance MARK 10 (CD6018 only)
PHOTOMETRICS
Candlepower Distribution Curve
Downlight
90˚
75˚
210
60˚
420
45˚
630
30°15°0°
Test No. P13346
CD6042E 6CLV142M1LI1
Lumens = 2400
Lamp = 32W TTT
Cone of Light
Distance
Fixture to
Lighted Plane
5.5'
7.5'
8'
10'
12'
Initial
Footcandles
at NadirL / W
21
11
10
6
4
CP=Chicago Plenum
EM=Emergency
Module with remote
test switch 2
7'
7'
8.6'
8.6'
9.2'
9.2'
11.6'
11.6'
13.8'
13.8'
6CLV142M1=6" self
flanged medium beam
reflector
6CLV142M0=6" medium
beam reflector with
polymer trim ring
Alzak® Finishes
LI=Specular Clear
H= Semi-Specular Clear
WMH=Warm Haze
G=Gold
WH=Wheat
WHH=Wheat Haze
GP=Graphite
GPH=Graphite Haze
B=Black
Painted Finishes
W=Gloss White
WB=White Baffle (polymer
trim ring only)
BB=Black Baffle (polymer
trim ring only)
Candela Distribution
Degrees Candela
Vertical
0 627
5 624
15 555
25 507
35 450
45 314
55 127
65 7
75 1
85 0
90 0
1=Prismatic Acrylic Lens
2=Diffuse Acrylic Lens
3=Clear Acrylic Lens
1G=Prismatic Glass Lens
2G=Diffuse Glass Lens
3G=Clear Glass Lens
4G=Fresnel Glass Lens
Notes: 1 Order trim with polymer trim ring. 2 Not available with Chicago Plenum.
(Consult specification sheet for ordering information and options).
WF=White
Painted
Flange
HB26=C Channel Bar
Hangers, 26" Long, Pair
HB50=C Channel Bar
Hangers, 50" Long, Pair
TRRC6=Rimless Trim Ring,
White 1
FK5=5 Amp Field Installable
Fuse Kit 300V Max
RMB22=Wood Joist Bar
Hanger, 22" Long, Pair
HSAC6=Slope Adapter for 6"
Aperture Housings, Specify
Slope
TRMC6=CFL Metal Trim Ring 1
Zone Lumens %Fixture
0-30 450 41.0
0-40 730 66.5
0-60 1086 98.8
0-90 1099 100.0
90-180 0 0.0
0-180 1099 100.0
Luminance
Average Candela/M
2
Degrees Avg. 0° Luminance
45 21556
55 10748
65 804
75 188
85 0
Candlepower Distribution Curve
Downlight
90˚
75˚
250
60˚
500
45˚
750
30°15°0°
Zonal Lumen Summary
Zone Lumens %Fixture
0-30 542 43.9
0-40 871 70.5
0-60 1221 98.8
0-90 1235 100.0
90-180 0 0.0
0-180 1235 100.0
Luminance
Average Candela/M
2
Degrees Avg. 0° Luminance
45 22243
55 9648
65 689
75 188
85 557
Test No. P13348
CD6042E 6CLV142M1LI1
Lumens = 2400
Lamp = 32W TTT
Cone of Light
Distance
Fixture to
Lighted Plane
5.5'
7.5'
8'
10'
12'
Initial
Footcandles
at Nadir
19
10
9
6
4
7.6'
10.4'
11.2'
14'
16.8'
Candela Distribution
Degrees Candela
Vertical
0 558
5 567
15 640
25 664
35 528
45 324
55 114
L / W
7.6'
10.4'
11.2'
16.8'
65 6
75 1
85 1
90 0
14'
Specifications and dimensions subject to change without notice.
