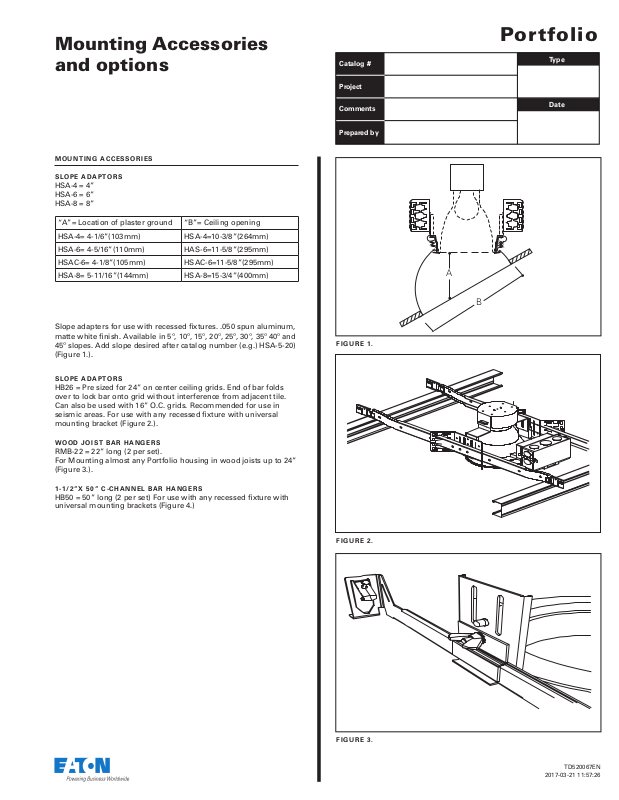

Page 1
Mounting Accessories
and options
Catalog #
Project
Portfolio
Type
MOUNTING ACCESSORIES
SLOPE ADAPTORS
HSA-4 = 4”
HSA-6 = 6”
HSA-8 = 8”
“A”= Location of plaster ground “B”= Ceiling opening
HSA-4= 4-1/6”(103mm) HSA-4=10-3/8”(264mm)
HSA-6= 4-5/16”(110mm) HAS-6=11-5/8”(295mm)
HSAC-6= 4-1/8”(105mm) HSAC-6=11-5/8”(295mm)
HSA-8= 5-11/16”(144mm) HSA-8=15-3/4”(400mm)

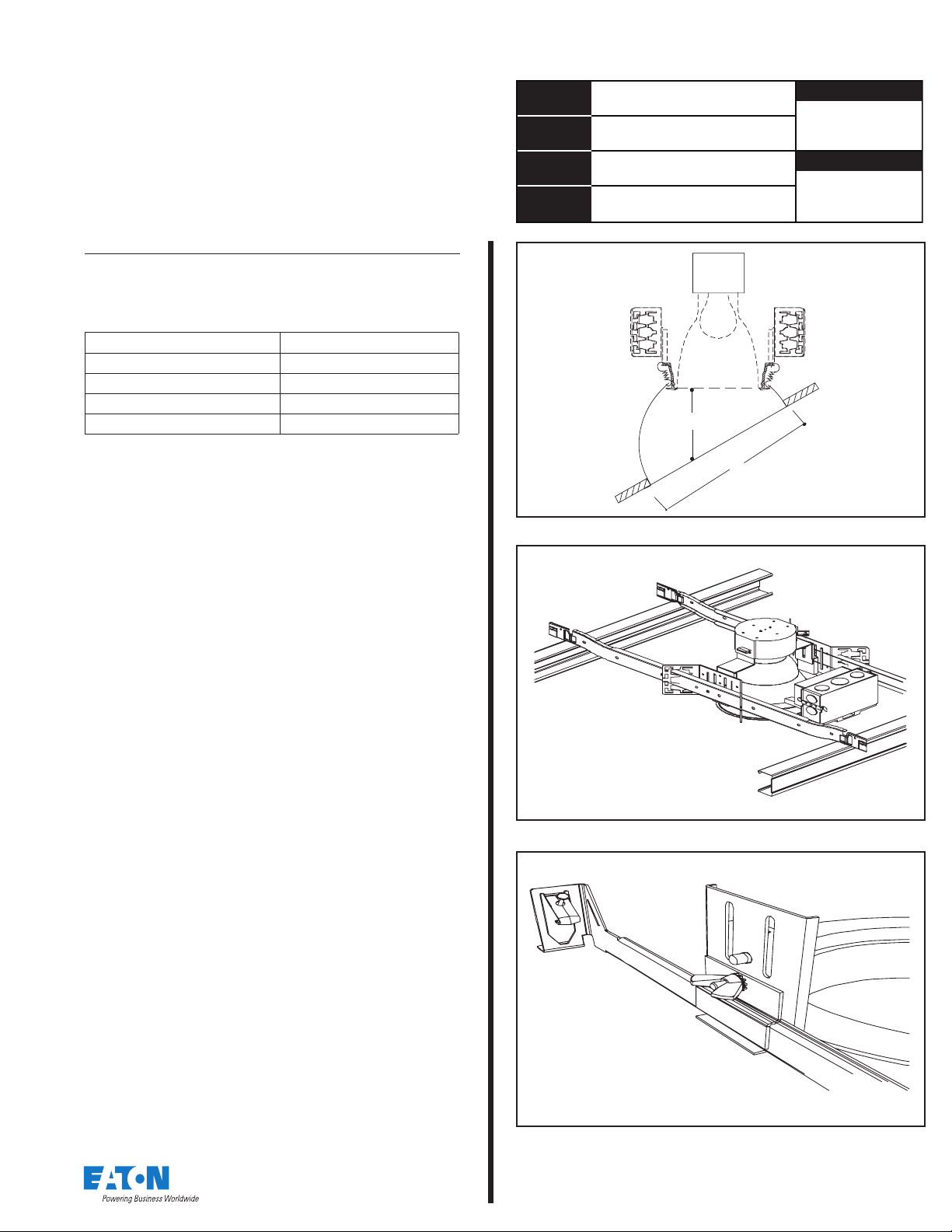

Slope adapters for use with recessed fixtures. .050 spun aluminum,
matte white finish. Available in 5º, 10º, 15º, 20º, 25º, 30º, 35º 40º and
45º slopes. Add slope desired after catalog number (e.g.) HSA-5-20)
(Figure 1.).
SLOPE ADAPTORS
HB26 = Pre sized for 24” on center ceiling grids. End of bar folds
over to lock bar onto grid without interference from adjacent tile.
Can also be used with 16” O.C. grids. Recommended for use in
seismic areas. For use with any recessed fixture with universal
mounting bracket (Figure 2.).
Comments
Prepared by
FIGURE 1.
Date
A
B
WOOD JOIST BAR HANGERS
RMB-22 = 22” long (2 per set).
For Mounting almost any Portfolio housing in wood joists up to 24”
(Figure 3.).
1-1/2”X 50” C-CHANNEL BAR HANGERS
HB50 = 50” long (2 per set) For use with any recessed fixture with
universal mounting brackets (Figure 4.)
FIGURE 2.
FIGURE 3.
TD520067EN
2017-03-21 11:57:26
Page 2
Aircraft Cable for 4, 6, and 8-inch Type
MOUNTING ACCESSORIES AND OPTIONS
AC120P=120" Aircraft Cable-White
AC48P=48" Aircraft Cable-White
AC120MB=120" Aircraft Cable-Black
AC48MB=48" Aircraft Cable-Black
3C=3 conductor for use with 120V 2-wire drivers
Blank=5 conductor for use with 0-10V dimming drivers
6C=6 conductor for use with DL3 3-wire dimming drivers
5C=5 conductor for use with D5LT drivers
1
1
1
1
SAMPLE NUMBER: P836MB6C = 36" pendant kit for use with DL3 drivers
Pendant Kits Finish Type (with notes) Length
P836=Pendant Kit for 6 and 8-inch cylinder, 36”
P436=Pendant Kit for 4-inch cylinder, 36”
P236=Pendant Kit for 2-inch round cylinder, 36”
PSQ236=Pendant Kit for 2-inch square surface mount
H836=Pendant Kit for incandescent cylinders
C836=Pendant Kit for compact fluorescent cylinders
P=White
BZ=Bronze
MB=Matte Black
SL=Silver
3C=3 conductor for use with 120V 2-wire drivers
Blank=5 conductor for use with 0-10V dimming drivers
6C=6 conductor for use with DL3 3-wire dimming drivers
5C=5 conductor for use with D5LT drivers
DMX=No conductor for use with DMX drivers
Blank=36"
SP*=*Specify 6" to 144" in 1" increments
SAMPLE NUMBER: 2RCPSMLP = Low profile canopy for 2-inch junctionbox
2-Inch Canopies Size Finish
2RCP=Round
2SQCP=Square Canopy
Notes:
1 4", 6" and 8" only.
SML=For 2-inch junction box
STAN=For standard junction box
P=White
MB=Black
SL=Silver
B2=Bronze
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
Page 3

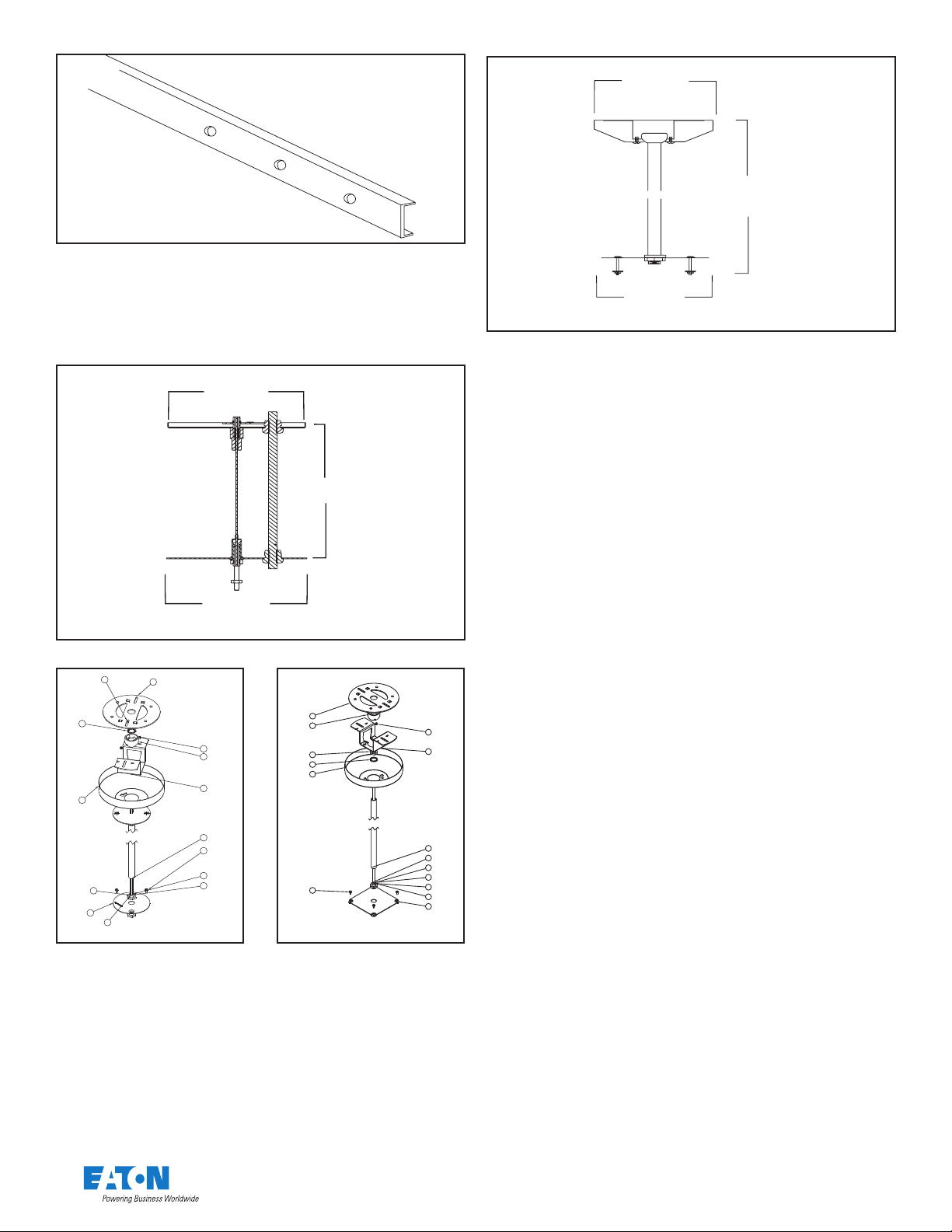

FIGURE 4.
5 ”
(127mm)
FIGURE 5.
5-3/5”
(146mm)
5-3/32”
(129mm)
MOUNTING ACCESSORIES AND OPTIONS
37”
(940mm)
P836
FIGURE 6.
5
9
12
15
6
11
Round
7
5-1/32
(129.36mm)
4
2
8
3
1
10
14
“X”
6
1
5
4
8
14
Square
3
7
2
9
13
10
11
12
15
FIGURE 6.
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
