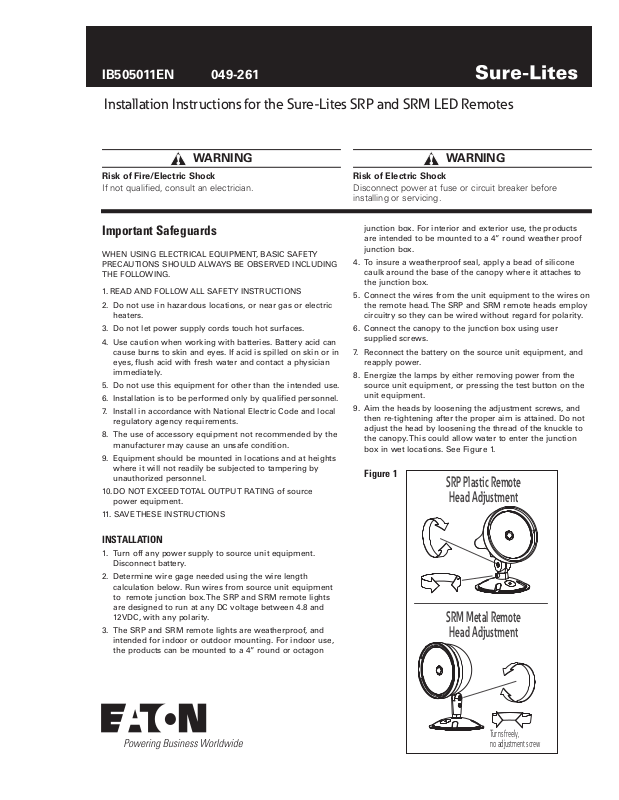

Installation Instructions for the Sure-Lites SRP and SRM LED Remotes

WARNING

Risk of Fire/Electric Shock

If not qualified, consult an electrician.

Important Safeguards

WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE OBSERVED INCLUDING THE FOLLOWING.

1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS

2. Do not use in hazardous locations, or near gas or electric heaters.

3. Do not let power supply cords touch hot surfaces.

4. Use caution when working with batteries. Battery acid can cause burns to skin and eyes. If acid is spilled on skin or in eyes, flush acid with fresh water and contact a physician immediately.

5. Do not use this equipment for other than the intended use.

6. Installation is to be performed only by qualified personnel.

7. Install in accordance with National Electric Code and local regulatory agency requirements.

8. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.

9. Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel.

10. DO NOT EXCEED TOTAL OUTPUT RATING of source power equipment.

11. SAVE THESE INSTRUCTIONS

WARNING

Risk of Electric Shock

Disconnect power at fuse or circuit breaker before installing or servicing.

junction box. For interior and exterior use, the products are intended to be mounted to a 4” round weather proof junction box.

4. To insure a weatherproof seal, apply a bead of silicone caulk around the base of the canopy where it attaches to the junction box.

5. Connect the wires from the unit equipment to the wires on the remote head. The SRP and SRM remote heads employ circuitry so they can be wired without regard for polarity.

6. Connect the canopy to the junction box using user supplied screws.

7. Reconnect the battery on the source unit equipment, and reapply power.

8. Energize the lamps by either removing power from the source unit equipment, or pressing the test button on the unit equipment.

9. Aim the heads by loosening the adjustment screws, and then re-tightening after the proper aim is attained. Do not adjust the head by loosening the thread of the knuckle to the canopy. This could allow water to enter the junction box in wet locations. See Figure 1.

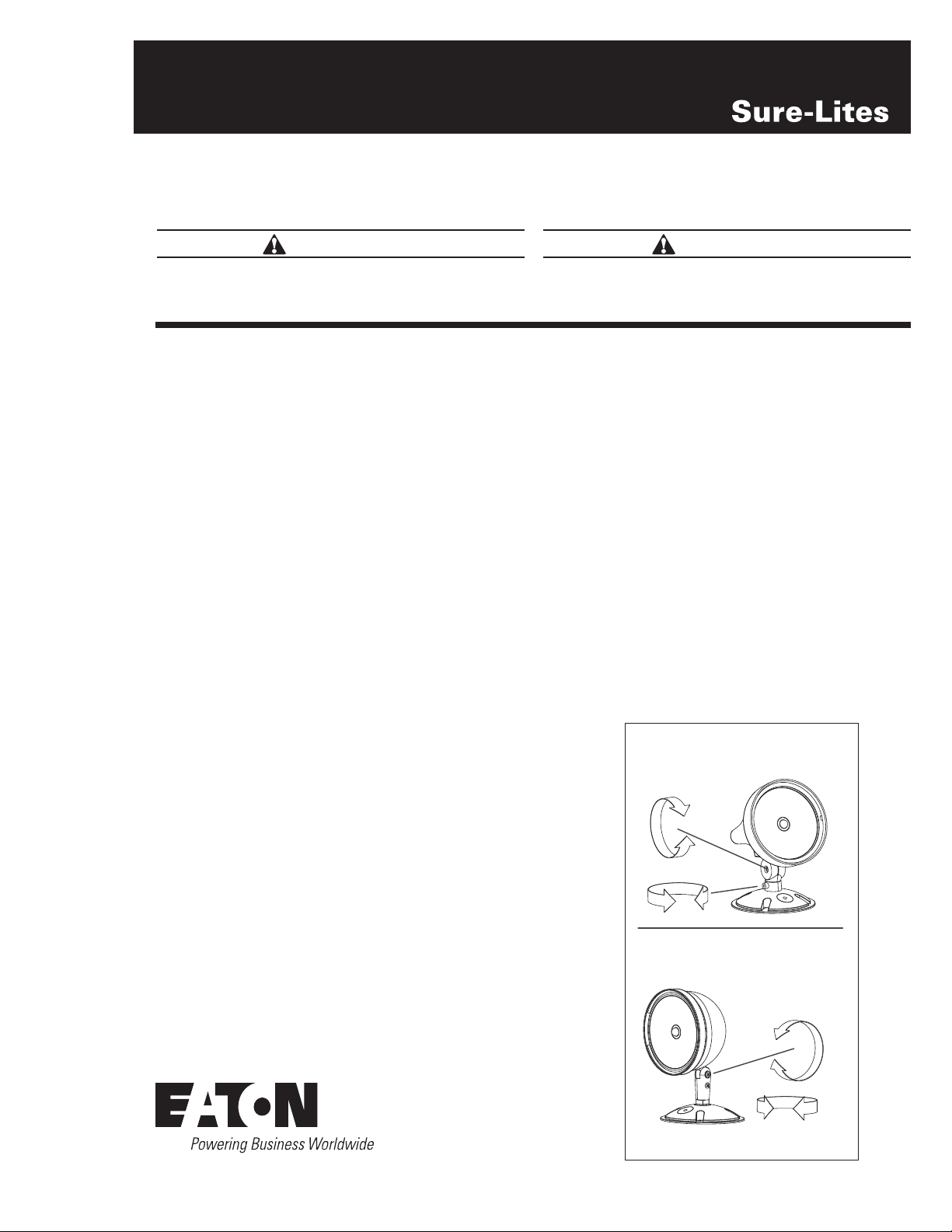

Figure 1

SRP Plastic Remote

Head Adjustment

INSTALLATION

1. Turn off any power supply to source unit equipment. Disconnect battery.

2. Determine wire gage needed using the wire length calculation below. Run wires from source unit equipment to remote junction box. The SRP and SRM remote lights are designed to run at any DC voltage between 4.8 and 12VDC, with any polarity.

3. The SRP and SRM remote lights are weatherproof, and intended for indoor or outdoor mounting. For indoor use, the products can be mounted to a 4” round or octagon

SRM Metal Remote

Head Adjustment

Turns freely, no adjustment screw

Page 2

Installation Instructions for SRP and SRM LED Remotes

OPERATION

Depress the test switch on the source unit equipment. The LED heads will light.

MAINTENANCE

None required.

CALCULATING MAXIMUM WIRE LENGTH TO REMOTES

The Sure-Lites LED remotes use a constant current driver that can accept any voltage from 4.8 to 12VDC. This means that the Sure-Lites LED remote will not dim over distance like a standard remote, until the total length of the circuit is too great, and the remote will not light at all. However, the standard voltage drop calculations for remotes will not work and a different calculation must be used.

Models Heads Max Mounting Height

SRP13, SRM13 One 1.25W head 19 Ft. SRP25D, SRM25D Two 1.25W heads 14 Ft. SRP25, SRM25 One 2.5W head 28 Ft. SRP50D, SRM50D Two 2.5W heads 21 Ft. SRP30, SRM30 One 5W head 32 Ft. SRP60D, SRM60D Two 5W heads 24 Ft.

1.25 watt

10 Gage

(0.001Ω/ft)

12 Gage

(0.0015Ω/ft)

14 Gage

(0.0025Ω/ft)

18 Gage

(0.006Ω/ft)

2.5 watt

10 Gage

(0.001Ω/ft)

12 Gage

(0.0015Ω/ft)

4.8V Battery

14 Gage

(0.0025Ω/ft)

18 Gage

(0.006Ω/ft)

10 Gage

(0.001Ω/ft)

12 Gage

(0.0015Ω/ft)

14 Gage

(0.0025Ω/ft)

18 Gage

(0.006Ω/ft)

head

5 watt

head

Maximum circuit distance

per head (ft.)

1 2 3 4

600 300 200 150

400 200 133 100

240 120 80 60

100 50 33 25

Maximum circuit distance

per head (ft.)

1 2 3 4

429 214 143 107

286 143 95 71

171 86 57 43

71 36 24 18

Maximum circuit distance

per head (ft.)

1 2 3 4

429 214 143 107

286 143 95 71

171 86 57 43

71 36 24 18

1.25 watt

10 Gage

(0.001Ω/ft)

12 Gage

(0.0015Ω/ft)

14 Gage

(0.0025Ω/ft)

18 Gage

(0.006Ω/ft)

2.5 watt

10 Gage

(0.001Ω/ft)

12 Gage

(0.0015Ω/ft)

6V Battery

14 Gage

(0.0025Ω/ft)

18 Gage

(0.006Ω/ft)

10 Gage

(0.001Ω/ft)

12 Gage

(0.0015Ω/ft)

14 Gage

(0.0025Ω/ft)

18 Gage

(0.006Ω/ft)

head

5 watt

head

Maximum circuit distance

per head (ft.)

1 2 3 4

130 0 650 433 325

867 434 289 217

520 260 173 13 0

216 108 72 54

Maximum circuit distance

per head (ft.)

1 2 3 4

930 465 310 233

620 310 207 155

372 186 124 93

155 78 52 39

Maximum circuit distance

per head (ft.)

1 2 3 4

930 465 310 233

620 310 207 155

372 186 124 93

155 78 52 39

1.25 watt

10 Gage

(0.001Ω/ft)

12 Gage

(0.0015Ω/ft)

14 Gage

(0.0025Ω/ft)

18 Gage

(0.006Ω/ft)

2.5 watt

10 Gage

(0.001Ω/ft)

12 Gage

(0.0015Ω/ft)

12V Battery

14 Gage

(0.0025Ω/ft)

18 Gage

(0.006Ω/ft)

10 Gage

(0.001Ω/ft)

12 Gage

(0.0015Ω/ft)

14 Gage

(0.0025Ω/ft)

18 Gage

(0.006Ω/ft)

head

5 watt

head

Maximum circuit distance

per head (ft.)

1 2 3 4

118 00 5900 3933 2950

7866 3933 2622 1967

4720 2360 1573 118 0

1966 983 655 492

Maximum circuit distance

per head (ft.)

1 2 3 4

8400 4200 2800 2 100

5600 2800 1867 14 00

3360 1680 11 20 840

140 0 700 467 350

Maximum circuit distance

per head (ft.)

1 2 3 4

8400 4200 2800 2 100

5600 2800 1867 14 00

3360 1680 11 20 840

140 0 700 467 350

EATON IB505011EN Installation instructions

Page 3

Installation Instructions for SRP and SRM LED Remotes

Wire: 867 ft.

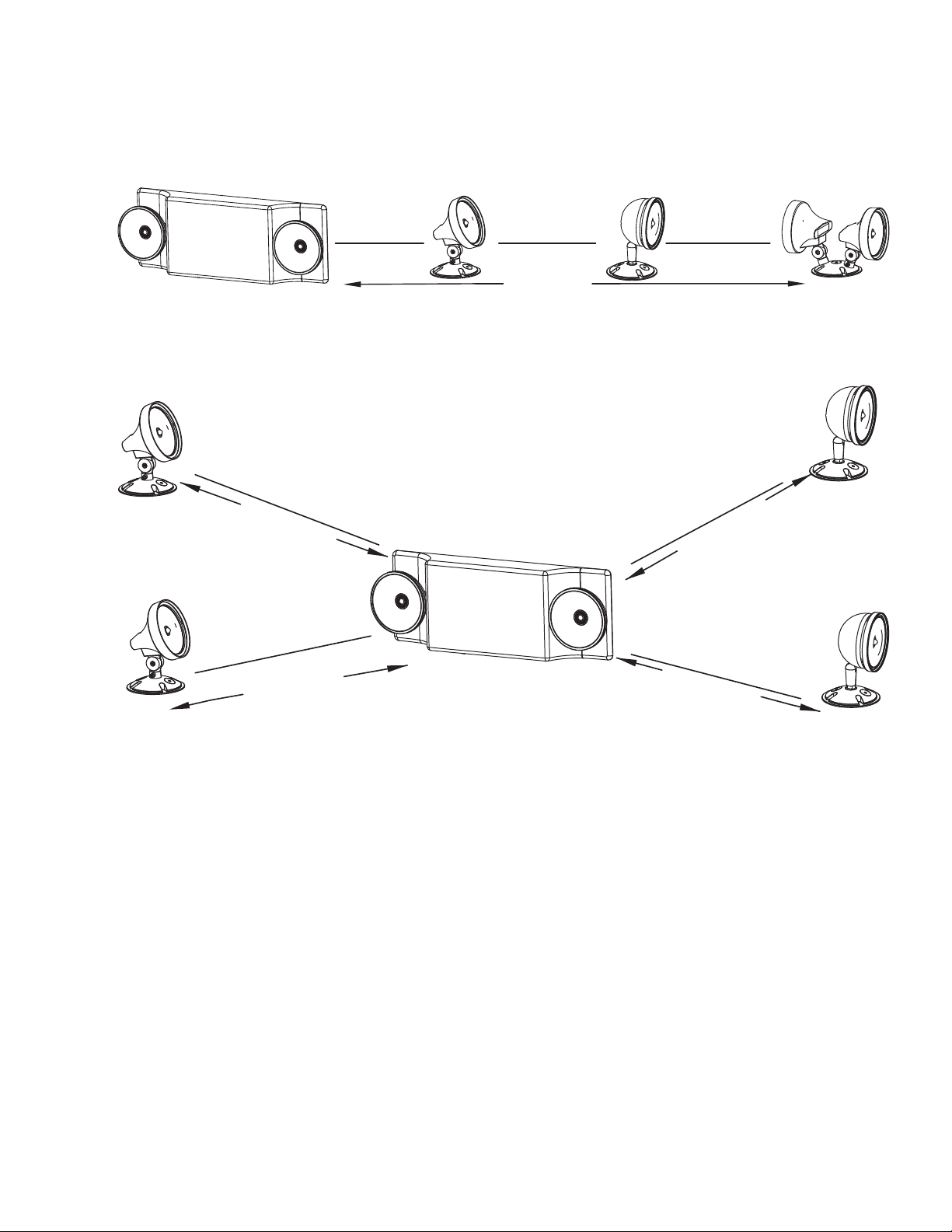

The calculation is dependent on the battery voltage, the number and type of heads, the wire gage, and the distance of the farthest head on the circuit. Here are the charts to use for that calculation:

Max. Length 18 Gage Wire: 217 ft.

For example, if you had four 1.1 watt heads supplied by 12 gage wire connected to a 6V battery powered emergency light, you could put all four on one circuit, and the total length could only be 217 feet.

Max. Length

18 Gage

Wire: 867 ft.

Max. Length

18 Gage

Wire: 867 ft.

Max. Length

18 Gage

Another option would be to put all four heads on individual 12 gage circuits. Since each circuit would only have only one head, the maximium length of each circuit could be 867 feet.

NOTE: DO NOT exceed maximum output wattage of the base unit.

TROUBLE SHOOTING GUIDE

If LED remotes do not light, or strobe, check the following:

1. Voltage at the battery with the AC power disconnected. Make sure the voltage meets or exceeds the rated battery voltage.

2. Voltage at the remote light end of the wire. The SRP and SRM LED remotes are designed to operate between 4.8 and 12VDC. If the voltage at the junction box is below this voltage, or shows a significant difference from the battery voltage, it may be necessary to increase the size of the wire between the remote and the source unit equipment.

3. If following the above trouble shooting hints does not solve your problem, contact your local Eaton Lighting Business representative for assistance.

WARRANTIES AND LIMITATION OF LIABILITY

Please refer to www.eaton.com/LightingWarrantyTerms for our terms and conditions.
