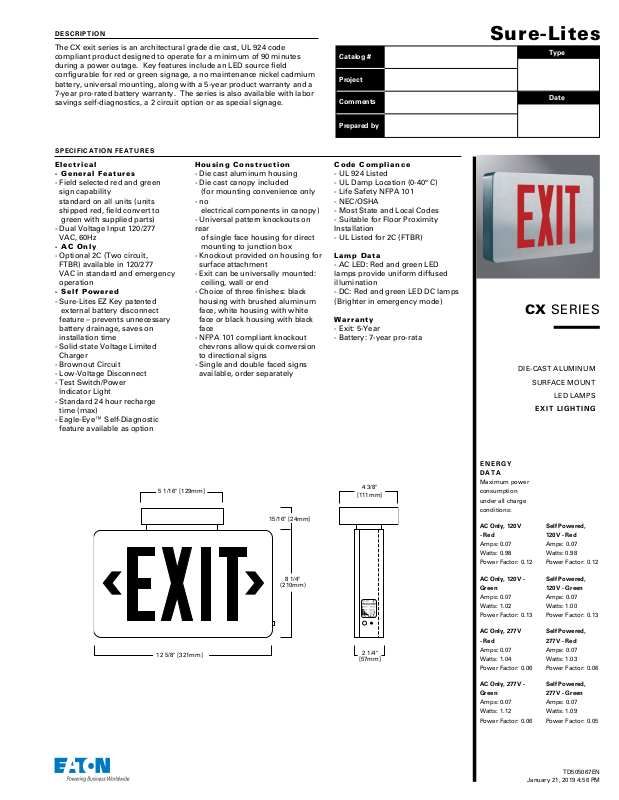

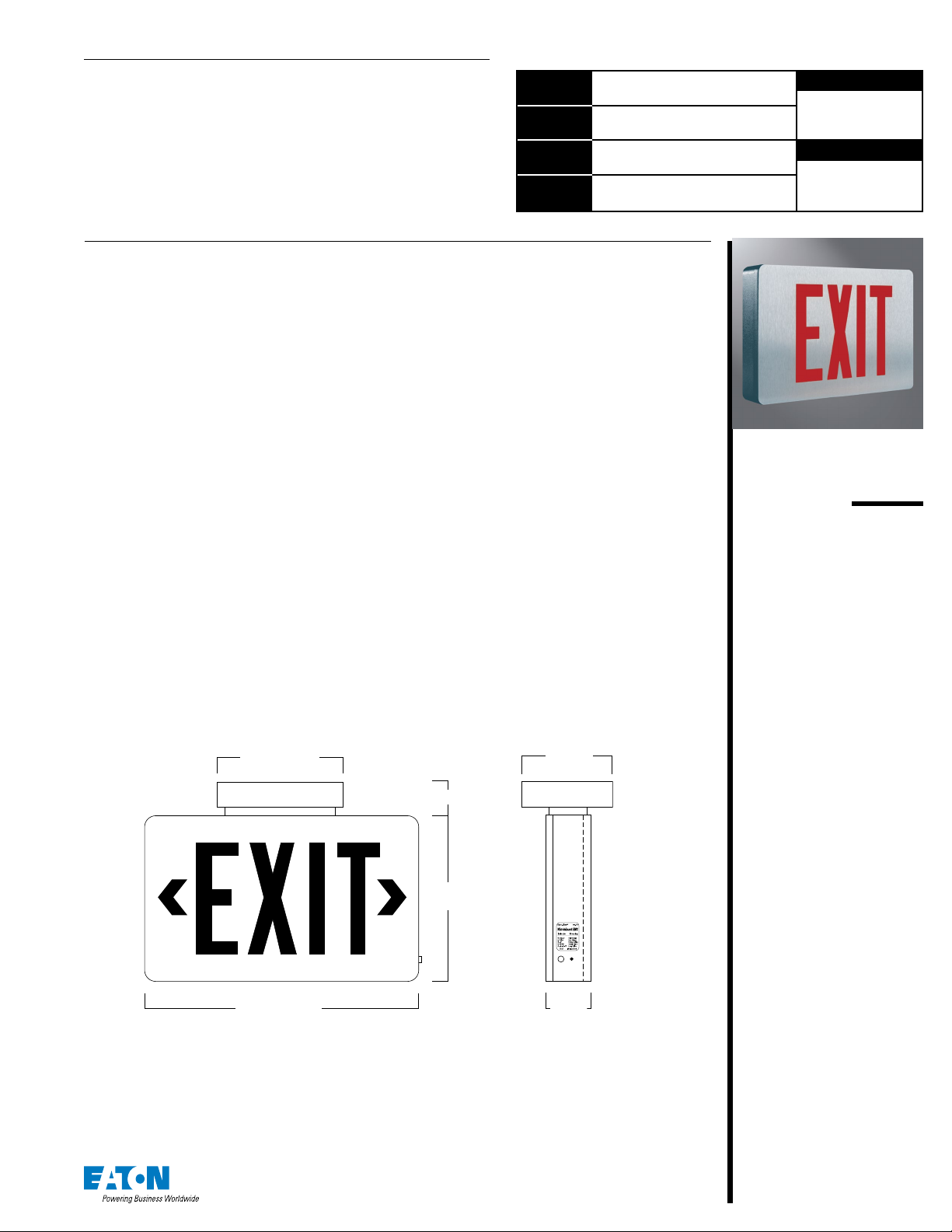

Page 1
DESCRIPTION
[57mm]
4 3/8"
The CX exit series is an architectural grade die cast, UL 924 code
compliant product designed to operate for a minimum of 90 minutes
during a power outage. Key features include an LED source field
configurable for red or green signage, a no maintenance nickel cadmium
battery, universal mounting, along with a 5-year product warranty and a
7-year pro-rated battery warranty. The series is also available with labor
savings self-diagnostics, a 2 circuit option or as special signage.
SPECIFICATION FEATURES
Electrical
- General Features
- Field selected red and green
sign capability
standard on all units (units
shipped red, field convert to
green with supplied parts)
- Dual Voltage Input 120/277
VAC, 60Hz
- AC Only
- Optional 2C (Two circuit,
FTBR) available in 120/277
VAC in standard and emergency
operation
- Self Powered
- Sure-Lites EZ Key patented
external battery disconnect
feature – prevents unnecessary
battery drainage, saves on
installation time
- Solid-state Voltage Limited
Charger
- Brownout Circuit
- Low-Voltage Disconnect
Housing Construction
- Die cast aluminum housing
- Die cast canopy included
(for mounting convenience only
- no
electrical components in canopy)
- Universal pattern knockouts on
rear
of single face housing for direct
mounting to junction box
- Knockout provided on housing for
surface attachment
- Exit can be universally mounted:
ceiling, wall or end
- Choice of three finishes: black
housing with brushed aluminum
face, white housing with white
face or black housing with black
face
- NFPA 101 compliant knockout
chevrons allow quick conversion
to directional signs
- Single and double faced signs
available, order separately
- Test Switch/Power
Indicator Light
- Standard 24 hour recharge
time (max)
- Eagle-Eye™ Self-Diagnostic
feature available as option
Catalog #
Project
Comments
Prepared by
Code Compliance
- UL 924 Listed
- UL Damp Location (0-40° C)
- Life Safety NFPA 101
- NEC/OSHA
- Most State and Local Codes
- Suitable for Floor Proximity
Installation
- UL Listed for 2C (FTBR)
Lamp Data
- AC LED: Red and green LED
lamps provide uniform diffused
illumination
- DC: Red and green LED DC lamps
(Brighter in emergency mode)
Warranty
- Exit: 5-Year
- Battery: 7-year pro-rata
Sure-Lites
Type
Date
CX SERIES
DIE-CAST ALUMINUM
SURFACE MOUNT
LED LAMPS
EXIT LIGHTING
5 1/16" [129mm]
12 5/8" [321mm]
15/16" [24mm]
8 1/4"
(210mm)
[111mm]
2 1/4"
ENERGY
DATA
Maximum power
consumption
under all charge
conditions:
AC Only, 120V
- Red
Amps: 0.07
Watts: 0.98
Power Factor: 0.12
AC Only, 120V -
Green
Amps: 0.07
Watts: 1.02
Power Factor: 0.13
AC Only, 277V
- Red
Amps: 0.07
Watts: 1.04
Power Factor: 0.06
AC Only, 277V -
Green
Amps: 0.07
Watts: 1.12
Power Factor: 0.06
Self Powered,
120V - Red
Amps: 0.07
Watts: 0.98
Power Factor: 0.12
Self Powered,
120V - Green
Amps: 0.07
Watts: 1.00
Power Factor: 0.13
Self Powered,
277V - Red
Amps: 0.07
Watts: 1.03
Power Factor: 0.06
Self Powered,
277V - Green
Amps: 0.07
Watts: 1.09
Power Factor: 0.05
January 21, 2019 4:56 PM
TD505067EN
Page 2
Weather Proof
ORDERING INFORMATION
CX SERIES
Sample Number: CX71, CX61, CX72WHSD90, CX6SB7, CX72SD23050
Family
=
Die Cast Aluminum
CX
Exit, LED
Series
=
6 AC Only
=
7 Self Powered
Notes:
1
Consult factory for additional custom signage options.
2
Blue Letters, White LED does not have the “SD” option.
TECHNICAL DATA
Face Options
=
1 Single
=
2 Double
=
S Open Face for Signage
Housing Finish
=
Blank Brushed Aluminum
Face w/Black Housing
=
WH White
=
BK Black
Lamps
CX Series Exits use energy efficient, long life
LED’s to provide uniform diffuse illumination of
the exit face. These red and green LEDs require
no maintenance and consume less than one
watt, on average.
Housing Construction
Die cast aluminum with Brushed Aluminum
face and black trim standard. Optional finishes
include White and Black. NFPA 101 compliant
knockout chevrons for easy conversion to
directional sign. Universal pattern knockouts are
in the back of the single face housing for direct
mounting to junction box. Die cast aluminum
alloy canopy included for universal mounting.
Canopy is included for mounting convenience
only–no electrical components in canopy.
Lens
Lenses for the CX Series Exits are made from
durable, impact resistant polycarbonate. All exit
faces are designed with full 3/4” stroke snapout or snap-in chevron directional indicators to
insure maximum visibility and compliance with
the latest codes. Units come with red lenses
installed and green lenses included for field
selectable red or green signs.
Sure-Lites EZ Key External Battery
Disconnect (Self Powered Only)
Patented technology that allows installers to
externally control the battery connection. Better
than line latching, allows installers to choose
when the battery is connected so that it stays
fresh longer. Allows battery to be disconnected
after installation but before building is occupied,
enabling emergency circuit to be shut down for
power savings.
[Options for non-EXIT signs]
Options
=
Blank No additional
options
=
2C Two Circuit
Option (CX6 only)
=
SD Self Diagnostics
with Fire
Alarm Interface
Capability
(CX7 Only)
Signage Options (Color)
=
Blank EXIT sign
=
R Red letter,
Red LED
=
G Green letter,
Green LED
=
B Blue letter,
White LED
(Non-SD Only)
Available Accessories (Order Separately)
Protection Devices
=
WG10 Wall mount
wire guard
=
WGS11 Ceiling or End
mount wire guard
=
VS1 Polycarbonate
Vandal Shield
=
VS1WP Polycarbonate
Vandal Shield,
Brownout Circuit (Self Powered Only)
The brownout circuit on Sure-Lites’ exits
monitors the flow of AC current to the exit and
activates the emergency lighting system when
a predetermined reduction of AC power occurs.
This dip in voltage will cause most ballasted
fixtures to extinguish causing loss of normal
lighting even though a total power failure has
not occurred.
Solid-State Transfer (Self Powered
Only)
The CX Series Exit incorporates solid-state
switching which eliminates corroded and pitted
contacts or mechanical failures associated with
relays. The switching circuit is designed to
detect a loss of AC voltage and automatically
energizes the lamps using DC power. Upon
restoration of AC power, the DC power will be
disconnected and the charger will automatically
recharge the battery.
Low Voltage Disconnect (Self Powered
Only)
When the battery’s terminal voltage falls, the
low-voltage circuitry disconnects the lighting
load. The disconnect remains in effect until
normal utility power is restored, preventing
deep battery discharge.
Test Switch/Power Indicator Light
(Self Powered Only)
A test switch located on the side of the exit
permits the activation of the emergency circuit
for a complete operational systems check. The
Power Indicator Light provides visual assurance
that the AC power is on.
Sealed Nickel Cadmium Battery (Self
Powered Only)
Sure-Lites sealed nickel cadmium batteries are
maintenance-free with a life expectancy of 15
years. The sealed rechargeable nickel cadmium
Signage Options (Common Signs)
=
Blank EXIT sign
=
1 “AREA OF RESCUE”
=
2 “SALIDA”
=
3 “STAIRS”
=
4 “AREA OF REFUGE”
=
5 “IN USE”
=
6 “NOT AN EXIT”
=
7 (WHEEL CHAIR SYMBOL)
=
8 “X-RAY ON”
=
9 “LASER IN USE”
=
10 “DO NOT ENTER”
Pendant Kit
CAX18PKWH 18˝ Pendant Kit, White
CAX18PKHTWH 18˝ Hang True
CAX18PKBK 18˝ Pendant Kit, Black
CAX18PKHTBK 18˝ Hang True
=
=
Pendant Kit, White
=
=
Pendant Kit, Black
battery offers high discharge rates and stable
performance over a wide range of temperatures,
from 0-40° C. The specially designed re-sealable
vent automatically controls cell pressure,
assuring safety and reliability. This battery is
best suited for harsh ambient temperatures
because the electrolyte is not active in the
electrochemical process.
“2C” (AC Only)
The “2C” Option enables the Exits to operate
per the requirements of UL 924 when connected
simultaneously to both normal and emergency
power circuits (two circuit operation–UL
Category FTBR–Emergency Lighting and
Power Equipment). The “2C” Option alters the
standard Exit such that it complies with and
is UL Listed under the FTBR Category. This
option should only be used for exits which are
intended to be connected simultaneously to
normal and emergency power circuits. Both
circuits have universal 120/277 VAC standard.
Eagle Eye™ Self Diagnostics Option
(Self Powered Only)
The self-diagnostic unit will automatically
perform all tests required by UL924, and NFPA
101. The system indicates the status of the exit
at all times using the LED indicator near the
test switch on the side of the unit. A 90 minute
battery power (emergency mode) simulation
test will occur randomly once every 12 months.
A 30 second battery power simulation test will
occur every 30 days.
Warranty
All Sure-Lites’ products are backed by a firm
five-year warranty against defects in material
and workmanship. Maintenance-free, long-life,
sealed nickel cadmium batteries carry a sevenyear pro-rata warranty.
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
