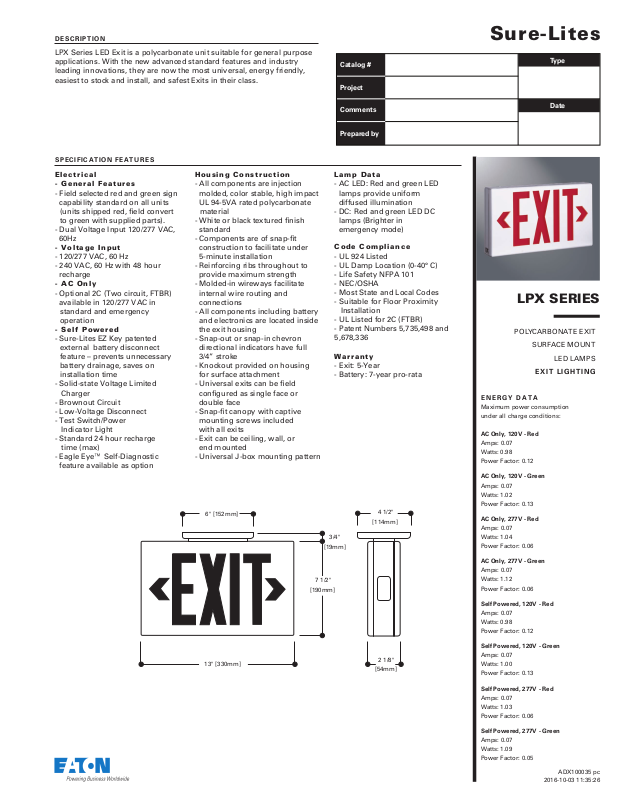

Page 1
DESCRIPTION
LPX Series LED Exit is a polycarbonate unit suitable for general purpose
applications. With the new advanced standard features and industry
leading innovations, they are now the most universal, energy friendly,
easiest to stock and install, and safest Exits in their class.
Catalog #
Project
Sure-Lites
Type
SPECIFICATION FEATURES
Electrical
- General Features
- Field selected red and green sign
capability standard on all units
(units shipped red, field convert
to green with supplied parts).
- Dual Voltage Input 120/277 VAC,
60Hz
- Voltage Input
- 120/277 VAC, 60 Hz
- 240 VAC, 60 Hz with 48 hour
recharge
- AC Only
- Optional 2C (Two circuit, FTBR)
available in 120/277 VAC in
standard and emergency
operation
- Self Powered
- Sure-Lites EZ Key patented
external battery disconnect
feature – prevents unnecessary
battery drainage, saves on
installation time
- Solid-state Voltage Limited
Charger
- Brownout Circuit
- Low-Voltage Disconnect
- Test Switch/Power
Indicator Light
- Standard 24 hour recharge
time (max)
- Eagle Eye™ Self-Diagnostic
feature available as option
Housing Construction
- All components are injection
molded, color stable, high impact
UL 94-5VA rated polycarbonate
material
- White or black textured finish
standard
- Components are of snap-fit
construction to facilitate under
5-minute installation
- Reinforcing ribs throughout to
provide maximum strength
- Molded-in wireways facilitate
internal wire routing and
connections
- All components including battery
and electronics are located inside
the exit housing
- Snap-out or snap-in chevron
directional indicators have full
3/4” stroke
- Knockout provided on housing
for surface attachment
- Universal exits can be field
configured as single face or
double face
- Snap-fit canopy with captive
mounting screws included
with all exits
- Exit can be ceiling, wall, or
end mounted

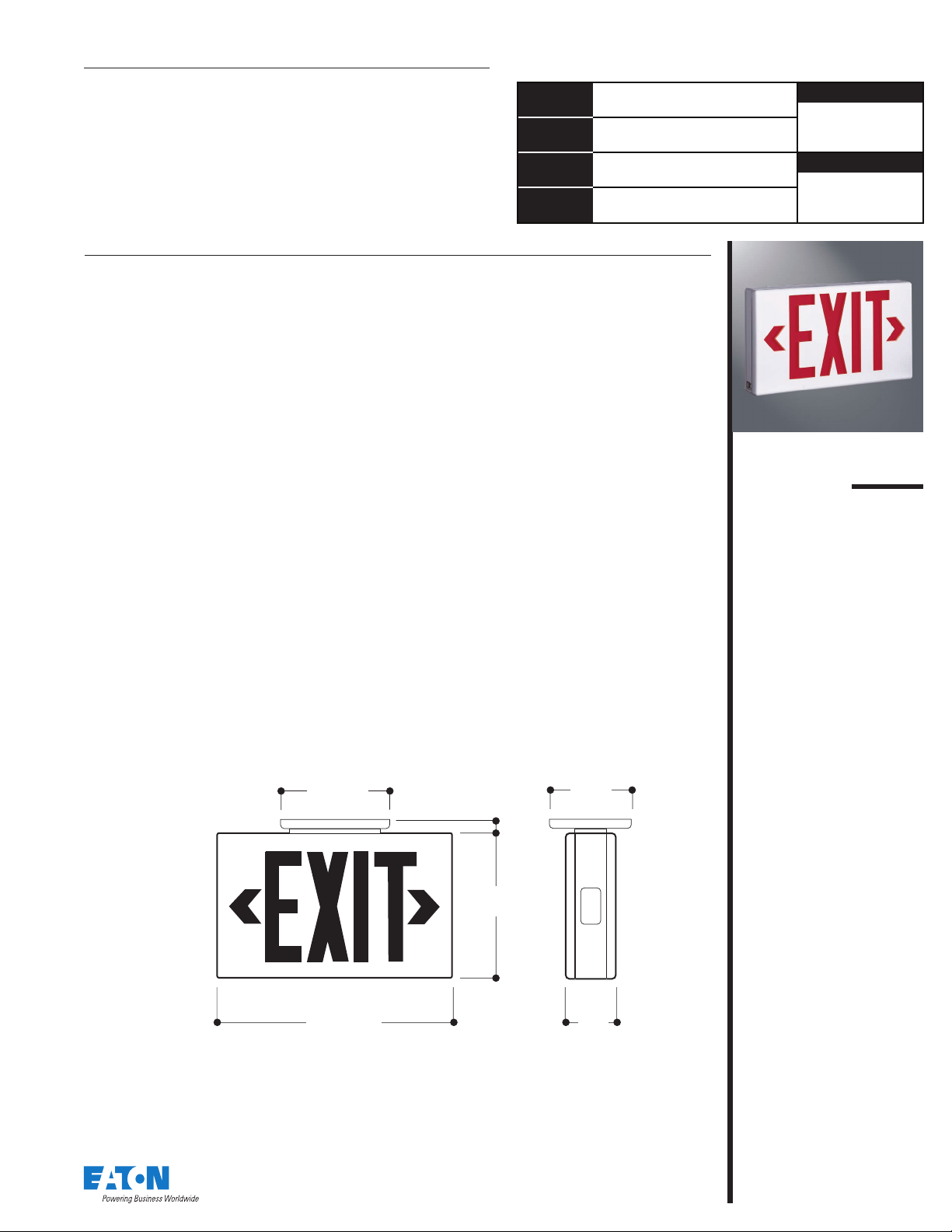

- Universal J-box mounting pattern
6" [152mm]
[190mm]
13" [330mm]
Comments
Prepared by
Lamp Data
- AC LED: Red and green LED
lamps provide uniform
diffused illumination
- DC: Red and green LED DC
lamps (Brighter in
emergency mode)
Code Compliance
- UL 924 Listed
- UL Damp Location (0-40° C)
- Life Safety NFPA 101
- NEC/OSHA
- Most State and Local Codes
- Suitable for Floor Proximity
Installation
- UL Listed for 2C (FTBR)
- Patent Numbers 5,735,498 and
5,678,336
Warranty
- Exit: 5-Year
- Battery: 7-year pro-rata
4 1/2"
[114mm]
3/4"
[19mm]
7 1/2"
2 1/8"
[54mm]
Date
LPX SERIES
POLYCARBONATE EXIT
SURFACE MOUNT
LED LAMPS
EXIT LIGHTING
ENERGY DATA
Maximum power consumption
under all charge conditions:
AC Only, 120V - Red
Amps: 0.07
Watts: 0.98
Power Factor: 0.12
AC Only, 120V - Green
Amps: 0.07
Watts: 1.02
Power Factor: 0.13
AC Only, 277V - Red
Amps: 0.07
Watts: 1.04
Power Factor: 0.06
AC Only, 277V - Green
Amps: 0.07
Watts: 1.12
Power Factor: 0.06
Self Powered, 120V - Red
Amps: 0.07
Watts: 0.98
Power Factor: 0.12
Self Powered, 120V - Green
Amps: 0.07
Watts: 1.00
Power Factor: 0.13
Self Powered, 277V - Red
Amps: 0.07
Watts: 1.03
Power Factor: 0.06
Self Powered, 277V - Green
Amps: 0.07
Watts: 1.09
Power Factor: 0.05
ADX100035 pc
2016-10-03 11:35:26
Page 2
Sample Number: LPX7, LPX7SD90, LPX6SG8, LPX7SD23050
ORDERING INFORMATION
LPX SERIES
Available Accessories (Order Separately)
-
Family
=
Polycarbonate Exit, LED
LPX
1
Series
=
6 AC Only
=
7 Self Powered
Face Options
=
Blank Single and Double
Housing Finish
=
Blank White
=
BK Black
1
Also available in stock LPX6 and LPX7 units with the initial setup as Green with the capability to convert to Red in the field. To order these units, please use the catalog number LPX6-G or LPX7-G.
TECHNICAL DATA
Lamps
LPX Series Exits use energy efficient, long life
LED’s to provide uniform diffuse illumination of
the exit face. These red and green LEDs require
no maintenance and consume less than one
watt, on average.
Housing Construction
Rugged, durable, injection molded
polycarbonate materials are used throughout
the LPX Series Exits. All structural components
are designed with reinforcing ribs to add
additional rigidity and to maximize structural
integrity. These materials are impact and scratch
resistant, and they have been UV stabilized to
resist discoloration due to age and ultraviolet
radiation. All components are designed to be of
snap-fit construction - no mechanical fasteners –
to facilitate installation in under 5-minutes. Any
components required for installation (wirenuts,
wire leads, universal metal J-box bracket, etc.)
are all included with each exit. The universal
design of the LPX Series Exits enables universal
exits to be configured as single face or double
face in the field. All LPX Series Exits can be wall,
ceiling, or end mounted; a rugged, snap-fit, low
profile canopy with captive screws is included
with every exit for ceiling and end mounting
applications.
Lens
Lenses for the LPX Series Exits are made from
durable, impact resistant polycarbonate. All exit
faces are designed with full 3/4” stroke snapout or snap-in chevron directional indicators to
insure maximum visibility and compliance with
the latest codes. Units come with red lenses
installed and green lenses included for field
selectable red or green signs.
Sure-Lites EZ Key External Battery
Disconnect (Self Powered Only)
Patented technology that allows installers to
externally control the battery connection. Better
than line latching, allows installers to choose
when the battery is connected so that it stays
fresh longer. Allows battery to be disconnected
after installation but before building is occupied,
enabling emergency circuit to be shut down for
power savings.
Options
=
Blank No additional options
=
2C Two Circuit Option (LPX6 only)
=
SD Self Diagnostics Option (LPX7 only)
=
SD90 Self Diagnostics with Fire Alarm
Interface Capability (LPX7 Only)
Brownout Circuit (Self Powered Only)
The brownout circuit on Sure-Lites’ exits
monitors the flow of AC current to the exit and
activates the emergency lighting system when
a predetermined reduction of AC power occurs.
This dip in voltage will cause most ballasted
fixtures to extinguish causing loss of normal
lighting even though a total power failure has
not occurred.
Solid-State Transfer (Self Powered
Only)
The LPX Series Exit incorporates solid-state
switching which eliminates corroded and pitted
contacts or mechanical failures associated with
relays. The switching circuit is designed to
detect a loss of AC voltage and automatically
energizes the lamps using DC power. Upon
restoration of AC power, the DC power will be
disconnected and the charger will automatically
recharge the battery.
Low Voltage Disconnect (Self Powered
Only)
When the battery’s terminal voltage falls, the
low-voltage circuitry disconnects the lighting
load. The disconnect remains in effect until
normal utility power is restored, preventing
deep battery discharge.
Test Switch/Power Indicator Light
(Self Powered Only)
A test switch located on the side of the exit
permits the activation of the emergency circuit
for a complete operational systems check. The
Power Indicator Light provides visual assurance
that the AC power is on.
Sealed Nickel Cadmium Battery (Self
Powered Only)
Sure-Lites sealed nickel cadmium batteries are
maintenance-free with a life expectancy of 15
years. The sealed rechargeable nickel cadmium
battery offers high discharge rates and stable
performance over a wide range of temperatures,
from 0-40° C. The specially designed re-sealable
vent automatically controls cell pressure,
assuring safety and reliability. This battery is
best suited for harsh ambient temperatures
because the electrolyte is not active in the
electrochemical process.
Protection Devices
=
WG10 Wall mount wire guard
=
WGS11 Ceiling or End
=
VS1 Polycarbonate Vandal Shield
=
Polycarbonate Vandal Shield,
VS1WP
Weather Proof
Pendant Kit
LPX18PKWH 18˝ Pendant Kit, White
LPX18PKHTWH 18˝ Hang True
LPX18PKBK 18˝ Pendant Kit, Black
LPX18PKHTBK 18˝ Hang True
=
=
Pendant Kit, White
=
=
Pendant Kit, Black
“2C” (AC Only)
The “2C” Option enables the Exits to operate
per the requirements of UL 924 when connected
simultaneously to both normal and emergency
power circuits (two circuit operation–UL
Category FTBR–Emergency Lighting and Power
Equipment). The “2C” Option is a factory
assembly change which alters the standard
Exit such that it complies with and is UL Listed
under the FTBR Category. This option should
only be used for exits which are intended to
be connected simultaneously to normal and
emergency power circuits. Both circuits have
universal 120/277 VAC standard.
Eagle Eye™ Self Diagnostics Option
(Self Powered Only)
The self-diagnostic unit will automatically
perform all tests required by UL924, and NFPA
101. The system indicates the status of the exit
at all times using the LED indicator near the
test switch on the side of the unit. A 90 minute
battery power (emergency mode) simulation
test will occur randomly once every 12 months.
A 30 second battery power simulation test will
occur every 30 days.
Warranty
All Sure-Lites’ products are backed by a firm
five-year warranty against defects in material
and workmanship. Maintenance-free, long-life,
sealed nickel cadmium batteries carry a sevenyear pro-rata warranty.
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
