Sure-Lites
Surface
Recessed

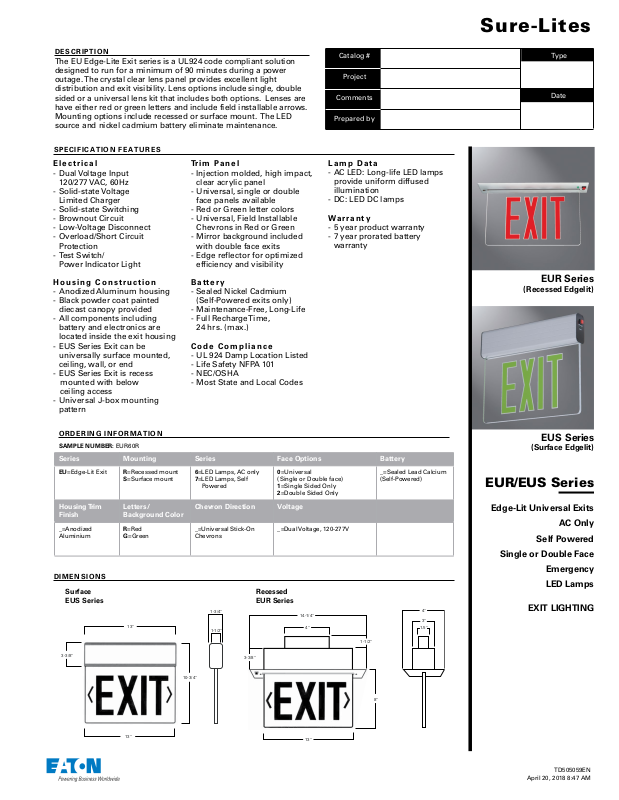

DESCRIPTION
The EU Edge-Lite Exit series is a UL924 code compliant solution
designed to run for a minimum of 90 minutes during a power
outage. The crystal clear lens panel provides excellent light
distribution and exit visibility. Lens options include single, double
sided or a universal lens kit that includes both options. Lenses are
have either red or green letters and include field installable arrows.
Mounting options include recessed or surface mount. The LED
source and nickel cadmium battery eliminate maintenance.
SPECIFICATION FEATURES
Electrical
- Dual Voltage Input
120/277 VAC, 60Hz
- Solid-state Voltage
Limited Charger
- Solid-state Switching
- Brownout Circuit
- Low-Voltage Disconnect
- Overload/Short Circuit
Protection
- Test Switch/
Power Indicator Light
Housing Construction
- Anodized Aluminum housing
- Black powder coat painted
diecast canopy provided
- All components including
battery and electronics are
Trim Panel
- Injection molded, high impact,
clear acrylic panel
- Universal, single or double
face panels available
- Red or Green letter colors
- Universal, Field Installable
Chevrons in Red or Green
- Mirror background included
with double face exits
- Edge reflector for optimized
efficiency and visibility
Battery
- Sealed Nickel Cadmium
(Self-Powered exits only)
- Maintenance-Free, Long-Life
- Full Recharge Time,
24 hrs. (max.)
located inside the exit housing
- EUS Series Exit can be
universally surface mounted,
ceiling, wall, or end
- EUS Series Exit is recess
mounted with below
ceiling access
Code Compliance
- UL 924 Damp Location Listed
- Life Safety NFPA 101
- NEC/OSHA
- Most State and Local Codes
- Universal J-box mounting
pattern
Catalog #
Project
Comments
Prepared by
Lamp Data
- AC LED: Long-life LED lamps
provide uniform diffused
illumination
- DC: LED DC lamps
Warranty
- 5 year product warranty
- 7 year prorated battery
warranty
Type
Date
EUR Series
(Recessed Edgelit)
ORDERING INFORMATION
SAMPLE NUMBER: EUR60R
Series Mounting Series Face Options Battery
EU=Edge-Lit Exit R=Recessed mount
Housing Trim
Finish
_=Anodized
Aluminium
DIMENSIONS
EUS Series
3-3/8"
S=Surface mount
Letters/
Background Color
R=Red
G=Green
13"
6=LED Lamps, AC only
7=LED Lamps, Self
Powered
Chevron Direction Voltage
_=Universal Stick-On
Chevrons
EUR Series
1-3/4"
1-1/2"
10-3/4"
3-3/8"
0=Universal
(Single or Double face)
1=Single Sided Only
2=Double Sided Only
_=Dual Voltage, 120-277V
14-1/4"
4"
_=Sealed Lead Calcium
(Self-Powered)
1-1/2"
8"
EUS Series
(Surface Edgelit)
EUR/EUS Series
Edge-Lit Universal Exits
AC Only
Self Powered
Single or Double Face
Emergency
LED Lamps
4"
3"
1.5"
EXIT LIGHTING
13"
13"
TD505059EN
April 20, 2018 8:47 AM
Page 2
TECHNICAL DATA
Lamps
The EU Series Edge-Lit Exits use energy
efficient, long-life LED’s to provide uniform
diffuse illumination of the exit face. The
low operating costs and zero maintenance
requirement makes LED lamps the wisest
choice for exit signs today. Emergency
illumination is provided by LED lamps in the
self-powered models.
Housing Construction
Rugged, durable anodized aluminum
housing is impact resistant. Black powder
coat painted mounting canopy provided.
Housing is designed to allow easy swap out
of exit lens when necessary. All EUS Series
Exits can be wall, ceiling, or end mounted.
Trim Panel
Trim panels for the EU Series Edgelit Exits
are injection molded from impact-resistant
clear acrylic. The single face lens is available
with a clear background. All double
face lens come standard with a mirror
background. Universal, fieldinstallable
chevrons are provided in Red or Green
allowing for universal configuration of the
exit sign based on the directional needs of
the application. The edge reflector further
enhances visibility.
Solid-State Charger
Supplied with a 120/277 VAC, voltage
regulated solid-state charger, the battery is
recharged immediately upon restoration of
AC current after a power failure. The charge
circuit reacts to the condition of the battery
in order to maintain peak battery capacity
and maximize battery life. Solid state
construction recharges the battery following
a power failure in accordance with UL 924.
Brownout Circuit
The brownout circuit on the exit monitors
the flow of AC current to the exit and
activates the emergency lighting system
when a predetermined reduction of AC
power occurs. This dip in voltage will
cause most ballasted fixtures to extinguish
causing loss of normal lighting even though
a total power failure has not occurred.
Solid-State Transfer
The EU Series Edge-Lit Exit incorporates
solid state switching which eliminates
corroded and pitted contacts or mechanical
failures associated with relays. The
switching circuit is designed to detect
a loss of AC voltage and automatically
energizes the lamps using DC power. Upon
restoration of AC power, the DC power
will be disconnected and the charger will
automatically recharge the battery.
EUR / EUS Series
Test Switch/Power Indicator Light
A test switch located on the side of the exit
permits the activation of the emergency
circuit for a complete operational systems
check. The Power Indicator Light provides
visual assurance that the AC power is on.
Sealed Nickel Cadmium Battery
(Self Powered Only)
Sure-Lites sealed nickel cadmium batteries
are maintenance-free with a life expectancy
of 10 years. The sealed rechargeable nickel
cadmium battery offers high discharge rates
and stable performance over a wide range
of temperatures, from 0-40°C. The specially
designed re-sealable vent automatically
controls cell pressure, assuring safety and
reliability.
Warranty
All Sure-Lites’ products are backed by a
firm five-year warranty against defects in
material and workmanship. Maintenancefree, long-life, sealed nickel cadmium
batteries carry a seven year pro-rata
warranty.
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
