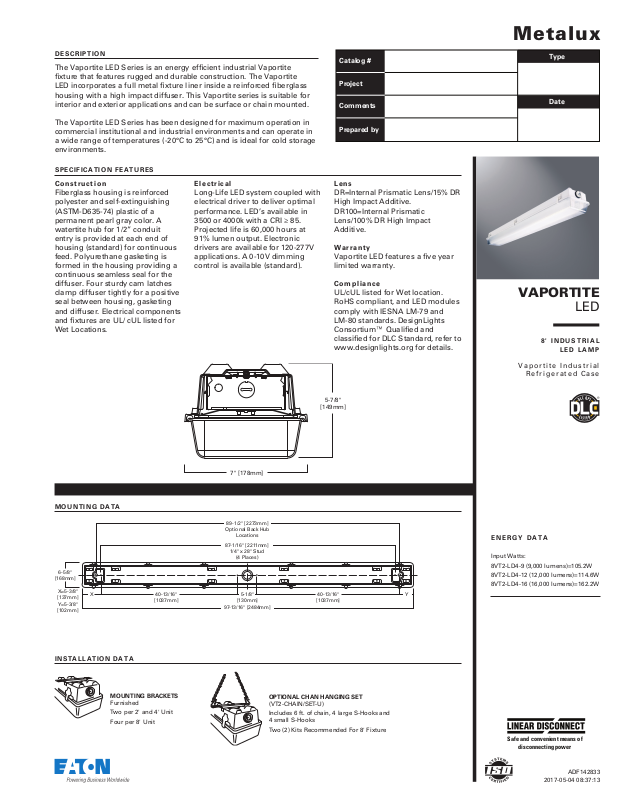

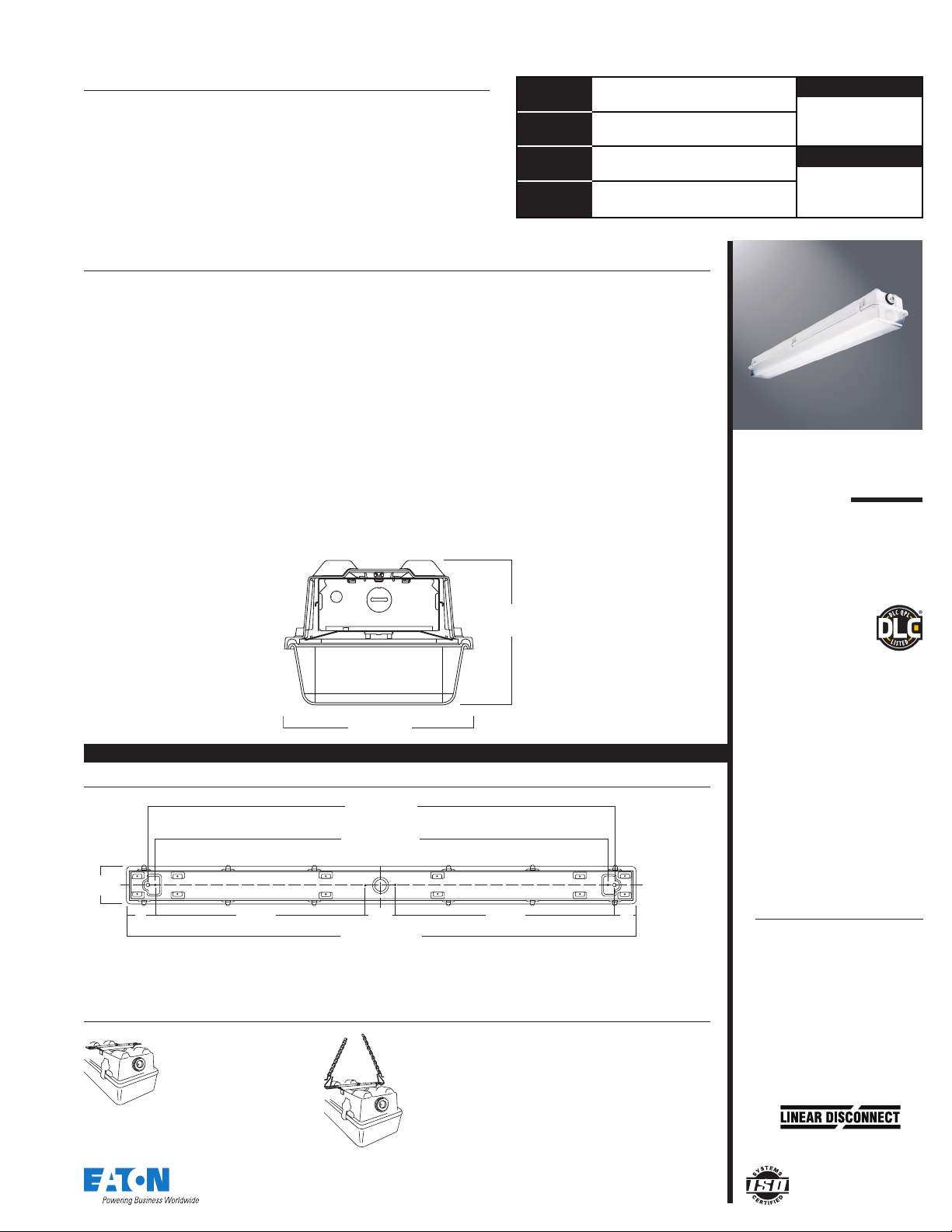

Page 1
Safe and convenient means of
DESCRIPTION
[149mm]
7" [178mm]
[1
[102mm]
89-1/2" [2273mm]
The Vaportite LED Series is an energy efficient industrial Vaportite
fixture that features rugged and durable construction. The Vaportite
LED incorporates a full metal fixture liner inside a reinforced fiberglass
housing with a high impact diffuser. This Vaportite series is suitable for
interior and exterior applications and can be surface or chain mounted.
The Vaportite LED Series has been designed for maximum operation in
commercial institutional and industrial environments and can operate in
a wide range of temperatures (-20°C to 25°C) and is ideal for cold storage
environments.
SPECIFICATION FEATURES
Construction
Fiberglass housing is reinforced
polyester and self-extinguishing
(ASTM-D635-74) plastic of a
permanent pearl gray color. A
watertite hub for 1/2” conduit
entry is provided at each end of
housing (standard) for continuous
feed. Polyurethane gasketing is
formed in the housing providing a
Electrical
Long-Life LED system coupled with
electrical driver to deliver optimal
performance. LED’s available in
3500 or 4000k with a CRI ≥ 85.
Projected life is 60,000 hours at
91% lumen output. Electronic
drivers are available for 120-277V
applications. A 0-10V dimming
control is available (standard).
continuous seamless seal for the
diffuser. Four sturdy cam latches
clamp diffuser tightly for a positive
seal between housing, gasketing
and diffuser. Electrical components
and fixtures are UL/ cUL listed for
Wet Locations.
Catalog #
Project
Comments
Prepared by
Lens
DR=Internal Prismatic Lens/15% DR
High Impact Additive.
DR100=Internal Prismatic
Lens/100% DR High Impact
Additive.
Warranty
Vaportite LED features a five year
limited warranty.
Compliance
UL/cUL listed for Wet location.
RoHS compliant, and LED modules
comply with IESNA LM-79 and
LM-80 standards. DesignLights
Consortium™ Qualified and
classified for DLC Standard, refer to
www.designlights.org for details.
Metalux
Type
Date
VAPORTITE
LED
8' INDUSTRIAL
LED LAMP
Vaportite Industrial
Refrigerated Case
MOUNTING DATA
6-5/8"
68mm]
X=5-3/8"
[137mm]
Y=5-3/8"
INSTALLATION DATA
X Y
40-13/16"
[1037mm]
Optional Back Hub
Locations
87-1/16" [2211mm]
1/4" x 28" Stud
(4 Places)
5-1/8"
[130mm]
97-13/16" [2484mm]
5-7/8"
40-13/16"
[1037mm]
ENERGY DATA
Input Watts:
8VT2-LD4-9 (9,000 lumens)=105.2W
8VT2-LD4-12 (12,000 lumens)=114.6W
8VT2-LD4-16 (16,000 lumens)=162.2W
MOUNTING BRACKETS
Furnished
Two per 2' and 4' Unit
Four per 8' Unit
OPTIONAL CHAN HANGING SET
(VT2-CHAIN/SET-U)
Includes 6 ft. of chain, 4 large S-Hooks and
4 small S-Hooks
Two (2) Kits Recommended For 8' Fixture
disconnecting power
ADF142833
2017-05-04 08:37:13

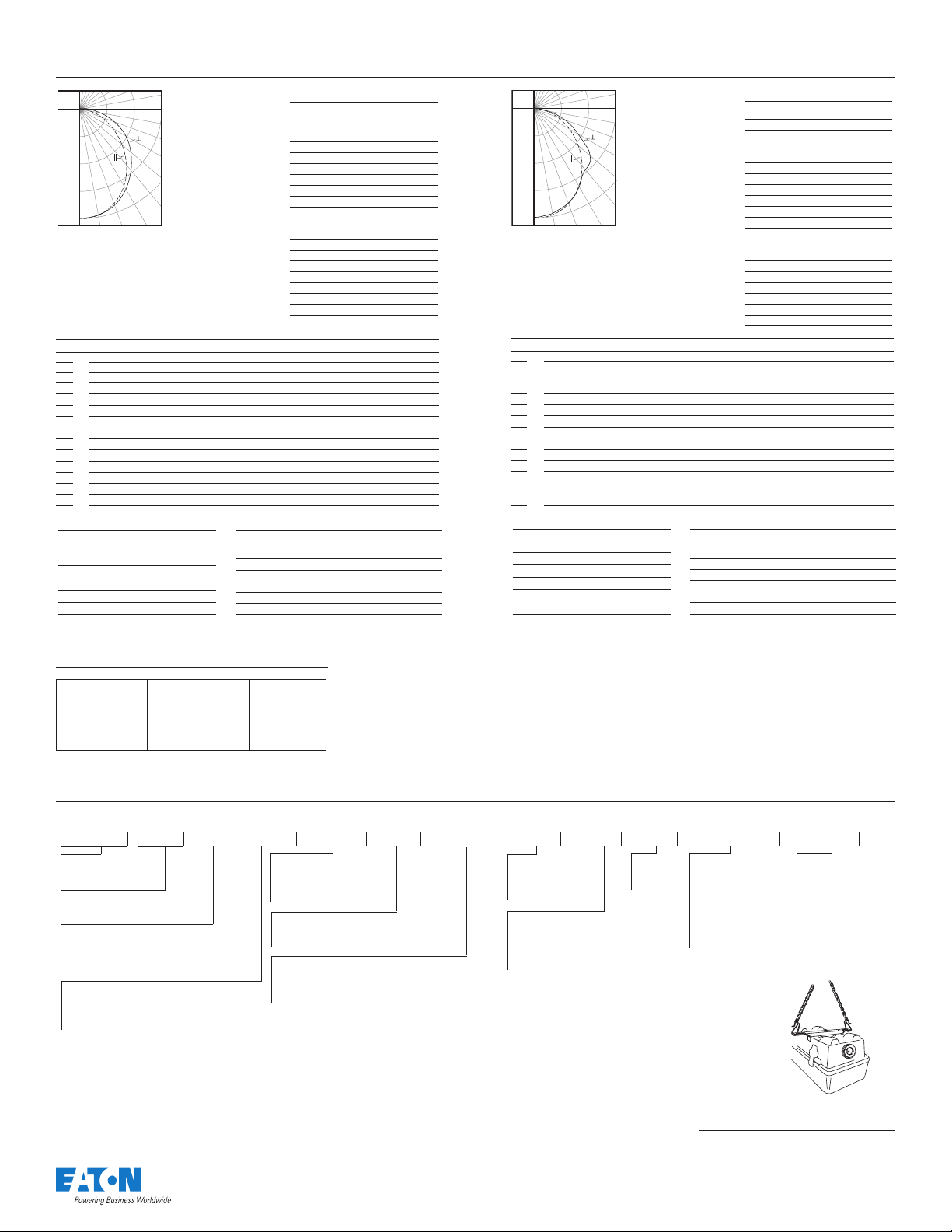

Page 2
SAMPLE NUMBER: 8VT2-LD4-9-DR-UNV-L840-CD1-WL-U
8VT2-LD4-12-FR50-
Candlepower
Coef
%0
RC
PHOTOMETRICS
8VT2-LD4-12-DR-
Candlepower
Coef
%0
90˚
UNV-L835-CD1-U
80˚
964
1929
2893
3858
0˚ 30˚
10˚
20˚
Electronic Driver
70˚
Linear LED 3500K
Spacing criterion:
60˚
(II) 1.2 x mounting
50˚
height, (⊥) 1.2 x
mounting height
40˚
Lumens: 11 546
Input Watts: 114.6W
Effi cacy: 10 0.8 lm/W
Test Report:
8VT2-LD4-12-FR50UNV-L835-CD1-U.
IES
ficients of Utilization
Effective fl oor cavity refl ectance 20%
rc 80%70% 50%30% 10
rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
R
118 11 8 11 8 11 8 115 115 115 115 109 10 9 109 104 10 4 10 4 99 99 99 96
0
107 102 97 93 104 99 95 91 94 91 87 90 87 84 85 83 81 79
1
97 88 81 75 94 86 79 74 82 76 72 78 73 69 74 71 67 65
2
88 77 69 62 85 75 68 61 72 65 60 69 63 58 66 61 57 54
3
81 68 59 53 78 67 58 52 64 57 51 61 55 50 59 53 49 46
4
74 61 52 45 72 60 51 45 57 50 44 55 48 43 53 47 42 40
5
69 55 46 39 66 54 45 39 52 44 38 50 43 38 48 42 37 35
6
64 50 41 35 62 49 40 35 47 40 34 45 39 34 44 38 33 31
7
59 46 37 31 57 45 37 31 43 36 30 42 35 30 40 34 30 28
8
55 42 34 28 54 41 33 28 40 32 27 38 32 27 37 31 27 25
9
52 39 31 25 50 38 30 25 37 30 25 35 29 25 34 29 24 23
10
Zonal Lumen Summary
Zone Lumens% Fixture
0-30
2970 25.7
0-40
4821 41.8
0-60
8405 72.8
11138 96.5
0-90
11546 100.0
0-180
Luminance Data
Angle
in Deg
45
55
65
75
85
Angle Along II 45°Across ⊥
0
3844 3844 3844
5
3852 3812 3844
3786 3762 3788
10
3684 3674 3706
15
3538 3552 3594
20
3346 3392 3442
25
3122 3190 3258
30
2862 2962 3038
35
2574 2710 2818
40
2256 2448 2584
45
1948 2176 2352
50
1642 1920 2124
55
1356 1658 1878
60
1086 1402 1600
65
830 11 54 1304
70
604 902 1020
75
386 666 750
80
198 462 524
85
58 310 364
90
Average
0-Deg
cd/sm
Average
45-Deg
cd/sm
8585 9181 9633
7704 8822 9677
6915 8654 9752
6280 8889 9840
6113 12209 13067
Average
90-Deg
cd/sm
8’ VAPORTITE LED
90˚
UNV-L835-CD1WL-U
1007
2014
3021
4028
0˚ 30˚
10˚
80˚
Electronic Driver
70˚
Linear LED 3500K
60˚
Spacing criterion:
50˚
(II) 1.2 x mounting
height, (⊥) 1.2 x
mounting height
40˚
20˚
Lumens: 11 764
Input Watts: 112.4W
Effi cacy: 104.7 lm/W
Test Report:
8VT2-LD4-12-DR-UNVL835-CD1-WL- U.IES
ficients of Utilization
Effective fl oor cavity refl ectance 20%
%
rc 80%70% 50%30% 10
rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR
119 119 119 119 11 6 11 6 11 6 11 6 110 110 110 105 105 10 5 101 101 101 99
0
108 103 98 94 105 101 96 93 96 93 90 92 89 87 88 86 84 82
1
98 89 82 76 95 87 81 75 84 78 73 80 75 71 77 73 70 67
2
89 78 70 63 86 76 69 62 73 67 61 70 65 60 68 63 59 56
3
81 69 60 53 79 68 59 53 65 58 52 62 56 51 60 55 50 48
4
75 62 52 46 73 60 52 45 58 51 45 56 49 44 54 48 44 41
5
69 55 46 40 67 54 46 40 52 45 39 51 44 39 49 43 38 36
6
64 50 41 35 62 49 41 35 48 40 35 46 39 34 45 38 34 32
7
59 46 37 31 58 45 37 31 44 36 31 42 35 31 41 35 30 28
8
56 42 34 28 54 41 33 28 40 33 28 39 32 28 38 32 27 25
9
52 39 31 25 51 38 31 25 37 30 25 36 30 25 35 29 25 23
10
Zonal Lumen Summary
Zone Lumens % Fixture
0-30
3071 26.1
0-40
4980 42.3
0-60
8927 75.9
11608 98.7
0-90
1176 4 100.0
0-180
Luminance Data
Angle
in Deg
45
55
65
75
85
Angle Along II 45°Across ⊥
0
4000 4000 4000
5
4014 3958 3960
3962 3902 3912
10
3860 3800 3806
15
3714 3672 3688
20
3528 3496 3530
25
3290 3292 3320
30
3022 3044 3068
35
2750 2786 2936
40
2442 2542 2876
45
2124 2414 2686
50
1806 2350 2296
55
1498 2096 1866
60
1200 1636 15 42
65
922 11 82 1200
70
664 796 852
75
412 498 510
80
188 274 254
85
68 150 126
90
Average
0-Deg
cd/sm
Average
45-Deg
cd/sm
9293 9533 10722
8473 10798 10461
7641 10 098 9399
6904 7845 8219
5805 7241 6334
Average
90-Deg
cd/sm
%
LUMEN MAINTENANCE
Ambient
Temperature
TM-21 Lumen
Maintenance
(60,000 hours)
Theoretical
(Hours)
25°C > 91% > 247,000
ORDERING INFORMATION
(2)
Series
8VT2=8' Vaportite
Lamp Type
LD4=LED 4.0
LED Lumens Output
9=9000 Lumens
12=12000 Lumens
16=16000 Lumens
Lens
DR=Internal Prismatic Lens/15% DR
High Impact Additive
DR100=Internal Prismatic Lens/100%
DR High Impact Additive
FR50=Frosted Lens/15% DR High Impact Additive
(1)
NOTES:
Not availablie in wide distribution.
www.designlights.org for details.
Specifications & dimensions subject to change without notice. Consult your Eaton Representative for availability and ordering information.
(2)
DesignLights Consortium™ Qualified and classified for DLC Standard (some models are not DLC qualified), refer to
(3)
EL must specify 120 or 277V only.
L70
Distribution
[Blank]=Medium
(Standard)
W=Wide Distribution
Voltage
UNV=Universal
Voltage 120-277
Remote Emergency Enclosure
VT-REM-EL=Emergency Installed, 700 lumens
EL10W=10-watt, 120-277V emergency battery pack
installed (9,000 lumen fixture only)
(1)
(3)
(3)
Lamps
L835=3500K, LED
L840=4000K, LED
L850=5000K, LED
Driver Type
CD1=1 Dimming Driver
(9,000 lumens only)
CD2=2 Dimming Drivers
5LTD2=Fifth Light DALI
WL=Wet
Location
Label
Options
SSL=Stainless Steel
Latches
TH=(2) Top Watertite Hubs
TEH=(2) Top and (2) End
Watertite Hubs (all
Watertite Hubs have 1/2"
Conduit Entry)
Accessories (order separately)
VT2-Chain/Set-U=Chain Hanging Set
Includes 6 ft. of chain, 4 large
S-Hooks and 4 small S-Hooks
Two (2) Kits Recommended
For 8' Fixture
VT2-SS-MBK=Stainless
Steel Mounting Brack et
Packaging
U=Unit Pack
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
SHIPPING DATA
Catalog No. Wt.
8VT2-LD4 35 lbs.
ADF142833
2017-05-04 08:37:13
