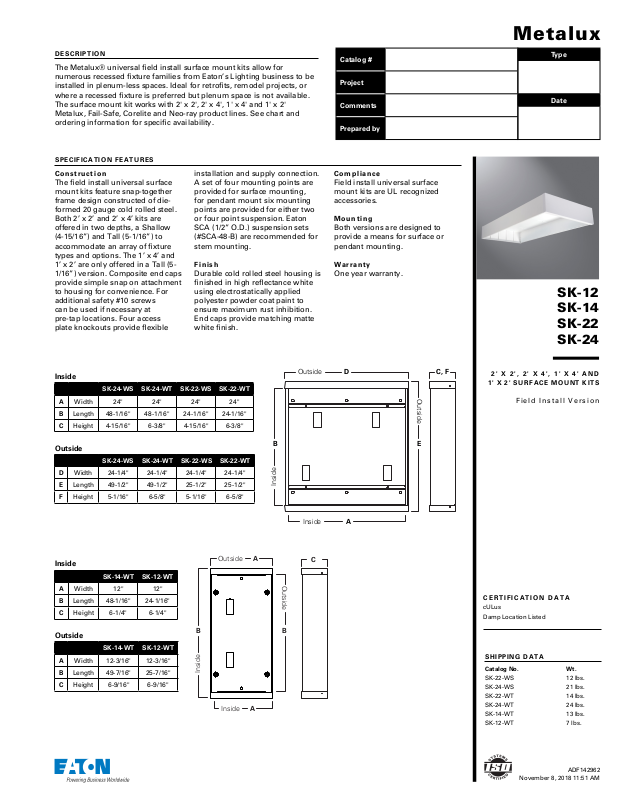

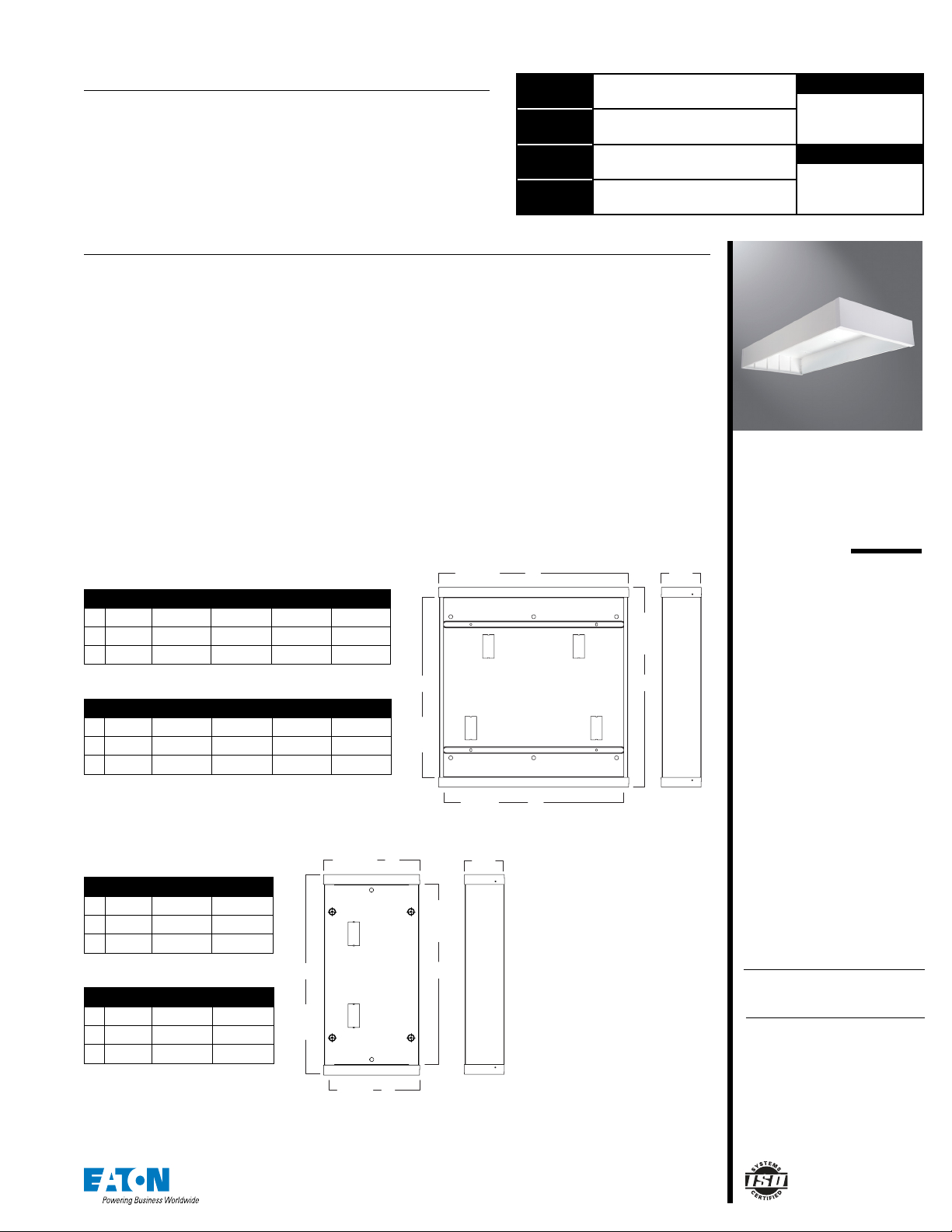

Page 1
DESCRIPTION
Outside D
Inside
Inside
A
BE
C, F
Outside A
Inside
Inside
A
BB
C
The Metalux® universal field install surface mount kits allow for
numerous recessed fixture families from Eaton’s Lighting business to be
installed in plenum-less spaces. Ideal for retrofits, remodel projects, or
where a recessed fixture is preferred but plenum space is not available.
The surface mount kit works with 2' x 2', 2' x 4', 1' x 4' and 1' x 2'
Metalux, Fail-Safe, Corelite and Neo-ray product lines. See chart and
ordering information for specific availability.
SPECIFICATION FEATURES
Construction
The field install universal surface
mount kits feature snap-together
frame design constructed of dieformed 20 gauge cold rolled steel.
Both 2’ x 2’ and 2’ x 4’ kits are
offered in two depths, a Shallow
(4-15/16”) and Tall (5-1/16”) to
accommodate an array of fixture
installation and supply connection.
A set of four mounting points are
provided for surface mounting,
for pendant mount six mounting
points are provided for either two
or four point suspension. Eaton
SCA (1/2” O.D.) suspension sets
(#SCA-48-B) are recommended for
stem mounting.
types and options. The 1’ x 4’ and
1’ x 2’ are only offered in a Tall (51/16”) version. Composite end caps
provide simple snap on attachment
to housing for convenience. For
additional safety #10 screws
can be used if necessary at
pre-tap locations. Four access
plate knockouts provide flexible
Finish
Durable cold rolled steel housing is
finished in high reflectance white
using electrostatically applied
polyester powder coat paint to
ensure maximum rust inhibition.
End caps provide matching matte
white finish.
Catalog #
Project
Comments
Prepared by
Compliance
Field install universal surface
mount kits are UL recognized
accessories.
Mounting
Both versions are designed to
provide a means for surface or
pendant mounting.
Warranty
One year warranty.
Metalux
Type
Date
SK-12
SK-14
SK-22
SK-24
Inside
SK-24-WS SK-24-WT SK-22-WS SK-22-WT
A Width 24" 24" 24" 24"
B Length 48-1/16" 48-1/16" 24-1/16" 24-1/16"
C Height 4-15/16" 6-3/8" 4-15/16" 6-3/8"
Outside
SK-24-WS SK-24-WT SK-22-WS SK-22-WT
D Width 24-1/4" 24-1/4" 24-1/4" 24-1/4"
E Length 49-1/2" 49-1/2" 25-1/2" 25-1/2"
F Height 5-1/16" 6-5/8" 5-1/16" 6-5/8"
Inside
SK-14-WT SK-12-WT
A Width 12" 12"
B Length 48-1/16" 24-1/16"
C Height 6-1/4" 6-1/4"
Outside
A Width 12-3/16" 12-3/16"
B Length 49-7/16" 25-7/16"
C Height 6-9/16" 6-9/16"
SK-14-WT SK-12-WT
Outside
2' X 2', 2' X 4', 1' X 4' AND
1' X 2' SURFACE MOUNT KITS
Outside
CERTIFICATION DATA
cULus
Damp Location Listed
SHIPPING DATA
Catalog No. Wt.
SK-22-WS 12 lbs.
SK-24-WS 21 lbs.
SK-22-WT 14 lbs.
SK-24-WT 24 lbs.
SK-14-WT 13 lbs.
SK-12-WT 7 lbs.
Field Install Version
November 8, 2018 11:51 AM
ADF142962
Page 2
Pendant Mounting
[13mm]
Pendant Mounting
[546mm]
ø 1/2"
Hole Mounting
ø.250
21mm]
Access Plate Location
2-3/
3" [77mm]
[71mm]
Access Plate Location
20mm]
20mm]
[406mm]
Hole Mounting

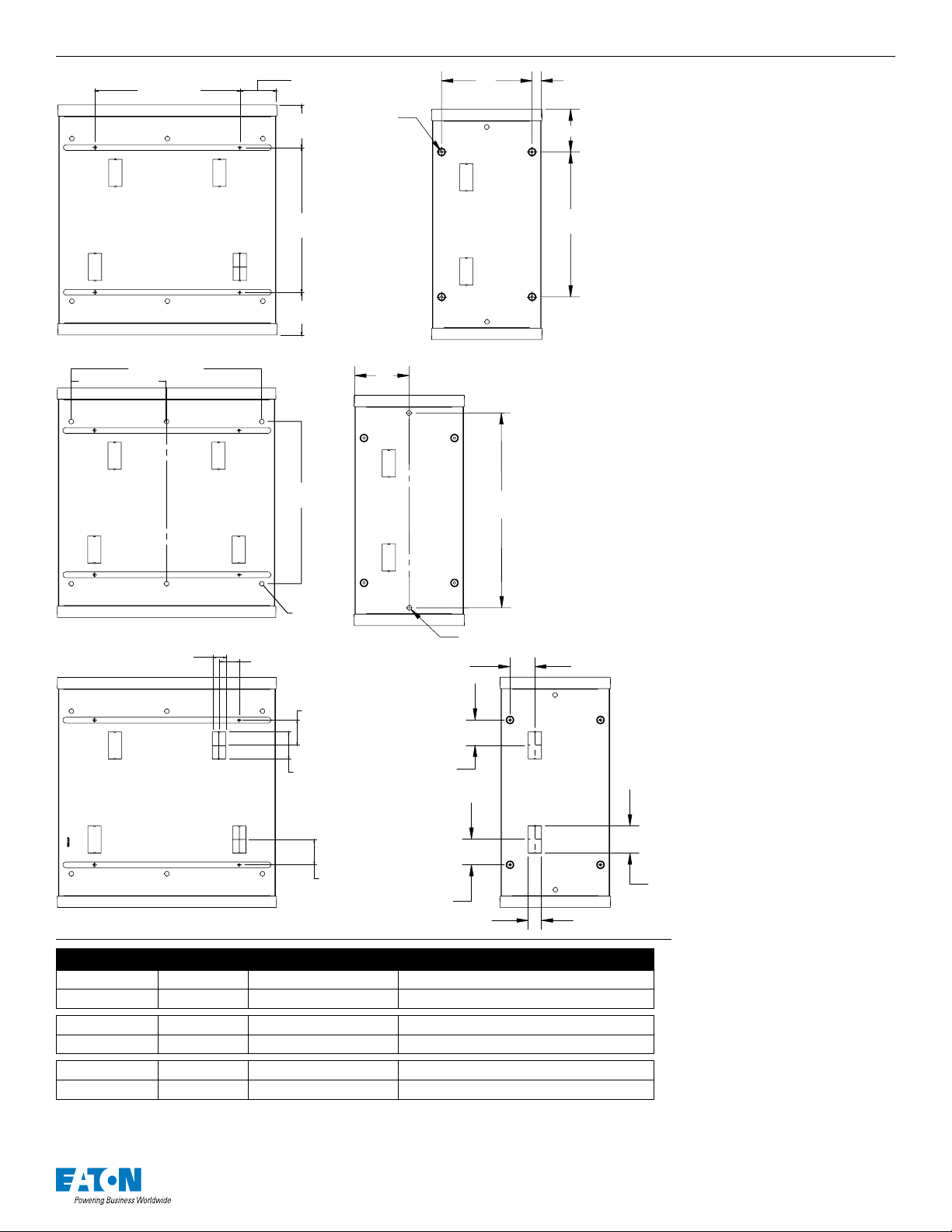

MOUNTING DATA
2’ X 2’, 2’ X 4’, 1’ X 4’ AND 1’ X 2’ SURFACE MOUNT KITS
16" [406mm]
10-9/16" [268mm]
21-1/8" [537mm]
4"
[102mm]
4-11/16"
[1
16"
4-11/16"
[1
18"
[457mm]
THRU
C
10"
[254mm]
L
21-1/2"
1" [26mm]
4-3/4" [1
16"
[406mm]
ORDERING INFORMATION
Stock or MTO Size Catalog Number Description
NOTES: The weight of the installed luminaire (ONLY) not to exceed 40 lbs.
Flex cables sold separately.
Review Compatibility Matrix before placing order for recessed luminaire.
*SkyRidge 1' x 4' fixture with curved reflector (“-C-“) does not fit the 1' x 4' kit without requirement for special bracket, please submit PDR request for
order processing.
(6) 1/2"
1-7/16"
[37mm]
2-1/4"
[57mm]
[71mm]
3"
[76mm]
2-3/4" [70mm]
2-3/4"
16" [56mm]
2-3/4"
2-7/8" [74mm]
1-7/16" [37mm]
Stock 2' x 4' SK-24-WS 2' x 4' Surface Mount Kit, Shallow
Stock 2' x 4' SK-24-WT 2' x 4' Surface Mount Kit, Tall
Stock 2' x 2' SK-22-WS 2' x 2' Surface Mount Kit, Shallow
Stock 2' x 2' SK-22-WT 2' x 2' Surface Mount Kit, Tall
Stock 1' x 4' SK-14-WT* 1' x 4' Surface Mount Kit, Tall
Stock 1' x 2' SK-12-WT 1' x 2' Surface Mount Kit, Tall
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
November 8, 2018 11:51 AM
ADF142962
Page 3
2’ X 2’, 2’ X 4’, 1’ X 4’ AND 1’ X 2’ SURFACE MOUNT KITS
COMPATIBILITY MATRIX
Shallow Design Tall Design
2' x 2' 2' x 4' 2' x 2' 2' x 4' 1' x 4' 1' x 2'
SK-22-WS SK-24-WS SK-22-WT SK-24-WT SK-14-WT SK-12-WT
Metalux
Accord T5, T8, LED T5, T8, LED T5, T8, LED
ArcLine T5, T8, LED T5, T8, LED T5, T8, LED
Cruze ST/SB LED LED LED
Encounter LED LED LED LED
GR T5, T8, LED T5, T8, LED T5, T8, LED
RLN LED LED LED
RTC LED LED LED
FP LED LED LED
SP LED LED
GC T5, T8 T5, T8 T5, T8
Ovation T5, T8 T5, T8 T5, T8
Parabolics* T5, T8 T5, T8
SkyRidge** LED LED LED LED
Fail-Safe
CFDFA T5, T8 T5, T8 T5, T8
CFE-3 T5, T8 T5, T8
2VRGC T5, T8 T5, T8 T5, T8
MAE T5, T8 T5, T8
MAO T5, T8 T5, T8
FCB LED LED LED
GRW LED LED LED
GRV LED LED LED
Corelite
Class E3 T5, T8, LED T5, T8, LED
Class R1/Z1 T5 T5 T5
Class R2/Z2 T5 T5 T5
Class R2X LED LED LED
Class R3/Z3 T5, LED T5, LED T5, LED
GRV LED LED LED
D3X LED LED LED
Neo-ray
Fenestra
202, 232, 242, 272, LED 204, 234, 244, 274, LED
Luminous T5, LED T5, LED T8 T8 T5, T8, LED
Symbio 292 294
*Covers 2P2G, 2EP3, 2HP2, 2HP3, OpticaHP; 2PGAX does not fit kits
**SkyRidge 1' x 4' fixture with curved reflector (“-C-“) does not fit the 1' x 4' kit without requirement for special bracket, please submit PDR request for order processing.
Note: Fail-Safe xtures with emergency do not t either kit size.
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
November 8, 2018 11:51 AM
ADF142962
