COOPER LIGHTING

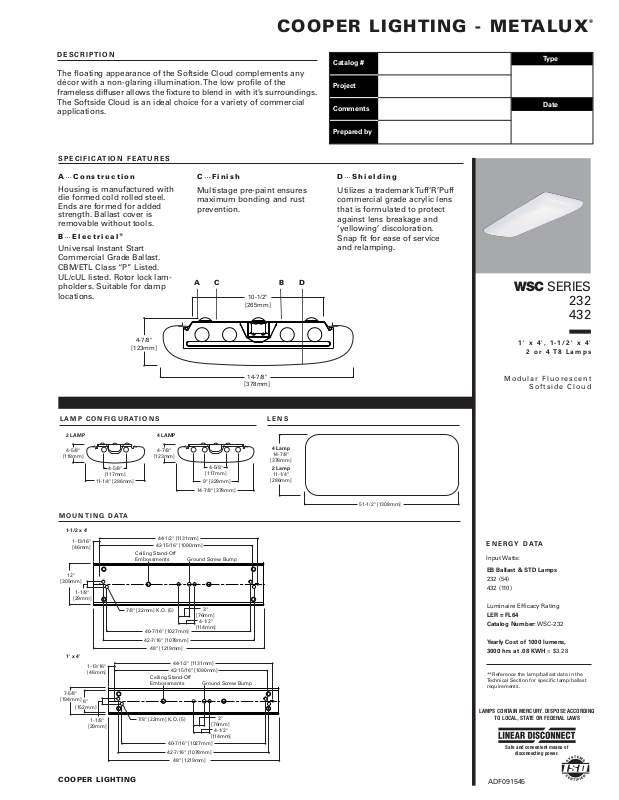

DESCRIPTION

The ﬂoating appearance of the Softside Cloud complements any décor with a non-glaring illumination. The low proﬁle of the frameless diffuser allows the ﬁxture to blend in with it’s surroundings. The Softside Cloud is an ideal choice for a variety of commercial applications.

EB Ballast & STD Lamps

232 (54) 432 (110)

Luminaire Efficacy Rating

LER = FL64 Catalog Number: WSC-232

Yearly Cost of 1000 lumens, 3000 hrs at .08 KWH = $3.28

**Reference the lamp/ballast data in the Technical Section for specific lamp/ballast requirements.

WSC SERIES

232 432

1' x 4', 1-1/2' x 4'

2 or 4 T8 Lamps

Modular Fluorescent

Softside Cloud

ENERGY DATA

Input Watts:

SPECIFICATION FEATURES

A…Construction

Housing is manufactured with die formed cold rolled steel. Ends are formed for added strength. Ballast cover is removable without tools.

B…Electrical*

Universal Instant Start Commercial Grade Ballast. CBM/ETL Class “P” Listed. UL/cUL listed. Rotor lock lampholders. Suitable for damp locations.

C…Finish

Multistage pre-paint ensures maximum bonding and rust prevention.

LAMP CONFIGURATIONS

ADF091545

D…Shielding

Utilizes a trademark Tuff’R’Puff commercial grade acrylic lens that is formulated to protect against lens breakage and ‘yellowing’ discoloration. Snap ﬁt for ease of service and relamping.

COOPER LIGHTING - METALUX

LAMPS CONTAIN MERCURY. DISPOSE ACCORDING

TO LOCAL, STATE OR FEDERAL LAWS

Safe and convenient means of

disconnecting power.

2 LAMP

4 LAMP

MOUNTING DATA

1-1/2 x 4'

1' x 4'

LENS

4-7/8"

[123mm]

10-1/2"

[265mm]

Catalog #

Project

Comments

Prepared by

Type

Date

4-5/8"

[118mm]

4-5/8"

[117mm]

11-1/4" [286mm]

1-13/16"

12"

[305mm]

7-5/8"

[194mm]

[46mm]

1-1/8"

[29mm]

[152mm]

1-13/16" [46mm]

[29mm]

1-1/8"

Ceiling Stand-Off Embossments

7/8" [22mm] K.O. (5)

4-7/8"

[123mm]

44-1/2" [1131mm]

42-15/16" [1090mm]

40-7/16" [1027mm]

42-7/16" [1078mm]

48" [1219mm]

44-1/2" [1131mm]

42-15/16" [1090mm]

Ceiling Stand-Off Embossments

40-7/16" [1027mm]

42-7/16" [1078mm]

48" [1219mm]

4-5/8"

[117mm]

9" [229mm]

14-7/8" [378mm]

Ground Screw Bump

[76mm]

4-1/2"

[114mm]

Ground Screw Bump

[76mm]

4-1/2"

[114mm]

14-7/8"

[378mm]

4 Lamp

14-7/8"

[378mm]

2 Lamp

11-1/4"

[286mm]

51-1/2" [1308mm]

Page 2

Visit our web site at www.cooperlighting.com

Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.480 0 FAX 770.486.4801 10/09 ADF091545

WSC-232 13 lbs. WSC-432 17 lbs.

SHIPPING INFORMATION

Catalog No. Wt.

WSC232

PHOTOMETRICS

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 70% 50% 30% 10% 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

0 1 2 3 4 5 6 7 8 9

Luminance Data

Average Average Average Angle 0-Deg 45-Deg 90-Deg in Deg cd/sm cd/sm cd/sm

45 1885 1769 1654 55 1769 1687 1579 65 1593 1617 15 47 75 1317 1619 15 75 85 867 1825 1738

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture 0-30 0-40 0-60 0-90 0-180

Candlepower

Angle Along II 45° Across ⊥ 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90

WSC-232

Electronic Ballast (2) F32T8 Lamps

2800 Lumens each Spacing criterion:

(II) 1.3 x mounting height, (⊥) 1.3 x mounting height

Efficiency 70.5% Test Report:

P20017 LER = FL64 Yearly Cost of 1000

lumens, 3000 hrs at .08 KWH = $3.28

812 812 812 811 811 809 802 804 804 787 791 794 764 772 778 735 747 756 700 717 730 658 682 700 611 642 665 559 598 628 501 551 587 440 501 545 375 449 504 308 399 464 240 350 425 174 306 387

111 265 352

58 229 320 22 199 290

79 79 79 79 75 75 75 75 68 68 68 61 61 61 55 55 55 52 71 67 63 60 67 63 60 58 57 55 52 51 49 47 46 44 43 40 64 58 52 48 60 55 50 46 49 45 42 44 41 38 39 37 35 32 58 50 44 39 55 48 42 38 43 38 35 38 35 32 34 31 29 27 53 44 38 33 50 42 36 32 38 33 29 34 30 27 30 27 24 22 48 39 33 28 46 37 31 27 34 29 25 30 26 23 27 24 21 19 44 35 29 24 42 33 27 23 30 25 22 27 23 20 25 21 18 16 41 32 25 21 39 30 24 20 27 22 19 25 21 18 22 19 16 14 38 29 23 19 36 27 22 18 25 20 17 23 19 16 20 17 14 13 36 26 20 17 34 25 20 16 23 18 15 21 17 14 19 15 13 11 33 24 19 15 31 23 18 14 21 17 13 19 15 13 17 14 12 10

645 11.5 16.3 1071 19.1 27.1 1976 35.3 50.1

2908 51.9 73.7 3947 70.5 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 70% 50% 30% 10% 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

0 1 2 3 4 5 6 7 8 9

Luminance Data

Average Average Average Angle 0-Deg 45-Deg 90-Deg in Deg cd/sm cd/sm cd/sm

45 2789 2664 2529 55 2636 2545 2419 65 2414 2431 2331 75 2075 2366 2289 85 1543 2564 2458

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture 0-30 0-40 0-60 0-90 0-180

Candlepower

Angle Along II 45° Across ⊥ 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90

WSC-432

Electronic Ballast (2) F32T8 Lamps

2800 Lumens each Spacing criterion:

(II) 1.3 x mounting height, (⊥) 1.3 x mounting height

Efficiency 61.6% Test Report:

P20021 LER = FL55 Yearly Cost of 1000

lumens, 3000 hrs at .08 KWH = $3.83

1544 1544 1544 1542 1541 1543 1525 1528 1531 1496 1502 1510 1453 1465 1475 1399 1415 1429 1333 1355 1373 1254 1286 1309

1166 1207 1237

1069 1121 1159

962 1028 1075 848 929 988 728 828 898 604 725 807 479 624 715 355 526 626 238 435 544 134 358 473

61 299 416

70 70 70 70 67 67 67 67 61 61 61 55 55 55 50 50 50 48 63 59 56 54 59 56 54 51 51 49 47 46 45 43 42 41 40 37 57 51 46 43 54 49 45 41 44 41 38 40 37 35 36 34 32 30 51 44 39 35 48 42 38 34 39 35 31 35 32 29 32 29 27 25 47 39 34 29 44 37 32 28 34 30 26 31 27 25 28 25 23 21 43 35 29 25 41 33 28 24 30 26 23 28 24 21 25 22 20 18 39 31 26 22 37 30 25 21 27 23 20 25 21 18 23 20 17 16 36 28 23 19 35 27 22 18 25 20 17 23 19 16 21 18 15 14 34 26 20 17 32 25 20 16 23 18 15 21 17 14 19 16 13 12 32 23 18 15 3 0 22 18 14 21 17 14 19 15 13 17 14 12 11 30 21 17 13 28 21 16 13 19 15 12 18 14 12 16 13 11 10

1225 10.9 17.7 2029 18.1 29.4 3719 33.2 53.9 5334 47.6 77.3 6902 61.6 100.0

ORDERING INFORMATION

SAMPLE NUMBER: WSC-232-D-W-UNV-EB81-U

NOTES:

(1)

Products also available in non-US voltages and frequencies for international markets. 120V must be

speciﬁed with a residential ballast.

(2)

Not available when specifying emergencies, voltage must be speciﬁc.

(3)

A low profile battery pack is required for installation with standard ballast cover (consult Cooper Lighting).

For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting Representative for availability and ordering information.

Series WSC=Softside

Cloud

Number of Lamps 2=2 Lamps (Not Included) 4=4 Lamps (Not Included)

Wattage (Length) 32=32W T8 (48")

Diffuser/Lens D=Dropped

Frame Finish W=White

Voltage

(1)

120V=120 Volt 277V=277 Volt 347V=347 Volt UNV=Universal Voltage 120-277

(2)

Packaging U=Unit Pack

Options GL=Single Element Fuse GM=Double Element Fuse EL=Emergency Installed

(3)

Ballast Type

(1)

EB8 =T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

EB8

/PLUS= T8 Electronic Instant Start. High Ballast Factor >1.13.

Total Harmonic Distortion < 10%

ER8 =T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%

ER8

/PLUS=T8 Electronic Program Start. High Ballast Factor >1.13

Total Harmonic Distortion < 10%

HPT8 Ballast HB8

L=T8 Electronic Instant Start. Low Ballast Factor .77

HB8

=T8 Electronic Instant Start. Ballast Factor .88

HB8

N=T8 Electronic Instant Start. Normal Ballast Factor 1.0

HB8

H=T8 Electronic Instant Start. High Ballast Factor 1.15-1.2

HR8 DIM=T8 Electronic Program Start Step Dimming. Ballast Factor .88 HR8

L=T8 Electronic Program Start. Low Ballast Factor .77

HR8

=T8 Electronic Program Start. Ballast Factor .88

HR8

H=T8 Electronic Program Start. High Ballast Factor 1.15-1.2

No. of Ballast 1 or 2
