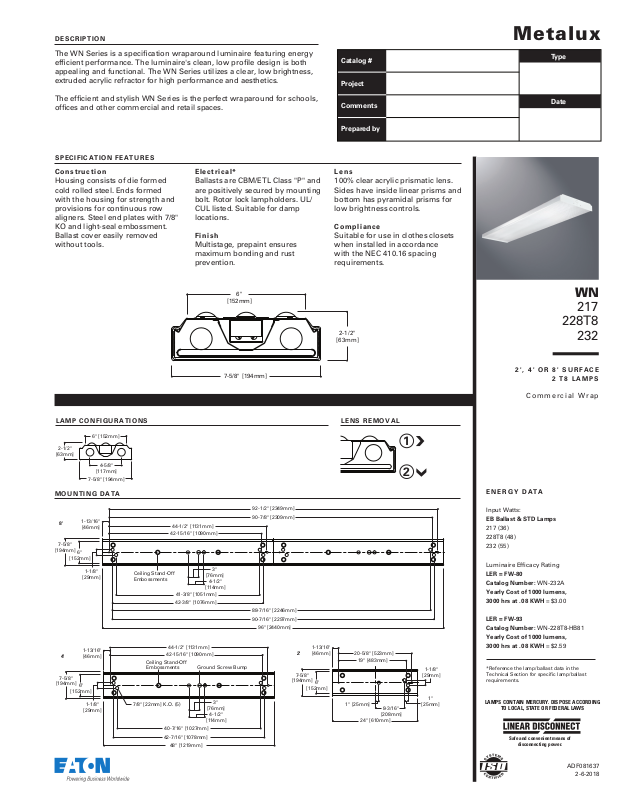

Page 1
DESCRIPTION
[63mm]
6"
7-5/8" [194mm]
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
disconnecting power.
6" [152mm]
[63mm]
7-5/8" [194mm]
1
92-1/2" [2349mm]
96" [2440mm]
[1
44-1/2" [1131mm]
48" [1219mm]
[1
1-13/16"
[29mm]
24" [610mm]
[1
The WN Series is a specification wraparound luminaire featuring energy
efficient performance. The luminaire's clean, low profile design is both
appealing and functional. The WN Series utilizes a clear, low brightness,
extruded acrylic refractor for high performance and aesthetics.
The efficient and stylish WN Series is the perfect wraparound for schools,
offices and other commercial and retail spaces.
SPECIFICATION FEATURES
Construction
Housing consists of die formed
cold rolled steel. Ends formed
with the housing for strength and
provisions for continuous row
aligners. Steel end plates with 7/8"
Electrical*
Ballasts are CBM/ETL Class "P" and
are positively secured by mounting
bolt. Rotor lock lampholders. UL/
CUL listed. Suitable for damp
locations.
KO and light-seal embossment.
Ballast cover easily removed
without tools.
Finish
Multistage, prepaint ensures
maximum bonding and rust
prevention.
Catalog #
Project
Comments
Prepared by
Lens
100% clear acrylic prismatic lens.
Sides have inside linear prisms and
bottom has pyramidal prisms for
low brightness controls.
Compliance
Suitable for use in clothes closets
when installed in accordance
with the NEC 410.16 spacing
requirements.
Metalux
Type
Date
LAMP CONFIGURATIONS
2-1/2"
4-5/8"
[117mm]
MOUNTING DATA
1-13/16"
8'
[46mm]
7-5/8"
94mm]
6"
[152mm]
1-1/8"
[29mm]
1-13/16"
[46mm]
4'
7-5/8"
94mm]
6"
[152mm]
1-1/8"
[29mm]
Ceiling Stand-Off
Embossments
7/8" [22mm] K.O. (5)
44-1/2" [1131mm]
42-15/16" [1090mm]
41-3/8" [1051mm]
42-3/8" [1076mm]
42-15/16" [1090mm]
Ceiling Stand-Off
Embossments
40-7/16" [1027mm]
42-7/16" [1078mm]
[152mm]
3"
[76mm]
4-1/2"
[114mm]
Ground Screw Bump
3"
[76mm]
4-1/2"
[114mm]
90-7/8" [2309mm]
88-7/16" [2246mm]
90-7/16" [2297mm]
2'
7-5/8"
94mm]
[46mm]
6"
[152mm]
2-1/2"
LENS REMOVAL
20-5/8" [523mm]
19" [483mm]
1" [25mm]
8-3/16"
[208mm]
WN
217
228T8
232
2', 4' OR 8' SURFACE
2
ENERGY DATA
Input Watts:
EB Ballast & STD Lamps
217 (36)
228T8 (48)
232 (55)
Luminaire Efficacy Rating
LER = FW-80
Catalog Number: WN-232A
Yearly Cost of 1000 lumens,
3000 hrs at .08 KWH = $3.00
LER = FW-93
Catalog Number: WN-228T8-HB81
Yearly Cost of 1000 lumens,
3000 hrs at .08 KWH = $2.59
1-1/8"
1"
[25mm]
*Reference the lamp/ballast data in the
Technical Section for specific lamp/ballast
requirements.
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
2 T8 LAMPS
Commercial Wrap
ADF081637
2-6-2018
Page 2
SAMPLE NUMBER: WN-232A-UNV-EB81-U
NO
recommended
ballast.
(consult
Re
Fo
Representative for availability and ordering information.
%0
Candlepower
⊥
WN-232-EB81-U
34
53
PHOTOMETRICS
Candlepower
⊥
WN-228T8-HB81-U
13
33 37 17 22
WN T8
Energy Saving Ballast
F32T8/35K lamps
3100 lumens
Spacing criterion:
(II) 1.3 x mounting
height, (⊥) 1.4 x
mounting height
Efficiency = 82.0%
Test Report:
134P132
LER = FW-80
Yearly Cost of 1000
lumens, 3000 hrs at
.08 KWH = $3.00
Angle Along II 45°Across
0
1583 1583 1583
5
1588 1594 1591
10
1580 1597 1607
15
1554 1591 1618
20
1512 1573 1605
25
1454 1534 1563
30
1380 1473 1488
35
1291 1384 1375
40
1181 1258 1225
45
1043 1077 1030
50
848 851 809
55
602 655 626
60
429 518 512
65
317 41
70
240 333 409
75
180 270 390
80
123 223 369
85
62 185 347
90
3 15
Coefficients of Utilization
Effective floor cavity reflectance 20%
rc 80%70% 50% 30% 10
rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR
95 95 95 95 92 92 92 92 85 85 85 80 80 80 74 74 74 72
0
86 82 79 76 83 80 76 73 74 72 69 69 67 65 65 63 61 59
1
79 72 67 62 76 70 65 61 65 61 58 61 58 55 57 54 52 50
2
72 64 57 52 69 62 56 51 58 53 49 54 50 47 51 47 45 42
3
66 57 50 45 64 55 49 44 52 46 42 49 44 40 46 42 39 37
4
61 51 44 39 59 49 43 38 47 41 37 44 39 35 41 37 34 32
5
57 46 39 34 54 45 38 33 42 36 32 40 35 31 38 33 30 28
6
52 42 35 30 50 41 34 29 38 33 29 36 31 28 34 30 27 25
7
49 38 31 27 47 37 31 26 35 30 26 33 28 25 32 27 24 22
8
46 35 28 24 44 34 28 24 32 27 23 31 26 22 29 25 22 20
9
43 32 26 22 41 31 26 22 30 25 21 29 24 20 27 23 20 18
10
Zonal Lumen Summary
Zone Lumens %Lamp %Fixture
1304 21.0 25.6
0-30
2152 34.7 42.3
0-40
3544 57.2 69.7
0-60
4441 71.6 87.3
0-90
645 10.4 12.7
90-180
5086 82.0 100.0
0-180
Ty p ical VCP Per centages
Room Size (Ft.) 8.5’ 10.0’ 8.5’ 10.0’
20 x 20
30 x 30
30 x 60
60 x 30
60 x 60
Height AlongHeight Across
52 58 44 53
43 48 31 39
36 40 15 21
40 46 35 42
32 37 17 22
Energy Saving Ballast
F28T8 28W lamps
2800 lumens
Spacing criterion:
(II) 1. 3 x mounting
height, (⊥) 1. 4 x
mounting height
Efficiency = 90.2%
Test Report:
134P133
44
LER = FW-93
Yearly Cost of 1000
lumens, 3000 hrs at
.08 KWH = $2.59
32
AngleAlong II 45°Across
0
1562 1562 1562
5
1566 1572 1569
10
1558 1576 1586
15
1532 1570 1597
20
1490 1552 1586
25
1432 1514 1545
30
1358 1453 1472
35
1270 1365 1361
40
1162 1242 1214
45
1025 1063 10 22
50
833 841 803
55
590 648 623
60
422 512 510
65
312 408 442
70
236 328 407
75
178 267 389
80
85
90
121 22
61 184 345
3 152 332
67
Coefficients of Utilization
%
Effective floor cavity reflectance 20%
rc 80% 70%50% 30%10% 0%
rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR
105105 105105 101 101 101 101 94 94 94 87 87 87 81 81 81 78
0
95 91 87 83 91 87 84 81 81 78 76 76 74 71 71 69 67 65
1
87 79 73 68 83 77 71 66 72 67 63 67 63 60 62 60 57 54
2
79 70 63 57 76 68 61 56 63 58 53 59 55 51 56 52 49 46
3
73 62 55 49 70 60 53 48 57 51 46 53 48 44 50 46 42 40
4
67 56 48 42 64 54 47 42 51 45 40 48 43 39 45 41 37 35
5
62 50 43 37 60 49 42 36 46 40 35 44 38 34 41 36 33 31
6
58 46 38 33 55 45 37 32 42 36 31 40 34 30 38 33 29 27
7
54 42 34 29 52 41 34 29 39 32 28 37 31 27 35 30 26 25
8
50 38 31 26 48 37 31 26 36 30 25 34 28 25 32 27 24 22
9
47 35 29 24 45 35 28 24 33 27 23 31 26 22 30 25 22 20
10
Zonal Lumen Summary
Zone Lumens %Lamp %Fixture
1286 23.0 25.5
0-30
2124 37.9 42.0
0-40
3498 62.5 69.2
0-60
4389 78.4 86.9
0-90
5052 90.2100.0
0-180
Typical VCP Percentages
Room Size (Ft.)8.5’10.0’ 8.5’ 10.0’
20 x 20
30 x 30
30 x 60
60 x 30
60 x 60
Height AlongHeight Across
52 58 44 54
43 49 31 40
36 40 15 21
41 47 35 43
ORDERING INFORMATION
Length
Blank=2' or 4' Length
8T=8' (Tandem)
(1)
Series
WN=Commercial
Surface Wrap
Number of Lamps
2=2 Lamps
(Not Included)
Wattage
17=17W T8 (24")
28T8=28W T8 (48")
32=32W T8 (48")
Lens
A=Acrylic Refractor/Lens
(1)
TES:
Steel endplates with 7/8" KO standard for continuous row mounting.
(4)
Not Available when specifying emergencies, voltage must be specified.
Cooper Lighting).
presentative for availability and ordering information.
r complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting
(2)
(6)
for 8 foot tandems.
(6)
When utilizing 28W T8 lamps, HB Ballast must be specified. Other ballast restrictions may apply. Consult your Cooper Lighting
(3)
Products also available in non-US voltage and freqeuncies for international markets. 120V must be specified with a residential
Voltage
120V=120 Volt
277V=277 Volt
347V=347 Volt
UNV=Universal Voltage
120-277
Options
GL=Single Element Fuse
GM=Double Element Fuse
EL=Emergency Installed
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
(3)
(4)
Ballast Type
EB8 =T8 Electronic Instant Start.
EB8
(5)
REB1= T8 Electronic Instant Start Residential Ballast.
ER8
ER8
HPT8 Ballast
HB8
HB8
HB8
HB8
HR8
HR8
HR8
HR8
(2)
2 point suspension recommended for 2 and 4 lamp models. 3 point suspension
(5)
A low profile battery pack is required for installation with standard ballast cover
Specifications and
dimensions subject to
change without notice.
(3)
Total Harmonic Distortion < 10%
No. of Ballast
1 or 2
/PLUS=T8 Electronic Instant Start.
No. of
Ballast
1 or 2
No. of Ballast
1 or 2
No. of
Ballast
1 or 2
High Ballast Factor >1.13.
Total Harmonic Distortion < 20%
=T8 Electronic Program Rapid Start.
Total Harmonic Distortion < 10%
/PLUS=T8 Electronic Program Start.
High Ballast Factor >1.13.
Total Harmonic Distortion < 10%
L=T8 Electronic Instant Start. Low Ballast Factor .77
=T8 Electronic Instant Start. Ballast Factor .88
N=T8 Electronic Instant Start. Normal Ballast Factor 1.0
H=T8 Electronic Instant Start. High Ballast Factor 1.15-1.2
DIM=T8 Electronic Program Start Step Dimming. Ballast Factor .88
L=T8 Electronic Program Start. Low Ballast Factor .77
=T8 Electronic Program Start. Ballast Factor .88
H=T8 Electronic Program Start. High Ballast Factor 1.15-1.2
Options
DEC=Decorative End Cap
CRA=Continuous Row
Aligner
ACCESSORIES
SCF=Fixed Stem Set (Specify Length)
SCS=Swivel Stem Set (Specify Length)
SCA=Adjustable 48” Stem Set
WN-2LT-DEC-ENDS=Decorative End
Caps - 2 Lamps (2 pieces)
WN-CRA=Continuous Row Aligner
(1 only)
SHIPPING DATA
Catalog No. Wt.
WN-217A 6 lbs.
WN-228T8A 8 lbs.
8TWN-228T8A 15 lbs.
WN-232A 8 lbs.
8TWN-232A 15 lbs.
Packaging
U=Unit Pack
ADF081637
2-6-2018
