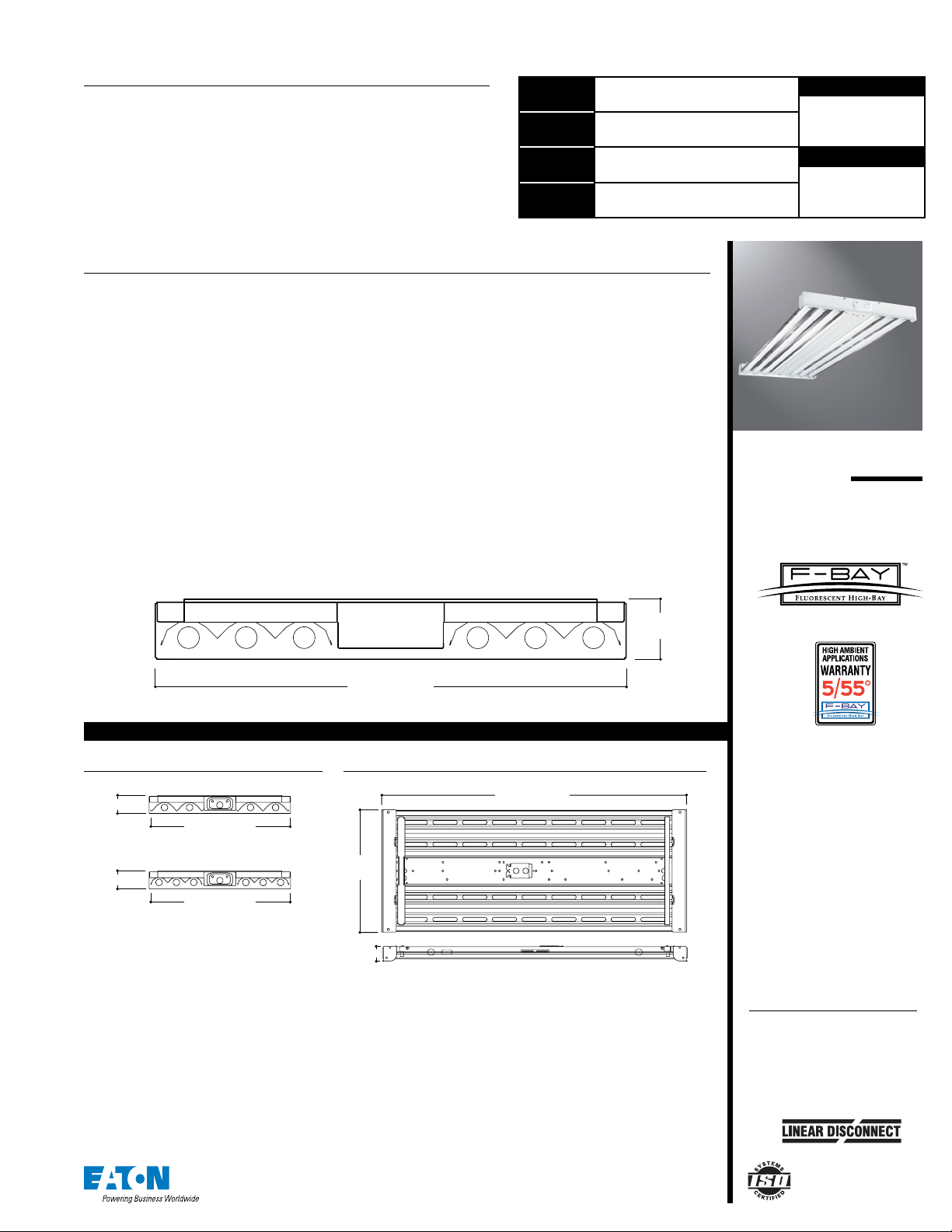

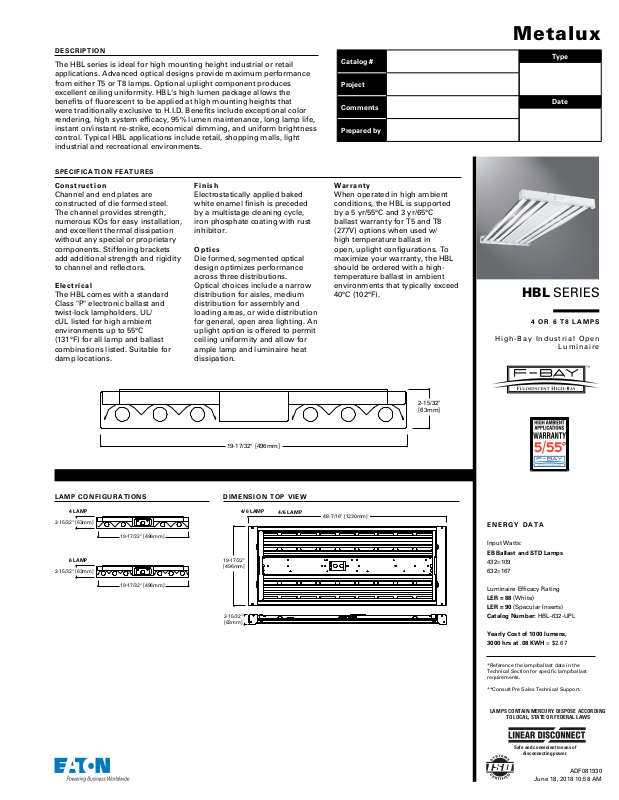

Page 1
DESCRIPTION
19-17/32" [496mm]
5/32"
[63mm]
6 LAMP
19-17/32" [496mm]
2-
4 LAMP
19-17/32" [496mm]
2-
1
[496mm]
2-1
[63mm]
4/6 LAMP
4/6 LAMP
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
disconnecting power.
The HBL series is ideal for high mounting height industrial or retail
applications. Advanced optical designs provide maximum performance
from either T5 or T8 lamps. Optional uplight component produces
excellent ceiling uniformity. HBL‘s high lumen package allows the
benefits of fluorescent to be applied at high mounting heights that
were traditionally exclusive to H.I.D. Benefits include exceptional color
rendering, high system efficacy, 95% lumen maintenance, long lamp life,
instant on/instant re-strike, economical dimming, and uniform brightness
control. Typical HBL applications include retail, shopping malls, light
industrial and recreational environments.
SPECIFICATION FEATURES
Construction
Channel and end plates are
constructed of die formed steel.
The channel provides strength,
numerous KOs for easy installation,
and excellent thermal dissipation
Finish
Electrostatically applied baked
white enamel finish is preceded
by a multistage cleaning cycle,
iron phosphate coating with rust
inhibitor.
without any special or proprietary
components. Stiffening brackets
add additional strength and rigidity
to channel and reflectors.
Optics
Die formed, segmented optical
design optimizes performance
across three distributions.
Electrical
The HBL comes with a standard
Class "P" electronic ballast and
twist-lock lampholders. UL/
cUL listed for high ambient
environments up to 55°C
(131°F) for all lamp and ballast
combinations listed. Suitable for
damp locations.
Optical choices include a narrow
distribution for aisles, medium
distribution for assembly and
loading areas, or wide distribution
for general, open area lighting. An
uplight option is offered to permit
ceiling uniformity and allow for
ample lamp and luminaire heat
dissipation.
Catalog #
Project
Comments
Prepared by
Warranty
When operated in high ambient
conditions, the HBL is supported
by a 5 yr/55°C and 3 yr/65°C
ballast warranty for T5 and T8
(277V) options when used w/
high temperature ballast in
open, uplight configurations. To
maximize your warranty, the HBL
should be ordered with a hightemperature ballast in ambient
environments that typically exceed
40°C (102°F).
Metalux
Type
Date
HBL SERIES
4 OR 6 T8 LAMPS
High-Bay Industrial Open
Luminaire
LAMP CONFIGURATIONS
15/32" [63mm]
15/32" [63mm]
DIMENSION TOP VIEW
9-17/32"
5/32"
48-7/16" [1230mm]
2-1
ENERGY DATA
Input Watts:
EB Ballast and STD Lamps
432=109
632=167
Luminaire Efficacy Rating
LER = 88 (White)
LER = 90 (Specular Inserts)
Catalog Number: HBL-632-UPL
Yearly Cost of 1000 lumens,
3000 hrs at .08 KWH = $2.67
*Reference the lamp/ballast data in the
Technical Section for specific lamp/ballast
requirements.
**Consult Pre Sales Technical Support.
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
June 18, 2018 10:58 AM
ADF081930
Page 2
%0
25
61
31

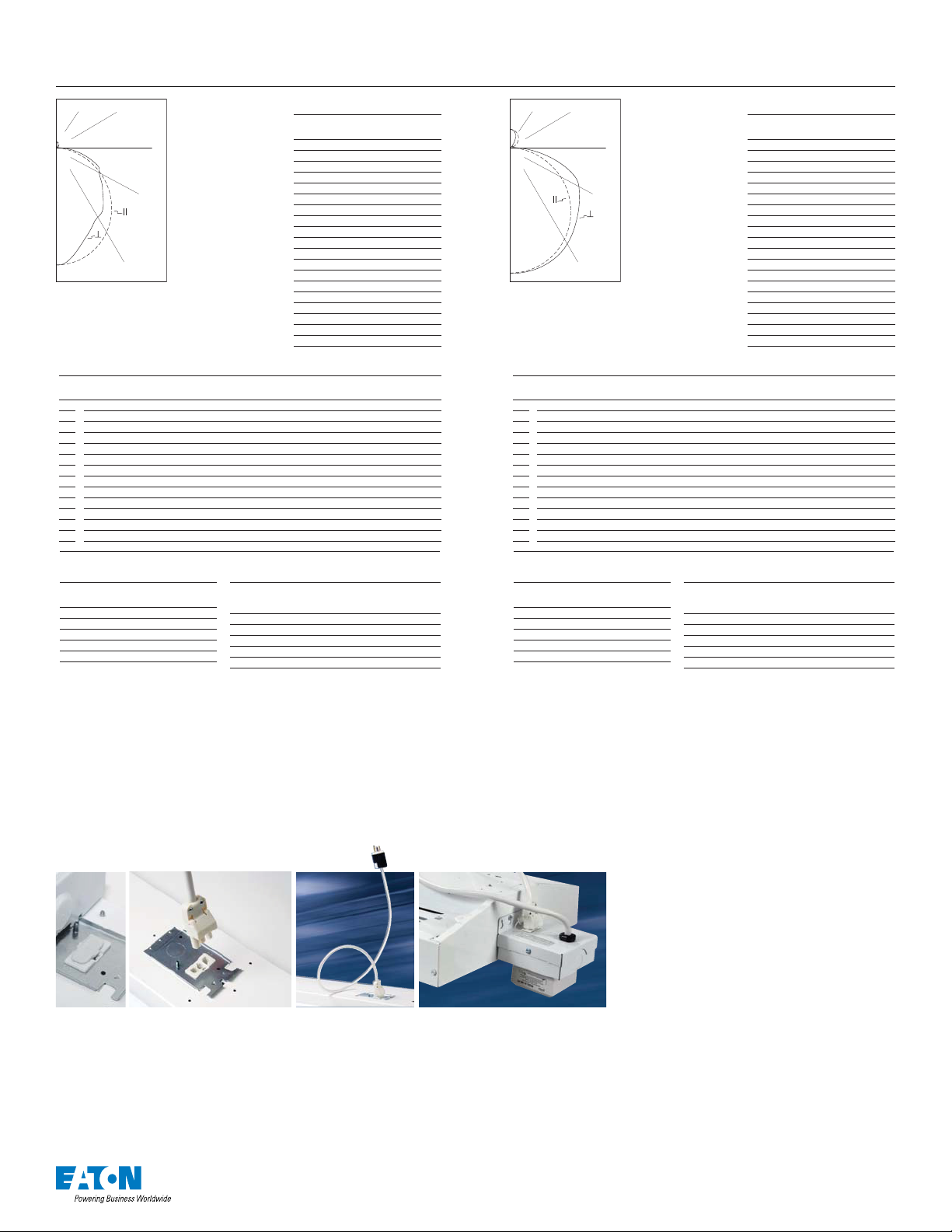

PHOTOMETRICS
⊥
Modular F-Bay Power Supply Option
into existing supply
Occupancy
HBL T8
HBL-632-N-UPL
Candela
Narrow Distribution
(2) Electronic Plus
Ballasts
(6) F32/T8/TL835 32W
T8 lamps, 3100 lumens
Spacing criterion:
(II) 1.3 x mounting
height, (⊥) 1. 0 x
mounting height
Efficiency 95.9%
Test Report:
HBL632NUPL.IES
LER =90
Yearly Cost of 1000
lumens, 3000 hrs at
.08 KWH = $2.67
Coefficients of Utilization
Effective floor cavity reflectance 20%
rc 80%70% 50% 30% 10
rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR
113113 113113 11 0110 110110 104104 104 99 99 99 94 94 94 92
0
103 98 93 89 10 0 95 91 88 90 87 84 86 83 81 82 80 78 75
1
93 85 78 72 90 82 76 71 78 73 69 75 70 66 71 68 64 62
2
85 74 66 60 82 72 65 59 69 62 57 66 60 56 63 58 54 52
3
77 66 57 50 75 64 56 50 61 54 49 58 52 47 56 51 46 44
4
71 58 50 43 69 57 49 43 55 47 42 52 46 41 50 45 40 38
5
66 53 44 38 64 52 43 37 49 42 37 47 41 36 45 40 35 33
6
61 48 39 33 59 47 39 33 45 38 33 43 37 32 42 36 31 29
7
57 44 35 30 55 43 35 30 41 34 29 40 33 29 38 33 28 26
8
53 40 32 27 51 39 32 27 38 31 26 37 30 26 35 30 26 24
9
50 37 29 24 48 36 29 24 35 28 24 34 28 24 33 27 23 22
10
Angle Along II 45°Across ⊥
0
6445 6445 6445
5
6418 6359 6322
10
6339 6092 5913
15
6200 5715 5455
20
6008 5300 5075
25
5761 4910 4736
30
5464 4549 4478
35
5119 4178 4363
40
4731 3898 4043
45
4302 3674 3636
50
3840 3287 3321
55
3346 2841 2987
60
2827 2482 2737
65
2286 2118 2614
70
1732 1892 2148
75
1179 1543 1622
80
654 1018 1094
85
201 52
90
3 117 182
HBL- 632-W-UNV-EB82-
Candela
UPL
Wide Distribution
(2) Electronic Plus
Ballasts
(6) F32T8/835 32W T8
lamps, 3100 lumens
Spacing criterion:
(II) 1. 3 x mounting
height, (⊥) 1. 3 x
mounting height
Efficiency 90.5%
Test Report:
HBL632WUPL.IES
LER =88
92
Yearly Cost of 1000
lumens, 3000 hrs at
.08 KWH = $2.73
Coefficients of Utilization
%
Effective floor cavity reflectance 20%
rc 80% 70%50% 30%10% 0%
rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR
106106 106106 103103 10 3103 97 97 97 91 91 91 86 86 86 83
0
96 91 87 83 93 88 84 81 83 80 77 78 76 73 74 72 70 68
1
86 78 72 66 83 76 70 65 72 67 62 68 63 60 64 60 57 55
2
78 68 60 54 75 66 59 53 62 56 51 59 54 50 56 52 48 46
3
71 60 52 45 69 58 51 45 55 49 43 52 47 42 49 45 41 38
4
65 53 45 39 63 52 44 38 49 42 37 47 41 36 44 39 35 33
5
60 48 40 34 58 47 39 33 44 37 32 42 36 31 40 35 31 28
6
56 43 35 29 54 42 34 29 40 33 28 38 32 28 36 31 27 25
7
52 39 31 26 50 38 31 26 37 30 25 35 29 25 33 28 24 22
8
48 36 28 23 47 35 28 23 34 27 23 32 26 22 31 25 22 20
9
45 33 26 21 44 32 26 21 31 25 20 30 24 20 28 23 20 18
10
AngleAlong II 45°Across
0
4685 4685 4685
5
4663 4674 4692
10
4608 4631 4654
15
4512 4555 4594
20
4380 4446 4503
25
4209 4303 4374
30
4000 4121 4203
35
3762 3909 4000
40
3492 3658 3774
45
3195 3377 3562
50
2870 3081 3354
55
2527 2785 3150
60
2165 250 0 2962
65
1781 2230 2707
70
1384 19 85 2246
75
975 1569 1685
80
569 1025 1107
85
200 500 566
90
3 111 177
Zonal Lumen Summary
Zone Lumens %Lamp %Fixture
4562 24.5 25.6
0-30
7330 39.4 41.1
0-40
1282769.0 71.9
0-60
1709491. 9 95.8
0-90
1783795.9 100.0
0-180
Luminance Data
Angle 0-Deg45-Deg 90-Deg
in Deg cd/sm cd/sm cd/sm
45 10283 8782 8691
55 9860 8372 8802
65 9142 8470 10454
75 7699 1007
85 3898 1012
Cooper Lighting’s F-Bay Modular Power Supply option is available for use with all F-Bay products. The modular power supply
allows external fixture access for safe and easy servicing. There is no need to remove lamps or reflectors to disconnect fixture
power with F-Bay Modular Power Supply. Access to the individual fixture’s power supply allows servicing without turning off
all the fixtures, disrupting occupants. F-Bay Modular Power Supply is a time-saver in installation – simply plug & power.
12
1. Modular Power Supply Receptacle supplied
mounted into fixture Access Plate
2. Modular Power Cord & Plugs in 120, 277, 347,
& 480V configurations for easy plug & power
AverageAverage Average
0592
1480
No internal fixture
access required for
installation or
disconnecting power
Zonal Lumen Summary
Zone Lumens %Lamp %Fixture
3714 20.022.1
0-30
6154 33.1 36.6
0-40
1129060.767. 1
0-60
15508 83.4 92.1
0-90
16834 90.5100.0
0-180
Modular Motion Sensor Option
suppliedwith Mounting Box and
Modular Power Supply Receptacle
Luminance D ata
AverageAverage Average
Angle0-Deg 45-Deg90-Deg
in Deg cd/sm cd/sm cd/sm
45 7432 7855 8286
55 7247 7987 9033
65 6932 8679 10536
75 6196 9971 10708
85 3774 9436 10682
Code Compliance
•UL/cUL Certified for Make/Break
under load (UL2549)
• Meets NEC requirements for
ballast disconnect (NEC 410.73G)
• Allows for addition of
Sensor without hard connections
•Receptacles complete with
insulating/dust cap
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
June 18, 2018 10:58 AM
ADF081930
Page 3
NOTES:
Recommended when using motion sensor options.
Requires use of Modular cord and plug accessories.
L5HL (3000 initial) 5000K T8 lamps installed.
0K,
SAMPLE NUMBER: HBL-632-N-UNV-EB82-UPL-U
NOTES:
(2)
systems
(6)
MP
Modular
Includes V Hangers for rapid installation
(6)
Specifications & dimensions subject to change without notice. Consult your Eaton Representative for availability and ordering information.
ORDERING INFORMATION
HBL T8
Width
Blank=20" wide
4 & 6 Lamp
(nominal)
Series
HBL=Linear High Bay
No. of Lamps
4=4 Lamps
6=6 Lamps
Lamp Type
32=32W T8 Lamp (48" Long)
Distribution
N=Narrow Beam (Standard)
M=Medium Beam
W=Wide Beam
(1)
Voltage must be specified when ordered with plugs or emergency ballasts. Fo r MS option, indicate UNV (for 120V or 277V), 347V or 480V.
Requires use of MC or MPC cord accessories, specify voltage for plugs.
suitable for operation in ambient environments up 131°F (55°C) in uplight configuration.
Can be used in high abuse applications such as gymnasiums.
, choose MP in fixture logic and then choose MWS accessory such as MDS6.
(1)
Voltage
UNV=Universal 120/277 Voltage
UNC=Universal 347/480 Voltage
120V=120 Volt
277V=277 Volt
347V=347 Volt
Options
Lamps Installed
L8935=T8 Lamp, 90CRI 3500K
L8941=T8 Lamp, 90CRI 4100K
L8950=T8 Lamp, 90CRI 5000K
HL=Add HL at end of lamp for
high lumen lamps, T8 only
GL=Single Element Fuse
GM=Double Element Fuse
EL=Emergency Installed
(3)
Cannot be combined with Modular Power Receptacle (MP).
(7)
2/3 lamp ballast configuration in EB8/PLUS only for UNC version.
Ballast Type
T8 Systems
(7)
EB8
EB8
ER8
ER8 /PLUS=T8 Electronic Program Start.
(5)
Recommended when using motion sensor options.
(4)
=T8 Electronic Instant Start.
Total Harmonic Distortion < 10%
No. of Ballast
1, 2 or 3
/PLUS=T8 Electronic Instant Start.
No. of
Ballast
1, 2 or 3
No. of Ballast
1, 2 or 3
No. of
Ballast
1, 2 or 3
High Ballast Factor >1.15.
Total Harmonic Distortion < 10%
=T8 Electronic Program Rapid Start.
Total Harmonic Distortion < 10%
High Ballast Factor >1.15.
Total Harmonic Distortion < 10%
(4)
T8 ballast
(8)
For MWS with
Options
UPL=Uplight Apertures on Reflector
MP=Modular Power Receptacle
(Used for all Cord or Cord and
Plug options)
MWS=Modular Wiring System
MS=360° or 180° Motion Sensor
(7)
installed (120V through 347V, or 480V )
Accessories (order separately)
HBL-SPM=Single Monopoint Hanger w/Hub
(5)
FH-1=Fixture Hook
FL-1=Fixture Loop
Y- TOGGLE=Y Mounting Toggle, #2 Cable (Specify 10' or
30')
HBAYC-CHAIN/SET/U=(2) V-Hook Hanger, 36" Chain
(5)
Sets w/S-Hooks
MC3=3' Modular Power Cord
MPC3=3' Modular Power Cord & Plug (Specify
Voltage)
MC6=6' Modular Power Cord
MPC6=6' Modular Power Cord & Plug (Specify
Voltage)
MMS=360° or 180° Aisle Motion Sensor with
Power Receptacle (120-277V)
MDS6=6' Modular Power Cord with MWS
27DS18/2G06MP Connector
WG/HBL6-4FT-B=4/6 Lamp Wireguard w/Clips
(2), (8)
(3)
(2)
(8)
Packaging
U=Unit Pack
PALC=Palletized
In Carton
(1)
QUICK SHIP ORDERING INFORMATION
Quick Ship Ordering Information Sample Number: HBL432-MP-UPL-L5
Quick Ship orders ship in 5 days in order quantities not to exceed 200 pieces.
NOTE: Orders received after noon are entered on the following day.
Family
HBL
No. of Lamps
4=4 Lamps
6=6 Lamps
(7)
Lamp Type
32=32W T8
Lamps (48")
Distribution
Blank=Narrow Beam
W=Wide Beam
Ballast Type
T8 Systems
Blank=(1) or (2) 120/277V T8 Instant
Start Electronic, 1. 15 BF
PS=(1) or (2) 120/277V T8 Electronic
Program Rapid Start, 1.15 BF
(8)
(4)
(7)
Power Receptacle
MP=Modular Power
Receptacle
(9)
Includes V Hangers for rapid installation
Uplight
(8)
Blank=No Uplight
UPL=Uplight
(6)
Lamping
Blank=No Lamps
L4=Lamps Installed 85+CRI 4100K
L5=Lamps Installed 85+CRI 5000K
L5HL=Lamps Installed 85+CRI 500
High Lumen
(9)
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
SHIPPING DATA
Catalog No. Wt.
HBL-432-UNV-UPL 13.5 lbs.
HBL-632-UNV-UPL 15 lbs.
June 18, 2018 10:58 AM
ADF081930
Loading...
