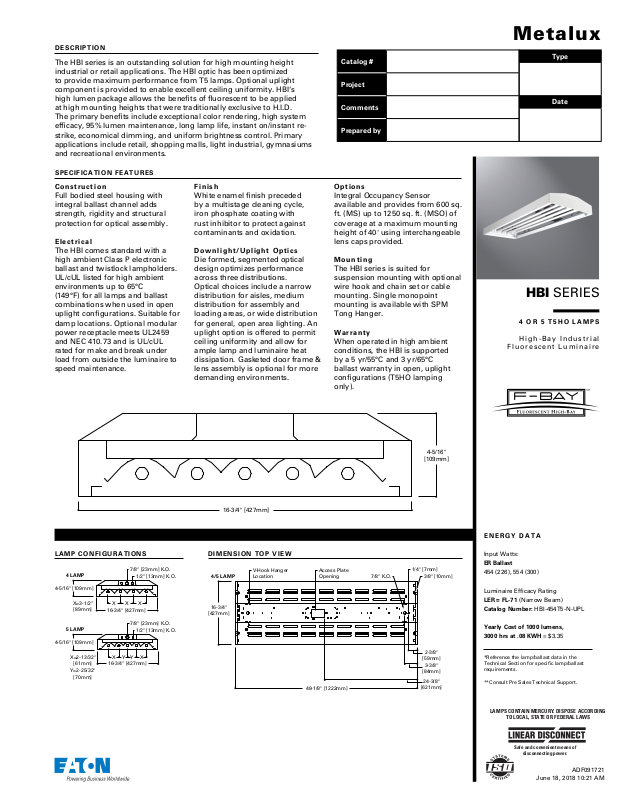

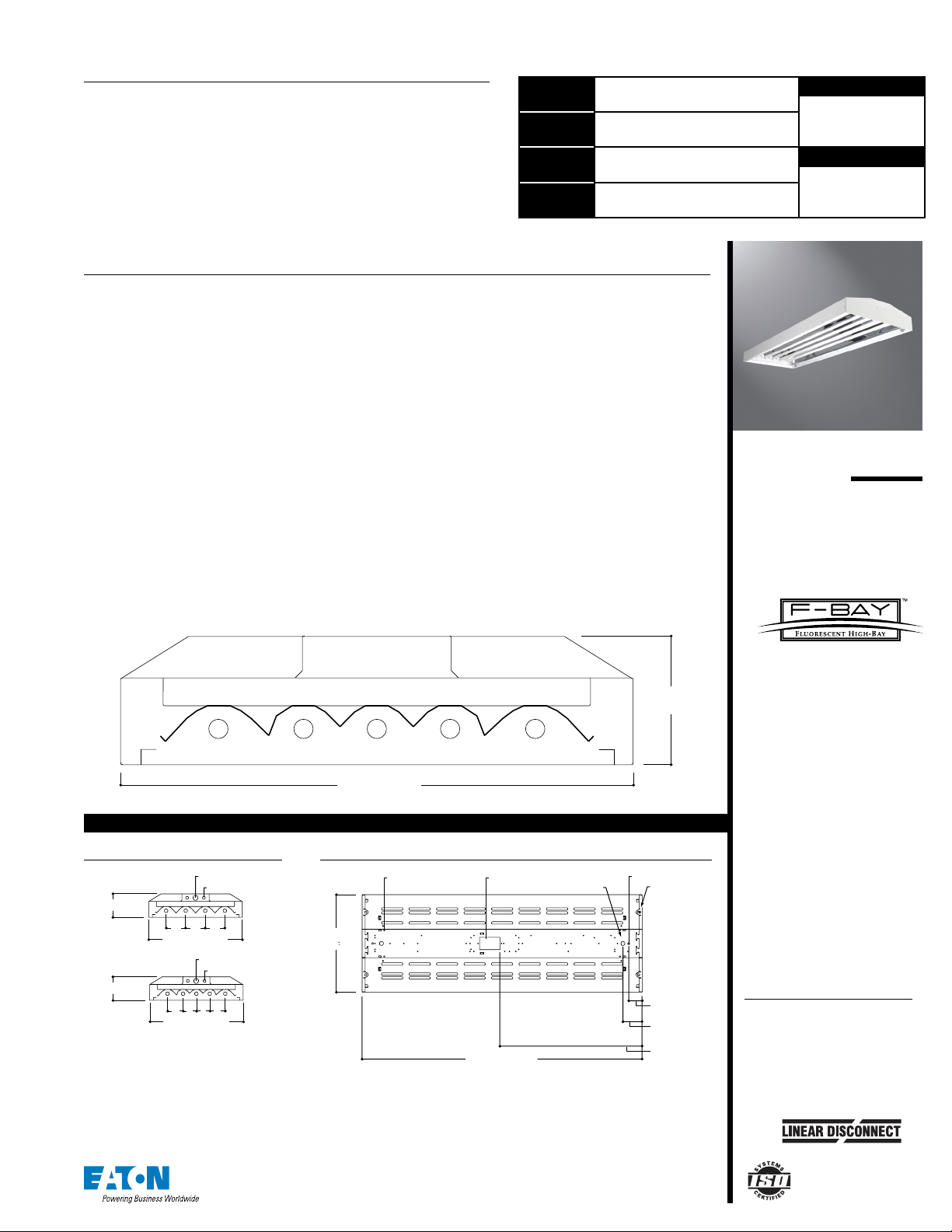

DESCRIPTION
09mm]
16-3/4" [427mm]
[427mm]
48-1/8" [1222mm]
[621mm]
V-Hook Hanger
Access Plate
0mm]
1/4" [7mm]
4-5/1
16-3/4" [427mm]
7/8" [23mm] K.O.
.
7/8" [23mm] K.O.
.
4-5/
[70mm]
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
disconnecting power.
The HBI series is an outstanding solution for high mounting height
industrial or retail applications. The HBI optic has been optimized
to provide maximum performance from T5 lamps. Optional uplight
component is provided to enable excellent ceiling uniformity. HBI‘s
high lumen package allows the benefits of fluorescent to be applied
at high mounting heights that were traditionally exclusive to H.I.D.
The primary benefits include exceptional color rendering, high system
efficacy, 95% lumen maintenance, long lamp life, instant on/instant restrike, economical dimming, and uniform brightness control. Primary
applications include retail, shopping malls, light industrial, gymnasiums
and recreational environments.
SPECIFICATION FEATURES
Construction
Full bodied steel housing with
integral ballast channel adds
strength, rigidity and structural
protection for optical assembly.
Finish
White enamel finish preceded
by a multistage cleaning cycle,
iron phosphate coating with
rust inhibitor to protect against
contaminants and oxidation.
Electrical
The HBI comes standard with a
high ambient Class P electronic
ballast and twistlock lampholders.
UL/cUL listed for high ambient
environments up to 65°C
(149°F) for all lamps and ballast
combinations when used in open
uplight configurations. Suitable for
damp locations. Optional modular
power receptacle meets UL2459
and NEC 410.73 and is UL/cUL
rated for make and break under
load from outside the luminaire to
speed maintenance.
Downlight/Uplight Optics
Die formed, segmented optical
design optimizes performance
across three distributions.
Optical choices include a narrow
distribution for aisles, medium
distribution for assembly and
loading areas, or wide distribution
for general, open area lighting. An
uplight option is offered to permit
ceiling uniformity and allow for
ample lamp and luminaire heat
dissipation. Gasketed door frame &
lens assembly is optional for more
demanding environments.
Catalog #
Project
Comments
Prepared by
Options
Integral Occupancy Sensor
available and provides from 600 sq.
ft. (MS) up to 1250 sq. ft. (MSO) of
coverage at a maximum mounting
height of 40' using interchangeable
lens caps provided.
Mounting
The HBI series is suited for
suspension mounting with optional
wire hook and chain set or cable
mounting. Single monopoint
mounting is available with SPM
Tong Hanger.
Warranty
When operated in high ambient
conditions, the HBI is supported
by a 5 yr/55°C and 3 yr/65°C
ballast warranty in open, uplight
configurations (T5HO lamping
only).
Metalux
Type
Date
HBI SERIES
4 OR 5 T5HO LAMPS
High-Bay Industrial
Fluorescent Luminaire
LAMP CONFIGURATIONS
4 LAMP
6" [109mm]
X=3-1/2"
[89mm]
5 LAMP
16" [109mm]
X=2-13/32"
[61mm]
Y=2-25/32"
1/2" [13mm] K.O
X
X X
1/2" [13mm] K.O
Y
X Y
16-3/4" [427mm]
4-5/16"
[1
ENERGY DATA
DIMENSION TOP VIEW
4/5 LAMP
16-3/4"
X
Location
Opening
7/8" K.O.
3/8" [1
2-3/8"
[59mm]
3-3/8"
[84mm]
24-3/8"
Input Watts:
ER Ballast
454 (226), 554 (300)
Luminaire Efficacy Rating
LER = FL-71 (Narrow Beam)
Catalog Number: HBI-454T5-N-UPL
Yearly Cost of 1000 lumens,
3000 hrs at .08 KWH = $3.35
*Reference the lamp/ballast data in the
Technical Section for specific lamp/ballast
requirements.
**Consult Pre Sales Technical Support.
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
June 18, 2018 10:21 AM
ADF091721
Page 2
⊥
g9
81
01
11
85 5667 24111590
%0
g9
87
85 451310261231

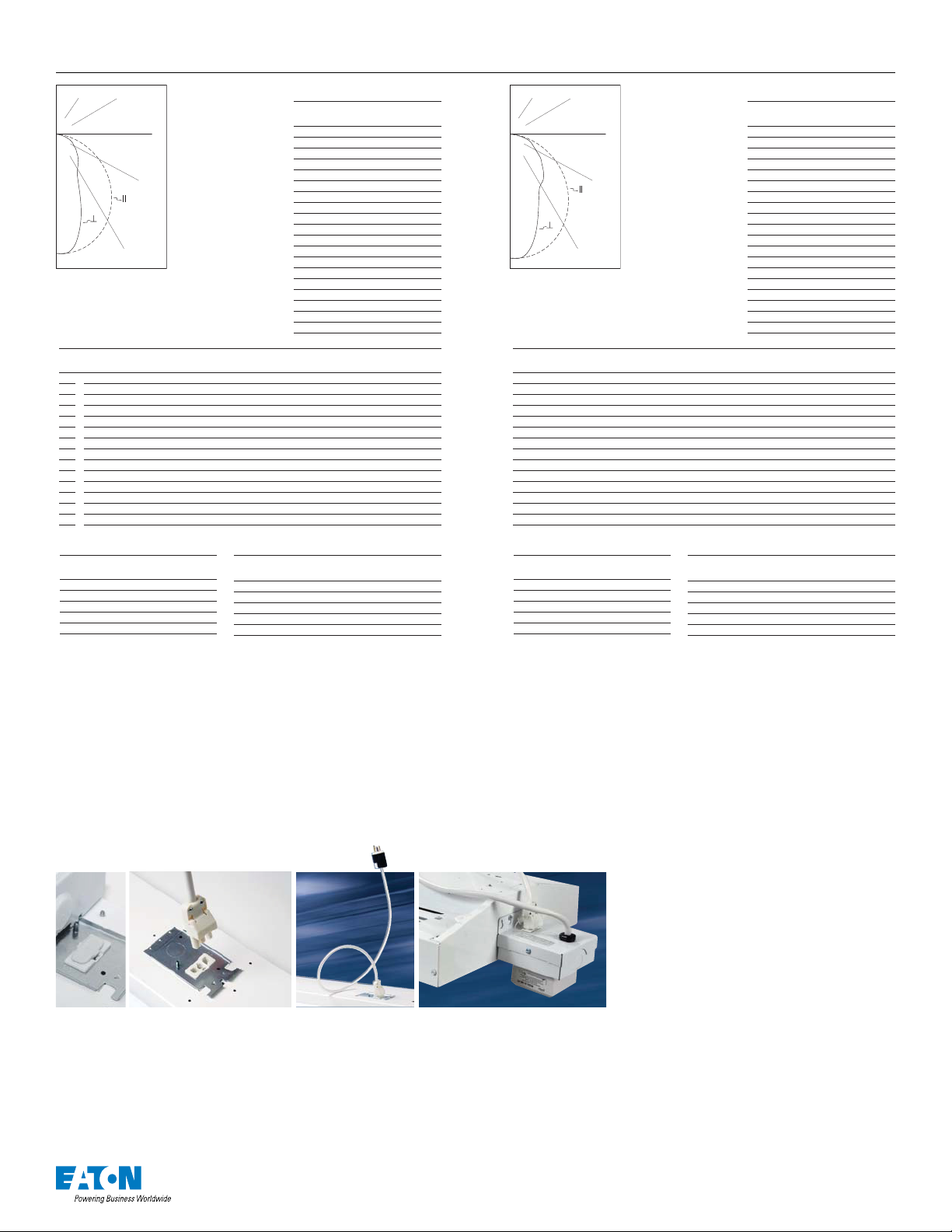

PHOTOMETRICS
Modular F-Bay Power Supply Option
into existing supply
Occupancy
HBI T5
HBI-454T5-N-UNV-
Candela
EHT1
(2) Electronic Ballasts
(4) F54T5HO 54W
Lamps, 4400 lumens
Spacing criterion:
(II) 1.3 x mounting
height, (⊥) 0.7 x
mounting height
Efficiency 91.8%
Test Report:
HBI454T5.IES
LER =FL-71
Yearly Cost of 1000
lumens, 3000 hrs at
.08 KWH =$3.35
Coefficients of U tilization
Effective floor cavity reflectance 20%
rc 80%70% 50% 30% 10
rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR
109109 109109 107107 107107 102102 102 98 98 98 94 94 94 92
0
101 98 94 91 99 95 92 90 92 89 87 88 86 84 85 83 82 80
1
93 87 81 77 91 85 80 76 82 78 74 79 75 72 76 73 71 69
2
86 77 71 65 84 76 70 65 73 68 64 71 66 63 69 65 62 60
3
80 70 62 57 78 69 62 57 66 60 56 64 59 55 62 58 54 53
4
74 63 56 50 72 62 55 50 60 54 49 59 53 49 57 52 48 47
5
69 58 50 45 67 57 50 45 55 49 44 54 48 44 52 47 44 42
6
64 53 46 40 63 52 45 40 51 45 40 50 44 40 48 43 39 38
7
60 49 42 37 59 48 41 37 47 41 36 46 40 36 45 40 36 34
8
57 45 38 34 55 45 38 34 44 38 33 43 37 33 42 37 33 32
9
53 42 35 31 52 42 35 31 41 35 31 40 35 31 39 34 31 29
10
Angle Along II 45°Across ⊥
0
9854 9854 9854
5
9873 9899 9866
10
9789 9594 9157
15
9594 8756 76 59
20
9280 7524 5812
25
8859 6094 4197
30
8348 4597 3442
35
7748 3513 3101
40
7087 2941 2822
45
6368 2584 2456
50
5607 2274 2168
55
4789 1899 18 08
60
3944 1596 1576
65
3089 1254 13 37
70
2251 1028 954
75
1454 688 498
80
736 247 104
85
176 40 48
90
0 0 0
HBI-554T5-N-UNV-
Candela
EHT2
(2) Electronic Ballasts
(5) F54T5HO 54W
Lamps, 4400 lumens
Spacing criterion:
(II) 1.3 x mounting
height, (⊥) 0.8 x
mounting height
Efficiency 94.8%
Test Report:
HBI554T5.IES
LER =FL- 70
Yearly Cost of 10 00
lumens, 3000 hrs at
.08 KWH =$3.45
Coefficients of Utilization
Effective floor cavity reflectance 20%
%
rc 80% 70%50% 30%10% 0%
rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR
113113 113113 110110 110110 10 5105 10 5 101 101101 97 97 97 95
0
104100 96 93 101 98 94 91 94 91 88 90 88 85 86 85 83 81
1
95 88 82 77 93 86 80 76 83 78 74 80 76 72 77 74 71 69
2
87 78 70 65 85 76 70 64 74 68 63 71 66 62 69 64 61 59
3
80 70 62 56 78 68 61 55 66 60 54 64 58 54 62 57 53 51
4
74 63 55 49 72 62 54 48 60 53 48 58 52 47 56 51 47 45
5
69 57 49 43 67 56 48 43 54 48 42 53 47 42 51 46 42 40
6
64 52 44 38 63 51 44 38 50 43 38 48 42 38 47 42 38 36
7
60 48 40 35 59 47 40 35 46 39 34 45 39 34 44 38 34 32
8
56 44 37 32 55 44 36 32 42 36 31 41 35 31 41 35 31 29
9
53 41 34 29 52 40 34 29 40 33 29 39 33 29 38 32 29 27
10
AngleAlong II 45°Across
0
10551 10551 10551
5
10571 10598 10559
10
10491 10271 9854
15
10290 9481 8511
20
9965 8349 6977
25
9535 7065 5764
30
8998 5881 5079
35
8381 4939 4843
40
7684 4368 4417
45
6931 4052 3865
50
6128 3565 3443
55
5260 3003 2859
60
4367 2562 2386
65
3465 1976 2087
70
2554 1544 1757
75
1674 1223 1215
80
866 705 509
85
221 94 62
90
0 0 0
Zonal Lumen Summary
Zone Lumens %Lamp %Fixture
6296 35.8 39.0
0-30
9157 52.0 56.7
0-40
1379378.4 85.3
0-60
1616391. 894.2
0-90
1616391. 8100.0
0-180
Luminance D ata
Angle 0-Deg45-De
in Degcd/sm cd/sm cd/sm
45 20128816
55 186617400 7045
65 163366632 7071
75 125565941 4300
Cooper Lighting’s F-Bay Modular Power Supply option is available for use with all F-Bay products. The modular power supply
allows external fixture access for safe and easy servicing. There is no need to remove lamps or reflectors to disconnect fixture
power with F-Bay Modular Power Supply. Access to the individual fixture’s power supply allows servicing without turning off
all the fixtures, disrupting occupants. F-Bay Modular Power Supply is a time-saver in installation – simply plug & power.
12
1. Modular Power Supply Receptacle supplied
mounted into fixture Access Plate
2. Modular Power Cord & Plugs in 120, 277, 347,
& 480V configurations for easy plug & power
AverageAverage Average
No internal fixture
access required for
installation or
disconnecting power
0-Deg
763
Zonal Lumen Summary
Zone Lumens %Lamp %Fixture
7063 32.1 33.9
0-30
10703 48.651.3
0-40
1713677.9 82.2
0-60
20859 94.8 100.0
0-90
20859 94.8 100.0
0-180
Modular Motion Sensor Option
suppliedwith Mounting Box and
Modular Power Supply Receptacle
Luminance D ata
Angle 0-Deg45-De
in Degcd/sm cd/sm cd/sm
45 21908 1280
55 2049711702 11141
65 183251045
75 14456 10 56
AverageAverage Average
Code Compliance
•UL/cUL Certified for Make/Break
under load (UL2549)
• Meets NEC requirements for
ballast disconnect (NEC 410.73G)
• Allows for addition of
Sensor without hard connections
•Receptacles complete with
insulating/dust cap
0-Deg
2217
1037
0492
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
June 18, 2018 10:21 AM
ADF091721
Page 3
NOTES:
Requires use of Modular cord and plug accessories.
For Quick Ship, lamping option only available w/54W lamp type.
Installed
SAMPLE NUMBER: HBI- 554T5-N-UNV-EHT2-MP-UPL-U
Includes V Hangers for rapid installation
(6)
of
Installation
ORDERING INFORMATION
HBI T5
Series
HBI=HB Industrial
No. of Lamps
4=4 Lamps
5=5 Lamps
Lamp Type
28T5=28W T5 Lamps (48")
49T5=49W T5HO Lamps (48")
51T5=51W T5HO Lamps (48")
54T5=54W T5HO Lamps (48")
Distribution
N=Narrow Beam (Standard)
M=Medium Beam
W=Wide Beam
Shielding
Blank=None
A=Prismatic Acrylic Lens & Doorframe
WG=Wireguard & Doorframe
A/WG=Acrylic Lens, Wireguard & Doorframe
CL=Clear Acrylic Lens & Doorframe
CL/WG=Clear Lens, Wireguard & Doorframe
(1)
NOTES:
Requires use of MC or MPC cord accessories, specify voltage for plugs.
(3)
When ordering MS option, specify voltage as UNV (for 120 or 277V), 347 or 480V.
ballast systems suitable for ambient environments not to exceed 149°F (65°C) in open uplight configurations and less lens option.
applications such as gymnasiums.
bined with Modular Power Receptacle (MP).
Specifications & dimensions subject to change without notice. Consult your Eaton Representative for availability and ordering information.
(8)
(8)
(8)
(7)
Dimming ballast must be specified at time of order.
(11)
For MWS with MP, choose MP in fixture logic and then choose MWS accessory such as MDS6.
(2)
Voltage
UNV=Universal 120/277
Voltage
UNC=Universal 347/480
(4)
Voltage
120V=120 Volt
277V=277 Volt
347V=347 Volt
480V=480 Volt
Options
Lamps Installed
L5830=T5 Lamp, 85CRI 3000K
L5835=T5 Lamp, 85CRI 3500K
L5841=T5 Lamp, 85CRI 4100K
L5850=T5 Lamp, 85CRI 5000K
GL=Single Element Fuse
GM=Double Element Fuse
EL=Emergency Installed
(2)
(2)
Voltage must be specified when orderedwith plugs or emergency ballasts.
(4)
2 lamp ballast configurations only for T5 UNC versions.
(8)
EHT standard with T5HO lamps.
Ballast Type
=T5HO Linear Electronic Program Start
EHT
High Ambient.
Total Harmonic Distortion < 10%
No. of Ballast
2 or 3
=T5 Linear Electronic Program Start
EBT
(28T5 only)
Total Harmonic Distortion < 10%
No. of Ballast
2 or 3
DIM=Consult Factory
(9)
Two required.
(4)(5) (8)
(7)
(6)
Can be used in high abuse
(5)
EHT/HT5/HCT5
(10)
Cannot be com-
Options
MP=Modular Power
Receptacle (Used for all
Cord or Cord and Plug
(1), (11)
options)
NUA=No uplight apertures
in housing. (Cannot be
combined w/UPL)
UPL=Uplight Apertures
MWS=Modular Wiring System
MS=360° or 180° Motion Sensor,
120 through 347, or 480V
G2=Gasketed Door (Requires Selection of
Lensed Doorframe)
SDF=Slotted Doorframe (Requires Selection
Lensed Doorframe)
Accessories (order separately)
HB-SPM=Single Monopoint Hanger w/Hub
FH-1=Fixture Hook
FL-1=Fixture Loop
Y-TOGGLE- =Y Mounting Toggle, #2 Cable
(Specify 10' or 30', requires 2 per fixture)
HBAYC-CHAIN/SET/U=(2) V-Hook Hangers,
36" Chain Sets w/S-Hooks
MC3=3' Modular Power Cord
MPC3=3' Modular Power Cord & Plug
(Specify Voltage)
MC6=6' Modular Power Cord
MPC6=6' Modular Power Cord & Plug
(Specify Voltage)
MMS=360° or 180° Aisle Motion Sensor with
Modular Power Receptacle (120-277V)
MDS6=6' Modular Power Cord with MWS
27DS18/2G06MP Connector
SWG=Heavy Duty Wireguard for Field
Packaging
U=Unit Pack
PALC=Palletize
d In Carton
PAL=Job Pack
Out of Carton
(10)
(3)
(11)
(1)
(9)
Quick Ship Ordering Information Sample Number: HBI654HT5-L4
Quick Ship orders ship in 5 days in order quantities not to exceed 200 pieces.
NOTE: Orders received after noon are entered on the following day.
Family
HBI
No. of Lamps
4=4 Lamps
Lamp Ty pe
51=51W T5HO Lamps (48")
54=54W T5HO Lamps (48")
(10)
Distribution
Blank=Narrow Beam
W=Wide Beam
Ballast Type
T5HO Systems
HT5=(1) or (2) 120/277V T5 High Ambient
Electronic Program Rapid Start
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
(8)
(11)
Specifications and
dimensions subject to
change without notice.
Power Receptacle
Blank=Standard
Wiring to Access Plate
MP=Modular Power
Receptacle
Uplight
Blank=No Uplight
UPL=Uplight
(10)
Includes V Hangers for rapid installation
Lamping
Blank=No Lamps
L4=Lamps Installed 85+CRI 4100K
L5=Lamps Installed 85+CRI 5000K
L5ES=Energy Saving Lamps
85+CRI 5000K
SHIPPING DATA
Catalog No. Wt.
HBI-454T5-UPL 16 lbs.
HBI-554T5-UPL 16 lbs.
(6)
(11)
(11)
June 18, 2018 10:21 AM
ADF091721
Loading...
