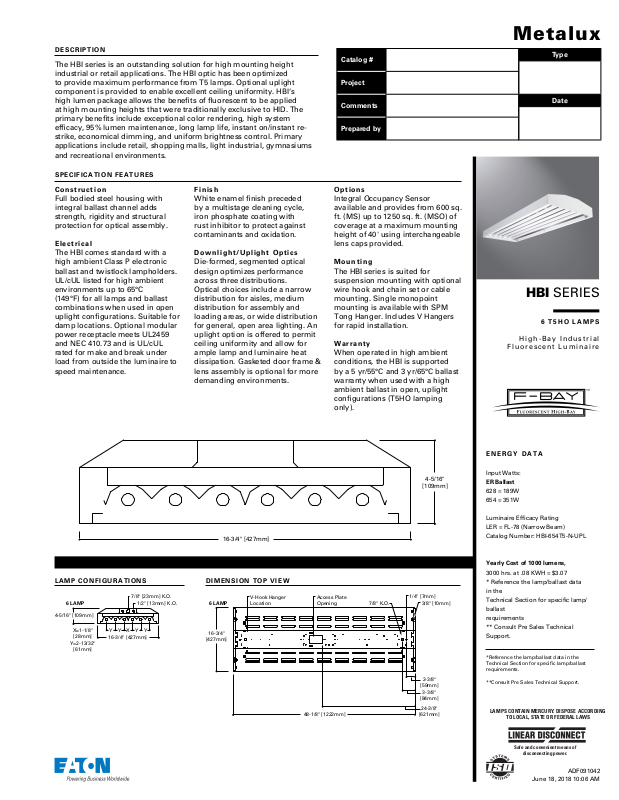

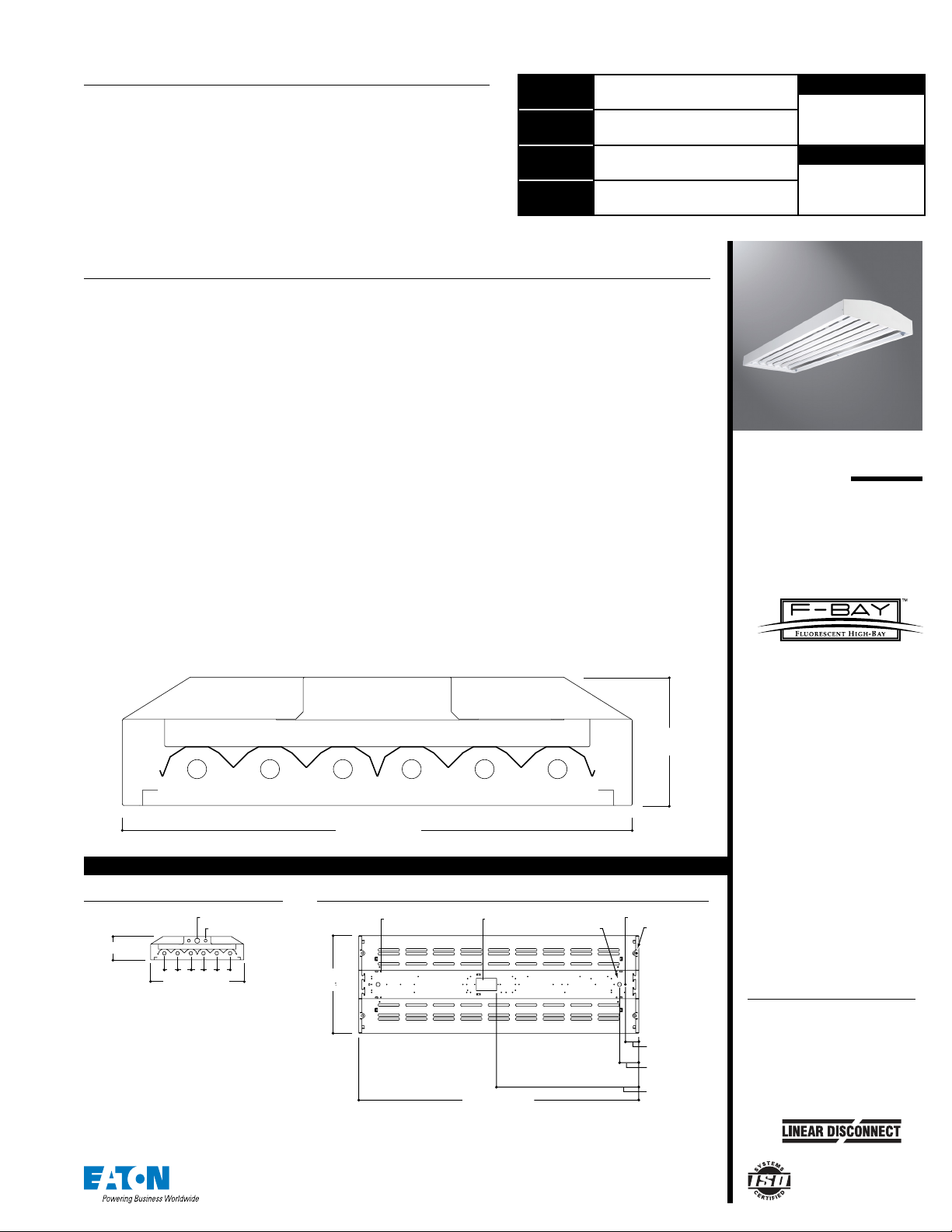

Page 1
DESCRIPTION
09mm]
16-3/4" [427mm]
7/8" [23mm] K.O.
.
4-5/1
[61mm]
[427mm]
48-1/8" [1222mm]
V-Hook Hanger
Access Plate
0mm]
1/4" [7mm]
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
disconnecting power.
The HBI series is an outstanding solution for high mounting height
industrial or retail applications. The HBI optic has been optimized
to provide maximum performance from T5 lamps. Optional uplight
component is provided to enable excellent ceiling uniformity. HBI‘s
high lumen package allows the benefits of fluorescent to be applied
at high mounting heights that were traditionally exclusive to HID. The
primary benefits include exceptional color rendering, high system
efficacy, 95% lumen maintenance, long lamp life, instant on/instant restrike, economical dimming, and uniform brightness control. Primary
applications include retail, shopping malls, light industrial, gymnasiums
and recreational environments.
SPECIFICATION FEATURES
Construction
Full bodied steel housing with
integral ballast channel adds
strength, rigidity and structural
protection for optical assembly.
Finish
White enamel finish preceded
by a multistage cleaning cycle,
iron phosphate coating with
rust inhibitor to protect against
contaminants and oxidation.
Electrical
The HBI comes standard with a
high ambient Class P electronic
ballast and twistlock lampholders.
UL/cUL listed for high ambient
environments up to 65°C
(149°F) for all lamps and ballast
combinations when used in open
uplight configurations. Suitable for
damp locations. Optional modular
power receptacle meets UL2459
and NEC 410.73 and is UL/cUL
rated for make and break under
load from outside the luminaire to
speed maintenance.
Downlight/Uplight Optics
Die-formed, segmented optical
design optimizes performance
across three distributions.
Optical choices include a narrow
distribution for aisles, medium
distribution for assembly and
loading areas, or wide distribution
for general, open area lighting. An
uplight option is offered to permit
ceiling uniformity and allow for
ample lamp and luminaire heat
dissipation. Gasketed door frame &
lens assembly is optional for more
demanding environments.
Catalog #
Project
Comments
Prepared by
Options
Integral Occupancy Sensor
available and provides from 600 sq.
ft. (MS) up to 1250 sq. ft. (MSO) of
coverage at a maximum mounting
height of 40' using interchangeable
lens caps provided.
Mounting
The HBI series is suited for
suspension mounting with optional
wire hook and chain set or cable
mounting. Single monopoint
mounting is available with SPM
Tong Hanger. Includes V Hangers
for rapid installation.
Warranty
When operated in high ambient
conditions, the HBI is supported
by a 5 yr/55°C and 3 yr/65°C ballast
warranty when used with a high
ambient ballast in open, uplight
configurations (T5HO lamping
only).
Metalux
Type
Date
HBI SERIES
6 T5HO LAMPS
High-Bay Industrial
Fluorescent Luminaire
LAMP CONFIGURATIONS
6 LAMP
6" [109mm]
X=1-1/8"
[28mm]
Y=2-13/32"
1/2" [13mm] K.O
Y Y
X
Y Y
16-3/4" [427mm]
DIMENSION TOP VIEW
6 LAMP
16-3/4"
Location
Opening
7/8" K.O.
4-5/16"
[1
3/8" [1
2-3/8"
[59mm]
3-3/8"
[84mm]
24-3/8"
[621mm]
ENERGY DATA
Input Watts:
ER Ballast
628 = 189W
654 = 351W
Luminaire Efficacy Rating
LER = FL-78 (Narrow Beam)
Catalog Number: HBI-654T5-N-UPL
Yearly Cost of 1000 lumens,
3000 hrs. at .08 KWH = $3.07
* Reference the lamp/ballast data
in the
Technical Section for specific lamp/
ballast
requirements
** Consult Pre Sales Technical
Support.
*Reference the lamp/ballast data in the
Technical Section for specific lamp/ballast
requirements.
**Consult Pre Sales Technical Support.
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
June 18, 2018 10:06 AM
ADF091042
Page 2
%0
⊥
71
01
21
21
22

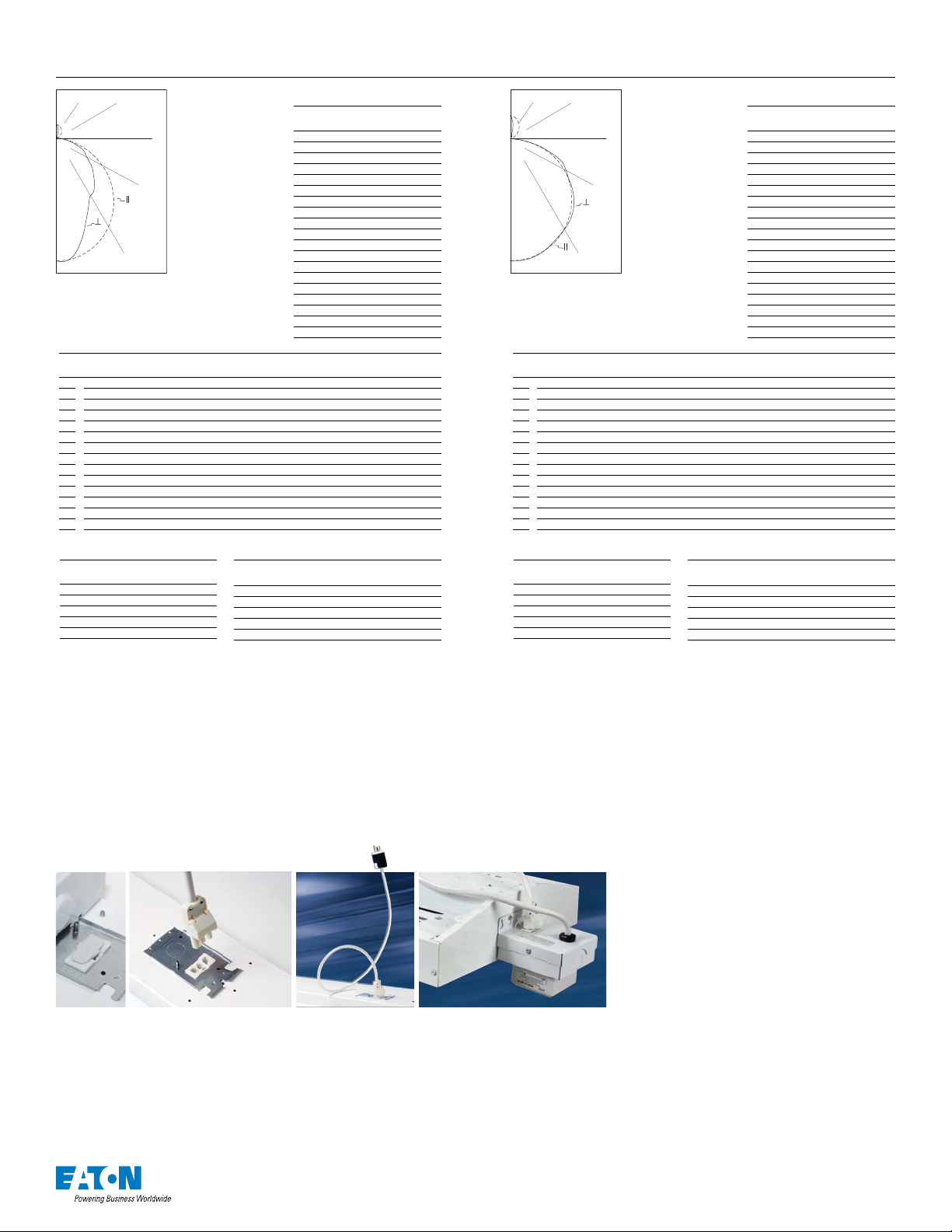

PHOTOMETRICS
Modular F-Bay Power Supply Option
into existing supply
Occupancy
HBI T5
HBI-654T5-N-UNV-
Candela
EHT2-UPL
(2) Electronic Ballasts
(6) F54T5 54W Lamps
3500 lumens
Spacing criterion:
(II) 1.2 x mounting
height, (⊥) 0.9 x
mounting height
Efficiency 93.3%
Test Report:
HBI654T5-UPL.IES
LER =FL- 78
Yearly Cost of 1000
lumens, 3000 hrs at
.08 KWH =$3.07
Coefficients of Utilization
Effective floor cavity reflectance20%
rc 80%70% 50%30% 10% 0%
rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR
110110 110110 107107 107107 101 101 101 96 96 96 91 91 91 89
0
101 97 93 90 98 94 91 88 90 87 84 85 83 81 81 80 78 76
1
92 85 79 74 90 83 77 73 79 74 70 75 72 68 72 69 66 64
2
85 75 68 62 82 73 67 61 70 64 60 67 62 58 64 60 57 54
3
78 67 59 53 75 65 58 53 63 56 51 60 55 50 58 53 49 47
4
72 60 52 46 69 59 51 46 56 50 45 54 49 44 52 47 43 41
5
66 54 46 41 64 53 46 40 51 45 40 49 43 39 48 42 38 36
6
62 50 42 36 60 49 41 36 47 40 35 45 39 35 44 38 34 32
7
58 45 38 33 56 45 37 32 43 37 32 42 36 31 40 35 31 29
8
54 42 34 29 52 41 34 29 40 33 29 39 33 29 37 32 28 27
9
51 39 32 27 49 38 31 27 37 31 26 36 30 26 35 30 26 24
10
Angle Along II 45° Across⊥
0
10966 10966 10 966
5
10911 10991 10971
10
10772 10668 10272
15
10522 9899 9049
20
10184 8864 7762
25
9744 7757 6758
30
9218 6744 5989
35
8601 5860 5790
40
7923 5216 5278
45
7185 4862 4668
50
6381 4278 4184
55
5515 3633 3497
60
4592 3093 3034
65
3633 2415 2693
70
2665 1995 2053
75
1730 1480 1418
80
878 828 725
85
223 274 105
90
10 15 12
HBI-654T5-W-UNV-
Candela
EHT2-UPL
(2) Electronic Ballasts
(6) F54T5 54W Lamps
4400 lumens
Spacing criterion:
(II) 1. 3 x mounting
height, (⊥) 1. 3 x
mounting height
Efficiency 92.6%
Test Report:
HBI654-W-UPL.IES
LER =FL- 78
Yearly Cost of 1000
lumens, 3000 hrs at
.08 KWH =$3.09
Coefficients of Utilization
Effective floor cavity reflectance 20%
rc 80%70% 50%30% 10
rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR
109109 109109 10 6106 10 6106 100100 10 0 95 95 95 90 90 90 87
0
99 94 90 87 96 92 88 85 87 84 81 82 80 78 78 76 74 72
1
90 82 75 70 87 80 74 68 75 70 66 72 67 64 68 65 62 59
2
81 71 64 57 79 69 62 56 66 60 55 63 57 53 60 55 52 49
3
74 63 54 48 72 61 53 47 58 52 46 55 50 45 53 48 44 42
4
68 56 47 41 66 55 47 41 52 45 40 50 44 39 47 42 38 36
5
63 50 42 36 61 49 41 35 47 40 35 45 39 34 43 37 33 31
6
58 45 37 31 56 44 37 31 42 35 30 41 34 30 39 33 29 27
7
54 41 33 28 52 40 33 28 39 32 27 37 31 27 36 30 26 24
8
50 38 30 25 49 37 30 25 36 29 24 34 28 24 33 27 23 22
9
47 35 27 22 46 34 27 22 33 26 22 32 26 22 31 25 21 20
10
AngleAlong II 45°Across
0
7332 7332 7332
5
7301 7321 7337
10
7231 7258 7265
15
7096 7125 7111
20
6913 6918 6872
25
6671 6634 6601
30
6377 6302 6377
35
6033 5963 6148
40
5651 5632 5832
45
5230 5278 5420
50
4776 4845 4929
55
4282 4331 4338
60
3747 3754 3898
65
3159 3113 3517
70
2512 2647 2750
75
1820 2005 1927
80
1079 11 74 1029
85
346 400 183
90
14 40 36
%
Zonal Lumen Summary
Zone Lumens%Lamp %Fixture
7518 28.5 30.5
0-30
1161844.0 47.1
0-40
1914272.5 77.7
0-60
2355489.295.6
0-90
2465093.3100.0
0-180
Luminance Data
Angle 0-Deg45-Deg 90-Deg
in Degcd/sm cd/sm cd/sm
45 23633 1599
55 22363 1473
65 1999413291 14 821
75 1554613300 1274 3
85 5951 731
Cooper Lighting’s F-Bay Modular Power Supply option is available for use with all F-Bay products. The modular power supply
allows external fixture access for safe and easy servicing. There is no need to remove lamps or reflectors to disconnect fixture
power with F-Bay Modular Power Supply. Access to the individual fixture’s power supply allows servicing without turning off
all the fixtures, disrupting occupants. F-Bay Modular Power Supply is a time-saver in installation – simply plug & power.
12
1. Modular Power Supply Receptacle supplied
mounted into fixture Access Plate
2. Modular Power Cord & Plugs in 120, 277, 347,
& 480V configurations for easy plug & power
Average Average Average
5354
4180
802
No internal fixture
access required for
installation or
disconnecting power
Zonal Lumen Summary
Zone Lumens %Lamp %Fixture
5773 21.9 23.6
0-30
9557 36.2 39.1
0-40
1746266.171.4
0-60
2308287. 494.4
0-90
2444792.6100.0
0-180
Modular Motion Sensor Option
suppliedwith Mounting Box and
Modular Power Supply Receptacle
Luminance D ata
Angle 0-Deg45-Deg 90-Deg
in Degcd/sm cd/sm cd/sm
45 1404414173 14555
55 1417614338 14361
65 1419 31398
75 13352 1471
85 7538 8715 3987
Average Average Average
Code Compliance
•UL/cUL Certified for Make/Break
under load (UL2549)
• Meets NEC requirements for
ballast disconnect (NEC 410.73G)
• Allows for addition of
Sensor without hard connections
•Receptacles complete with
insulating/dust cap
5802
4137
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
June 18, 2018 10:06 AM
ADF091042
Page 3
SAMPLE NUMBER: HBI-654T5-A-UNV-EHT2-MP-UPL-U
Includes V Hangers for rapid installation
(6)
of
Installation
ORDERING INFORMATION
NOTES:
Requires use of Modular cord and plug accessories.
For Quick Ship, lamping option only available w/54W lamp type.
HBI T5
Series
HBI=HB Industrial
No. of Lamps
6=6 Lamps
Lamp Type
28T5=28W T5 Lamps (48")
49T5=49W T5HO Lamps (48")
51T5=51W T5HO Lamps (48")
54T5=54W T5HO Lamps (48")
Distribution
N=Narrow Beam (Standard)
M=Medium Beam
W=Wide Beam
Shielding
Blank=None
A=Prismatic Acrylic Lens & Doorframe
WG=Wireguard & Doorframe
A/WG=Acrylic Lens, Wireguard & Doorframe
CL=Clear Acrylic Lens & Doorframe
CL/WG=Clear Lens, Wireguard & Doorframe
(1)
NOTES:
Requires use of MC or MPC cord accessories, specify voltage for plugs.
(3)
When ordering MS option, specify voltage as UNV (for 120 or 277V), 347 or 480V.
ballast systems suitable for ambient environments not to exceed 149°F (65°C) in open uplight configurations and less lens option.
applications such as gymnasiums.
bined with Modular Power Receptacle (MP).
Specifications & dimensions subject to change without notice. Consult your Eaton Representative for availability and ordering information.
(8)
(8)
(8)
(7)
Dimming ballast must be specified at time of order.
(11)
For MWS with MP, choose MP in fixture logic and then choose MWS accessory such as MDS6.
(2)
Voltage
UNV=Universal 120/277
Voltage
UNC=Universal 347/480
(4)
Voltage
120V=120 Volt
277V=277 Volt
347V=347 Volt
480V=480 Volt
Options
Lamps Installed
L5830=T5 Lamp, 85CRI 3000K
L5835=T5 Lamp, 85CRI 3500K
L5841=T5 Lamp, 85CRI 4100K
L5850=T5 Lamp, 85CRI 5000K
GL=Single Element Fuse
GM=Double Element Fuse
EL=Emergency Installed
(2)
(2)
Voltage must be specified when orderedwith plugs or emergency ballasts.
(4)
2 lamp ballast configurations only for T5 UNC versions.
(8)
EHT standard with T5HO lamps.
Ballast Type
=T5HO Linear Electronic Program Start
EHT
High Ambient.
Total Harmonic Distortion < 10%
No. of Ballast
2 or 3
=T5 Linear Electronic Program Start
EBT
(28T5 only)
Total Harmonic Distortion < 10%
No. of Ballast
2 or 3
DIM=Consult Factory
(9)
Two required.
(4)(5) (8)
(7)
(6)
(5)
EHT/HT5/HCT5
Can be used in high abuse
(10)
Cannot be com-
Options
MP=Modular Power
Receptacle (Used for all
Cord or Cord and Plug
(1) (11)
options)
NUA=No uplight apertures
in housing. (Cannot be
combined w/UPL)
UPL=Uplight Apertures
MWS=Modular Wiring System
MS=360° or 180° Motion Sensor,
120 through 347, or 480V
G2=Gasketed Door (Requires Selection of
Lensed Doorframe)
SDF=Slotted Doorframe (Requires Selection
Lensed Doorframe)
Accessories (order separately)
HB-SPM=Single Monopoint Hanger w/Hub
FH-1=Fixture Hook
FL-1=Fixture Loop
Y-TOGGLE- =Y Mounting Toggle, #2 Cable
(Specify 10' or 30', requires 2 per fixture)
HBAYC-CHAIN/SET/U=(2) V-Hook Hangers,
36" Chain Sets w/S-Hooks
MC3=3' Modular Power Cord
MPC3=3' Modular Power Cord & Plug
(Specify Voltage)
MC6=6' Modular Power Cord
MPC6=6' Modular Power Cord & Plug
(Specify Voltage)
MMS=360° or 180° Aisle Motion Sensor with
Modular Power Receptacle (120-277V)
MDS6=6' Modular Power Cord with MWS
27DS18/2G06MP Connector
SWG=Heavy Duty Wireguard for Field
Packaging
U=Unit Pack
PALC=Palletize
d In Carton
PAL=Job Pack
Out of Carton
(10)
(3)
(11)
(1)
(9)
Quick Ship Ordering Information Sample Number: HBI654HCT5-MP-UPL- L5
Quick Ship orders ship in 5 days in order quantities not to exceed 200 pieces.
NOTE: Orders received after noon are entered on the following day.
Family
HBI
No. of Lamps
6=6 Lamps
Lamp Type
51=51W T5HO Lamps (48")
54=54W T5HO Lamps (48")
(10)
Distribution
Blank=Narrow Beam
W=Wide Beam
Ballast Type
T5HO Systems
HT5=(1) or (2) 120/277V T5 High Ambient
Electronic Program Rapid Start
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
(8)
(11)
Specifications and
dimensions subject to
change without notice.
Power Receptacle
Blank=Standard
Wiring to Access Plate
MP=Modular Power
Receptacle
(10)
Uplight
Blank=No Uplight
UPL=Uplight
Includes V Hangers for rapid installation
Lamping
Blank=No Lamps
L4=Lamps Installed 85+CRI 4100K
L5=Lamps Installed 85+CRI 5000K
L5ES=Energy Saving Lamps Installed
85+CRI 5000K
SHIPPING DATA
HBI-654T5-UPL 16 lbs.
(6)
(11)
(11)
June 18, 2018 10:06 AM
ADF091042
Loading...
