Metalux

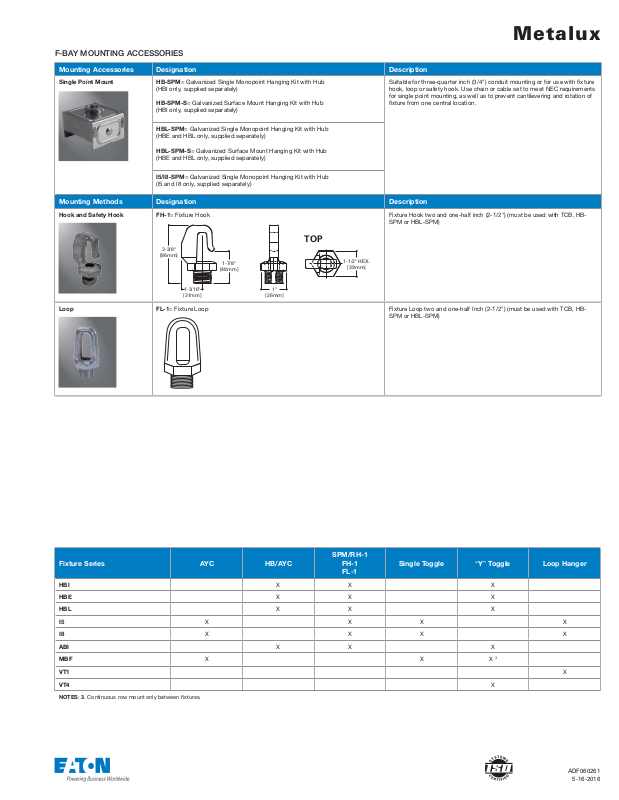

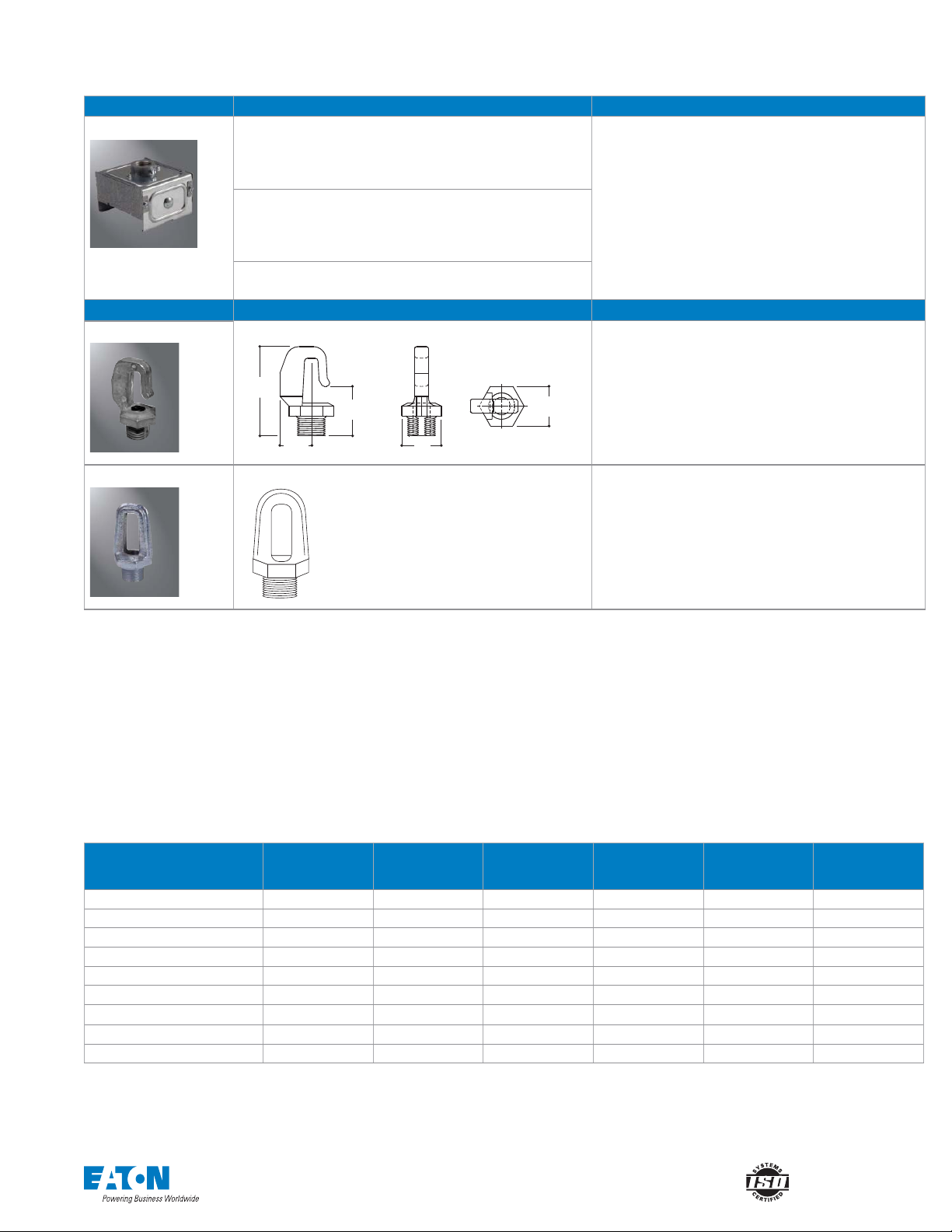

F-BAY MOUNTING ACCESSORIES
Mounting Accessories Designation Description
Single Point Mount HB-SPM= Galvanized Single Monopoint Hanging Kit with Hub
(HBI only, supplied separately)
HB-SPM-S= Galvanized Surface Mount Hanging Kit with Hub
(HBI only, supplied separately)
HBL-SPM= Galvanized Single Monopoint Hanging Kit with Hub
(HBE and HBL only, supplied seperately)
HBL-SPM-S= Galvanized Surface Mount Hanging Kit with Hub
(HBE and HBL only, supplied separately)
I5/I8-SPM= Galvanized Single Monopoint Hanging Kit with Hub
(I5 and I8 only, supplied separately)
Mounting Methods Designation Description
Hook and Safety Hook FH-1= Fixture Hook Fixture Hook two and one-half inch (2-1/2") (must be used with TCB, HB-
Suitable for three-quarter inch (3/4") conduit mounting or for use with xture
hook, loop or safety hook. Use chain or cable set to meet NEC requirements
for single point mounting, as well as to prevent cantilevering and rotation of
xture from one central location.
SPM or HBL-SPM)
3-3/8"
TOP
[86mm]
1-3/1 6"
[31mm]
Loop FL-1= Fixture Loop Fixture Loop two and one-half Inch (2-1/2") (must be used with TCB, HB-
1-7/8"
[48mm]
1"
[26mm]
1-1/2" HEX.
[39mm]
SPM or HBL-SPM)
Fixture Series AYC HB/AYC
FH-1
Single Toggle “Y” Toggle Loop Hanger
FL-1
HBI XX X
HBE XX X
HBL XX X
I5 XXXX
I8 XXXX
ABI XX X
SPM/RH-1
MBF X XX
VT1 X
VT4 X
NOTES: 3. Continuous row mount only between fixtures.
3
ADF060261
5-16-2016
Page 2

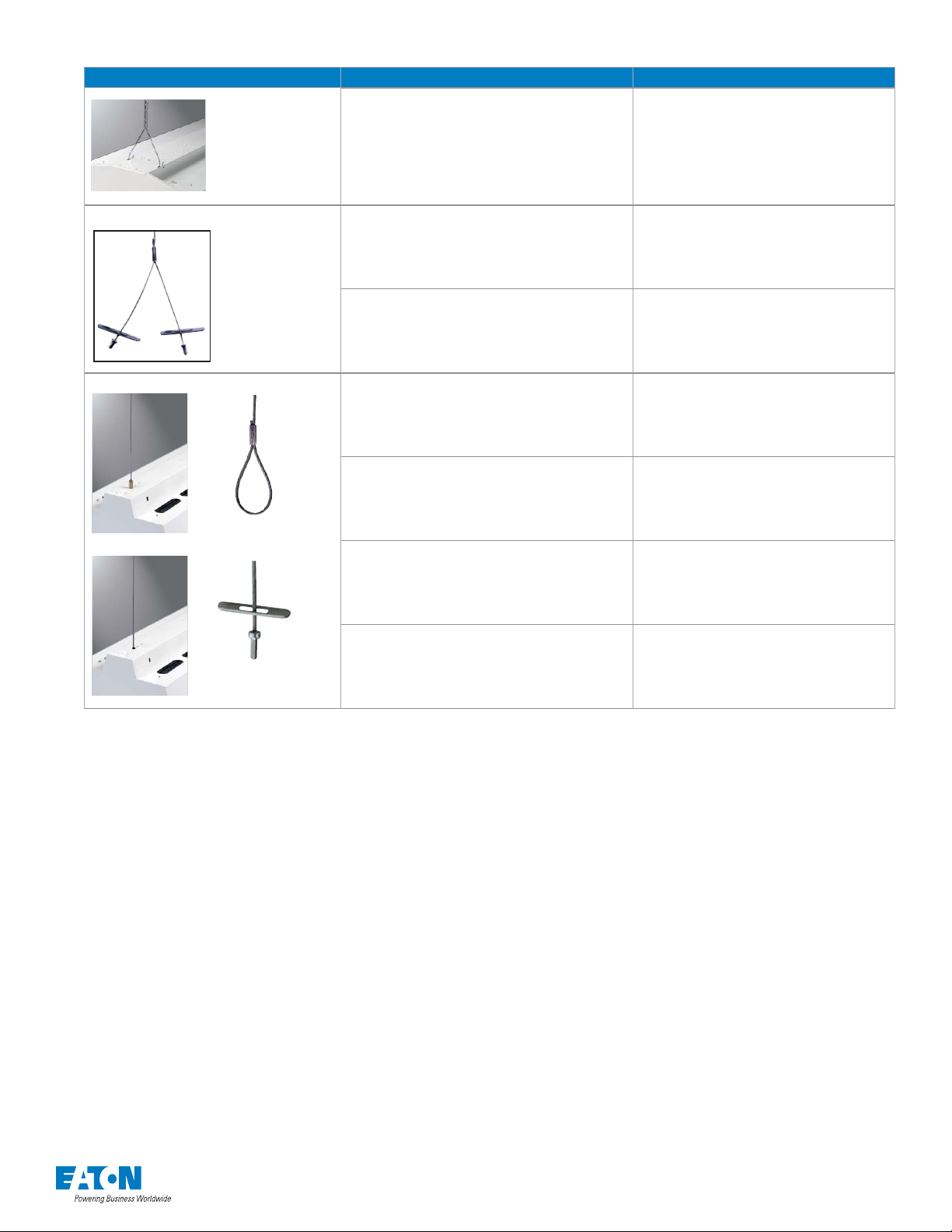

F-BAY MOUNTING METHODS
Mounting Methods Designation Description
HBAYC-CHAIN/SET-U= Hook style mounting chain set for HBI,
HBE, HBL and ABI
"Y" Toggle Y-Toggle-10= Mounting Toggle and Ten Foot (10') Cable Ten Foot (10'), Y Toggle #2 Cable
Y-Toggle-25= Mounting Toggle and Twenty- ve Foot (25') Cable Twenty-Five Foot (25'), Y Toggle #2 Cable
Two (2) Hook style V-hangers, thirty-six Inch (36") Chain
Sets with S-hooks
F-BAY MOUNTING
Loop Hanger
Single Toggle
Loop-10 Ten Foot (10') Loop Hanger #2 Cable
Loop-30 Thirty Foot (30') Loop Hanger #2 Cable
Toggle-10 Ten Foot (10') Single Toggle #2 Cable
Toggle-30 Thirty Foot (30') Single Toggle #2 Cable
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
ADF060261
5-16-2016
