Cooper Lighting LLC CPK1686 Specifications

Download

Page 1

Metalux

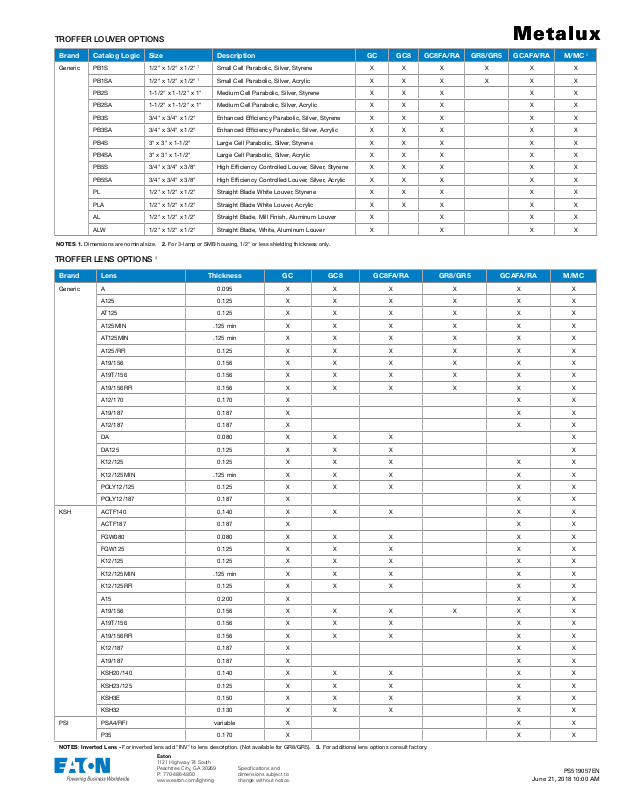

TROFFER LOUVER OPTIONS

Metalux

Brand Catalog Logic Size Description GC GC8 GC8FA/RA GR8/GR5 GCAFA/RA M/MC

Generic PB1S 1/2" x 1/2" x 1/2" 1Small Cell Parabolic, Silver, Styrene X X X X X X

PB1SA 1/2" x 1/2" x 1/2"

PB2S 1-1/2" x 1-1/2" x 1" Medium Cell Parabolic, Silver, Styrene X X X X X

PB2SA 1-1/2" x 1-1/2" x 1" Medium Cell Parabolic, Silver, Acrylic X X X X X

PB3S 3/4" x 3/4" x 1/2" Enhanced Efciency Parabolic, Silver, Styrene X X X X X

PB3SA 3/4" x 3/4" x 1/2" Enhanced Efciency Parabolic, Silver, Acrylic X X X X X

PB4S 3" x 3" x 1-1/2" Large Cell Parabolic, Silver, Styrene X X X X X

PB4SA 3" x 3" x 1-1/2" Large Cell Parabolic, Silver, Acrylic X X X X X

PB5S 3/4" x 3/4" x 3/8" High Efciency Controlled Louver, Silver, Styrene X X X X X

PB5SA 3/4" x 3/4" x 3/8" High Efciency Controlled Louver, Silver, Acrylic X X X X X

PL 1/2" x 1/2" x 1/2" Straight Blade White Louver, Styrene X X X X X

PLA 1/2" x 1/2" x 1/2" Straight Blade White Louver, Acrylic X X X X X

AL 1/2" x 1/2" x 1/2" Straight Blade, Mill Finish, Aluminum Louver X X X X

ALW 1/2" x 1/2" x 1/2" Straight Blade, White, Aluminum Louver X X X X

NOTES: 1. Dimensions are nominal size. 2. For 3-lamp or SMB housing, 1/2" or less shielding thickness only.

TROFFER LENS OPTIONS

Small Cell Parabolic, Silver, Acrylic X X X X X X

Brand Lens Thickness GC GC8 GC8FA/RA GR8/GR5 GCAFA/RA M/MC

Generic A 0.095 X X X X X X

A125 0.125 X X X X X X

AT125 0.125 X X X X X X

A125MIN .125 min X X X X X X

AT125MIN .125 min X X X X X X

A125/RFI 0.125 X X X X X X

A19/156 0.156 X X X X X X

A19T/156 0.156 X X X X X X

A19/156RFI 0.156 X X X X X X

A12/170 0.170 X X X

A19/187 0.187 X X X

A12/187 0.187 X X X

DA 0.080 X X X X

DA125 0.125 X X X X

K12/125 0.125 X X X X X

K12/125MIN .125 min X X X X X

POLY12/125 0.125 X X X X X

POLY12/187 0.187 X X X

KSH ACTF140 0.140 X X X X X

ACTF187 0.187 X X X

FGW080 0.080 X X X X X

FGW125 0.125 X X X X X

K12/125 0.125 X X X X X

K12/125MIN .125 min X X X X X

K12/125RFI 0.125 X X X X X

A15 0.200 X X X

A19/156 0.156 X X X X X X

A19T/156 0.156 X X X X X

A19/156RFI 0.156 X X X X X

K12/187 0.187 X X X

A19/187 0.187 X X X

KSH20/140 0.140 X X X X X

KSH23/125 0.125 X X X X X

KSH3E 0.150 X X X X X

KSH32 0.130 X X X X X

PSI PSA4/RFI variable X X X

P35 0.170 X X X

NOTES: Inverted Lens ‑ For inverted lens add "INV" to lens description. (Not available for GR8/GR5). 3. For additional lens options consult factory.

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.

June 21, 2018 10:00 AM

PS519057EN

Page 2

PRODUCT INFORMATION FOR LAMPS

Metalux

Brand Lamp P5 P4 EP3/HP3 P2/HP2 OPTICA RDI/A GC GC8 GR8 GR5 GCA RWW AC AC2 ALN

Generic 2 L8730 X X X X X X X X X X X X X X

L8735 X X X X X X X X X X X X X X

L8741 X X X X X X X X X X X X X X

L8830 X X X X X X X X X X X X X X

L8835 X X X X X X X X X X X X X X

L8841 X X X X X X X X X X X X X X

LB30 X X X X X X X

LB35 X X X X X X X

LB41 X X X X X X X

L5830 X X X X X X X X X X X X X

L5835 X X X X X X X X X X X X X

L5841 X X X X X X X X X X X X X

NOTES: 1. Add “HL” (High Lumen) to lamp ordering logic to indicate high-lumen lamp; generic HL lamps available for 32T8 or 28T5 only. Add “C” to specify Cover-guard lamps installed. 2. Generic lamp product information also valid for GE, Philips and Sylvania lamp technologies. See product information for specified lamps below.

PRODUCT INFORMATION FOR SPECIFIED LAMPS

T8 SAMPLE NUMBER: LGF28T8 / SPX41M / XL

Lamp Brand Wattage CRI Kelvin Type (not for Biax)

L G=GE (consult before

order)

BX=40, 50 or 55W Biax (all Biax SPX only)

F17=17W F28=28W F32=32W

SP=78 CRI SPX=83+ CRI

30M/=3000K 35M/=3500K 41M/=4100K 50M/=5000K WM=Watt-Miser

OC8=Octron T8 or ECO XL=Extended Life SXL=Super Extended Life HL=High Lumen XL CVG=Coverguard

L W=Philips FO17T8M/=17W

L S=Sylvania (consult

NOTES: 3. XL, SXL and HL lamp CRI values are 81-82 for 4100K or 80 for 5000K. 4. Alto only available in 90 CRI. 5. XPS and XPXL lamp CRI values are 81 for 5000K.

before order)

FO28T8M/=28W FO32T8M/=32W

FO17M/T8=17W FO28M/T8=28W FO32M/T8=32W

TL7=78 CRI TL8=85 CRI TL9=90 CRI ADV=Advantage, High Lumen,

Long Life

7=75+ CRI 8=85 CRI

30=3000K 35=3500K 41=4100K 50=5000K

Blank=ALTO PLUS=Plus, Long Life EWithLL=Energy Advantage, Long

Life

Blank=ECO XP=Extended Performance, ECO3 XP/SS=Super Saver XP XPS=High Lumen, Extended

Performance XPXL=Extra Life/Extended Performance

T5 and T5HO SAMPLE NUMBER: LWF28T5M / 850

Lamp Brand Wattage Other CRI Kelvin Type (not for Biax)

L G=GE

W=Philips S=Sylvania

F14T5=14WT5 F21T5=21WT5 F24T5=24WT5HO F28T5=28WT5 F39T5=39WT5HO F54T5=54WT5HO

47W=47WT5HO (GE only) [Blank]=51WT5HO (GE only)

M/8=85+ CRI 30=3000K

35=3500K 41=4100K 50=5000K

WM=Watt-Miser (GE only) HL=High Lumen XL (T5 only) HOEA49=49W (Philips only) HOEA44=44W (Philips only)

T8 U‑LAMP SAMPLE NUMBER: LSF031M / 835XP

Lamp Brand Wattage CRI Kelvin Type

L G=GE SP=78 CRI

SPX=82+ CRI

30=3000K 35=3500K 41=4100K 50=5000K

M/OC8U6=32W Six Inch

(6") T8

M/U1‑5/8=31W One and Five-Eights Inch (1-5/8") T8

WM=Watt-Miser

L W=Philips F32T8=32W Six Inch (6") T8 M/TL7=75 CRI

L S=Sylvania FO32M/=Six Inch (6") T8

NOTES: 6. SPX only. 7. 30W 6" U-Lamp Spacing only. 8. 6" U6T8 75 CRI or 85 CRI XPS only.

FO31M/=One and Five-Eights

Inch (1-5/8") T8

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

M/TL8=85 CRI

7=75 CRI 8=85 CRI

Specifications and dimensions subject to change without notice.

30=3000K 35=3500K 41=4100K 50=5000K

Blank=ALTO XEW=Energy Advantage

(25W 6" U-lamp spacing only)

Blank=ECO XP=Extended Performance

XP/SS=Super Saver XP XPS=High Lumen, Extended

Performance

June 21, 2018 10:00 AM

PS519057EN

Page 3

PARABOLICS AND RECESSED EMERGENCY OPTIONS

Metalux

Brand Battery P5 P4 EP3/HP3 P2/HP2 OPTICA RDI GC GC8 GR8/GR5 GCA AC AC2 ALN

Generic EL4 (350-500 lm) X X X X X X X X X X X X X

EL5 (up to 700 lm) X X X X X X X X X X X

EL8 (600-700 lm) X X X X X X X X X X X X X

EL5HO (up to 600 lm) X X X X X X X X X X X

EL14 (600-1400 lm)

Bodine EL-B100 (350-450 lm) X X X X X X X X

EL-B90 (500-600 lm) X X X X X X X X

EL-B70A (600-700 lm) X X X X X X X X

EL-B60 (600-700 lm) X X X X X X X X

EL-B60LPU (600-700lm) X X X X X X X X X X X X

EL-B50 (1100-1400 lm)

EL-B50ST (1100-1400 lm)

EL-B50RCT (1100-1400 lm)

EL-LP500 (370-520 lm) X X X X X X X

EL-LP550 (390-700 lm) X X X X X X X

EL-LP600 (600-1325 lm) X X X X X X X

Iota EL-I32 (up to 550 lm) X X X X X X X X X X X X X

EL-I40 (up to 700 lm) X X X X X X X X X X X X X

EL-I48 (up to 700 lm) X X X X X X X X X X X X X

EL-I320 (1300 lm)

EL-I880 (2000 lm)

EL-I232 (2 @ 1400 lm)

EL-ISD80 (1300 lm)

EL-ISL28 (up to 500 lm)

EL-ISL54 (up to 825 lm) X X X X X X X

EL-ISL540 (up to 1300 lm) X X X X X X X

Sure‑Lite EBP450X

EBP700X

EBP1400NCF

NOTES: 1. For battery wired for two lamps, specify "/2L" after battery description. 2. Due to size, battery cannot be installed in 2-lamp and 4-lamp 2' x 2's, except RDI. 3. Will not operate two (2) lamps. 4. Due to battery size, a wide ballast cover is used. 5. 2' x 4' only.

1, 2

2, 3

X X X X X X X X X X X X X

X X X X X X X X

X X

X X X X X X X

X X X X X X X X

X X X X X X X

X X X X X X X X

X X X

X X

X X X

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.

June 21, 2018 10:00 AM

PS519057EN

Page 4

SURFACE EMERGENCY OPTIONS

Brand Battery M/MC SA WN WS CR RWW

CL BA/BAU BI/BIU 6BE/BEU 6BC

Metalux

Generic EL4 (350-500 lm) X X X X X X X X X X

EL5 (up to 700 lm) X X X X X X X X X X

EL8 (600-700 lm) X X X X X X X X X X

EL5HO (up to 600 lm) X X X X X X X X X X

EL14 (600-1400 lm)

Bodine EL-B100 (350-450 lm) X X X X X X X

EL-B90 (500-600 lm) X X X X X X X

EL-B70A (600-700 lm) X X X X X X

EL-B60 (600-700 lm) X X X X X X X

X X X X X X X X X X

X X X

EL-B60LPU (600-700lm) X X X X X X X X X

EL-B50 (1100-1400 lm)

1, 2

EL-B50ST (1100-1400 lm)

EL-B50RCT (1100-1400 lm)

X X X X X X

1, 2

X X X X X X

X X X

EL-LP500 (370-520 lm) X

EL-LP550 (390-700 lm) X

EL-LP600 (600-1325 lm) X

Iota EL-I32 (up to 550 lm) X X X X X X X X X X

EL-I40 (up to 700 lm) X X X X X X X X X X

EL-I48 (up to 700 lm) X X X X X X X X X

EL-I320 (1300 lm)

EL-I880 (2000 lm)

1, 2

EL-I232 (2 @ 1400 lm)

EL-ISD80 (1300 lm)

1, 2

EL-ISL28 (up to 500 lm)

X X X X X X

X X X

EL-ISL54 (up to 825 lm) X

EL-ISL540 (up to 1300 lm) X

Sure‑Lite EBP450X

EBP700X

EBP1400NCF(1400lm)

NOTES: 1. For battery wired for two lamps, specify "/2L" after battery description. 2. Due to size, battery cannot be installed in 2-lamp and 4-lamp 2' x 2's, except RDI. 3. Will not operate 2-lamps. 4. Due to bat- tery size, a wide ballast cover is used. 5. 2' x 4' only. 6. Due to size limitations, battery cannot be installed in two foot (2') units.

2, 3

X X X X X X

X X

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.

June 21, 2018 10:00 AM

PS519057EN

Page 5

PRODUCT INFORMATION FOR EXTENDED OPTIONS

Metalux

Nomenclature Description P5 P4 EP3/HP3 P3 P2/HP2 OPTICA GC GC8 GR8/GR5 GCA RWW RDI AC/AC2 ALN

PL5/120 PL5 Night Light wired 120V X X X X X X X X

PL5/277 PL5 Night Light wired 277V X X X X X X X X

PL7/120 PL7 Night Light wired 120V X X X X X X X X

PL7/277 PL7 Night Light wired 277V X X X X X X X X

PL9/120 PL9 Night Light wired 120V X X X X X X X X

PL9/277 PL9 Night Light wired 277V X X X X X X X X

PL13/120 PL13 Night Light wired 120V X X X X X X X X

PL13/277 PL13 Night Light wired 277V X X X X X X X X

LAP

LAO

FR Suitable for Install Fire Rated Ceiling X X X X X X X X X X X

IC IC-Rated

G1 Gasket btw DR Frm and Housing X X X X

VRS Vandal Resistant Screws

6/VRS Six (6) Vandal Resistant Screws X

MEP

REP Riveted End Plate X X X X X X X X X X X

6/LC Six (6) Lens Clips X X

2BC Second Ballast Cover X

EM/BC EM Installed in eld

1IN/MLAB One Inch (1") Mark Labeling X X X X X X X X X X

2IN/MLAB Two Inch (2") Mark Labeling X X X X X X X X X X

PAF Painted After Fabrication X X X X X X X

DS Debris Shield X

NOTES: 1. Option used when housing access plates are shipped ahead for pre-wiring. 2. Required for 2-lamp or 4-lamp 2' x 2' xture when two (2) ballast or one (1) ballast and emergency are requested. 3. Aluminum door

and minimum 0.125" shielding. 4. Installation requires end llers and may require end support bracket. See accessory page for further details. 5. Aluminum doorframe (FA/RA) only. 6. See product spec sheet for limitations. 7. For 2' x 2' 3L, 2BC is standard. See product spec sheet for additional info. 8. For 2' x 2' 3L Biax or U1-5/8, 2BC is standard; 2U6T8, 3T5 or 3T8, 2BC is optional. 9. Refer to EM table above for fit. 10. AC only.

Less Access Plate X X X X X X X X X X

Less Access Opening X X X X X X X X X X X

Gasket btw DR Frm and Housing, btw Lens and DR Frm

Gasket btw DR Frm and Hous, btw Lens and DR Frm on Mnt Surf of Trm

(2FT - 2; 4FT - Four (4) screws)

X X X X X X X X

X X

Modied End Plate X X X X X X X

(Wide or standard BC used in xture)

X X X X X X X X X

X 7X

PACKAGING (REQUIRED)

Nomenclature Description P5 P4 EP3/HP3 P3 P2/HP2 OPTICA GC GC8 GR8/GR5 GCA RWW RDI AC AC2 ALN

U Unit Pack X X X X X X X X X X X X X X X

PAL Job Pack, out of carton X X X X X X X X

PALC Job Pack, in carton X X X X X X X X X X X X X

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.

June 21, 2018 10:00 AM

PS519057EN

Page 6

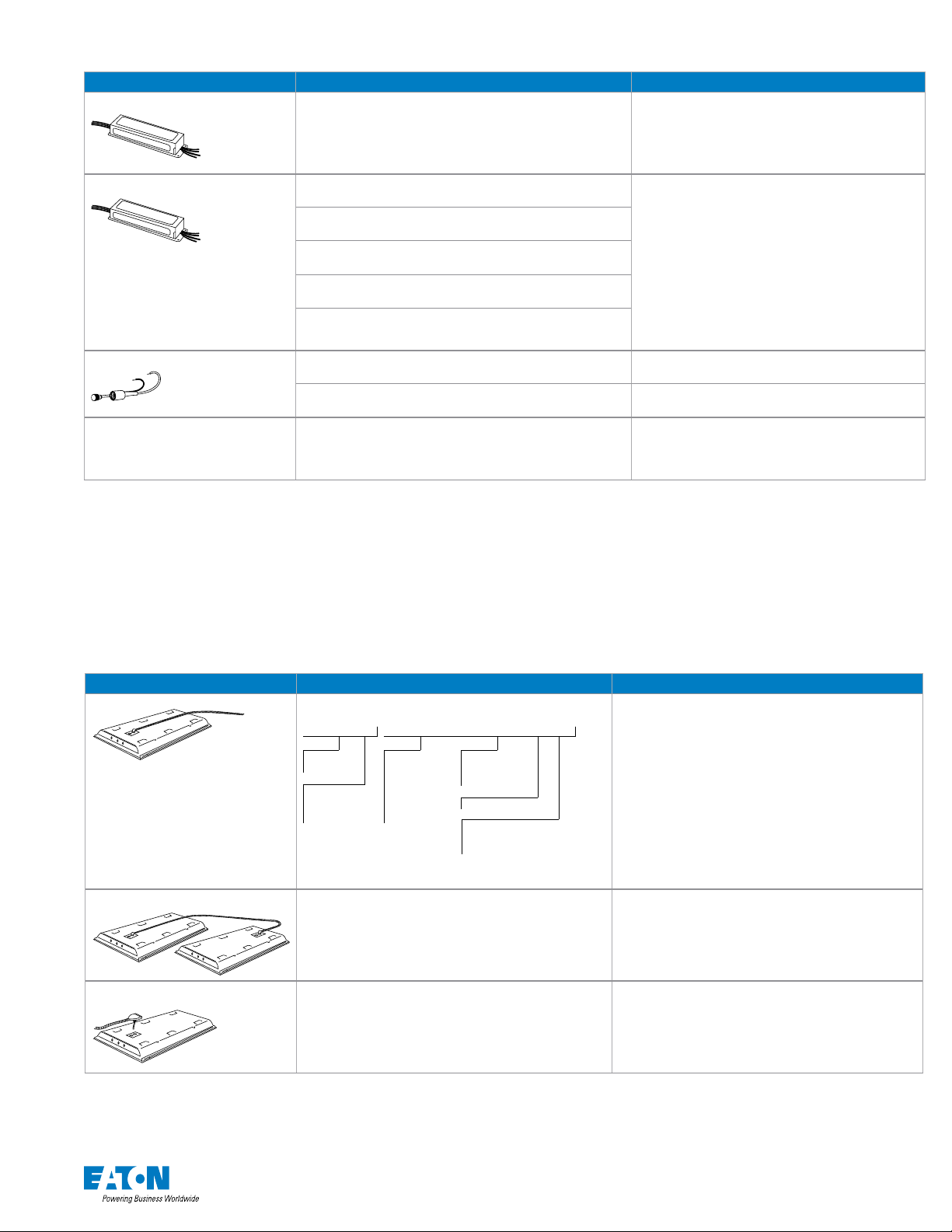

PARABOLIC, RECESSED AND SURFACE ELECTRICAL OPTIONS AND ACCESSORIES

Metalux

Designation Description

Ballasts Refer to product spec sheets for ballast options.

Emergency Lighting EL4 (350-500 lumens)

(for additional lamp lumen performance refer to Sure-Lites spec sheet)

Fusing (Internal or External) GL Single Element (Fast Blow) Fuse

Night Lights (Parabolic, Recessed and Surface only)

Two Foot (2') - Four Foot (4') RS, SL, and Compact

EL8 (600-700 lumens) Two Foot (2') - Eight Foot (8') RS, SL, HO and Compact

EL5 (up to 700 lumens) Two Foot (2') - Four Foot (4') T5

EL5HO (up to 600 lumens) Two Foot (2') - Four Foot (4') T5HO

EL14 (600 to 1400 lumens) Three Foot (3') - Eight Foot (8') RS, SL and HO; Two Foot (2') - Four Foot (4') T5 and T5HO

GM Double Element (Slow Blow) Fuse

PL Compact lamp uorescent night light (5, 7, 9 or 13 Watt lamp,

Self-contained, operates one lamp at emergency levels for 90 minutes upon power loss (120V or 277V). For Dry Locations only.

specify voltage 120V or 277V). Example: PL-13/120V

PARABOLIC, RECESSED AND SURFACE WIRING OPTIONS AND ACCESSORIES

Ordering Information Description

SAMPLE NUMBER: A3/8-2/18G

A=Attached Flex

Flex Size 3/8 1/2

NOTES: 1. For fixtures with emergencies, extra conductor must be added to

accommodate hot lead for EM.

Master/Satellite Labor Saving tandem wiring system. Both installation and energy

Modular Wiring Systems Component wiring system, provides cost and labor saving alternative

Number of Conductors 2/ 3/ 4/ 5/

Gauge of Wire

(1)

18 12

G=Ground

Blank or /EM=For eld

install EM

3/8" factory prewired ex wired into xture access plate. Various wire gauges and number of wires available. Six foot (6') lengths only.

The Flex set consists of the following:

• One wago connector per wire

• Six feet (6') of steel ex

• Eighteen (18) gauge TFN wire, seven (7') foot leads, exposing six inches (6") out of each end

• One ninety degree (90°) ex connector

• One straight-in ex connector

• One access plate

efcient. (See Master/Satellite Concept page or consult Pre-Sales Technical Support for additional information.)

to conventional hardwiring. Uses interchangeable modular components. Offers portability and versatility in lighting congurations. (See MWS Section or consult Pre-Sales Technical Support for additional ordering information.)

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.

June 21, 2018 10:00 AM

PS519057EN

Page 7

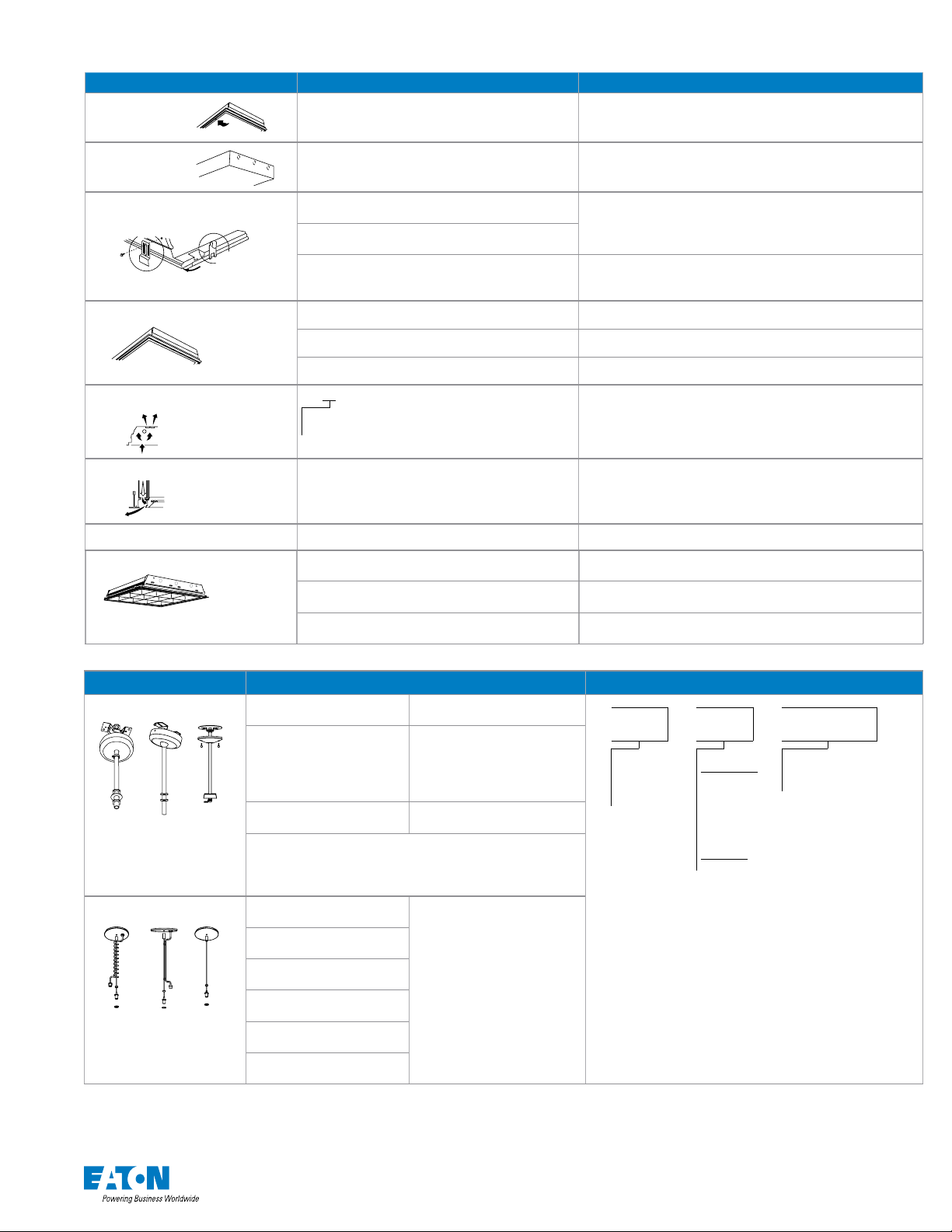

PARABOLIC, RECESSED AND SURFACE MISCELLANEOUS OPTIONS AND ACCESSORIES

EQ End Bracket

EQ clip must be slipped on from

Designation Description

Vandal Resistant Door

(GC only)

VRS Flat doors only. Frame secured with four (4) or six (6/VRS) torx head with center

pin head screws. (No latches)

Metalux

End Knockouts

(M, MC and SA Series)

T‑Bar Safety Clips

(U.L. Listed 912Y and E61165)

EQ Plate

the end

Optional Painted And Natural Door Frames

(GC only)

Heat Removal Dampers Note: Parabolic troffers only

Air Pattern Control Vanes AV Adjustable air pattern control vanes to adjust or direct air ow on Air Supply/Air

Lamps, Furnished/Installed See Troffer Lamp Options Page

Paralux Louver Finishes I=Semi-Specular/Low Iridescent Louver formed of "Low Iridescent" aluminum incorporating an oxide coating

EKO 7/8" KO's in end of xture housing. Number of KO's and location varies by

EQ‑CLIP‑U (Black) UL approved safety clips used to secure recessed troffers to T-bar. EQ clips

EQ‑CLIP‑WH (White)

T3A END E.Q. BRACKET PARTS BAG EQ clips for use on xture ends. Comes with four (4) screws and four (4)

Blank ‑ (White Door Frame) Standard Baked enamel nish

BDF ‑ (Black Door Frame) Baked enamel nish

FA, RA, FAN, RAN, FAB, RAB See spec sheets for aluminum door nish

HRD Used on heat removal luminaires to adjust or close off air ow through the

C=Closed O=Open

MI=Specular, Mirrored/Low Iridescent Louver formed of specular anodized aluminum. Finish is anodic oxide

P=White Louver formed from white pre-painted aluminum.

xture type.

used on xture sides. Order four (4) per xture

brackets.

housings. (See xture catalog page for series ordering information).

Return Troffers. (See xture catalog page for series ordering information)

which counteracts the iridescent effect/rainbowing

coating. (See xture catalog pages for additional ordering information)

Suspension Sets Designation Ordering Information

Stem Sets SCF‑XX‑B Fixed Stem Set

SCS‑XX‑B

(Deep Canopy, 3/8" stem, 5/8" Outside Diameter)

XX=Length 6", 8", 12", 24", 36", 48", 60", 72"

SCA‑48‑B Field cutable Stem Set (1/4" IPS Stem,

SCF SCS SCA

Used with all surface xtures as stem sets. SCS stems have forty-ve degree (45°) swivel, one direction. One set consists of one (1) stem assembly. Minimum of two (2) sets required per xture. NOTE: Coupler, three-eights inch (3/8") IPS Pipe Coupler to join lengths. Coupler is standard baked white enamel or special order of black.

Cable Sets CCA‑XX‑PFC‑C CCA=Adjustable Cable (XX=48" or

CCA‑XX‑PFS‑U

CCA‑XX‑NPF‑U

CCF‑XX‑PFC

CCA CCA CCA PFC PFS NPF

CCF‑XX‑PFS

CCF‑XX‑NPF

Swivel Stem Set

1/2" O.D.)

120")

CCF=Fixed Cable (XX=12", 15", 18", 21", 24", or 27")

PFC=Power Feed, Coil Power Cord

PFS=Power Feed, Straight Power Cord

NPF=Non-Power Feed

NOTE: Coupler, Three-eights inch (3/8") IRS Pipe Coupler to join lengths. Coupler is standard baked white enamel or special order of black.

CCF

Type of Kit CCA=Adjustabe

Cable Kit CCF=Fixed Length Cable Kit

Length of Cable Fixed Length 12=12" long 15=15" long 18=18" long 21=21" long 24=24" long 27=27" long 48=48" long Adjustable 120=120" long

NPF

Configuration NPF=Non Power Feed PFS=Straight Cord Power PFC=Curly Cord Power Feed

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.

June 21, 2018 10:00 AM

PS519057EN

Page 8

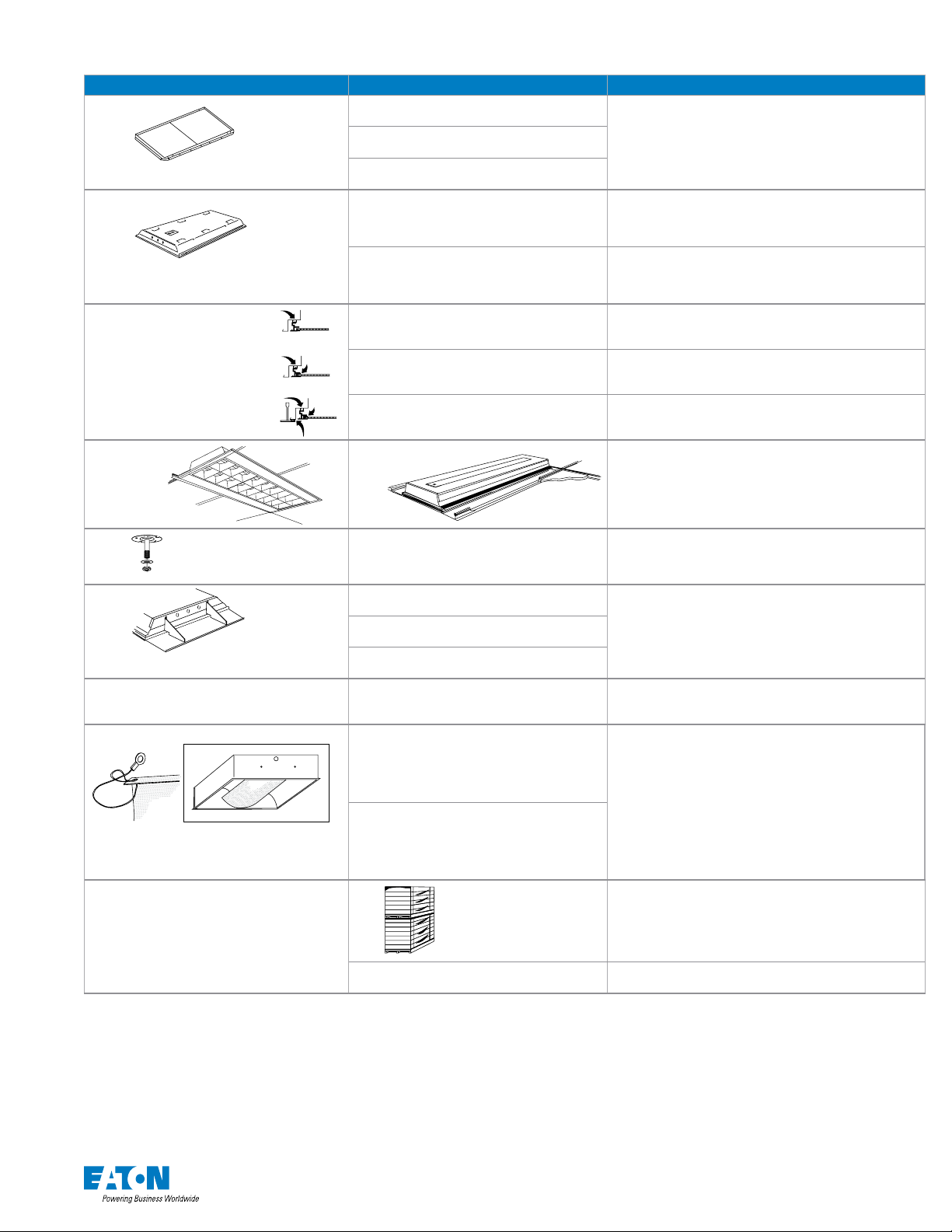

PARABOLIC, RECESSED AND SURFACE MISCELLANEOUS OPTIONS AND ACCESSORIES

Metalux

Designation Description

Plaster Frames 95‑PF‑14‑U (1x4) Heavy Gauge Metal Construction for new construction plaster ceiling.

95‑PF‑22‑U (2x2)

95‑PF‑24‑U (2x4)

Used with Flanged Recessed Fixtures (Intended to serve as a plaster stop only, not to t into an opening).

Rated Construction FR

Fixture Gasketing

Note: G2 and G3 gasket options are only

available on GC xtures (aluminum) or GC8 xtures using aluminum frames.

Gasketing availability: GC/GC8. No HR, air or louvers. (Lens minimum and maximum = 0.125)

Side Filler Panel SFP‑4FT‑B Heavy gauge side ller panels for 20" x 48" xture for use in a 2' x 4'

Spacer A‑1‑B/SPACER‑B Spaces xture one and one-half Inch (1-1/2") to two and one-half inches

End Fillers 12‑EFS‑B (1x2, 1x4) Six Inch (6") Heavy gauge end llers. Use two (2) per xture. End llers

Example: 2GC-332A-UNV-EB81-FR-U

Example: 2GR8IC-332A-UNV-EB81-U

G1 Neoprene gasket between door frame and xture housing.

G2 G1 gasketing plus vinyl gasketing between lens and door frame.

G3 G1 and G2 gasketing plus neoprene gasketing on mounting surface of

20‑EFS‑B (20x48)

Fixture Classication for Fire Rated Ceiling Fixture is FR labeled "SUITABLE FOR INSTALLATION IN FIRE RATED CEILINGS" when applied in conformance with the designs specied in the "Underwriters Laboratories Fire Resistance Directory".

Fixture Classication for Insulated Ceiling Fixture is IC labeled "SUITABLE FOR DIRECT CONTACT TO INSULATION". Refer to www.cooperlighting.com for available xtures.

xture trim. (Grid or Flange). Field installed.

ceiling installation. (Baked white nish/two (2) per set).

(2-1/2") from ceiling. (Use with all strips and industrials)

lay on T-bars and are held in place by xtures but are not attached.

24‑EFS‑B (2x2, 2x4)

End Support Brackets ESS‑B Heavy gauge end support brackets. Four (4) per xture are required when

Ovation Shield Cable Option

Example:

(Center Mount) 2RDI-2BX40RP-120V-EB51-LSC (Side Mount) 2RDI-2BX40RP-120V-EB51-LSCS

Palletizing PA L Un-cartoned xtures secured by corrugated end cap protectors and

LSC

Center Mount

LSCS

Side Mount

PALC Fixtures in cartons secured by heavy gauge stretch wrap. Fast and ef-

xtures are supported from ends. Must be used with xture that has a modied end plate (MEP).

The lamp shield cable (LSC) is a factory option available for any and all Ovation products. For center mount Ovation models, use the LSC option. For side-mount, use the LSCS option.

Ovation products specied with this option ship with a parts bag that contains the safety lanyards, clear rubber "caps" and instruction sheet.

heavy gauge stretch wrap. Fast and efcient handling.

cient handling.

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.

June 21, 2018 10:00 AM

PS519057EN
