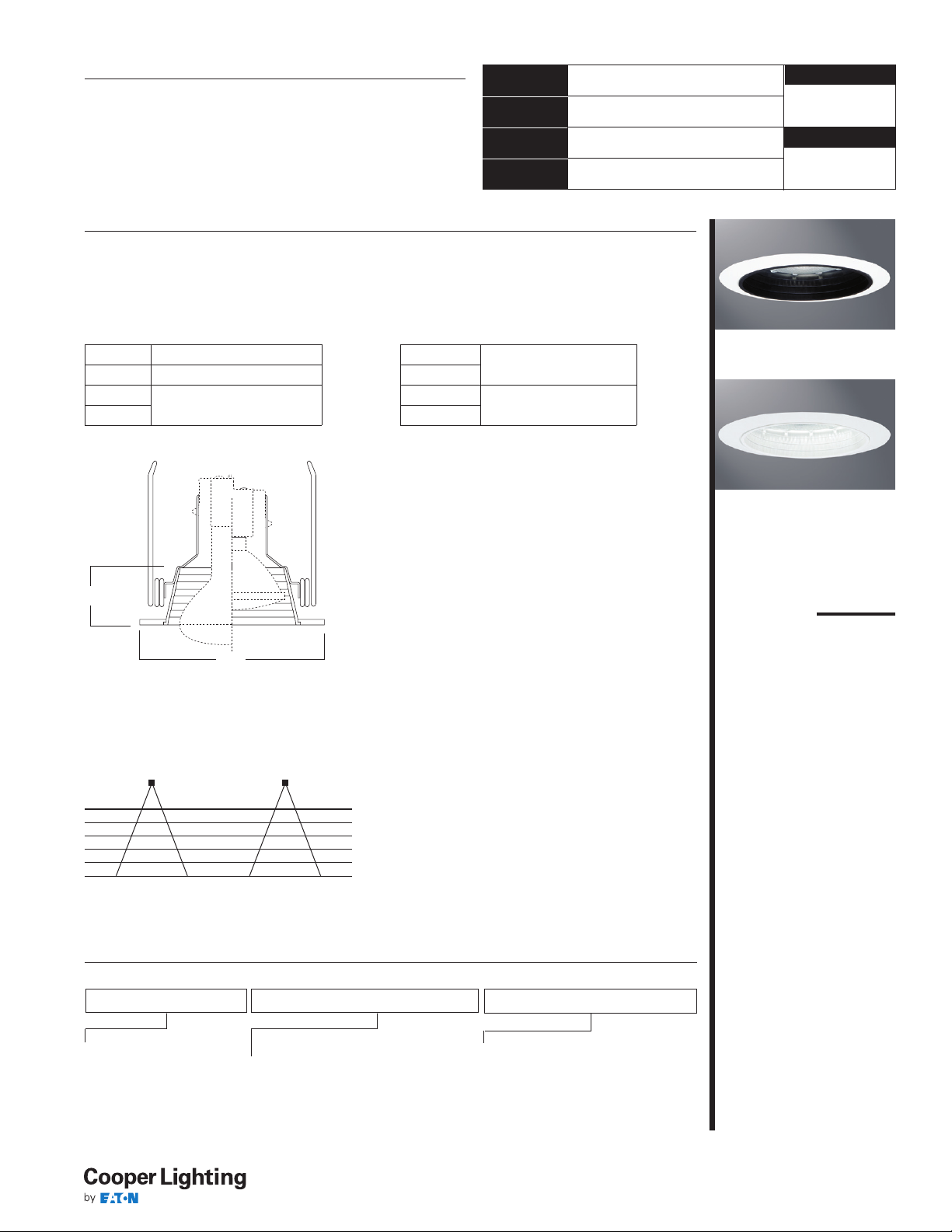

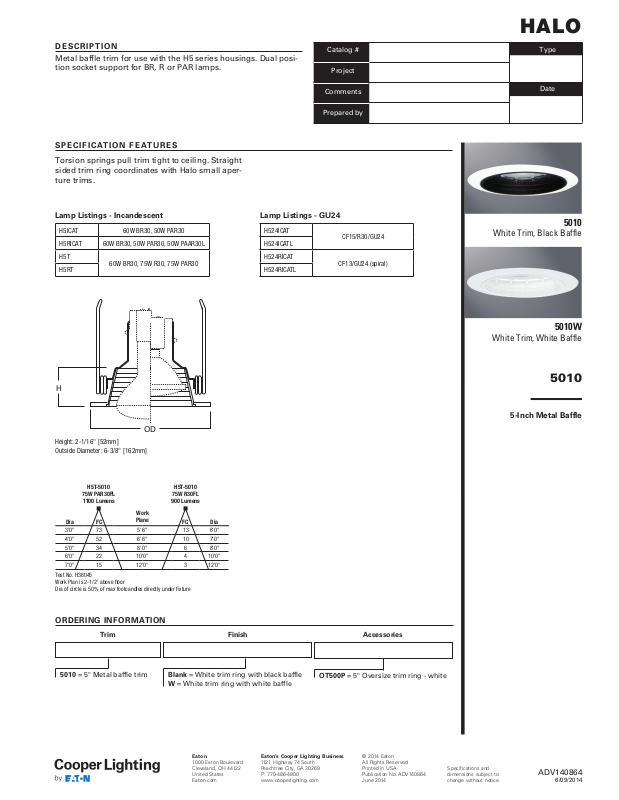

DESCRIPTION
Metal baffle trim for use with the H5 series housings. Dual position socket support for BR, R or PAR lamps.
Catalog #
Project
HALO
Type
SPECIFICATION FEATURES
Torsion springs pull trim tight to ceiling. Straight
sided trim ring coordinates with Halo small aperture trims.
H5ICAT 60W BR30, 50W PAR30
H5RICAT 60W BR30, 50W PAR30, 50W PAAR30L
H5T
H5RT
60W BR30, 75W R30, 75W PAR30
H
Lamp Listings - GU24Lamp Listings - Incandescent
H524ICAT
H524ICATL
H524RICAT
H524RICATL
Comments
Prepared by
CF15/R30/GU24
CF13/GU24 (spiral)
Date
5010
White Trim, Black Baffle
5010W
White Trim, White Baffle
5010
OD
Height: 2-1/16" [52mm]
Outside Diameter: 6-3/8" [162mm]
H5T-5010
75W PAR30FL
1100 Lumens
Work
Dia FC FC Dia
3'0" 73 5'6" 13 6'0"
4'0" 52 6'6" 10 7'0"
5'0" 34 8'0" 6 8'0"
6'0" 22 10'0" 4 10'0"
7'0" 15 12'0" 3 12'0"
Test No. H36045
Work Plan is 2-1/2' above floor
Dia of circle is 50% of max footcandles directly under fixture
Plane
H5T-5010
75W R30FL
900 Lumens
ORDERING INFORMATION
Trim
5010 = 5" Metal baffle trim
Blank = White trim ring with black baffle
W = White trim ring with white baffle
Finish
5-Inch Metal Baffle
Accessories
OT500P = 5" Oversize trim ring - white
