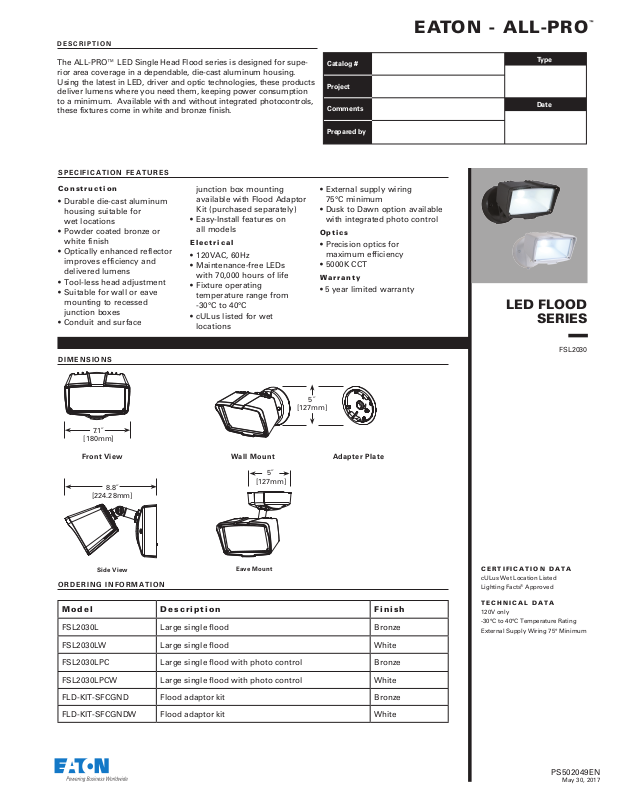

DESCRIPTION
7.1
180
8.8
224.28
The ALL-PRO™ LED Single Head Flood series is designed for superior area coverage in a dependable, die-cast aluminum housing.
Using the latest in LED, driver and optic technologies, these products
deliver lumens where you need them, keeping power consumption
to a minimum. Available with and without integrated photocontrols,
these fixtures come in white and bronze finish.
SPECIFICATION FEATURES
Construction
• Durable die-cast aluminum
housing suitable for
wet locations
• Powder coated bronze or
white finish
• Optically enhanced reflector
improves efficiency and
delivered lumens
• Tool-less head adjustment
• Suitable for wall or eave
mounting to recessed
junction boxes
• Conduit and surface
junction box mounting
available with Flood Adaptor
Kit (purchased separately)
• Easy-Install features on
all models
Electrical
• 120VAC, 60Hz
• Maintenance-free LEDs
with 70,000 hours of life
• Fixture operating
temperature range from
-30°C to 40°C
• cULus listed for wet
locations
EATON - ALL-PRO
Catalog #
Project
Comments
Prepared by
• External supply wiring
75°C minimum
• Dusk to Dawn option available
with integrated photo control
Optics
• Precision optics for
maximum efficiency
• 5000K CCT
Warranty
• 5 year limited warranty
™
Type
Date
LED FLOOD
SERIES

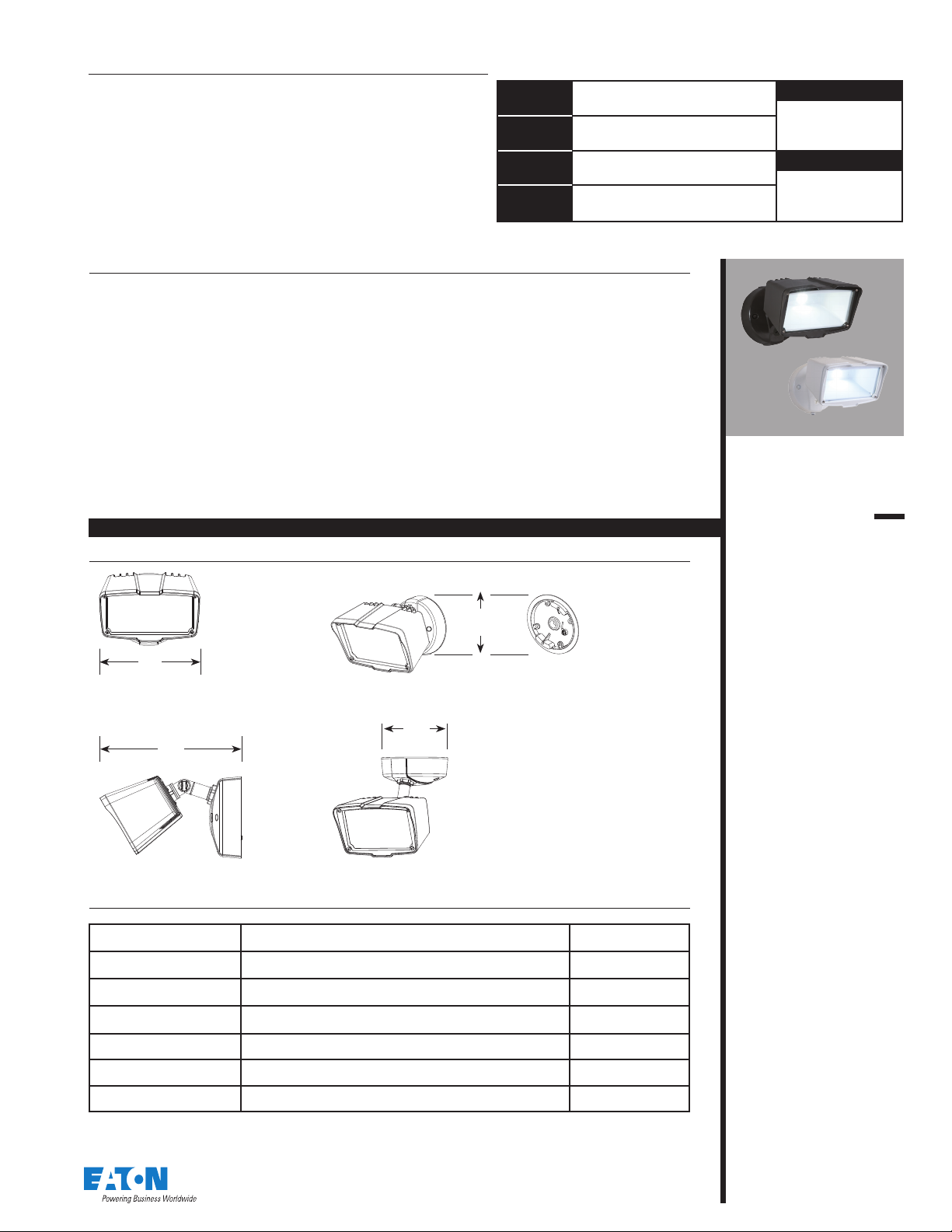

DIMENSIONS
5˝
[127mm]
7.1˝
[180mm]
Front View
8.8˝
[224.28mm]
Side View
ORDERING INFORMATION
Wall Mount Adapter Plate
5˝
[127mm]
Eave Mount
Model Description Finish
FSL2030L Large single flood Bronze
FSL2030LW Large single flood White
FSL2030
CERTIFICATION DATA
cULus Wet Location Listed
Lighting Facts® Approved
TECHNICAL DATA
120V only
-30°C to 40°C Temperature Rating
External Supply Wiring 75° Minimum
FSL2030LPC Large single flood with photo control Bronze
FSL2030LPCW Large single flood with photo control White
FLD-KIT-SFCGND Flood adaptor kit Bronze
FLD-KIT-SFCGNDW Flood adaptor kit White
PS502049EN
May 30, 2017
Page 2

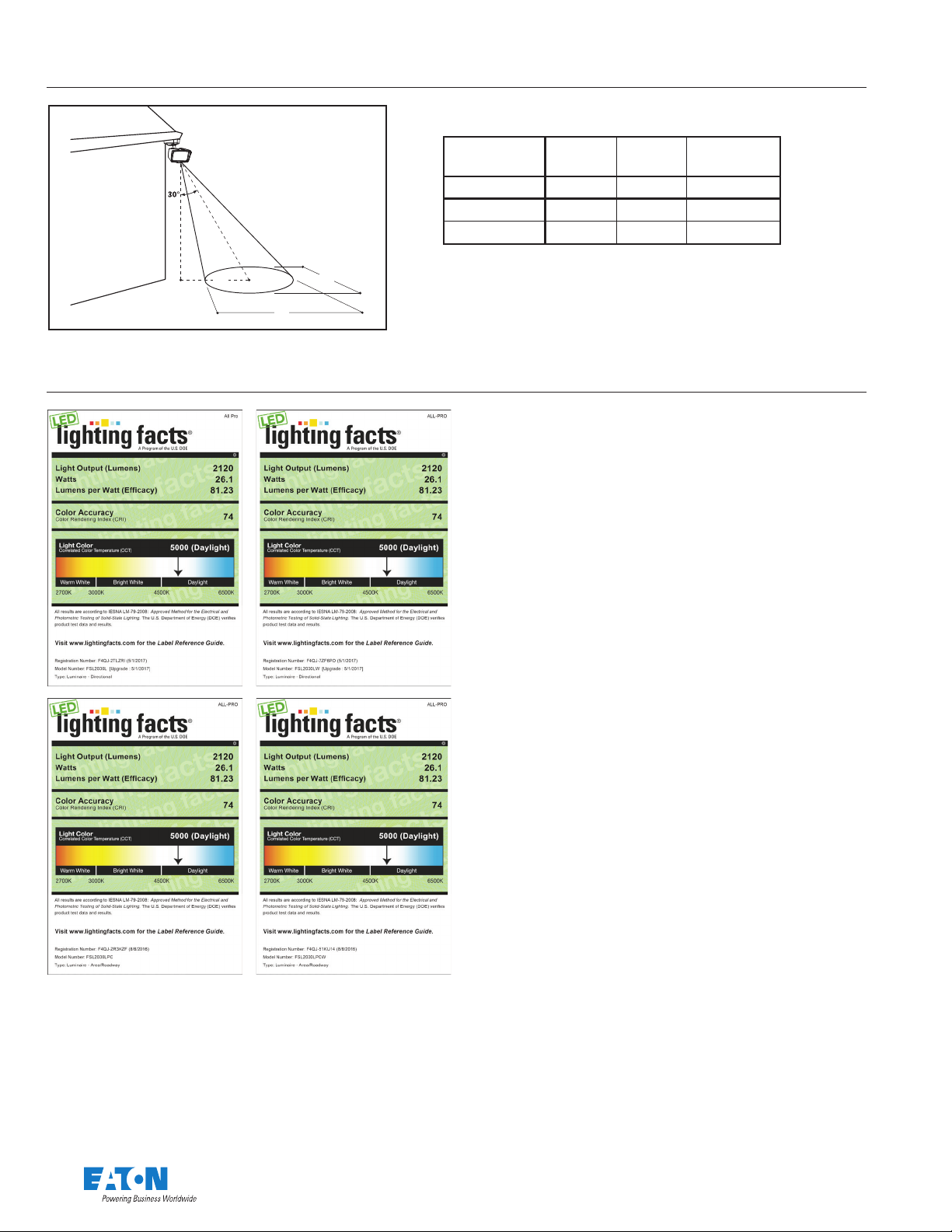

PHOTOMETRICS
FLOOD AND DUSK TO DAWN SERIES
Area Coverage Estimates
FC
CB
Note: Specifications and Dimensions subject to change without notice.
W
L
LIGHTING FACTS
Mounting
Height
Length
(L)
Width
(W)
Area (Sq. Ft.)
10 ft. 20 30 600
15 ft. 24 40 960
20 ft. 27 40 1040
Note: Bronze fixture at a typical mounting angle of 30° from vertical
All figures based on minimum footcandle (FC) of 0.5.
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
