DESCRIPTION
[89mm]
[108mm]
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
disconnecting power.
[89mm]
[108mm]
1 LAMP
[89mm]
[108mm]
2 LAMP
[1
7/8" [22mm]
36" [914mm]
[83mm]
2'

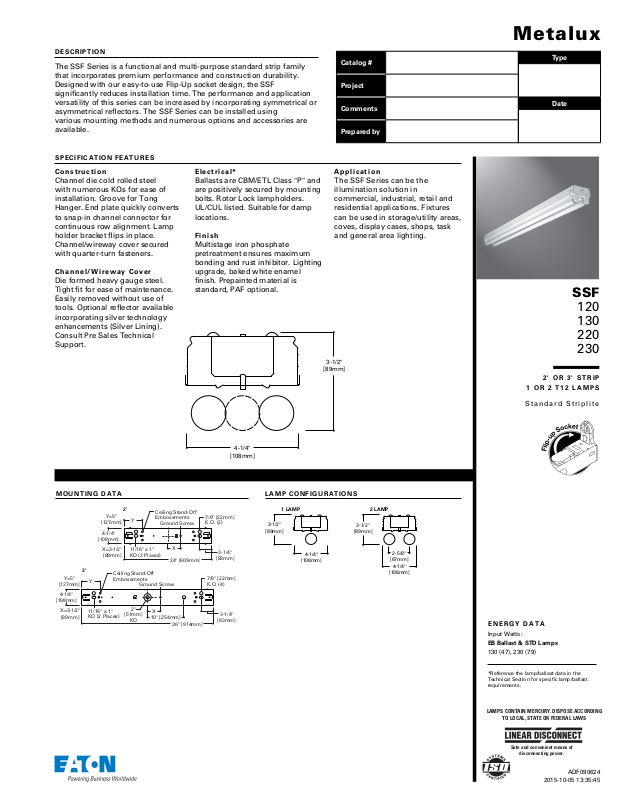

The SSF Series is a functional and multi-purpose standard strip family
that incorporates premium performance and construction durability.
Designed with our easy-to-use Flip-Up socket design, the SSF
significantly reduces installation time. The performance and application
versatility of this series can be increased by incorporating symmetrical or
asymmetrical reflectors. The SSF Series can be installed using
various mounting methods and numerous options and accessories are
available.
SPECIFICATION FEATURES
Construction
Channel die cold rolled steel
with numerous KOs for ease of
installation. Groove for Tong
Hanger. End plate quickly converts
to snap-in channel connector for
Electrical*
Ballasts are CBM/ETL Class "P" and
are positively secured by mounting
bolts. Rotor Lock lampholders.
UL/CUL listed. Suitable for damp
locations.
continuous row alignment. Lamp
holder bracket flips in place.
Channel/wireway cover secured
with quarter-turn fasteners.
Finish
Multistage iron phosphate
pretreatment ensures maximum
bonding and rust inhibitor. Lighting
Channel/Wireway Cover
Die formed heavy gauge steel.
Tight fit for ease of maintenance.
upgrade, baked white enamel
finish. Prepainted material is
standard, PAF optional.
Easily removed without use of
tools. Optional reflector available
incorporating silver technology
enhancements (Silver Lining).
Consult Pre Sales Technical
Support.
Catalog #
Project
Comments
Prepared by
Application
The SSF Series can be the
illumination solution in
commercial, industrial, retail and
residential applications. Fixtures
can be used in storage/utility areas,
coves, display cases, shops, task
and general area lighting.
3-1/2"
Metalux
Type
Date
SSF
120
130
220
230
2' OR 3' STRIP
1 OR 2 T12 LAMPS
Standard Striplite
MOUNTING DATA
Y=5"
[127mm]
4-1/4"
[108mm]
X=3-1/2"
[89mm]
3'
Y=5"
4-1/4"
08mm]
X=3-1/2"
[89mm]
Y
11 /16" x 1"
KO (2 Places)
[127mm]
Y
11 /16" x 1"
KO (2 Places)
Ceiling Stand-Off
Embossments
Ground Screw
2"
[51mm]
KO
Ceiling Stand-Off
Embossments
Ground Screw
X
24" [609mm]
X
10" [254mm]
7/8" [22mm]
K.O. (2)
3-1/4"
[83mm]
K.O. (4)
3-1/4"
4-1/4"
LAMP CONFIGURATIONS
3-1/2"
4-1/4"
3-1/2"
2-5/8"
[67mm]
4-1/4"
ENERGY DATA
Input Watts:
EB Ballast & STD Lamps
130 (47), 230 (79)
*Reference the lamp/ballast data in the
Technical Section for specific lamp/ballast
requirements.
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
ADF090624
2015-10-05 13:35:45
Page 2
(Order Separately)
A1B/Spacer
Fixture)
GRP
AY
SCF
SCS
SCA
CLC-SSF
SSF
SSF
SSF
WG/SS
WG/SS
TO
Y-
(Additional Accessories Available. See Options and Accessories Section.)
SAMPLE NUMBER: SSF-220-UNV-EB81-U
NO
(3)
clearance
Specifications & dimensions subject to change without notice. Consult your Eaton Representative for availability and ordering information.
ORDERING INFORMATION
SSF T12
Tandem
Blank=2' or 3'
Length
Series
SSF=Commercial
Standard Striplite
(1)
TES:
Products also available in non-US voltages and frequencies for international markets.
Not available for 2' version. For other emergency options specify manufacturer part number and consult the factory for availability (example: EL-FBP240H).
for ballast in channel is 2-7/32".
Number of Lamps
1=1 Lamp
(Not Included)
2=2 Lamps
(Not Included)
Wattage
20=20W T12 (24")
30=30W T12 (36")
(5)
Socket brack ets left uninstalled.
Ballast Start Type
LTS=Low Trigger
Start (20W only)
(120V only)
HTS=High Trigger
Start (20W only)
LRS=Low Rapid
Start (30W only)
(120V only)
HRS=High Rapid
Start (30W only)
(120V only)
(1)
Voltage
120V=120 Volt
277V=277 Volt
347V=347 Volt
(1)
Options
GL=Single Element Fuse
GM=Double Element Fuse
EL=Emergency Installed
(2)
For SilverLining reflector add SS in Catalog Number, Example: SSF-ASY-SS-4.
Ballast Type
Blank=Standard Magnetic Ballast
LE3=T12 Magnetic Energy Saving
EB2
(3)(4)
(1), (4)
=T12 Electronic Rapid Start.
Total Harmonic Distortion < 20%
No. of Ballast
1 or 2
ACCESSORIES
-SSF=Gripper Hanger (Use 2 Per Fixture)
C-Chain/Set=36" Chain Hanger (Use 1 Set Per Fixture)
=Fixed Stem Set (Specify Length)
=Swivel Stem Set (Specify Length)
=Adjustable 48" Stem Set
-ASY-3
-REV-3
-SYM-3
GGLE=Single Toggle NO. 2 (Specify Length)
TOGGLE=Y Toggle NO. 2 (Specify Length)
Options
6-3/18 SJT-C&P-515P=
Cord & Plug (120V)
(5)
(15 AMP)
6-3/18 SJT-C&P-L715P=Cord
& Plug (277V) (15 AMP)
PI/CPI=Plug-In Option
TILW=Tandem In-Line Wiring
(4)
Maximum width
Option (Consult TILW Option
Catalog Page)
Packaging
U=Unit Pack
4B=4 Bulk Packing (48" and 96")
(5)
-U=Spacer 1-1/2" to 2-1/2" from ceiling (Use 2 Per
=Long Channel Connector SSF
(2)
=3" Asymmetric Reflector (Specify 2' or 3')
(2)
=3" Asymmetric Reverse Reflector (Specify 2' or 3')
(2)
=6" Symmetric Reflector (Specify 2' or 3')
F-2FT=2' Wire Guard
F-3FT=3' Wire Guard
(5)
(5)
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
SHIPPING DATA
Catalog No. Wt.
SSF-120 7 lbs.
SSF-130 7 lbs.
SSF-220 9 lbs.
SSF-230 9 lbs.
ADF090624
2015-10-05 13:35:45
