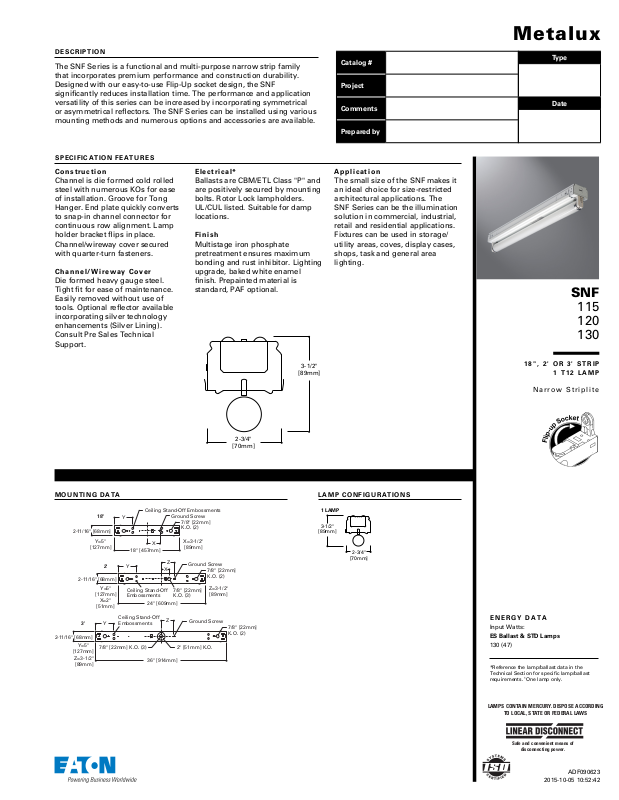

Page 1
DESCRIPTION
[70mm]
[89mm]
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
disconnecting power.
Ceiling Stand-Off Embossments
2-1
[89mm]
7/8" [22mm]
[89mm]
[70mm]
1 LAMP
The SNF Series is a functional and multi-purpose narrow strip family
that incorporates premium performance and construction durability.
Designed with our easy-to-use Flip-Up socket design, the SNF
significantly reduces installation time. The performance and application
versatility of this series can be increased by incorporating symmetrical
or asymmetrical reflectors. The SNF Series can be installed using various
mounting methods and numerous options and accessories are available.
SPECIFICATION FEATURES
Construction
Channel is die formed cold rolled
steel with numerous KOs for ease
of installation. Groove for Tong
Hanger. End plate quickly converts
to snap-in channel connector for
Electrical*
Ballasts are CBM/ETL Class "P" and
are positively secured by mounting
bolts. Rotor Lock lampholders.
UL/CUL listed. Suitable for damp
locations.
continuous row alignment. Lamp
holder bracket flips in place.
Channel/wireway cover secured
with quarter-turn fasteners.
Finish
Multistage iron phosphate
pretreatment ensures maximum
bonding and rust inhibitor. Lighting
Channel/Wireway Cover
Die formed heavy gauge steel.
Tight fit for ease of maintenance.
upgrade, baked white enamel
finish. Prepainted material is
standard, PAF optional.
Easily removed without use of
tools. Optional reflector available
incorporating silver technology
enhancements (Silver Lining).
Consult Pre Sales Technical
Support.
Catalog #
Project
Comments
Prepared by
Application
The small size of the SNF makes it
an ideal choice for size-restricted
architectural applications. The
SNF Series can be the illumination
solution in commercial, industrial,
retail and residential applications.
Fixtures can be used in storage/
utility areas, coves, display cases,
shops, task and general area
lighting.
Metalux
Type
Date
SNF
115
120
130
MOUNTING DATA
18"
2-11/16" [68mm]
Y=5"
[127mm]
2'
2-11/16" [68mm]
Y=5"
[127mm]
X=2"
[51mm]
3'
Y
1/16" [68mm]
Y=5"
7/8" [22mm] K.O. (3)
[127mm]
Z=3-1/2"
Y
18" [457mm]
Y
Ceiling Stand-Off
Embossments
24" [609mm]
Ceiling Stand-Off
Embossments
36" [914mm]
X
Ground Screw
7/8" [22mm]
K.O. (2)
Z
X
7/8" [22mm]
K.O. (3)
Z
2" [51mm] K.O.
X=3-1/2"
[89mm]
Ground Screw
Ground Screw
7/8" [22mm]
K.O. (2)
Z=3-1/2"
[89mm]
2-3/4"
K.O. (2)
3-1/2"
LAMP CONFIGURATIONS
3-1/2"
2-3/4"
18", 2' OR 3' STRIP
1 T12 LAMP
Narrow Striplite
ENERGY DATA
Input Watts:
ES Ballast & STD Lamps
130 (47)
*Reference the lamp/ballast data in the
Technical Section for specific lamp/ballast
requirements. 1One lamp only.
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
ADF090623
2015-10-05 10:52:42
Page 2
(Order Separately)
AY
SCF
SCS
SCA
EYE-CHAIN/SE
SNF
SNF
SNF
WG/SNF
WG/SNF
A1B/Spacer
Fixture)
TO
Y-
(Additional Accessories Available. See Options and Accessories Section.)
ordering information.
SAMPLE NUMBER: SNF-120-LTS-120V-U
ORDERING INFORMATION
SNF T12
Tandem
Blank=18", 2' or 3'
Series
SNF=Commercial
Narrow Striplite
(1)
NOTES:
Products also available in non-US voltages and frequencies for international markets.
SS in Catalog Number, Example: SNF-ASY-SS-4.
(5)
is 2-7/32".
Socket brackets left uninstalled.
Specifications & dimensions subject to change without notice. Consult your Eaton Representative for availability and
Number of Lamps
1=1 Lamp
(Not Included)
Wattage
15=15W T12 (18")
20=20W T12 (24")
30=30W T12 (36")
(3)
Not available for 2' version.
Ballast Start Type
LTS=Low Trigger
Start (20W only)
(120V only)
HTS=High Tr igger
Start (20W only)
LRS=Low Rapid
Start (30W only)
(120V only)
HRS=High Rapid
Start (30W only)
(120V only)
(4)
Maximum width clearance for ballast in channel
(1)
Voltage
120V=120 Volt
277V=277 Volt
(1)
Options
GL=Single Element Fuse
GM=Double Element Fuse
ELLP=Low Profile
Emergency Installed
(2)
For SilverLining reflector add
Ballast Type
Blank=Standard Magnetic Ballast
LE3=T12 Magnetic Energy Saving
=T12 Electronic Rapid Start.
EB2
Total Harmonic Distortion < 20%
(30 Watt only)
No. of Ballast
(3), (4)
1
ACCESSORIES
C-Chain/Set=36" Chain Hanger (Use 1 Set Per Fixture)
TOGGLE=Y Toggle NO. 2 (Specify Length)
(1), (4)
Options
6-3/18 SJT-C&P-515P=
Cord & Plug (120V)
(15 AMP)
6-3/18 SJT-C&P L715P=
Cord & Plug (277V)
(15 AMP)
PI/CPI=Plug-In Option
Packaging
U=Unit Pack
6B=6 Bulk Packing (96")
=Fixed Stem Set (Specify Length)
=Swivel Stem Set (Specify Length)
=Adjustable 48" Stem Set
T- B=Eye Bolt Chain (Use 1 Set Per Fixture)
(2)
-ASY-3
=3" Asymmetric Reflector (Specify 18", 2' or 3')
(2)
-SYM-3
=6" Symmetric Reflector (Specify 18", 2' or 3')
(2)
-REV-3
=Reverse Asymmetric Reflector (Specify 18", 2' or 3')
-2FT=2' Wire Guard
-3FT=3' Wire Guard
-U=Spacer 1-1/2" to 2-1/2" from ceiling (Use 2 Per
GGLE=Single Toggle NO. 2 (Specify Length)
(5)
(5)
(5)
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
SHIPPING DATA
Catalog No. Wt.
SNF-115 12 lbs.
SNF-120 12 lbs.
SNF-130 12 lbs.
ADF090623
2015-10-05 10:52:42
