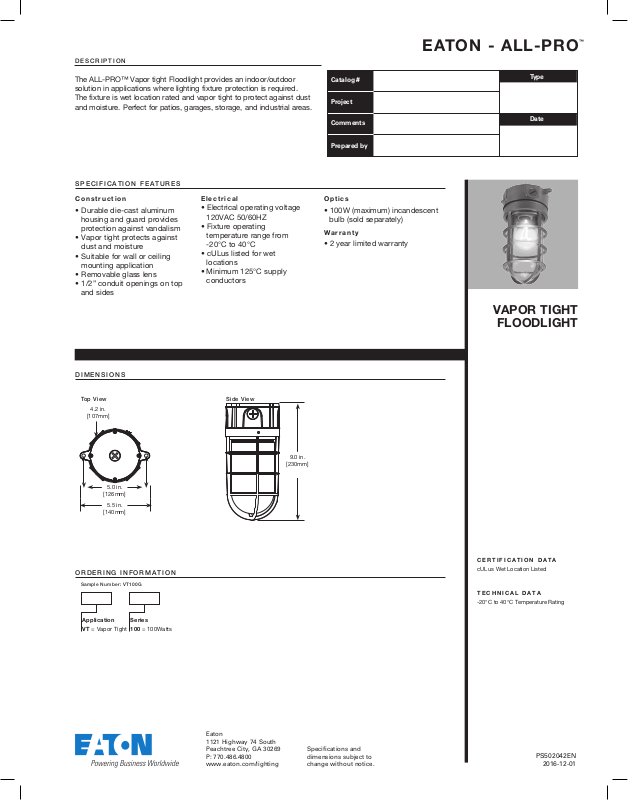

Page 1
DESCRIPTION
The ALL-PRO™ Vapor tight Floodlight provides an indoor/outdoor
solution in applications where lighting fixture protection is required.
The fixture is wet location rated and vapor tight to protect against dust
and moisture. Perfect for patios, garages, storage, and industrial areas.
SPECIFICATION FEATURES
Construction
• Durable die-cast aluminum
housing and guard provides
protection against vandalism
• Vapor tight protects against
dust and moisture
• Suitable for wall or ceiling
mounting application
• Removable glass lens
• 1/2” conduit openings on top
Electrical
• Electrical operating voltage
120VAC 50/60HZ
• Fixture operating
temperature range from
-20°C to 40°C
• cULus listed for wet
locations
• Minimum 125°C supply
conductors
and sides
EATON - ALL-PRO
Catalog #
Project
Comments
Prepared by
Optics
• 100W (maximum) incandescent
bulb (sold separately)
Warranty
• 2 year limited warranty
™
Type
Date
VAPOR TIGHT
FLOODLIGHT
DIMENSIONS
Top View
4.2 in.
[107mm]
5.0 in.
[126mm]
5.5 in.
[140mm]
ORDERING INFORMATION
Sample Number: VT100G
Application
VT = Vapor Tight
Series
100 = 100Watts
Side View
9.0 in.
[230mm]
CERTIFICATION DATA
cULus Wet Location Listed
TECHNICAL DATA
-20°C to 40°C Temperature Rating
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770.486.4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
PS502042EN
2016-12-01
Page 2
LED Vapor Tight Floodlight
TECHNICAL INFORMATION
Color
Model Number Description
Voltage
(V)
Power
(W)
Lamp
Lumens
Temperature
(K) CRI
VT100G ALL-PRO Vapor Tight Floodlight 120V 100W 1600 2700K 100
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770.486.4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
PS502042EN
2016-12-01
