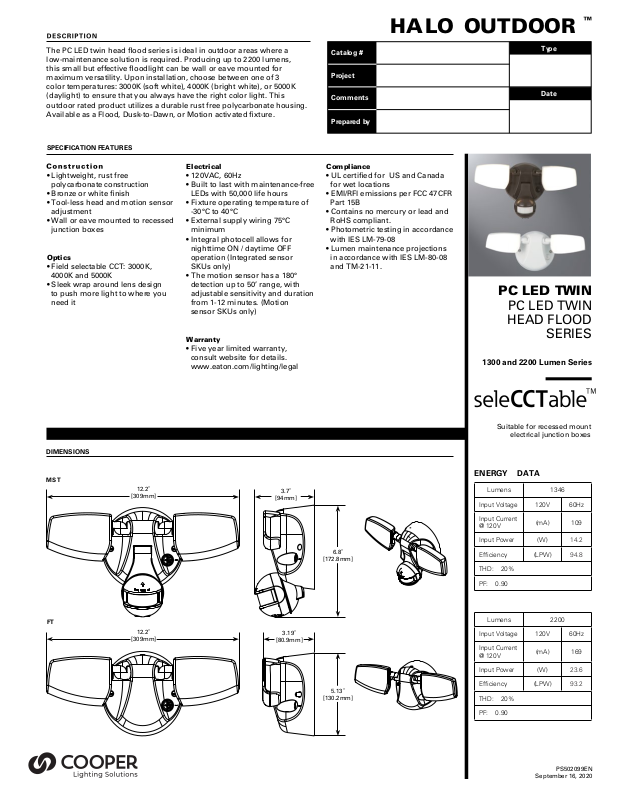

HALO OUTDOOR
™
The PC LED twin head flood series is ideal in outdoor areas where a
low-maintenance solution is required. Producing up to 2200 lumens,
this small but effective floodlight can be wall or eave mounted for
maximum versatility. Upon installation, choose between one of 3
color temperatures: 3000K (soft white), 4000K (bright white), or 5000K
(daylight) to ensure that you always have the right color light. This
outdoor rated product utilizes a durable rust free polycarbonate housing.
Available as a Flood, Dusk-to-Dawn, or Motion activated fixture.
SPECIFICATION FEATURES
• Lightweight, rust free
polycarbonate construction
• Bronze or white finish
• Tool-less head and motion sensor
adjustment
• Wall or eave mounted to recessed
junction boxes
Electrical
• 120VAC, 60Hz
• Built to last with maintenance-free
LEDs with 50,000 life hours
• Fixture operating temperature of
-30°C to 40°C
• External supply wiring 75°C
minimum
• Integral photocell allows for
nighttime ON / daytime OFF
Optics
• Field selectable CCT: 3000K,
4000K and 5000K
• Sleek wrap around lens design
to push more light to where you
need it
operation (Integrated sensor
SKUs only)
• The motion sensor has a 180°
detection up to 50’ range, with
adjustable sensitivity and duration
from 1-12 minutes. (Motion
sensor SKUs only)
Warranty
• Five year limited warranty,
consult website for details.
www.eaton.com/lighting/legal
Catalog #
Project
Comments
Prepared by
Compliance
• UL certified for US and Canada
for wet locations
• EMI/RFI emissions per FCC 47CFR
Part 15B
• Contains no mercury or lead and
RoHS compliant.
• Photometric testing in accordance
with IES LM-79-08
• Lumen maintenance projections
in accordance with IES LM-80-08
and TM-21-11.
Type
Date
PC LED TWIN
PC LED TWIN
HEAD FLOOD
SERIES
1300 and 2200 Lumen Series

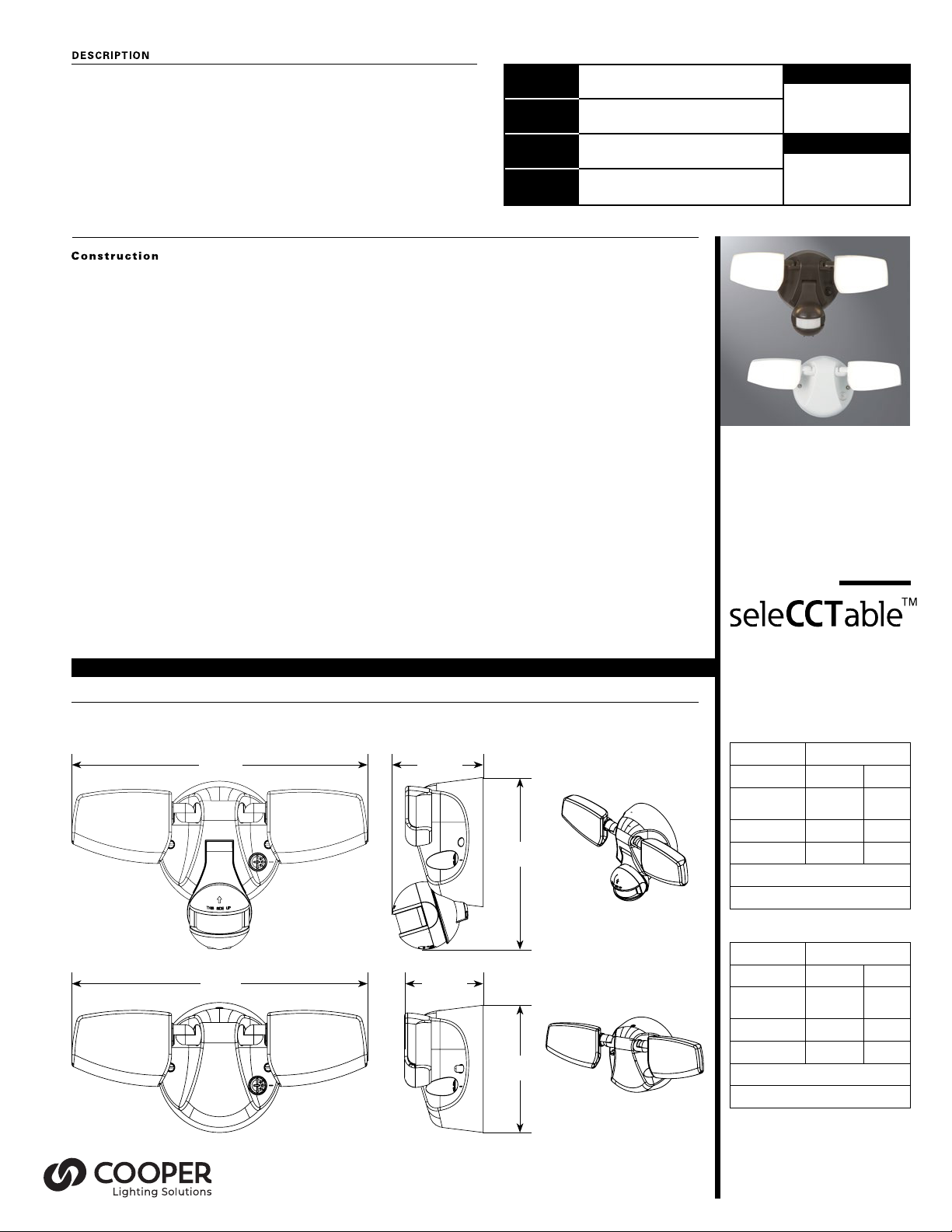

DIMENSIONS
MST
FT
12.2˝
[309mm]
12.2˝
[309mm]
3.7˝
[94mm]
3.19˝
[80.9mm]
6.8˝
[172.8mm]
5.13˝
[130.2mm]
Suitable for recessed mount
electrical junction boxes
ENERGY DA TA
Lumens 1346
Input Voltage 120V 60Hz
Input Current
@ 120V
Input Power (W)
Efficiency (LPW)
THD: 20%
PF: 0.90
Lumens 2200
Input Voltage 120V 60Hz
Input Current
@ 120V
Input Power (W)
Efficiency (LPW)
THD: 20%
PF: 0.90
(mA) 109
(mA) 169
14.2
94.8
23.6
93.2
PS502099EN
September 16, 2020
Page 2
page 2
PC TWIN HEAD FLOOD SERIES
ORDERING INFORMATION
Sample Number: MST28VCB or FT18VCIW
Module Lumens CRI/CC T Options Colors
FT = Flood Twin
MST = Motion S quare Twin
18 = 1300 lumens (nominal)
28 = 2200 lumens (nominal)
VC = Sele ctable C CT
3000K, 4000K, & 5000K
I = Integrated Photocell
Blank= None
B = Bronze
W = White

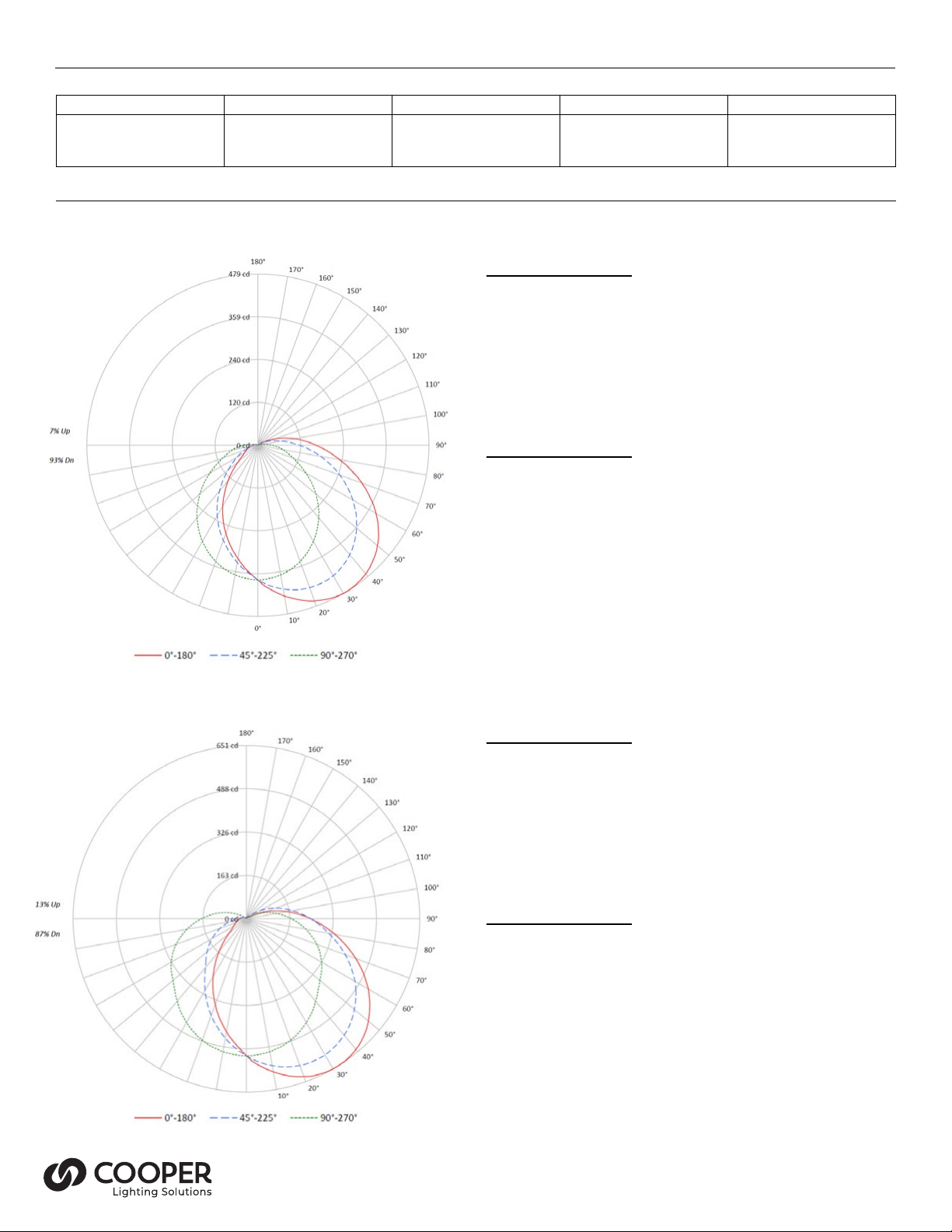

PHOTOMETRY
FT18
LUMINOUS INTENSITY POLAR PLOT
ZONAL LUMENS
Zone Lumens %Fixture
0° - 10° 35 .7 2.6
10° - 20° 102.7 7. 6
20° - 30° 156.8 11. 6
30° - 40° 190.5 14.1
40° - 50° 199.9 14.8
50° - 60° 187.7 13.9
60° - 70° 161.3 12.0
70° - 80° 125.9 9.3
80° - 90° 88.5 6.6
90° - 100° 55.1 4.1
100° - 110° 28.9 2.1
110° - 120° 11 .7 0.9
120° - 130° 2.1 0.2
130° - 140° 0.0 0.0
140° - 150° 0.0 0.0
150° - 160° 0.0 0.0
160° - 170° 0.0 0.0
170° - 180° 0.0 0.0
0° - 30° 295.2 21.9
0° - 40° 485.7 36.1
0° - 60° 873.3 64.8
0° - 90° 1249.0 92.7
90° - 120° 95.7 7. 1
90° - 150° 97.7 7. 3
90° - 180° 98.0 7. 3
0° - 180° 1346.8 100.0
FIELD PERFORMANCE MAY DIFFER FROM LABORATORY PERFORMANCE
FT28
LUMINOUS INTENSITY POLAR PLOT
ZONAL LUMENS
Zone Lumens %Fixture
0° - 10° 48.8 2.2
10° - 20° 140.7 6.2
20° - 30° 216.4 9.6
30° - 40° v267.4 11.9
40° - 50° 293.0 13.0
50° - 60° 297.2 13.2
60° - 70° 278.6 12.4
70° - 80° 239.4 10.6
80° - 90° 187.3 8.3
90° - 100° 131.8 5.8
100° - 110° 81.9 3.6
110° - 120° 42.1 1. 9
120° - 130° 16.1 0.7
130° - 140° 5.8 0.3
140° - 150° 3.7 0.2
150° - 160° 2.3 0.1
160° - 170° 1. 1 0.0
170° - 180° 0.3 0.0
0° - 30° 405.8 18.0
0° - 40° 673.3 29.9
0° - 60° 1263.5 56.1
0° - 90° 1968.7 87.4
90° - 120° 255.7 11. 3
90° - 150° 281.3 12.5
90° - 180° 285.0 12.6
0° - 180° 2253.7 100.0
FIELD PERFORMANCE MAY DIFFER FROM LABORATORY PERFORMANCE
PS502099EN
September 16, 2020
Page 3
PHOTOMET RY
PC TWIN HEAD FLOO D SERIESpage 3
FT18VCB-4000K (3 0 DEG TILT)
Mounting
Height
10 27 27 2290
15 27 30 2545
20 22 20 1382
Series Voltage Power
Length
(L)
Widt h
(W)
(W)
Area
(Sq.F t.)
Delivered
Lumens (Lm)
Efficacy
(Lm/W)
FT28VCB-4000K (30 DEG TILT)
Mounting
Height
10 28 32 704
15 30 34 801
20 32 36 905
Length
(L)
Widt h
(W)
CCT CRI Controls
Area
(Sq.F t.)
FT18VCB 120V 14.2 1346 94.8 30 00K, 400K, 5000K 84 None
FT18VCW 120V 14.2 1346 94.8 3000K, 400K, 5000K 84 None
FT18VCIB 120V 14.2 1346 94.8 3000K, 400K, 5000K 84 Integrated Photocell
FT18VCIW 120V 14.2 1346 94.8 3000K, 400K, 5000K 84 Integrated Photocell
MST18VCB 120V 14.2 1346 94.8 300 0K, 400K, 5000K 84 Motion Sensor
MST18VCW 120V 14.2 1346 94.8 3000K, 400K, 5000K 84 Motion Sensor
FT28VCB 120V 23.6 2200 93.2 30 00K, 400K, 5000K 84 None
FT28VCW 120V 23.6 2200 93.2 3000K, 400K, 5000K 84 None
FT28VCIB 120V 23.6 2200 93.2 3000K, 400K, 5000K 84 Integrated Photocell
FT28VCIW 120V 23.6 2200 93.2 3000K, 400K, 5000K 84 Integrated Photocell
MST28VCB 120V 23.6 2200 93.2 300 0K, 400K, 5000K 84 Motion Sensor
MST28VCW 120V 23.6 2200 93.2 3000K, 400K, 5000K 84 Motion Sensor
Cooper Lighting Solutions
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.cooperlighting.com
Specifications and
dimensions subject to
change without notice.
PS502099EN
September 16, 2020
