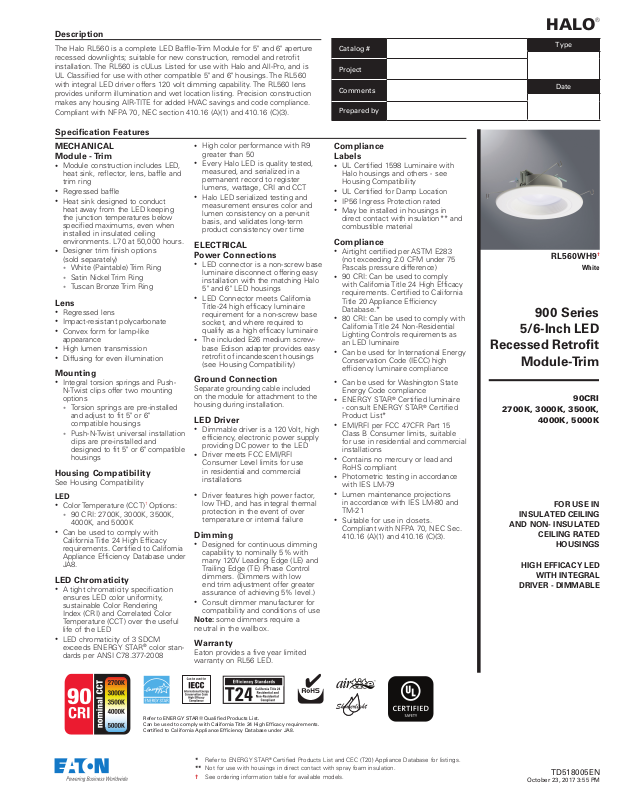

Page 1
Description
The Halo RL560 is a complete LED Baffle-Trim Module for 5" and 6" aperture
recessed downlights; suitable for new construction, remodel and retrofit
installation. The RL560 is cULus Listed for use with Halo and All-Pro, and is
UL Classified for use with other compatible 5" and 6" housings. The RL560
with integral LED driver offers 120 volt dimming capability. The RL560 lens
provides uniform illumination and wet location listing. Precision construction
makes any housing AIR-TITE for added HVAC savings and code compliance.
Compliant with NFPA 70, NEC section 410.16 (A)(1) and 410.16 (C)(3).
Specification Features
•
MECHANICAL
Module - Trim
•
Module construction includes LED,
heat sink, reflector, lens, baffle and
trim ring
•
Regressed baffle
•
Heat sink designed to conduct
heat away from the LED keeping
the junction temperatures below
specified maximums, even when
installed in insulated ceiling
environments. L70 at 50,000 hours.
•
Designer trim finish options
(sold separately)
• White (Paintable) Trim Ring
• Satin Nickel Trim Ring
• Tuscan Bronze Trim Ring
Lens
•
Regressed lens
•
Impact-resistant polycarbonate
•
Convex form for lamp-like
appearance
•
High lumen transmission
•
Diffusing for even illumination
Mounting
•
Integral torsion springs and PushN-Twist clips offer two mounting
options
• Torsion springs are pre-installed
and adjust to fit 5" or 6"
compatible housings
• Push-N-Twist universal installation
clips are pre-installed and
designed to fit 5" or 6" compatible
housings
Housing Compatibility
See Housing Compatibility
LED
•
Color Temperature (CCT)† Options:
• 90 CRI: 2700K, 3000K, 3500K,
4000K, and 5000K
•
Can be used to comply with
California Title 24 High Efficacy
requirements. Certified to California
Appliance Efficiency Database under
JA8.
LED Chromaticity
•
A tight chromaticity specification
ensures LED color uniformity,
sustainable Color Rendering
Index (CRI) and Correlated Color
Temperature (CCT) over the useful
life of the LED
•
LED chromaticity of 3 SDCM
exceeds ENERGY STAR
dards per ANSI C78.377-2008
®
color stan-
High color performance with R9
greater than 50
•
Every Halo LED is quality tested,
measured, and serialized in a
permanent record to register
lumens, wattage, CRI and CCT
•
Halo LED serialized testing and
measurement ensures color and
lumen consistency on a per-unit
basis, and validates long-term
product consistency over time
ELECTRICAL
Power Connections
•
LED connector is a non-screw base
luminaire disconnect offering easy
installation with the matching Halo
5" and 6" LED housings
•
LED Connector meets California
Title-24 high efficacy luminaire
requirement for a non-screw base
socket, and where required to
qualify as a high efficacy luminaire
•
The included E26 medium screwbase Edison adapter provides easy
retrofit of incandescent housings
(see Housing Compatibility)
Ground Connection
Separate grounding cable included
on the module for attachment to the
housing during installation.
LED Driver
•
Dimmable driver is a 120 Volt, high
efficiency, electronic power supply
providing DC power to the LED
•
Driver meets FCC EMI/RFI
Consumer Level limits for use
in residential and commercial
installations
•
Driver features high power factor,
low THD, and has integral thermal
protection in the event of over
temperature or internal failure
Dimming
•
Designed for continuous dimming
capability to nominally 5% with
many 120V Leading Edge (LE) and
Trailing Edge (TE) Phase Control
dimmers. (Dimmers with low
end trim adjustment offer greater
assurance of achieving 5% level.)
•
Consult dimmer manufacturer for
compatibility and conditions of use
Note: some dimmers require a
neutral in the wallbox.
Warranty
Eaton provides a five year limited
warranty on RL56 LED.
Catalog #
Project
Comments
Prepared by
Compliance
Labels
•
UL Certified 1598 Luminaire with
Halo housings and others - see
Housing Compatibility
•
UL Certified for Damp Location
•
IP56 Ingress Protection rated
•
May be installed in housings in
direct contact with insulation** and
combustible material
Compliance
•
Airtight certified per ASTM E283
(not exceeding 2.0 CFM under 75
Pascals pressure difference)
•
90 CRI: Can be used to comply
with California Title 24 High Efficacy
requirements. Certified to California
Title 20 Appliance Efficiency
Database.*
•
80 CRI: Can be used to comply with
California Title 24 Non-Residential
Lighting Controls requirements as
an LED luminaire
•
Can be used for International Energy
Conservation Code (IECC) high
efficiency luminaire compliance
•
Can be used for Washington State
Energy Code compliance
•
ENERGY STAR® Certified luminaire
- consult ENERGY STAR
Product List*
•
EMI/RFI per FCC 47CFR Part 15
Class B Consumer limits, suitable
for use in residential and commercial
installations
•
Contains no mercury or lead and
RoHS compliant
•
Photometric testing in accordance
with IES LM-79
•
Lumen maintenance projections
in accordance with IES LM-80 and
TM-21
•
Suitable for use in closets.
Compliant with NFPA 70, NEC Sec.
410.16 (A)(1) and 410.16 (C)(3).
®
Certified
HALO
Type
Date
RL560WH9
White
900 Series
5/6-Inch LED
Recessed Retrofit
Module-Trim
90CRI
2700K, 3000K, 3500K,
4000K, 5000K
FOR USE IN
INSULATED CEILING
AND NON- INSULATED
CEILING RATED
HOUSINGS
HIGH EFFICACY LED
WITH INTEGRAL
DRIVER - DIMMABLE
®
†
Refer to ENERGY STAR® Qualified Products List.
Can be used to comply with California T itle 24 High Efficacy requirements.
Certified to California Appliance Efficiency Database under JA8.
* Refer to ENERGY STAR® Certified Products List and CEC (T20) Appliance Database for listings.
** Not for use with housings in direct contact with spray foam insulation.
† See ordering information table for available models.
TD518005EN
October 23, 2017 3:55 PM
Page 2
page 2 RL56 LED System
900 Series

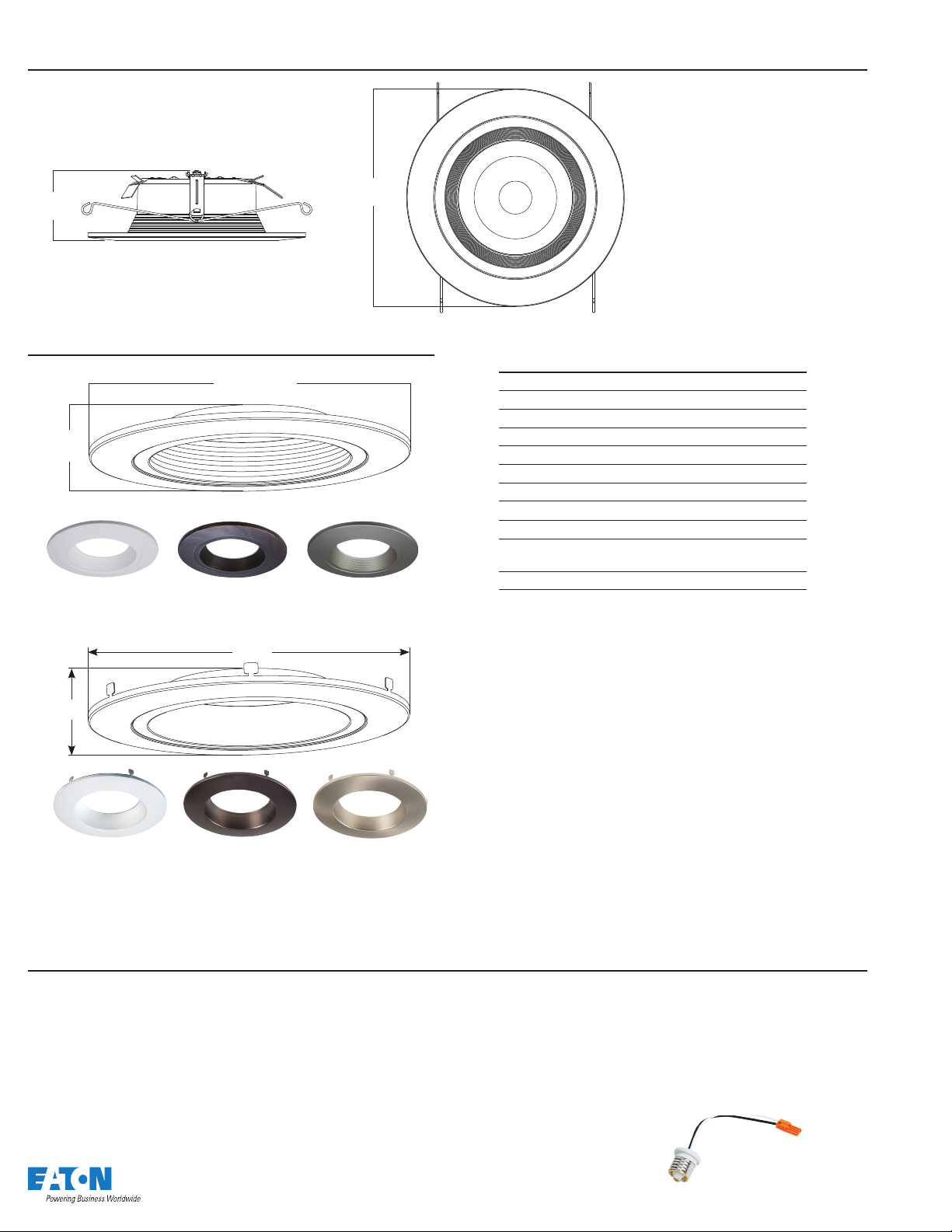

RL56 Dimensions
7.25”
2.33”
[59.22mm]
[184.15mm]
Designer Trim Dimensions
0.86"
[21.8mm]
RL56TRMWHB
White (Paintable)
0.86"
[21.8mm]
RL56TRMTBZB
Tuscan Bronze
7.35"
[186.7mm]
7.35"
[186.7mm]
Energy Data
RL56 Series (Values at non-dimming line voltage)
Minimum Starting Temp: -30°C (-22°F)
EMI/RFI: FCC Title 47 CFR, Part 15, Class B (Consumer)
Sound Rating: Class A
Input Voltage: 120V
Power Factor: >0.90
Input Frequency: 60Hz
THD: <20%
Input Power: 13.5W
Input Current: 0.15A
Maximum IC (Insulated Ceiling) Ambient Continuous Operating Temperature:
25°C (77°F)
Maximum Non-IC Ambient Continuous Operating Temperature 40°C (104°F)
RL56TRMSNB
Satin Nickel
RL56TRMWH
White (Paintable)
RL56TRMTBZ
Tuscan Bronze
RL56TRMSN
Satin Nickel
Ordering Information
Sample Number: RL560WH9927-RL56TRMSNB
Complete unit includes a RL56 Baffle-Trim LED Module and a 5" and 6" compatible housing (ordered separately). Optional accessory designer trim ring ordered separately.
RL56 900 Series Accessory (Order Separately)
RL560WH9927=5"/6" Retrofit Baffle - Trim LED Module, 90CRI, 2700K, Matte White
RL560WH9930=5"/6" Retrofit Baffle - Trim LED Module, 90CRI, 3000K, Matte White
RL560WH9935=5"/6" Retrofit Baffle - Trim LED Module, 90CRI, 3500K, Matte White
RL560WH9940=5"/6" Retrofit Baffle - Trim LED Module, 90CRI, 4000K, Matte White
RL560WH9950=5"/6" Retrofit Baffle - Trim LED Module, 90CRI, 5000K, Matte White
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
RL56TRMSNB=5/6" Satin Nickel Trim Ring, Baffle
RL56TRMTBZB=5/6" Tuscan Bronze Trim Ring, Baffle
RL56TRMWHB=5/6" White Paintable Trim Ring, Baffle
RL56TRMSN=5/6" Satin Nickel Trim Ring
RL56TRMTBZ=5/6" Tuscan Bronze Trim Ring
RL56TRMWH=5/6" White Paintable Trim Ring
OT400P=Oversize Flat White Metal Trim Ring 6" I.D. x 9-1/4" O.D. (ring slips behind RL56 ring, in stepped configuration)
OT403P=Oversize White Plastic Trim Ring 6" I.D. x 8" O.D. (ring slips behind RL56 ring, in stepped configuration)
TRM690WH=Oversize Matte White Metal Trim Ring. Designed for RL560 ring to inset into oversize ring for an even
(non-stepped) trim surface
HE26LED=Replacement screw base adapter (one included with unit)
E26 Screw base adapter for retrofit (included)
Page 3
page 3 RL56 LED System

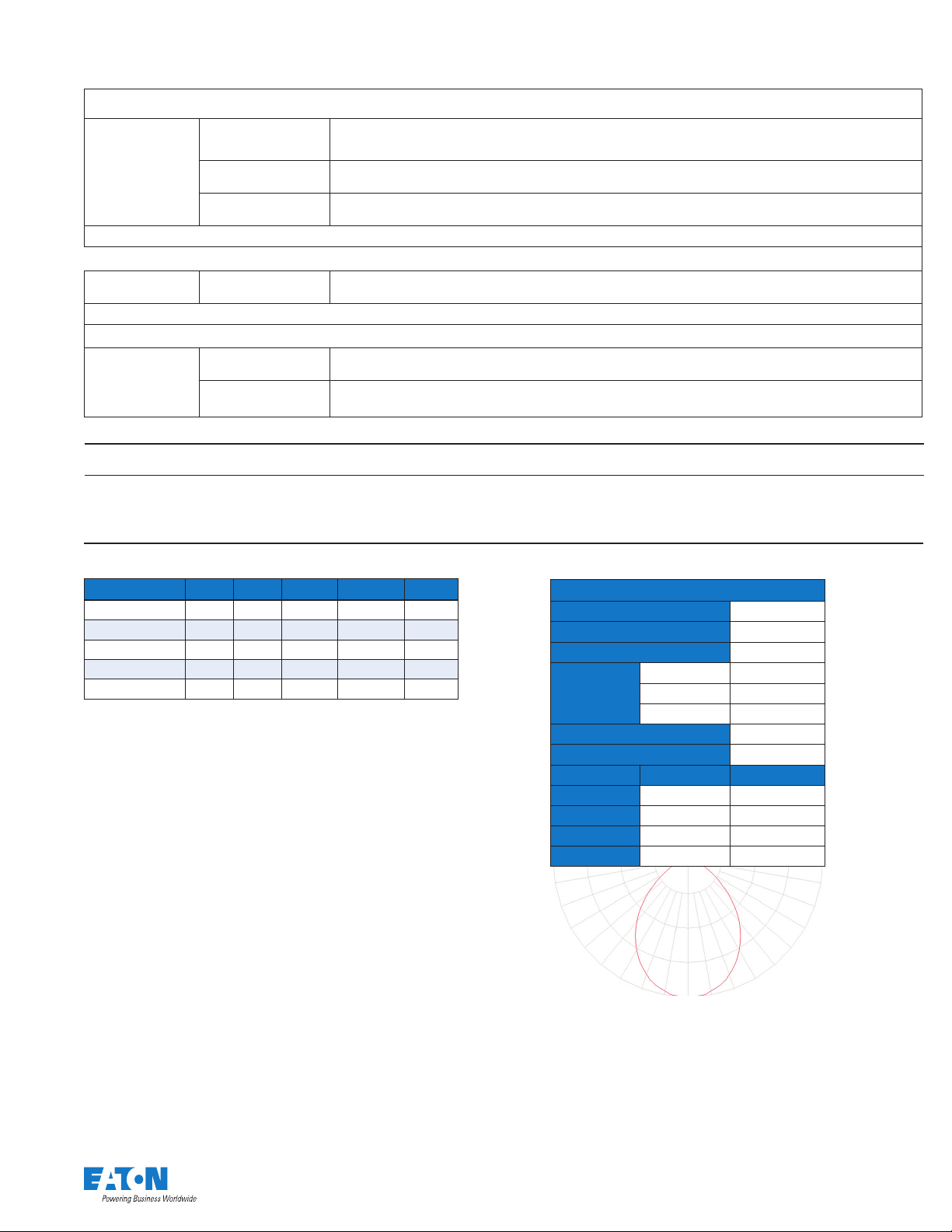

Housing Compatibility
900 Series
Compatible Halo LED Housings with LED luminaire connector (high-efficacy compliant)
HALO
LED
Recessed Can
Size
5"
6"
Catalog Number
H550ICAT, H550RICAT, E550ICAT, E550RICAT
H750ICAT, H750RICAT, H750T, H750RINTD010, H750TCP, H2750ICAT, H2750RICAT, E750ICAT, E750RICAT
Halo LED Retrofit Enclosures
HALO 6"
ML7BXRFK, ML7E26RFK
Compatible Halo Incandescent E26 Screwbase Housings
5"
HALO
6"
RL56 Series LED Retrofit is UL Classified for retrofit in the follow 5/6" recessed housings:
The RL Series LED light module - trim combination is UL Certified for use with any 5"/6" diameter recessed housing constructed of steel or aluminum with an internal volume that exceeds 107.9 in3 in addition to
those noted above.
Product and Photometric Data
RL56 - 900 SERIES
Cat No. CRI CCT Lumens Power (W) LPW
RL560WH9927 92 2700 940 12.6 75
RL560WH9930 91 3000 930 12.8 73
RL560WH9935 92 3500 940 12.7 74
RL560WH9940 90 4000 1000 13.2 76
RL560WH9950 90 5000 1015 12.9 79
H5ICAT, H5RICAT, H5ICATNB, H5T, H5RT, H25ICAT, H25ICATNB, E5TAT, E5RTAT, H5TNB, E5TATNB, E5ICAT, E5RICAT, E5ICATNB
H7ICAT, H7RICAT, H7ICT, H7RICT, H7ICATNB, H7ICTNB, H7T, H7RT, H7TNB, H7TCP, H7UICT, H7UICAT, H27ICAT, H27RICAT, H27T,
H27RT, E7ICAT, E7RICAT, E27ICAT, E27RICAT, E7ICATNB, E7TAT, E7RTAT, E7TATNB, E27TAT, E27RTAT
RL56-900 Series Photometric*
RL560WH9930
Luminaire lumens 930
Input watts 12.8
LER (LPW) 72.7
Spacing
Criteria
Beam angle (degrees) 88.9
Field angle (degrees) 140
Zonal lumen Lumens % Lumens
0-30 341 36.7
0-40 535 57.5
0-60 829 89.1
0-90 930 10 0
0-180 1.16
90-270 1.16
Diagonal 1.22
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
* Tested in accordance with IES LM63. Field results may vary.
Page 4
page 4

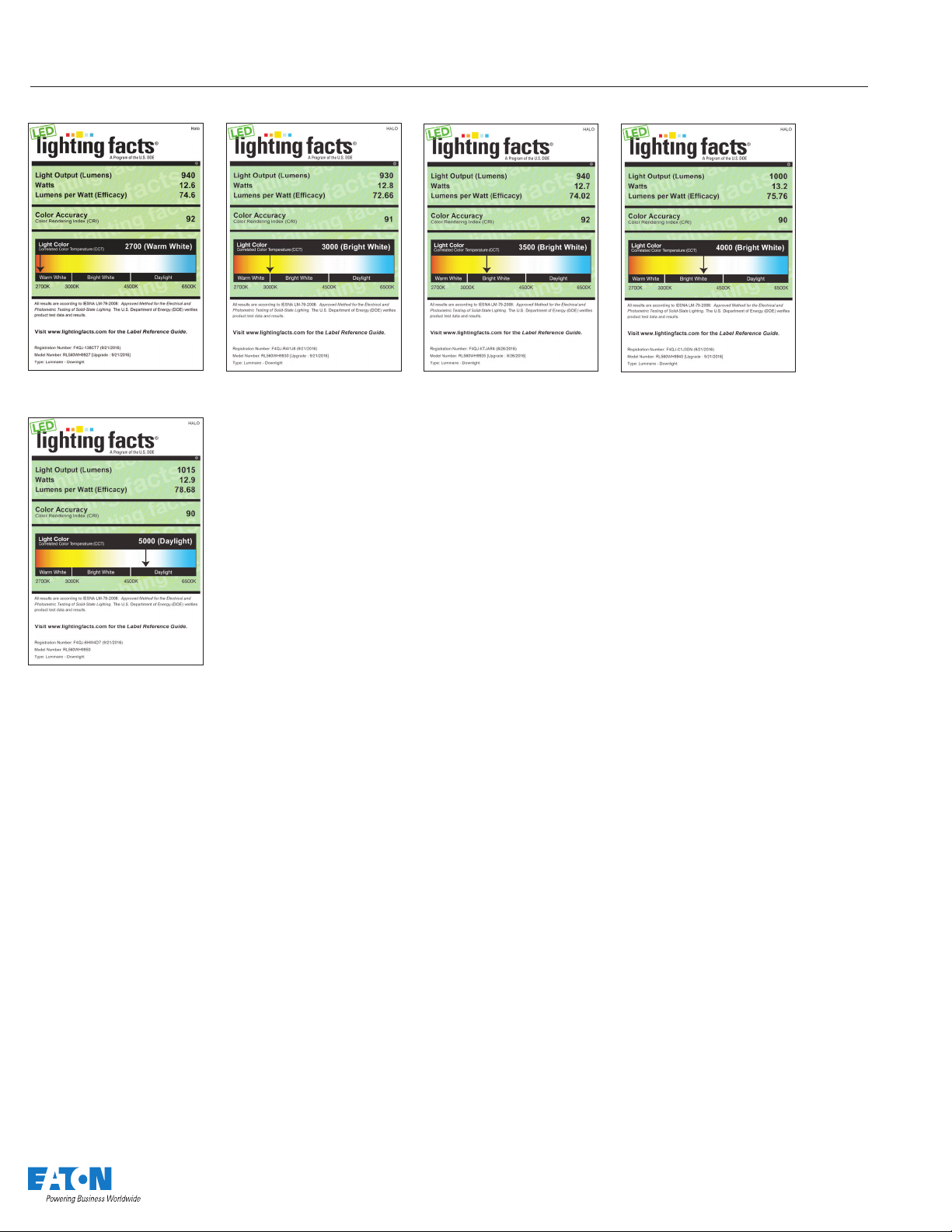

LIGHTING FACTS
RL560WH9927
2700K Source
RL560WH9950
5000K Source
RL560WH9930
3000K Source
RL560WH9935
3500K Source
RL56 LED System
900 Series
RL560WH9940
4000K Source
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
