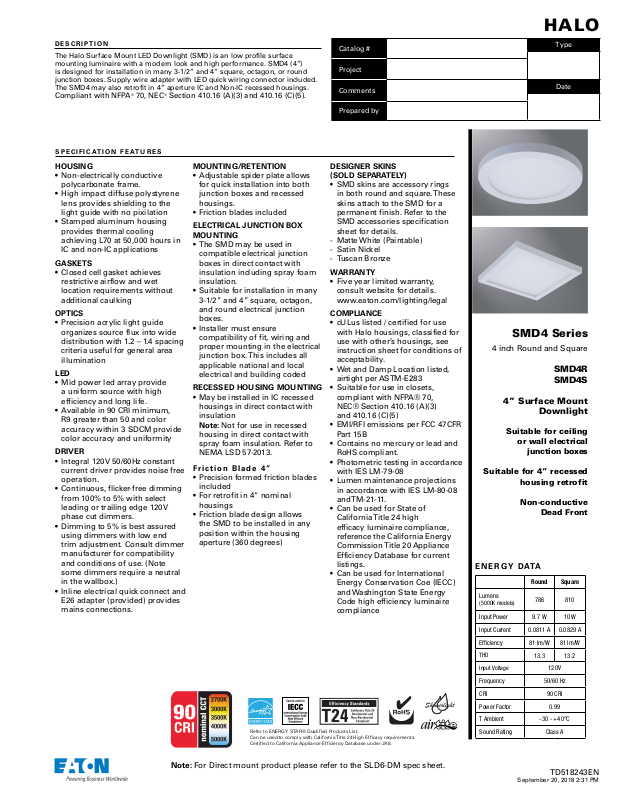

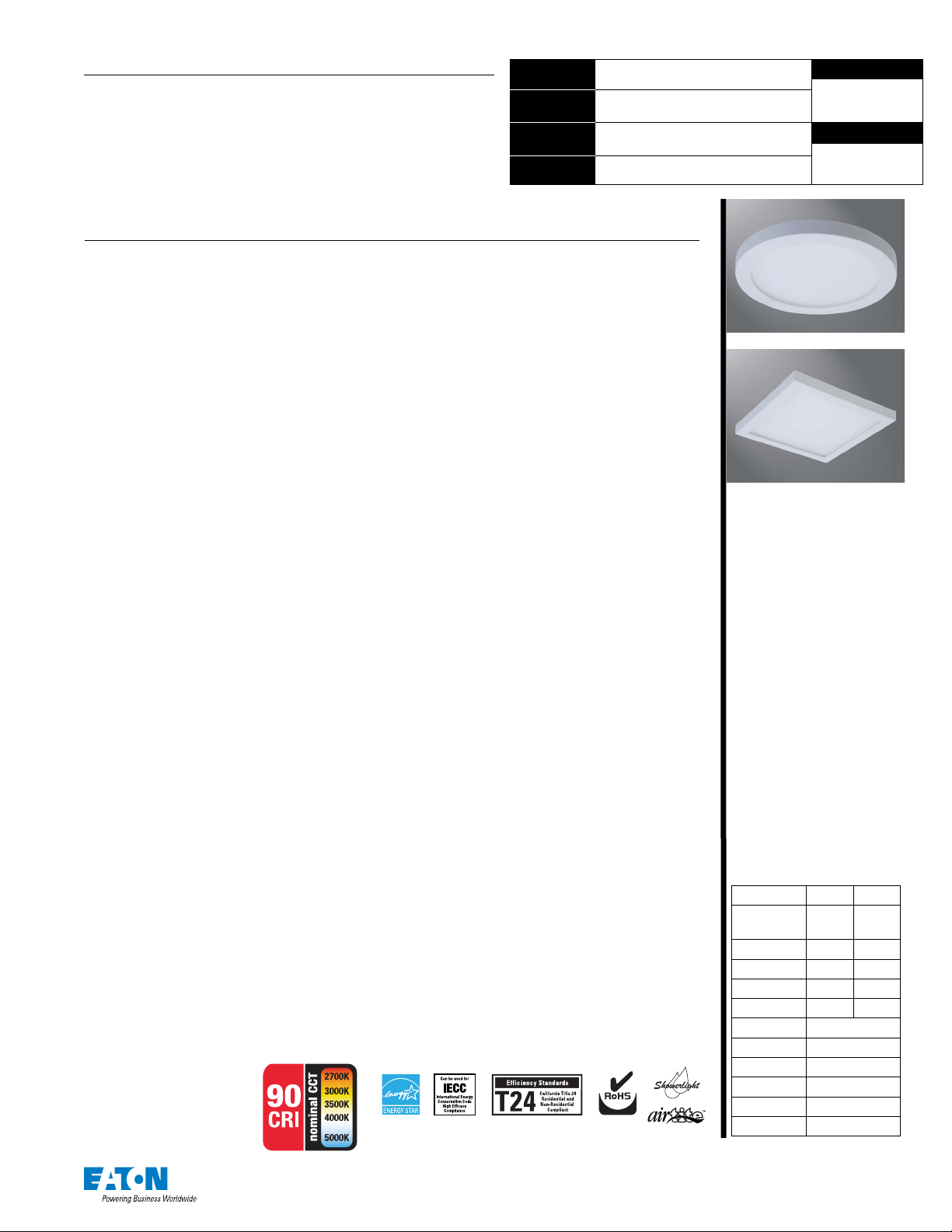

Page 1
DESCRIPTION
The Halo Surface Mount LED Downlight (SMD) is an low profile surface
mounting luminaire with a modern look and high performance. SMD4 (4”)
is designed for installation in many 3-1/2” and 4” square, octagon, or round
junction boxes. Supply wire adapter with LED quick wiring connector included.
The SMD4 may also retrofit in 4” aperture IC and Non-IC recessed housings.
Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5).
SPECIFICATION FEATURES
HOUSING
• Non-electrically conductive
polycarbonate frame.
• High impact diffuse polystyrene
lens provides shielding to the
light guide with no pixilation
• Stamped aluminum housing
provides thermal cooling
achieving L70 at 50,000 hours in
IC and non-IC applications
GASKETS
• Closed cell gasket achieves
restrictive airflow and wet
location requirements without
additional caulking
OPTICS
• Precision acrylic light guide
organizes source flux into wide
distribution with 1.2 – 1.4 spacing
criteria useful for general area
illumination
LED
• Mid power led array provide
a uniform source with high
efficiency and long life.
• Available in 90 CRI minimum,
R9 greater than 50 and color
accuracy within 3 SDCM provide
color accuracy and uniformity
DRIVER
• Integral 120V 50/60Hz constant
current driver provides noise free
operation.
• Continuous, flicker-free dimming
from 100% to 5% with select
leading or trailing edge 120V
phase cut dimmers.
• Dimming to 5% is best assured
using dimmers with low end
trim adjustment. Consult dimmer
MOUNTING/RETENTION
• Adjustable spider plate allows
for quick installation into both
junction boxes and recessed
housings.
• Friction blades included
ELECTRICAL JUNCTION BOX
MOUNTING
• The SMD may be used in
compatible electrical junction
boxes in direct contact with
insulation including spray foam
insulation.
• Suitable for installation in many
3-1/2” and 4” square, octagon,
and round electrical junction
boxes.
• Installer must ensure
compatibility of fit, wiring and
proper mounting in the electrical
junction box. This includes all
applicable national and local
electrical and building coded
RECESSED HOUSING MOUNTING
• May be installed in IC recessed
housings in direct contact with
insulation
Note: Not for use in recessed
housing in direct contact with
spray foam insulation. Refer to
NEMA LSD 57-2013.
Friction Blade 4”
• Precision formed friction blades
included
• For retrofit in 4” nominal
housings
• Friction blade design allows
the SMD to be installed in any
position within the housing
aperture (360 degrees)
manufacturer for compatibility
and conditions of use. (Note
some dimmers require a neutral
in the wallbox.)
• Inline electrical quick connect and
E26 adapter (provided) provides
mains connections.
Refer to ENERGY STAR® Qualified Products List.
Can be used to comply with California T itle 24 High Efficacy requirements.
Certified to California Appliance Efficiency Database under JA8.
Catalog #
Project
Comments
Prepared by
DESIGNER SKINS
(SOLD SEPARATELY)
• SMD skins are accessory rings
in both round and square. These
skins attach to the SMD for a
permanent finish. Refer to the
SMD accessories specification
sheet for details.
- Matte White (Paintable)
- Satin Nickel
- Tuscan Bronze
WARRANTY
• Five year limited warranty,
consult website for details.
www.eaton.com/lighting/legal
COMPLIANCE
• cULus listed / certified for use
with Halo housings, classified for
use with other’s housings, see
instruction sheet for conditions of
acceptability.
• Wet and Damp Location listed,
airtight per ASTM-E283
• Suitable for use in closets,
compliant with NFPA® 70,
NEC® Section 410.16 (A)(3)
and 410.16 (C)(5)
• EMI/RFI emissions per FCC 47CFR
Part 15B
• Contains no mercury or lead and
RoHS compliant.
• Photometric testing in accordance
with IES LM-79-08
• Lumen maintenance projections
in accordance with IES LM-80-08
and TM-21-11.
• Can be used for State of
California Title 24 high
efficacy luminaire compliance,
reference the California Energy
Commission Title 20 Appliance
Efficiency Database for current
listings.
• Can be used for International
Energy Conservation Coe (IECC)
and Washington State Energy
Code high efficiency luminaire
compliance
HALO
Type
Date
SMD4 Series
4 inch Round and Square
SMD4R
SMD4S
4” Surface Mount
Downlight
Suitable for ceiling
or wall electrical
junction boxes
Suitable for 4” recessed
housing retrofit
Non-conductive
Dead Front
ENERGY DATA
Round Square
Lumens
(5000K models)
Input Power 9.7 W 10 W
Input Current 0.0811 A 0.0829 A
Efficiency 81 lm/W 81 lm/W
THD
Input Voltage
Frequency 50/60 Hz
CRI 90 CRI
Power Factor 0.99
T Ambient -30 - +40°C
Sound Rating Class A
786 810
13.3 13.2
120V
Note: For Direct mount product please refer to the SLD6-DM spec sheet.
September 20, 2018 2:31 PM
TD518243EN
Page 2
HALO

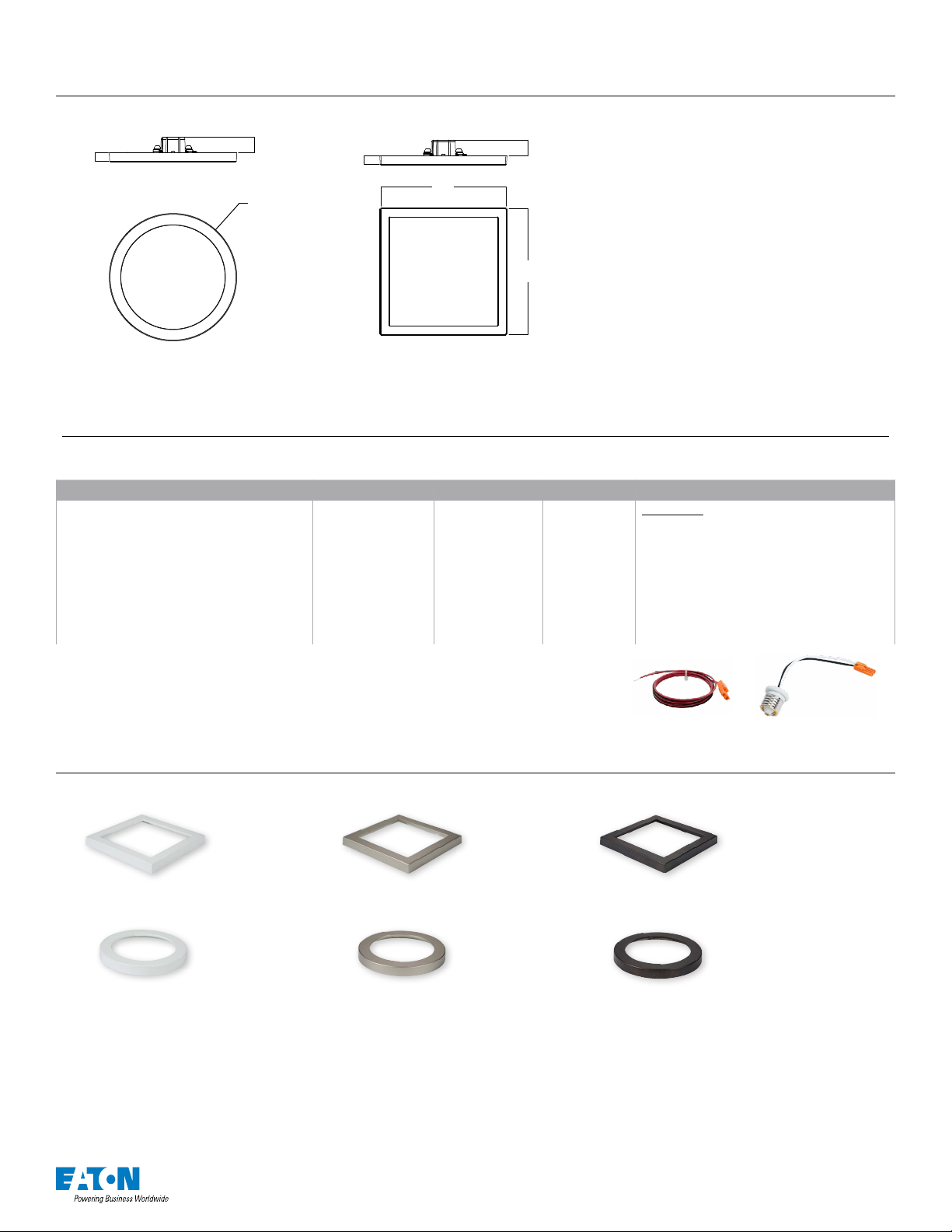

DIMENSIONS
SMD4RXXXWH SMD4SXXXWH
SMD4R69xxWH
SMD4S69xxWH
9/16"
[14mm]
15/16"
[23.9mm]
6-5/32"
[156.4mm]
17/32"
[13.5mm]
5-15/16"
[151mm]
15/16"
[23.9mm]
5-15/16"
[151mm]
ORDERING INFORMATION
SAMPLE NUMBER: SMD4R6930WH=4” Round Surface Mount Downlight, 90CRI, 3000K
Junction Box Installation: Order junction box separately, as supplied by others, to complete installation.
Recessed Installation: Order Halo recessed housing separately to complete installation.
Models Lumens CRI / CCT Finish Accessories
SMD4R= 4” Round Surface Mount Downlight, 120V
SMD4S= 4” Square Surface Mount Downlight, 120V
6=600 lumen series 927=90CRI, 2700K
930=90CRI, 3000K
935=90CRI, 3500K
940=90CRI, 4000K
950=90CRI, 5000K
WH=Mate White
Designer Trims
SMD4RTRMSN=4” Round SMD Satin Nickel
SMD4RTRMTBZ=4” Round SMD Tuscan Bronze
SMD4RTRMWH=4” Round SMD White (paintable)
SMD4STRMSN=4” Square SMD Satin Nickel
SMD4STRMTBZ=4” Square SMD Tuscan Bronze
SMD4STRMWH=4” Square SMD White (paintable)
T24HWKIT= Title 24 Cable harness kit used to convert
incandescent and low voltage housings to LED
HE26LED= E26 Screw base adapter for retrot (included)
ACCESSORIES
Designer Trims
SMD4STRMWH
square, white (paintable)
SMD4RTRMWH
round, white (paintable)
SMD4STRMSN
square, satin nickel
SMD4RTRMSN
round, satin nickel
T24HWKIT
SMD4STRMTBZ
square, tuscan bronze
SMD4RTRMTBZ
round, tuscan bronze
HE26LED
E26 Screw base adapter
for retrofit (included)
Page 3
HALO
SMD4R69xxWH
SMD4S69xxWH

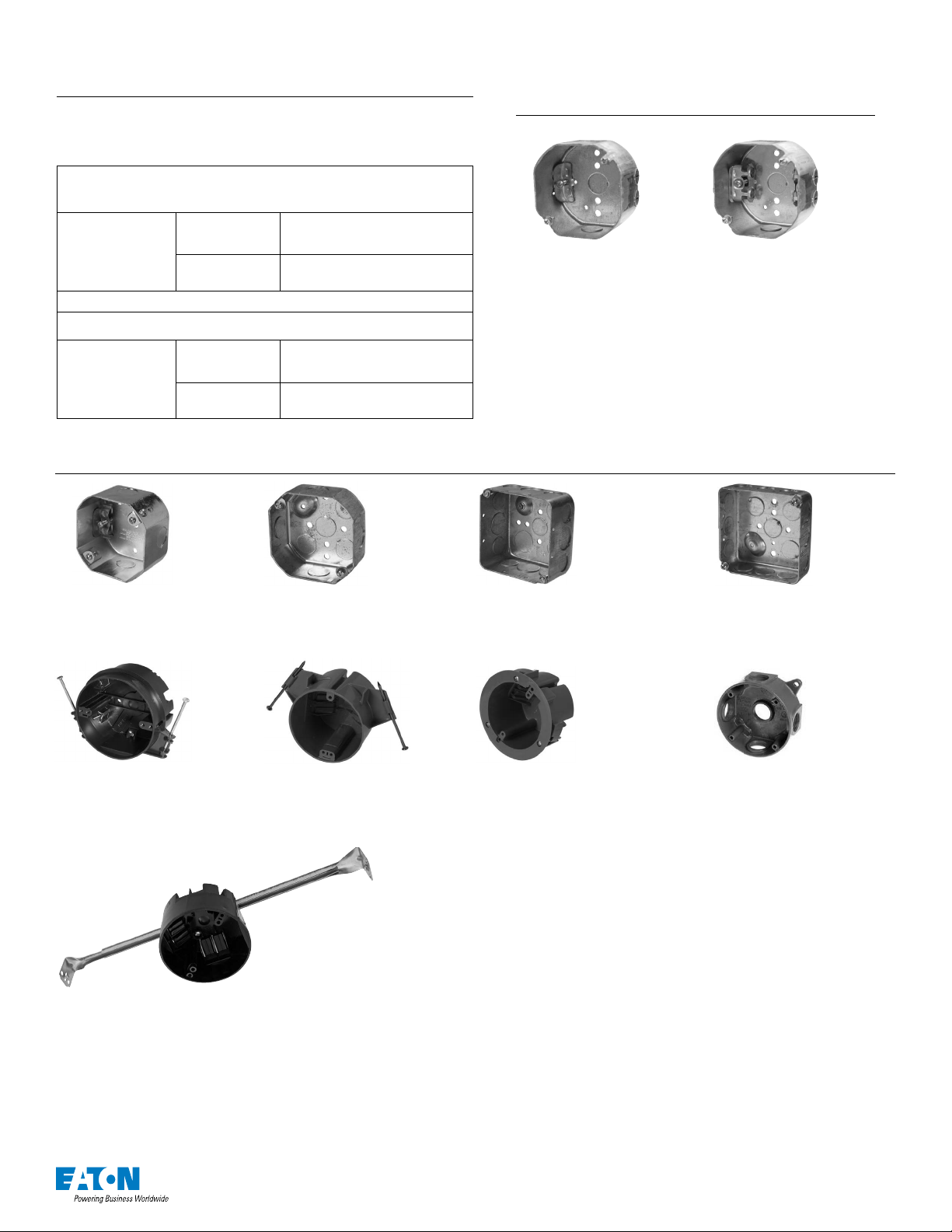

HOUSING COMPATIBILITY
The SMD4 is UL Listed in Halo recessed housings, and is UL Classified for use with any 4
inch diameter recessed housing constructed of steel or aluminum with an internal volume
that exceeds 62.3 in
3
in addition to those noted below:
Compatible Halo LED Housings with LED luminaire connector
(high-efficacy compliant)
HALO
LED
Recessed Can
Size
4"
Catalog Number
H995ICAT, H995RICAT, H245ICAT,
H245RICAT
Compatible Halo Incandescent E26 Screwbase Housings
Recessed Can
Size
HALO
4"
COMPATIBLE WITH MANY OTHER JUNCTION BOXES*
Catalog Number
H99ICAT, H99TAT, H99RTAT, E4ICATSB,
E4TATSB, E4RTATSB
COMPATIBLE WITH EATON’S CROUSE-HINDS
JUNCTION BOXES
TP316
for non-metallic cable
4” x 4” x 2-1/8”
(102mm x 102mm x 54mm)
• TP316 - for non-metallic cable
• TP317 - for metal clad cable
• UL Listed
• Refer to www.crouse-hinds.com
TP317
for metal clad cable
4” x 4” x 2-1/8”
(102mm x 102mm x 54mm)
4" octagon light fixture/fan
steel box
4" x 4" x 2-1/8"
(102mm x 102mm x 54mm)
4" round new work non-metallic
light fixture/fan box
4" diameter x 2-3/16"
(102mm x 56mm)
4" round new work non-metallic box
with hanger bar assembly
4" diameter x 2-3/16" (102mm x 56mm)
4" octagon steel box
4" x 4" x 1-1/2"
(102mm x 102mm x 38mm)
3-1/2" round new work
non-metallic ceiling box
3-1/2" diameter x 2-3/4"
(89mm x 70mm)
4" square deep steel box
4" x 4" x 2-1/8"
(102mm x 102mm x 54mm)
3-1/2" round old work non-metallic box
4-1/4" O.D. flange, 3-1/2" I.D. x 2-5/8”
(108mm O.D., 89mm I.D. x 67mm)
*This is a representative list of compatible junction boxes only. Information
contained in this literature about other manufacturers’ products is from published
information made available by the manufacturer and is deemed to be reliable,
but has not been verified. Eaton makes no specific recommendation on product
selection and there are no warranties of performance or compatibility implied.
Installer must determine that site conditions are suitable to allow proper
installation of the mounting bracket in the box.
4" square standard steel box
4" x 4" x 1-1/2"
(102mm x 102mm x 38mm)
4” round surface mount box
4" diameter x 1-1/2”
(102mm x 38mm)
Requires SLD4RAD adapter
Page 4
HALO

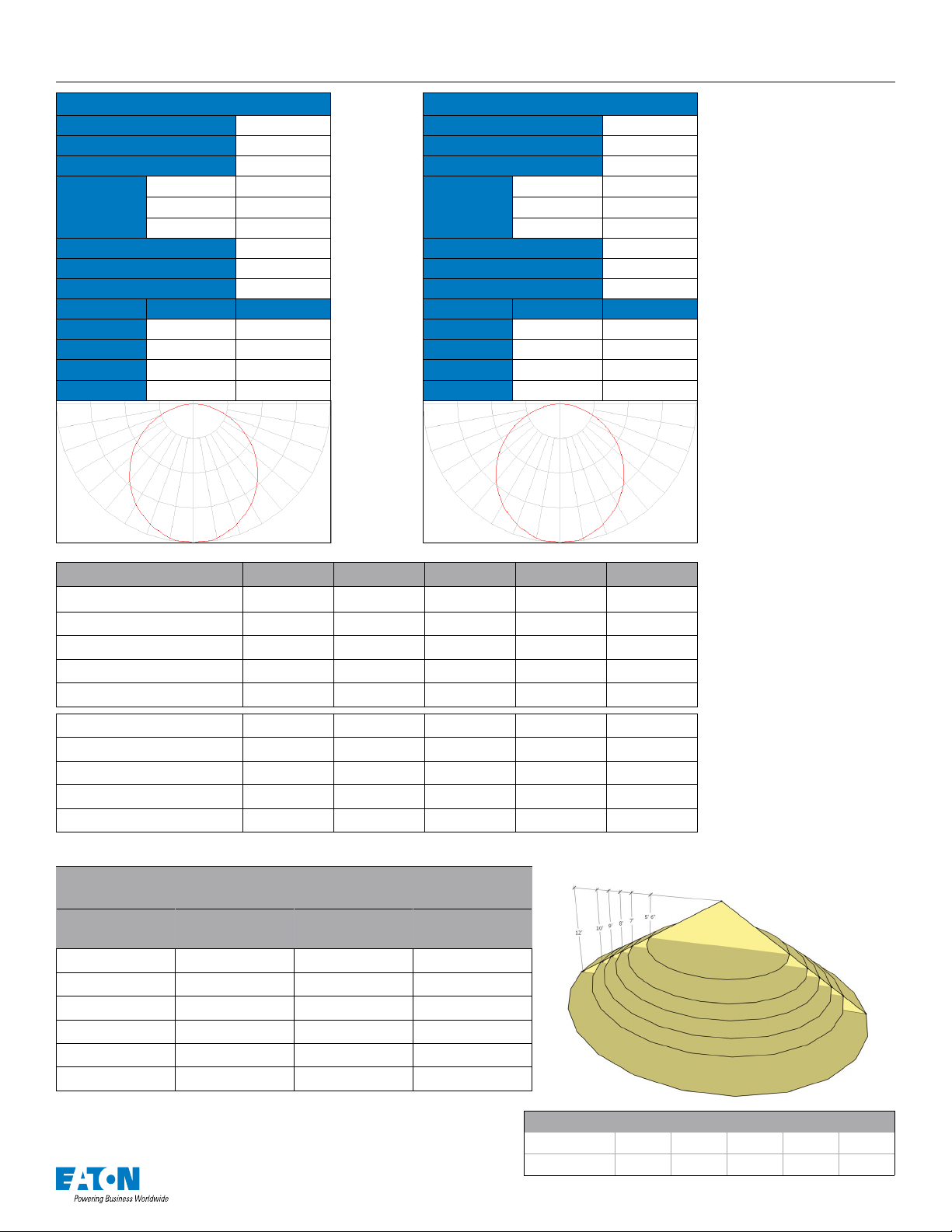

PHOTOMETRIC DATA
SMD4R69xxWH
SMD4S69xxWH
SMD4R6927WH
Luminaire lumens 690
Input watts 9.5
LER (LPW) 73
Spacing
Criteria
Beam angle (degrees) 11 2
Field angle (degrees) 162
Max. Candela 243
Zonal lumen Lumens % Lumens
0-30
0-40 306
0-60 542
0-90 690
0-180 1.26
90-270 1.26
Diagonal 1.38
187 27.2%
44.5%
78.6%
100.00%
SMD4S6927WH
Luminaire lumens 750
Input watts 9.5
LER (LPW) 79
Spacing
Criteria
Beam angle (degrees) 10 9
Field angle (degrees) 162
Max. Candela 278
Zonal lumen Lumens % Lumens
0-30
0-40 336
0-60 589
0-90 750
0-180 1.24
90-270 1.24
Diagonal 1.36
207 27.6%
44.9%
78.6%
100.00%
Cat. No. CRI CCT Lumens Power (W) LPW
SMD4R6927WH 93 2700 690 9.50 72.6
SMD4R6930WH 93 3000 700 9.70 72.2
SMD4R6935WH 94 3500 740 9.70 76.3
SMD4R6940WH 94 4000 760 9.80 77.6
SMD4R6950WH 91 5000 786 9.70 81.0
SMD4S6927WH 92 2700 750 9.50 78.9
SMD4S6930WH 92 3000 790 9.90 79.8
SMD4S6935WH 93 3500 740 9.90 74.7
SMD4S6940WH 93 4000 800 10.10 79.2
SMD4S6950WH 90 5000 810 10.00 81.0
Foot-candle Values at Nadir
0 degree Aiming Angle
DD
(FT)
SMD4R6927WH
(FC)
SMD4S6927WH
(FC)
DIA
(FT)
5.5 8.0 9.2 16.3
7 5.0 5.7 20.9
8 3.8 4.3 23.8
9 3.0 3.4 26.8
10 2.4 2.8 29.7
12 1.7 1.9 35.7
SMD4R6927WH
8.0 FC
5.0 FC
3.8 FC
3.0 FC
2.4 FC
1.7 FC
DD = distance down to illuminated work plane
FC = initial foot-candles at nadir
DIA = diameter
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
Multiplier Table
CCT Option 2700K 3000K 3500K 4000K 5000K
CCT Multipiler 1.00 1.014 1.042 1.083 1.083
