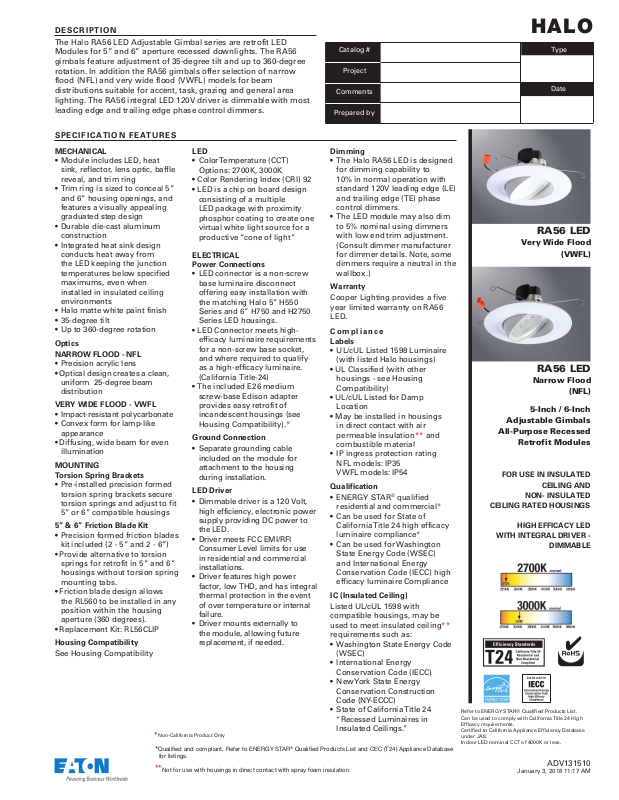

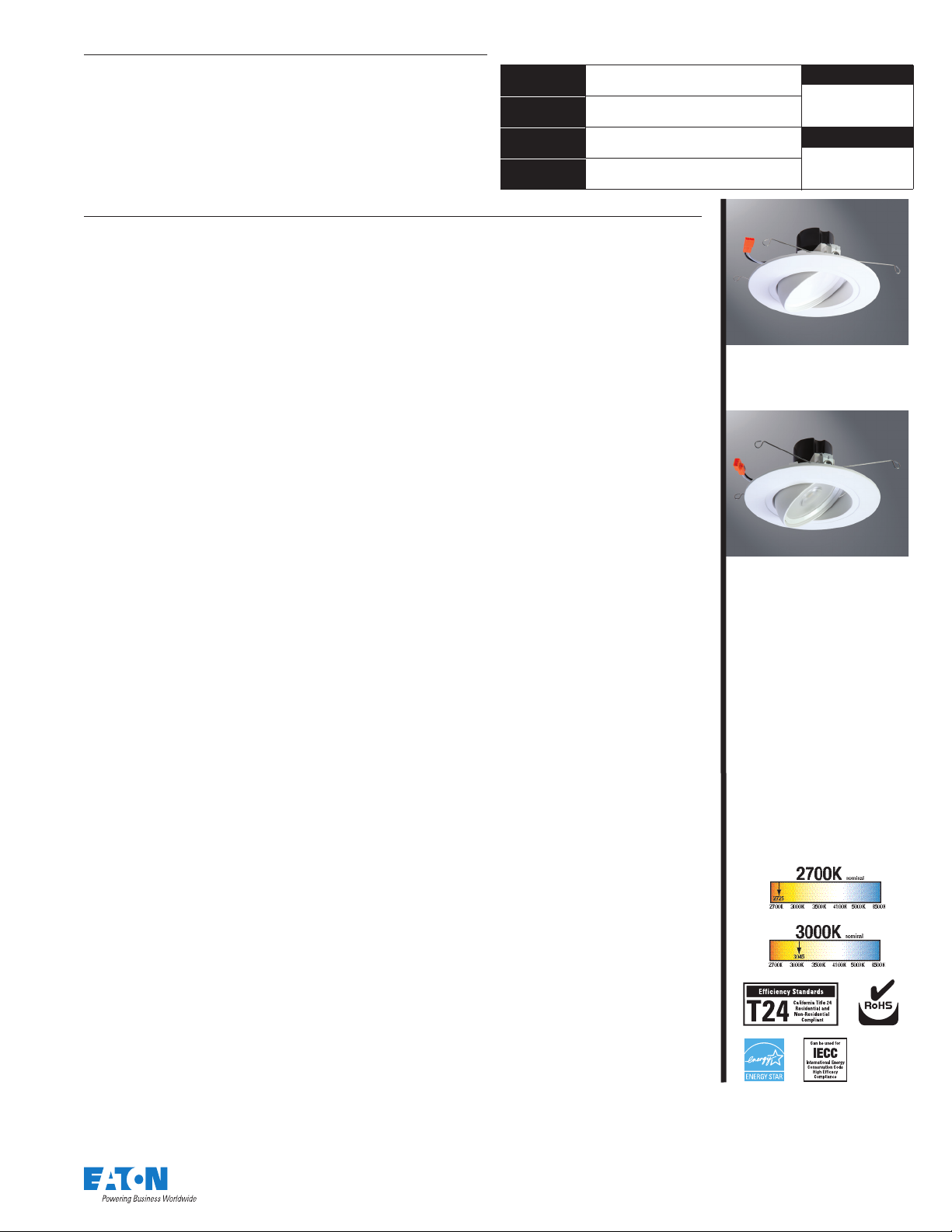

Cooper Lighting LLC CPK10367 Installation & Assembly

DESCRIPTION

The Halo RA56 LED Adjustable Gimbal series are retrofit LED
Modules for 5” and 6” aperture recessed downlights. The RA56
gimbals feature adjustment of 35-degree tilt and up to 360-degree
rotation. In addition the RA56 gimbals offer selection of narrow
flood (NFL) and very wide flood (VWFL) models for beam
distributions suitable for accent, task, grazing and general area
lighting. The RA56 integral LED 120V driver is dimmable with most
leading edge and trailing edge phase control dimmers.

SPECIFICATION FEATURES

MECHANICAL

• Module includes LED, heat
sink, reflector, lens optic, baffle
reveal, and trim ring

• Trim ring is sized to conceal 5”
and 6” housing openings, and
features a visually appealing
graduated step design

• Durable die-cast aluminum
construction

• Integrated heat sink design
conducts heat away from
the LED keeping the junction
temperatures below specified
maximums, even when
installed in insulated ceiling
environments

• Halo matte white paint finish

• 35-degree tilt

• Up to 360-degree rotation

Optics
NARROW FLOOD - NFL

• Precision acrylic lens

• Optical design creates a clean,
uniform 25-degree beam
distribution

VERY WIDE FLOOD - VWFL

• Impact-resistant polycarbonate

• Convex form for lamp-like
appearance

• Diffusing, wide beam for even
illumination

MOUNTING
Torsion Spring Brackets

• Pre-installed precision formed
torsion spring brackets secure
torsion springs and adjust to fit
5” or 6” compatible housings

5” & 6” Friction Blade Kit

• Precision formed friction blades
kit included (2 - 5” and 2 - 6”)

• Provide alternative to torsion
springs for retrofit in 5” and 6”
housings without torsion spring
mounting tabs.

• Friction blade design allows
the RL560 to be installed in any
position within the housing
aperture (360 degrees).

• Replacement Kit: RL56CLIP

Housing Compatibility

LED

• Color Temperature (CCT)
Options: 2700K, 300 0K

• Color Rendering Index (CRI) 92

• LED is a chip on board design
consisting of a multiple
LED package with proximity
phosphor coating to create one
virtual white light source for a
productive “cone of light”

ELECTRICAL
Power Connections

• LED connector is a non-screw
base luminaire disconnect
offering easy installation with
the matching Halo 5” H550
Series and 6” H750 and H2750
Series LED housings.

• LED Connector meets high­efficacy luminaire requirements
for a non-screw base socket,
and where required to qualify
as a high-efficacy luminaire.
(California Title-24)

• The included E26 medium
screw-base Edison adapter
provides easy retrofit of
incandescent housings (see
Housing Compatibility).*

Ground Connection

• Separate grounding cable
included on the module for
attachment to the housing
during installation.

LED Driver

• Dimmable driver is a 120 Volt,
high efficiency, electronic power
supply providing DC power to
the LED.

• Driver meets FCC EMI/RFI
Consumer Level limits for use
in residential and commercial
installations.

• Driver features high power
factor, low THD, and has integral
thermal protection in the event
of over temperature or internal
failure.

• Driver mounts externally to
the module, allowing future
replacement, if needed.

See Housing Compatibility

Non-California Product Only

*

Qualied and compliant. Refer to ENERGY STAR® Qualied Products List and CEC (T24) Appliance Database

*

for listings.

**Not for use with housings in direct contact with spray foam insulation.

Catalog #

Project

Comments

Prepared by

Dimming

• The Halo RA56 LED is designed
for dimming capability to
10% in normal operation with
standard 120V leading edge (LE)
and trailing edge (TE) phase
control dimmers.

• The LED module may also dim
to 5% nominal using dimmers
with low end trim adjustment.
(Consult dimmer manufacturer
for dimmer details. Note, some
dimmers require a neutral in the
wallbox.)

Warranty

Cooper Lighting provides a five
year limited warranty on RA56
LED.

Compliance
Labels

• UL/cUL Listed 1598 Luminaire
(with listed Halo housings)

• UL Classified (with other
housings - see Housing
Compatibility)

• UL/cUL Listed for Damp
Location

• May be installed in housings
in direct contact with air
permeable insulation** and
combustible material

• IP ingress protection rating

NFL models: IP35
VWFL models: IP54

Qualification

• ENERGY STAR

®

qualified

residential and commercial*

• Can be used for State of
California Title 24 high efficacy
luminaire compliance*

• Can be used for Washington
State Energy Code (WSEC)
and International Energy
Conservation Code (IECC) high
efficacy luminaire Compliance

IC (Insulated Ceiling)

Listed UL/cUL 1598 with
compatible housings, may be
used to meet insulated ceiling**
requirements such as:

• Washington State Energy Code
(WSEC)

• International Energy
Conservation Code (IECC)

• New York State Energy
Conservation Construction
Code (NY-ECCC)

• State of California Title 24
“Recessed Luminaires in
Insulated Ceilings.”

HALO

Type

Date

RA56 LED

Very Wide Flood

(VWFL)

RA56 LED

Narrow Flood

(NFL)

5-Inch / 6-Inch

Adjustable Gimbals

All-Purpose Recessed

Retrofit Modules

FOR USE IN INSULATED

CEILING RATED HOUSINGS

WITH INTEGRAL DRIVER -

Refer to ENERGY STAR® Qualified Products List.
Can be used to comply with California Title 24 High
Efficacy requirements.
Certified to California Appliance Efficiency Database
under JA8.
Indoor LED nominal CCT of 4000K or less.

CEILING AND

NON- INSULATED

HIGH EFFICACY LED

DIMMABLE

ADV131510

January 3, 2018 11:17 AM

[89mm]

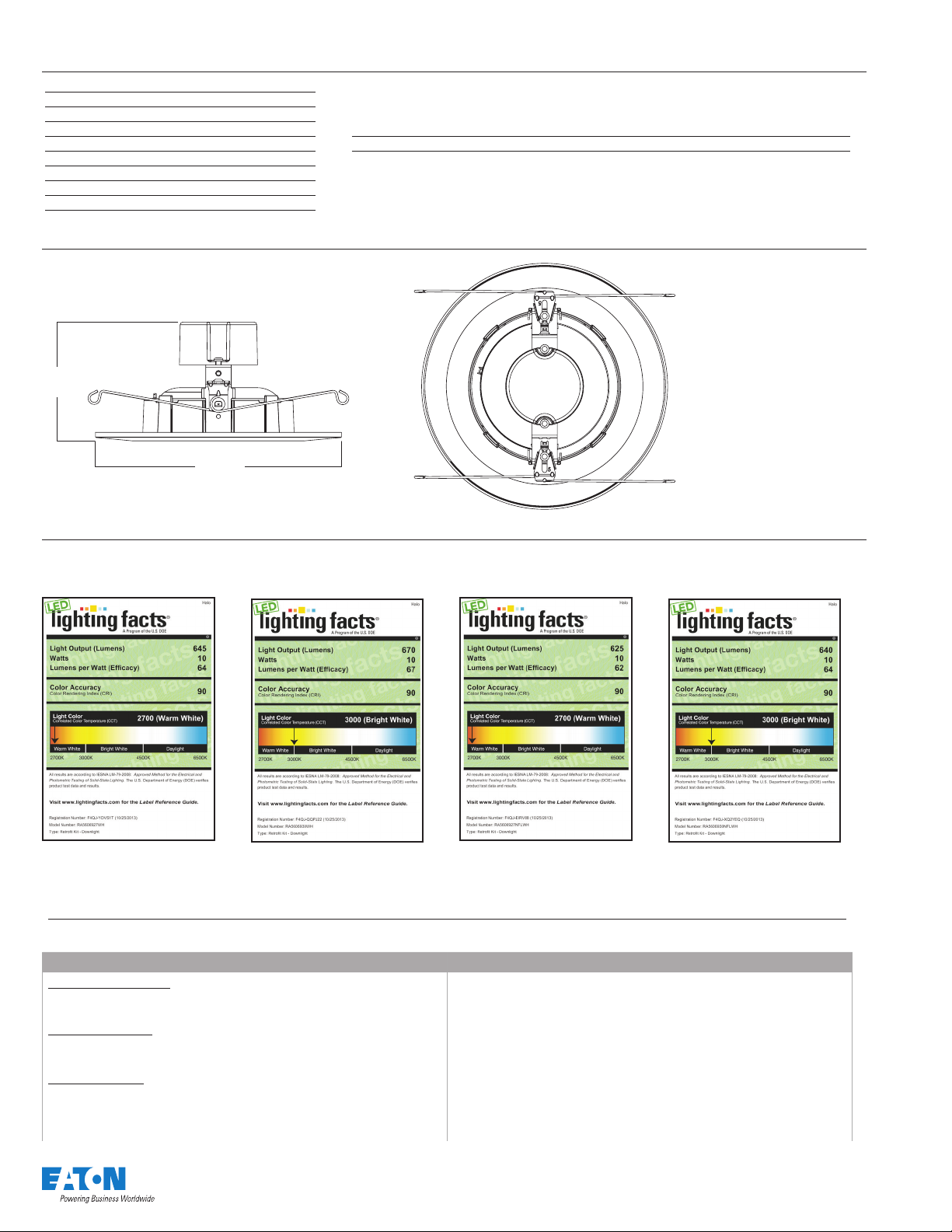

ENERGY DATA

Minimum Starting Temp: -30°C (-22°F)
EMI/RFI: FCC Title 47 CFR, Part 15, Class B (Consumer)
Sound Rating: Class A standards
Input Voltage: 120V
Power Factor: >0.90
Input Frequency: 50/60Hz
THD: <20%
Input Power: 10W
Input Current: 85mA

DIMENSIONS

3.5”

Ø 7.25”

[184mm]

RA56 Series

Driver-Safety Agency Approvals:

- UL60950-1 Recognized

- LPS output

- UL8750 Compliant
Maximum IC (Insulated Ceiling) Ambient Continuous Operating Temperature: 25°C (77°F)
Maximum Non-IC (NON-Insulated Ceiling) Ambient Continuous Operating Temperature 40°C (104°F)

LIGHTING FACTS

RA5606927WH

2700K Source
VWFL Beam

For further information refer to the Lighting Facts website at http://lightingfacts.com/.

RA5606930WH

3000K Source
VWFL Beam

ORDERING INFORMATION

SAMPLE NUMBER: RA5606930WH
Complete unit includes RA56 LED and a 5” or 6” compatible housing, ordered separately (see: Housing Compatibility).

RA56 Series Accessory (order separately)

Very Wide Flood - VWFL Models
RA5606927WH= 5”/6” LED Adjustable Gimbal, 90CRI, 2700K, White, Very Wide Flood

RA5606930WH= 5”/6” LED Adjustable Gimbal, 90CRI, 3000K, White, Very Wide Flood

Narrow Flood - NFL Models
RA5606927NFLWH= 5”/6” LED Adjustable Gimbal, 90CRI, 2700K, White, Narrow Flood

RA5606930NFLWH= 5”/6” LED Adjustable Gimbal, 90CRI, 3000K, White, Narrow Flood

*California - E-26 Models
RA5606927WH-CA

RA5606930WH-CA
RA5606927NFLWH-CA
RA5606930NFLWH-CA

RA5606927NFLWH

2700K Source
NFL Beam

HE26LED=Replacement screw base adapter (one included with unit)
RL56CLIP=Replacement 5”/6” Friction Blade Kit (one included with unit)
OT400P=Oversize Flat White Metal trim ring 6" I.D. x 9-1/4" O.D. (ring slips behind RA56 ring, in

stepped conguration)

OT403P=Oversize White Plastic trim ring 6" I.D. x 8" O.D. (ring slips behind RA56 ring, in

stepped conguration)

TRM690WH=Oversize Matte White Metal trim ring. Designed for RA56 ring to inset into oversize

ring for an even (non-stepped) trim surface

RA5606930NFLWH

3000K Source
NFL Beam

Housing Compatibility

Compatible Halo LED Housings with LED luminaire connector (high-efficacy compliant)

RA56 Series

Recessed Can

HALO

LED

Size

5"
6"

Halo LED Retrofit Enclosures

HALO 6"

Compatible Halo Incandescent E26 Screwbase Housings

5"

HALO

6"

Catalog Number

H550ICAT, H550RICAT, E550ICAT, E550RICAT

H750ICAT, H750RICAT, H750T, H750RINTD010, H750TCP, H2750ICAT, H2750RICAT, E750ICAT, E750RICAT

ML7BXRFK, ML7E26RFK

H5ICAT, H5RICAT, H5ICATNB, H5T, H5RT, H25ICAT, H25ICATNB, E5TAT, E5RTAT, H5TNB, E5TATNB, E5ICAT, E5RICAT,
E5ICATNB

H7ICAT, H7RICAT, H7ICT, H7RICT, H7ICATNB, H7ICTNB, H7T, H7RT, H7TNB, H7TCP, H7UICT, H7UICAT, H27ICAT, H27RI­CAT, H27T, H27RT, E7ICAT, E7RICAT, E27ICAT, E27RICAT, E7ICATNB, E7TAT, E7RTAT, E7TATNB, E27TAT, E27RTAT

RA56 Series

HOUSINGS - UL Classified

For retrofit in the following 5˝ and 6˝ recessed housings:

®

Juno

IC22, IC22R, IC22W, IC22S, IC23, IC23W, IC21, IC21R, IC2, TC2, TC2R, IC20, IC20R, IC25, IC25R, IC25W, IC25S, TC20, TC20R

Capri Lighting CR1, PR1, QL1, R9ASIC, R5*

Lightolier

®

1104ICS*, 1104ICR*, 1104SIC*, 1104SICR*, 1004ICS*, 1004ICR*, 1004SIC*, 1004SICR*

1104ICX - Requires installation of ML7RAB retrofit adapter band accessory (not included).

Progress® Lighting P87-AT*, P86TG

Lithonia Lighting

®

L7X, L7XP

Thomas® Lighting PS1, R9ASIC/PS9RM

Prescolite

Commercial Electric

Elco Lighting

®

™

®

IBXS

C7ICA (H3), H18

(HL7ICA) EL7ICA

*Requires replacement of torsion springs with included friction clips (accessory replacement kit: RL56CLIP).

Juno®, Capri Lighting, Lightolier®, Lithonia Lighting®, Thomas® Lighting, Elco Lighting®, Progress® Lighting, Prescolite® and Commercial Electric™
and their product brand names, where identified above, are tradenames or trademarks of each respective company and Cooper Lighting makes
no representations on these trademarks.

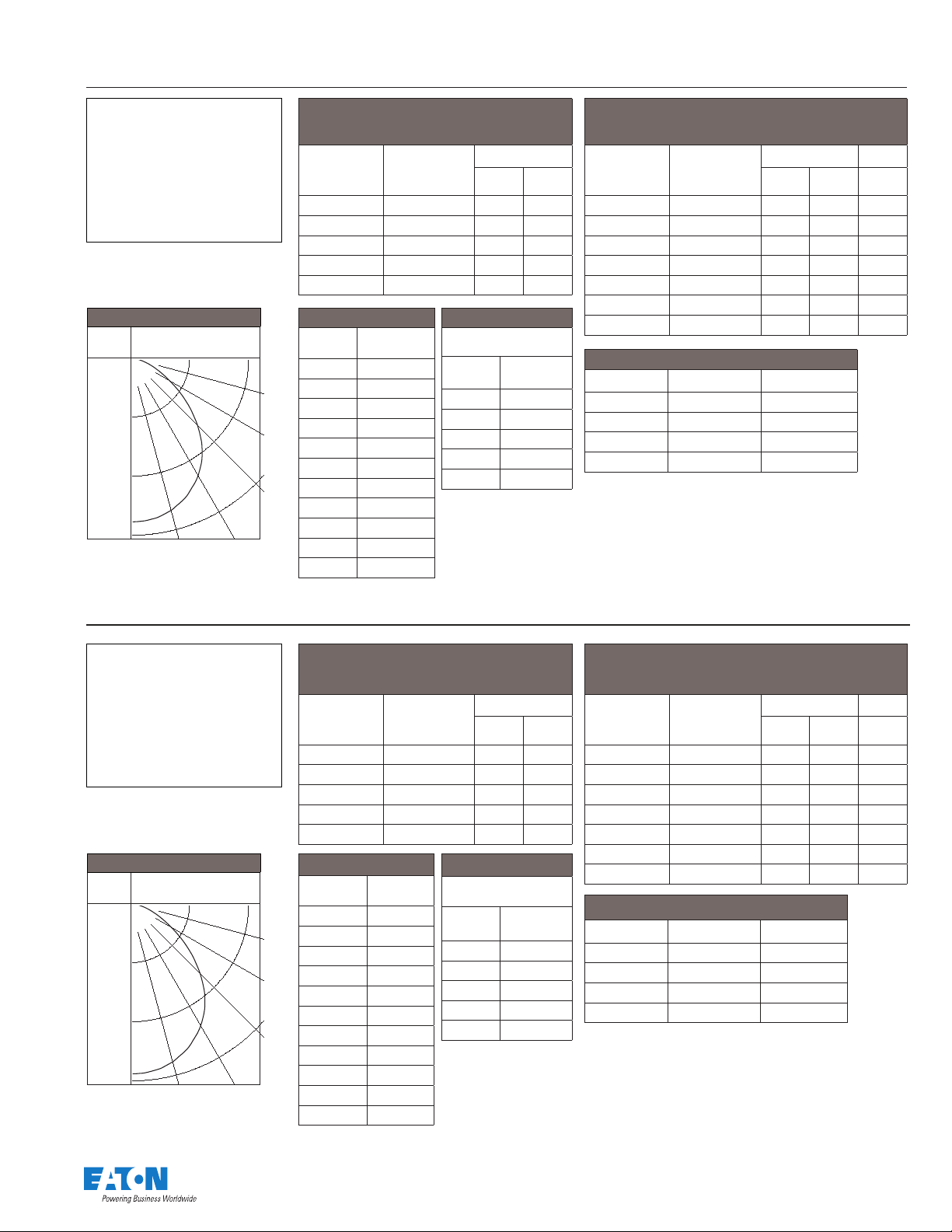

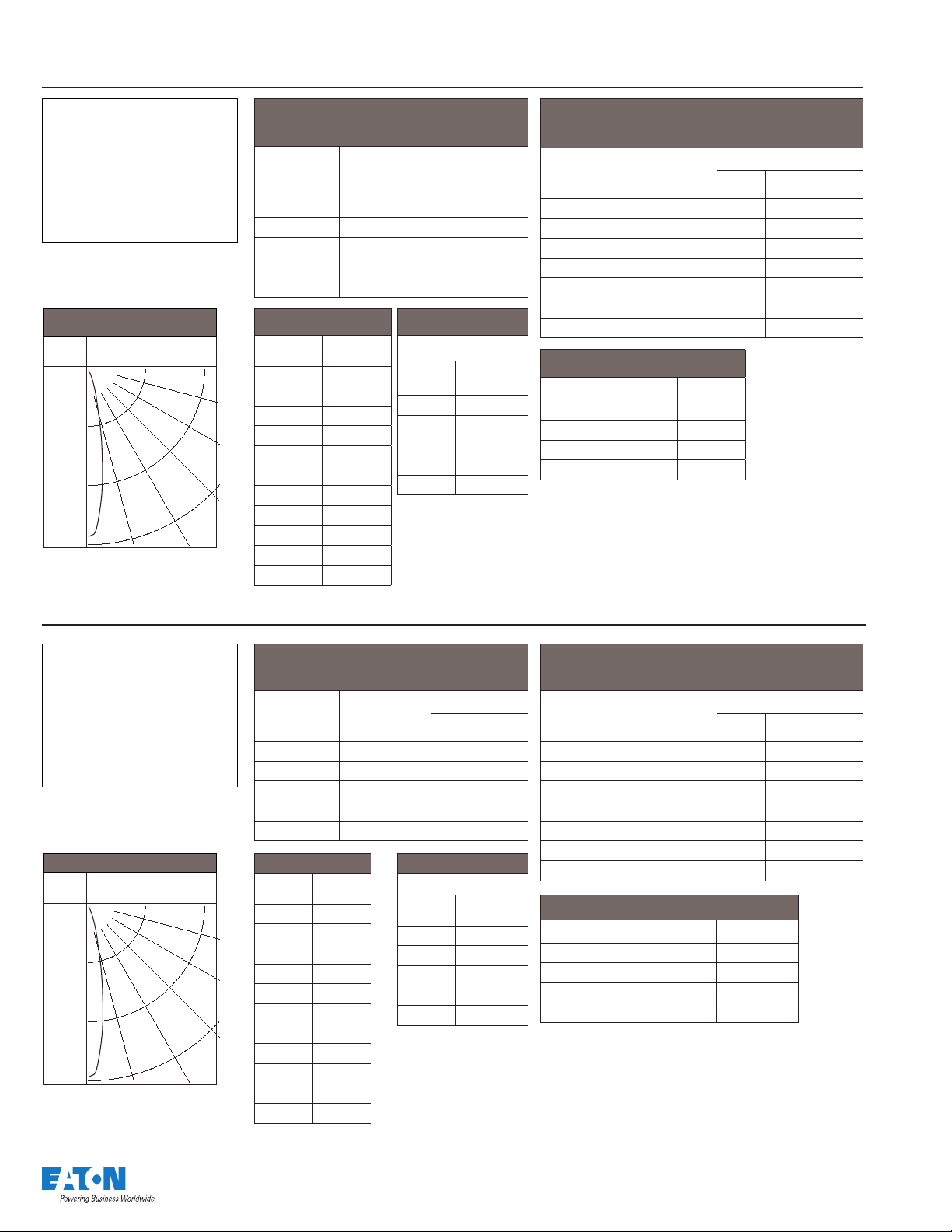

PHOTOMETRY

RA56 Series

RA5606927WH

Reflector Beam Angle = VWFL Beam
(Very Wide Flood)

CCT = 2700K
Spacing Criteria = 1.23
Lumens per Watt = 64.5 Lm/W
Test No. P121913
Test Model: RA5606927WH

Candlepower Distribution

Eyeball at 0-degrees

100

200

300

15º

0º

30º

Cone of Light Footcandles

0 deg Aiming Angle

Horizontal Illuminance on Floor

Distance to
Illuminated

Plane

Initial Nadir
Footcandles

Beam (ft.)

L

Length

5.5' 9.2 6.6 6.6

7' 5.7 8.4 8.4

8' 4.3 9.8 9.8

9' 3.4 11 11

10' 2.8 12.2 12.2

Width

Distance to

W

Illuminated

Plane

2' 43.7 2.1 2.4 2.9

3' 19.4 3.1 3.8 4.3

4' 10.9 4.1 5 5.7

5' 7 5.2 6.2 7.1

6' 4.9 6.4 7.6 8.6

Cone of Light Footcandles

35 deg Aiming Angle

Vertical Illuminance on Wall

Initial Nadir
Footcandles

Beam (ft.)

L

Length

W

Width

CB

8' 2.7 8.4 10.2 11.4

Candela Distribution

Degrees

90º

75º

Vertical

0* 277

5 276

Candela

15 267

60º

25 244

35 211

45 160

45º

55 103

Luminance

(Average Candela/M

Degree Avg. 0°

Luminance

45 31342

55 24818

65 17873

75 12507

85 6032

2

)

10' 1.7 10.7 12.6 14.3

Zonal Lumen Summary

Zone Lumens % Fixture

0-30 214 33.2

0-40 345 53.5

0-60 560 86.9

0-90 645 100

65 55

75 23

85 4

90 0

*CBCP

RA5606930WH

Reflector Beam Angle = VWFL Beam
(Very Wide Flood)

CCT = 3000K
Spacing Criteria = 1.23
Lumens per Watt = 67 Lm/W
Test No. P121915
Test Model: RA5606930WH

Candlepower Distribution

Eyeball at 0-degrees

100

200

300

15º

0º

30º

Cone of Light Footcandles

0 deg Aiming Angle

Horizontal Illuminance on Floor

Distance to
Illuminated

Plane

Initial Nadir
Footcandles

Beam (ft.)

L

Length

Width

W

5.5' 9.5 6.6 6.6

7' 5.9 8.4 8.4

8' 4.5 9.8 9.8

9' 3.6 11 11

10' 2.9 12.2 12.2

Candela Distribution

Degrees

90º

Vertical

Candela

0* 288

75º

5 287

15 277

60º

25 253

35 219

45 166

45º

55 107

Luminance

(Average Candela/M

Degree Avg. 0°

Luminance

45 32555

55 25783

65 18560

75 12988

85 6349

2

)

Distance to
Illuminated

Plane

2' 45.4 2.1 2.4 2.9

3' 20.2 3.1 3.8 4.3

4' 11.3 4.1 5 5.7

5' 7.3 5.2 6.2 7.1

6' 5 6.4 7.6 8.6

8' 2.8 8.4 10.2 11.4

10' 1.8 10.7 12.6 14.3

Zone Lumens % Fixture

0-30 222 33.2

0-40 358 53.5

0-60 582 86.9

0-90 670 100

Cone of Light Footcandles

35 deg Aiming Angle

Vertical Illuminance on Wall

Initial Nadir
Footcandles

Zonal Lumen Summary

Beam (ft.)

L

Length

W

Width

CB

65 57

75 24

85 4

90 0

*CBCP

PHOTOMETRY

RA56 Series

RA5606927NFLWH

Reflector Beam Angle = NFL Beam
(Narrow Flood)

CCT = 2700K
Spacing Criteria = 0.36
Lumens per Watt = 62.5 Lm/W
Test No. P121911
Test Model: RA5606927NFLWH

Candlepower Distribution

Eyeball at 0-degrees

950

1900

2850

15º

0º

30º

Cone of Light Footcandles

0 deg Aiming Angle

Horizontal Illuminance on Floor

Distance to
Illuminated

Plane

Initial Nadir

Footcandles

5.5' 90.3 1.8 1.8

7' 55.8 2.4 2.4

8' 42.7 2.8 2.8

9' 33.7 3.2 3.2

10' 27.3 3.6 3.6

Candela Distribution

Degrees

90º

75º

Vertical

0* 2732

5 2371

Candela

15 740

60º

25 239

35 69

45 27

45º

55 16

Beam (ft.)

L

Length

Luminance

(Average Candela/M

Degree Avg. 0°

Luminance

45 4649

55 2981

65 1846

75 828

85 97

Width

Distance to

W

Illuminated

Plane

2' 157.4 1.7 1 2.9

3' 70 2.6 1.6 4.3

4' 39.4 3.5 2.2 5.7

5' 25.2 4.4 2.8 7.1

6' 17.5 5.3 3.4 8.6

8' 9.8 7 4.4 11.4

10' 6.3 8.8 5.6 14.3

2

)

Zonal Lumen Summary

Zone Lumens % Fixture

0-30 530 84.7

0-40 576 92.1

0-60 612 97.9

0-90 625 100

Cone of Light Footcandles

35 deg Aiming Angle

Vertical Illuminance on Wall

Initial Nadir
Footcandles

Beam (ft.)

L

Length

Width

W

CB

65 9

75 3

85 0

90 0

*CBCP

RA5606930NFLWH

Reflector Beam Angle = NFL Beam
(Narrow Flood)

CCT = 3000K
Spacing Criteria = 0.36
Lumens per Watt = 64 Lm/W
Test No. P121912
Test Model: RA5606930NFLWH

Candlepower Distribution

Eyeball at 0-degrees

950

1900

2850

15º

0º

30º

Cone of Light Footcandles

0 deg Aiming Angle

Horizontal Illuminance on Floor

Distance to
Illuminated

Plane

Initial Nadir
Footcandles

Beam (ft.)

L

Length

5.5' 92.5 1.8 1.8

7' 57.1 2.4 2.4

8' 43.7 2.8 2.8

9' 34.5 3.2 3.2

10' 28 3.6 3.6

Width

Distance to

W

Illuminated

Plane

2' 161.2 1.7 1 2.9

3' 71.6 2.6 1.6 4.3

4' 40.3 3.5 2.2 5.7

5' 25.8 4.4 2.8 7.1

6' 17.9 5.3 3.4 8.6

Cone of Light Footcandles

35 deg Aiming Angle

Vertical Illuminance on Wall

Initial Nadir
Footcandles

Beam (ft.)

L

Length

Width

W

CB

8' 10.1 7 4.4 11.4

Candela Distribution

Degrees

90º

75º

Vertical

Candela

0* 2798

5 2428

15 758

60º

25 245

35 70

45 28

45º

55 17

Luminance

(Average Candela/M

Degree Avg. 0°

Luminance

45 4751

55 3055

65 1909

75 853

85 97

2

)

10' 6.4 8.8 5.6 14.3

Zonal Lumen Summary

Zone Lumens % Fixture

0-30 542 84.7

0-40 590 92.1

0-60 627 97.9

0-90 640 100

65 9

75 3

85 0

90 0

*CBCP

Note: Specifications and Dimensions subject to change without notice.

Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX [phone]

Cooper Lighting 5925 McLaughlin Rd. Mississauga, Ontario, Canada L5R 1B8 905.507.4000 FAX [phone]

Visit our web site at www.cooperlighting.com
