Page 1
Project Catalog # Type
1200 lm
15’ [4.6m]
5.12”
[130.13mm]
5.12”
[130.13mm]
additional
product diagrams
Prepared by Notes Date

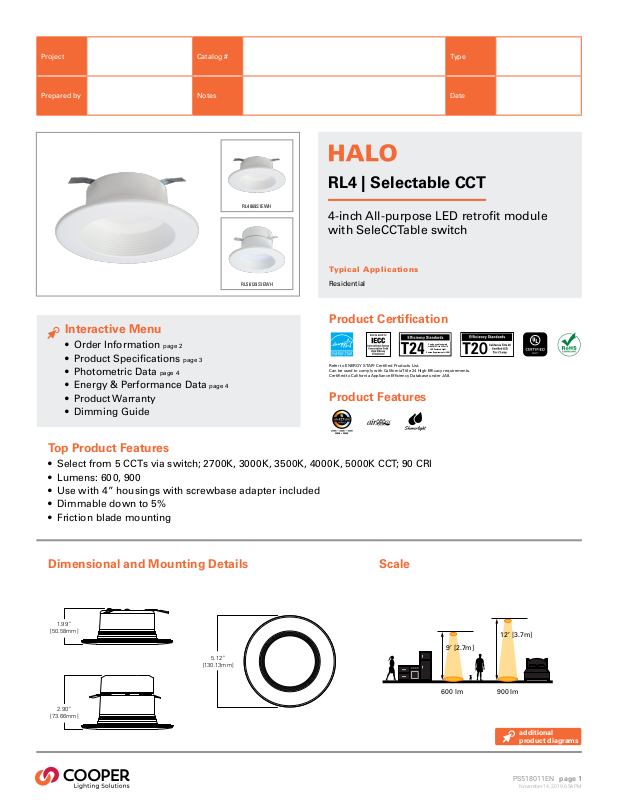

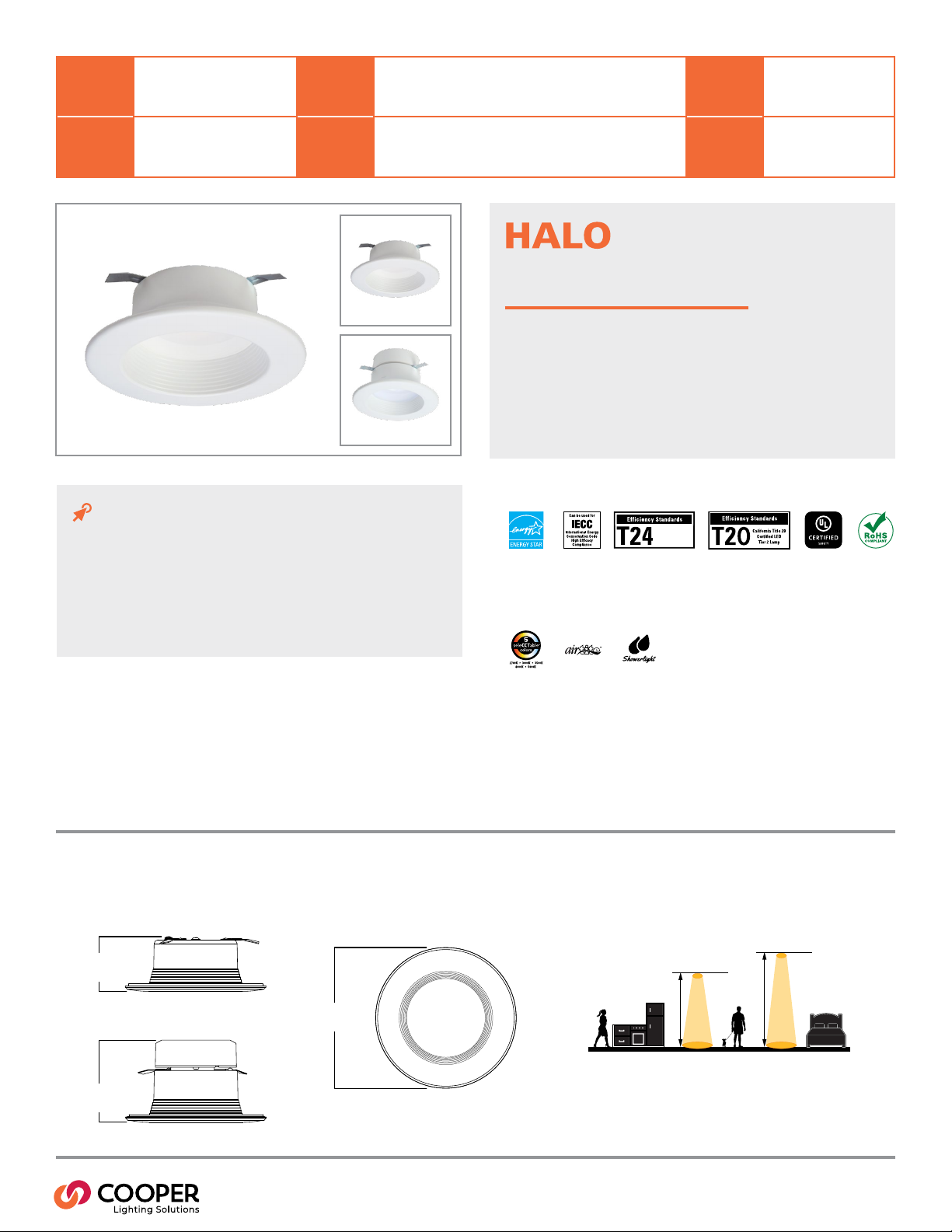

RL4 | Selectable CCT
RL4069S1EWH
4-inch All-purpose LED retrofit module
with SeleCCTable switch
Typical Applications
RL56129S1EWH
Residential
Interactive Menu
Product Certification
• Order Information page 2
• Product Specifications page 3
• Photometric Data page 4
Refer to ENERGY STAR® Certified Products List.
Can be used to comply with California Title 24 High Efficacy requirements.
Certified to California Appliance Efficiency Database under JA8.
• Energy & Performance Data page 4
• Product Warranty
Product Features
• Dimming Guide
Top Product Features
• Select from 5 CCTs via switch; 2700K, 3000K, 3500K, 4000K, 5000K CCT; 90 CRI
• Lumens: 600, 900
• Use with 4” housings with screwbase adapter included
• Dimmable down to 5%
• Friction blade mounting
Dimensional and Mounting Details
Scale
Can be used to comply
with 2019 Title 24 Part 6
LED Enclosed Light
Source Requirements (JA8)
1.99”
[50.58mm]
2.90”
[73.66mm]
5.12”
[130.13mm]
9’ [2.7m]
600 lm
12’ [3.7m]
900 lm
PS518011EN page 1
November 14, 2019 6:54 PM
Page 2
RL4 Selectable CCT

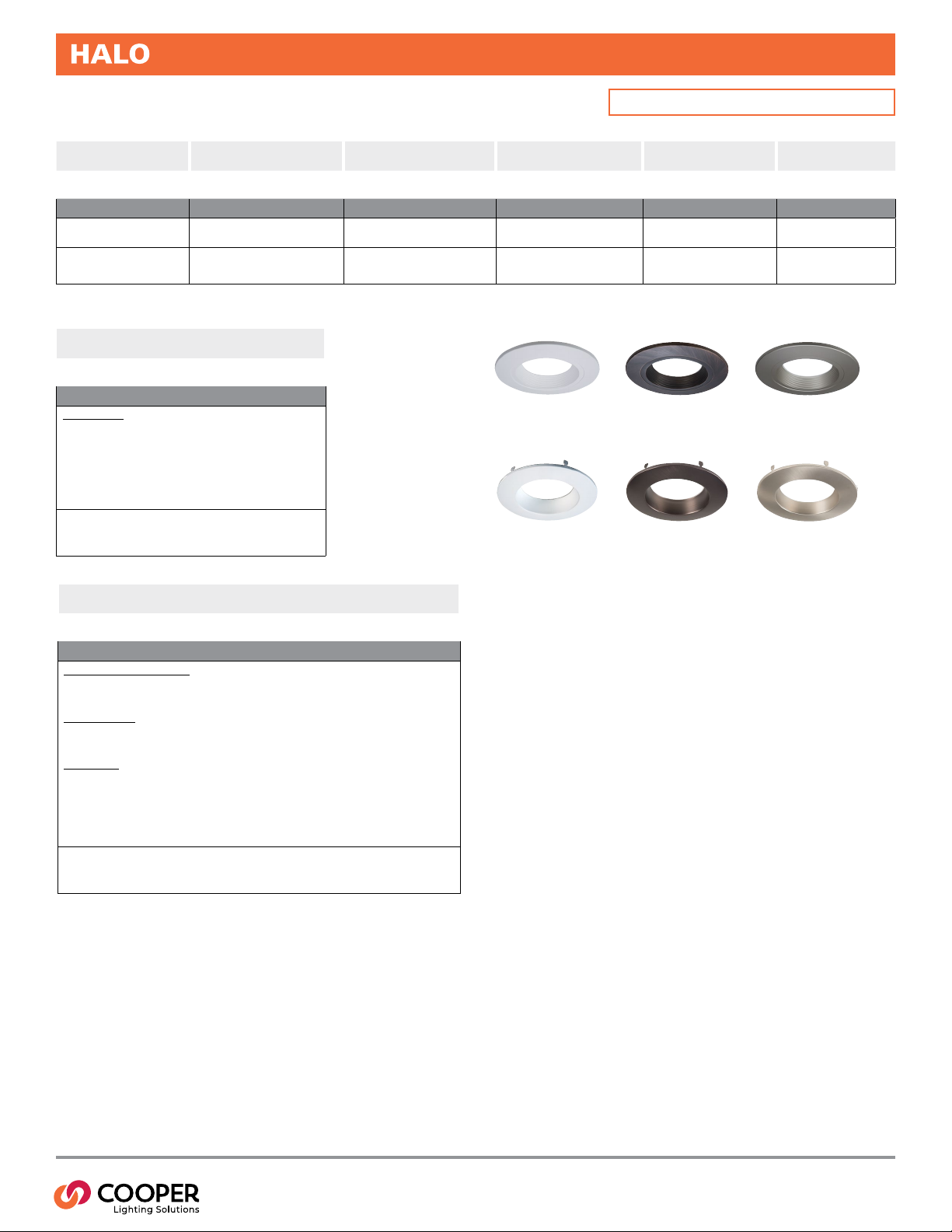

Order Information*
SAMPLE ORDER NUMBER: RL4069S1EWHR
Models
Models Lumens CRI/CCT Driver Finish Packaging
RL4 = 4” all- purpose retrofit
LED module
Notes Notes Notes Notes Notes Notes
06 = 600 lumens (nominal)
09 = 900 lumens (nominal)
* For T20 California product, apply “-CA” to the catalog number (ie. RL4069S1EWHR-CA)
Accessories
Accessories
Designer Trims
RL4TRMWHB = 4” White Paintable Trim Ring, Baffle
RL4TRMSNB = 4” Satin Nickel Trim Ring, Baffle
RL4TRMTBZB = 4” Tuscan Bronze Trim Ring, Baffle
RL4TRMWH = 4” White Paintable Trim Ring
RL4TRMSN = 4” Satin Nickel Trim Ring
RL4TRMTBZ = 4” Tuscan Bronze Trim Ring
Notes
Lumens CRI/CCT Driver Finish Packaging
9S = 90 CRI minimum, white tuning,
selectable CCT 2700K-5000K
1E = 120V 60Hz leading or trailing
edge phase cut 1% dimming
RL4TRMWHB
White (Paintable)
RL4TRMWH
White (Paintable)
Icon Key: ∆ Configurable Product
WH = Matte white baffle R = Recyclable
RL4TRMTBZB
Tuscan Bronze
RL4TRMTBZ
Tuscan Bronze
RL4TRMSNB
Satin Nickel
RL4TRMSN
Satin Nickel
Housings
Housings
Halo Ultra-shallow LED Housings
H245ICAT = 4” IC, airtight ultra-shallow new construction housing, LED, 120 - 277V
H245RICAT = 4” IC, airtight ultra-shallow remodeler housing, LED, 120 - 277V
Halo LED Housings
H995ICAT = 4” IC, airtight shallow new construction housing, LED, 120 - 277V
H995RICAT = 4” IC, airtight shallow remodeler housing, LED, 120 - 277V
Halo Housings
H99TAT = 4” non-IC, airtight shallow new construction housing, E26, 120V
H99RTAT = 4” non-IC, airtight shallow remodeler housing, E26, 120V
H99ICAT = 4” IC, airtight shallow new construction housing, E26, 120V
E4TATSB = 4” non-IC, airtight shallow new construction housing, adjustable socket bracket, E26, 120V
E4RTATSB = 4” non-IC, airtight shallow remodeler housing, adjustable socket bracket, E26, 120V
E4ICATSB = 4” non-IC, airtight shallow new construction housing, adjustable socket bracket, E26, 120V
Notes
PS518011EN page 2
November 14, 2019 6:54 PM
Page 3
Product Specifications
CCT Select System
• Use the switch to choose between 2700K,
3000K, 350 0K, 4000K, and 50 00K CCT.
Module - Trim
• Module construction includes LED array, heat
sink, reflector, lens, baffle and trim ring.
• Regressed baffle
• Heat sink designed to conduct heat away
from the LED array, keeping the junction
temperatures below specified maximums,
even when installed in insulated ceiling
environments.
LED Array
• Mid power LED array provides a uniform source
with high efficiency and no pixilation.
• 90 CRI minimum, R9 greater than 50
• Color accuracy at 4 SDCM in between
endpoints, provide color accuracy and
uniformity.
• Color Temperature (CCT) has a selectable range
from 2700K to 500 0K (factory default 3000K)
Optical Assembly
• Regressed lens
• Impact-resistant polycarbonate
• Convex form and lamp-like appearance
• Diffuse for even illumination
Driver
• Integral 120V 60 Hz constant current driver
provides noise free operation
• Continuous, flicker-free dimming from 100%
to 5%.
• Inline electrical quick connect and E26 adapter
(provided) provides mains connections
• See Dimming Guide for compatible dimmers
Retention
• Push-N-Twist universal installation clips
• Clips are pre-installed and designed to fit 4”
compatible recessed housings
Designer Skins (sold separately)
• RL4 skins are accessory rings that attach to the
RL4 for a permanent finish. Refer to the RL4
accessories specification sheet for details.
• White (Paintable)
• Satin Nickel
• Tuscan Bronze
Gaskets
• Closed cell gaskets achieve restrictive airflow
requirements without additional caulking
RL4 Selectable CCT
Compliance
• UL Certified
• Wet and Damp location listed
• Airtight certified per ASTM-E283
• Suitable for use in clothes closets when
installed in accordance with the NEC 410.16
spacing requirements
• EMI/RFI emissions per FCC 47CFR Part 15
consumer limits
• Contains no mercury or lead and RoHS
compliant
• Photometric testing in accordance with IES
LM-79-08
• Lumen maintenance projections in accordance
with IES LM-80-08 and TM-21-11
• Can be used for State of California Title 24 high
efficacy luminaire compliance. Complies with
Title 24 JA8-2016-E.
• Can be used International Energy Conservation
Code (IECC) high efficiency luminaire
compliance.
• ENERGY STAR® listed, reference database for
current listings
Warranty
• Five year limited warranty, consult website for
details. www.eaton.com/lighting/legal
PS518011EN page 3
November 14, 2019 6:54 PM
Page 4
RL4 Selectable CCT

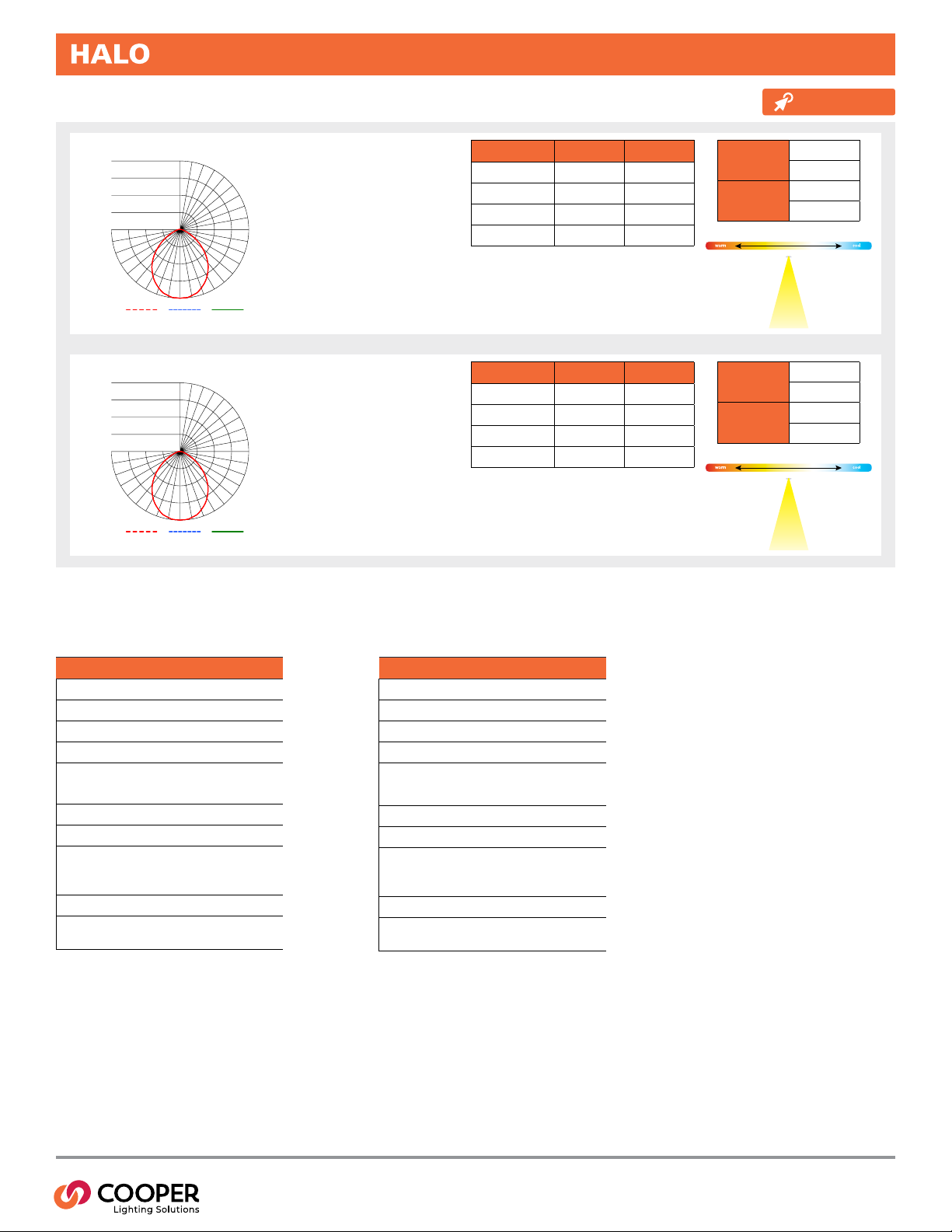

Photometric Data
180°
170°
180°
160°
20°
10°
0°
170°
160°
20°
10°
0°
271
204
136
68
0
0-deg 45-deg 90-deg
428
321
214
107
0
0-deg 45-deg 90-deg
150°
150°
View IES files
RL4069S1EWHR-3000K
22CZ2-24-UNVL830-CD1-U
140°
40°
30°
Spacing criterion: (0-180) 1.18
Electronic Driver
(90-270) 1.18
130°
120°
Linear LED 5000K
(Diagonal) 1.26
110°
Spacing criterion: (II) 1.23 x
Beam Angle: 93.1°
100°
mounting height, (⊥) 1.23 x mounting
Field Angle: 141.1°
90°
height
Lumens: 575
80°
Lumens: 11493
70°
Input Watts: 7.6 W
Input Watts: 87.7W
60°
Efficacy: 75.7 LPW
50°
Efficacy: 131.1 LPW
Test Report:
Test Report: 22CZ2-24-UNVL830-
RL4069S1EWHR-3000K.ies
CD1-U.IES
RL4099S1EWHR-3000K
22CZ2-24-UNVL830-CD1-U
140°
40°
30°
Spacing criterion: (0-180) 1.17
Electronic Driver
(90-270) 1.17
130°
120°
Linear LED 5000K
(Diagonal) 1.25
110°
Spacing criterion: (II) 1.23 x
Beam Angle: 93°
100°
mounting height, (⊥) 1.23 x mounting
Field Angle: 141.1°
90°
height
Lumens: 915
80°
Lumens: 11493
70°
Input Watts: 11.7 W
Input Watts: 87.7W
60°
Efficacy: 78.2 LPW
50°
Efficacy: 131.1 LPW
Test Report:
Test Report: 22CZ2-24-UNVL830-
RL4099S1EWHR-3000K.ies
CD1-U.IES
Zonal Lumen Lumens % Lumens
0-30
0-40
0-60
0-90
203 35.3
322 56
5 11 88.8
575 100
Zonal Lumen Lumens % Lumens
0-30
0-40
0-60
0-90
323 35.3
512 56
813 88.8
915 100
TM-30-15
CRI/CIE
Rf = 91.1
Rg = 100.9
Ra = 93.1
R9 = 64.9
CCT - Range of 2700K- 5000K
93°
TM-30-15
CRI/CIE
CCT - Range of 2700K- 5000K
Rf = 91.1
Rg = 100.9
Ra = 93.1
R9 = 64.9
93°
Energy and Performance Data
RL4069S1EWHR
Max. Lumens
Input Voltage
Input Frequency
Input Power
Input Current
Power Factor
THD
EMI/RFI
Sound Rating
Minimum Starting
Temp
621 @ 4000K
120V
50/60 Hz
7.6W
0.075A - 0.0875A
(Per input power)
>0.90
<20%
FCC Title 47 CFR,
Part 15,
Class B (Consumer)
Class A
-30°C (-22°F)
RL4099S1EWHR
Max. Lumens
Input Voltage
Input Frequency
Input Power
Input Current
Power Factor
THD
EMI/RFI
Sound Rating
Minimum Starting
Temp
1006 @ 5000K
120V
50/60 Hz
11.7W
0.075A - 0.0875A
(Per input power)
>0.90
<20%
FCC Title 47 CFR,
Part 15,
Class B (Consumer)
Class A
-30°C (-22°F)
Tested in accordance with IES LM63. Field results may vary.
Note: Refer to IES files for more product data.
PS518011EN page 4
November 14, 2019 6:54 PM
Page 5
RL4 Selectable CCT
Photometric Data
180°
170°
180°
160°
20°
10°
0°
170°
160°
20°
10°
0°
265
199
133
66
0
0-deg 45-deg 90-deg
449
337
224
112
0
0-deg 45-deg 90-deg
150°
150°
View IES files
RL4069S1EWHR-CA-3000K
22CZ2-24-UNVL830-CD1-U
140°
40°
30°
Spacing criterion: (0-180) 1.17
Electronic Driver
(90-270) 1.17
130°
120°
Linear LED 5000K
(Diagonal) 1.25
110°
Spacing criterion: (II) 1.23 x
Beam Angle: 93.1°
100°
mounting height, (⊥) 1.23 x mounting
Field Angle: 141.1°
90°
height
Lumens: 576
80°
Lumens: 11493
70°
Input Watts: 6.3 W
Input Watts: 87.7W
60°
Efficacy: 91.4 LPW
50°
Efficacy: 131.1 LPW
Test Report:
Test Report: 22CZ2-24-UNVL830-
RL4069S1EWHR-CA-3000K.ies
CD1-U.IES
RL4099S1EWHR-CA-3000K
22CZ2-24-UNVL830-CD1-U
140°
40°
30°
Spacing criterion: (0-180) 1.17
Electronic Driver
(90-270) 1.17
130°
120°
Linear LED 5000K
(Diagonal) 1.25
110°
Spacing criterion: (II) 1.23 x
Beam Angle: 93°
100°
mounting height, (⊥) 1.23 x mounting
Field Angle: 141.1°
90°
height
Lumens: 967
80°
Lumens: 11493
70°
Input Watts: 9.9 W
Input Watts: 87.7W
60°
Efficacy: 97.7 LPW
50°
Efficacy: 131.1 LPW
Test Report:
Test Report: 22CZ2-24-UNVL830-
RL4099S1EWHR-CA-3000K.ies
CD1-U.IES
Zonal Lumen Lumens % Lumens
0-30
0-40
0-60
0-90
203 35.3
322 56
5 11 88.8
576 100
Zonal Lumen Lumens % Lumens
0-30
0-40
0-60
0-90
341 35.3
542 56
859 88.8
967 100
TM-30-15
CRI/CIE
Rf = 91.1
Rg = 100.9
Ra = 93.1
R9 = 64.9
CCT - Range of 2700K- 5000K
93°
TM-30-15
CRI/CIE
CCT - Range of 2700K- 5000K
Rf = 91.1
Rg = 100.9
Ra = 93.1
R9 = 64.9
93°
Energy and Performance Data
RL4069S1EWHR-CA
Max. Lumens
Input Voltage
Input Frequency
Input Power
Input Current
Power Factor
THD
EMI/RFI
Sound Rating
Minimum Starting
Temp
590 @ 4000K
120V
50/60 Hz
6.3W
0.075A - 0.0875A
(Per input power)
>0.90
<20%
FCC Title 47 CFR,
Part 15,
Class B (Consumer)
Class A
-30°C (-22°F)
RL4099S1EWHR-CA
Max. Lumens
Input Voltage
Input Frequency
Input Power
Input Current
Power Factor
THD
EMI/RFI
Sound Rating
Minimum Starting
Temp
992 @ 5000K
120V
50/60 Hz
9.8W
0.075A - 0.0875A
(Per input power)
>0.90
<20%
FCC Title 47 CFR,
Part 15,
Class B (Consumer)
Class A
-30°C (-22°F)
Cooper Lighting Solutions
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
© 2019 Cooper Lighting Solutions
All Rights Reserved.
Specifications and dimensions
subject to change without notice.
PS518011EN page 5
November 14, 2019 6:54 PM
Loading...
