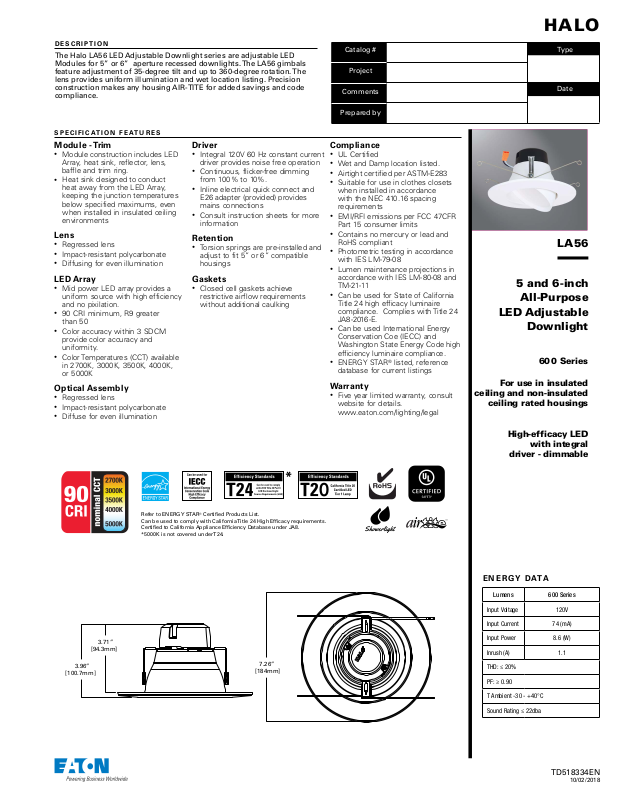

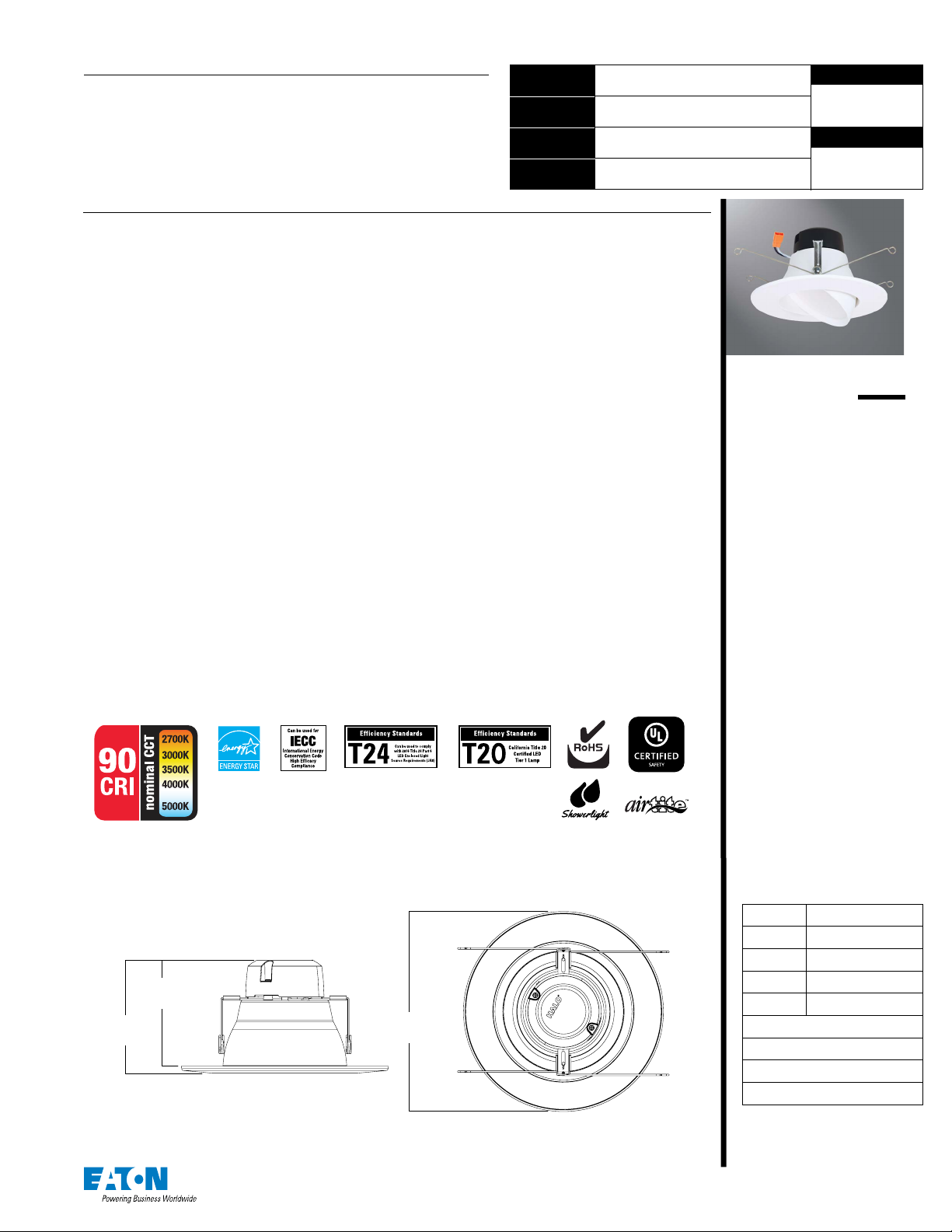

Page 1
DESCRIPTION
The Halo LA56 LED Adjustable Downlight series are adjustable LED
Modules for 5” or 6” aperture recessed downlights. The LA56 gimbals
feature adjustment of 35-degree tilt and up to 360-degree rotation. The
lens provides uniform illumination and wet location listing. Precision
construction makes any housing AIR-TITE for added savings and code
compliance.
SPECIFICATION FEATURES
Module - Trim
•
Module construction includes LED
Array, heat sink, reflector, lens,
baffle and trim ring.
•
Heat sink designed to conduct
heat away from the LED Array,
keeping the junction temperatures
below specified maximums, even
when installed in insulated ceiling
environments
Lens
•
Regressed lens
•
Impact-resistant polycarbonate
•
Diffusing for even illumination
LED Array
•
Mid power LED array provides a
uniform source with high efficiency
and no pixilation.
•
90 CRI minimum, R9 greater
Driver
•
Integral 120V 60 Hz constant current
driver provides noise free operation
•
Continuous, flicker-free dimming
from 100% to 10%.
•
Inline electrical quick connect and
E26 adapter (provided) provides
mains connections
•
Consult instruction sheets for more
information
Retention
•
Torsion springs are pre-installed and
adjust to fit 5” or 6” compatible
housings
Gaskets
•
Closed cell gaskets achieve
restrictive airflow requirements
without additional caulking
than 50
•
Color accuracy within 3 SDCM
provide color accuracy and
uniformity.
•
Color Temperatures (CCT) available
in 2700K, 3000K, 3500K, 4000K,
or 5000K
Optical Assembly
•
Regressed lens
•
Impact-resistant polycarbonate
•
Diffuse for even illumination
Catalog #
Project
Comments
Prepared by
Compliance
•
UL Certified
•
Wet and Damp location listed.
•
Airtight certified per ASTM-E283
•
Suitable for use in clothes closets
when installed in accordance
with the NEC 410.16 spacing
requirements
•
EMI/RFI emissions per FCC 47CFR
Part 15 consumer limits
•
Contains no mercury or lead and
RoHS compliant
•
Photometric testing in accordance
with IES LM-79-08
•
Lumen maintenance projections in
accordance with IES LM-80-08 and
TM-21-11
•
Can be used for State of California
Title 24 high efficacy luminaire
compliance. Complies with Title 24
JA8-2016-E.
•
Can be used International Energy
Conservation Coe (IECC) and
Washington State Energy Code high
efficiency luminaire compliance.
•
ENERGY STAR® listed, reference
database for current listings
Warranty
•
Five year limited warranty, consult
website for details.
www.eaton.com/lighting/legal
HALO
Type
Date
LA56
5 and 6-inch
All-Purpose
LED Adjustable
Downlight
600 Series
For use in insulated
ceiling and non-insulated
ceiling rated housings
3.96”
[100.7mm]
3.71”
[94.3mm]
*
Refer to ENERGY STAR® Certified Products List.
Can be used to comply with California T itle 24 High Efficacy requirements.
Certified to California Appliance Efficiency Database under JA8.
*5000K is not covered under T24.
7.26”
[184mm]
High-efficacy LED
with integral
driver - dimmable
ENERGY DATA
Lumens 600 Series
Input Voltage 120V
Input Current 74 (mA)
Input Power 8.6 (W)
Inrush (A) 1.1
THD: ≤ 20%
PF: ≥ 0.90
T Ambient -30 - +40°C
Sound Rating ≤ 22dba
TD518334EN
10/02/2018

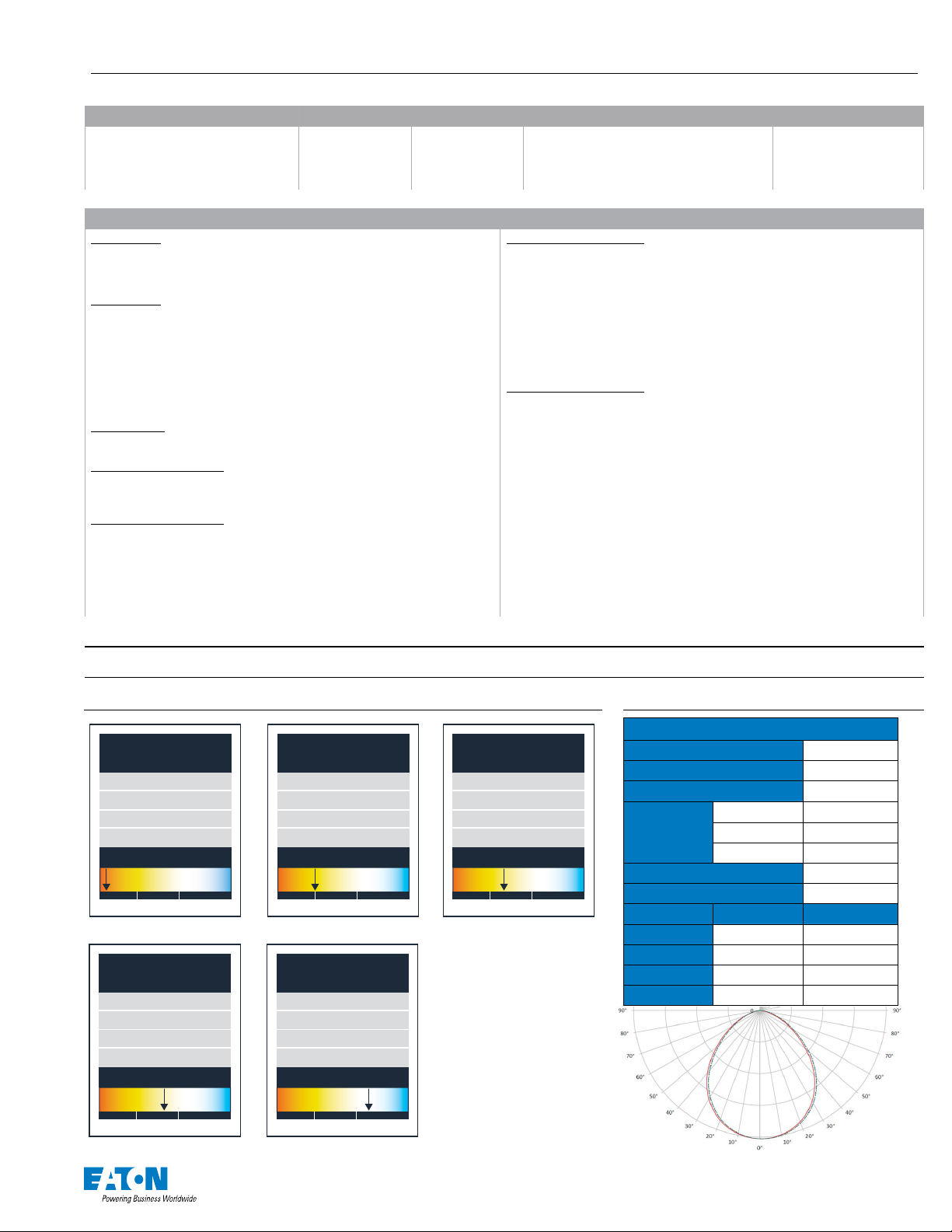

Page 2
Lumens 637
Watts 8.7
Lumens Per Watt
(Efficacy) 73.3
Color Accuracy
(CRI) 92
PRODUCT
SPECIFICATIONS
2700K 3000K 4500K 6500K
Light Color (CCT) 3000K
Correlated Color Temperature (CCT)
warm white soft white bright white
Lumens 640
Watts 8.6
Lumens Per Watt
(Efficacy) 74.4
Color Accuracy
(CRI) 92
PRODUCT
SPECIFICATIONS
2700K 3000K 4500K 6500K
Light Color (CCT) 3500K
Correlated Color Temperature (CCT)
warm white soft white bright white
(Efficacy) 71.4
Lumens 637
Watts 8.7
Lumens Per Watt
(Efficacy) 73.3
Color Accuracy
(CRI) 92
PRODUCT
SPECIFICATIONS
2700K 3000K 4500K 6500K
Light Color (CCT) 3000K
Correlated Color Temperature (CCT)
warm white soft white bright white
Lumens 640
Watts 8.6
Lumens Per Watt
(Efficacy) 74.4
Color Accuracy
(CRI) 92
PRODUCT
SPECIFICATIONS
2700K 3000K 4500K 6500K
Light Color (CCT) 3500K
Correlated Color Temperature (CCT)
warm white soft white bright white
Lumens 630
Watts 8.6
Lumens Per Watt
(Efficacy) 73.3
Color Accuracy
(CRI) 92
PRODUCT
SPECIFICATIONS
2700K 3000K 4500K 6500K
Light Color (CCT) 5000K
Correlated Color Temperature (CCT)
warm white soft white bright white
(Efficacy) 73.3
Lumens 640
Watts 8.6
Lumens Per Watt
(Efficacy) 74.4
Color Accuracy
(CRI) 92
PRODUCT
SPECIFICATIONS
2700K 3000K 4500K 6500K
Light Color (CCT) 3500K
Correlated Color Temperature (CCT)
warm white soft white bright white
Lumens 640
Watts 8.6
Lumens Per Watt
(Efficacy) 74.4
Color Accuracy
(CRI) 92
PRODUCT
SPECIFICATIONS
2700K 3000K 4500K 6500K
Light Color (CCT) 3500K
Correlated Color Temperature (CCT)
warm white soft white bright white
ORDERING INFORMATION
SAMPLE NUMBER: LA56069301EWH
A complete luminaire consists of a housing and LED module, order separately
Models Lumens CRI / CCT Driver Finish
LA56 = 5-Inch/6-Inch LED Adjustable Gimbal 06=600 lumen
(nominal)
927=90 CRI, 2700K
930=90 CRI, 3000K
935=90 CRI, 3500K
940=90 CRI, 4000K
950=90 CRI, 5000K
1E= 120V 60Hz leading or trailing edge phase cut 10%
dimming
WH= matte white baffle
Housings
Halo LED 5-inch
H550ICAT= 5” LED, Insulated Ceiling, Air-Tite, New Construction Housing
H550RICAT= 5” LED, Insulated Ceiling, Air-Tite, Remodel Housing
E550ICAT= 5” LED, Insulated Ceiling , Air-Tite, New Construction Housing
E550RICAT= 5” LED, Insulated Ceiling , Air-Tite, Remodel Housing
Halo LED 6-inch
H750ICAT= 6” LED, Insulated Ceiling, Air-Tite, New Construction Housing
H750RICAT= 6” LED, Insulated Ceiling, Air-Tite, Remodel Housing
H750T= 6” LED, Non-IC, Air-Tite, New Construction Housing
H750TCP= 6” LED, Non-IC, New Construction/Remodel Chicago Plenum Housing
H2750ICAT= 6” LED, Shallow, Insulated Ceiling, Air-Tite, New Construction (use with 691X,
694X, 696X trims only)
H2750RICAT= 6” LED, Shallow, Insulated Ceiling, Air-Tite, Remodel (use with 691X, 694X, 696X
trims only)
E750ICAT= 6” LED, Insulated Ceiling , Air-Tite, New Construction Housing
E750RICAT= 6” LED, Insulated Ceiling , Air-Tite, Remodel Housing
Halo LED retrofit
ML7E26RFK= 6” Retrofit Enclosure, Non-IC, E26 Screw base Interface
ML7BXFK= 6” Retrofit Enclosure, Non-IC, BX Whip
Halo Shallow Housings 5-inch
H25ICAT= 5” Shallow, Insulated Ceiling, Air-Tite New Construction
H25RICAT= 5” Shallow, Insulated Ceiling, Air-Tite Remodel
H25ICATNB= 5” Shallow, Insulated Ceiling, Air-Tite New Construction, No Socket Bracket
Halo Shallow Housings 6-inch
H27ICAT= 6” Shallow, Insulated Ceiling, Air-Tite New Construction
H27RICAT= 6” Shallow, Insulated Ceiling, Air-Tite Remodel Housing
H27T= 6” Shallow, Non-IC, New Construction Housing
H27RT= 6” Shallow, Non-IC, Remodel Housing
E27ICAT= 6” Shallow, Insulated Ceiling, Air-Tite New Construction
E27RICAT= 6” Shallow, Insulated Ceiling, Air-Tite Remodel Housing
E27TAT= 6” Shallow, Non-IC, New Construction Housing
E27RTAT= 6” Shallow, Non-IC, Remodel Housing
Halo Standard Housings 5-inch
H5ICAT= 5” Insulated Ceiling, Air-Tite New Construction Housing
H5RICAT= 5” Insulated Ceiling, Air-Tite Remodel Housing
H5ICATNB= 5” Insulated Ceiling, Air-Tite New Construction Housing, No Socket Bracket
H5T= 5” Non-IC, New Construction Housing
H5RT= 5” Non-IC, Remodel Housing
H5TNB= 5” Non-IC, New Construction Housing, No Socket Bracket
E5ICAT= 5” Insulated Ceiling, Air-Tite New Construction Housing
E5RICAT= 5” Insulated Ceiling, Air-Tite Remodel Housing
E5ICATNB= 5” Insulated Ceiling, Air-Tite New Construction Housing, No Socket Bracket
E5TAT= 5” Non-IC, New Construction Housing
E5RTAT= 5” Non-IC, Remodel Housing
E5TATNB= 5” Non-IC, New Construction Housing, No Socket Bracket
Halo Standard Housings 6-inch
H7ICAT= 6” Insulated Ceiling, Air-Tite New Construction Housing
H7RICAT= 6” Insulated Ceiling, Air-Tite Remodel Housing
H7ICT= 6” Insulated Ceiling, New Construction Housing
H7RICT= 6” Insulated Ceiling, Remodel Housing
H7ICATNB= 6” Insulated Ceiling, Air-Tite New Construction Housing, No Socket Bracket
H7ICTNB= 6” Insulated Ceiling, New Construction Housing, No Socket Bracket
H7T= 6” Non-IC, New Construction Housing
H7RT= 6” Non-IC, Remodel Housing
H7TNB= 6” Non-IC, New Construction Housing, No Socket Bracket
H7TCP= 6” Non-IC, Chicago Plenum, New Construction/Remodel Housing
H7UICAT= 6” Insulated Ceiling, Universal, Air-Tite, New Construction Housing
E7ICAT= 6” Insulated Ceiling, Air-Tite New Construction Housing
E7RICAT= 6” Insulated Ceiling, Air-Tite Remodel Housing
E7ICATNB= 6” Insulated Ceiling, Air-Tite New Construction Housing, No Socket Bracket
E7TAT= 6” Non-IC, New Construction Housing
E7RTAT= 6” Non-IC, Remodel Housing
E7TATNB= 6” Non-IC, New Construction Housing, No Socket Bracket
LA56
LA56 Series LED Retrofit is UL Classified for retrofit in the following 5”/6" recessed housings:
The LA56 Series LED light module - trim combination is UL Certified for use with any 5"/6" diameter recessed housing constructed of steel or aluminum with an internal volume that exceeds 107.9 in3 in addition
to those noted above.
Product Specifications
Photometric Data*
LA56069301EWH
PRODUCT
SPECIFICATIONS
Lumens 614
Watts 8.6
Lumens Per Watt
Color Accuracy
Light Color (CCT) 2700K
Correlated Color Temperature (CCT)
warm white soft white bright white
2700K 3000K 4500K 6500K
(Efficacy) 71.4
(CRI) 91
PRODUCT
SPECIFICATIONS
Lumens 640
Watts 8.6
Lumens Per Watt
Color Accuracy
Light Color (CCT) 4000K
Correlated Color Temperature (CCT)
warm white soft white bright white
2700K 3000K 4500K 6500K
(Efficacy) 74.4
(CRI) 92
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
PRODUCT
SPECIFICATIONS
Lumens 637
Watts 8.7
Lumens Per Watt
Color Accuracy
Light Color (CCT) 3000K
Correlated Color Temperature (CCT)
warm white soft white bright white
2700K 3000K 4500K 6500K
(Efficacy) 73.3
(CRI) 92
PRODUCT
SPECIFICATIONS
Lumens 630
Watts 8.6
Lumens Per Watt
Color Accuracy
Light Color (CCT) 5000K
Correlated Color Temperature (CCT)
warm white soft white bright white
2700K 3000K 4500K 6500K
(Efficacy) 73.3
(CRI) 92
Specifications and
dimensions subject to
change without notice.
SPECIFICATIONS
Lumens 640
Watts 8.6
Lumens Per Watt
Color Accuracy
Light Color (CCT) 3500K
Correlated Color Temperature (CCT)
warm white soft white bright white
2700K 3000K 4500K 6500K
PRODUCT
(Efficacy) 74.4
(CRI) 92
Luminaire lumens 637
Input watts 8.7
LER (LPW) 73.2
0-180 1.22
Spacing
Criteria
90-270 1.25
Diagonal 1.28
Beam angle (degrees) 95.4
Field angle (degrees) 146.4
Zonal lumen Lumens % Lumens
0-30 215 33.8
0-40 344 54
0-60 555 87.1
0-90 637 100
* Tested in accordance with IES LM63. Field results may vary.
