DESCRIPTION

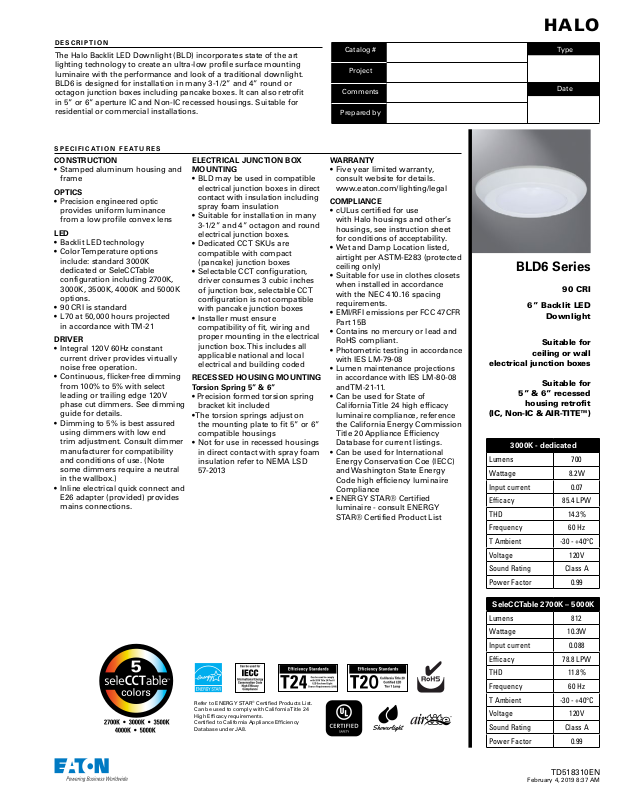

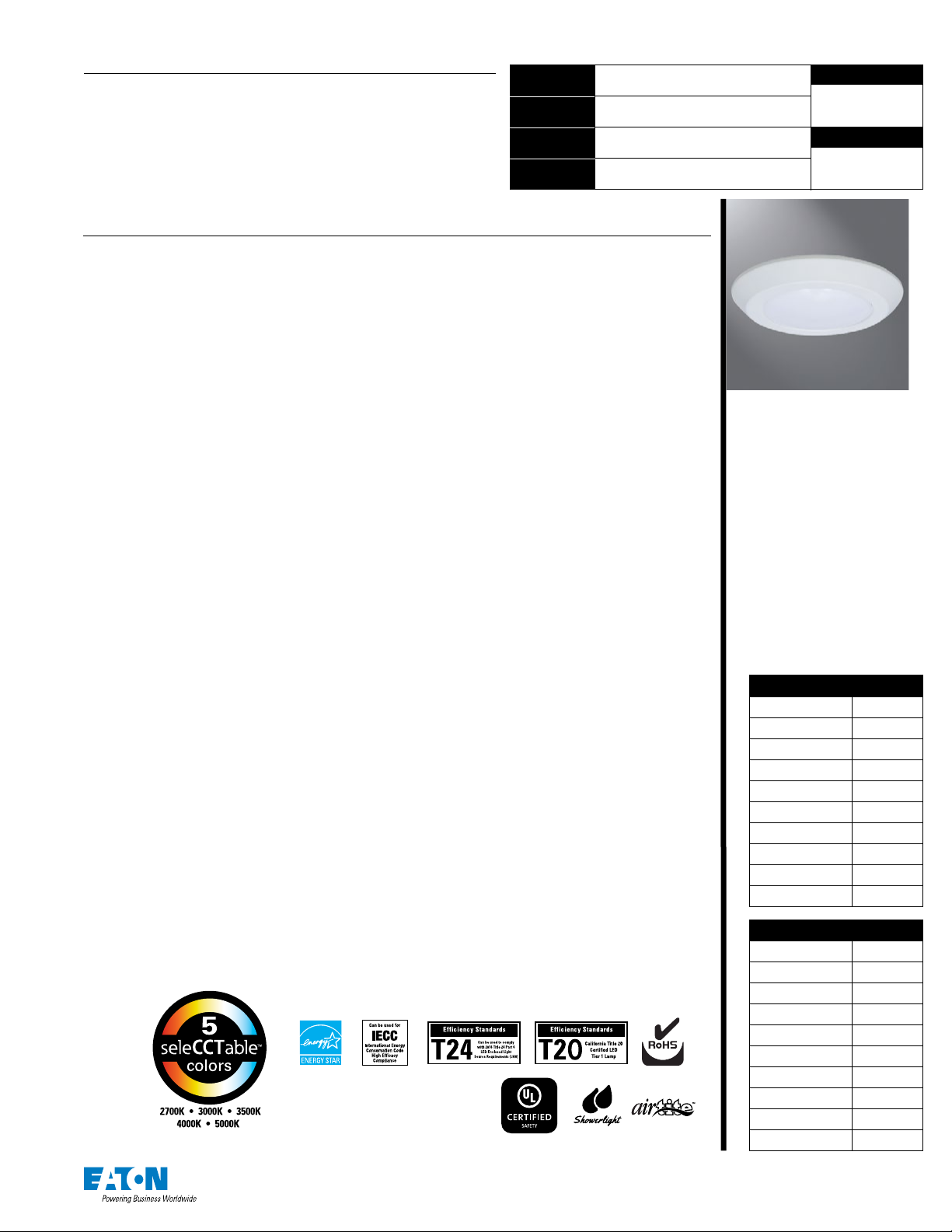

The Halo Backlit LED Downlight (BLD) incorporates state of the art
lighting technology to create an ultra-low profile surface mounting
luminaire with the performance and look of a traditional downlight.
BLD6 is designed for installation in many 3-1/2” and 4” round or
octagon junction boxes including pancake boxes. It can also retrofit
in 5” or 6” aperture IC and Non-IC recessed housings. Suitable for
residential or commercial installations.
SPECIFICATION FEATURES
CONSTRUCTION
• Stamped aluminum housing and
frame
OPTICS
• Precision engineered optic
provides uniform luminance
from a low profile convex lens
LED
• Backlit LED technology
• Color Temperature options
include: standard 3000K
dedicated or SeleCCTable
configuration including 2700K,
3000K, 350 0K, 4000K and 5000K
options.
• 90 CRI is standard
• L70 at 50,000 hours projected
in accordance with TM-21
DRIVER
• Integral 120V 60Hz constant
current driver provides virtually
noise free operation.
• Continuous, flicker-free dimming
from 100% to 5% with select
leading or trailing edge 120V
phase cut dimmers. See dimming
guide for details.
• Dimming to 5% is best assured
using dimmers with low end
trim adjustment. Consult dimmer
manufacturer for compatibility
and conditions of use. (Note
some dimmers require a neutral
ELECTRICAL JUNCTION BOX
MOUNTING
• BLD may be used in compatible
electrical junction boxes in direct
contact with insulation including
spray foam insulation
• Suitable for installation in many
3-1/2” and 4” octagon and round
electrical junction boxes.
• Dedicated CCT SKUs are
compatible with compact
(pancake) junction boxes
• Selectable CCT configuration,
driver consumes 3 cubic inches
of junction box, selectable CCT
configuration is not compatible
with pancake junction boxes
• Installer must ensure
compatibility of fit, wiring and
proper mounting in the electrical
junction box. This includes all
applicable national and local
electrical and building coded
RECESSED HOUSING MOUNTING
Torsion Spring 5” & 6”
• Precision formed torsion spring
bracket kit included
• The torsion springs adjust on
the mounting plate to fit 5” or 6”
compatible housings
• Not for use in recessed housings
in direct contact with spray foam
insulation refer to NEMA LSD
57-2013
in the wallbox.)
• Inline electrical quick connect and
E26 adapter (provided) provides
mains connections.
Catalog #
Project
Comments
Prepared by
WARRANTY
• Five year limited warranty,
consult website for details.
www.eaton.com/lighting/legal
COMPLIANCE
• cULus certified for use
with Halo housings and other’s
housings, see instruction sheet
for conditions of acceptability.
• Wet and Damp Location listed,
airtight per ASTM-E283 (protected
ceiling only)
• Suitable for use in clothes closets
when installed in accordance
with the NEC 410.16 spacing
requirements.
• EMI/RFI emissions per FCC 47CFR
Part 15B
• Contains no mercury or lead and
RoHS compliant.
• Photometric testing in accordance
with IES LM-79-08
• Lumen maintenance projections
in accordance with IES LM-80-08
and TM-21-11.
• Can be used for State of
California Title 24 high efficacy
luminaire compliance, reference
the California Energy Commission
Title 20 Appliance Efficiency
Database for current listings.
• Can be used for International
Energy Conservation Coe (IECC)
and Washington State Energy
Code high efficiency luminaire
Compliance
• ENERGY STAR® Certified
luminaire - consult ENERGY
STAR® Certified Product List
HALO
Type
Date
BLD6 Series
90 CRI
6” Backlit LED
Downlight
Suitable for
ceiling or wall
electrical junction boxes
Suitable for
5” & 6” recessed
housing retrofit
(IC, Non-IC & AIR-TITE™)
3000K - dedicated
Lumens 700
Wattage 8.2W
Input current 0.07
Efficacy 85.4 LPW
THD 14.3%
Frequency 60 Hz
T Ambient -30 - +40°C
Voltage 120V
Sound Rating Class A
Power Factor 0.99
Refer to ENERGY STAR® Certified Products List.
Can be used to comply with California T itle 24
High Efficacy requirements.
Certified to California Appliance Efficiency
Database under JA8.
SeleCCTable 2700K – 5000K
Lumens 812
Wattage 10.3W
Input current 0.088
Efficacy 78.8 LPW
THD 11.8%
Frequency 60 Hz
T Ambient -30 - +40°C
Voltage 120V
Sound Rating Class A
Power Factor 0.99
TD518310EN
February 4, 2019 8:37 AM
Page 2
HALO

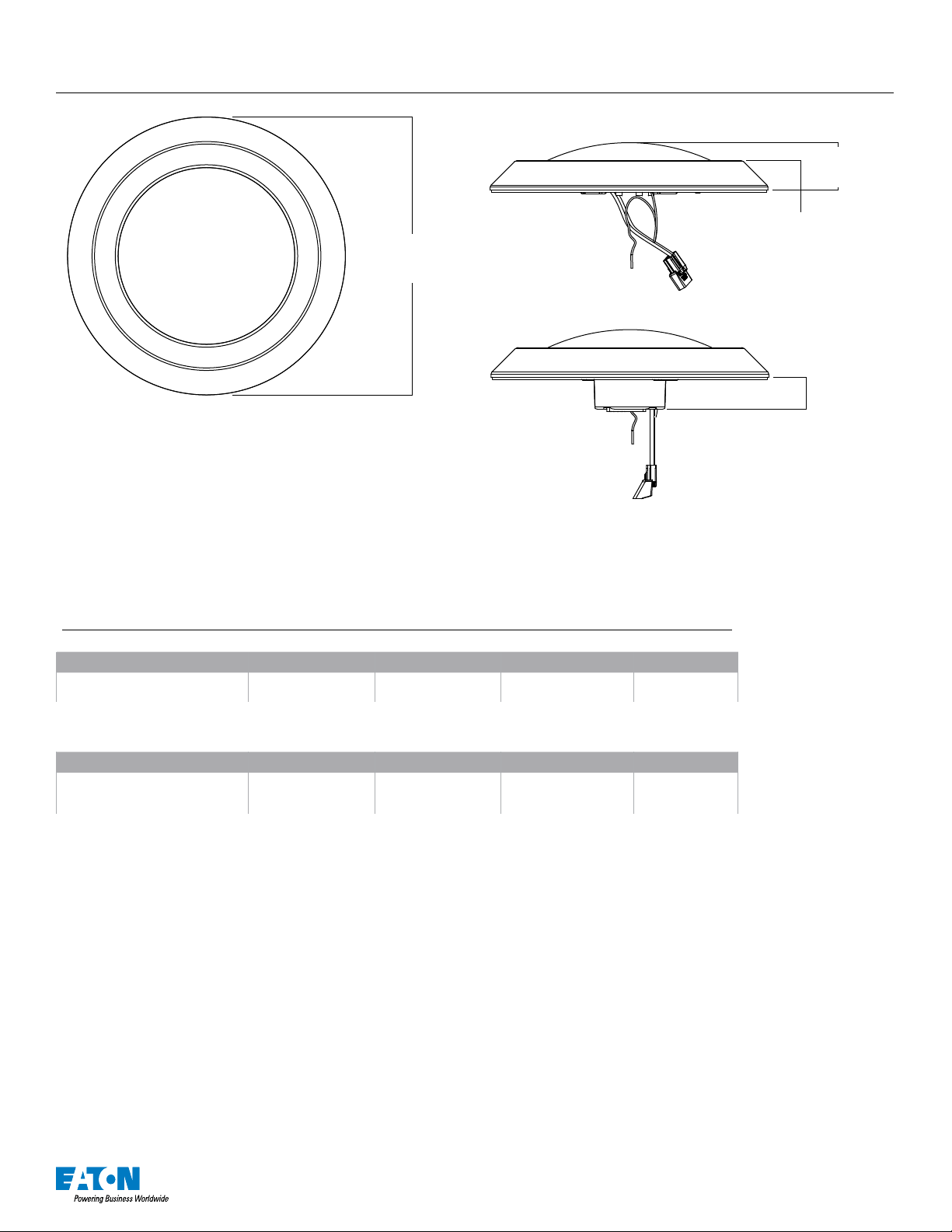

DIMENSIONS
7-3/4”
[196mm]
FIXED CCT
BLD606930WH
SELECTABLE CCT
BLD6089SWH
BLD6 Series
1-5/16”
[34mm]
13/16”
[21mm]
7/8”
[22.5mm]
ORDERING INFORMATION
SAMPLE NUMBER: BLD606930WH = 6” Backlit LED Downlight, 90CRI, 3000K
Models Lumens CRI / CCT Finish Voltage
BLD6 = 6” Backlit LED Downlight 06=600 lumen series 930=90CRI, 3000K WH= Matte White Blank= 120V
SAMPLE NUMBER: BLD6089SWH = 6” Backlit LED Downlight, 90CRI, SeleCCTable CCT
Models Lumens CRI / CCT Finish Voltage
BLD6 = 6” Backlit LED Downlight 08=800 lumen series 9S=90 CRI, SeleCCTable
2700K, 3000K, 3500K,
4000K & 5000K
WH= Matte White Blank= 120V
Page 3
HALO

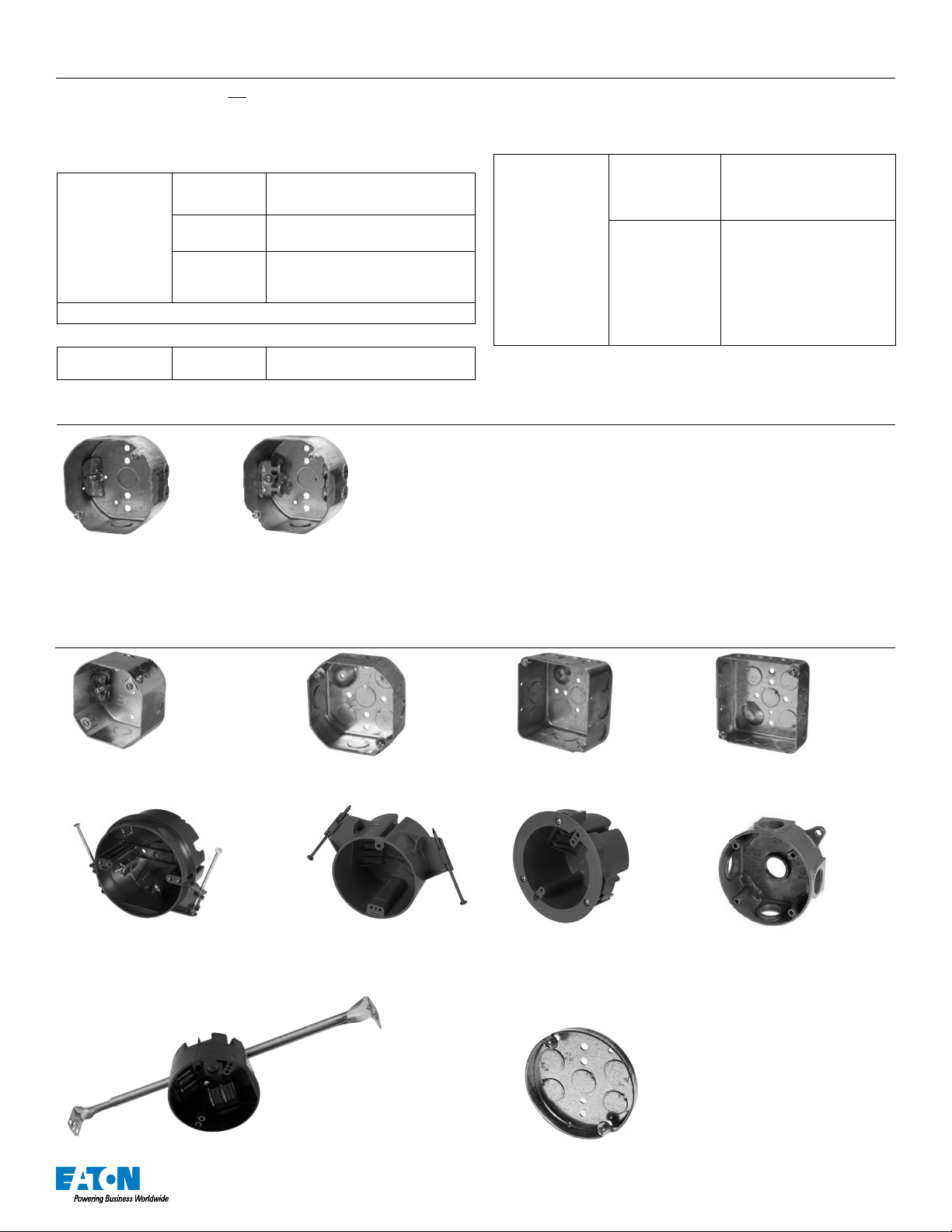

HOUSING COMPATIBILITY
The BLD6 is UL Certified for use with any 5 or 6 inch diameter recessed housing constructed of steel or aluminum with an internal volume that exceeds 107.9 in3 in addition to those
noted below. Note: Some other’s housings require installation with included friction clips.
BLD6 Series
Compatible Halo LED Housings with LED luminaire connector
(high-efficacy compliant)
HALO
LED
Recessed
Can Size
5"
6"
Catalog Number
H550ICAT, H550RICAT, E550ICAT,
E550RICAT
H750ICAT, H750RICAT, H750T,
H750RINTD010, H750TCP, H2750ICAT,
H2750RICAT, E750ICAT, E750RICAT
Halo LED Retrofit Enclosures
HALO 6"
COMPATIBLE WITH EATON’S CROUSE-HINDS JUNCTION BOXES
TP316
for non-metallic cable
4” x 4” x 2-1/8”
(102mm x 102mm x 54mm)
ML7BXRFK, ML7E26RFK
• TP316 - for non-metallic cable
• TP317 - for metal clad cable
• UL Listed
• Refer to www.crouse-hinds.com
TP317
for metal clad cable
4” x 4” x 2-1/8”
(102mm x 102mm x 54mm)
Compatible Halo Incandescent E26 Screwbase Housings
H5ICAT, H5RICAT, H5ICATNB, H5T,
5"
HALO
6"
H5RT, H25ICAT, H25ICATNB, E5TAT,
E5RTAT, H5TNB, E5TATNB, E5ICAT,
E5RICAT, E5ICATNB
H7ICAT, H7RICAT, H7ICT, H7RICT,
H7ICATNB, H7ICTNB, H7T,
H7RT, H7TNB, H7TCP, H7UICT,
H7UICAT, H27ICAT, H27RICAT,
H27T, H27RT, E7ICAT, E7RICAT,
E27ICAT, E27RICAT, E7ICATNB,
E7TAT, E7RTAT, E7TATNB, E27TAT,
E27RTAT
COMPATIBLE WITH MANY OTHER JUNCTION BOXES*
4" octagon light fixture/fan steel box
4" x 4" x 2-1/8"
(102mm x 102mm x 54mm)
4" round new work non-metallic
light fixture/fan box
4" diameter x 2-3/16"
(102mm x 56mm)
4" octagon steel box
4" x 4" x 1-1/2"
(102mm x 102mm x 38mm)
3-1/2" round new work
non-metallic ceiling box
3-1/2" diameter x 2-3/4"
(89mm x 70mm)
4" round new work non-metallic box
with hanger bar assembly
4" diameter x 2-3/16" (102mm x 56mm)
4" square deep steel box
4" x 4" x 2-1/8"
(102mm x 102mm x 54mm)
3-1/2" round old work
non-metallic box
4-1/4" O.D. flange, 3-1/2" I.D. x 2-5/8”
(108mm O.D., 89mm I.D. x 67mm)
Round ceiling pan
4” diameter x 13/16”
(102mm x 21mm)
Note: only compatible with fixed CCT BLD606930
4" square standard steel box
4" x 4" x 1-1/2"
(102mm x 102mm x 38mm)
4” round surface mount box
4" diameter x 1-1/2”
(102mm x 38mm)
*This is a representative list of compatible junction boxes only. Information contained in this literature about other manufacturers’ products is from published information made available
by the manufacturer and is deemed to be reliable, but has not been verified. Eaton makes no specific recommendation on product selection and there are no warranties of performance or
compatibility implied. Installer must determine that site conditions are suitable to allow proper installation of the mounting bracket in the box.
Page 4
HALO

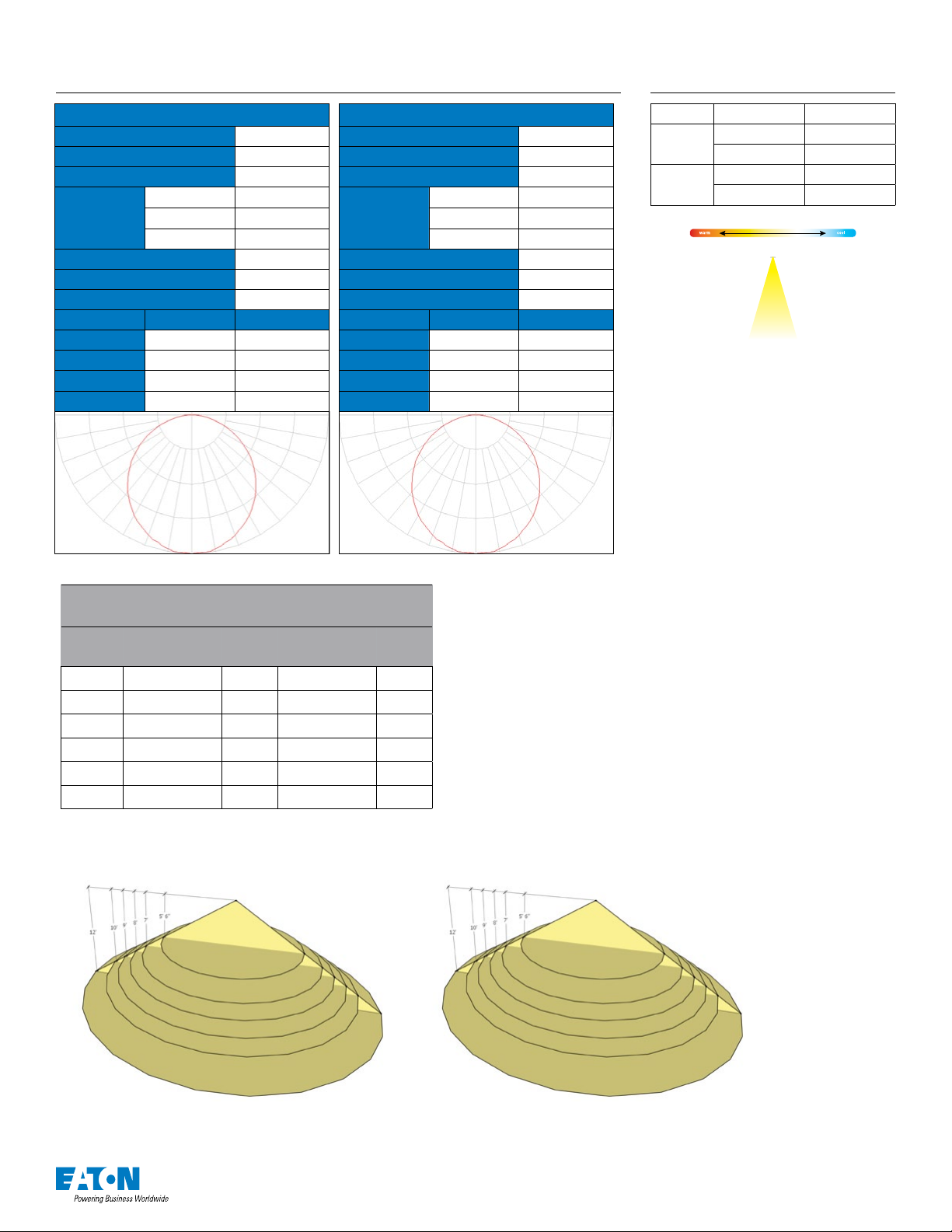

PHOTOMETRIC DATA COLOR METRIC SUMMARY
BLD6 Series
BLD606930WH
Luminaire lumens 700
Input watts 8.2
LER (LPW) 85.4
Spacing
Criteria
Beam angle (degrees) 112.3
Field angle (degrees) 170.2
Max. Candela 235.8
Zonal lumen Lumens % Lumens
0-30
0-40 298
0-60 527
0-90 700
0-180 1.26
90-270 1.26
Diagonal 1.38
182 26.0%
42.5%
75.3%
100.00%
BLD6089SWH
Luminaire lumens 812
Input watts 10.3
LER (LPW) 78.8
Spacing
Criteria
Beam angle (degrees) 108.5
Field angle (degrees) 170.3
Max. Candela 283.5
Zonal lumen Lumens % Lumens
0-30
0-40 352
0-60 615
0-90 812
0-180 1.24
90-270 1.24
Diagonal 1.36
217 26.7%
43.4%
75.7%
100.00%
TM-30-15
CRI/CIE
BLD606930WH BLD6089SWH
f = 92.1 Rf = 92.5
R
g = 102 Rg = 102
R
a = 93 Ra = 93
R
9 = 77 R9 = 76
R
CCT - Range of 2700K- 5000K
93°
Foot-candle Values at Nadir
0 degree Aiming Angle
DD
(FT)
BLD606930WH
(FC)
DIA
(FT)
BLD6089SWH
(FC)
5.5 7.8 6.8 9.4 6.6
7 4.8 8.6 5.8 8.4
8 3.7 9.8 4.4 9.6
9 2.9 11.2 3.5 11
10 2.4 12.4 2.8 12.2
12 1.6 14.8 2.0 14.6
DD = distance down to illuminated work plane
FC = initial foot-candles at nadir
DIA = diameter
BLD606930WH
7.8 FC
4.8 FC
3.7 FC
2.9 FC
2.4 FC
DIA
(FT)
BLD6089SWH
9.4 FC
5.8 FC
4.4 FC
3.5 FC
2.8 FC
1.6 FC
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
