Cooper Lighting LLC CPK10360 Specifications

Download

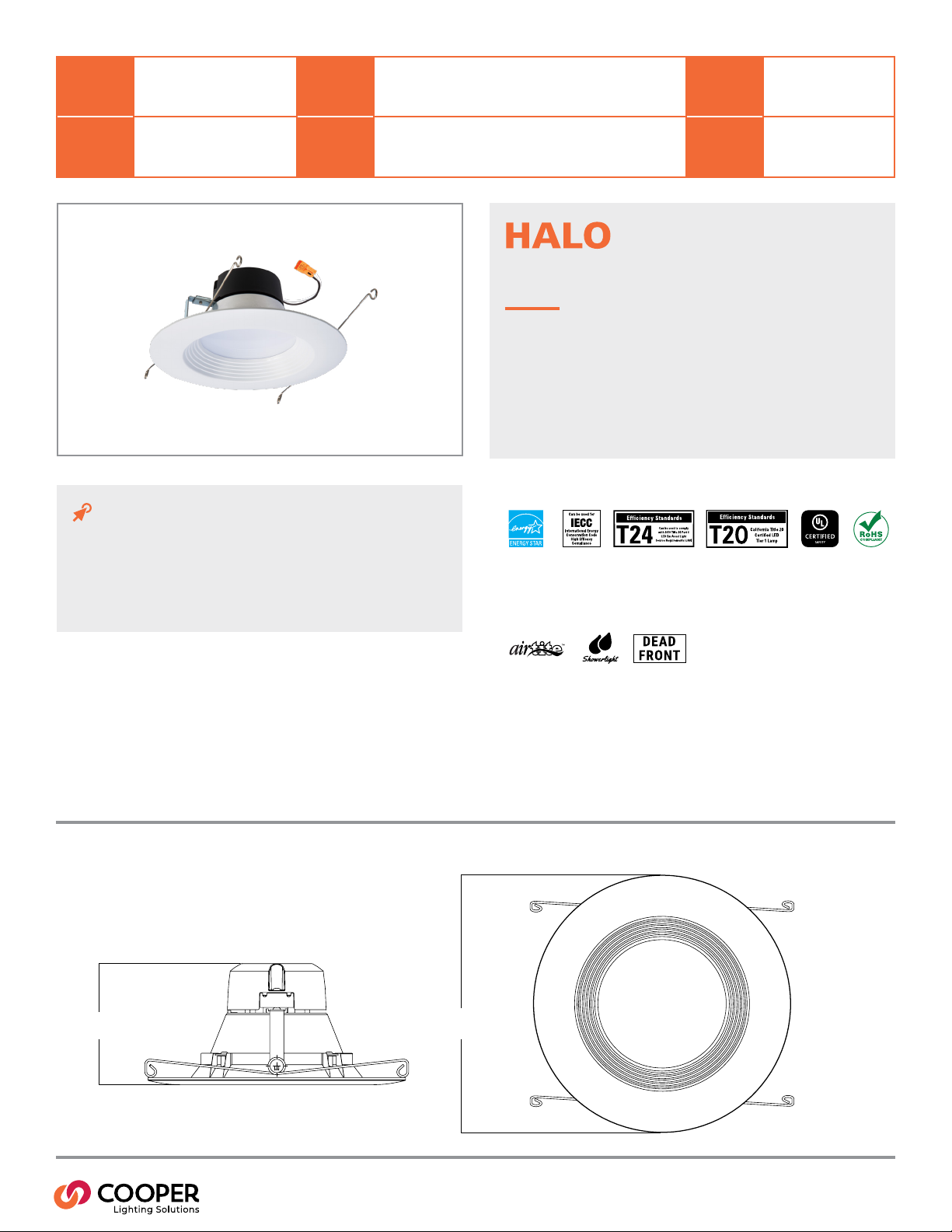

Page 1

Project Catalog # Type

Prepared by Notes Date

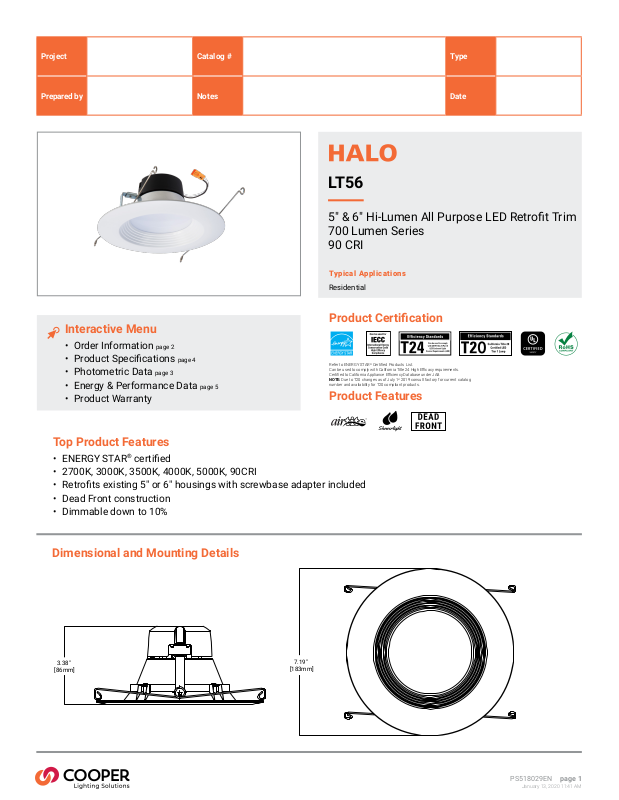

LT56

5" & 6" Hi-Lumen All Purpose LED Retrot Trim 700 Lumen Series

90 CRI

Typical Applications

Residential

Product Certication

Interactive Menu

• Order Information page 2

• Product Specications page 4

• Photometric Data page 3

• Energy & Performance Data page 5

• Product Warranty

Refer to ENERGY STAR® Certied Products List.

Can be used to comply with California Title 24 High Ecacy requirements. Certied to California Appliance Eciency Database under JA8. NOTE: Due to T20 changes as of July 1 number and availability for T20 compliant products.

2019 consult factory for current catalog

Product Features

Top Product Features

• ENERGY STAR® certied

• 2700K, 3000K, 3500K, 4000K, 5000K, 90CRI

• Retrots existing 5" or 6" housings with screwbase adapter included

• Dead Front construction

• Dimmable down to 10%

Dimensional and Mounting Details

3.38"

[86mm]

7.19"

[183mm]

PS518029EN page 1

January 13, 2020 11:41 AM

Page 2

Order Information

SAMPLE ORDER NUMBER: LT560WH6930R

A complete luminaire consists of a housing and a LED integrated trim, order separately.

LT56

Module

Module Finish Lumens CRI/CCT Accessories

LT560 = 5" and 6" integrated LED trim

HE26LED = Replacement medium base (E26) screw base adapter (one included with unit)

Halo LED H550ICAT = 5" LED, Insulated Ceiling, Air-Tite, New Construction Housing H550RICAT = 5" LED, Insulated Ceiling, Air-Tite, Remodel Housing

Finish Lumens CRI/CCT Packaging T20 Compliant

WH = matte white 6 = 600 lumen series (nominal) 927 = 90 CRI (minimum), 2700K CCT

Compatible Halo LED Housings with LED Luminaire Connector (high-ecacy compliant – Title 24)

Accessories

Housing Compatibility

H750ICAT = 6” LED, Insulated Ceiling, Air-Tite, New Construction Housing H750RICAT = 6” LED, Insulated Ceiling, Air-Tite, Remodel Housing H750T = 6” LED, Non-IC, Air-Tite, New Construction Housing H750TCP = 6” LED, Non-IC, New Construction/Remodel Chicago Plenum Housing H2750ICAT = 6” LED, Shallow, Insulated Ceiling, Air-Tite, New Construction (use with 691X, 694X, 696X trims only H2750RICAT = 6” LED, Shallow, Insulated Ceiling, Air-Tite, Remodel (use with 691X, 694X, 696X trims only)

930 = 90 CRI (minimum), 3000K CCT 935 = 90 CRI (minimum), 3500K CCT 940 = 90 CRI (minimum), 4000K CCT 950 = 90 CRI (minimum), 5000K CCT

R = Recyclable -CA = California

Halo LED Retrot Enclosures

ML7BXRFK = 6" Retrot Enclosure, Non-IC, BX Whip ML7E26RFK = 6" Retrot Enclosure, Non-IC, E26 Screw base Interface

Halo LED Retrot Enclosures

H5ICAT = 5" Insulated Ceiling, Air-Tite New Construction Housing H5ICATNB = 5" Insulated Ceiling, Air-Tite New Construction Housing, No Socket Bracket H5RICAT = 5" Insulated Ceiling, Air-Tite Remodel Housing H5T = 5" Non-IC, New Construction Housing H5TNB = 5" Non-IC, New Construction Housing, No Socket Bracke H5RT = 5"Non-IC, Remodel Housing H5TM = 5" Hi-Lumen All Purpose LED Retrot Trim H25ICAT = 5" Shallow, Insulated Ceiling, Air-Tite New Construction H25ICATNB = 5" Shallow, Insulated Ceiling, Air-Tite New Construction, No Socket Bracket E5ICAT = 5" Insulated Ceiling, Air-Tite New Construction Housing E5ICATNB = 5" Insulated Ceiling, Air-Tite New Construction Housing, No Socket Bracket E5RICAT = 5" Insulated Ceiling, Air-Tite Remodel Housing E5 RTAT = 5" Non-IC, Remodel Housing E5 TAT = 5" Non-IC, New Construction Housing E5TATNB = 5" Non-IC, New Construction Housing, No Socket Bracket

Housing Compatibility

Halo LED Retrot Enclosures

Housing Compatibility

Halo LED Retrot Enclosures

H7ICAT = 6" Hi-Lumen All Purpose LED Retrot Trim HH7RICAT = 6" Hi-Lumen All Purpose LED Retrot Trim H7ICT = 6" Hi-Lumen All Purpose LED Retrot Trim H7RICT = 6" Hi-Lumen All Purpose LED Retrot Trim H7ICATNB = 6" Hi-Lumen All Purpose LED Retrot Trim H7ICTNB = 6" Hi-Lumen All Purpose LED Retrot Trim H7T = 6" Hi-Lumen All Purpose LED Retrot Trim H7RT = 6" Hi-Lumen All Purpose LED Retrot Trim H7TNB = 6" Hi-Lumen All Purpose LED Retrot Trim H7TCP = 6" Hi-Lumen All Purpose LED Retrot Trim H7UICT = 6" Hi-Lumen All Purpose LED Retrot Trim H7UICAT = 6" Hi-Lumen All Purpose LED Retrot Trim H27ICAT = 6" Hi-Lumen All Purpose LED Retrot Trim H27RICAT = 6" Hi-Lumen All Purpose LED Retrot Trim HH27RICT = 6" Hi-Lumen All Purpose LED Retrot Trim H27T = 6" Hi-Lumen All Purpose LED Retrot Trim H27RT = 6" Hi-Lumen All Purpose LED Retrot Trim E27ICAT = 6" Hi-Lumen All Purpose LED Retrot Trim E27RICAT = 6" Hi-Lumen All Purpose LED Retrot Trim E27RTAT = 6" Hi-Lumen All Purpose LED Retrot Trim E27TAT = 6" Hi-Lumen All Purpose LED Retrot Trim E7ICAT = 6" Hi-Lumen All Purpose LED Retrot Trim E7ICATNB = 6" Hi-Lumen All Purpose LED Retrot Trim E7RICAT = 6" Hi-Lumen All Purpose LED Retrot Trim E7 RTAT = 6" Hi-Lumen All Purpose LED Retrot Trim E7 TAT = 6" Hi-Lumen All Purpose LED Retrot Trim E7TATNB = 6" Hi-Lumen All Purpose LED Retrot Trim

PS518029EN page 2

January 13, 2020 11:41 AM

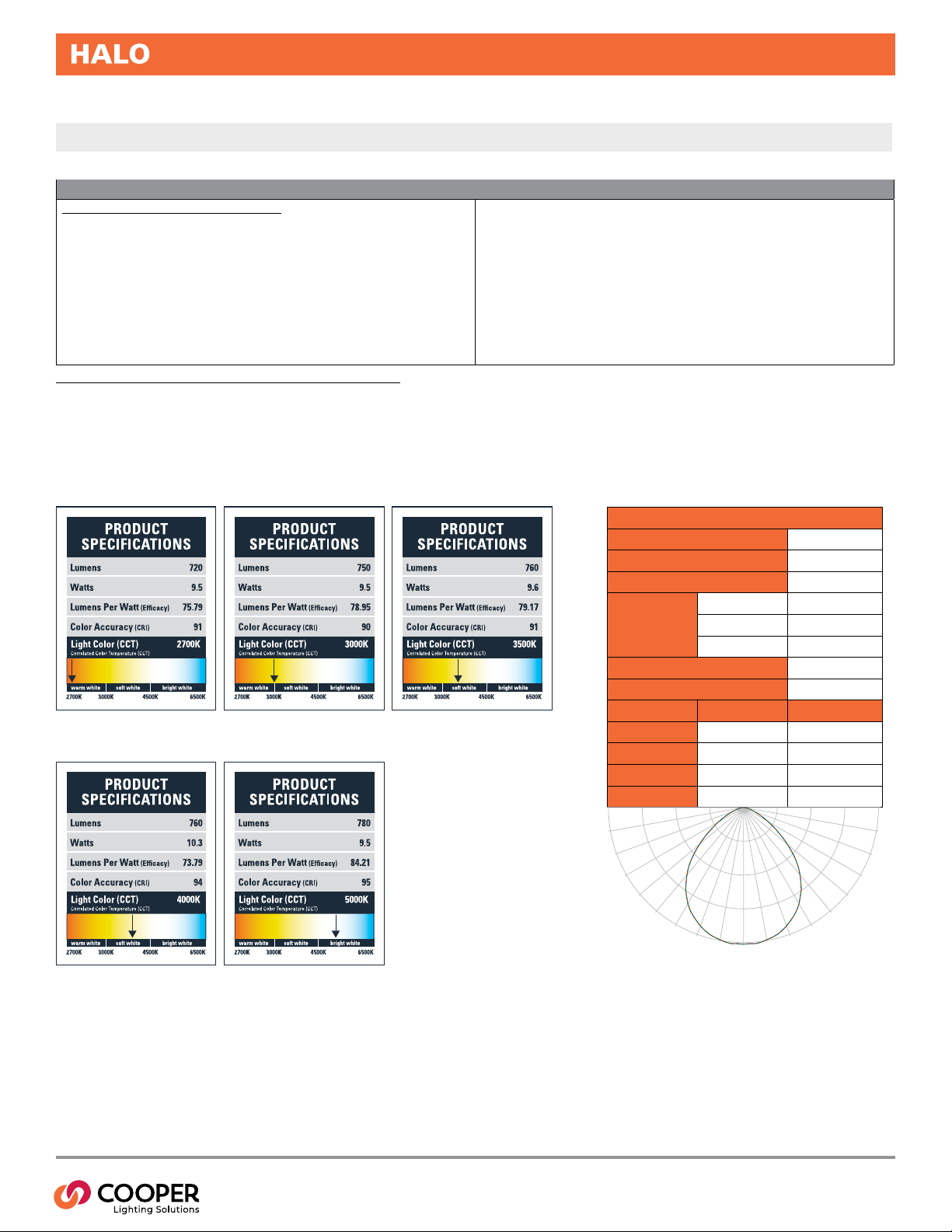

Page 3

Order Information Continued

Housing Compatibility

Compatible All-Pro Incandescent E26 Screwbase Housings

EI500AT = 5" All-Pro Hi-Lumen All Purpose LED Retrot Trim EI500RAT = 5" All-Pro Hi-Lumen All Purpose LED Retrot Trim ET500 = 5" All-Pro Hi-Lumen All Purpose LED Retrot Trim ET500R = 5" All-Pro Hi-Lumen All Purpose LED Retrot Trim

LT56 Series LED Retrot is UL Classied for retrot in the following 5/6” recessed housings:

The LT Series LED light module - trim combination is cULus Listed or UL Classied for use with any 5”/6” diameter recessed housing constructed of steel or aluminum with an

internal volume that exceeds 107.9 in3 in addition to those noted above.

EI700AT = 6" All-Pro Hi-Lumen All Purpose LED Retrot Trim EI700RAT = 6" All-Pro Hi-Lumen All Purpose LED Retrot Trim EI700 = 6" All-Pro Hi-Lumen All Purpose LED Retrot Trim EI700R = 6" All-Pro Hi-Lumen All Purpose LED Retrot Trim EI700ATNB = 6" All-Pro Hi-Lumen All Purpose LED Retrot Trim EI700NB = 6" All-Pro Hi-Lumen All Purpose LED Retrot Trim EI700U = 6" All-Pro Hi-Lumen All Purpose LED Retrot Trim EI700UAT = 6" All-Pro Hi-Lumen All Purpose LED Retrot Trim ET700 = 6" All-Pro Hi-Lumen All Purpose LED Retrot Trim ET700R = 6" All-Pro Hi-Lumen All Purpose LED Retrot Trim EI2700AT = 6" All-Pro Hi-Lumen All Purpose LED Retrot Trim EI2700 = 6" All-Pro Hi-Lumen All Purpose LED Retrot Trim EI2700R = 6" All-Pro Hi-Lumen All Purpose LED Retrot Trim ET2700 = 6" All-Pro Hi-Lumen All Purpose LED Retrot Trim ET2700R = 6" All-Pro Hi-Lumen All Purpose LED Retrot Trim

LT56

Product Specications

LT560WH6927R – 90 CRI

LT560WH6940R - 90 CRI

LT560WH6930R – 90 CRI

LT560WH6950R - 90 CRI

LT560WH6935R – 90 CRI

Photometric Data

LT56 Photometric*

LT560WH6930R

Luminaire lumens 750

Input watts 9.5

LER (LPW) 79

0-180 1.21

Spacing

Criteria

Beam angle (degrees) 93.3

Field angle (degrees) 137.9

Zonal lumen Lumens % Lumens

0-30 253 36.3

0-40 405 58.0

0-60 632 90.6

90°

0-90 698 100.0

80°

70°

60°

50°

40°

30°

* Tested in accordance with IES LM63. Field results may vary.

90-270 1.21

Diagonal 1.27

20°

10°

0°

30°

20°

10°

90°

80°

70°

60°

50°

40°

PS518029EN page 3

January 13, 2020 11:41 AM

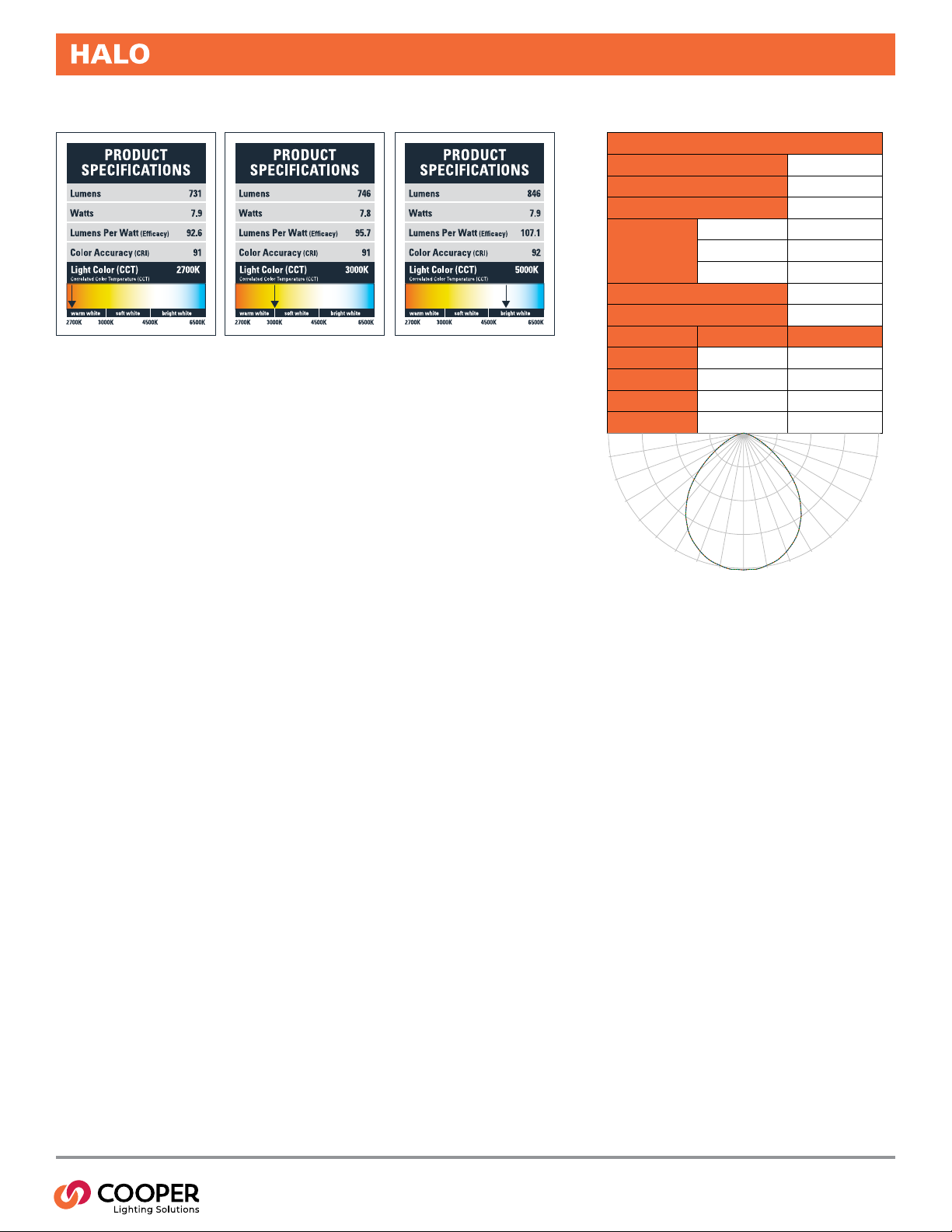

Page 4

LT56

Product Specications

LT560WH6927R-CA – 91 CRI LT560WH6930R-CA – 91 CRI LT560WH6950R-CA – 92 CRI

Photometric Data

LT56-CA Photometric*

LT560WH6930R-CA

Luminaire lumens 746.6

Input watts 7.8

LER (LPW) 95.7

0-180 1.21

Spacing

Criteria

Beam angle (degrees) 93.3

Field angle (degrees) 137.9

Zonal lumen Lumens % Lumens

0-30 241.6 37.1

0-40 381.5 58.6

0-60 585.3 89.9

90°

0-90 651.1 100.0

80°

70°

60°

50°

40°

30°

* Tested in accordance with IES LM63. Field results may vary.

90-270 1.21

Diagonal 1.27

20°

10°

0°

30°

20°

10°

90°

80°

70°

60°

50°

40°

PS518029EN page 4

January 13, 2020 11:41 AM

Page 5

Specication Features

Module

• LED module consists of LED array, optical assembly,

driver and bae style self-anged trim

• Achieving L70 at 35,000 hours in IC and non-IC

applications

Gaskets

• Closed cell gasket achieves restrictive airow

requirements without additional caulking

LED Array

• A plurality of low power LEDs provide a uniform

source with high eciency and long life

• Available in 90 CRI minimum, R9 greater than 50

and color accuracy within 4 SDCM provide color accuracy and uniformity

• Available in 2700, 3000, 3500, 4000 and 5000K CCT

color temperatures

Optical Assembly

• Optical assembly provides wide distribution useful

for general and task lighting

• Diffuse injection molded lens with contoured

prole provides uniformity and a familiar lamp like appearance

• Meets ENERGY STAR

requirements

Driver

• Integral 120V 60 Hz constant current driver

provides high eciency operation

• Continuous, icker-free dimming from 100% to 10%

with select leading or trailing edge 120V phase cut dimmers – consult dimming guide for more information

• Consult dimmer manufacturer for compatibility and

conditions of use

• Inline electrical quick connect and E26 adapter (provided) provides mains connection

color angular uniformity

Retention

• Preinstalled torsion springs hold module securely

to the housing

Trim

• One-piece step bae and self-anged trim ring

provides lens regression and reduces light leaks

• Injection molded plastic construction is impact

resistant and non-corrosive

• Non-conductive construction meets most local

code ‘dead front’ requirements

Compliance

• cULus listed for use with Halo housings, classied

for use with other’s housings, see instruction sheet for conditions of acceptability

• Wet location listed

• Airtight per ASTM-E283

• Suitable for use in clothes closets when installed

in accordance with the NEC 410.16 spacing requirements

• EMI/RFI emissions per FCC 47CFR Part 15

consumer limits

• Contains no mercury or lead and RoHS compliant

• Photometric testing in accordance with IES LM-

79-08

• Lumen maintenance projections in accordance with

IES LM-80-08 and TM-21-11

• Can be used for State of California Title 24 high

ecacy luminaire compliance, reference the California Energy Commission Title 20 Appliance Eciency Database for current listings

• ENERGY STAR

current listings

listed, reference database for

• Meets State of California voluntary lamp standards

Warranty

• Five year limited warranty, consult website for details. www.eaton.com/lighting/legal

LT56

Energy Data

Lumens 600 Series

Input Voltage 120V

Input Current 0.089 (mA)

Input Power 10.4 (W)

Eciency Up to 73 (LPW)

Inrush (A)

THD: ≤ 24%

PF: ≥ 0.90

T Ambient -30 - +40°C

Sound Rating ≤ 23dba
