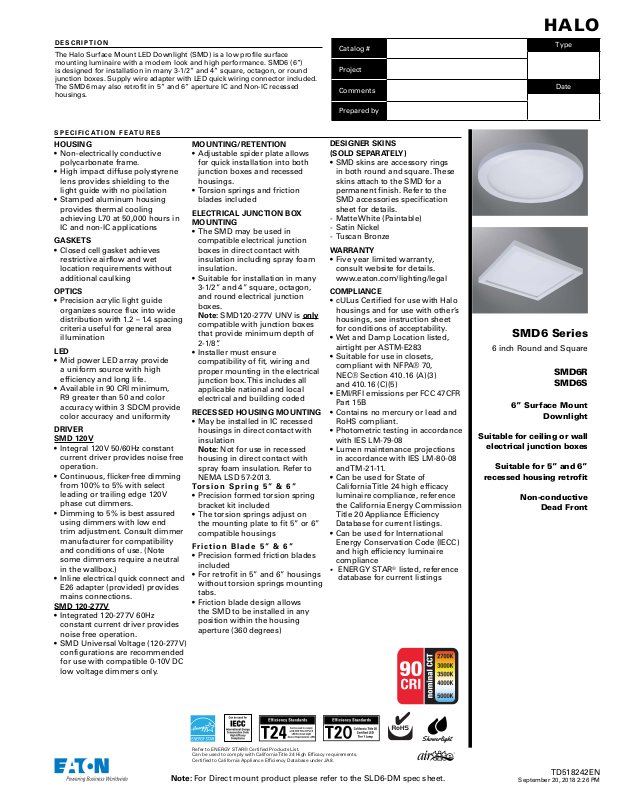

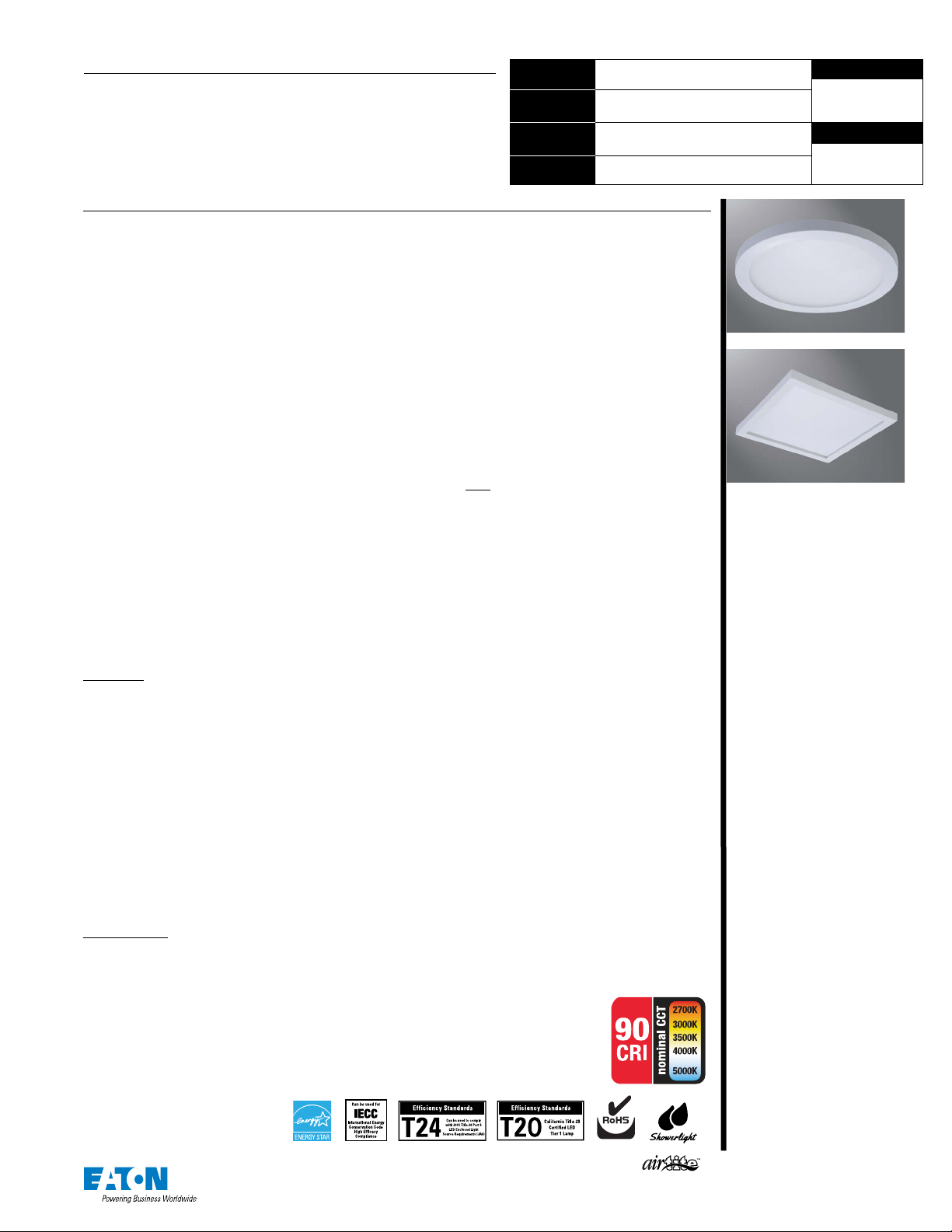

Page 1
DESCRIPTION
The Halo Surface Mount LED Downlight (SMD) is a low profile surface
mounting luminaire with a modern look and high performance. SMD6 (6”)
is designed for installation in many 3-1/2” and 4” square, octagon, or round
junction boxes. Supply wire adapter with LED quick wiring connector included.
The SMD6 may also retrofit in 5” and 6” aperture IC and Non-IC recessed
housings.
SPECIFICATION FEATURES
HOUSING
• Non-electrically conductive
polycarbonate frame.
• High impact diffuse polystyrene
lens provides shielding to the
light guide with no pixilation
• Stamped aluminum housing
provides thermal cooling
achieving L70 at 50,000 hours in
IC and non-IC applications
GASKETS
• Closed cell gasket achieves
restrictive airflow and wet
location requirements without
additional caulking
OPTICS
• Precision acrylic light guide
organizes source flux into wide
distribution with 1.2 – 1.4 spacing
criteria useful for general area
illumination
LED
• Mid power LED array provide
a uniform source with high
efficiency and long life.
• Available in 90 CRI minimum,
R9 greater than 50 and color
accuracy within 3 SDCM provide
color accuracy and uniformity
DRIVER
SMD 120V
• Integral 120V 50/60Hz constant
current driver provides noise free
operation.
• Continuous, flicker-free dimming
from 100% to 5% with select
leading or trailing edge 120V
phase cut dimmers.
• Dimming to 5% is best assured
using dimmers with low end
trim adjustment. Consult dimmer
manufacturer for compatibility
and conditions of use. (Note
some dimmers require a neutral
in the wallbox.)
• Inline electrical quick connect and
E26 adapter (provided) provides
mains connections.
SMD 120-277V
• Integrated 120-277V 60Hz
constant current driver provides
noise free operation.
MOUNTING/RETENTION
• Adjustable spider plate allows
for quick installation into both
junction boxes and recessed
housings.
• Torsion springs and friction
blades included
ELECTRICAL JUNCTION BOX
MOUNTING
• The SMD may be used in
compatible electrical junction
boxes in direct contact with
insulation including spray foam
insulation.
• Suitable for installation in many
3-1/2” and 4” square, octagon,
and round electrical junction
boxes.
Note: SMD120-277V UNV is only
compatible with junction boxes
that provide minimum depth of
2-1/8”.
• Installer must ensure
compatibility of fit, wiring and
proper mounting in the electrical
junction box. This includes all
applicable national and local
electrical and building coded
RECESSED HOUSING MOUNTING
• May be installed in IC recessed
housings in direct contact with
insulation
Note: Not for use in recessed
housing in direct contact with
spray foam insulation. Refer to
NEMA LSD 57-2013.
Torsion Spring 5” & 6”
• Precision formed torsion spring
bracket kit included
• The torsion springs adjust on
the mounting plate to fit 5” or 6”
compatible housings
Friction Blade 5” & 6”
• Precision formed friction blades
included
• For retrofit in 5” and 6” housings
without torsion springs mounting
tabs.
• Friction blade design allows
the SMD to be installed in any
position within the housing
aperture (360 degrees)
• SMD Universal Voltage (120-277V)
configurations are recommended
for use with compatible 0-10V DC
low voltage dimmers only.
Catalog #
Project
Comments
Prepared by
DESIGNER SKINS
(SOLD SEPARATELY)
• SMD skins are accessory rings
in both round and square. These
skins attach to the SMD for a
permanent finish. Refer to the
SMD accessories specification
sheet for details.
- Matte White (Paintable)
- Satin Nickel
- Tuscan Bronze
WARRANTY
• Five year limited warranty,
consult website for details.
www.eaton.com/lighting/legal
COMPLIANCE
• cULus Certified for use with Halo
housings and for use with other’s
housings, see instruction sheet
for conditions of acceptability.
• Wet and Damp Location listed,
airtight per ASTM-E283
• Suitable for use in closets,
compliant with NFPA® 70,
NEC® Section 410.16 (A)(3)
and 410.16 (C)(5)
• EMI/RFI emissions per FCC 47CFR
Part 15B
• Contains no mercury or lead and
RoHS compliant.
• Photometric testing in accordance
with IES LM-79-08
• Lumen maintenance projections
in accordance with IES LM-80-08
and TM-21-11.
• Can be used for State of
California Title 24 high efficacy
luminaire compliance, reference
the California Energy Commission
Title 20 Appliance Efficiency
Database for current listings.
• Can be used for International
Energy Conservation Code (IECC)
and high efficiency luminaire
compliance
•
ENERGY STAR® listed, reference
database for current listings
HALO
Type
Date
SMD6 Series
6 inch Round and Square
SMD6R
SMD6S
6” Surface Mount
Downlight
Suitable for ceiling or wall
electrical junction boxes
Suitable for 5” and 6”
recessed housing retrofit
Non-conductive
Dead Front
Refer to ENERGY STAR® Certified Products List.
Can be used to comply with California T itle 24 High Efficacy requirements.
Certified to California Appliance Efficiency Database under JA8.
Note: For Direct mount product please refer to the SLD6-DM spec sheet.
September 20, 2018 2:26 PM
TD518242EN
Page 2
HALO
[14mm]
[14mm]

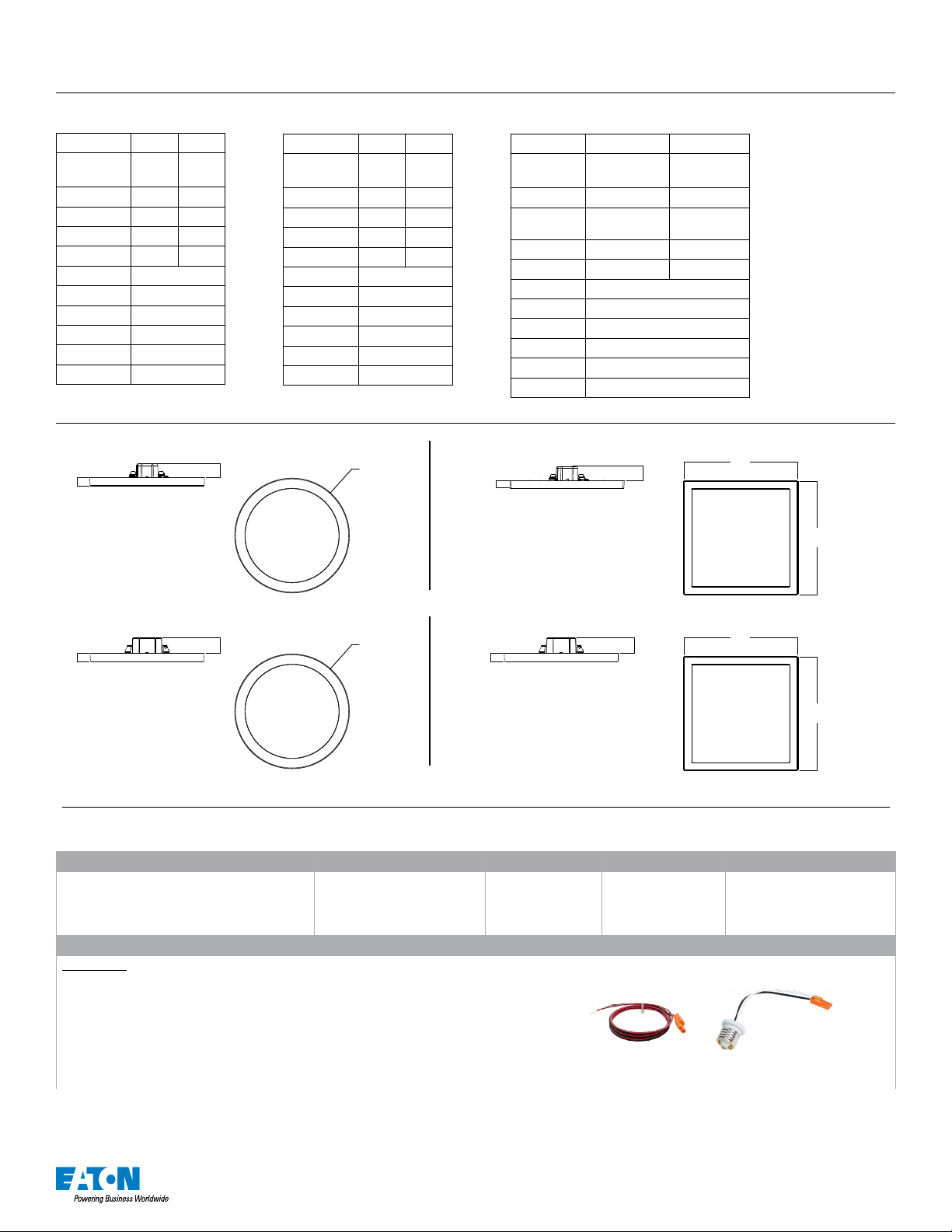

ENERGY DATA
SMD6R6
SMD6S6
Round Square
Lumens
(5000K models)
788 815
Input Power 9.6 W 9.9 W
Input Current 0.0811 A 0.085 A
Efficiency 82 lm/W 82 lm/W
THD
Input Voltage
13.9 14.7
120V
Frequency 50/60 Hz
CRI 90 CRI
Power Factor 0.99
T Ambient -30 - +40°C
Sound Rating Class A
DIMENSIONS
SMD6RXXXWH SMD6SXXXWH
15/16"
9/16"
[23.9mm]
SMD6R12
SMD6S12
Round Square
Lumens
(5000K models)
Input Power 15.3 15.7
Input Current 0.133 A 0.132 A
Efficiency 82 lm/W 79 lm/W
THD
Input Voltage
Frequency 50/60 Hz
CRI 92 CRI
Power Factor 0.98
T Ambient -30 - +40°C
Sound Rating Class A
1252 1235
15.3 15.7
120V
7-5/8"
[193mm]
SMD6R12-E
SMD6S12-E
Lumens
(5000K models)
Input Power 15.3 16
Input Current 0.133 A - (120V)
Efficiency 78 73
THD
Input Voltage
Frequency 60 Hz
CRI 92 CRI
Power Factor 0.99
T Ambient -30 - +40°C
Sound Rating Class A
17/32"
[13.5mm]
Round Square
1200 1180
0.061 A - (277V)
15.3 15.7
120 - 277V
15/16"
[23.9mm]
0.132 A - (120V)
0.061 A - (277V)
7-9/16"
[192.4mm]
SMD6 Series
SMD12RXXXWH SMD12SXXXWH
SMD12RXXXWHE SMD12SXXXWHE
9/16"
1-1/16"
[26.8mm]
7-5/8"
[193mm]
9/16"
[14mm]
1-1/16"
[26.8mm]
7-9/16"
[192.4mm]
ORDERING INFORMATION
SAMPLE NUMBER: SMD6R6930WH=6” Round Surface Mount Downlight, 90CRI, 3000K
Junction Box Installation: Order junction box separately, as supplied by others, to complete installation.
Recessed Installation: Order Halo recessed housing separately to complete installation.
Models Lumens CRI / CCT Finish Voltage
SMD6R= 6” Round Surface Mount Downlight
SMD6S= 6” Square Surface Mount Downlight
6=600 lumen series (120V only)
12=1200 lumen series
927=90CRI, 2700K
930=90CRI, 3000K
935=90CRI, 3500K
940=90CRI, 4000K
950=90CRI, 5000K
WH= Matte White Blank= 120V standard
E= UNV Universal 120-277V*
Accessories
Designer Trims
SMD6RTRMSN=6” Round SMD Satin Nickel
SMD6RTRMTBZ=6” Round SMD Tuscan Bronze
SMD6RTRMWH=6” Round SMD White (paintable)
SMD6STRMSN=6” Square SMD Satin Nickel
SMD6STRMTBZ=6” Square SMD Tuscan Bronze
SMD6STRMWH=6” Square SMD White (paintable)
T24HWKIT= Title 24 Cable harness kit used to convert incandescent and low voltage housings to LED
HE26LED= E26 Screw base adapter for retrofit (included)
* UNV voltage configuration is offered only in the 1200 lumen series
T24HWKIT
7-9/16"
[192.4mm]
7-9/16"
[192.4mm]
HE26LED
E26 Screw base adapter
for retrofit (included)
Page 3
HALO

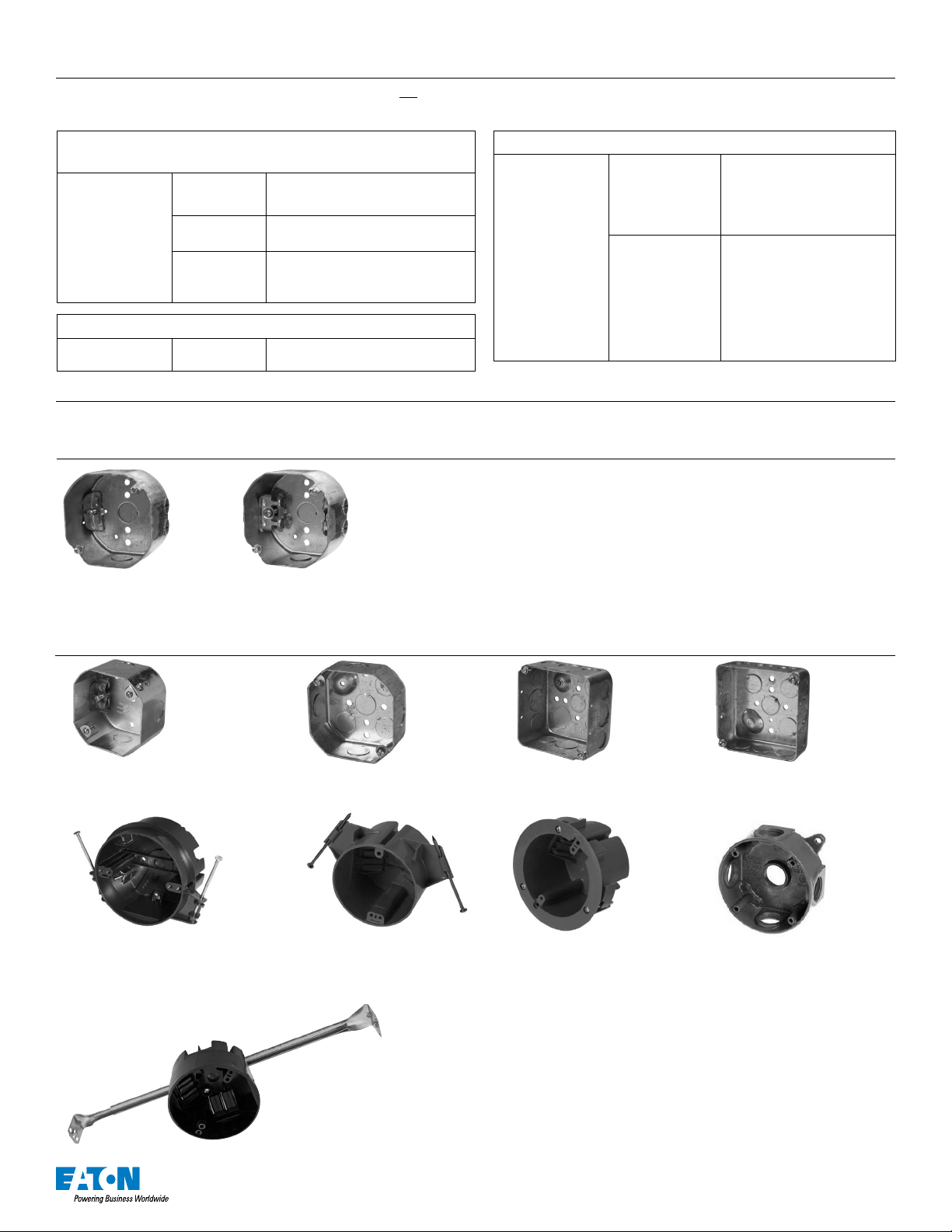

HOUSING COMPATIBILITY
The SMD6 is UL Certified in Halo recessed housings and for use with any 5 or 6 inch diameter recessed housing constructed of steel or aluminum with an internal volume
that exceeds 107.9 in3 in addition to those noted below. Note: Some other’s housings require installation with included friction clips.
SMD6 Series
Compatible Halo LED Housings with LED luminaire connector
(high-efficacy compliant)
HALO
LED
Recessed
Can Size
5"
6"
Catalog Number
H550ICAT, H550RICAT, E550ICAT,
E550RICAT
H750ICAT, H750RICAT, H750T,
H750RINTD010, H750TCP, H2750ICAT,
H2750RICAT, E750ICAT, E750RICAT
Halo LED Retrofit Enclosures
HALO 6"
JUNCTION BOX COMPATIBILITY
*Note: SMD 120-277V UNV configuration is only compatible with junction boxes that provide a minimum depth of 2-1/8”. Junction boxes meeting these requirements
listed below.
EATON’S CROUSE-HINDS JUNCTION BOXES
TP316*
for non-metallic cable
4” x 4” x 2-1/8”
(102mm x 102mm x 54mm)
ML7BXRFK, ML7E26RFK
TP317*
for metal clad cable
4” x 4” x 2-1/8”
(102mm x 102mm x 54mm)
Compatible Halo Incandescent E26 Screwbase Housings
H5ICAT, H5RICAT, H5ICATNB,
H5T, H5RT, H25ICAT, H25ICATNB,
5"
HALO
6"
• TP316 - for non-metallic cable
• TP317 - for metal clad cable
• UL Listed
• Refer to www.crouse-hinds.com
E5TAT, E5RTAT, H5TNB,
E5TATNB, E5ICAT, E5RICAT,
E5ICATNB
H7ICAT, H7RICAT, H7ICT, H7RICT,
H7ICATNB, H7ICTNB, H7T,
H7RT, H7TNB, H7TCP, H7UICT,
H7UICAT, H27ICAT, H27RICAT,
H27T, H27RT, E7ICAT, E7RICAT,
E27ICAT, E27RICAT, E7ICATNB,
E7TAT, E7RTAT, E7TATNB,
E27TAT, E27RTAT
OTHER’S JUNCTION BOXES*
4" octagon light fixture/fan steel box*
4" x 4" x 2-1/8"
(102mm x 102mm x 54mm)
4" round new work non-metallic
light fixture/fan box*
4" diameter x 2-3/16"
(102mm x 56mm)
4" octagon steel box
4" x 4" x 1-1/2"
(102mm x 102mm x 38mm)
3-1/2" round new work
non-metallic ceiling box*
3-1/2" diameter x 2-3/4"
(89mm x 70mm)
4" round new work non-metallic box
with hanger bar assembly
4" diameter x 2-3/16" (102mm x 56mm)
4" square deep steel box*
4" x 4" x 2-1/8"
(102mm x 102mm x
54mm)
3-1/2" round old work*
non-metallic box
4-1/4" O.D. flange, 3-1/2" I.D. x 2-5/8”
(108mm O.D., 89mm I.D. x 67mm)
*This is a representative list of compatible junction boxes only.
Information contained in this literature about other manufacturers’
products is from published information made available by the
manufacturer and is deemed to be reliable, but has not been verified.
Eaton makes no specific recommendation on product selection and
there are no warranties of performance or compatibility implied.
Installer must determine that site conditions are suitable to allow
proper installation of the mounting bracket in the box.
4" square standard steel box
4" x 4" x 1-1/2"
(102mm x 102mm x 38mm)
4” round surface mount box
4" diameter x 1-1/2”
(102mm x 38mm)
Requires SLD6RAD adapter
Page 4
HALO

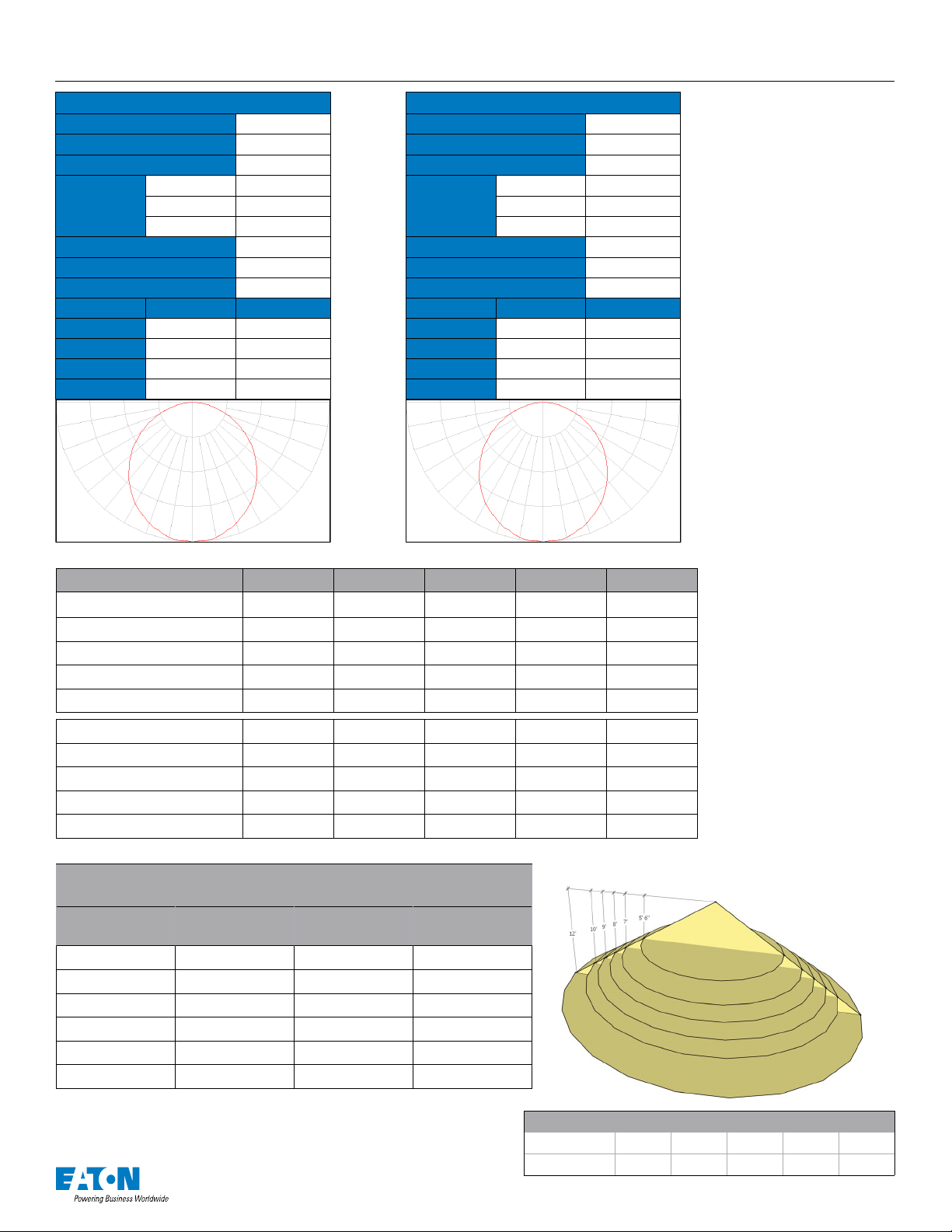

PHOTOMETRIC DATA - SMD6 (120V)
SMD6 Series
SMD6R6927WH
Luminaire lumens 750
Input watts 9.4
LER (LPW) 80
Spacing
Criteria
Beam angle (degrees) 11 2
Field angle (degrees) 162
Max. Candela 264
Zonal lumen Lumens % Lumens
0-30
0-40 334
0-60 590
0-90 750
0-180 1.26
90-270 1.26
Diagonal 1.38
204 27.2%
44.5%
78.6%
100.00%
SMD6S6927WH
Luminaire lumens 750
Input watts 10.0
LER (LPW) 75
Spacing
Criteria
Beam angle (degrees) 11 2
Field angle (degrees) 162
Max. Candela 271
Zonal lumen Lumens % Lumens
0-30
0-40 337
0-60 590
0-90 750
0-180 1.24
90-270 1.24
Diagonal 1.36
207 27.6%
44.9%
78.6%
100.00%
Cat. No. CRI CCT Lumens Power (W) LPW
SMD6R6927WH 93 2700 754 9.6 78.5
SMD6R6930WH 92 3000 758 9.6 78.7
SMD6R6935WH 95 3500 740 9.6 77.0
SMD6R6940WH 94 4000 792 9.8 80.5
SMD6R6950WH 92 5000 788 9.6 81.9
SMD6S6927WH 92 2700 750 10.0 75.0
SMD6S6930WH 92 3000 790 9.9 79.8
SMD6S6935WH 93 3500 740 10.0 74.0
SMD6S6940WH 92 4000 760 10.3 73.8
SMD6S6950WH 90 5000 815 9.9 82.3
Foot-candle Values at Nadir
0 degree Aiming Angle
DD
(FT)
SMD6R6927WH
(FC)
SMD6S6927WH
(FC)
DIA
(FT)
5.5 8.7 9.0 16.3
7 5.4 5.5 20.9
8 4.1 4.2 23.8
9 3.3 3.3 26.8
10 2.6 2.7 29.7
12 1.8 1.9 35.7
DD = distance down to illuminated work plane
FC = initial foot-candles at nadir
DIA = diameter
Multiplier Table
CCT Option 2700K 3000K 3500K 4000K 5000K
CCT Multipiler 1.00 1.014 1.042 1.083 1.083
SMD6R6927WH
8.7 FC
5.4 FC
4.1 FC
3.3 FC
2.6 FC
1.8 FC
Page 5
HALO
HALO
PHOTOMETRIC DATA - SMD6-1200 (120V)
SMD6 Series
SMD6S12927WH
Luminaire lumens 11 8 7
Input watts 15.9
LER (LPW) 75
Spacing
Criteria
Beam angle (degrees) 11 3
Field angle (degrees) 165
Max. Candela 408
Zonal lumen Lumens % Lumens
0-30
0-40 518
0-60 920
0-90 11 8 7
0-180 1.26
90-270 1.26
Diagonal 1.38
316 26.6%
43.7%
77.5%
100.00%
SMD6R12927WH
Luminaire lumens 1235
Input watts 15.9
LER (LPW) 78
Spacing
Criteria
Beam angle (degrees) 11 3
Field angle (degrees) 164
Max. Candela 426
Zonal lumen Lumens % Lumens
0-30
0-40 550
0-60 971
0-90 1235
0-180 1.26
90-270 1.26
Diagonal 1.38
336 27.2%
44.5%
78.6%
100.00%
Cat. No. CRI CCT Lumens Power (W) LPW
SMD6R12927WH 92 2700 1244 15.7 79.0
SMD6R12930WH 92 3000 1242.0 15.1 82.1
SMD6R12935WH 92 3500 1264.1 15.3 82.8
SMD6R12940WH 92 4000 1223.0 15.3 79.9
SMD6R12950WH 92 5000 1252.0 15.3 81.9
SMD6S12927WH 92 2700 1190 15.7 76.0
SMD6S12930WH 92 3000 1180.3 15.6 75.6
SMD6S12935WH 92 3500 1237.3 15.6 79.5
SMD6S12940WH 92 4000 1215.9 15.8 76.9
SMD6S12950WH 92 5000 1235.6 15.7 78.9
Foot-candle Values at Nadir
0 degree Aiming Angle
DD
(FT)
SMD6R12927WH
(FC)
SMD6S12927WH
(FC)
DIA
(FT)
5.5 15.8 15.1 16.6
7 9.5 9.1 21.1
8 7.2 6.9 24.2
9 5.6 5.4 27.2
10 4.5 4.3 30.2
12 3.1 3.0 36.2
DD = distance down to illuminated work plane
FC = initial foot-candles at nadir
DIA = diameter
Multiplier Table
CCT Option 2700K 3000K 3500K 4000K 5000K
CCT Multipiler 1.000 0.997 1.039 1.021 1.037
SMD6R12927WH
15.8 FC
9.5 FC
7.2 FC
5.6 FC
4.5 FC
3.1 FC
Page 6
HALOHALOHALO
PHOTOMETRIC DATA - SMD6-1200-E (120V-277V)
SMD6 Series
SMD6R12927WHE
Luminaire lumens 12 10
Input watts 15.4
LER (LPW) 78.6
Spacing
Criteria
Beam angle (degrees) 112.8
Field angle (degrees) 164
Max. Candela 418.7
Zonal lumen Lumens % Lumens
0-30
0-40 531
0-60 941
0-90 1210
0-180 1.26
90-270 1.26
Diagonal 1.38
324 26.8%
43.9%
77.8%
100.00%
SMD6S12927WHE
Luminaire lumens 11 6 7
Input watts 15.6
LER (LPW) 74.8
Spacing
Criteria
Beam angle (degrees) 113.5
Field angle (degrees) 165
Max. Candela 402.1
Zonal lumen Lumens % Lumens
0-30
0-40 467
0-60 838
0-90 11 6 7
0-180 1.26
90-270 1.26
Diagonal 1.38
284 24.3%
40.0%
71.8%
100.00%
Cat. No. CRI CCT Lumens Power (W) LPW
SMD6R12927WHE 92 2700 1210 15.4 78.6
SMD6R12930WHE 92 3000 1203.0 15.3 78.6
SMD6R12935WHE 92 3500 1200.0 15.4 77.9
SMD6R12940WHE 92 4000 1260.0 15.3 82.4
SMD6R12950WHE 92 5000 1200.0 15.3 78.4
SMD6S12927WHE 92 2700 1167 15.6 74.8
SMD6S12930WHE 92 3000 1135.0 15.9 71.4
SMD6S12935WHE 92 3500 1140.0 16.0 71.2
SMD6S12940WHE 92 4000 1155.0 15.9 72.6
SMD6S12950WHE 92 5000 1180.0 16.0 73.7
Foot-candle Values at Nadir
0 degree Aiming Angle
DD
(FT)
SMD6R12927WHE
(FC)"
SMD6S12927WHE
(FC)"
DIA
(FT)
5.5 13.8 13.3 6.8
7 8.5 8.2 8.6
8 6.5 6.3 10
9 5.2 5.0 11.2
10 4.2 4.0 12.4
12 2.9 2.8 15
DD = distance down to illuminated work plane
FC = initial foot-candles at nadir
DIA = diameter
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
Multiplier Table
CCT Option 2700K 3000K 3500K 4000K 5000K
CCT Multipiler 1.0000 0.994 0.992 1.041 0.992
SMD6R12927WHE
13.8 FC
8.5 FC
6.5 FC
5.2 FC
4.2 FC
2.9 FC
Loading...
