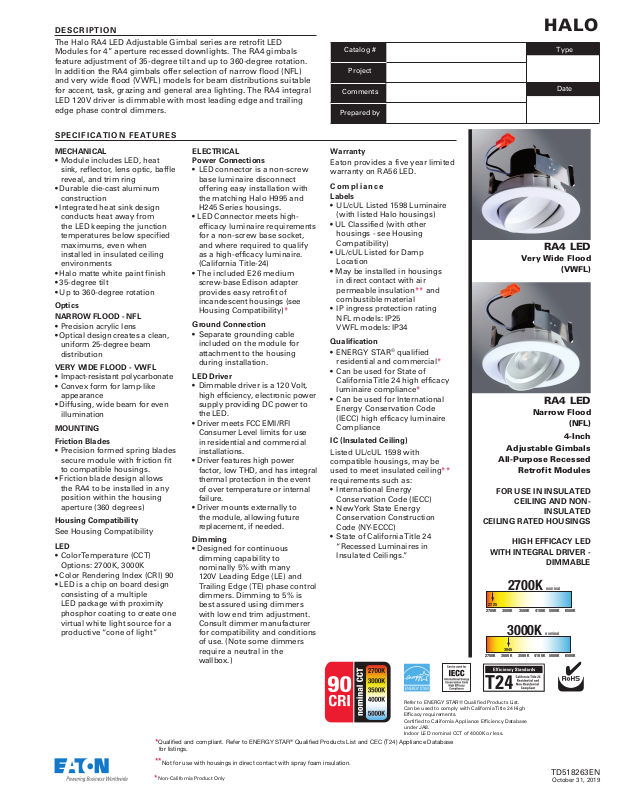

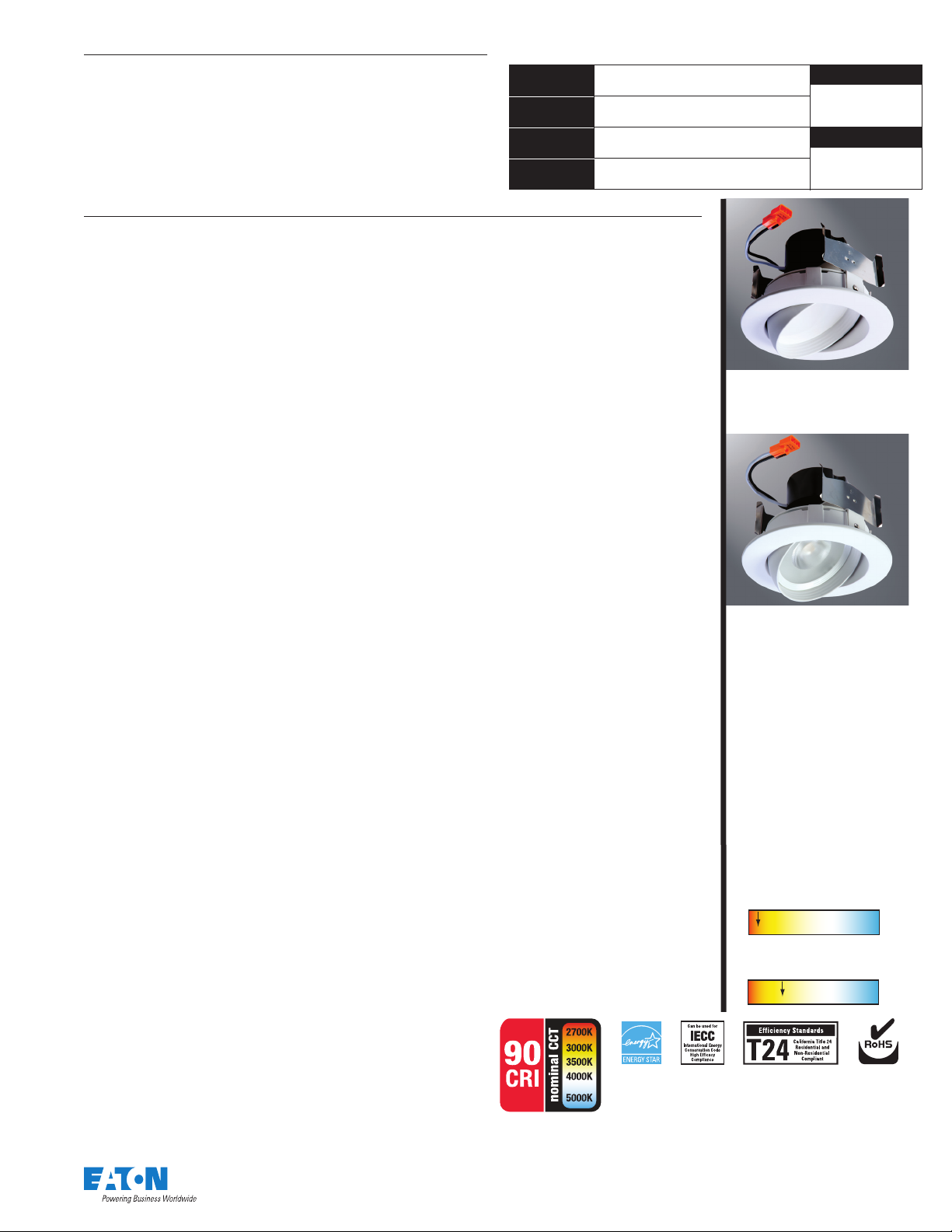

Page 1

DESCRIPTION

2700K nominal

2700K

2725

3000K 3500K 4100K 5000K 6500

The Halo RA4 LED Adjustable Gimbal series are retrofit LED Modules for 4” aperture recessed downlights. The RA4 gimbals feature adjustment of 35-degree tilt and up to 360-degree rotation. In addition the RA4 gimbals offer selection of narrow flood (NFL) and very wide flood (VWFL) models for beam distributions suitable for accent, task, grazing and general area lighting. The RA4 integral LED 120V driver is dimmable with most leading edge and trailing edge phase control dimmers.

SPECIFICATION FEATURES

MECHANICAL

• Module includes LED, heat sink, reflector, lens optic, baffle reveal, and trim ring

• Durable die-cast aluminum construction

• Integrated heat sink design conducts heat away from the LED keeping the junction temperatures below specified maximums, even when installed in insulated ceiling environments

• Halo matte white paint finish

• 35-degree tilt

• Up to 360-degree rotation

Optics NARROW FLOOD - NFL

• Precision acrylic lens

• Optical design creates a clean, uniform 25-degree beam distribution

VERY WIDE FLOOD - VWFL

• Impact-resistant polycarbonate

• Convex form for lamp-like appearance

• Diffusing, wide beam for even illumination

MOUNTING

Friction Blades

• Precision formed spring blades secure module with friction fit to compatible housings.

• Friction blade design allows the RA4 to be installed in any position within the housing aperture (360 degrees)

Housing Compatibility

See Housing Compatibility

LED

• Color Temperature (CCT) Options: 2700K, 300 0K

• Color Rendering Index (CRI) 90

• LED is a chip on board design consisting of a multiple LED package with proximity phosphor coating to create one virtual white light source for a productive “cone of light”

ELECTRICAL Power Connections

• LED connector is a non-screw base luminaire disconnect offering easy installation with the matching Halo H995 and H245 Series housings.

• LED Connector meets highefficacy luminaire requirements for a non-screw base socket, and where required to qualify as a high-efficacy luminaire. (California Title-24)

• The included E26 medium screw-base Edison adapter provides easy retrofit of incandescent housings (see Housing Compatibility)*

Ground Connection

• Separate grounding cable included on the module for attachment to the housing during installation.

LED Driver

• Dimmable driver is a 120 Volt, high efficiency, electronic power supply providing DC power to the LED.

• Driver meets FCC EMI/RFI Consumer Level limits for use in residential and commercial installations.

• Driver features high power factor, low THD, and has integral thermal protection in the event of over temperature or internal failure.

• Driver mounts externally to the module, allowing future replacement, if needed.

Dimming

• Designed for continuous dimming capability to nominally 5% with many 120V Leading Edge (LE) and Trailing Edge (TE) phase control dimmers. Dimming to 5% is best assured using dimmers with low end trim adjustment. Consult dimmer manufacturer for compatibility and conditions of use. (Note some dimmers require a neutral in the wallbox.)

Catalog #

Project

Comments

Prepared by

Warranty

Eaton provides a five year limited warranty on RA56 LED.

Compliance Labels

• UL/cUL Listed 1598 Luminaire (with listed Halo housings)

• UL Classified (with other housings - see Housing Compatibility)

• UL/cUL Listed for Damp Location

• May be installed in housings in direct contact with air permeable insulation** and combustible material

• IP ingress protection rating

NFL models: IP25 VWFL models: IP34

Qualification

• ENERGY STAR

qualified

residential and commercial*

• Can be used for State of California Title 24 high efficacy luminaire compliance*

• Can be used for International Energy Conservation Code (IECC) high efficacy luminaire Compliance

IC (Insulated Ceiling)

Listed UL/cUL 1598 with compatible housings, may be used to meet insulated ceiling** requirements such as:

• International Energy Conservation Code (IECC)

• New York State Energy Conservation Construction Code (NY-ECCC)

• State of California Title 24 “Recessed Luminaires in Insulated Ceilings.”

HALO

Type

Date

RA4 LED

Very Wide Flood

(VWFL)

RA4 LED

Narrow Flood

(NFL)

4-Inch

Adjustable Gimbals

All-Purpose Recessed

Retrofit Modules

FOR USE IN INSULATED

CEILING AND NON-

INSULATED

CEILING RATED HOUSINGS

HIGH EFFICACY LED

WITH INTEGRAL DRIVER -

DIMMABLE

2700K nominal

2725

2700K

3000K 3500K 4100K 5000K 6500

3000K nominal

3045

2700K

3000K 3500K 4100K 5000K 6500

Refer to ENERGY STAR® Qualiﬁed Products List. Can be used to comply with California Title 24 High Efﬁcacy requirements. Certiﬁed to California Appliance Efﬁciency Database under JA8.

Qualied and compliant. Refer to ENERGY STAR® Qualied Products List and CEC (T24) Appliance Database

for listings.

Indoor LED nominal CCT of 4000K or less.

**Not for use with housings in direct contact with spray foam insulation.

Non-California Product Only

TD518263EN

October 31, 2019

Page 2

[130mm]

[86mm]

page 2

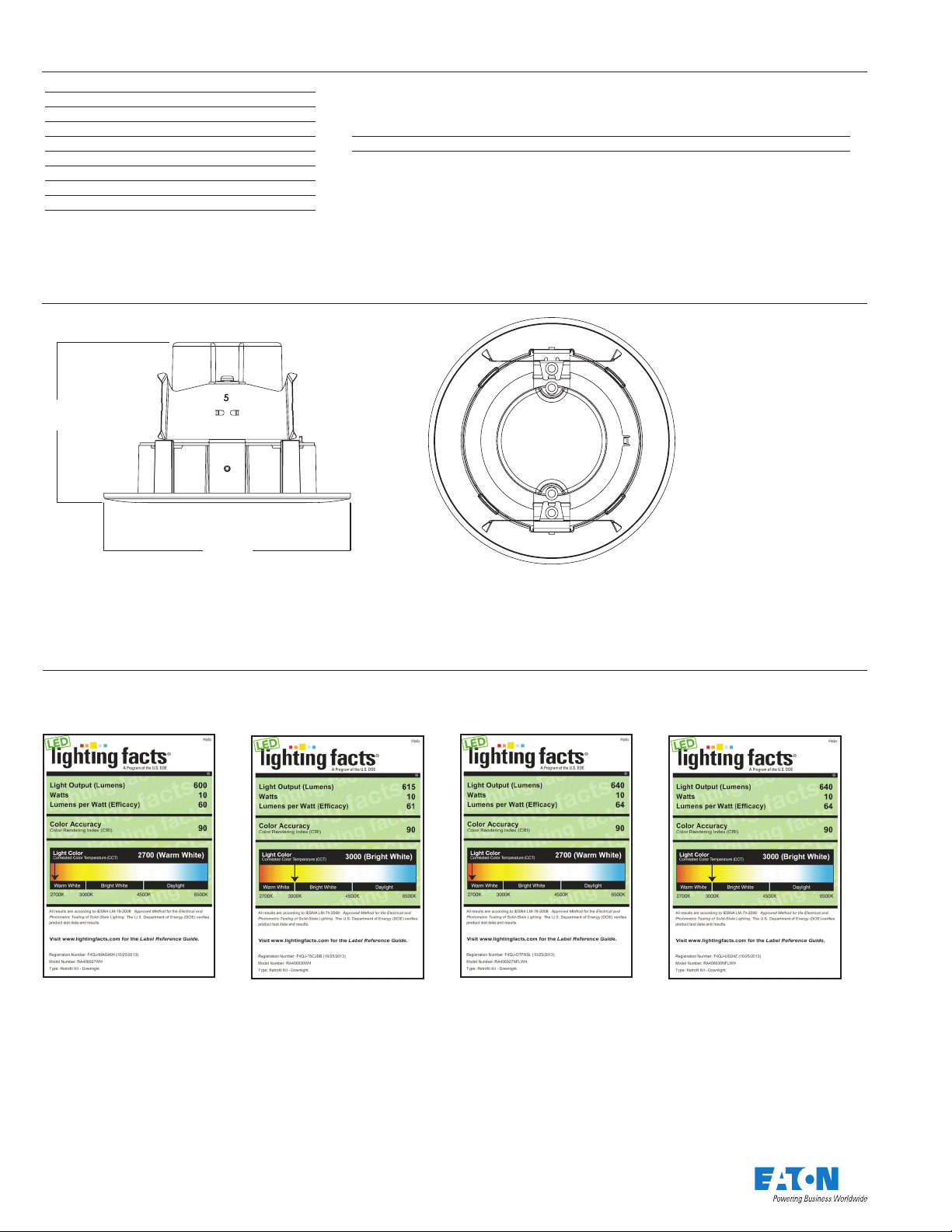

ENERGY DATA

Minimum Starting Temp: -30°C (-22°F) EMI/RFI: FCC Title 47 CFR, Part 15, Class B (Consumer) Sound Rating: Class A standards Input Voltage: 120V Power Factor: >0.90 Input Frequency: 50/60Hz THD: <20% Input Power: 10W Input Current: 85mA

DIMENSIONS

3.3”

RA4 Series

Driver-Safety Agency Approvals:

- UL60950-1 Recognized

- LPS output

- UL8750 Compliant Maximum IC (Insulated Ceiling) Ambient Continuous Operating Temperature: 25°C (77°F) Maximum Non-IC (NON-Insulated Ceiling) Ambient Continuous Operating Temperature 40°C (104°F)

LIGHTING FACTS

RA406927WH

2700K Source VWFL Beam

Ø 5.13”

RA406930WH

3000K Source VWFL Beam

RA406927NFLWH

2700K Source NFL Beam

RA406930NFLWH

3000K Source NFL Beam

For further information refer to the Lighting Facts website at http://lightingfacts.com/.

TD518263EN – Specifications and compliances subject to change without notice

Page 3

page 3

ORDERING INFORMATION

SAMPLE NUMBER: RA406930WH Complete unit includes RA4 LED and a compatible 4” housing; ordered separately.

RA4 Series Accessory (order separately)

Very Wide Flood - VWFL Models

RA406927WH= 4” LED Adjustable Gimbal, 90CRI, 2700K, White, Very Wide Flood RA406930WH= 4” LED Adjustable Gimbal, 90CRI, 3000K, White, Very Wide Flood

Narrow Flood - NFL Models

RA406927NFLWH= 4” LED Adjustable Gimbal, 90CRI, 2700K, White, Narrow Flood RA406930NFLWH= 4” LED Adjustable Gimbal, 90CRI, 3000K, White, Narrow Flood

California Models

RA406927WH-CA RA406930WH-CA RA406927NFLWH-CA RA406930NFLWH-CA

Housing

H995ICAT= 4” LED Insulated Ceiling, AIR-TITE New Construction Housing with LED luminaire connector (high efcacy compliant) H995RICAT= 4” LED Insulated Ceiling, AIR-TITE Remodel Housing with LED luminaire connector (high efcacy compliant)

HOUSING COMPATIBILITY

The RA4 is UL Listed in Halo and All-Pro recessed housings, and is UL Classiﬁed for use with any 4 inch diameter recessed housing constructed of steel or aluminum with an internal volume that exceeds 62.3 in

in addition to those noted below:

HE26LED=Replacement screw base adapter (one included with unit)

RA4 SeriesRA4 Series

Compatible Halo LED Housings with LED luminaire connector (high-efﬁcacy compliant)

HALO

LED

Recessed Can Size Catalog Number

H995ICAT, H995RICAT, H245ICAT, H245RICAT

Compatible Halo Incandescent E26 Screwbase Housings

Recessed Can Size Catalog Number

HALO

H99ICAT, H99TAT, H99RTAT, E4ICATSB, E4TATSB, E4RTATSB

Specifications and compliances subject to change without notice – TD518263EN

Page 4

page 4

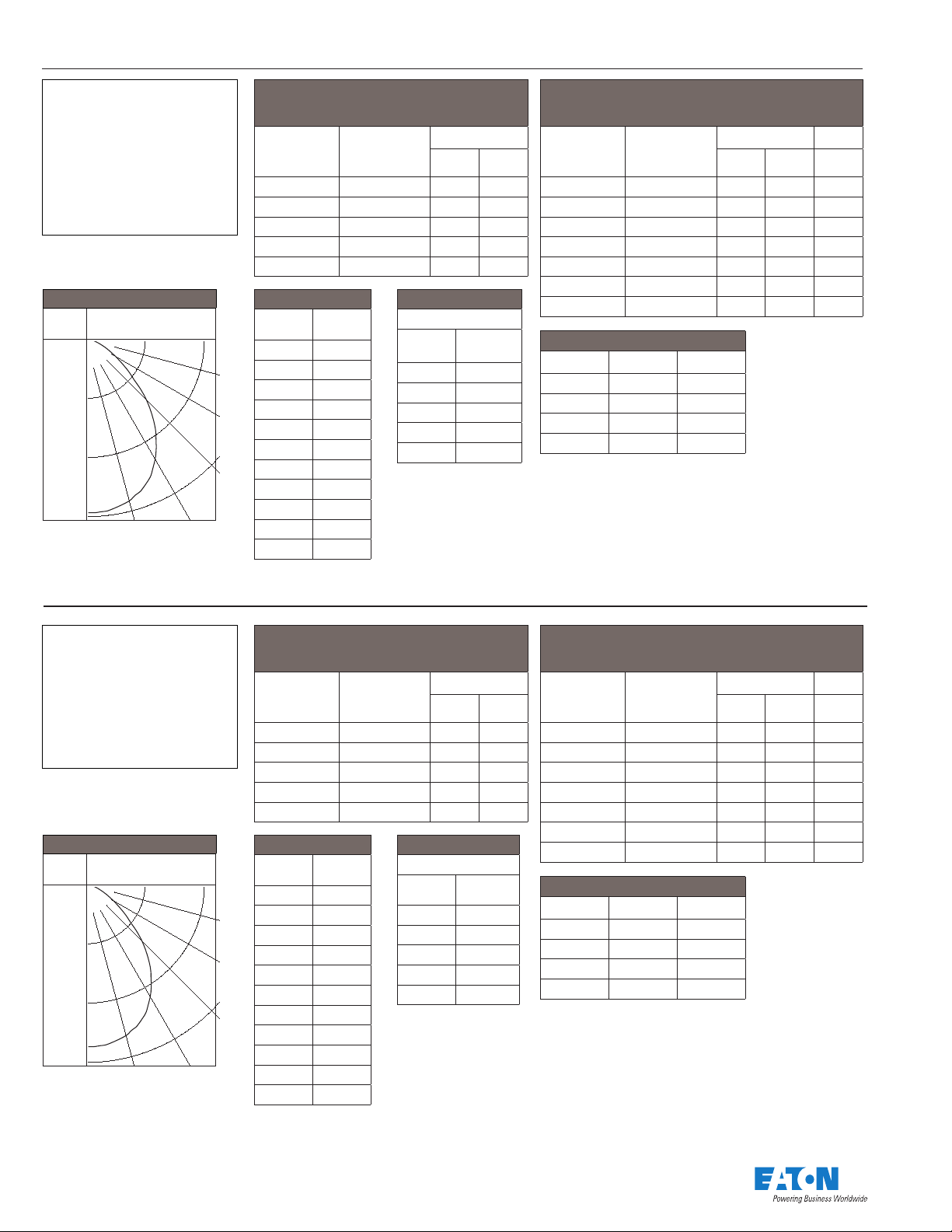

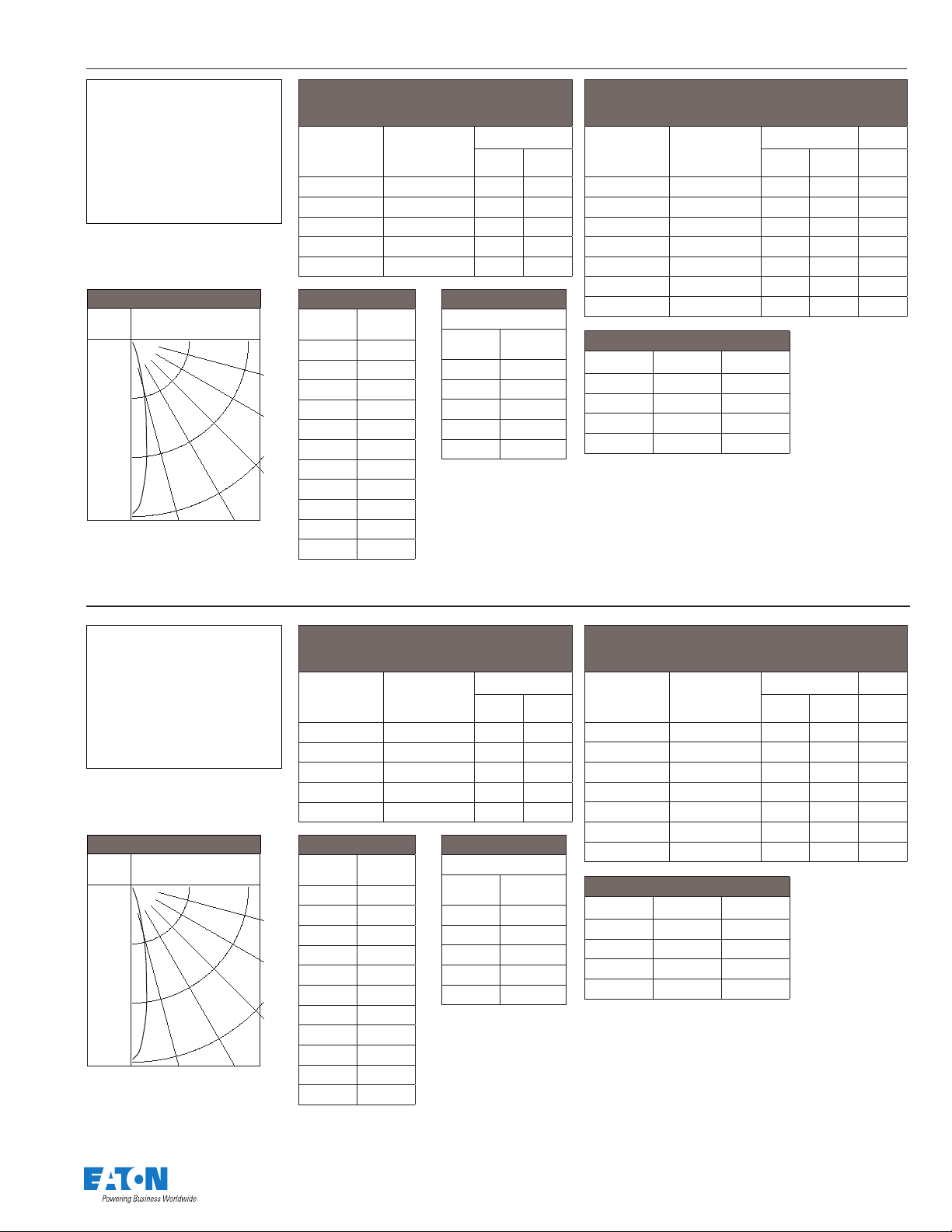

PHOTOMETRY

RA4 Series

RA406927WH

Reflector Beam Angle = VWFL Beam (Very Wide Flood)

CCT = 2700K

Spacing Criteria = 1.18

Lumens per Watt = 60 Lm/W

Test No. P121906

Test Model: RA406927WH

Candlepower Distribution

Eyeball at 0-degrees

90º

75º

110

60º

220

45º

330

15º0º

30º

Cone of Light Footcandles

0 deg Aiming Angle

Horizontal Illuminance on Floor

Distance to

Illuminated

Plane

Initial Nadir

Footcandles

Length

5.5' 9.7 6.4 6.4

7' 6 8.2 8.2

8' 4.6 9.4 9.4

9' 3.6 10.6 10.6

10' 2.9 11.8 11.8

Candela Distribution

Degrees

Vertical

Candela

0* 293

5 293

15 283

25 257

35 206

45 144

Luminance

(Average Candela/M

Degree Avg. 0°

45 43944

55 29652

65 20532

75 15132

85 14648

55 79

65 40

75 18

85 6

90 0

*CBCP

Beam (ft.)

Luminance

Width

Cone of Light Footcandles

35 deg Aiming Angle

Vertical Illuminance on Wall

Distance to

Illuminated

Plane

Initial Nadir

Footcandles

Beam (ft.)

Length

Width

2' 43.5 2.1 2.4 2.9

3' 19.3 3.2 3.6 4.3

4' 10.9 4.2 4.8 5.7

5' 7 5.3 6 7.1

6' 4.8 6.4 7.4 8.6

8' 2.7 8.6 9.8 11.4

)

10' 1.7 10.8 12.2 14.3

Zonal Lumen Summary

Zone Lumens % Fixture

0-30 225 37.4

0-40 354 58.9

0-60 534 89.0

0-90 600 100

RA406930WH

Reflector Beam Angle = VWFL Beam (Very Wide Flood) CCT = 3000K Spacing Criteria = 1.18 Lumens per Watt = 61.5 Lm/W Test No. P121908 Test Model: RA406930WH

Candlepower Distribution

Eyeball at 0-degrees

90º

75º

110

60º

220

45º

330

15º0º

30º

Cone of Light Footcandles

0 deg Aiming Angle

Horizontal Illuminance on Floor

Distance to

Illuminated

Plane

Initial Nadir

Footcandles

Length

5.5' 9.9 6.4 6.4

7' 6.1 8.2 8.2

8' 4.7 9.4 9.4

9' 3.7 10.6 10.6

10' 3 11.8 11.8

Candela Distribution

Degrees

Vertical

Candela

0* 301

5 300

15 290

25 263

35 211

45 147

Luminance

(Average Candela/M

Degree Avg. 0°

45 45015

55 30407

65 21044

75 15551

85 14896

55 81

65 41

75 19

85 6

90 0

*CBCP

Beam (ft.)

Luminance

Width

Cone of Light Footcandles

35 deg Aiming Angle

Vertical Illuminance on Wall

Distance to

Illuminated

Plane

Initial Nadir

Footcandles

Beam (ft.)

Length

Width

2' 44.6 2.1 2.4 2.9

3' 19.8 3.2 3.6 4.3

4' 11.1 4.2 4.8 5.7

5' 7.1 5.3 6 7.1

6' 5 6.4 7.4 8.6

8' 2.8 8.6 9.8 11.4

)

10' 1.8 10.8 12.2 14.3

Zonal Lumen Summary

Zone Lumens % Fixture

0-30 230 37.4

0-40 362 58.9

0-60 548 89.0

0-90 615 100

TD518263EN – Specifications and compliances subject to change without notice

Page 5

page 5

PHOTOMETRY

RA4 Series

RA406927NFLWH

Reflector Beam Angle = NFL Beam (Narrow Flood)

CCT = 2700K

Spacing Criteria = 0.35

Lumens per Watt = 64 Lm/W

Test No. P121904

Test Model: RA406927NFLWH

Candlepower Distribution

Eyeball at 0-degrees

1000

2000

3000

15º0º

30º

Cone of Light Footcandles

0 deg Aiming Angle

Horizontal Illuminance on Floor

Distance to

Illuminated

Plane

Initial Nadir

Footcandles

Beam (ft.)

Length

Width

5.5' 98.7 1.8 1.8

7' 60.9 2.4 2.4

8' 46.6 2.8 2.8

9' 36.9 3 3

10' 29.9 3.4 3.4

Candela Distribution

Degrees

90º

75º

Vertical

Candela

0* 2985

5 2531

15 836

60º

25 223

35 62

45 27

45º

55 14

Luminance

(Average Candela/M

Degree Avg. 0°

Luminance

45 6559

55 3723

65 1726

75 577

85 168

)

Distance to

Illuminated

Plane

2' 168 1.7 1 2.9

3' 74.7 2.6 1.6 4.3

4' 42 3.5 2.2 5.7

5' 26.9 4.4 2.8 7.1

6' 18.7 5.3 3.4 8.6

8' 10.5 7.1 4.4 11.4

10' 6.7 8.9 5.6 14.3

Zonal Lumen Summary

Zone Lumens % Fixture

0-30 556 86.9

0-40 598 93.4

0-60 631 98.7

0-90 640 100

Cone of Light Footcandles

35 deg Aiming Angle

Vertical Illuminance on Wall

Initial Nadir

Footcandles

Beam (ft.)

Length

Width

65 6

75 2

85 0

90 0

*CBCP

RA406930NFLWH

Reflector Beam Angle = NFL Beam (Narrow Flood)

CCT = 3000K

Spacing Criteria = 0.35

Lumens per Watt = 64 Lm/W

Test No. P121905

Test Model: RA406930NFLWH

Candlepower Distribution

Eyeball at 0-degrees

1000

2000

3000

15º0º

30º

Cone of Light Footcandles

0 deg Aiming Angle

Horizontal Illuminance on Floor

Distance to

Illuminated

Plane

Initial Nadir

Footcandles

Beam (ft.)

Length

Width

5.5' 98.7 1.8 1.8

7' 60.9 2.4 2.4

8' 46.6 2.8 2.8

9' 36.9 3 3

10' 29.9 3.4 3.4

Candela Distribution

Degrees

90º

75º

Vertical

Candela

0* 2985

5 2531

15 836

60º

25 223

35 62

45 27

45º

55 14

Luminance

(Average Candela/M

Degree Avg. 0°

Luminance

45 6559

55 3723

65 1726

75 577

85 168

)

Distance to

Illuminated

Plane

2' 168 1.7 1 2.9

3' 74.7 2.6 1.6 4.3

4' 42 3.5 2.2 5.7

5' 26.9 4.4 2.8 7.1

6' 18.7 5.3 3.4 8.6

8' 10.5 7.1 4.4 11.4

10' 6.7 8.9 5.6 14.3

Zonal Lumen Summary

Zone Lumens % Fixture

0-30 556 86.9

0-40 598 93.4

0-60 631 98.7

0-90 640 100

Cone of Light Footcandles

35 deg Aiming Angle

Vertical Illuminance on Wall

Initial Nadir

Footcandles

Beam (ft.)

Length

Width

65 6

75 2

85 0

90 0

*CBCP
