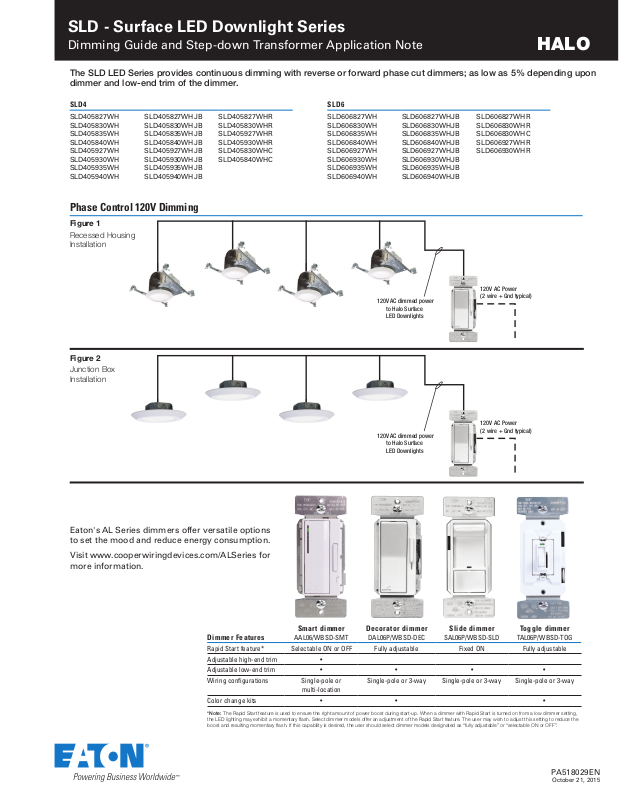

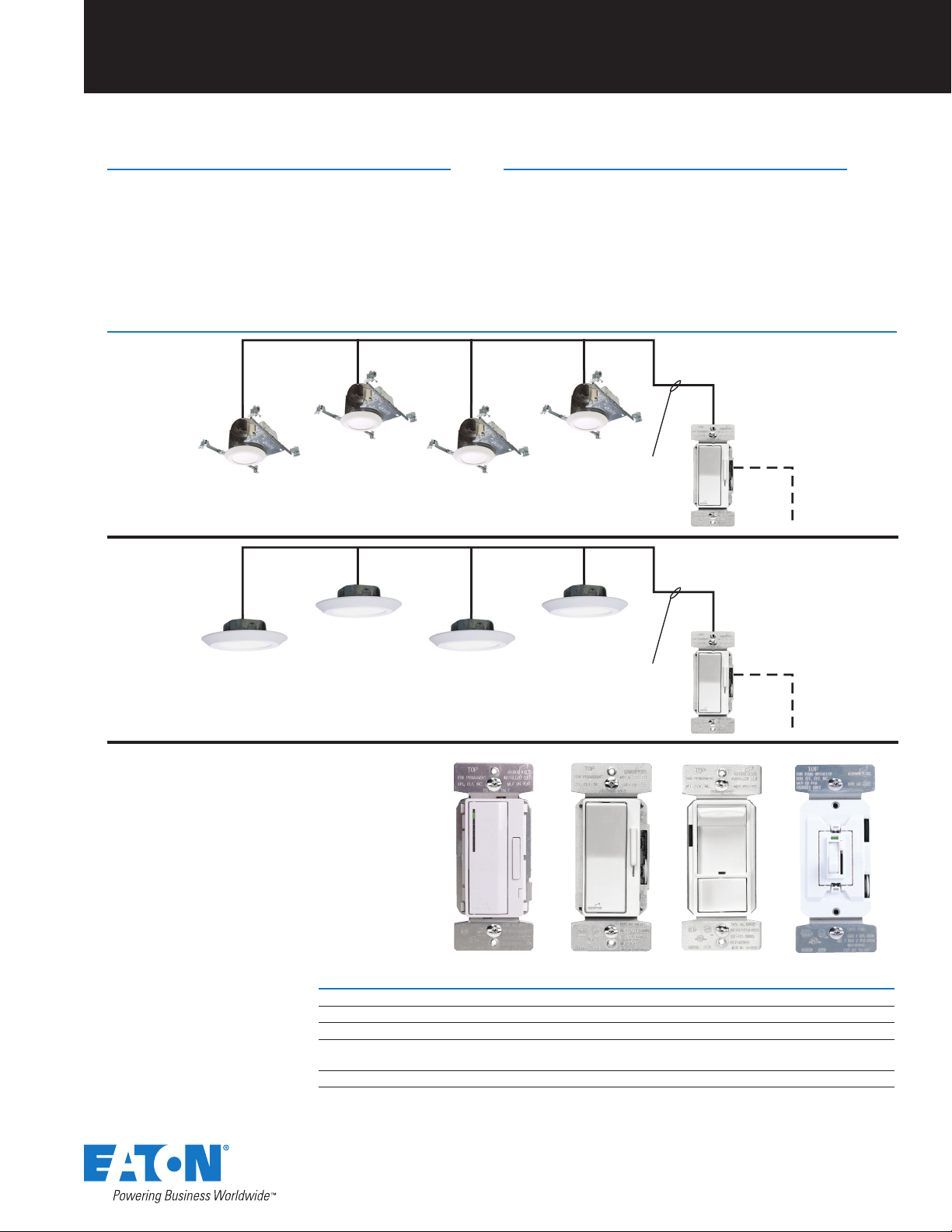

SLD - Surface LED Downlight Series
(2 wire + Gnd typical)
(2 wire + Gnd typical)
Dimming Guide and Step-down Transformer Application Note
The SLD LED Series provides continuous dimming with reverse or forward phase cut dimmers; as low as 5% depending upon
dimmer and low-end trim of the dimmer.
SLD4 SLD6
SLD405827WH
SLD405830WH
SLD405835WH
SLD405840WH
SLD405927WH
SLD405930WH
SLD405935WH
SLD405940WH
Phase Control 120V Dimming
Figure 1
Recessed Housing
Installation
SLD405827WHJB
SLD405830WHJB
SLD405835WHJB
SLD405840WHJB
SLD405927WHJB
SLD405930WHJB
SLD405935WHJB
SLD405940WHJB
SLD405827WHR
SLD405830WHR
SLD405927WHR
SLD405930WHR
SLD405830WHC
SLD405840WHC
SLD606827WH
SLD606830WH
SLD606835WH
SLD606840WH
SLD606927WH
SLD606930WH
SLD606935WH
SLD606940WH
SLD606827WHJB
SLD606830WHJB
SLD606835WHJB
SLD606840WHJB
SLD606927WHJB
SLD606930WHJB
SLD606935WHJB
SLD606940WHJB
120V AC dimmed power
to Halo Surface
LED Downlights
SLD606827WHR
SLD606830WHR
SLD606830WHC
SLD606927WHR
SLD606930WHR
120V AC Power
HALO
Figure 2
Junction Box
Installation
Eaton's AL Series dimmers offer versatile options
to set the mood and reduce energy consumption.
Visit www.cooperwiringdevices.com/ALSeries for
more information.
Dimmer Features
Rapid Start feature* Selectable ON or OFF Fully adjustable Fixed ON Fully adjustable
Adjustable high-end trim •
Adjustable low-end trim • • • •
Wiring configurations Single-pole or
Color change kits • • •
*Note: The Rapid Start feature is used to ensure the right amount of power boost during start-up. When a dimmer with Rapid Start is turned on from a low dimmer setting,
the LED lighting may exhibit a momentary flash. Select dimmer models offer an adjustment of the Rapid Start feature. The user may wish to adjust this setting to reduce the
boost and resulting momentary flash. If this capability is desired, the user should select dimmer models designated as “fully adjustable” or “selectable ON or OFF”.
Smart dimmer
AAL06/WBSD-SMT
multi-location
120V AC Power
120V AC dimmed power
to Halo Surface
LED Downlights
Decorator dimmer
DAL06P/WBSD-DEC
Single-pole or 3-way Single-pole or 3-way Single-pole or 3-way
Slide dimmer
SAL06P/WBSD-SLD
Toggle dimmer
TAL06P/WBSD-TOG
PA518029EN
October 21, 2015
Page 2
LED Rated Dimmers
SLD4 SLD6
SLD405827WH
SLD405830WH
SLD405835WH
SLD405840WH
SLD405927WH
SLD405930WH
SLD405935WH
SLD405940WH
SLD405827WHJB
SLD405830WHJB
SLD405835WHJB
SLD405840WHJB
SLD405927WHJB
SLD405930WHJB
SLD405935WHJB
SLD405940WHJB
SLD405827WHR
SLD405830WHR
SLD405927WHR
SLD405930WHR
SLD405830WHC
SLD405840WHC
SLD606827WH
SLD606830WH
SLD606835WH
SLD606840WH
SLD606827WHJB
SLD606830WHJB
SLD606835WHJB
SLD606840WHJB
SLD606827WHR
SLD606830WHR
SLD606830WHC
Dimmer
Make
EATON Decorator DAL06P INC/HAL/MLV/ELV/CFL/LED 1 24 96% 4% <1 Sec
EATON Smart AAL06P INC/HAL/MLV/ELV/CFL/LED 1 24 89% 3% <1 Sec
EATON Toggle TAL06P INC/HAL/MLV/ELV/CFL/LED 1 24 99% 6% <1 Sec
EATON Slide SAL06P INC/HAL/MLV/ELV/CFL/LED 1 24 96% 6% <1 Sec
EATON Slide SLC03PC-PTA INC/HAL/CFL/LED 1 24 91% 5% <1 Sec
EATON Toggle DLC03P INC/HAL/CFL/LED 1 24 93% 2% <1 Sec
EATON ilumin SC 277-06-UN Control Panel (Leading Edge) 1 46 99% 6% <1 Sec
Lutron Diva DVCL-153P INC/HAL/CFL/LED 1 12 85% 5% <1 Sec
Lutron Toggler TGCL-153P INC/HAL/CFL/LED 1 12 86% 5% <1 Sec
Lutron Maestro MACL-153-M INC/HAL/CFL/LED 1 12 76% 5% <1 Sec
Lutron Skylark SCL-153P-WH INC/HAL/CFL/LED 1 12 85% 5% <1 Sec
Lutron LC128 LP-RPM-4U-120 Control Panel (Leading Edge) 1 122 94% 5% <1 Sec
Lutron LC128 LP-RPM-4A-120 Control Panel (Trailing Edge) 1 76 88% 5% <1 Sec
Leviton SureSlide 6674 INC/LED/CFL 1 12 89% 4% <1 Sec
Leviton Illumatech IPL06 INC/LED/CFL 1 12 87% 3% <1 Sec
Legrand
Dimmer
Series
Pass &
Seymour
Dimmer
Model #
H703PTUW EFL/MLV/INC/ELV/HAL/CFL/LED 1 36 100% 3% <1 Sec
Dimmer Rating Minimum
Luminaires
(per circuit)
Maximum Recommended
Luminaires (per circuit)
Max Dimming
percentage
(%)
Min Dimming
percentage
(%)
Start
Time
1. Mild flashes at startup
2. Slight shimmer
1
2
Dimmer Rating - Load Type
INC = Incandescent
HAL = Halogen
MLV = Magnetic Low Voltage
ELV = Electric Low Voltage
CFL = Compact Fluorescent
FLR = Fluorescent
2
Page 3
LED Rated Dimmers
SLD6
SLD606927WH
SLD606930WH
SLD606935WH
SLD606940WH
SLD606927WHJB
SLD606930WHJB
SLD606935WHJB
SLD606940WHJB
SLD606927WHR
SLD606930WHR
Dimmer
Make
Dimmer
Series
Dimmer Model # Dimmer Rating Minimum
Luminaires
(per circuit)
Maximum
Recommended
Luminaires (per
Max Dimming
percentage
(%)
Min Dimming
percentage
(%)
Start
Time
circuit)
EATON Decorator DAL06P INC/HAL/MLV/ELV/CFL/LED 1 24 98% 3% <1 Sec
EATON Smart AAL06P INC/HAL/MLV/ELV/CFL/LED 1 24 89% 4% <1 Sec
EATON Toggle TAL06P INC/HAL/MLV/ELV/CFL/LED 1 24 97% 5% <1 Sec
EATON Slide SAL06P INC/HAL/MLV/ELV/CFL/LED 1 24 98% 6% <1 Sec
EATON Slide SLC03PC-PTA INC/HAL/CFL/LED 1 24 93% 7% <1 Sec
EATON Toggle DLC03P INC/HAL/CFL/LED 1 24 95% 8% <1 Sec
EATON ilumin SC 277-06-UN Control Panel (Leading Edge) 1 46 98% 13% <1 Sec
Lutron Diva DVCL-153P INC/HAL/CFL/LED 1 12 82% 8% <1 Sec
Lutron Toggler TGCL-153P INC/HAL/CFL/LED 1 12 87% 6% <1 Sec
Lutron Maestro MACL-153-M INC/HAL/CFL/LED 1 12 74% 9% <1 Sec
Lutron Skylark SCL-153P-WH INC/HAL/CFL/LED 1 12 82% 8% <1 Sec
Lutron LC128 LP-RPM-4U-120 Control Panel (Leading Edge) 1 122 93% 2% <1 Sec
Lutron LC128 LP-RPM-4A-120 Control Panel (Trailing Edge) 1 76 85% 5% <1 Sec
Leviton SureSlide 6674 INC/LED/CFL 1 12 91% 2% <1 Sec
Leviton Illumatech IPL06 INC/LED/CFL 1 12 89% 3% <1 Sec
Legrand
Pass &
Seymour
H703PTUW EFL/MLV/INC/ELV/HAL/CFL/LED 1 36 99% 3% <1 Sec
1. Mild flashes at startup
2. Blinks at power on
1
1, 2
1, 2
1, 2
Dimmer Rating - Load Type
INC = Incandescent
HAL = Halogen
MLV = Magnetic Low Voltage
ELV = Electric Low Voltage
CFL = Compact Fluorescent
FLR = Fluorescent
3
Page 4
LED Rated Dimmers
SLD6
SLD612827WH
SLD612830WH
SLD612835WH
SLD612840WH
SLD612927WH
SLD612930WH
SLD612935WH
SLD612940WH
Dimmer
Make
EATON Decorator DAL06P
EATON Smart AAL06P
EATON Toggle TAL06P
EATON Slide SAL06P
EATON Slide SLC03PC-PTA Triac (INC/HAL/CFL/LED) 1 24 92% 2% <1sec;
EATON Toggle DLC03P Triac (INC/HAL/CFL/LED) 1 24 94% 1% <1sec;
EATON ilumin SC 277-06-UN Control Panel( Leading Edge) 1 107 98% 7% <1sec;
Lutron Diva DVCL-153P Triac (INC/HAL/CFL/LED) 1 12 84% 4% <1sec;
Lutron Toggler TGCL-153P Triac (INC/HAL/CFL/LED) 1 12 85% 10% 2<t<10sec;
Lutron Maestro MACL-153-M Triac (INC/HAL/CFL/LED) 1 12 76% 3% <1sec;
Lutron Skylark SCL-153P-WH Triac (INC/HAL/CFL/LED) 1 12 84% 1% <1sec;
Lutron LC128 LP-RPM-4A-120 Control Panel (Leading Edge) 1 11 84% 4% <1sec;
Lutron LC128 LP-RPM-4U-120 Control Panel (Trailing Edge) 1 96 93% 2% <1sec;
Leviton SureSlide 6674 Triac (INC/LED/CFL) 1 12 88% 1% <1sec;
Leviton Illumatech IPL06 Triac (INC/LED/CFL) 1 12 85% 1% <1sec;
Dimmer
Series
Dimmer
Model #
Dimmer Rating Minimum
Luminaires
(per circuit)
Triac (INC/HAL/MLV/ELV/CFL/
LED)
Triac(INC/HAL/MLV/ELV/CFL/
LED)
Triac(INC/HAL/MLV/ELV/CFL/
LED)
Triac(INC/HAL/MLV/ELV/CFL/
LED)
1 24 95% 3% <1sec;
1 24 87% 3% <1sec;
1 24 96% 9% <1sec;
1 24 95% 5% <1sec;
Maximum Recommended
Luminaires (per circuit)
Max Dimming
percentage
(%)
Min Dimming
percentage
(%)
Start
Time
Dimmer Rating - Load Type
INC = Incandescent
HAL = Halogen
MLV = Magnetic Low Voltage
ELV = Electric Low Voltage
CFL = Compact Fluorescent
FLR = Fluorescent
4
Page 5
LED Rated Dimmers
SLD6 -1200 Series UNV
SLD612827WHUNVJB
SLD612830WHUNVJB
SLD612835WHUNVJB
SLD612840WHUNVJB
SLD612927WHUNVJB
SLD612930WHUNVJB
SLD612935WHUNVJB
SLD612940WHUNVJB
Dimmer
Make
EATON Devine DAL06P
EATON Smart AAL06P
EATON Toggle TAL06P
EATON Skye SAL06P
EATON Skye SLC03PC-PTA Triac (INC/HAL/CFL/LED) 1 20 98% 5% <1sec
EATON Toggler DLC03P Triac (INC/HAL/CFL/LED) 1 20 98% 5% <1sec
EATON iLumen SC 277-06-UN Control Panel ( Leading Edge) 1 8 98% 12% <1sec
Lutron Diva DVCL-153P Triac (INC/HAL/CFL/LED) 1 10 98% 5% <1sec
Lutron Toggler TGCL-153P Triac (INC/HAL/CFL/LED) 1 10 98% 5% 2<t<10sec
Lutron Maestro MACL-153-M Triac (INC/HAL/CFL/LED) 1 10 98% 5% <1sec
Lutron Skylark SCL-153P-WH Triac (INC/HAL/CFL/LED) 1 10 98% 5% <1sec
Lutron LC128 LP-RPM-4U-120 Control Panel ( Leading Edge) 1 7 98% 1% 2<t<10sec
Lutron LC128 LP-RPM-4A-120 Control Panel (Trailing Edge) 1 81 98% 5% <1sec
Leviton SureSlide 6674 Triac (INC/LED/CFL) 1 10 98% 1% <1sec
Leviton Illumatech IPL06 Triac (INC/LED/CFL) 1 10 98% 1% <1sec
Legrand
Dimmer
Series
Pass & Seymour
Harmony
Dimmer
Model #
H703PTUW
Dimmer Rating Minimum
Luminaires
(per circuit)
Triac (INC/HAL/MLV/ELV/
CFL/LED)
Triac (INC/HAL/MLV/ELV/
CFL/LED)
Triac (INC/HAL/MLV/ELV/
CFL/LED)
Triac (INC/HAL/MLV/ELV/
CFL/LED)
Triac (EFL/MLV/INC/ELV/HAL/
CFL/LED)
1 20 98% 3% <1sec
1 20 98% 4% <1sec
1 20 98% 15% <1sec
1 20 98% 7% <1sec
1 30 99% 10% <1sec
Maximum Recommended
Luminaires (per circuit)
Max Dimming
percentage
(%)
Min Dimming
percentage
(%)
Start
Time
1. 5% 3 seconds
2. flashes with every switch turning on
1
2
Dimmer Rating - Load Type
INC = Incandescent
HAL = Halogen
MLV = Magnetic Low Voltage
ELV = Electric Low Voltage
CFL = Compact Fluorescent
FLR = Fluorescent
5
Page 6
Incandescent and Electronic Low Voltage Rated Dimmers - For Reference Only
Testing conducted by Eaton's lighting division is not a substitute for and does not imply certification by an independent laboratory or any other standards certification.Refer
to manufacturer specifications for more detailed information on product certifications and standards. Refer to this dimming guide notes section. Consult the dimmer manufacturer prior to installation to ensure compatibility.
SLD4 SLD6
SLD405827WH
SLD405830WH
SLD405835WH
SLD405840WH
SLD405927WH
SLD405930WH
SLD405935WH
SLD405940WH
SLD405827WHJB
SLD405830WHJB
SLD405835WHJB
SLD405840WHJB
SLD405927WHJB
SLD405930WHJB
SLD405935WHJB
SLD405940WHJB
SLD405827WHR
SLD405830WHR
SLD405927WHR
SLD405930WHR
SLD405830WHC
SLD405840WHC
SLD606827WH
SLD606830WH
SLD606835WH
SLD606840WH
SLD606827WHJB
SLD606830WHJB
SLD606835WHJB
SLD606840WHJB
SLD606827WHR
SLD606830WHR
SLD606830WHC
Dimmer
Make
EATON Toggle TI-061 INC/HAL 1 38 70% 8% <1 Sec
EATON Aspire 9530AW INC 1 38 99% 4% <1 Sec
EATON Rotary RI061 INC/HAL 1 38 96% 9% <1 Sec
EATON Slide SF8AP CFL 1 76 74% 8% <1 Sec
EATON Decorator DE06P ELV 1 38 95% 10% >10 Sec
Lutron Toggler TG-600P INC 1 38 88% 10% <1 Sec
Lutron Diva DV600P INC 1 38 87% 6% <1 Sec
Lutron Maestro MAW600 INC/HAL 1 38 86% 3% <1 Sec
Lutron Lumea LG600P INC/HAL 1 38 88% 6% >10 Sec
Lutron Skylark S600P INC/HAL 1 38 87% 6% <1 Sec
Lutron
Lutron Diva DV603P INC/HAL 1 38 87% 7% <1 Sec
Lutron Nova T NTFTU-5A CFL 1 48 95% 14% <1 Sec
Lutron Maestro MAELV600 ELV 1 38 88% 7% <1 Sec
Lutron Faedra FAELV500 ELV 1 32 89% 7% <1 Sec
Lutron Diva DVELV303P ELV 1 19 82% 6% <1 Sec
Lutron Skylark SELV300P ELV 1 19 83% 5% <1 Sec
Leviton Decora 6673 CFL/INC 1 38 90% 7% <1 Sec
Leviton SureSlide 6631-2 INC 1 38 91% 5% <1 Sec
Leviton Illumatech RP106 INC 1 38 99% 9% >10 Sec
Leviton Illumatech IPI06 INC 1 38 98% 5% <1 Sec
Leviton Vizia VP106 INC 1 38 30% 15% >10 Sec
Leviton Decora 6161 INC 1 32 88% 8% <1 Sec
Leviton SureSlide 6633-P INC 1 38 97% 3% >10 Sec
Leviton Acenti ATX10 CFL 1 64 91% 8% <1 Sec
Leviton
Leviton Vizia VPE06 ELV 1 38 98% 5% <1 Sec
Leviton Illumatech IPE04 ELV 1 19 95% 4% <1 Sec
Leviton Vizia VZE04 ELV 1 25 94% 7% <1 Sec
Legrand
Hubbell
Dimmer
Series
Skylark
Contour
Plug In
Lamp
Pass &
Seymour
Trade
Select
Dimmer
Model #
CT103P INC/HAL/MLV 1 64 87% 5% <1 Sec
TBI03 Triac 1 19 99% 5% >10 Sec
HLV703PTC MLV 1 44 93% 6% 5 Sec
RD600PDK INC 1 38 86% 23% <1 Sec
Dimmer Rating Minimum Luminaires
(per circuit)
Maximum Recommended
Luminaires (per circuit)
Max Dimming
percentage (%)
Min Dimming
percentage (%)
Start
Time
1
1, 2
1
3
1. Shimmer
2. Slight flicker
3. Blinks at power on. With 4 fixtures starts to shimmer
Dimmer Rating - Load Type
INC = Incandescent
HAL = Halogen
MLV = Magnetic Low Voltage
ELV = Electric Low Voltage
CFL = Compact Fluorescent
FLR = Fluorescent
6
Page 7
Incandescent and Electronic Low Voltage Rated Dimmers - For Reference Only
Testing conducted by Eaton's lighting division is not a substitute for and does not imply certification by an independent laboratory or any other standards certification.Refer
to manufacturer specifications for more detailed information on product certifications and standards. Refer to this dimming guide notes section. Consult the dimmer manufacturer prior to installation to ensure compatibility.
Dimmer
Make
EATON Toggle TI-061 INC/HAL 1 38 72% 9% <1 Sec
EATON Aspire 9530AW INC 1 38 100% 5% <1 Sec
EATON Rotary RI061 INC/HAL 1 38 95% 10% >10 Sec
EATON Slide SF8AP CFL 1 76 95% 16% <1 Sec
EATON Decorator DE06P ELV 1 38 73% 9% <1 Sec
Lutron Toggler TG-600P INC 1 38 94% 10% <1 Sec
Lutron Diva DV600P INC 1 38 89% 5% <1 Sec
Lutron Maestro MAW600 INC/HAL 1 38 88% 3% <1 Sec
Lutron Lumea LG600P INC/HAL 1 38 87% 7% >10 Sec
Lutron Skylark S600P INC/HAL 1 38 87% 6% <1 Sec
Lutron
Lutron Diva DV603P INC/HAL 1 38 86% 8% <1 Sec
Lutron Nova T NTFTU-5A CFL 1 48 97% 15% <1 Sec
Lutron Maestro MAELV600 ELV 1 38 88% 8% <1 Sec
Lutron Faedra FAELV500 ELV 1 32 87% 7% <1 Sec
Lutron Diva DVELV303P ELV 1 19 80% 6% <1 Sec
Lutron Skylark SELV300P ELV 1 19 81% 6% <1 Sec
Leviton Decora 6673 CFL/INC 1 38 92% 7% <1 Sec
Leviton SureSlide 6631-2 INC 1 38 94% 4% >10 Sec
Leviton Illumatech RP106 INC 1 38 100% 7% >10 Sec
Leviton Illumatech IPI06 INC 1 38 100% 4% <1 Sec
Leviton Vizia VP106 INC 1 38 91% 5% <1 Sec
Leviton Decora 6161 INC 1 32 89% 8% <1 Sec
Leviton SureSlide 6633-P INC 1 38 99% 2% 2-10 Sec
Leviton Acenti ATX10 CFL 1 64 91% 9% <1 Sec
Leviton
Leviton Vizia VPE06 ELV 1 38 98% 6% <1 Sec
Leviton Illumatech IPE04 ELV 1 19 97% 4% <1 Sec
Leviton Vizia VZE04 ELV 1 25 93% 7% <1 Sec
Legrand
Hubbell
Dimmer
Series
Skylark
Contour
Plug In
Lamp
Pass &
Seymour
Trade
Select
Dimmer
Model #
CT103P INC/HAL/MLV 1 64 87% 6% >10 Sec
TBI03 Triac 1 19 99% 6% >10 Sec
HLV703PTC MLV 1 44 93% 8% <1 Sec
RD600PDK INC 1 38 86% 22% <1 Sec
Dimmer Rating Minimum Luminaires
(per circuit)
Maximum Recommended
Luminaires (per circuit)
Max Dimming
percentage (%)
Min Dimming
percentage (%)
Start
Time
1
2
3
4
5
6
1. Dims to 10% then turns off when dimmed lower
2. Shimmer at lowest dim setting
3. Mild flashes at startup and during dimming
4. Dims to 7% then turns off when dimmed lower
5. Stutters while dimming
6. Fixtures at 2% dimming level no starts lightly shimmer
Dimmer Rating - Load Type
INC = Incandescent
HAL = Halogen
MLV = Magnetic Low Voltage
ELV = Electric Low Voltage
CFL = Compact Fluorescent
FLR = Fluorescent
7
Page 8
Incandescent and Electronic Low Voltage Rated Dimmers - For Reference Only
Testing conducted by Eaton's lighting division is not a substitute for and does not imply certification by an independent laboratory or any other standards certification.Refer
to manufacturer specifications for more detailed information on product certifications and standards. Refer to this dimming guide notes section. Consult the dimmer manufacturer prior to installation to ensure compatibility.
SLD6
SLD612827WH
SLD612830WH
SLD612835WH
SLD612840WH
SLD612927WH
SLD612930WH
SLD612935WH
SLD612940WH
Dimmer
Make
Dimmer
Series
Dimmer
Model #
Dimmer Rating Minimum Luminaires
(per circuit)
Maximum Recommended
Luminaires (per circuit)
Max Dimming
percentage (%)
Min Dimming
percentage (%)
Start
Time
EATON Trace TI-061 Triac (INC/HAL ) 1 38 70% 7% <1sec
EATON Aspire 9530AW Triac(INC) 1 38 99% 7% <1sec
EATON Rotary RI061 Triac(INC/HAL) 1 38 96% 19% <1sec
1
EATON Slide SF8AP Triac (Fluorescent ) 1 172 97% 18% <1sec
EATON Decorator DE06P ELV 1 38 74% 7% <1sec
Lutron Toggler TG-600P Triac (INC ) 1 38 87% 10% <1sec
Lutron Diva DV600P Triac (INC ) 1 38 86% 5% >10sec
1
Lutron Maestro MAW600 Triac (INC/HAL ) 1 38 85% 3% <1sec
Lutron Lumea LG600P Triac (INC/HAL ) 1 38 87% 6% 2<t<10sec
Lutron Skylark S600P Triac (INC/HAL ) 1 38 86% 6% 2<t<10sec
Lutron
Skylark
Contour
CT103P
Triac (INC/HAL/
MLV)
1 64 86% 7% <1sec
Lutron Diva DV603P Triac (INC/HAL ) 1 38 86% 8% <1sec
Lutron Nova T NTFTU-5A Triac (Fluorescent ) 1 144 95% 15% <1sec
Lutron Maestro MAELV600 ELV 1 38 87% 7% <1sec
Lutron Faedra FAELV500 ELV 1 32 86% 7% <1sec
Lutron Diva DVELV303P ELV 1 19 74% 5% <1sec
Lutron Skylark SELV300P ELV 1 19 96% 5% <1sec
Leviton Decora 6673 Triac (CFL/INC) 1 38 89% 7% <1sec
2
Leviton SureSlide 6631-2 Triac (INC ) 1 38 92% 5% <1sec
Leviton Illumatech RPI06 Triac (INC ) 1 38 98% 14% <1sec
1
Leviton Illumatech IPI06 Triac (INC ) 1 38 98% 6% <1sec
Leviton Vizia VP106 Triac (INC ) 1 38 89% 6% <1sec
Leviton Decora 6161 Triac (INC ) 1 32 87% 8% <1sec
Leviton SureSlide 6633-P Triac (INC ) 1 38 96% 2% >10sec
Leviton Acenti ATX10 Triac (Fluorescent ) 1 64 91% 16% <1sec
Leviton
Plug In
Lamp
TBI03 Triac 1 19 98% 7% >10sec
1
Dimmer
Leviton Vizia VPE06 ELV 1 38 96% 6% <1sec
Leviton Illumatech IPE04 ELV 1 19 86% 4% <1sec
Leviton Vizia VZE04 ELV 1 25 97% 4% <1sec
Legrand
Hubbell
Legrand Harmony H703PTUW Triac (INC) 1 44 99% 2% <1sec
Pass
Seymour
Trade
Select
HLV1103PW MLV 1 44 95% 5% <1sec
RD600PDK Triac (INC) 1 38 87% 20% <1sec
1
1
1. Shimmer
2. Slight flicker
Dimmer Rating - Load Type
INC = Incandescent
HAL = Halogen
MLV = Magnetic Low Voltage
ELV = Electric Low Voltage
CFL = Compact Fluorescent
FLR = Fluorescent
8
Page 9
Incandescent and Electronic Low Voltage Rated Dimmers - For Reference Only
Testing conducted by Eaton's lighting division is not a substitute for and does not imply certification by an independent laboratory or any other standards certification.Refer
to manufacturer specifications for more detailed information on product certifications and standards. Refer to this dimming guide notes section. Consult the dimmer manufacturer prior to installation to ensure compatibility.
SLD6 -1200 Series UNV
SLD612827WHUNVJB
SLD612830WHUNVJB
SLD612835WHUNVJB
SLD612840WHUNVJB
SLD612927WHUNVJB
SLD612930WHUNVJB
SLD612935WHUNVJB
SLD612940WHUNVJB
Note: Not recommended to connect SLD6-1200UNV
and SLD6-1200 to the same dimmer.
Dimmer
Make
EATON Trace TI-061 Triac (INC/HAL ) 1 32 95% 6% <1sec
EATON Aspire 9530AW Triac (INC) 1 32 98% 7% 2<t<10sec
EATON Decora RI061 Triac (INC/HAL) 1 32 98% 40% <1sec
EATON SureSlide SF8AP Triac (Fluorescent ) 1 65 98% 44% <1sec
EATON Illumatech DE06P ELV 1 32 98% 11% <1sec
Lutron Toggler TG-600P Triac (INC ) 1 32 98% 13% <1sec
Lutron Diva DV600P Triac (INC ) 1 32 98% 5% >10sec
Lutron Maestro MAW600 Triac (INC/HAL ) 1 32 98% 5% <1sec
Lutron Lumea LG600P Triac (INC/HAL ) 1 32 97% 6% 2<t<10sec
Lutron Skylark S600P Triac (INC/HAL ) 1 32 98% 6% <1sec
Lutron Skylark Contour CT103P Triac (INC/HAL/MLV) 1 54 97% 11% <1sec
Lutron Diva DV603P Triac (INC/HAL ) 1 32 99% 8% <1sec
Lutron Nova T NTFTU-5A Triac (Fluorescent ) 1 40 98% 36% <1sec
Lutron Maestro MAELV600 ELV 1 32 98% 11% <1sec
Lutron Faedra FAELV500 ELV 1 27 98% 11% <1sec
Lutron Diva DVELV303P ELV 1 16 98% 6% <1sec
Lutron Skylark SELV300P ELV 1 16 98% 6% <1sec
Leviton Decora 6673 Triac (CFL/INC) 1 32 98% 10% <1sec
Leviton SureSlide 6631-2 Triac (INC ) 1 32 98% 3% 2<t<10sec
Leviton Illumatech IPI06 Triac (INC ) 1 32 98% 8% <1sec
Leviton Vizia VP106 Triac (INC ) 1 32 97% 8% <1sec
Leviton Decora 6161 Triac (INC ) 1 27 98% 15% <1sec
Leviton SureSlide 6633-P Triac (INC ) 1 32 98% 3% >10sec
Leviton Acenti ATX10 Triac (Fluorescent ) 1 54 98% 17% <1sec
Leviton
Leviton Vizia VPE06 ELV 1 32 99% 8% <1sec
Leviton Illumatech IPE04 ELV 1 16 98% 4% <1sec
Leviton Vizia VZE04 ELV 1 21 98% 11% <1sec
Legrand
Hubbell TradeSelect RD600PDK Triac (INC) 1 32 98% 33% <1sec
Dimmer
Series
Plug In Lamp
Dimmer
Pass & Seymour
Harmony
Dimmer
Model #
TBI03 Triac 1 16 98% 54% <1sec
HLV703PTC Triac (MLV) 1 38 99% 5% 2<t<10sec
Dimmer Rating Minimum
Luminaires
(per circuit)
Maximum Recommended
Luminaires (per circuit)
Max Dimming
percentage
(%)
Min Dimming
percentage
(%)
Start
Time
1,2
3
3
2
4
3,5
1. Couple of blinks
2. Mild flashes at startup
3. Slightly shimmer
4. Not able to turn off
5. 5% 3 seconds
Dimmer Rating - Load Type
INC = Incandescent
HAL = Halogen
MLV = Magnetic Low Voltage
ELV = Electric Low Voltage
CFL = Compact Fluorescent
FLR = Fluorescent
9
Page 10
0-10V Low Voltage Rated Dimmers - For Reference Only
Testing conducted by Eaton's lighting division is not a substitute for and does not imply certification by an independent laboratory or any other standards certification.Refer
to manufacturer specifications for more detailed information on product certifications and standards. Refer to this dimming guide notes section. Consult the dimmer manufacturer prior to installation to ensure compatibility.
Halo LED models that are specified for 0-10V dimming capability use drivers that are designed for use with 0-10V DC low voltage dimmers. 0-10V DC dimmers are quite commonly used with 0-10V fluorescent dimming ballasts such as Mark-7®, Quicktronic Helios™ or TVE™ that operate using two low voltage dimming wires that are separate
from the 120V AC or 277V AC power. Switching on/off is controlled via the line voltage power (120V AC or 277V AC). The dimming control signal runs on two low voltage
control wires (color coded violet and gray). The 0-10V dimmer operates on a “sinking” control signal where the dimmer uses a different level of the control voltage to set the
desired dimming level.
SLD6 -1200 Series UNV
SLD612827WHUNVJB
SLD612830WHUNVJB
SLD612835WHUNVJB
SLD612840WHUNVJB
SLD612927WHUNVJB
SLD612930WHUNVJB
SLD612935WHUNVJB
SLD612940WHUNVJB
Dimmer
Make
EATON SKYE SF10 0-10V 1 64 88 98% 12% <1sec
EATON DEVINE DF10 0-10V 1 64 88 97% 8% 2<t<10sec
Lutron DIVA DVTV 0-10V 1 51 118 97% 9% <1sec
Lutron NOVA T NTFTV 0-10V 1 51 118 97% 10% <1sec
Leviton Illumatech IP710 0-10V 1 64 64 95% 9% <1sec
EATON iLumin SC277-06 0-10V 1 50 50 97% 12% <1sec
EATON Greengate CK4A 0-10V 1 50 50 97% 0% >10sec
Dimmer
Series
Dimmer
Model #
Dimmer Rating "Minimum Lamps
or Luminaires
(per circuit)"
"Maximum
Recommended
Luminaires
(per circuit) at
120V"
"Maximum
Recommended
Luminaires
(per circuit) at
277V"
Max Dimming
percentage(%)
Min
Dimming
percentage(%)
Low End
Start-up
time
Dimmer Rating - Load Type
0-10V = 0-10V Low Voltage
10
Page 11
Dimmer Notes:
1. Start time is measured at the lowest dimmer setting.
2. Some LED rated dimmers have a "rapid start" design used to provide a momentary power boost for LED and CFL
lamps during start-up. When a LED luminaire is on a dimmer with "rapid start" the boost may cause a momentary
flash of the LED lighting. This "flash" is generated by the dimmer, and may be more noticeable when the dimmer
is at a low setting. A solution is available in the following EATON dimmers which provide adjustment capability of
the "rapid start": Decorator (DAL06P), Smart (AAL06), and Toggle (TAL06P). Refer to product specifications online at
www.cooperwiringdevices.com for more details.
Dimming Guide Disclaimer:
®
1. Leviton
Electronics Co. Inc.; Lightolier® is a registered trademark of Philips Lighting; Hubbell® is a registered trademark of
Hubbell Incorporated; Legrand
is a registered trademark of Leviton Manufacturing Co. Inc.; Lutron® is a registered trademark of Lutron
®
and Pass & Seymour® are registered trademarks of Legrand®. These companies and
their tradenames, trademarks or brands, where noted, are associated with their respective company and are not
associated with EATON.
2. Testing conducted by EATON is not a substitute for and does not imply certification by an independent laboratory or
any other standards certification. Refer to the manufacturer specifications for more detailed information on product
certifications and standards.
3. This is a representative list of typical dimmers as tested by EATON for performance with the designated LED
luminaires only. Test data contained in this literature is based upon dimmers obtained in the marketplace.
• Information about these other manufacturers products is obtained from packaging and published information
made available by the manufacturer and is deemed to be reliable, but has not been verified.
• Dimmer performance and perceived limitations of the dimmers are based onfactors outside of EATON's control.
• The specifications of these dimming controls and their conditions of use may change without notice to EATON or
any other user.
• EATON makes no specific recommendation on product selection and there are no warranties of performance or
compatibility implied.
• Installer must ensure proper local and national electrical codes are followed; and that the dimmer application and
condition of use is per dimmer manufacturer instructions and guidelines.
11
Page 12
Application Note
H277, H347 and H347200 step-down transformers are qualified to drive multiple Halo
LED on a single circuit in Non-IC construction. Installation of these transformers with
individual LED fixtures on circuits with multiple LED loads is not recommended.
This is not recommended due to resulting multiple inductive currents pulled by each
transformer; in this situation the majority of the power would then be reactive (VARS)
and not real (WATTS). If H277, H347 or H347200 transformers should be used individually
on each LED fixture in a single circuit, then that circuit should be sized for lowered power
factor as well as increased apparent power on the circuit. H277, H347 and H347200 are
UL/cUL listed for use with Halo recessed housings: H750T, H750TCP, H7T, H7TNB, H7RT.
Step Down Transformers
H277 = Steps 277 line voltage down to 120 volts. Attaches to knockout on first fixture’s
junction box in a circuit and is 300VA rated. H277 is a UL recognized Component listed
under the luminaire UL/cUL listing for Halo Non-IC housings.
H347 and H347200 = Steps 347 line voltage down to 120 volts. Attaches to knockout on
first fixture’s junction box in a circuit. H347 is 75VA and H347200 is 200VA rated. H347 is
a CSA/UL Listed Component for use under the luminaire UL/cUL listing with Halo Non-IC
housings.

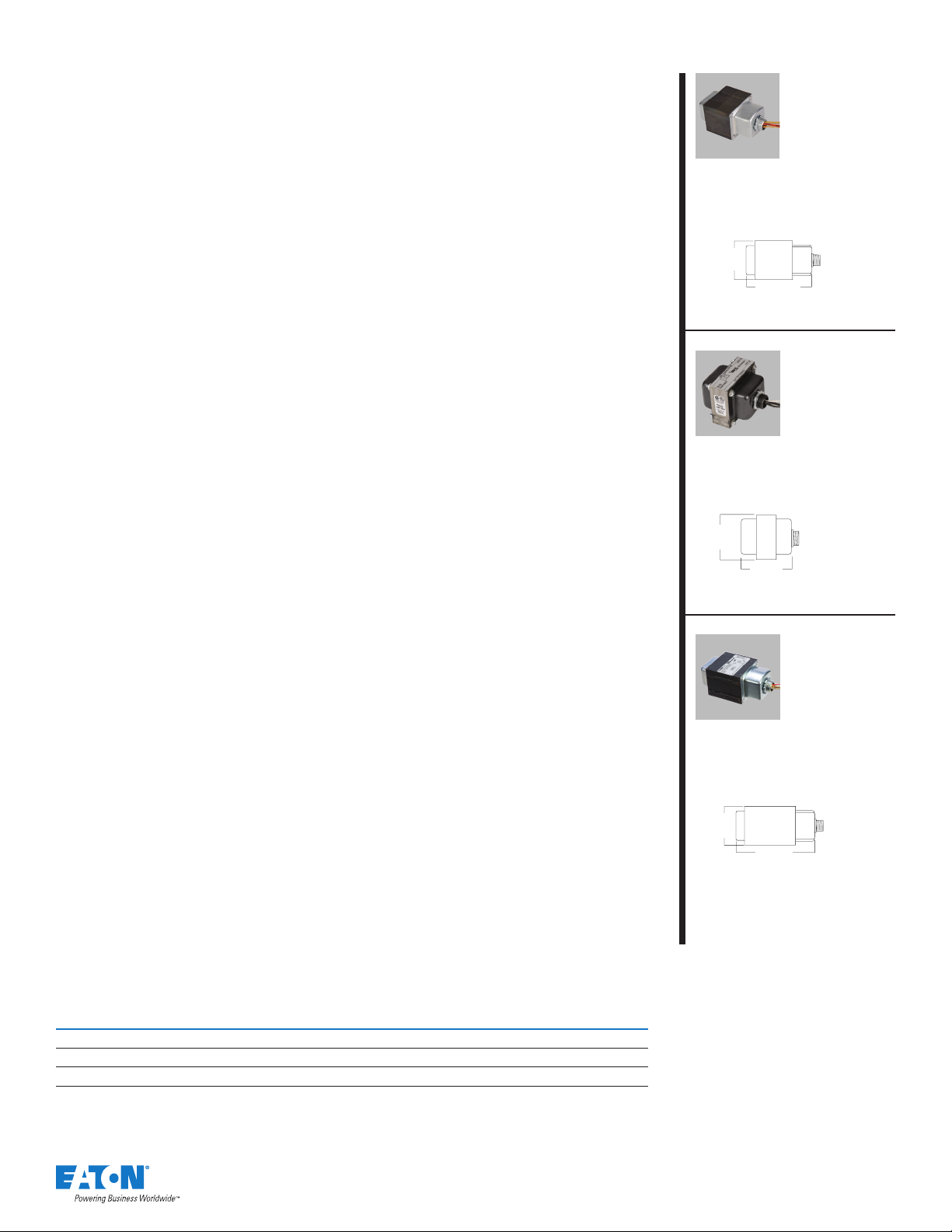

H277
277V Step Down Transformer,
300VA
2-3/16”
[56mm]
4-3/16”
[106mm]
H277
Transformer Load - H277 (300VA)
1. H277 Transformer at full loading consumes a maximum of 16W of power.
2. When a dimmer or switch is on the secondary (120V) side of the transformer, power
is consumed by the transformer when the dimmer or switch is in “OFF” mode at 6.5W
and in “ON” mode at 16W maximum under full loading.
3. When a switch is on the primary (277V) side ahead of the transformer, power is
consumed only in “ON” mode to a maximum of 16W under full loading. (Use of a
dimmer ahead of the transformer is not recommended)
Transformer Load - H347 (75VA)
1. H347 Transformer at full loading consumes a maximum of 15W of power.
2. When a dimmer or switch is on the secondary (120V) side of the transformer, power
is consumed by the transformer when the dimmer or switch is in “OFF” mode at 2.5W
and in “ON” mode at 15W maximum under full loading.
3. When a switch is on the primary (347V) side ahead of the transformer, power is
consumed only in “ON” mode to a maximum of 15W under full loading.
(Use of a dimmer ahead of the transformer is not recommended)
Transformer Load - H347200 (200VA)
1. H347200 Transformer at full loading on 120V side consumes a maximum of 28W
of power.
2. When a dimmer or switch is on the secondary (120V) side of the transformer, power
is consumed by the transformer when the dimmer or switch is in “OFF” mode at 9.2W
and in “ON” mode at 28W maximum under full loading.
3. When a switch is on the primary (347V) side ahead of the transformer, power is
consumed only in “ON” mode to a maximum of 28W under full loading.
When a switch is on the primary (277V) side ahead of the transformer, power is
consumed only in “ON” mode to a maximum of 12W under full loading.
(Use of a dimmer ahead of the transformer is not recommended)
H347
347V Step Down Transformer,
75VA
2-1/2”
[63mm]
2-3/4”
[70mm]
H347
H347200
347V Step Down Transformer,
200VA
2-3/16”
[56mm]
4-3/4”
[121mm]
H347200
SLD - Surface LED Downlight Series
SLD Maximum Units on Step Down Transformer
Powered Circuits
VA Rating Max # of Fixtures Max # of Fixtures
H277
H347
H347200
300 18 16
75 4 4
200 12 10
SLD4, SLD6 - 80 CRI
SLD4 - 90 CRI SLD6 - 90 CRI
12
Page 13

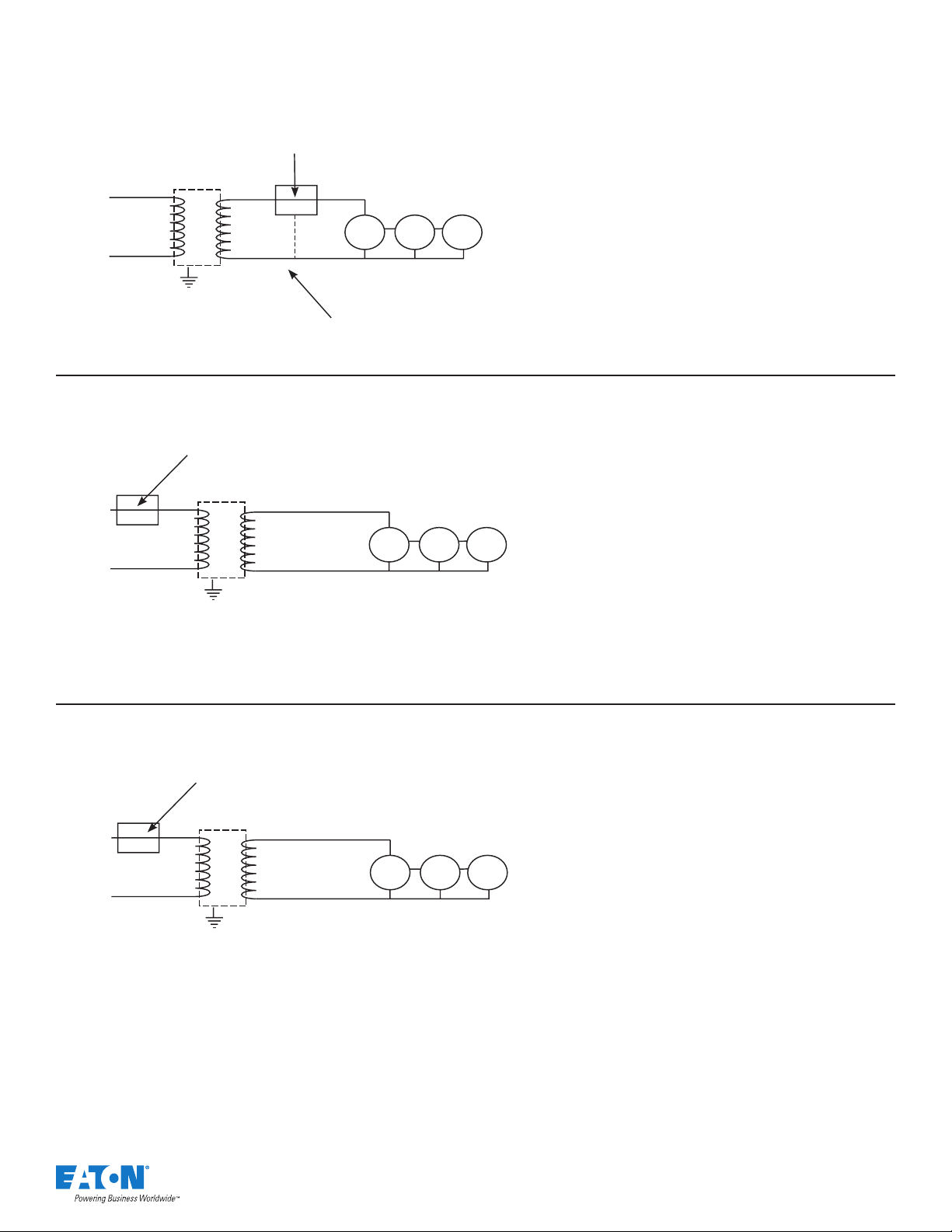

Transformer with Dimmer/Switch on 120V Secondary
120V Dimmer or Switch
Hot
Transformer
277V
(347V)
Hot
120V
Neutral
Neutral
Ground
Dimmer Neutral Connection typical with some Dimmers
Transformer with Switch on 277V Primary
Switch*
Transformer
Hot
277V
120V
Neutral
LED LED LED
Hot
LED LED LED
Neutral
Ground
*Use of a dimmer ahead of the transformer is not recommended
Transformer with Switch on 347V Primary
347V Switch*
Transformer
Hot
347V
120V
Neutral
Ground
*Use of a dimmer ahead of the transformer is not recommended
Hot
LED LED LED
Neutral
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Canada Sales
5925 McLaughlin Road
Mississauga, Ontario L5R 1B8
P: 905-501-3000
F: 905-501-3172
© 2015 Eaton
All Rights Reserved
Printed in USA
Publication No. PA518029EN
October 21, 2015
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
Product availability, specifications,
and compliances are subject to
change without notice.
Loading...
