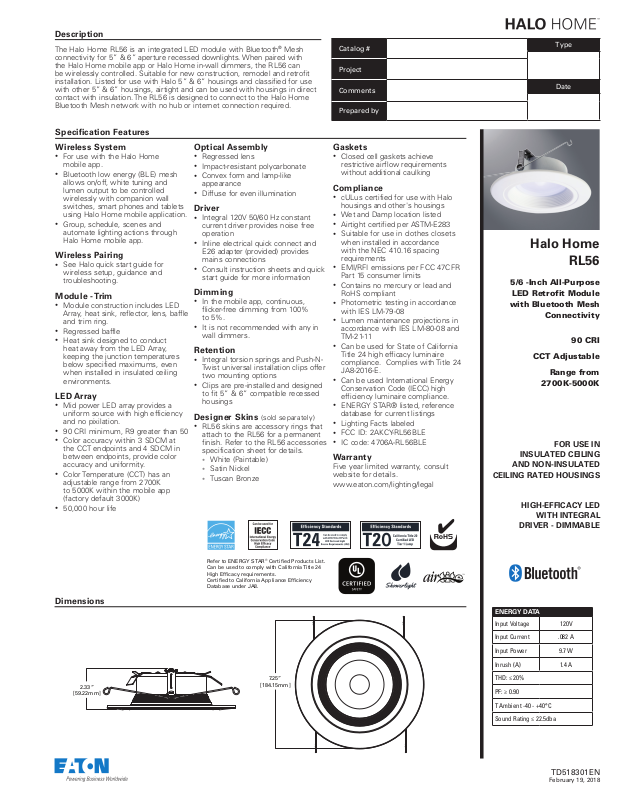

Page 1
Description
The Halo Home RL56 is an integrated LED module with Bluetooth® Mesh
connectivity for 5” & 6” aperture recessed downlights. When paired with
the Halo Home mobile app or Halo Home in-wall dimmers, the RL56 can
be wirelessly controlled. Suitable for new construction, remodel and retrofit
installation. Listed for use with Halo 5” & 6” housings and classified for use
with other 5” & 6” housings, airtight and can be used with housings in direct
contact with insulation. The RL56 is designed to connect to the Halo Home
Bluetooth Mesh network with no hub or internet connection required.
Specification Features
Wireless System
•
For use with the Halo Home
mobile app.
•
Bluetooth low energy (BLE) mesh
allows on/off, white tuning and
lumen output to be controlled
wirelessly with companion wall
switches, smart phones and tablets
using Halo Home mobile application.
•
Group, schedule, scenes and
automate lighting actions through
Halo Home mobile app.
Wireless Pairing
•
See Halo quick start guide for
wireless setup, guidance and
troubleshooting.
Module - Trim
•
Module construction includes LED
Array, heat sink, reflector, lens, baffle
and trim ring.
•
Regressed baffle
•
Heat sink designed to conduct
heat away from the LED Array,
keeping the junction temperatures
below specified maximums, even
when installed in insulated ceiling
environments.
LED Array
•
Mid power LED array provides a
uniform source with high efficiency
and no pixilation.
•
90 CRI minimum, R9 greater than 50
•
Color accuracy within 3 SDCM at
the CCT endpoints and 4 SDCM in
between endpoints, provide color
accuracy and uniformity.
•
Color Temperature (CCT) has an
adjustable range from 2700K
to 5000K within the mobile app
(factory default 3000K)
•
50,000 hour life
Optical Assembly
•
Regressed lens
•
Impact-resistant polycarbonate
•
Convex form and lamp-like
appearance
•
Diffuse for even illumination
Driver
•
Integral 120V 50/60 Hz constant
current driver provides noise free
operation
•
Inline electrical quick connect and
E26 adapter (provided) provides
mains connections
•
Consult instruction sheets and quick
start guide for more information
Dimming
•
In the mobile app, continuous,
flicker-free dimming from 100%
to 5%.
•
It is not recommended with any in
wall dimmers.
Retention
•
Integral torsion springs and Push-NTwist universal installation clips offer
two mounting options
•
Clips are pre-installed and designed
to fit 5” & 6” compatible recessed
housings
Designer Skins (sold separately)
•
RL56 skins are accessory rings that
attach to the RL56 for a permanent
finish. Refer to the RL56 accessories
specification sheet for details.
• White (Paintable)
• Satin Nickel
• Tuscan Bronze
Catalog #
Project
Comments
Prepared by
Gaskets
•
Closed cell gaskets achieve
restrictive airflow requirements
without additional caulking
Compliance
•
cULus certified for use with Halo
housings and other's housings
•
Wet and Damp location listed
•
Airtight certified per ASTM-E283
•
Suitable for use in clothes closets
when installed in accordance
with the NEC 410.16 spacing
requirements
•
EMI/RFI emissions per FCC 47CFR
Part 15 consumer limits
•
Contains no mercury or lead and
RoHS compliant
•
Photometric testing in accordance
with IES LM-79-08
•
Lumen maintenance projections in
accordance with IES LM-80-08 and
TM-21-11
•
Can be used for State of California
Title 24 high efficacy luminaire
compliance. Complies with Title 24
JA8-2016-E.
•
Can be used International Energy
Conservation Code (IECC) high
efficiency luminaire compliance.
•
ENERGY STAR® listed, reference
database for current listings
•
Lighting Facts labeled
•
FCC ID: 2AKCY-RL56BLE
•
IC code: 4706A-RL56BLE
Warranty
Five year limited warranty, consult
website for details.
www.eaton.com/lighting/legal
Type
Date
Halo Home
RL56
5/6 -Inch All-Purpose
LED Retrofit Module
with Bluetooth Mesh
Connectivity
90 CRI
CCT Adjustable
Range from
2700K-5000K
FOR USE IN
INSULATED CEILING
AND NON-INSULATED
CEILING RATED HOUSINGS
HIGH-EFFICACY LED
WITH INTEGRAL
DRIVER - DIMMABLE

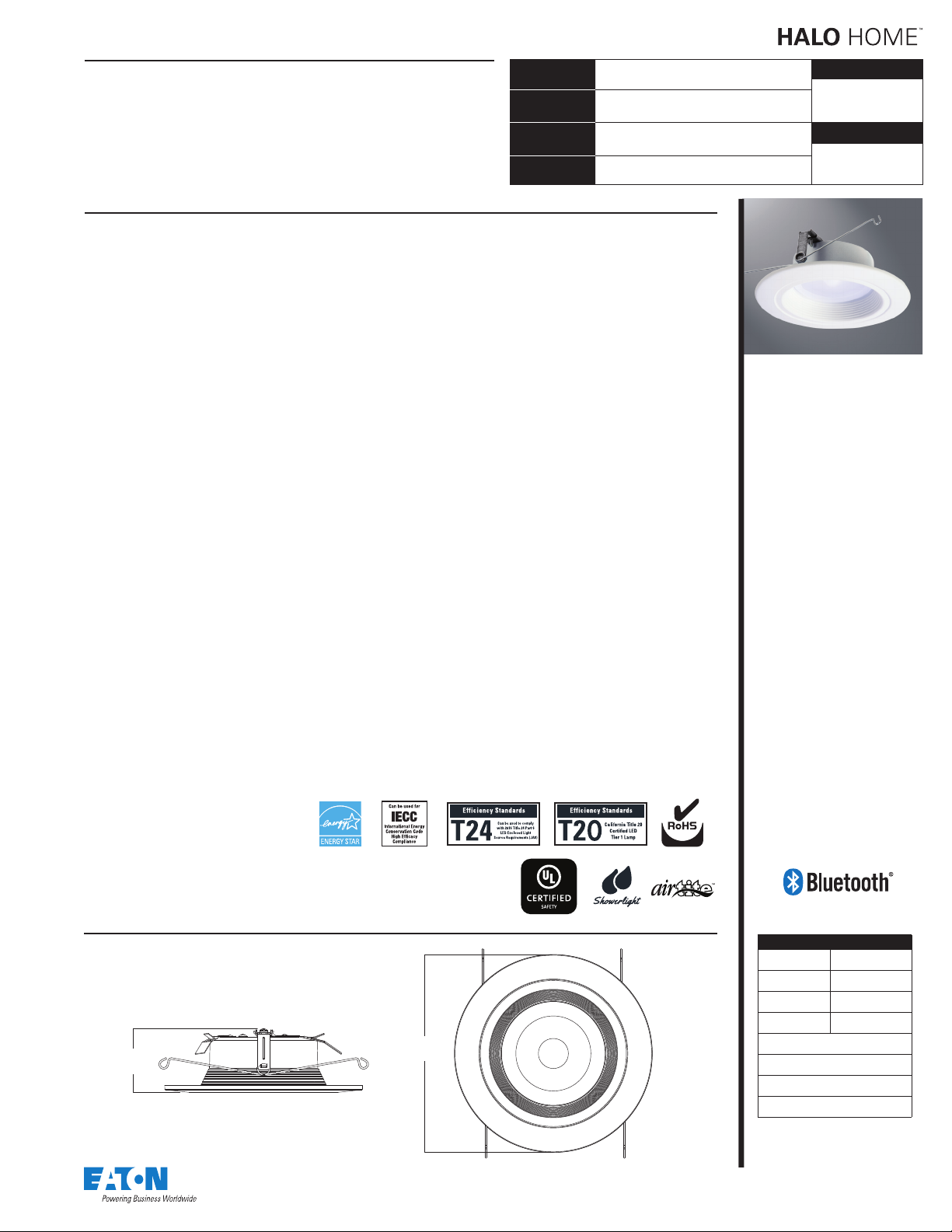

Dimensions
2.33”
[59.22mm]
Refer to ENERGY STAR® Certified Products List.
Can be used to comply with California Title 24
High Efficacy requirements.
Certified to California Appliance Efficiency
Database under JA8.
7.25”
[184.15mm]
ENERGY DATA
Input Voltage 120V
Input Current .082 A
Input Power 9.7 W
Inrush (A) 1.4 A
THD: ≤ 20%
PF: ≥ 0.90
T Ambient -40 - +40°C
Sound Rating ≤ 22.5dba
TD518301EN
February 19, 2018
Page 2
Ordering Information
SAMPLE NUMBER: RL56069BLE40AWH
A complete luminaire consists of a housing, and LED module, order separately.
Models Lumens CRI/CCT Protocol Finish Accessories
RL56= 5"/6" all- purpose
retrofit LED module
Housings
Halo LED 5-inch
H550ICAT= 5” LED, Insulated Ceiling, Air-Tite, New Construction Housing
H550RICAT= 5” LED, Insulated Ceiling, Air-Tite, Remodel Housing
E550ICAT= 5” LED, Insulated Ceiling, Air-Tite, New Construction Housing
E550RICAT= 5” LED, Insulated Ceiling, Air-Tite, Remodel Housing
Halo LED 6-inch
H750ICAT= 6” LED, Insulated Ceiling, Air-Tite, New Construction Housing
H750RICAT= 6” LED, Insulated Ceiling, Air-Tite, Remodel Housing
H750T= 6” LED, Non-IC, Air-Tite, New Construction Housing
H750TCP= 6” LED, Non-IC, New Construction/Remodel Chicago Plenum Housing
H2750ICAT= 6” LED, Shallow, Insulated Ceiling, Air-Tite, New Construction (use with 691X, 694X, 696X trims only)
H2750RICAT= 6” LED, Shallow, Insulated Ceiling, Air-Tite, Remodel (use with 691X, 694X, 696X trims only)
E750ICAT= 6” LED, Insulated Ceiling, Air-Tite, New Construction Housing
E750RICAT= 6” LED, Insulated Ceiling, Air-Tite, Remodel Housing
Halo LED retrofit
ML7E26RFK= 6” Retrofit Enclosure, Non-IC, E26 Screw base Interface
ML7BXFK= 6” Retrofit Enclosure, Non-IC, BX Whip
Halo Shallow Housings 5-inch
H25ICAT= 5” Shallow, Insulated Ceiling, Air-Tite New Construction
H25RICAT= 5” Shallow, Insulated Ceiling, Air-Tite Remodel
H25ICATNB= 5” Shallow, Insulated Ceiling, Air-Tite New Construction, No Socket Bracket
Halo Shallow Housings 6-inch
H27ICAT= 6” Shallow, Insulated Ceiling, Air-Tite New Construction
H27RICAT= 6” Shallow, Insulated Ceiling, Air-Tite Remodel Housing
H27T= 6” Shallow, Non-IC, New Construction Housing
H27RT= 6” Shallow, Non-IC, Remodel Housing
E27ICAT= 6” Shallow, Insulated Ceiling, Air-Tite New Construction
E27RICAT= 6” Shallow, Insulated Ceiling, Air-Tite Remodel Housing
E27TAT= 6” Shallow, Non-IC, New Construction Housing
E27RTAT= 6” Shallow, Non-IC, Remodel Housing
Halo Standard Housings 5-inch
H5ICAT= 5” Insulated Ceiling, Air-Tite New Construction Housing
H5RICAT= 5” Insulated Ceiling, Air-Tite Remodel Housing
H5ICATNB= 5” Insulated Ceiling, Air-Tite New Construction Housing, No Socket Bracket
H5T= 5” Non-IC, New Construction Housing
H5RT= 5” Non-IC, Remodel Housing
H5TNB= 5” Non-IC, New Construction Housing, No Socket Bracket
E5ICAT= 5” Insulated Ceiling, Air-Tite New Construction Housing
E5RICAT= 5” Insulated Ceiling, Air-Tite Remodel Housing
E5ICATNB= 5” Insulated Ceiling, Air-Tite New Construction Housing, No Socket Bracket
E5TAT= 5” Non-IC, New Construction Housing
E5RTAT= 5” Non-IC, Remodel Housing
E5TATNB= 5” Non-IC, New Construction Housing, No Socket Bracket
Halo Standard Housings 6-inch
H7ICAT= 6” Insulated Ceiling, Air-Tite New Construction Housing
H7RICAT= 6” Insulated Ceiling, Air-Tite Remodel Housing
H7ICT= 6” Insulated Ceiling, New Construction Housing
H7RICT= 6” Insulated Ceiling, Remodel Housing
H7ICATNB= 6” Insulated Ceiling, Air-Tite New Construction Housing, No Socket Bracket
H7ICTNB= 6” Insulated Ceiling, New Construction Housing, No Socket Bracket
H7T= 6” Non-IC, New Construction Housing
H7RT= 6” Non-IC, Remodel Housing
H7TNB= 6” Non-IC, New Construction Housing, No Socket Bracket
H7TCP= 6” Non-IC, Chicago Plenum, New Construction/Remodel Housing
H7UICAT= 6” Insulated Ceiling, Universal, Air-Tite, New Construction Housing
E7ICAT= 6” Insulated Ceiling, Air-Tite New Construction Housing
E7RICAT= 6” Insulated Ceiling, Air-Tite Remodel Housing
E7ICATNB= 6” Insulated Ceiling, Air-Tite New Construction Housing, No Socket Bracket
E7TAT= 6” Non-IC, New Construction Housing
E7RTAT= 6” Non-IC, Remodel Housing
E7TATNB= 6” Non-IC, New Construction Housing, No Socket Bracket
06=600 lumens
(nominal)
9=90 CRI minimum,
white tuning, select
CCT 2700K – 5000K,
in the mobile app
BLE40A=Bluetooth
Mesh wireless control,
4.0
WH=Matte white baffle RL56TRMWHB =5”/6" White Paintable Trim Ring, Baffle
RL56TRMSNB =5”/6" Satin Nickel Trim Ring, Baffle
RL56TRMTBZB =5”/6" Tuscan Bronze Trim Ring, Baffle
RL56TRMWH =5”/6" White Paintable Trim Ring
RL56TRMSN =5”/6" Satin Nickel Trim Ring
RL56TRMTBZ =5”/6" Tuscan Bronze Trim Ring
Halo Home RL56
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
Page 3
Halo Home RL56

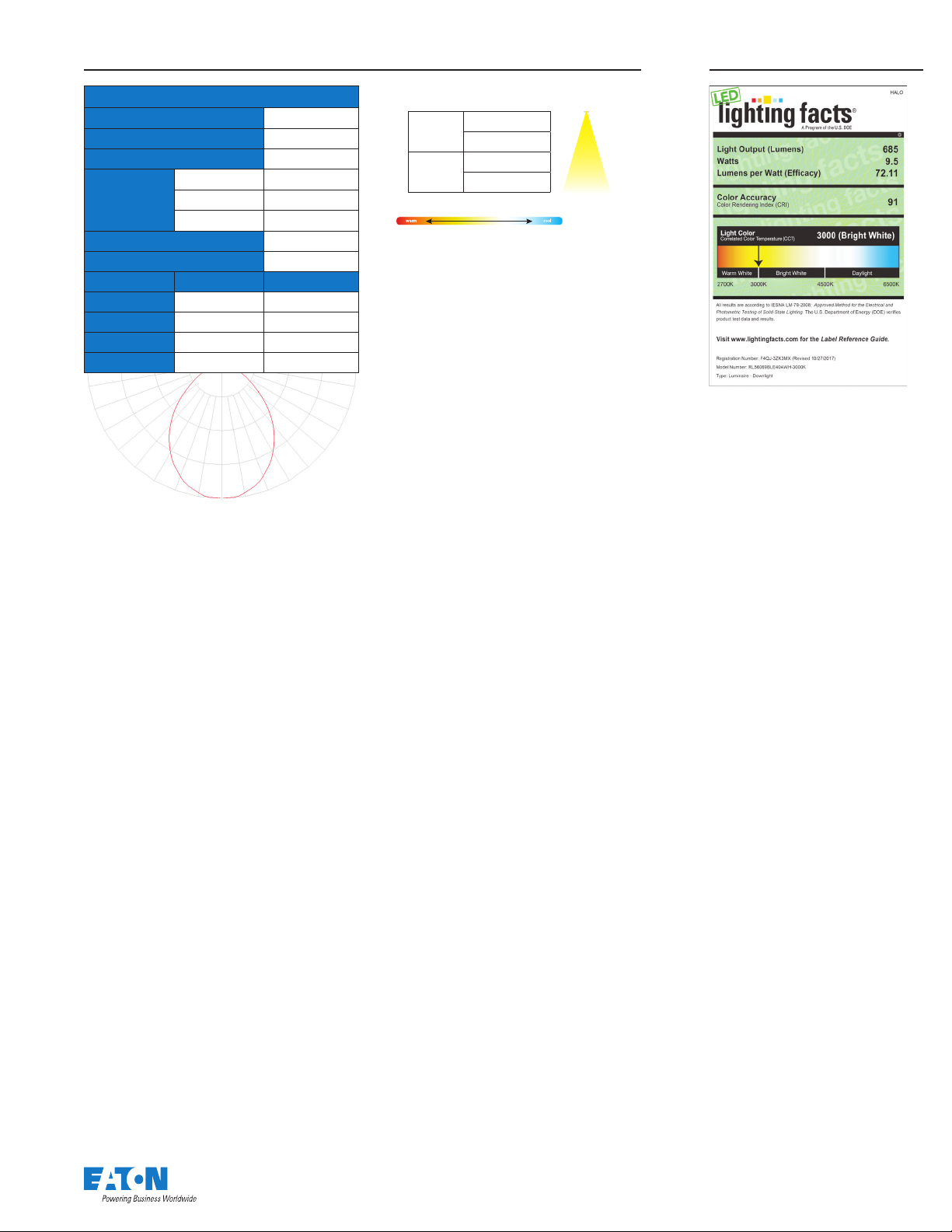

Lighting FactsPhotometric Data
RL56069BLE40AWH
Luminaire lumens 665
Input watts 7. 6
LER (LPW) 87.5
Spacing
Criteria
Beam angle (degrees) 87.8
Field angle (degrees) 139
Zonal lumen Lumens % Lumens
0-30
0-40 387
0-60 595
0-90 665
* Tested in accordance with IES LM63. Field results may vary.
0-180 1.14
90-270 1.14
Diagonal 1.22
247 37.2
58.2
89.4
100
Color Metric Summary*
f = 89.8
TM-30-15
CRI/CIE
CCT - Range of 2700K- 5000K
R
g = 98
R
a = 93.7
R
9 = 69.1
R
*factory default 3000K
93°
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
