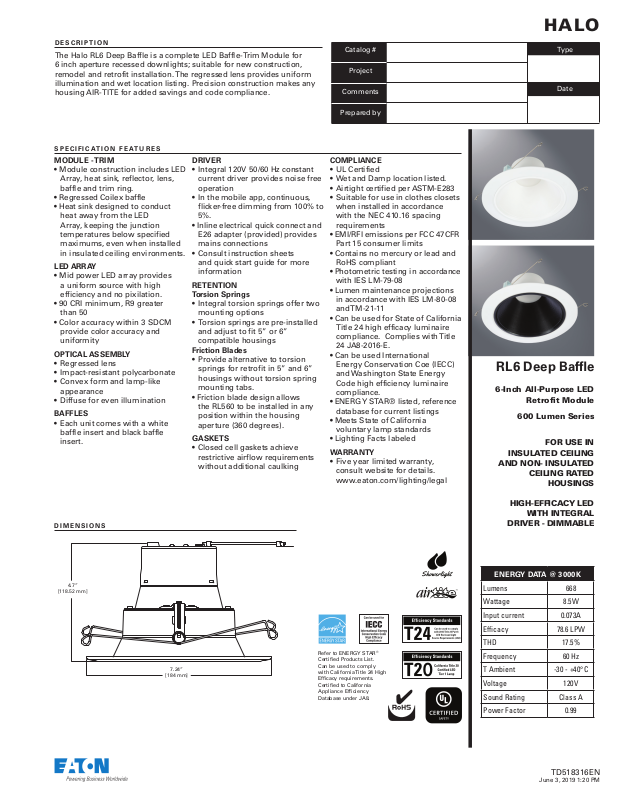

Page 1
DESCRIPTION
The Halo RL6 Deep Baffle is a complete LED Baffle-Trim Module for
6 inch aperture recessed downlights; suitable for new construction,
remodel and retrofit installation. The regressed lens provides uniform
illumination and wet location listing. Precision construction makes any
housing AIR-TITE for added savings and code compliance.
SPECIFICATION FEATURES
MODULE - TRIM
• Module construction includes LED
Array, heat sink, reflector, lens,
baffle and trim ring.
• Regressed Coilex baffle
• Heat sink designed to conduct
heat away from the LED
Array, keeping the junction
temperatures below specified
maximums, even when installed
in insulated ceiling environments.
LED ARRAY
• Mid power LED array provides
a uniform source with high
efficiency and no pixilation.
• 90 CRI minimum, R9 greater
than 50
• Color accuracy within 3 SDCM
provide color accuracy and
uniformity
OPTICAL ASSEMBLY
• Regressed lens
• Impact-resistant polycarbonate
• Convex form and lamp-like
appearance
• Diffuse for even illumination
BAFFLES
• Each unit comes with a white
baffle insert and black baffle
insert.
DRIVER
• Integral 120V 50/60 Hz constant
current driver provides noise free
operation
• In the mobile app, continuous,
flicker-free dimming from 100% to
5%.
• Inline electrical quick connect and
E26 adapter (provided) provides
mains connections
• Consult instruction sheets
and quick start guide for more
information
RETENTION
Torsion Springs
• Integral torsion springs offer two
mounting options
• Torsion springs are pre-installed
and adjust to fit 5” or 6”
compatible housings
Friction Blades
• Provide alternative to torsion
springs for retrofit in 5” and 6”
housings without torsion spring
mounting tabs.
• Friction blade design allows
the RL560 to be installed in any
position within the housing
aperture (360 degrees).
GASKETS
• Closed cell gaskets achieve
restrictive airflow requirements
without additional caulking
Catalog #
Project
Comments
Prepared by
COMPLIANCE
• UL Certified
• Wet and Damp location listed.
• Airtight certified per ASTM-E283
• Suitable for use in clothes closets
when installed in accordance
with the NEC 410.16 spacing
requirements
• EMI/RFI emissions per FCC 47CFR
Part 15 consumer limits
• Contains no mercury or lead and
RoHS compliant
• Photometric testing in accordance
with IES LM-79-08
• Lumen maintenance projections
in accordance with IES LM-80-08
and TM-21-11
• Can be used for State of California
Title 24 high efficacy luminaire
compliance. Complies with Title
24 JA8-2016-E.
• Can be used International
Energy Conservation Coe (IECC)
and Washington State Energy
Code high efficiency luminaire
compliance.
• ENERGY STAR® listed, reference
database for current listings
• Meets State of California
voluntary lamp standards
• Lighting Facts labeled
WARRANTY
• Five year limited warranty,
consult website for details.
www.eaton.com/lighting/legal
HALO
Type
Date
RL6 Deep Baffle
6-Inch All-Purpose LED
Retrofit Module
600 Lumen Series
FOR USE IN
INSULATED CEILING
AND NON- INSULATED
CEILING RATED
HOUSINGS

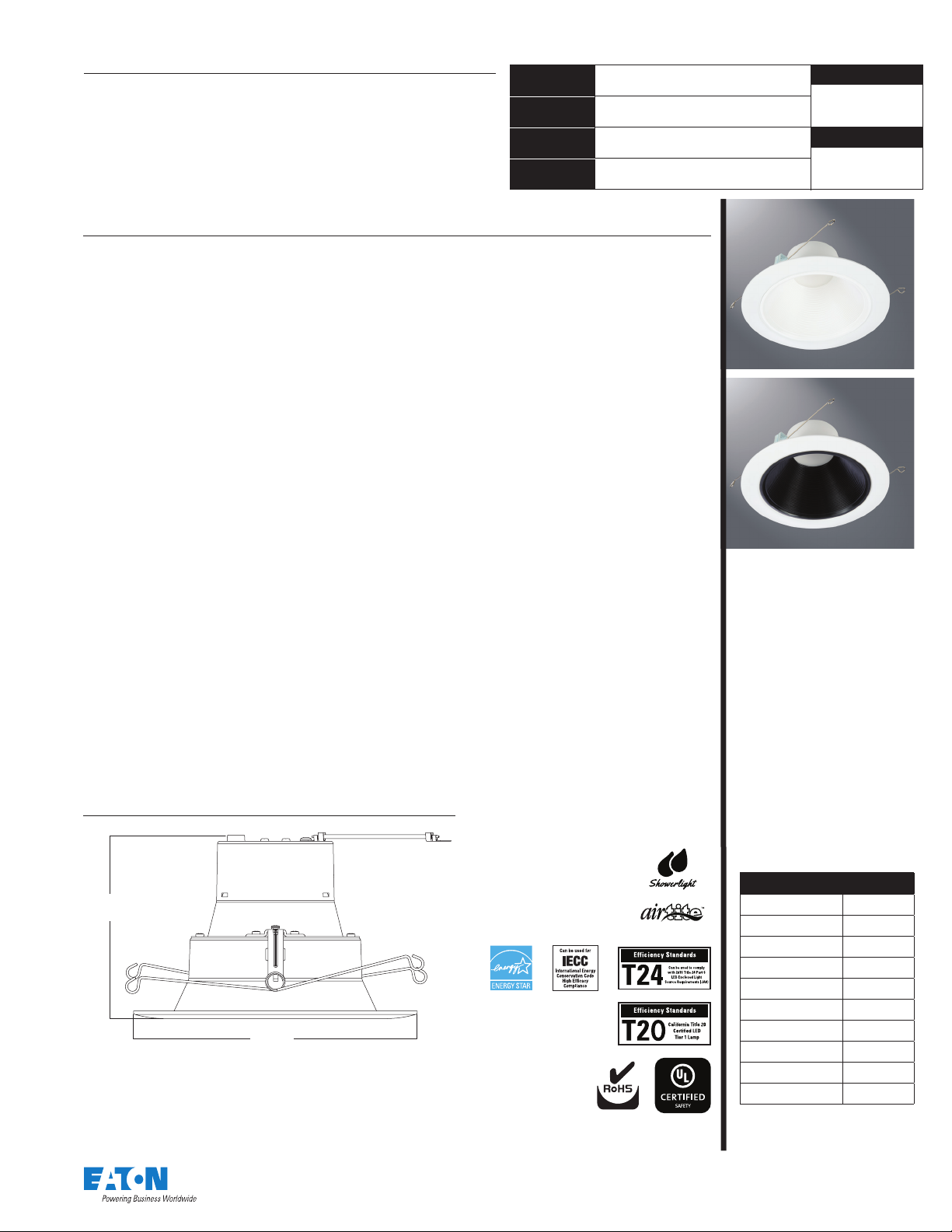

DIMENSIONS
4.7”
[118.52 mm]
7.24”
[184 mm]
Refer to ENERGY STAR®
Certified Products List.
Can be used to comply
with California Title 24 High
Efficacy requirements.
Certified to California
Appliance Efficiency
Database under JA8.
HIGH-EFFICACY LED
WITH INTEGRAL
DRIVER - DIMMABLE
ENERGY DATA @ 3000K
Lumens 668
Wattage 8.5W
Input current 0.073A
Efficacy 78.6 LPW
THD 17.5%
Frequency 60 Hz
T Ambient -30 - +40°C
Voltage 120V
Sound Rating Class A
Power Factor 0.99
TD518316EN
June 3, 2019 1:20 PM

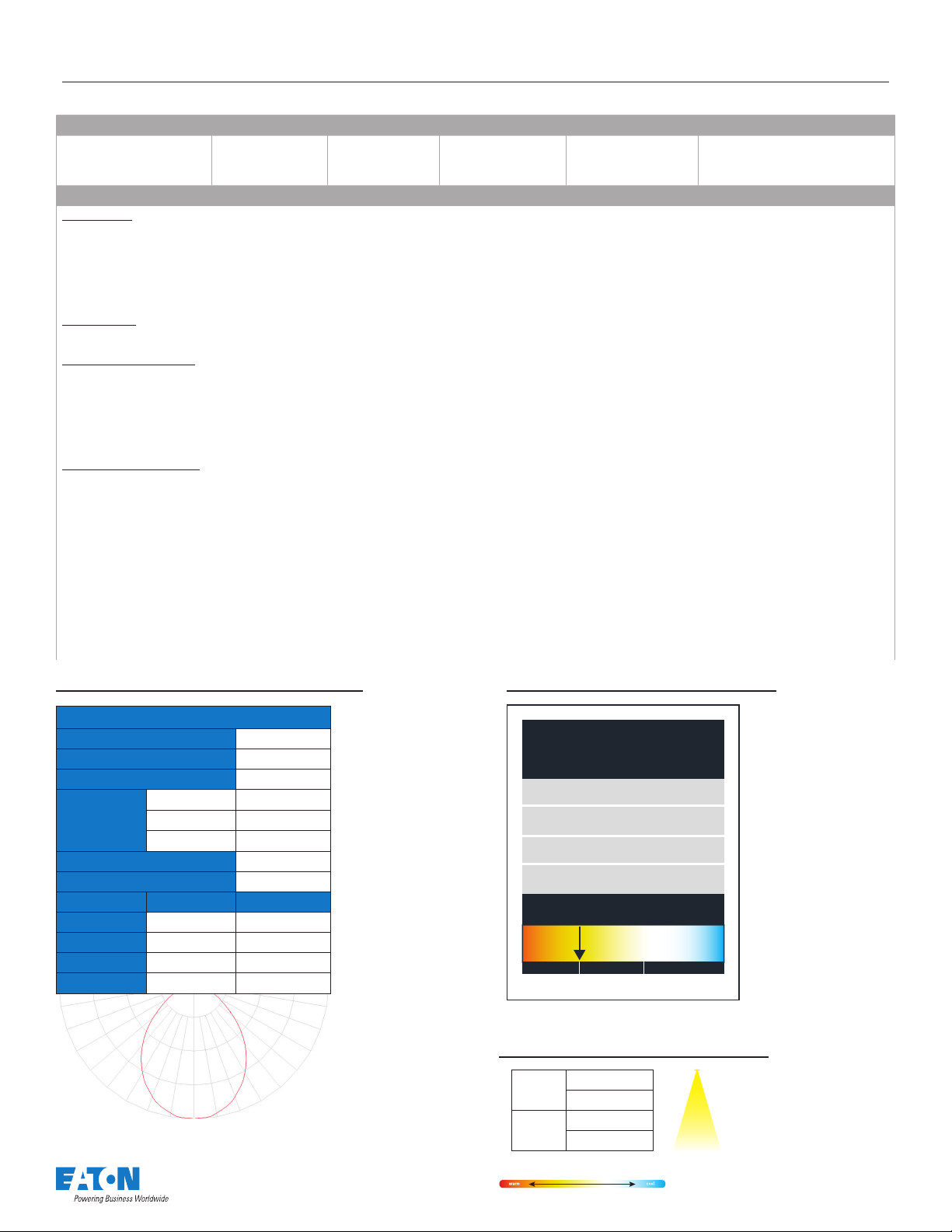

Page 2
HALO
ORDERING INFORMATION
SAMPLE NUMBER: RLD6069301EWH
A complete luminaire consists of a housing, and LED module, order separately.
Models Lumens CRI / CCT Driver Finish Accessories
RLD6 = 6”Deep Baffle retrofit
LED module
Housings
Halo LED 6-inch
H750ICAT= 6” LED, Insulated Ceiling, Air-Tite, New Construction Housing
H750RICAT= 6” LED, Insulated Ceiling, Air-Tite, Remodel Housing
H750T= 6” LED, Non-IC, Air-Tite, New Construction Housing
H750TCP= 6” LED, Non-IC, New Construction/Remodel Chicago Plenum Housing
H2750ICAT= 6” LED, Shallow, Insulated Ceiling, Air-Tite, New Construction (use with 691X, 694X, 696X trims only)
H2750RICAT= 6” LED, Shallow, Insulated Ceiling, Air-Tite, Remodel (use with 691X, 694X, 696X trims only)
E750ICAT= 6” LED, Insulated Ceiling, Air-Tite, New Construction Housing
E750RICAT= 6” LED, Insulated Ceiling, Air-Tite, Remodel Housing
Halo LED retrofit
ML7E26RFK= 6” Retrofit Enclosure, Non-IC, E26 Screw base Interface
ML7BXRFK= 6” Retrofit Enclosure, Non-IC, BX Whip
Halo Shallow Housings 6-inch
H27ICAT= 6” Shallow, Insulated Ceiling, Air-Tite New Construction
H27RICAT= 6” Shallow, Insulated Ceiling, Air-Tite Remodel Housing
H27T= 6” Shallow, Non-IC, New Construction Housing
H27RT= 6” Shallow, Non-IC, Remodel Housing
E27ICAT= 6” Shallow, Insulated Ceiling, Air-Tite New Construction
E27RICAT= 6” Shallow, Insulated Ceiling, Air-Tite Remodel Housing
E27TAT= 6” Shallow, Non-IC, New Construction Housing
E27RTAT= 6” Shallow, Non-IC, Remodel Housing
Halo Standard Housings 6-inch
H7ICAT= 6” Insulated Ceiling, Air-Tite New Construction Housing
H7RICAT= 6” Insulated Ceiling, Air-Tite Remodel Housing
H7ICT= 6” Insulated Ceiling, New Construction Housing
H7RICT= 6” Insulated Ceiling, Remodel Housing
H7ICATNB= 6” Insulated Ceiling, Air-Tite New Construction Housing, No Socket Bracket
H7ICTNB= 6” Insulated Ceiling, New Construction Housing, No Socket Bracket
H7T= 6” Non-IC, New Construction Housing
H7RT= 6” Non-IC, Remodel Housing
H7TNB= 6” Non-IC, New Construction Housing, No Socket Bracket
H7TCP= 6” Non-IC, Chicago Plenum, New Construction/Remodel Housing
H7UICAT= 6” Insulated Ceiling, Universal, Air-Tite, New Construction Housing
E7ICAT= 6” Insulated Ceiling, Air-Tite New Construction Housing
E7RICAT= 6” Insulated Ceiling, Air-Tite Remodel Housing
E7ICATNB= 6” Insulated Ceiling, Air-Tite New Construction Housing, No Socket Bracket
E7TAT= 6” Non-IC, New Construction Housing
E7RTAT= 6” Non-IC, Remodel Housing
E7TATNB= 6” Non-IC, New Construction Housing, No Socket Bracket
06=600 lumen
(nominal)
930=90 CRI minimum,
3000K CCT
1E= 120V 50/60Hz leading
or trailing edge phase cut
1% dimming
WH= matte white trim,
white baffle and black
baffle included
RLD6 Series
Photometric Data Product Specifications
RLD6069301EWH
Luminaire lumens 668
Input watts 8.5
LER (LPW) 78.6
0-180 1.08
Spacing
Criteria
90-270 1.08
Diagonal 0.98
Beam angle (degrees) 66.1
Field angle (degrees) 108.8
Zonal lumen Lumens % Lumens
0-30
0-40 507
0-60 621
0-90 668
* Tested in accordance with IES LM63. Field results may vary.
372 55.7
75.9
92.9
100
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
Lumens 668
Watts 8.5
Lumens Per Watt
Color Accuracy
Light Color (CCT) 3000K
Correlated Color Temperature (CCT)
warm white soft white bright white
2700K 3000K 4500K 6500K
Performance metrics are measured using white baffle.
Color Metric Summary
TM-30-15
CRI/CIE
CCT - Range of 2700K- 5000K
PRODUCT
SPECIFICATIONS
(Efficacy) 78.6
(CRI) 91
f = 91
R
g = 98.8
R
a = 92.8
R
9 = 67.2
R
55°
