D E S C R I P T I O N
14-1/8 inch
(359 mm)
4-7/8 inch
(124 mm)
5-1/2 inch
(140 mm)
4-1/4 inch
(108 mm)
Ceiling opening to match
template supplied
™
The H1499RTAT is a small aperture Non-IC AIR-TITE™ remodel
housing for providing accent and task lighting. The H1499RTAT is
designed for use in non-insulated existing ceilings. Non-IC
Housing is AIR-TITE™ but insulation must be kept 3 inches away
from all sides of housing. For installation from below the ceiling.
P E C I F I C A T I O N F E A T U R E S
S
H o u s i n g
Formed of CRS with powder
coat finish.
R e m o d e l C l i p s
Four remodel clips secure
housing and accommodates
1/2” and 5/8” ceiling materials.
J u n c t i o n B o x
• Seven 1/2” trade size conduit
knockouts with true pry-out
slots.
• Four pryouts with integral
strain relief for non-metallic
sheathed cable
“ Q u i c k C o n n e c t ”
C o n n e c t o r s
Three quick connect wiring
connectors included.
S o c k e t
GU 5.3 socket with reflector for
bi-pin 12V MR16 lamps.
T r a n s f o r m e r
Integral 120V magnetic
transformer steps line voltage
down to lamp operating voltage.
S u p p o r t S p r i n g
Support spring helps support
weight of junction box and
transformer. Automatically
adjusts for different ceiling
materials.
T h e r m a l P r o t e c t o r
Thermal protector deactivates
fixture if overheating occurs due
to improper lamping or
misapplied insulation.
Catalog #
Project
Comments
Prepared by
L a b e l s
• UL/cUL Listed 1598 Luminaire
• UL/cUL Damp Location Listed
• UL/cUL Listed for Wet
Location, covered ceiling with select trims
• Certified Under ASTM-E283 for
air tight construction
HALO
Type
Date
®
H1499RTAT
4" Non-Insulated
Ceiling
AIR-TITE™
Low Voltage
Recessed Remodel
Housing
T o p V i e w
4 " T R I M S
F O R U S E I N
N O NI N S U LA T E D
C E IL I N G S
O R
I N SU L A T ED C E IL I N GS
B U T I N S UL A T I ON
M U ST B E K E P T 3 "
F R OM A L L S I D ES O F
F I XT U R E
F O R U S E I N E XI S T IN G
C E IL I N G S
ADV110472
3/11/11
Page 2

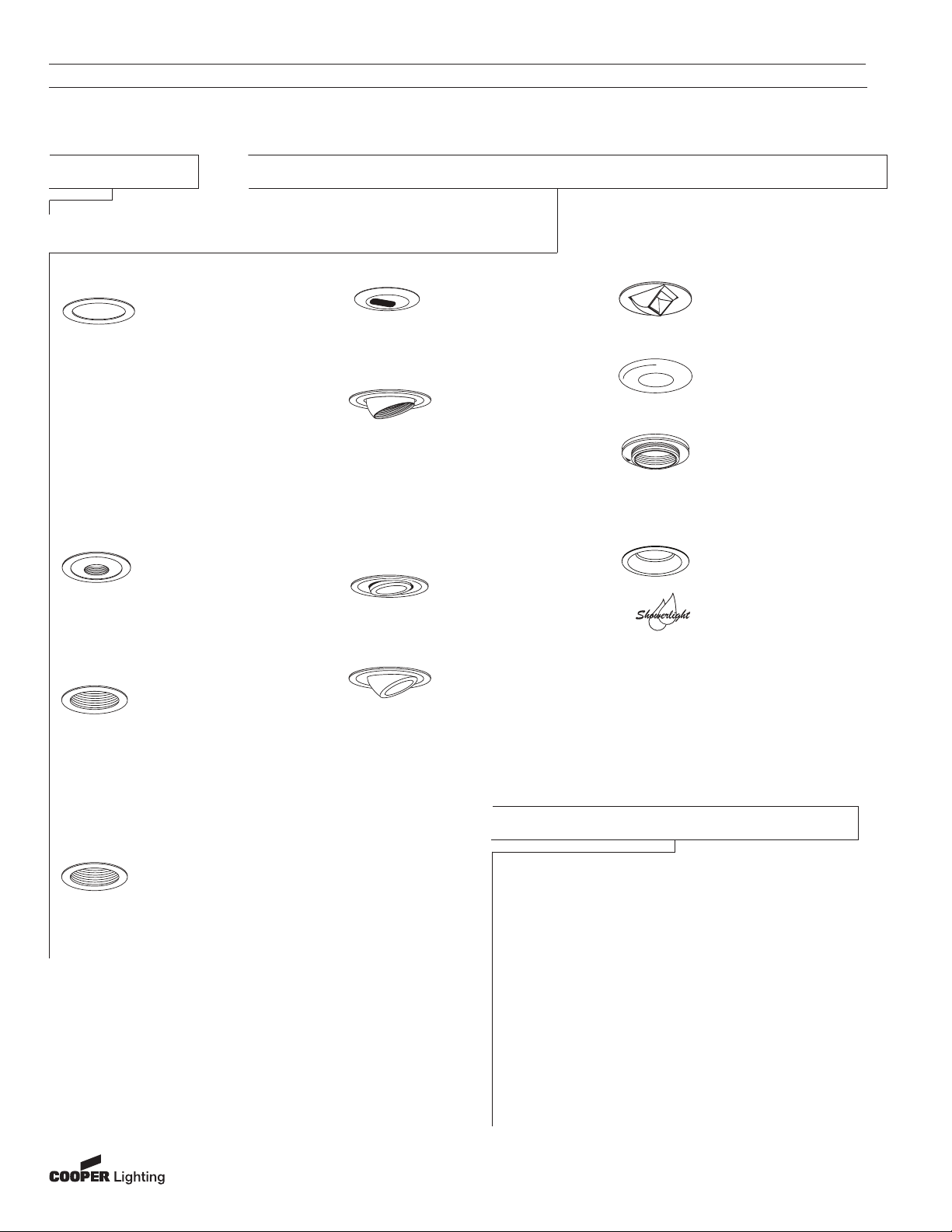

T R I M S
Reflector Cone - 35° Tilt
50W 12V MR16
1421W=White Reflector with White
Trim Ring
1421C=Specular Clear Reflector with
White Trim Ring
1421AC=Antique Copper Reflector,
Antique Copper Trim Ring
1
421H=Haze Reflector with White Trim Ring
1421CG=Champagne Gold Reflector with
White Trim Ring
1421RG=Residential Gold Reflector with
White Trim Ring
1
421MB=Specular Black Reflector with
White Trim Ring
1421SN=Satin Nickel Reflector with
Satin Nickel Trim Ring
1421TBZ=Tuscan Bronze Reflector with
Tuscan Bronze Trim Ring
OD: 5-1/16" (129mm)
1 7/8˝ Open with Baffle - 35° Tilt
50W 12V MR16
1
419P=Black Baffle, White Trim Ring
1
419AC=Black Baffle, Antique Copper
Trim Ring
1419W=White Baffle, White Trim Ring
1419SN=Black Baffle, Satin Nickel
Trim Ring
1421TBZ=Black Baffle, Tuscan Bronze
Trim Ring
OD: 5-1/16" (129mm)
Coilex
®
Baffle - 35° Tilt
50W 12V MR16
1493P=Black Baffle, White Trim Ring
1493AC=Black Baffle, Antique Copper
Trim Ring
1493BC=Black Baffle, Black Chrome
Trim Ring
1493PB=Black Baffle, Polished Brass
Trim Ring
1493W=White Bae, White Trim Ring
1493SN=Black Baffle, Satin Nickel
Trim Ring
1493TBZ=Black Baffle, Tuscan Bronze
Trim Ring
OD: 5-1/16" (129mm)
S A M P LE N U MBE R : H14 9 9 R TA T - 1 421 W
O r d e r h o u sin g a nd t r i ms s e par a t e ly.
H
1499RTAT= 4" Non-Insulated Ceiling
Low Voltage Small Aperture
AIR-TITE Remodel Housing
T r imsH o usi ng
Mounting Accessories
Filters and Lenses
The following filters and lenses can be substituted for the cover glass supplied
for use with MR16 lamps.
Color Filters
L112=Red Gel Filter
L114=Ultraviolet Dichroic Filter
L120=Red Dichroic Filter
L121=Amber Dichroic Filter
L122=Yellow Dichroic Filter
L123=Green Dichroic Filter
L124=Daylight Blue Dichroic Filter
L125=Blue Dichroic Filter
L127=Cosmetic (2700°K) Dichroic Filter
L121=Yellow Gel Filter
L121=Amber Gel Filter
Optical Lenses
L100N=Diffuse Sand Blasted Lens. Provides an even beam spread from MR16
lamps-especially useful in wall washing.
L111=Soft Focus Lens. Smoothes irregular beam pattern while maintaining high
controlled illumination levels and beam angles.
L113=Prismatic Spread Lens. Provides a symmetrical broadening of MR16 lamp beams.
L115=Fans the MR16 beam to produce a wide rectangular illumination pattern.
A c ces so ri es
R
EFLECTORS
B
AFFLES
1421
A
djustable Mirror
Trim - 90°Tilt
5
0W 12V MR16
1
497P=White
OD: 5-1/16" (129mm)
1497
1493
E
yeball - 30° Tilt
50W 12V MR16
1498P=White Eyeball, Black Baffle
1
498AC=Antique Copper Eyeball,
Black Baffle
1498PB=Polished Brass Eyeball,
Black Baffle
1498W=White Eyeball, White Baffle
1
498BC=Black Chrome Eyeball,
Black Baffle
1498SN=Satin Nickel Eyeball,
Black Baffle
1498TBZ=Tuscan Bronze Eyeball,
Black Baffle
O
D: 5-1/16" (129mm)
Slot Aperture - 35° Tilt
(
Slot - 1 3/8" X 2 1/8")
50W 12V MR16
1420P=White
1
420AC=Antique Copper
1420SN=Satin Nickel
1
420TBZ=Tuscan Bronze
OD: 5-1/16" (129mm)
A
DJUSTABLES
SHOWER LIGHT
Metal Baffle - 35° Tilt
50W 12V MR16
1453AC=Antique Copper Baffle,
Antique Copper Trim Ring
1453SN=Satin Nickel Baffle,
Satin Nickel Trim Ring
1453TBZ=Tuscan Bronze Baffle,
Tuscan Bronze Trim Ring
OD: 5-1/16" (129mm)
1453
1
419
1420
1498
G
imbal Adjustable - 30°Tilt
5
0W 12V MR16
1495P=Satin White
1495AC=Antique Copper
1495SN=Satin Nickel
1
495TBZ=Tuscan Bronze
OD: 5-1/16" (129mm)
1495
Retractable Elbow Super Adjustable
- 60° Tilt
50W 12V MR16
1496P=White Eyeball and
Trim Ring
1496AC=Antique Copper Eyeball and
Trim Ring
1496SN=Satin Nickel Eyeball and
Trim Ring
1496TBZ=Tuscan Bronze Eyeball and
Trim Ring
OD: 5-1/16" (129mm)
1496
Metropolitan Ice Light
5
0W 12V MR16
1945=Clear Frosted
1945BLUE=Blue Frosted
O
D: 5-5/16" (135mm)
1945
Metropolitan Deco
50W 12V MR16
1
946PB=Polished Brass Accent with
Green Tint Translucent Rings
1946BC=Black Chrome Accent with
Green Tint Translucent Rings
OD: 5-5/8" (143mm)
R
egressed Lens Shower Light
50W 12V MR16
1951P=Shower Light, White Trim Ring,
Specular Reflector
1
951ACS=Shower Light, Antique Copper
Trim Ring, Specular Reflector
1951SNS=Shower Light, Satin Nickel
Trim Ring, Specular Reflector
1951TBZS=Shower Light, Tuscan Bronze
Trim Ring, Specular Reflector
OD: 5-1/16" (129mm)
1
946
1951
