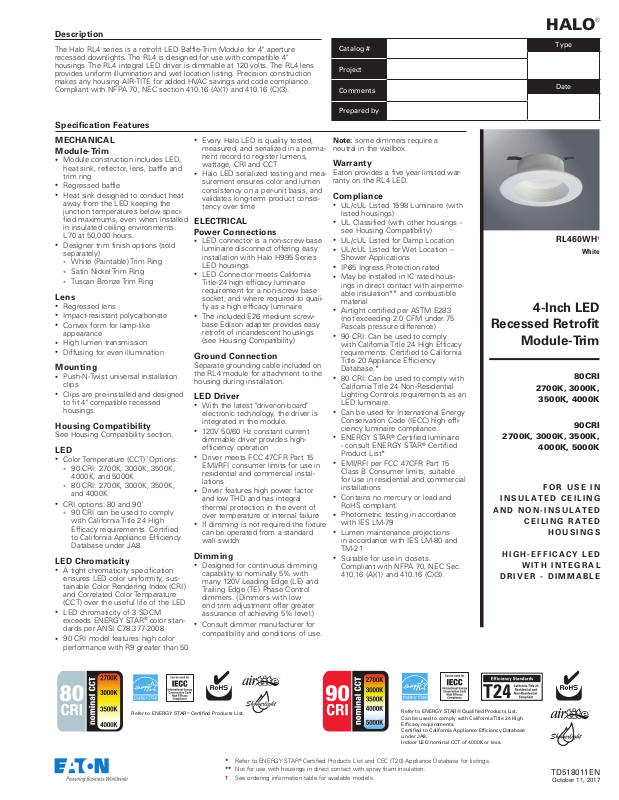

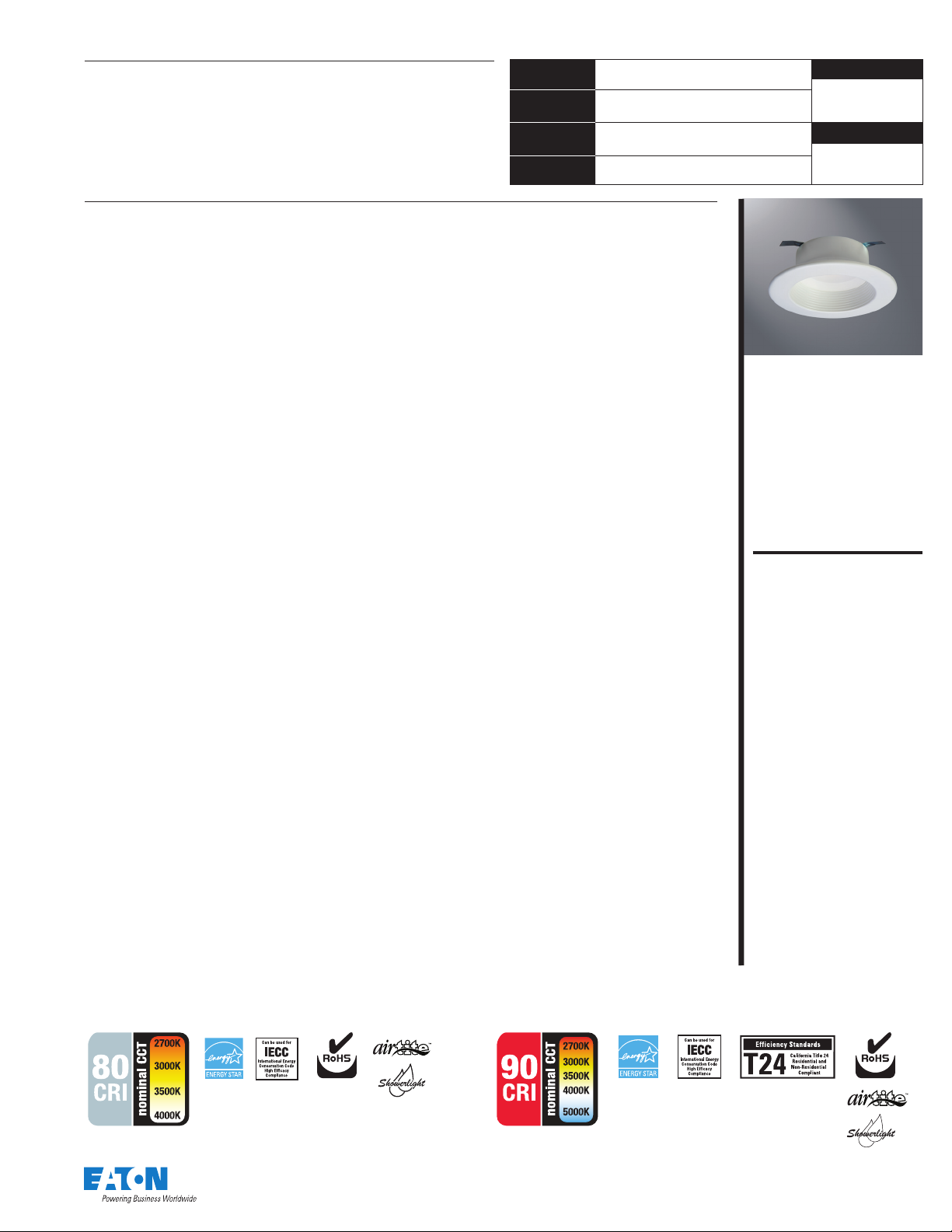

Page 1
Description
The Halo RL4 series is a retrofit LED Baffle-Trim Module for 4" aperture
recessed downlights. The RL4 is designed for use with compatible 4"
housings. The RL4 integral LED driver is dimmable at 120 volts. The RL4 lens
provides uniform illumination and wet location listing. Precision construction
makes any housing AIR-TITE for added HVAC savings and code compliance.
Compliant with NFPA 70, NEC section 410.16 (A)(1) and 410.16 (C)(3).
Specification Features
•
MECHANICAL
Module-Trim
•
Module construction includes LED,
heat sink, reflector, lens, baffle and
trim ring
•
Regressed baffle
•
Heat sink designed to conduct heat
away from the LED keeping the
junction temperatures below specified maximums, even when installed
in insulated ceiling environments.
L70 at 50,000 hours.
•
Designer trim finish options (sold
separately)
• White (Paintable) Trim Ring
• Satin Nickel Trim Ring
• Tuscan Bronze Trim Ring
Lens
•
Regressed lens
•
Impact-resistant polycarbonate
•
Convex form for lamp-like
appearance
•
High lumen transmission
•
Diffusing for even illumination
Mounting
•
Push-N-Twist universal installation
clips
•
Clips are pre-installed and designed
to fit 4" compatible recessed
housings
Housing Compatibility
See Housing Compatibility section.
LED
•
Color Temperature (CCT)† Options:
• 90 CRI: 2700K, 3000K, 3500K,
4000K, and 5000K
• 80 CRI: 2700K, 3000K, 3500K,
and 4000K
•
CRI options: 80 and 90
• 90 CRI can be used to comply
with California Title 24 High
Efficacy requirements. Certified
to California Appliance Efficiency
Database under JA8.
LED Chromaticity
•
A tight chromaticity specification
ensures LED color uniformity, sustainable Color Rendering Index (CRI)
and Correlated Color Temperature
(CCT) over the useful life of the LED
•
LED chromaticity of 3 SDCM
exceeds ENERGY STAR
dards per ANSI C78.377-2008
•
90 CRI model features high color
performance with R9 greater than 50
†
®
color stan-
Every Halo LED is quality tested,
measured, and serialized in a permanent record to register lumens,
wattage, CRI and CCT
•
Halo LED serialized testing and measurement ensures color and lumen
consistency on a per-unit basis, and
validates long-term product consistency over time
ELECTRICAL
Power Connections
•
LED connector is a non-screw base
luminaire disconnect offering easy
installation with Halo H995 Series
LED housings
•
LED Connector meets California
Title-24 high efficacy luminaire
requirement for a non-screw base
socket, and where required to qualify as a high efficacy luminaire
•
The included E26 medium screwbase Edison adapter provides easy
retrofit of incandescent housings
(see Housing Compatibility)
Ground Connection
Separate grounding cable included on
the RL4 module for attachment to the
housing during installation.
LED Driver
•
With the latest "driver-on-board"
electronic technology, the driver is
integrated in the module.
•
120V 50/60 Hz constant current
dimmable driver provides highefficiency operation
•
Driver meets FCC 47CFR Part 15
EMI/RFI consumer limits for use in
residential and commercial installations
•
Driver features high power factor
and low THD and has integral
thermal protection in the event of
over temperature or internal failure
•
If dimming is not required the fixture
can be operated from a standard
wall switch
Dimming
•
Designed for continuous dimming
capability to nominally 5% with
many 120V Leading Edge (LE) and
Trailing Edge (TE) Phase Control
dimmers. (Dimmers with low
end trim adjustment offer greater
assurance of achieving 5% level.)
•
Consult dimmer manufacturer for
compatibility and conditions of use.
Catalog #
Project
Comments
Prepared by
Note: some dimmers require a
neutral in the wallbox.
Warranty
Eaton provides a five year limited warranty on the RL4 LED.
Compliance
•
UL/cUL Listed 1598 Luminaire (with
listed housings)
•
UL Classified (with other housings see Housing Compatibility)
•
UL/cUL Listed for Damp Location
•
UL/cUL Listed for Wet Location –
Shower Applications
•
IP65 Ingress Protection rated
•
May be installed in IC rated housings in direct contact with air-permeable insulation** and combustible
material
•
Airtight certified per ASTM E283
(not exceeding 2.0 CFM under 75
Pascals pressure difference)
•
90 CRI: Can be used to comply
with California Title 24 High Efficacy
requirements. Certified to California
Title 20 Appliance Efficiency
Database.*
•
80 CRI: Can be used to comply with
California Title 24 Non-Residential
Lighting Controls requirements as an
LED luminaire.
•
Can be used for International Energy
Conservation Code (IECC) high efficiency luminaire compliance.
•
ENERGY STAR® Certified luminaire
- consult ENERGY STAR
Product List*
•
EMI/RFI per FCC 47CFR Part 15
Class B Consumer limits, suitable
for use in residential and commercial
installations
•
Contains no mercury or lead and
RoHS compliant.
•
Photometric testing in accordance
with IES LM-79
•
Lumen maintenance projections
in accordance with IES LM-80 and
TM-21
•
Suitable for use in closets.
Compliant with NFPA 70, NEC Sec.
410.16 (A)(1) and 410.16 (C)(3).
®
Certified
HALO
Type
Date
RL460WH
White
4-Inch LED
Recessed Retrofit
Module-Trim
80CRI
2700K, 3000K,
3500K, 4000K
90CRI
2700K, 3000K, 3500K,
4000K, 5000K
FOR USE IN
INSULATED CEILING
AND NON-INSULATED
CEILING RATED
HOUSINGS
HIGH-EFFICACY LED
WITH INTEGRAL
DRIVER - DIMMABLE
®
†
Refer to ENERGY STAR® Certified Products List.
* Refer to ENERGY STAR® Certified Products List and CEC (T20) Appliance Database for listings.
** Not for use with housings in direct contact with spray foam insulation.
† See ordering information table for available models.
Refer to ENERGY STAR® Qualified Products List.
Can be used to comply with California T itle 24 High
Efficacy requirements.
Certified to California Appliance Efficiency Database
under JA8.
Indoor LED nominal CCT of 4000K or less.
TD518011EN
October 11, 2017

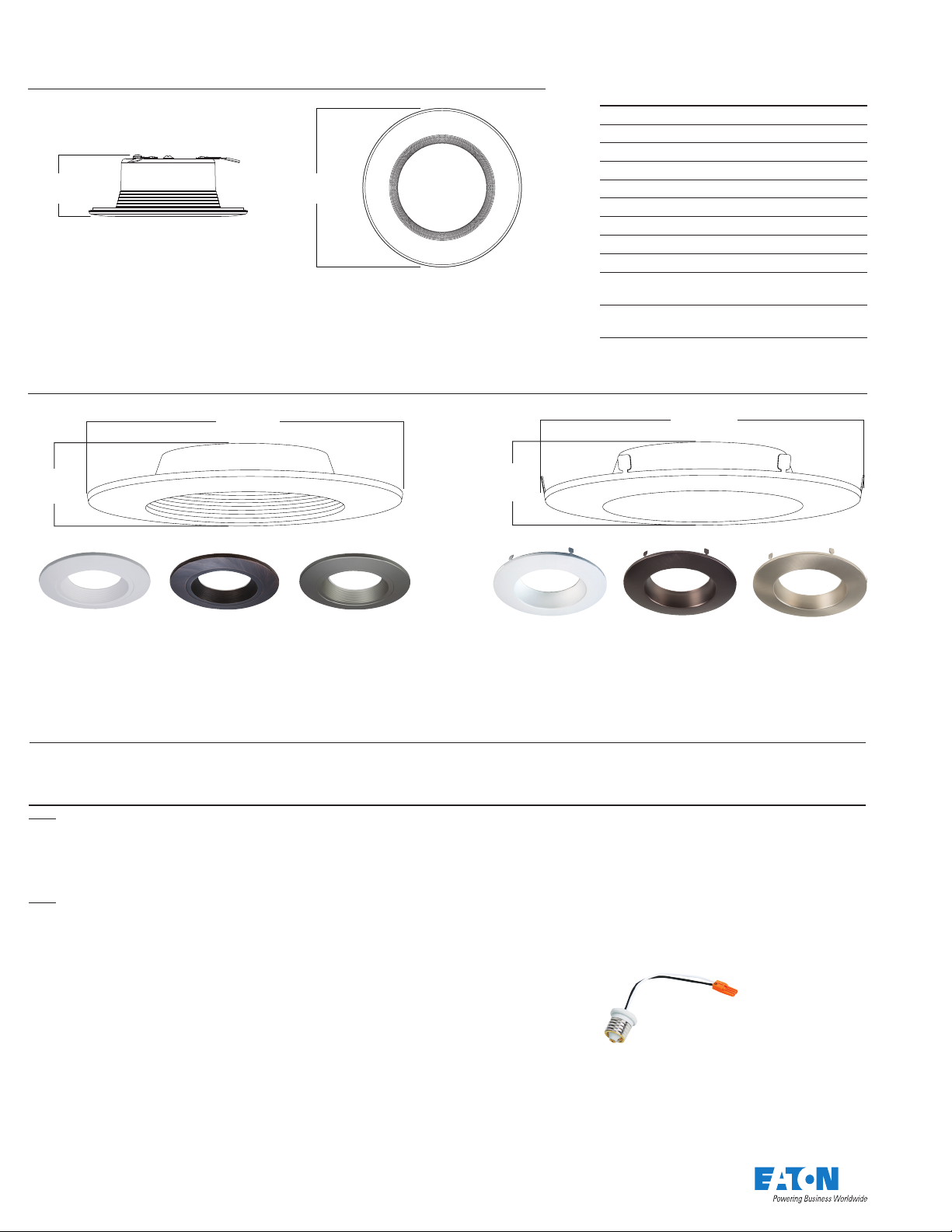

Page 2
RL4 LED System
80CRI / 90 CRI
RL4 Dimensions
1.99”
[50.58mm]
Designer Trim Dimensions
0.86"
[21.8mm]
5.3"
[134.6mm]
5.12”
[130.13mm]
[21.8mm]
Energy Data
RL4 Series (Values at non-dimming line voltage)
Minimum Starting Temp: -30°C (-22°F)
EMI/RFI: FCC Title 47 CFR, Part 15, Class B (Consumer)
Sound Rating: Class A
Input Voltage: 120V
Power Factor: >0.90
Input Frequency: 50/60Hz
THD: <20%
Input Power: 7.3W - 10.0W (per CRI and CCT)
Input Current: 0.075A - 0.0875A (per input power)
Maximum IC (Insulated Ceiling) Ambient Continuous
Operating Temperature: 25°C (77°F)
Maximum Non-IC Ambient Continuous Operating
Temperature 40°C (104°F)
5.3"
[134.6mm]
0.86"
RL4TRMWHB
White (Paintable)
RL4TRMTBZB
Tuscan Bronze
RL4TRMSNB
Satin Nickel
RL4TRMWH
White (Paintable)
RL4TRMTBZ
Tuscan Bronze
RL4TRMSN
Satin Nickel
Ordering Information
Sample Number: RL460WH927PK
Complete unit includes RL4 LED and Halo H995 series LED housing, or compatible 4" E26 screw based housing, ordered separately. Optional accessory designer trim ring ordered separately.
RL4 LED and housing to be ordered separately.
RL46 Models Accessories (Order Separately)
80 CRI
RL460WH827PK= 4" Retrofit Baffle - Trim LED Module, 80 CRI, 2700K, Matte White
RL460WH830PK= 4" Retrofit Baffle - Trim LED Module, 80 CRI, 3000K, Matte White
RL460WH835PK= 4" Retrofit Baffle - Trim LED Module, 80 CRI, 3500K, Matte White
RL460WH840PK= 4" Retrofit Baffle - Trim LED Module, 80 CRI, 4000K, Matte White
90 CRI
RL460WH927PK= 4" Retrofit Baffle - Trim LED Module, 90 CRI, 2700K, Matte White
RL460WH930PK= 4" Retrofit Baffle - Trim LED Module, 90 CRI, 3000K, Matte White
RL460WH935PK= 4" Retrofit Baffle - Trim LED Module, 90 CRI, 3500K, Matte White
RL460WH940PK= 4" Retrofit Baffle - Trim LED Module, 90 CRI, 4000K, Matte White
RL460WH950PK= 4" Retrofit Baffle - Trim LED Module, 90 CRI, 5000K, Matte White
RL4TRMSNB= 4" Satin Nickel Trim Ring, Baffle
RL4TRMTBZB= 4" Tuscan Bronze Trim Ring, Baffle
RL4TRMWHB= 4" White Paintable Trim Ring, Baffle
RL4TRMSN= 4" Satin Nickel Trim Ring
RL4TRMTBZ= 4" Tuscan Bronze Trim Ring
RL4TRMWH= 4" White Paintable Trim Ring
HE26LED=Replacement screw base adapter (one included with unit)
E26 Screw base adapter for retrofit (included)
2
TD518011EN – Specifications and compliances subject to change without notice

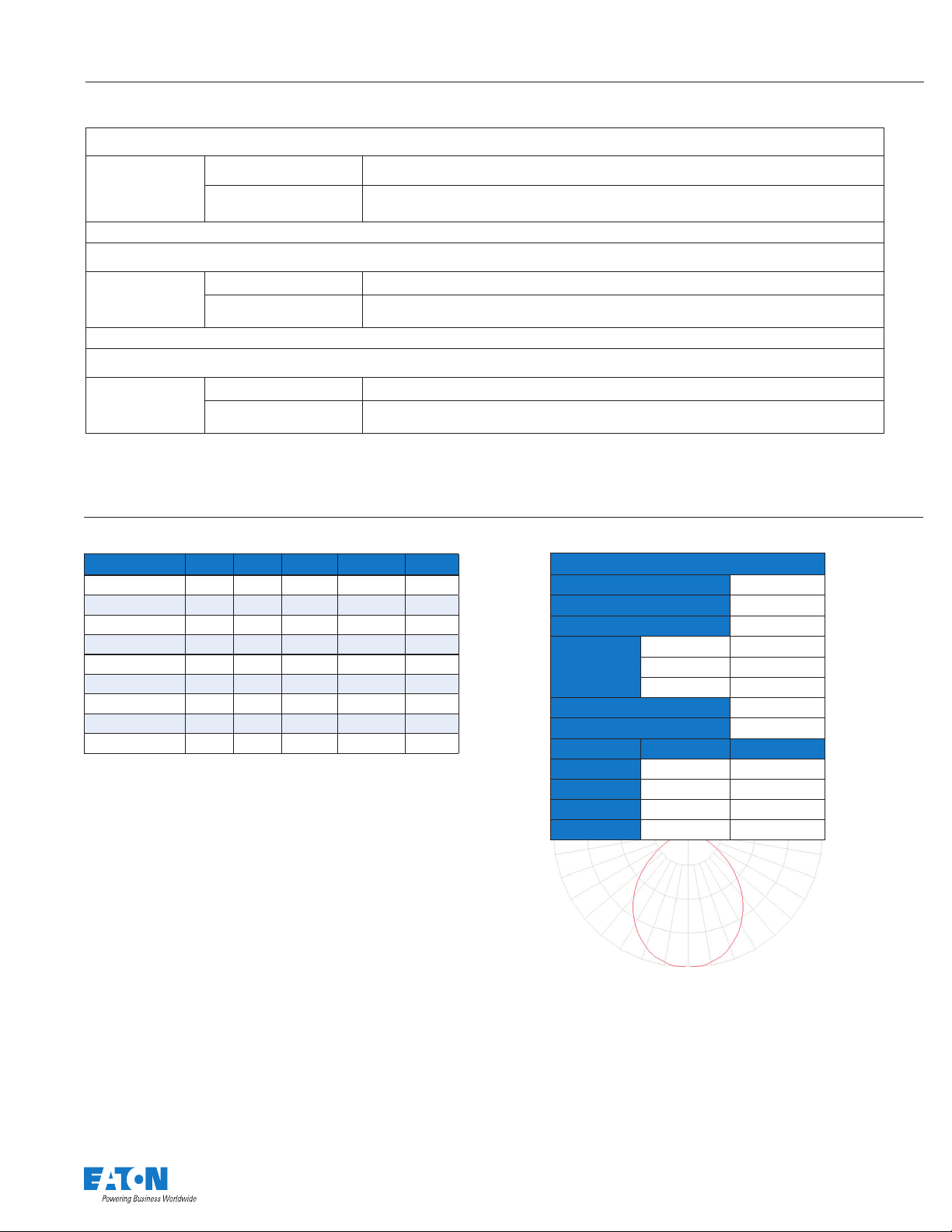

Page 3
RL4 LED System
80CRI / 90 CRI
Housing Compatibility
The RL4 is UL Listed in Halo and All-Pro recessed housings, and is UL Classified for use with any 4 inch diameter recessed housing constructed of steel or aluminum with an internal
volume that exceeds 62.3 in
3
in addition to those noted below:
Compatible Halo LED Housings with LED luminaire connector (high-efficacy compliant)
HALO
LED
Recessed Can Size Catalog Number
4"
H995ICAT, H995RICAT, H245ICAT, H245RICAT
Compatible Halo Incandescent E26 Screwbase Housings
Recessed Can Size Catalog Number
HALO
4"
H99ICAT, H99TAT, H99RTAT, E4ICATSB, E4TATSB, E4RTATSB
Compatible All-Pro Incandescent E26 Screwbase Housings
Recessed Can Size Catalog Number
ALL-PRO
Product and Photometric Data
RL4
Cat No. CRI CCT Lumens Power (W) LPW
RL460WH827PK 80 2700 600 7. 4 81
RL460WH830PK 80 3000 587 7. 2 82
RL460WH835PK 80 3500 589 7.22 82
RL460WH840PK 80 4000 713 7.21 99
RL460WH927PK 92 2700 530 8.0 66
RL460WH930PK 90 3000 570 8.0 71
RL460WH935PK 92 3500 550 8.0 69
RL460WH940PK 92 4000 560 8.0 67
RL460WH950PK 92 5000 600 8.2 73
4"
EI400ATSB, ET400ATSB, ET400RATSB
RL4 Series Photometric*
RL460WH6930PK
Luminaire lumens 570
Input watts 8
LER (LPW) 71.3
Spacing
Criteria
Beam angle (degrees) 93.1
Field angle (degrees) 141.1
Zonal lumen Lumens % Lumens
0-30 201 35.3
0-40 319 56
0-60 506 88.8
0-90 570 100
0-180 1.18
90-270 1.18
Diagonal 1.26
* Tested in accordance with IES LM63. Field results may vary.
Specifications and compliances subject to change without notice – TD518011EN
3
Page 4

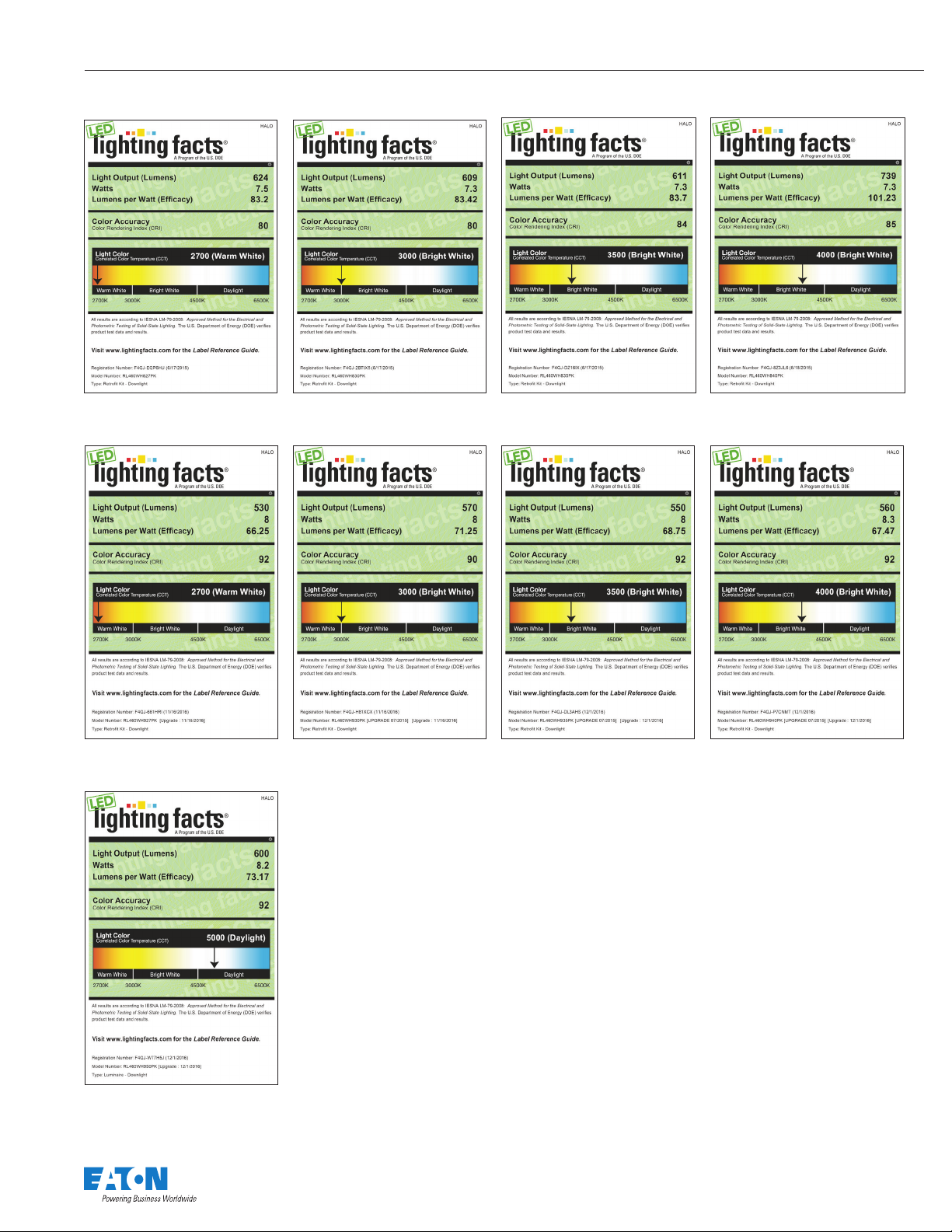

Lighting Facts
RL4 LED System
80CRI / 90 CRI
RL460WH827PK
2700K Source
RL460WH927PK
2700K Source
RL460WH830PK
3000K Source
RL460WH930PK
3000K Source
RL460WH835PK
3500K Source
RL460WH935PK
3500K Source
RL460WH840PK
4000K Source
RL460WH940PK
4000K Source
RL460WH950PK
5000K Source
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
