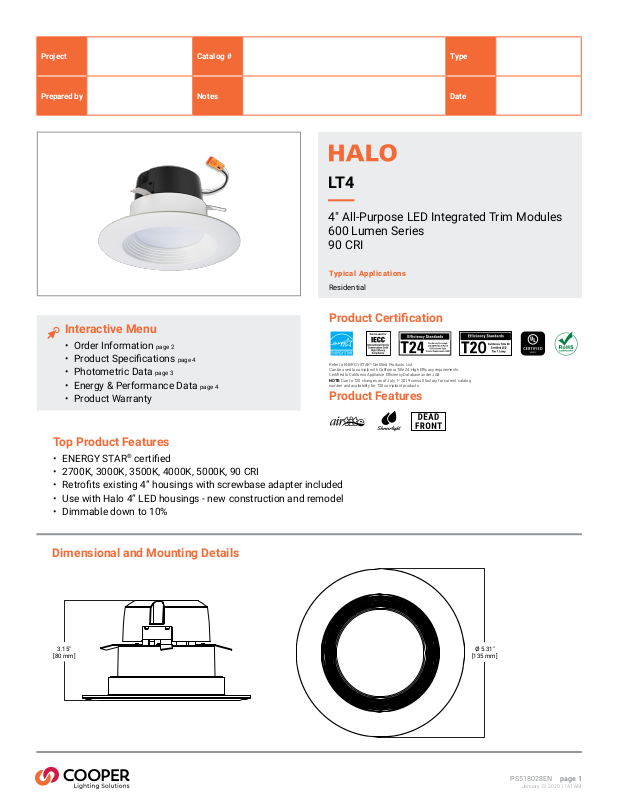

Page 1

Project Catalog # Type

Prepared by Notes Date

LT4

4" All-Purpose LED Integrated Trim Modules 600 Lumen Series

90 CRI

Typical Applications

Residential

Product Certication

Interactive Menu

• Order Information page 2

• Product Specications page 4

• Photometric Data page 3

• Energy & Performance Data page 4

• Product Warranty

Refer to ENERGY STAR® Certied Products List.

Can be used to comply with California Title 24 High Ecacy requirements. Certied to California Appliance Eciency Database under JA8.

NOTE: Due to T20 changes as of July 1st 2019 consult factory for current catalog number and availability for T20 compliant products.

Product Features

Top Product Features

• ENERGY STAR® certied

• 2700K, 3000K, 3500K, 4000K, 5000K, 90 CRI

• Retrots existing 4” housings with screwbase adapter included

• Use with Halo 4” LED housings - new construction and remodel

• Dimmable down to 10%

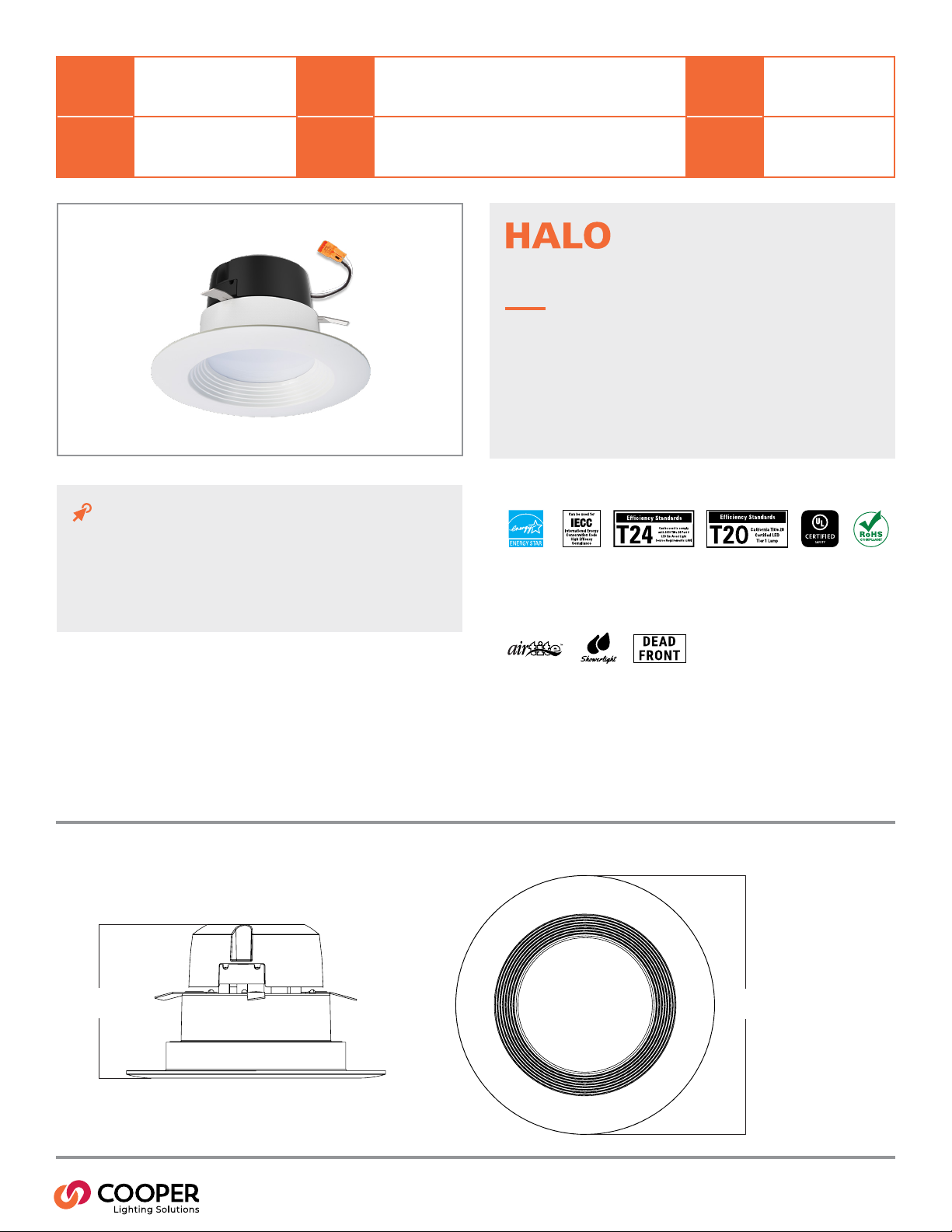

Dimensional and Mounting Details

3.15"

[80 mm]

ø 5.31"

[135 mm]

PS518028EN page 1

January 13, 2020 11:41 AM

Page 2

Order Information

SAMPLE ORDER NUMBER: LT460WH6930R

A complete luminaire consists of a housing and a LED integrated trim, order separately.

LT4 LED System 90 CRI

Module

Module Finish Lumens CRI/CCT Accessories

LT460 = 4” integrated LED trim WH = matte white 6 = 600 lumen series (nominal). See table

Finish Lumens CRI/CCT Packaging T20 Compliant

below for details.

Accessories

HE26LED = Replacement medium base (E26) screw base adapter (one included with unit)

Housing Compatibility

Compatible Halo LED Housings with LED Luminaire Connector (high-ecacy compliant – Title 24)

Halo LED H995ICAT = 4" IC, airtight shallow new construction housing, LED, 120 - 277V H995RICAT = 4" IC, airtight shallow remodeler housing, LED, 120 - 277V H245RICAT = 4" IC, airtight ultra-shallow remodeler housing, LED, 120 - 277V

Housing Compatibility

927 = 90 CRI (minimum), 2700K CCT 930 = 90 CRI (minimum), 3000K CCT 935 = 90 CRI (minimum), 3500K CCT 940 = 90 CRI (minimum), 4000K CCT 950 = 90 CRI (minimum), 5000K CCT

R = Recyclable -CA = California

Compatible Halo Incandescent E26 Screwbase Housings

Halo LED Housings H995ICAT = 4" IC, airtight shallow new construction housing, LED, 120 - 277V H99RTAT = 4" non-IC, airtight shallow remodeler housing, E26, 120V H99RTAT = 4" non-IC, airtight shallow remodeler housing, E26, 120V E4ICATSB = 4" non-IC, airtight shallow new construction housing, adjustable socket bracket, E26, 120V E4TATSB = 4" non-IC, airtight shallow new construction housing, adjustable socket bracket, E26, 120V E4RTATSB = 4" non-IC, airtight shallow remodeler housing, adjustable socket bracket, E26, 120V

Housing Compatibility

Compatible All-Pro Incandescent E26 Screwbase Housings

All-Pro 4-Inch ET400ATSB = 4" All-Pro

ET400RATSB = 4" All-Pro ET400ATSB = 4" All-Pro

LT4 Series LED Retrot is UL Classied for retrot in the following 4” recessed housings:

The LT Series LED light module - trim combination is UL/cUL Listed or UL Classied for use with any 4” diameter recessed housing constructed of steel or aluminum with an internal volume that exceeds

62.3 in3 in addition to those noted above.

PS518028EN page 2

January 13, 2020 11:41 AM

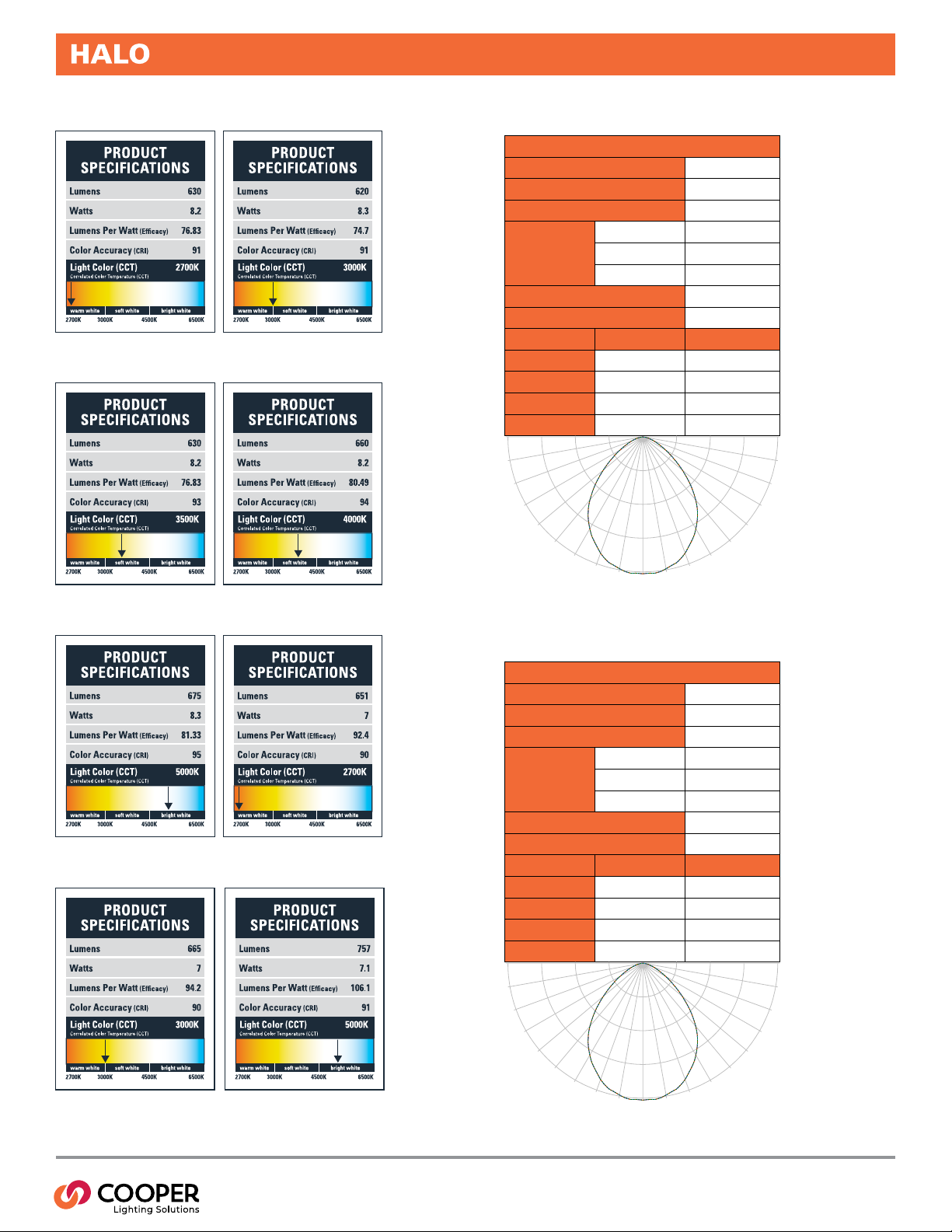

Page 3

LT4 LED System 90 CRI

0°

Product Specications

LT460WH6927R - 91 CRI

LT460WH6935R - 93 CRI

LT460WH6930R - 91 CRI

LT460WH6940R - 94 CRI

Photometric Data

LT4 Photometric*

LT460WH6930R

Luminaire lumens 620

Input watts 8.3

LER (LPW) 74.7

0-180 1.16

Spacing

Criteria

Beam angle (degrees) 89

Field angle (degrees) 137.4

Zonal lumen Lumens % Lumens

0-30 214 37.3

0-40 339 58.9

0-60 517 90

90°

0-90 575 100

80°

70°

60°

50°

40°

30°

* Tested in accordance with IES LM63. Field results may vary.

90-270 1.16

Diagonal 1.23

20°

10°

30°

20°

10°

90°

80°

70°

60°

50°

40°

LT460WH6950R - 95 CRI

LT460WH6930R-CA - 90 CRI

LT460WH6927R-CA - 90 CRI

LT460WH6950R-CA - 91 CRI

LT4-CA Photometric*

LT460WH6930R-CA

Luminaire lumens 665.4

Input watts 7.06

LER (LPW) 94.2

0-180 1.16

Spacing

Criteria

90-270 1.16

Diagonal 1.23

Beam angle (degrees) 89

Field angle (degrees) 137.4

Zonal lumen Lumens % Lumens

0-30 214.6 37.1

0-40 381.5 58.6

0-60 585.3 89.9

90°

0-90 651.1 100

80°

70°

60°

50°

40°

30°

20°

10°

30°

20°

10°

0°

* Tested in accordance with IES LM63. Field results may vary.

90°

80°

70°

60°

50°

40°

PS518028EN page 3

January 13, 2020 11:41 AM

Page 4

Specication Features

Module

• LED module consists of LED array, optical assembly,

driver and bae style self-anged trim

• Achieving L70 at 35,000 hours in IC and non-IC

applications

Gaskets

• Closed cell gasket achieves restrictive airow

requirements without additional caulking

LED Array

• A plurality of low power LEDs provide a uniform

source with high eciency and long life

• Available in 90 CRI minimum, R9 greater than 50

and color accuracy within 4 SDCM provide color accuracy and uniformity

• Available in 2700, 3000, 3500, 4000 and 5000K CCT

color temperatures

Optical Assembly

• Optical assembly provides wide distribution useful

for general and task lighting

• Diffuse injection molded lens with contoured

prole provides uniformity and a familiar lamp like appearance

• Meets Energy Star color angular uniformity

requirements

Driver

• Integral 120V 60 Hz constant current driver

provides high eciency operation

• Continuous, icker-free dimming from 100% to 10%

with select leading or trailing edge 120V phase cut dimmers – consult dimming guide for more information

• Consult dimmer manufacturer for compatibility and

conditions of use

• Inline electrical quick connect and E26 adapter

(provided) provides mains connection

• A separate ground wire and mounting hardware

insures proper ground connection to housing

Retention

• Heat treated friction blades hold module securely

to the housing

• Push-n-Twist feature pulls housing tight to ceiling

by rotating clockwise

• Friction blades swing out of position by rotating

counter-clockwise from below the ceiling for service or replacement

Trim

• One-piece step bae and self-anged trim ring

provides lens regression and reduces light leaks

• Injection molded plastic construction is impact

resistant and non-corrosive

• Non-conductive construction meets most local

code ‘dead front’ requirements

Compliance

• cULus listed for use with Halo housings, classied

for use with other’s housings, see instruction sheet for conditions of acceptability

• Wet location listed and IP66 ingress protection

rated

• Airtight per ASTM-E283

• Suitable for use in clothes closets when installed

in accordance with the NEC 410.16 spacing requirements

• EMI/RFI emissions per FCC 47CFR Part 15

consumer limits

• Contains no mercury or lead and RoHS compliant

• Photometric testing in accordance with IES LM-

79-08

• Lumen maintenance projections in accordance with

IES LM-80-08 and TM-21-11

• Can be used for State of California Title 24 high

ecacy luminaire compliance, reference the California Energy Commission Title 20 Appliance Eciency Database for current listings

• ENERGY STAR

current listings

listed, reference database for

• Meets State of California voluntary lamp standards

Warranty

LT4 LED System 90 CRI

• Five year limited warranty, consult website for details. www.cooperindustries.com/content/public/en/ lighting/resources/Legal

Energy Data

Lumens 600 Series

Input Voltage 120V

Input Current 0.069 (mA)

Input Power 8.0 (W)

Eciency Up to 76 (LPW)

Inrush (A)

THD: ≤ 24%

PF: ≥ 0.90

T Ambient -30 - +40°C

Sound Rating ≤ 23dba

Cooper Lighting Solutions

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.
