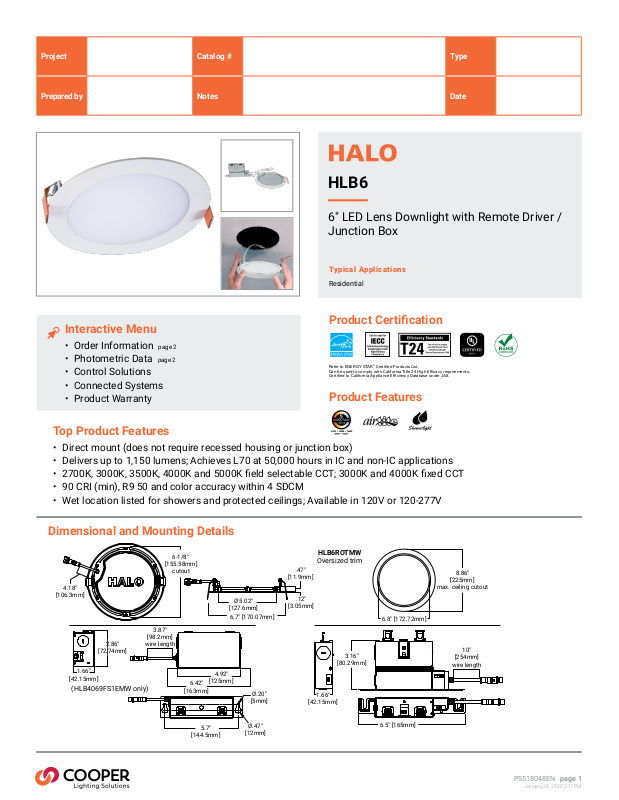

Page 1
Project Catalog # Type
Prepared by Notes Date
HLB6
6" LED Lens Downlight with Remote Driver /
Junction Box
Typical Applications
Residential
Interactive Menu
Product Certication
• Order Information page 2
• Photometric Data page 2
• Control Solutions
Refer to ENERGY STAR® Certified Products List.
Can be used to comply with California Title 24 High Efficacy requirements.
Certified to California Appliance Efficiency Database under JA8.
• Connected Systems
• Product Warranty
Product Features
Top Product Features
• Direct mount (does not require recessed housing or junction box)
• Delivers up to 1,150 lumens; Achieves L70 at 50,000 hours in IC and non-IC applications
• 2700K, 3000K, 3500K, 4000K and 5000K eld selectable CCT; 3000K and 4000K xed CCT
• 90 CRI (min), R9 50 and color accuracy within 4 SDCM
• Wet location listed for showers and protected ceilings; Available in 120V or 120-277V

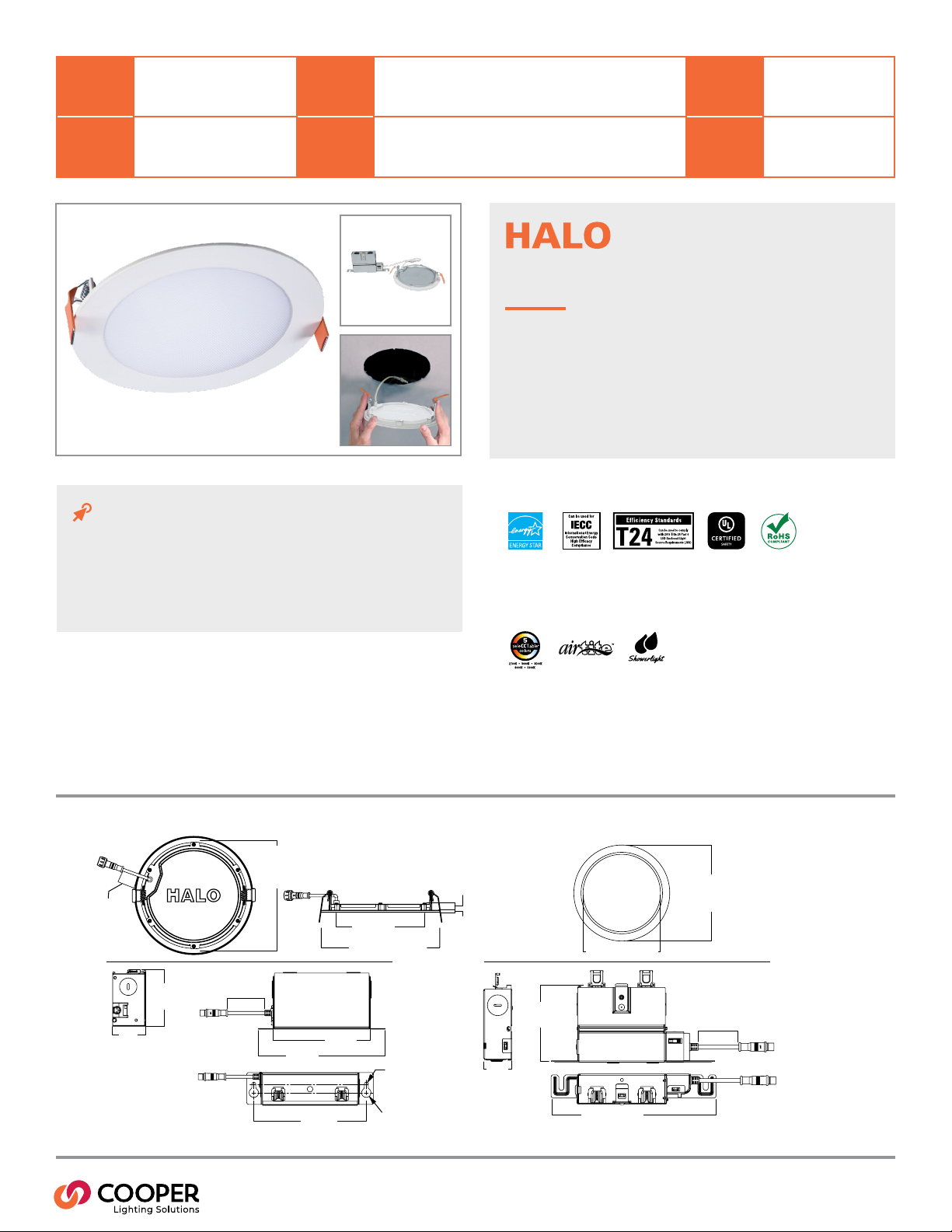

Dimensional and Mounting Details
.
47"
.12"
[3.05mm]
HLB6ROTMW
Oversized trim
1.66"
[42.15mm]
3.16"
[80.29mm]
max. ceiling cutout
6.8" [172.72mm]
4.18"
[106.3mm]
2.86"
[72.74mm]
1.66"
[42.15mm]
(HLB4069FS1EMW only)
[155.58mm]
3.87"
[98.2mm]
wire length
6-1/8"
cutout
6.42"
[163mm]
4.92"
[125mm]
Ø 5.02"
[127.6mm]
6.7" [170.07mm]
Ø.20"
[5mm]
[11.9mm]
8.86"
[225mm]
10"
[254mm]
wire length
5.7"
[144.5mm]
Ø.47"
[12mm]
6.5" [165mm]
PS518048EN page 1
January 28, 2020 2:17 PM

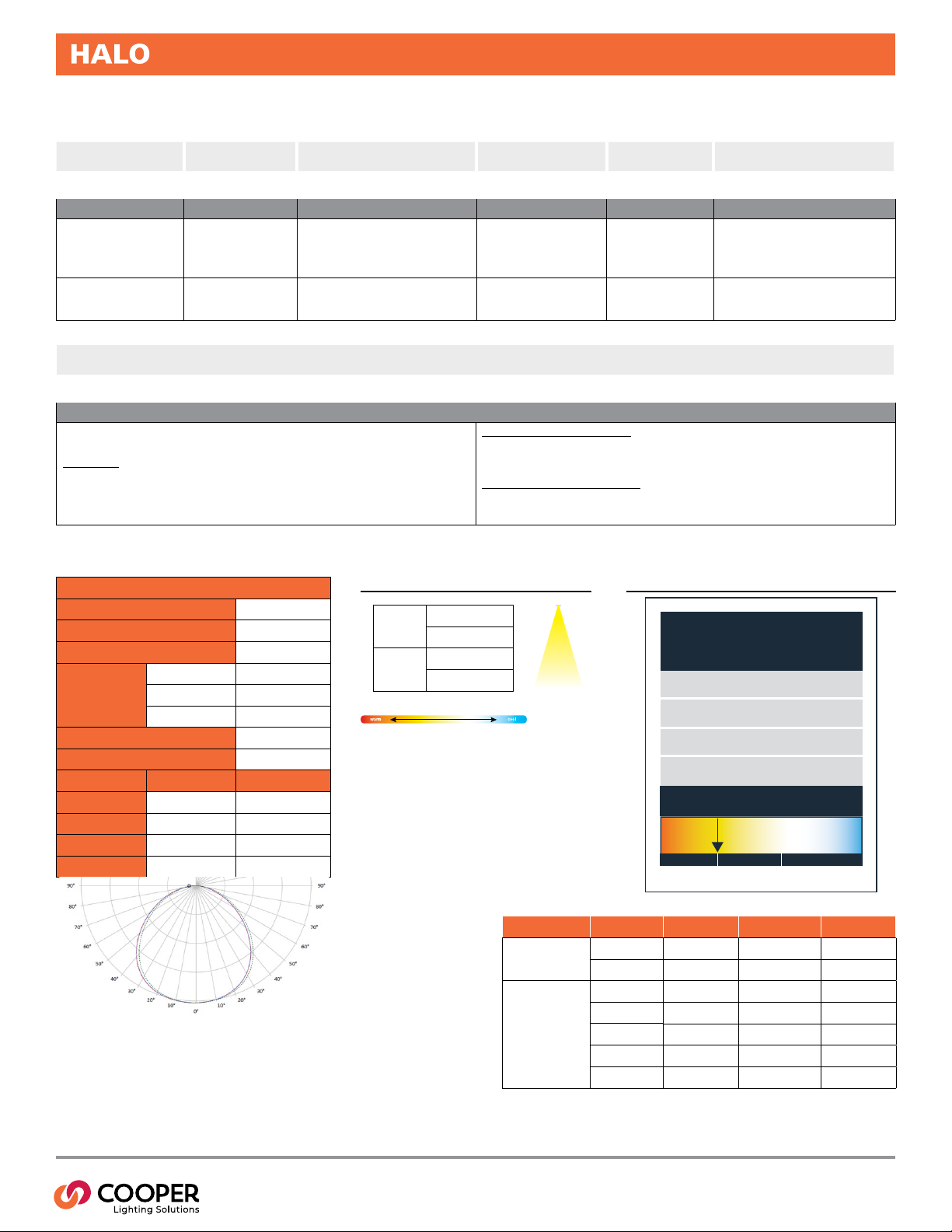

Page 2
Order Information
SAMPLE ORDER NUMBER: HLB6099FS1EMWR
Models Lumens CRI / CCT Driver Finish Packaging
Models Lumens CRI / CCT Driver Finish Packaging
HLB6 = 6-Inch LED lens
downlight with remote
driver / junction box
Notes Notes Notes Notes Notes Notes
HL6RSMF = 6” round and square mounting frame
HLB6ROTMW = 6” round oversized trim, matte white
Designer Trims
HLB6RTRMMW = 6” round decorative overlay, matte white
HLB6RTRMSN = 6” round decorative overlay, satin nickel
HLB6RTRMTBZ = 6” round decorative overlay, tuscan bronze
09 = 900 lumens (nominal) 930 = 90 CRI minimum, 3000K CCT
940 = 90 CRI minimum, 4000K CCT
9FS = 90 CRI minimum, eld selectable
2700K, 3000K, 3500K, 4000K or
5000K CCT
1E = 120V 60Hz, LE & TE phase
cut 5% dimming
E010 = 120-277V, 0-10V 5%
(1)
dimming
(1) E010 driver is only available in FS
color temperature.
Accessories
Accessories
Extension Cable | Dedicated Driver/Jbox
HLB06EC – 6 ft. extension cable
HLB12EC – 12 ft. extension cable
HLB20EC – 20 ft. extension cable
Extension Cable | seleCCTable Driver/Jbox
HLB06FSEC – 6 ft. extension cable
HLB12FSEC – 12 ft. extension cable
HLB20FSEC – 20 ft. extension cable
HLB6 Series
MW = matte white ange R = recyclable 4-color unit carton suitable for
point of purchase merchandising display
Photometric Data
HLB6099FS1EMWR-3000K
Luminaire lumens 1061
Input watts 16
LER (LPW) 66.3
0-180 1.31
Spacing
Criteria
Beam angle (degrees) 112.2
Field angle (degrees) 161.3
Zonal lumen Lumens % Lumens
0-30 294 27.7
0-40 486 45.8
0-60 851 80.2
0-90 1061 100
* Tested in accordance with IES LM63. Field results may vary.
90-270 1.31
Diagonal 1.41
Color Metric Summary - 3000K
TM-30-15
CRI/CIE
CCT - Range of 2700K- 5000K
Rf = 90.9
Rg = 100.7
Ra = 94.1
R9 = 68.5
HLB4 4-inch
Fixed CCT
Field
Selectable CCT
110°
Product Specifications
PRODUCT
SPECIFICATIONS
Lumens 1061
Watts 14.2
Lumens Per Watt
Color Accuracy
Light Color (CCT) 3000K
Correlated Color Temperature (CCT)
warm white soft white bright white
2700K 3000K 4500K 6500K
CCT Lumens Power (W) LPW
3000K 992.3 13.6 73.4
4000K 1057.7 13.6 78.0
2700K 1037.3 16.0 64.8
3000K 1061.0 16.0 66.3
3500K 1078.9 16.0 67.4
4000K 1094.9 16.0 68.4
5000K 1103.4 16.0 69.0
(Efficacy) 74.7
(CRI) 92
PS518048EN page 2
January 28, 2020 2:17 PM
Page 3
Energy Data
Lumens 900 Series
Input Voltage 120V
Input Current 132 (mA)
Input Power 16.0 (W)
Eciency 66 (LPW)
Inrush (A) 2.1 A @ 14mS
THD ≤ 20%
PF ≥ 0.90
T Ambient -30° - +40°C
Sound Rating ≤ 22 dba
Product Specications
Housing
• Die-cast aluminum mounting frame with integral
ange provides passive thermal cooling
• Achieves L70 at 50,000 hours in IC and non-IC
applications
• High impact diffuse lens provides shielding to the
light guide minimizing pixilation
Gasket
• Closed cell gasket achieves restrictive airow and
wet location listing without additional gaskets or
caulking
Optics
• Precision acrylic light guide organizes source ux
into wide distribution with 1.4 spacing criteria, useful
for general area illumination
LED Array
• Plurality of mid power LED’s provides a uniform
source with high eciency and long life
• 90 CRI minimum; R9 greater than 50 provides high
color rendering
• Fixed 3000K and 4000K CCT color temperatures;
color accuracy within 3 SDCM
• Optional eld selectable color temperature, select
2700K, 3000K, 3500K, 4000K or 5000K CCT; color
accuracy within 4 SDCM
• Meets ENERGY STAR
requirements; Deviation is less than 0.006 u' v'
®
color angular uniformity
Remote Driver/Junction Box
• Pre-galvanized steel driver/junction box with captive
hinged junction box cover
• Listed for six #12 AWG 90° C splice conductors: two
in, two out plus two ground
• Two 1⁄2" conduit pry-outs
• Two Slide-N-Side™ non-metallic (NM) wire traps
allows wiring outside the box
• Accepts NM cable types: 14-2, 14-3, 12-2, 12-3 (U.S.)
and 14-2, 14-3, 12-2 (Canadian)
• Three 4-port push wire nuts with clear caps for quick
and reliable mains voltage connections
• Integral mounting holes facilitate direct mounting to
building structure or mounting frame
Driver
• Available in 120V or 120-277V, providing noise free
operation
• Continuous icker-free dimming down to 5% with
select dimmers
• Plenum rated inline electrical quick connect provides
low voltage connection to xture tting, CMP/FT6
rated
Installation
• Can be installed in 1/2" to 1-1/4" thick ceilings
• Cutout utilizes standard round hole saw sizes;
cutout template provided
• Heat treated springs hold xture tting securely in
the ceiling eliminating light leak
• Housing is less than 1⁄2" thick and can span a 2"
nominal framing member
• Can be removed from below the ceiling for service
or replacement
HLB6 Series
Optical Mounting Frame
• Pre-galvanized steel mounting frame locates xture
ttings during electrical rough-in and provides
cutout guidance for drywall contractor
• Provides attachment of remote driver/junction box
Compliance
• cULus Certied type IC suitable for direct contact
with air permeable insulation
• Not recommended for use in direct contact
with spray foam insulation (reference NEMA
LSD57-2013)
• Wet location listed and IP44 ingress protection
• Airtight per ASTM-E283-04
• Suitable for use in clothes closets when installed
in accordance with the NEC 410.16 spacing
requirements
• EMI/RFI emissions per FCC 47CFR Part 15
consumer limits
• Contains no mercury or lead and RoHS compliant
• Photometric testing in accordance with IES
LM-79-08
• Lumen maintenance projections in accordance with
IES LM-80-08 and TM-21-11
• State of California Title 24 high ecacy
• LED compliance under JA8, reference Modernized
Appliance Eciency Database System (MAEDBS)
for 2016 JA8 High Ecacy Lighting
• ENERGY STAR
Fixtures” database)
Warranty
• Five-year limited warranty
®
certied (reference “Certied Light
Cooper Lighting Solutions
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.cooperlighting.com
© 2020 Cooper Lighting Solutions
All Rights Reserved.
Specifications and dimensions
subject to change without notice.
PS518048EN page 3
January 28, 2020 2:17 PM
