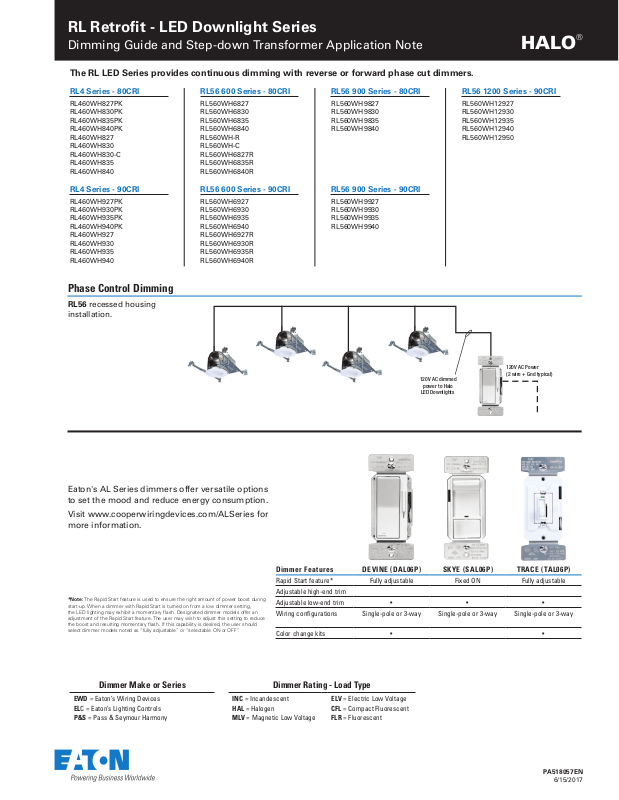

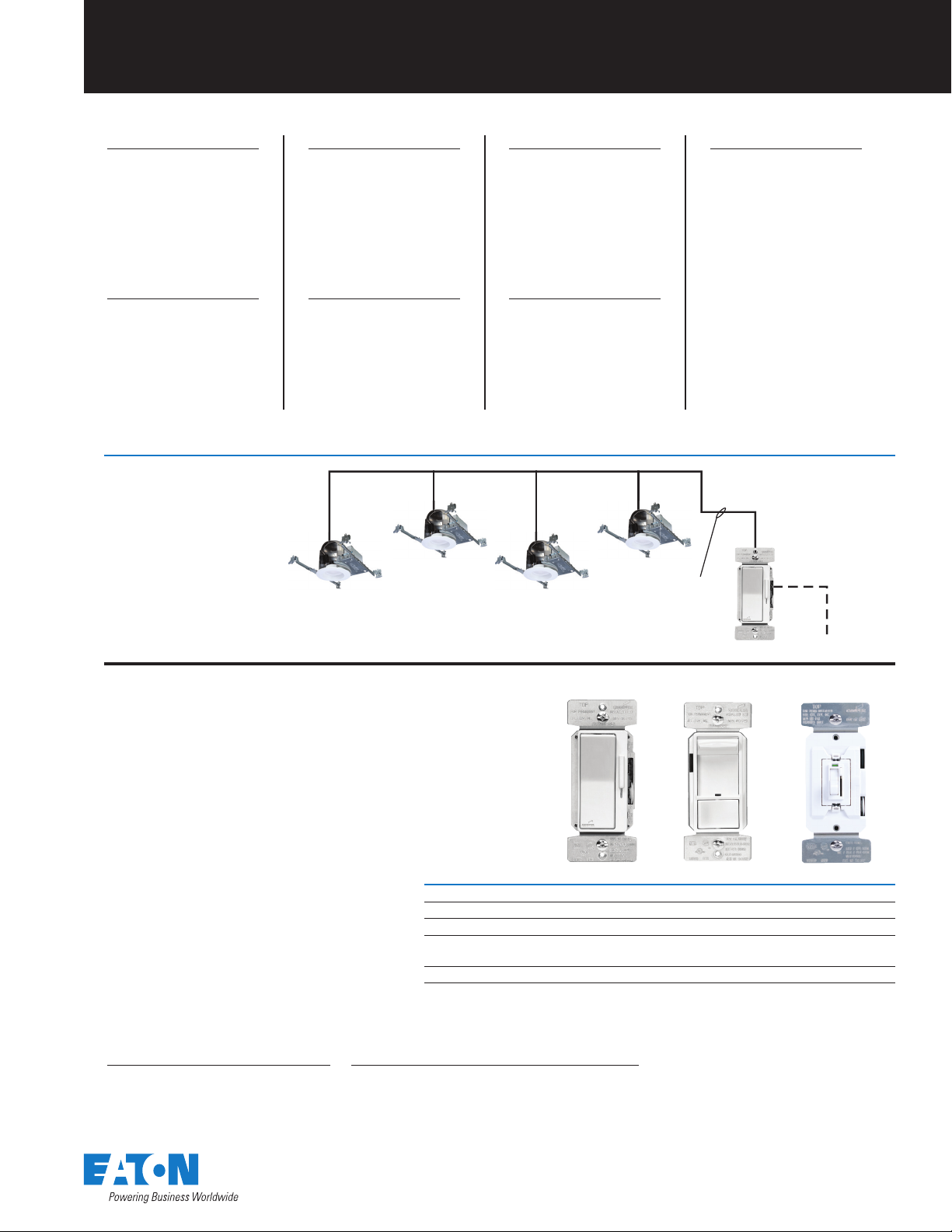

RL Retroﬁt - LED Downlight Series

Dimming Guide and Step-down Transformer Application Note

The RL LED Series provides continuous dimming with reverse or forward phase cut dimmers.

RL4 Series - 80CRI RL56 600 Series - 80CRI RL56 900 Series - 80CRI RL56 1200 Series - 90CRI

RL460WH827PK RL460WH830PK RL460WH835PK RL460WH840PK RL460WH827 RL460WH830 RL460WH830-C RL460WH835 RL460WH840

RL4 Series - 90CRI RL56 600 Series - 90CRI RL56 900 Series - 90CRI

RL460WH927PK RL460WH930PK RL460WH935PK RL460WH940PK RL460WH927 RL460WH930 RL460WH935 RL460WH940

Phase Control Dimming

RL56 recessed housing installation.

RL560WH6827 RL560WH6830 RL560WH6835 RL560WH6840 RL560WH-R RL560WH-C RL560WH6827R RL560WH6835R RL560WH6840R

RL560WH6927 RL560WH6930 RL560WH6935 RL560WH6940 RL560WH6927R RL560WH6930R RL560WH6935R RL560WH6940R

RL560WH9827 RL560WH9830 RL560WH9835 RL560WH9840

RL560WH9927 RL560WH9930 RL560WH9935 RL560WH9940

RL560WH12927 RL560WH12930 RL560WH12935 RL560WH12940 RL560WH12950

HALO

Eaton's AL Series dimmers offer versatile options to set the mood and reduce energy consumption.

Visit www.cooperwiringdevices.com/ALSeries for more information.

*Note: The Rapid Start feature is used to ensure the right amount of power boost during start-up. When a dimmer with Rapid Start is turned on from a low dimmer setting, the LED lighting may exhibit a momentary ﬂash. Designated dimmer models offer an adjustment of the Rapid Start feature. The user may wish to adjust this setting to reduce the boost and resulting momentary ﬂash. If this capability is desired, the user should select dimmer models noted as “fully adjustable” or “selectable ON or OFF”.

120V AC Power

120V AC dimmed

power to Halo

LED Downlights

(2 wire + Gnd typical)

Dimmer Features DEVINE (DAL06P) SKYE (SAL06P) TRACE (TAL06P)

Rapid Start feature* Fully adjustable Fixed ON Fully adjustable

Adjustable high-end trim

Adjustable low-end trim • • •

Wiring configurations Single-pole or 3-way Single-pole or 3-way Single-pole or 3-way

Color change kits • •

Dimmer Make or Series

EWD = Eaton’s Wiring Devices ELC = Eaton’s Lighting Controls P&S = Pass & Seymour Harmony

Dimmer Rating - Load Type

INC = Incandescent HAL = Halogen MLV = Magnetic Low Voltage

ELV = Electric Low Voltage CFL = Compact Fluorescent FLR = Fluorescent

PA518057EN

6/15/2017

Page 2

RL4

Compatible Dimmers

Dimmer

Make

EATON Decorator DAL06P Triac (INC/HAL/MLV/ELV/CFL/LED) 300 W 1 29 5% 97% <1s

EATON Toggle TAL06P Triac(INC/HAL/MLV/ELV/CFL/LED) 300 W 1 29 7% 97% <1s

EATON Slide SAL06P Triac(INC/HAL/MLV/ELV/CFL/LED) 300 W 1 29 7% 98% <1s

EATON Slide SLC03P Triac (INC/HAL/CFL/LED) 300 W 1 29 5% 98% <1s

EATON Toggle DLC03P Triac (INC/HAL/CFL/LED) 300 W 1 29 5% 98% <1s

EATON iLumin SC277-06-UN Control Panel( Leading Edge) 16 A 1 46 2% 100% <1s

Dimmer Series

Dimmer Model #

Dimmer Rating

Max

Wattage or

Input Rating

Minimum

Luminaires

(per

circuit)

Maximum

Recommended

Luminaires

(per circuit)

Min

Dimming

percentage

(%)

Max

Dimming

percentage

(%)

Low

End Start Time

Eaton RA & RL Dimming Guide - PA518057EN

Page 3

RL4

For Reference Only

Dimmer

Make

Dimmer Series

Dimmer Model #

Dimmer Rating

Max

Wattage or

Input Rating

EATON Toggle TI061 Triac (INC/HAL) 600 W 1 58 1% 89% <1s

EATON Aspire 9530AW Triac(INC) 600 W 1 58 2% 100%

EATON Rotary RI061 Triac(INC/HAL) 600 W 1 58 5% 98%

EATON Slide SF8AP 1 93 20% 99% <1s

EATON Decorator DE06P ELV 600 W 1 58 2% 94%

Lutron Toggler TG-600P Triac (INC) 600 W 1 58 2% 97%

Lutron Diva DV-600P Triac (INC) 600 W 1 58 5% 97%

Lutron Lumea LG600P Triac (INC/HAL) 600 W 1 58 5% 96%

Lutron Skylark S-600P Triac (INC/HAL) 600 W 1 58 5% 96%

Lutron Skylark Contour CT103P Triac (INC/HAL/MLV) 1000 W 1 97 5% 96% <1s

Lutron Diva DV603P Triac (INC/HAL) 600 W 1 58 5% 96% <1s

Lutron Nova T NTFTU-5A Triac (Fluorescent) 5 A 1 57 17% 98% <1s

Lutron Maestro MAELV600 ELV 600 W 1 58 5% 95% <1s

Lutron Faedra FAELV500 ELV 500 W 1 48 4% 95% <1s

Lutron Diva DVELV303P ELV 300 W 1 29 1% 96%

Lutron Skylark SELV300P ELV 300 W 1 29 1% 95%

Leviton SureSlide 6674 Triac (INC/LED/CFL) 150 W 1 14 4% 99% <1s

Leviton Illumatech IPL06 Triac (INC/LED/CFL) 150 W 1 14 4% 96% <1s

Leviton Decora 6673 Triac (CFL/INC) 600 W 1 58 19% 96% <1s

Leviton SureSlide 6631-2 Triac (INC) 600 W 1 58 5% 98% <1s

Leviton IPI06 1 58 10% 99% <1s

Leviton Vizia VP106 Triac (INC) 600 W 1 58 4% 98% <1s

Leviton Decora 6161 Triac (INC) 500 W 1 48 4% 99% <1s

Leviton Sure Slide 6633-P 1 58 5% 97% <1s

Leviton

Plug In Lamp Dimmer

TBI03 Triac 300 W 1 29 5% 100%

Leviton Vizia VPE06 ELV 600 W 1 58 4% 96% <1s

Leviton Vizia VZE04 ELV 400 W 1 39 5% 95% <1s

Legrand

Pass&Seymour Harmony

H703PTUW 1 44 6% 98% <1s

Lutron Ariadni AY-600P 600 W 1 58 2% 97%

Lutron Contour CT-103P 1000 W 1 97 5% 98% <1s

Lutron Contour CT-600P 600 W 1 58 5% 99%

Lutron Rotary D-600P 600 W 1 58 5% 99% <1s

Lutron Diva DV-600P 1 58 7% 100% <1s

Lutron Glyder GL-600P 1 58 5% 99%

Lutron Lumia LG-600PH 1 58 7% 99% <1s

Lutron Maestro MA600 1 58 7% 98% <1s

Lutron Nova N-600 600 W 1 58 5% 100% <1s

Lutron Skylark S-600P 1 58

Lutron Centurion C-600P 600 W 1 58 0% 97%

Lutron Ariadni AYLV-600P 450 W 1 44 0% 97%

Lutron Glyder GLV-600 450 W 1 44 6% 97% <1s

Lutron Diva DVLV-600P 1 44 0% 97%

Lutron Lumina LG-103P 1000 W 1 44 0% 97%

Lutron Skylark SLV-600P 450 W 1 44 5% 96% <1s

Lutron Nova NTLV-600 450 W 1 44 2% 97% <1s

Lutron Nova NT-600 600 W 1 58 0% 97%

1. Up to 5 second start time for low end dimming.

2. Does not turn on at low end dimming.

3. Dim to off. Does not turn on at low end dimming.

Minimum

Luminaires

(per

circuit)

Maximum

Recommended

Luminaires

(per circuit)

Min

Dimming

percentage

(%)

7% 100%

Max

Dimming

percentage

(%)

Low

End Start Time

>1s

Eaton RA & RL Dimming Guide - PA518057EN

Page 4

RL56 - 600 Series

Compatible Dimmers

Dimmer

Make

Dimmer Series

Dimmer Model #

Dimmer Rating

Max

Wattage or

Input Rating

EATON Decorator DAL06P Triac (INC/HAL/MLV/ELV/CFL/LED) 300 W 1 27 4% 97% <1s

EATON Toggle TAL06P Triac(INC/HAL/MLV/ELV/CFL/LED) 300 W 1 27 6% 97% <1s

EATON Slide SAL06P Triac(INC/HAL/MLV/ELV/CFL/LED) 300 W 1 27 5% 96% <1s

EATON Slide SLC03P Triac (INC/HAL/CFL/LED) 300 W 1 27 4% 98% <1s

EATON Toggle DLC03P Triac (INC/HAL/CFL/LED) 300 W 1 27 4% 97% <1s

EATON iLumin SC277-06-UN Control Panel( Leading Edge) 16 A 1 27 1% 99% <1s

Lutron Diva

Lutron Skylark

Lutron Skylark Contour

Lutron Ariadni / Toggler

Lutron Lumea

C·L wall-mount dimmers (T1, T4, T5, T8)

Lutron Maestro MACL-153M 1 15 7% 96% <1s

Lutron RadioRA 2 RRD-6NA 1 15 7% 96% <1s

Lutron Maestro Wireless MRF2-6ELV 1 15 7% 96% <1s

Lutron HomeWorks QS HQRD-6NA 1 15 7% 96% <1s

Lutron HomeWorks HxD-6ND 1 10 5% 97% <1s

Lutron Stanza SZ-6ND 1 10 5% 97% <1s

Lutron Panel module

Lutron Panel Module

PHPM-PA with Grafik Eye QS Main Unit

PHPM-WBX with 3-wire fluorescent control

Lutron Panel Module HW/LP-RPM-4A-120 1 108 16% 96% <1s

Lutron Panel Module HW/LP-RPM-4U-120 1 49 7% 99% <1s

Lutron

Grafik QS/Wallbox Power Module

Grafik Eye QS Main Unit Family/LQRJ-WPM-6P

Lutron Panel Module GP (Harrier) Card 1 49 6% 98% <1s

Lutron

150W C.L Wall Mount 3.0

DVCL-153P(T9) 1 15 9% 97% <1s

Lutron Maestro Sensor MSCL-OP153M(T2) 1 15 5% 96% <1s

Lutron Maestro Sensor MSCL-VP153M(T2) 1 15 5% 96% <1s

Lutron

Grafik Eye 3000/ HomeWorks

Grafik Eye 3000 Family/ HWI-WPM-6D-120

Lutron Caseta Wireless PD-6WCL (SD11) 1 15 5% 96% <1s

Lutron RadioRA 2 RRD-6CL (R3) 1 15 5% 96% <1s

Lutron Maestro Wireless MRF2-6CL (M6) 1 15 5% 96% <1s

Lutron HomeWorks QS HQRD-6CL (H2) 1 15 5% 96% <1s

Lutron HomeWorks QS HQRA-6CL (H2) 1 15 5% 96% <1s

Lutron RadioRA 2 RRD-6D 1 15 5% 96% <1s

Lutron RadioRA 2 RRD-H6BRL

Lutron HomeWorks QS HQRD-H6BRL

(with neutral) 1 10 7% 97% <1s

Lutron Diva 250W C·L dimmers (T5, T8) 1 25 11% 97% <1s

Lutron Ariadni 250W C·L dimmers (T5, T8) 1 25 11% 97% <1s

Lutron Nova T NTCL-250 (T8) 1 25 11% 97% <1s

Lutron Grafik T GT-150 (T6)

Lutron Grafik T GTJ-150 (M6)

Lutron

HomeWorks QS/ myRoom

LQSE-4A1-D 1 10 6% 98% <1s

MQSE-4A1-D 1 10 6% 98% <1s

MQSE-3A1 1 10 6%

MQSE-2A1-D 1 10 6% 98% <1s

(without neutral) 1 15 10% 98% <1s

Lutron Grafik T GT-5NEM 1 25 7% 97% <1s

Lutron Grafik T GTJ-5NEM 1 25 7% 97% <1s

Minimum

Luminaires

(per

circuit)

Maximum

Recommended

Luminaires

(per circuit)

Min

Dimming

percentage

(%)

Max

Dimming

percentage

(%)

1 15 11% 97% <1s

1 166 5% 99% <1s

1 49 5% 99% <1s

98% <1s

Low

End Start Time

Eaton RA & RL Dimming Guide - PA518057EN

Page 5

RL56 - 600 Series

For Reference Only

Dimmer

Make

Dimmer Series

Dimmer Model #

Dimmer Rating

Max

Wattage or

Input Rating

EATON Toggle TI061 Triac (INC/HAL) 600 W 1 54 5% 90% <1s

EATON Aspire 9530AW Triac(INC) 600 W 1 54 4% 99% <1s

EATON Rotary RI061 Triac(INC/HAL) 600 W 1 54 4% 98%

EATON Slide SF8AP 1 86 21% 99% <1s

EATON Decorator DE06P ELV 600 W 1 54 3% 92%

Lutron Toggler TG-600P Triac (INC) 600 W 1 54 6% 99% <1s

Lutron Diva DV-600P Triac (INC) 600 W 1 54 7% 97% <1s

Lutron Lumea LG600P Triac (INC/HAL) 600 W 1 54 6% 97% <1s

Lutron Skylark S-600P Triac (INC/HAL) 600 W 1 54 7% 97%

Lutron Skylark Contour CT103P Triac (INC/HAL/MLV) 1000 W 1 90 7% 97% <1s

Lutron Diva DV603P Triac (INC/HAL) 600 W 1 54 1% 96%

Lutron Nova T NTFTU-5A Triac (Fluorescent) 5 A 1 53 17% 99% <1s

Lutron Maestro MAELV600 ELV 600 W 1 54 4% 97% <1s

Lutron Faedra FAELV500 ELV 500 W 1 45 3% 97% <1s

Lutron Diva DVELV303P ELV 300 W 1 27 1% 92%

Lutron Skylark SELV300P ELV 300 W 1 27 1% 94%

Leviton SureSlide 6674 Triac (INC/LED/CFL) 150 W 1 13 4% 98% <1s

Leviton Illumatech IPL06 Triac (INC/LED/CFL) 150 W 1 13 4% 99% <1s

Leviton Decora 6673 Triac (CFL/INC) 600 W 1 54 19% 99% <1s

Leviton SureSlide 6631-2 Triac (INC) 600 W 1 54 1% 98%

Leviton IPI06 1 54 4% 99% <1s

Leviton Vizia VP106 Triac (INC) 600 W 1 54 4% 99%

Leviton Decora 6161 Triac (INC) 500 W 1 45 4% 99% <1s

Leviton Sure Slide 6633-P 1 54 5% 100% <1s

Leviton

Plug In Lamp Dimmer

TBI03 Triac 300 W 1 27 8% 99%

Leviton Vizia VPE06 ELV 600 W 1 54 3% 98% <1s

Leviton Vizia VZE04 ELV 400 W 1 36 4% 98% <1s

Legrand

Pass&Seymour Harmony

H703PTUW 1 40 5% 100% <1s

Lutron Ariadni AY-600P 600 W 1 54 7% 97% <1s

Lutron Contour CT-103P 1000 W 1 90 6% 99% <1s

Lutron Contour CT-600P 600 W 1 54 3% 99% <1s

Lutron Rotary D-600P 600 W 1 54 4% 99% <1s

Lutron Diva DV-600P 1 54 3% 100% <1s

Lutron Glyder GL-600P 1 54 7% 99% >1s

Lutron Lumia LG-600PH 1 54 3% 100% <1s

Lutron Maestro MA600 1 54 4% 97%

Lutron Nova N-600 600 W 1 54 1% 99%

Lutron Skylark S-600P 1 54 3% 99%

Lutron Centurion C-600P 600 W 1 54 1% 97%

Lutron Ariadni AYLV-600P 450 W 1 40 3% 97% <1s

Lutron Glyder GLV-600 450 W 1 40 3% 98% <1s

Lutron Diva DVLV-600P 1 40 1% 97%

Lutron Lumina LG-103P 1000 W 1 90 1% 97%

Lutron Skylark SLV-600P 450 W 1 40 3% 97% <1s

Lutron Nova NTLV-600 450 W 1 40 4% 98% <1s

Lutron Nova NT-600 600 W 1 54 1% 98% <1s

Minimum

Luminaires

(per

circuit)

Maximum

Recommended

Luminaires

(per circuit)

Min

Dimming

percentage

(%)

Max

Dimming

percentage

(%)

Low

End Start Time

>1s

<1s

>1s

1. Up to 5 second start time for low end dimming.

2. Does not turn on at low end dimming.

3. Blinks when powering off.

Eaton RA & RL Dimming Guide - PA518057EN

Page 6

RL56 - 900 Series

Compatible Dimmers

Dimmer

Make

EATON Decorator DAL06P Triac (INC/HAL/MLV/ELV/CFL/LED) 300 W 1 18 5% 98% <1s

EATON Toggle TAL06P Triac(INC/HAL/MLV/ELV/CFL/LED) 300 W 1 18 7% 99% <1s

EATON Slide SAL06P Triac(INC/HAL/MLV/ELV/CFL/LED) 300 W 1 18 5% 99% <1s

EATON Slide SLC03P Triac (INC/HAL/CFL/LED) 300 W 1 18 4% 99% <1s

EATON Toggle DLC03P Triac (INC/HAL/CFL/LED) 300 W 1 18 4% 99% <1s

EATON iLumin SC277-06-UN Control Panel( Leading Edge) 16 A 1 29 1% 100% >1s

Lutron Diva

Lutron Skylark

Lutron Skylark Contour

Lutron Ariadni / Toggler

Lutron Lumea

Lutron Maestro MACL-153M 1 11 90% 11% <1s

Lutron RadioRA 2 RRD-6NA 1 11 97% 8% <1s

Lutron Maestro Wireless MRF-6ELV 1 11 97% 8% <1s

Lutron HomeWorks QS HQRD-6NA 1 11 97% 8% <1s

Lutron HomeWorks HxD-6ND 1 6 98% 8% <1s

Lutron Stanza SZ-6ND 1 6 98% 8% <1s

Lutron Panel module

Lutron Panel Module

Lutron Panel Module HW/LP-RPM-4A-120 1 66 96% 8% <1s

Lutron Panel Module HW/LP-RPM-4U-120 1 30 99% 8% <1s

Lutron

Lutron Maestro Sensor MSCL-OP153M(T2) 1 11 92% 8% <1s

Lutron Maestro Sensor MSCL-VP153M(T2) 1 11 92% 8% <1s

Lutron

Lutron Caseta Wireless PD-6WCL (SD11) 1 11 94% 13% <1s

Lutron RadioRA 2 RRD-6CL (R3) 1 11 96% 9% <1s

Lutron Maestro Wireless MRF2-6CL (M6) 1 11 95% 9% <1s

Lutron HomeWorks QS HQRD-6CL (H2) 1 11 95% 9% <1s

Lutron HomeWorks QS HQRA-6CL (H2) 1 11 95% 9% <1s

Lutron RadioRA 2 RRD-H6BRL

Lutron HomeWorks QS HQRD-H6BRL

Lutron Diva 250W C·L dimmers (T5, T8) 1 18 97% 11% <1s

Lutron Ariadni 250W C·L dimmers (T5, T8) 1 18 97% 11% <1s

Lutron Nova T NTCL-250 (T8) 1 18 97% 11% <1s

Lutron Grafik T GT-150 (T6)

Lutron Grafik T GTJ-150 (M6)

Lutron

Lutron Grafik T GT-5NEM 1 18 97 11 <1s

Lutron Grafik T GTJ-5NEM 1 18 97 11 <1s

Dimmer Series

Grafik QS/Wallbox Power Module

150W C.L Wall Mount 3.0

Grafik Eye 3000/ HomeWorks

HomeWorks QS/ myRoom

Dimmer Model #

C·L wall-mount dimmers (T1, T4, T5, T8)

PHPM-PA with Grafik Eye QS Main Unit

PHPM-WBX with 3-wire fluorescent control

Grafik Eye QS Main Unit Family/LQRJ-WPM-6P

DVCL-153P(T9) 1 11 98% 5% <1s

Grafik Eye 3000 Family/ HWI-WPM-6D-120

(with neutral) 1 7 97% 7% <1s

(without neutral) 1 11 98% 8% <1s

LQSE-4A1-D 1 6 99% 11% <1s

MQSE-4A1-D 1 6 99% 11% <1s

MQSE-3A1 1 6 99% 11% <1s

MQSE-2A1-D 1 6 99% 11% <1s

Dimmer Rating

Max

Wattage or

Input Rating

Minimum

Luminaires

(per

circuit)

1 11 97% 11% <1s

1 97 98% 8% <1s

1 30 98% 11% <1s

Maximum

Recommended

Luminaires

(per circuit)

Min

Dimming

percentage

(%)

Max

Dimming

percentage

(%)

Low

End Start Time

Eaton RA & RL Dimming Guide - PA518057EN

Page 7

RL56 - 900 Series

For Reference Only

Dimmer

Make

Dimmer Series

Dimmer Model #

Dimmer Rating

Max

Wattage or

Input Rating

EATON Toggle TI061 Triac (INC/HAL) 600 W 1 36 3% 85% <1s

EATON Aspire 9530AW Triac(INC) 600 W 1 36 2% 99% <1s

EATON Rotary RI061 Triac(INC/HAL) 600 W 1 36 5% 98%

EATON Slide SF8AP 1 58 21% 98% <1s

EATON Decorator DE06P ELV 600 W 1 36 3% 90%

Lutron Toggler TG-600P Triac (INC) 600 W 1 36 5% 96%

Lutron Diva DV-600P Triac (INC) 600 W 1 36 5% 97%

Lutron Lumea LG600P Triac (INC/HAL) 600 W 1 36 4% 99%

Lutron Skylark S-600P Triac (INC/HAL) 600 W 1 36 5% 99%

Lutron Skylark Contour CT103P Triac (INC/HAL/MLV) 1000 W 1 60 5% 97% <1s

Lutron Diva DV603P Triac (INC/HAL) 600 W 1 36 5% 98%

Lutron Nova T NTFTU-5A Triac (Fluorescent) 5 A 1 35 18% 97% <1s

Lutron Maestro MAELV600 ELV 600 W 1 36 4% 97% <1s

Lutron Faedra FAELV500 ELV 500 W 1 30 4% 97% <1s

Lutron Diva DVELV303P ELV 300 W 1 18 1% 91%

Lutron Skylark SELV300P ELV 300 W 1 18 1% 94%

Leviton SureSlide 6674 Triac (INC/LED/CFL) 150 W 1 9 4% 98% <1s

Leviton Illumatech IPL06 Triac (INC/LED/CFL) 150 W 1 9 4% 99% <1s

Leviton Decora 6673 Triac (CFL/INC) 600 W 1 36 19% 97% <1s

Leviton SureSlide 6631-2 Triac (INC) 600 W 1 36 1% 99%

Leviton IPI06 1 36 2% 99%

Leviton Vizia VP106 Triac (INC) 600 W 1 36 4% 97% <1s

Leviton Decora 6161 Triac (INC) 500 W 1 30 4% 97% <1s

Leviton Sure Slide 6633-P 1 36 5% 98% <1s

Leviton

Plug In Lamp Dimmer

TBI03 Triac 300 W 1 18 2% 100%

Leviton Vizia VPE06 ELV 600 W 1 36 4% 99% <1s

Leviton Vizia VZE04 ELV 400 W 1 24 4% 96% <1s

Legrand

Pass&Seymour Harmony

H703PTUW 1 27 6% 97% <1s

Lutron Ariadni AY-600P 600 W 1 36 5% 97%

Lutron Contour CT-103P 1000 W 1 60 5% 98% <1s

Lutron Contour CT-600P 600 W 1 36 5% 96% <1s

Lutron Rotary D-600P 600 W 1 36 5% 96% <1s

Lutron Diva DV-600P 1 36 4% 98% <1s

Lutron Glyder GL-600P 1 36 5% 97% <1s

Lutron Lumia LG-600PH 1 36 5% 97%

Lutron Maestro MA600 1 36 5% 98% <1s

Lutron Nova N-600 600 W 1 36 0% 98%

Lutron Skylark S-600P 1 36 4% 98% <1s

Lutron Centurion C-600P 600 W 1 36 0% 98%

Lutron Ariadni AYLV-600P 450 W 1 27 2% 98% >1s

Lutron Glyder GLV-600 450 W 1 27 5% 97% <1s

Lutron Diva DVLV-600P 1 27 0% 97%

Lutron Lumina LG-103P 1000 W 1 60 0% 97%

Lutron Skylark SLV-600P 450 W 1 27 6% 99% <1s

Lutron Nova NTLV-600 450 W 1 27 4% 99% <1s

Lutron Nova NT-600 600 W 1 36 1% 98%

Minimum

Luminaires

(per

circuit)

Maximum

Recommended

Luminaires

(per circuit)

Min

Dimming

percentage

(%)

Max

Dimming

percentage

(%)

Low

End Start Time

>1s

<1s

>1s

1. Up to 5 second start time for low end dimming.

2. Does not turn on at low end dimming.

3. Dim to off. Does not turn on at low end dimming.

Eaton RA & RL Dimming Guide - PA518057EN

Page 8

RL56 - 1200 Series

Compatible Dimmers

Dimmer

Make

EATON Decorator DAL06P Triac (INC/HAL/MLV/ELV/CFL/LED) 300 W 1 13 4% 100% <1s

EATON Toggle TAL06P Triac(INC/HAL/MLV/ELV/CFL/LED) 300 W 1 13 7% 97% <1s

EATON Slide SAL06P Triac(INC/HAL/MLV/ELV/CFL/LED) 300 W 1 13 5% 99% <1s

EATON Slide SLC03P Triac (INC/HAL/CFL/LED) 300 W 1 13 5% 94% >1s

EATON Toggle DLC03P Triac (INC/HAL/CFL/LED) 300 W 1 13 4% 98% <1s

EATON iLumin SC277-06-UN Control Panel (Leading Edge) 16 A 1 21 2% 100% <1s

Lutron Diva

Lutron Skylark

Lutron Skylark Contour

Lutron Ariadni / Toggler

Lutron Lumea

Lutron Maestro MACL-153M 1 8 85% 6% <1s

Lutron RadioRA 2 RRD-6NA 1 8 92% 11% <1s

Lutron Maestro Wireless MRF2-6ELV 1 8 92% 11% <1s

Lutron HomeWorks QS HQRD-6NA 1 8 92% 11% <1s

Lutron Panel module

Lutron Panel Module

Lutron Panel Module HW/LP-RPM-4A-120 1 56 95% 8% <1s

Lutron Panel Module HW/LP-RPM-4U-120 1 24 94% 10% <1s

Lutron

Lutron Panel Module GP (Harrier) Card 1 24 95% 9% <1s

Lutron Maestro Sensor MSCL-OP153M(T2) 1 8 87% 8% <1s

Lutron Maestro Sensor MSCL-VP153M(T2) 1 8 87% 8% <1s

Lutron

Lutron Caseta Wireless PD-6WCL (SD11) 1 8 87% 6% <1s

Lutron RadioRA 2 RRD-6CL (R3) 1 8 86% 11% <1s

Lutron Maestro Wireless MRF2-6CL (M6) 1 8 86% 11% <1s

Lutron HomeWorks QS HQRD-6CL (H2) 1 8 86% 11% <1s

Lutron HomeWorks QS HQRA-6CL (H2) 1 8 86% 11% <1s

Lutron RadioRA 2 RRD-H6BRL

Lutron HomeWorks QS HQRD-H6BRL

Lutron Diva 250W C·L dimmers (T5, T8) 1 13 91% 13% <1s

Lutron Ariadni 250W C·L dimmers (T5, T8) 1 13 91% 13% <1s

Lutron Nova T NTCL-250 (T8) 1 13 91% 13% <1s

Lutron Grafik T GT-150 (T6)

Lutron Grafik T GTJ-150 (M6)

Lutron

Lutron Grafik T GT-5NEM 1 13 93 12 <1s

Lutron Grafik T GTJ-5NEM 1 13 93 12 <1s

Dimmer Series

Grafik QS/Wallbox Power Module

Grafik Eye 3000/ HomeWorks

HomeWorks QS/ myRoom

Dimmer Model #

C·L wall-mount dimmers (T1, T4, T5, T8)

PHPM-PA with Grafik Eye QS Main Unit

PHPM-WBX with 3-wire fluorescent control

Grafik Eye QS Main Unit Family/LQRJ-WPM-6P

Grafik Eye 3000 Family/ HWI-WPM-6D-120

(with neutral) 1 5 92% 5% <1s

(without neutral) 1 8 92% 5% <1s

LQSE-4A1-D 1 4 95% 9% <1s

MQSE-4A1-D 1 4 95% 9% <1s

MQSE-3A1 1 4 95% 9% <1s

MQSE-2A1-D 1 4 95% 9% <1s

Dimmer Rating

Max

Wattage or

Input Rating

Minimum

Luminaires

(per

circuit)

1 8 91% 13% <1s

1 90 95% 12% <1s

1 24 95% 11% <1s

Maximum

Recommended

Luminaires

(per circuit)

Min

Dimming

percentage

(%)

Max

Dimming

percentage

(%)

Low

End Start Time

Eaton RA & RL Dimming Guide - PA518057EN

Page 9

RL56 -1200 Series

For Reference Only

Dimmer

Make

Dimmer Series

Dimmer Model #

Dimmer Rating

Max

Wattage or

Input Rating

EATON Toggle TI061 Triac (INC/HAL) 600 W 1 26 4% 81% <1s

EATON Aspire 9530AW Triac(INC) 600 W 1 26 4% 99%

EATON Rotary RI061 Triac(INC/HAL) 600 W 1 26 7% 97%

EATON Slide SF8AP 1 42 22% 99% <1s

EATON Decorator DE06P ELV 600 W 1 26 3% 84%

Lutron Toggler TG-600P Triac (INC) 600 W 1 26 7% 93% <1s

Lutron Diva DV-600P Triac (INC) 600 W 1 26 13% 96%

Lutron Lumea LG600P Triac (INC/HAL) 600 W 1 26 10% 93% <1s

Lutron Skylark S-600P Triac (INC/HAL) 600 W 1 26 6% 94%

Lutron Skylark Contour CT103P Triac (INC/HAL/MLV) 1000 W 1 44 6% 94% <1s

Lutron Diva DV603P Triac (INC/HAL) 600 W 1 26 14% 94% <1s

Lutron Nova T NTFTU-5A Triac (Fluorescent) 5 A 1 26 19% 98% <1s

Lutron Maestro MAELV600 ELV 600 W 1 26 4% 93% <1s

Lutron Faedra FAELV500 ELV 500 W 1 22 4% 93% <1s

Lutron Diva DVELV303P ELV 300 W 1 13 1% 90%

Lutron Skylark SELV300P ELV 300 W 1 13 1% 93%

Leviton SureSlide 6674 Triac (INC/LED/CFL) 150 W 1 6 5% 95% <1s

Leviton Illumatech IPL06 Triac (INC/LED/CFL) 150 W 1 6 6% 92% <1s

Leviton Decora 6673 Triac (CFL/INC) 600 W 1 26 22% 91% <1s

Leviton SureSlide 6631-2 Triac (INC) 600 W 1 26 6% 97% <1s

Leviton IPI06 1 26 2% 98% <1s

Leviton Vizia VP106 Triac (INC) 600 W 1 26 6% 96%

Leviton Decora 6161 Triac (INC) 500 W 1 22 6% 96%

Leviton Sure Slide 6633-P 1 26 5% 99% <1s

Leviton

Plug In Lamp Dimmer

TBI03 Triac 300 W 1 13 2% 100%

Leviton Vizia VPE06 ELV 600 W 1 26 4% 99% <1s

Leviton Vizia VZE04 ELV 400 W 1 17 4% 98% <1s

Legrand

Pass&Seymour Harmony

H703PTUW 1 20 5% 100% <1s

Lutron Ariadni AY-600P 600 W 1 26 7% 95%

Lutron Contour CT-103P 1000 W 1 44 5% 93% <1s

Lutron Contour CT-600P 600 W 1 26 6% 93% <1s

Lutron Rotary D-600P 600 W 1 26 8% 97% <1s

Lutron Diva DV-600P 1 26 8% 96% <1s

Lutron Glyder GL-600P 1 26 7% 97%

Lutron Lumia LG-600PH 1 26 4% 98% <1s

Lutron Nova N-600 600 W 1 26 5% 97% <1s

Lutron Skylark S-600P 1 26 6% 93%

Lutron Centurion C-600P 600 W 1 26 5% 97% <1s

Lutron Ariadni AYLV-600P 450 W 1 20 2% 97%

Lutron Glyder GLV-600 450 W 1 20 5% 99% <1s

Lutron Diva DVLV-600P 1 20 6% 95% <1s

Lutron Lumina LG-103P 1000 W 1 44 4% 97% <1s

Lutron Skylark SLV-600P 450 W 1 20 4% 99% <1s

Lutron Nova NTLV-600 450 W 1 20 4% 97% <1s

Lutron Nova NT-600 600 W 1 26 5% 97% <1s

Minimum

Luminaires

(per

circuit)

Maximum

Recommended

Luminaires

(per circuit)

Min

Dimming

percentage

(%)

Max

Dimming

percentage

(%)

Low

End Start Time

>1s

<1s

>1s

1. Up to 5 second start time for low end dimming.

2. Does not turn on at low end dimming.

Eaton RA & RL Dimming Guide - PA518057EN

Page 10

Dimmer Notes:

1) Start time is measured at the lowest dimmer setting.

2) Some LED dimmers have a "rapid start" design used to provide a momentary power boost to LED and CFL lamps during start-up. When a LED luminaire is on a dimmer with "rapid start" the boost may cause a momentary ﬂash of the LED lighting. This "ﬂash" is generated by the dimmer, and may be more noticeable when the dimmer is at a low setting. A solution is available with EATON dimmers which provide adjustment capability of the "rapid start": Devine (DAL06P), Accell (AAL06P), and Trace (TAL06P). Refer to product speciﬁcations online at www.eaton.com/lighting for more details.

Dimming Guide Disclaimer:

1) Leviton

is a registered trademark of Leviton Manufacturing Co. Inc.; Lutron® is a registered trademark of Lutron Electronics Co. Inc.; Lightolier® is a registered trademark of Philips Lighting; Hubbell® is a registered trademark of Hubbell Incorporated; Legrand® and Pass & Seymour® are registered trademarks of Legrand®. These companies and their tradenames, trademarks or brands, where noted, are associated with their respective company and are not associated with EATON.



2) Testing conducted by EATON is not a substitute for and does not imply certiﬁcation by an independent laboratory or any other standards certiﬁcation.Refer to the manufacturer speciﬁcations for more detailed information on product certiﬁcations and standards.

3) This is a representative list of typical dimmers as tested by EATON lighting solutions business for performance with the designated LED luminaires only. Test data contained in this literature is based upon dimmers obtained in the marketplace.Information about these other manufacturers products is obtained from packaging and published information made available by the manufacturer and is deemed to be reliable, but has not been veriﬁed.Dimmer performance and perceived limitations of the dimmers are based on factors outside of EATON's control.The speciﬁcations of these dimming controls and their conditions of use may change without notice to EATON lighting solutions or any other user.EATON lighting solutions makes no speciﬁc recommendation on product selection and there are no warranties of performance or compatibility implied. Installer must ensure proper local and national electrical codes are followed; and that the dimmer application and condition of use is per dimmer manufacturer instructions and guidelines.

Eaton RA & RL Dimming Guide - PA518057EN

Page 11

Application Note - H277, H347 and H347200 step-down transformers are qualiﬁed to drive

multiple Halo LED on a single circuit in Non-IC construction. Installation of these transformers with individual LED ﬁxtures on circuits with multiple LED loads is not recommended. This is not recommended due to resulting multiple inductive currents pulled by each transformer; in this situation the majority of the power would then be reactive (VARS) and not real (WATTS). If H277, H347 or H347200 transformers should be used individually on each LED ﬁxture in a single circuit, then that circuit should be sized for lowered power factor as well as increased apparent power on the circuit. H277, H347 and H347200 are UL/cUL listed for use with Halo recessed

housings: H750T, H750TCP, H7T, H7TNB, H7RT.

H277

277V Step Down Transformer, 300VA

Step Down Transformers

H277 = Steps 277 line voltage down to 120 volts. Attaches to knockout on ﬁrst ﬁxture’s junction

box in a circuit and is 300VA rated. H277 is a UL recognized Component listed under the luminaire UL/cUL listing for Halo Non-IC housings.

H347 and H347200 = Steps 347 line voltage down to 120 volts. Attaches to knockout on ﬁrst ﬁxture’s junction box in a circuit. H347 is 75VA and H347200 is 200VA rated. H347 is a CSA/UL Listed Component for use under the luminaire UL/cUL listing with Halo Non-IC housings.

Transformer Load - H277 (300VA)

1. H277 Transformer at full loading consumes a maximum of 16W of power.

2. When a dimmer or switch is on the secondary (120V) side of the transformer, power is consumed by the transformer when the dimmer or switch is in “OFF” mode at 6.5W and in “ON” mode at 16W maximum under full loading.

3. When a dimmer or switch is on the primary (277V) side ahead of the transformer, power is consumed only in “ON” mode to a maximum of 16W under full loading. (Use of a dimmer ahead of the transformer is not recommended)

Transformer Load - H347 (75VA)

1. H347 Transformer at full loading consumes a maximum of 15W of power.

2. When a dimmer or switch is on the secondary (120V) side of the transformer, power is consumed by the transformer when the dimmer or switch is in “OFF” mode at 2.5W and in “ON” mode at 15W maximum under full loading.

3. When a switch is on the primary (347V) side ahead of the transformer, power is consumed only in “ON” mode to a maximum of 15W under full loading. (Use of a dimmer ahead of the transformer is not recommended)

Transformer Load - H347200 (200VA)

1. H347200 Transformer at full loading on 120V side consumes a maximum of 28W of power.

2. When a dimmer or switch is on the secondary (120V) side of the transformer, power is consumed by the transformer when the dimmer or switch is in “OFF” mode at 9.2W and in “ON” mode at 28W maximum under full loading.

3. When a switch is on the primary (347V) side ahead of the transformer, power is consumed only in “ON” mode to a maximum of 28W under full loading.

When a switch is on the primary (277V) side ahead of the transformer, power is consumed

only in “ON” mode to a maximum of 12W under full loading. (Use of a dimmer ahead of the transformer is not recommended)

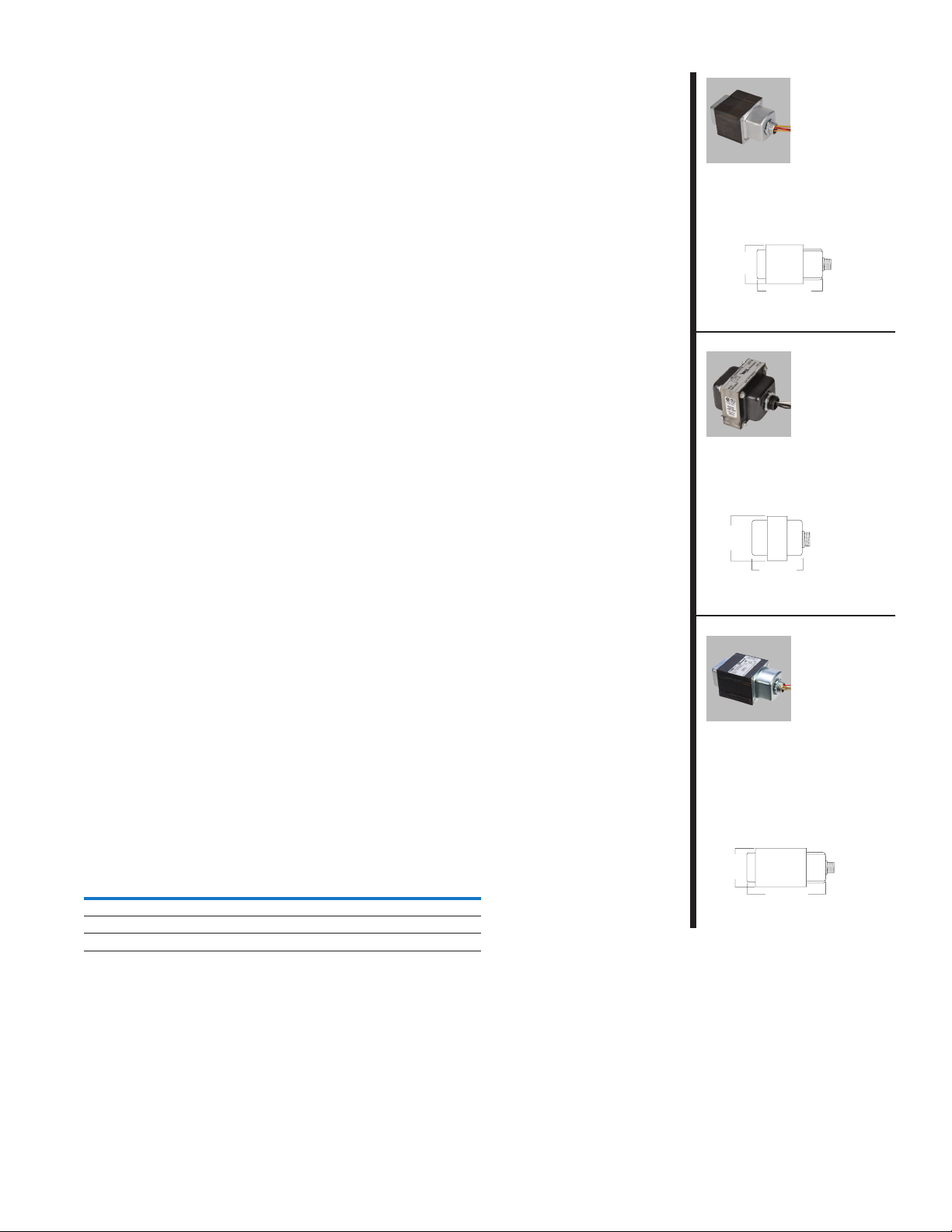

2-3/16”

[56mm]

4-3/16”

[106mm]

H277

H347

347V Step Down Transformer, 75VA

2-1/2”

[63mm]

2-3/4”

[70mm]

H347

H347200

347V Step Down Transformer, 200VA

RL56 Retrofit LED Downlight Series

(RL56 Maximum Units on Step Down Transformer Powered Circuits)

Transformer VA Rating 600 Series 900 Series H277 H347 H347200

300 24 16

75 6 4

200 16 10

Max # of Fixtures

2-3/16” [56mm]

[121mm]

Eaton RA & RL Dimming Guide - PA518057EN

H347200

4-3/4”

Page 12

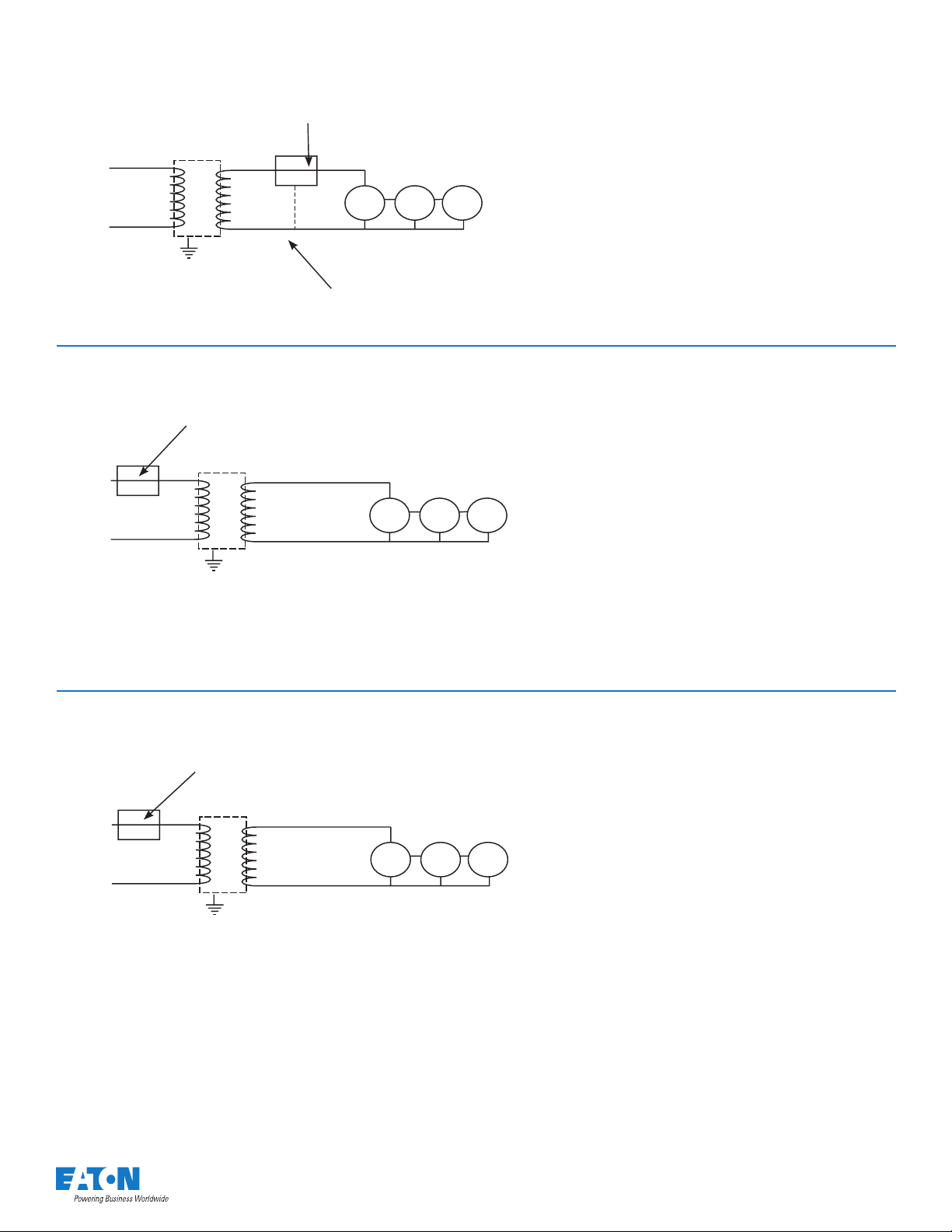

Transformer with Dimmer/Switch on 120V Secondary

120V Dimmer or Switch

Hot

Transformer

277V

(347V)

Hot

120V

LED LED LED

Neutral

Ground

Dimmer Neutral Connection typical with some Dimmers

Transformer with Switch on 277V Primary

Switch*

Hot

Neutral

277V

Transformer

120V

Hot

Neutral

LED LED LED

Ground

*Use of a dimmer ahead of the transformer is not recommended

Transformer with Switch on 347V Primary

347V Switch*

Hot

Transformer

347V

120V

Neutral

Ground

*Use of a dimmer ahead of the transformer is not recommended

Hot

Neutral

LED LED LED

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.
