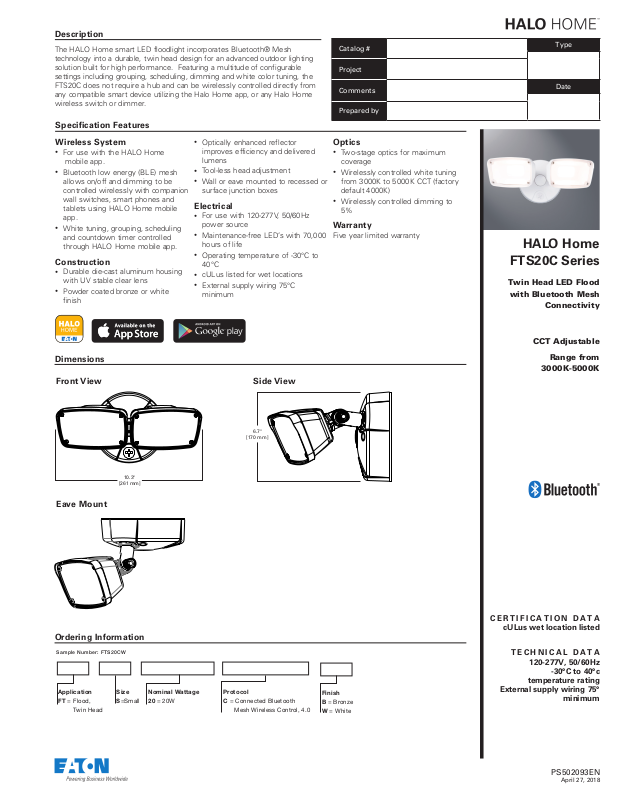

Page 1
Description
The HALO Home smart LED floodlight incorporates Bluetooth® Mesh
technology into a durable, twin head design for an advanced outdoor lighting
solution built for high performance. Featuring a multitude of configurable
settings including grouping, scheduling, dimming and white color tuning, the
FTS20C does not require a hub and can be wirelessly controlled directly from
any compatible smart device utilizing the Halo Home app, or any Halo Home
wireless switch or dimmer.
Specification Features
•
Wireless System
•
For use with the HALO Home
mobile app.
•
Bluetooth low energy (BLE) mesh
allows on/off and dimming to be
controlled wirelessly with companion
wall switches, smart phones and
tablets using HALO Home mobile
app.
•
White tuning, grouping, scheduling
and countdown timer controlled
through HALO Home mobile app.
Construction
•
Durable die-cast aluminum housing
with UV stable clear lens
•
Powder coated bronze or white
finish
Optically enhanced reflector
improves efficiency and delivered
lumens
•
Tool-less head adjustment
•
Wall or eave mounted to recessed or
surface junction boxes
Electrical
•
For use with 120-277V, 50/60Hz
power source
•
Maintenance-free LED’s with 70,000
hours of life
•
Operating temperature of -30°C to
40°C
•
cULus listed for wet locations
•
External supply wiring 75°C
minimum
Catalog #
Project
Comments
Prepared by
Optics
•
Two-stage optics for maximum
coverage
•
Wirelessly controlled white tuning
from 3000K to 5000K CCT (factory
default 4000K)
•
Wirelessly controlled dimming to
5%
Warranty
Five year limited warranty
Type
Date
HALO Home
FTS20C Series
Twin Head LED Flood
with Bluetooth Mesh
Connectivity
Dimensions
Front View
10.3"
[261 mm]
Eave Mount
Ordering Information
Sample Number: FTS20CW
Application
FT = Flood,
Twin Head
Size
S=Small
Nominal Wattage
20 = 20W
Side View
6.7"
[170 mm]
Protocol
C = Connected Bluetooth
Mesh Wireless Control, 4.0
Finish
B = Bronze
W = White
CCT Adjustable
Range from
3000K-5000K
CERTIFICATION DATA
cULus wet location listed
TECHNICAL DATA
120-277V, 50/60Hz
-30°C to 40°c
temperature rating
External supply wiring 75°
minimum
PS502093EN
April 27, 2018
Page 2
Photometric Data
Area Coverage
Mounting
Height
Length
(L)
Width
(W)
Halo Home FTS20C
Area
(Sq. Ft.)
Max
F.C.
FC
CB
Note: Specifications and Dimensions subject to change without notice.
W
L
FTS20C
15 ft.
20 ft.
Note: Bronze fixture at a typical mounting angle of 30° from vertical
All figures based on minimum footcandle (FC) of 0.5 and 4000K CCT
10 ft.
18
20
20
Technical Information
Series Voltage (V) Power (W)
Delivered
Lumens*
Efficacy
(lm/w)*
CCT CRI* Protocol
FTS20C 120-277V, 50/60Hz 22.8 2034 89.2 3000K - 5000K 84
* Based on factory default setting of 4000K CCT
40
40
40
720
800
800
Bluetooth Mesh
4.0
4.3
1.9
1.1
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
