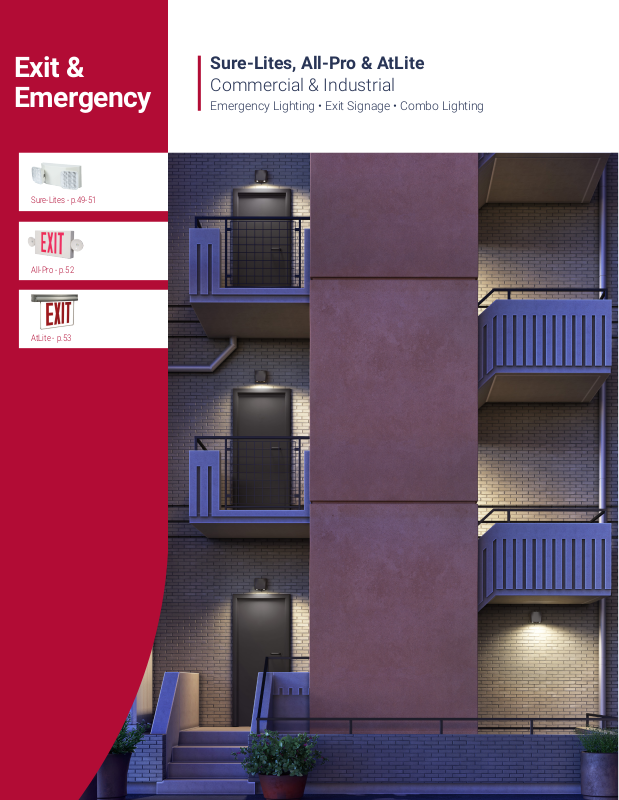

Page 1
Exit &
Emergency
Sure-Lites - p.49-51
All-Pro - p.52
AtLite - p.53
Sure-Lites, All-Pro & AtLite
Commercial & Industrial
Emergency Lighting • Exit Signage • Combo Lighting
Page 2
SEL LED Emergency Lighting
Sure-Lites
The SEL emergency light series is designed to reduce egress system cost and maintenance as well as improve
reliability. Key features include long life LED’s, proprietary adjustable AccuLED Optics™ and a nickel cadmium battery.
The patent-pending EZ hang feature reduces installation time and cost
Catalog Number Product Description Finish Replaces Up To Coverage Voltage Watts Pallet Quantity UPC
SEL17 2 Head, NiCad White 2-5.4W Inc. Heads 17 ft. 120-277V 0.78W 270 080083722143
SEL25 2 Head, NiCad White 2-9W Inc. Heads 25 ft. 120-277V 0.6W/0.64W 270 080083736669
SEL50 2 Head, NiCad White 2-12W Inc. Heads 50 ft. 120-277V 1W/1.02W 324 080083733347
AP2SQ Emergency Lighting
Sure-Lites
The AP2SQ is an UL 924 code-compliant emergency light with a minimum of 90 minutes of run time. Key features include
LED heads, a no maintenance nickel cadmium battery and a 5-year fixture warranty. The square LED heads are fully
adjustable to maximize design flexibility while the compact form factor optimizes aesthetics. Each LED head outputs 80
lumens. The universal j-box mounting pattern and snap-fit housing construction significantly reduce installation time.
Catalog Number Product Description Finish Replaces Up To Coverage Voltage Watts Pallet Quantity UPC
AP2SQLED 2 Head, NiCad White 2-5W Inc.Heads 12 ft. 120/277V 2 at 277V 288 080083824922
Exit & Emergency
SELW LED Outdoor Emergency Lighting
Sure-Lites
The SELW wet location emergency luminaire is designed to reduce total egress system and maintenance in a wet location
environment as well as improve system reliability. Key features include long life LED’s, proprietary rotatable AccuLED
Optics™, a nickel cadmium battery and the Eagle Eye self-diagnostics option. The SELW is UL 924 wet location code
compliant listed with a standard 0°C to 40°C temperature rating.
Catalog Number Product Description Finish Replaces Up To Coverage Voltage Watts Pallet Quantity UPC
SELW25BZ 2 Rotatable Heads, NiCad Bronze 2-9 W INC Heads 25 ft. 120-277V 1.4 224 080083764037
SELW25BZ
SELDWA LED Emergency Lighting
Sure-Lites
The Sure-Lites SELDWA series features a modern, architectural design with rotatable, precision engineered AccuLED
Optics™, providing up to 50 feet of emergency egress coverage and allowing for an increase in spacing between units.
UL 924 wet location listed and New York City compliant for both indoor and outdoor applications. The family features a
maintenance-free, nickel cadmium battery; self-diagnostics that automatically performs all required tests to reduce labor;
and an EZ Hang feature that saves on installation time and cost.
Catalog Number Product Description Finish Replaces Up To Coverage Voltage Watts Pallet Quantity UPC
SELDWA50BZSD 2 Rotatable Heads, NiCad, Self Diag. Bronze 2-12 W INC Heads 50 ft. 120-277V 1.8 W at 277 V 240 080083826360
Cooperlighting.com/MarketPro
49
Page 3
XR LED Emergency Lighting
Sure-Lites
The XR6C-LED emergency light is designed to reduce egress system cost and maintenance as well as
improve reliability. Key features include long life LED’s, proprietary adjustable AccuLED Optics™, a nickel
cadmium battery and a rugged sheet metal housing. The patented external battery disconnect and EZ
Hang feature reduces installation time and cost. This product is city of Chicago and New York City compliant.
Exit & Emergency
Catalog Number Product Description Finish Replaces Up To Coverage Voltage Watts Pallet Quantity UPC
XR6C-LED Steel, NiCad White 2-12W INC Heads 60 ft. 120-277V 1.7 144 080083753215
SELM LED Emergency Lighting
Sure-Lites
The Sure-Lites Emergency Light SELM series is designed to reduce egress system cost and maintenance as
well as improve reliability. Key features include long life LED’s, proprietary adjustable accuLED optics, a nickel
cadmium battery and a rugged sheet metal housing. SELM is available with two or three 300 lumen heads
that create up to 80 feet of emergency egress coverage. The Patented external battery disconnect and EZ
Hang features reduce installation time and cost. The self-diagnostic capability automatically performs NFPA
required testing. This product is City of Chicago compliant and New York City compliant.
Catalog Number Product Description Finish Replaces Up To Coverage Voltage Watts Pallet Quantity UPC
SELM80SD Three Head, NiCad, Self Diagnostics White 3-9W INC Heads 80 ft. 120/277V 1.6 144 080083835539
SELMTG LED Emergency Lighting
Sure-Lites
The Sure-Lites Emergency Light SELM series is designed to reduce egress system cost and
maintenance as well as improve reliability. Key features include long life LED’s, proprietary adjustable accuLED
optics, a nickel cadmium battery and a rugged sheet metal housing. SELM is available with two or three 300
lumen heads that create up to 80 feet of emergency egress coverage. The Patented external battery disconnect
and EZ Hang features reduce installation time and cost. The self-diagnostic capability automatically performs
NFPA required testing. This product is City of Chicago compliant and New York City compliant.
Catalog Number Product Description Finish Replaces Up To Coverage Voltage Watts Pallet Quantity UPC
SELMTG60R5SD 2 Rotatable Heads, NiCad, Self Diag. White 2-12 W INC Heads 60 ft. 120-277V 5 168 080083823406
CHX Exit Signage
Sure-Lites
The CHX Chicago Series exits are ideal for general purpose applications. An extensive
range of field-installed accessories; choice of faces; and variety of mounting configurations
permit the tailoring of the basic exit for almost any application. Durable steel construction,
attractive styling and high-efficiency illumination make this series compatible in commercial,
institutional and multi-housing applications.
Catalog Number Product Description Finish Replaces Up To Coverage Voltage Watts Pallet Quantity UPC
CHX71 Self Powered, Steel White 2-12 W INC Heads 120/277V 3 120 080083567614
CHXC71 Self Powered Combo Unit, Steel White 2-12 W INC Heads 60 ft. 120/277V 3.6 90 080083771271
50
Cooper Lighting Solutions MarketPro Catalog
Page 4
LPXC LED EM Combo Light
Sure-Lites
The LPX LED combo series is a UL 924 code-compliant solution for exit and emergency requirements and
operates for a minimum of 90 minutes during a power outage. The series features include a polycarbonate
housing, LED sources for both the exit letters and the emergency heads, as well as a labor-saving, self-diagnostic
option that automatically performs required NFPA testing. The exit is field configurable for either red or green
letters. The LED sources and nickel cadmium battery are maintenance-free.
Catalog Number Product Description Finish Replaces Up To Coverage Voltage Watts Pallet Quantity UPC
LPXC25 Unv. Red, Remote Cap. White 2-9 W INC Heads 25 ft. 120/277V 3.2 W at 277 V 120 080083770922
EBP LED Emergency Battery Packs
Sure-Lites
When AC power fails, the EBP LED Emergency Battery Pack automatically switches to emergency mode. The EBP
maintains illumination of an LED fixture for a minimum of 90 minutes. The product line is UL 924 classified for field retrofit
installation and has guaranteed compatibility with Cooper Lighting Solutions' LED fixtures with accessible LED drivers.
Catalog Number Product Description Voltage Watts Pallet Quantity UPC
EBPLED7W Emergency Battery Pack 120/277V 7 240 080083732265
EBPLED14W Emergency Battery Pack 120/277V 14 288 080083732272
Exit & Emergency
EBP Emergency Battery Packs
Sure-Lites
The Sure-Lites fluorescent EBP will power fluorescent fixture to satisfy emergency path of egress code requirements
during a power interruption. When AC power fails, the Sure-Lites EBP automatically switches to emergency
mode - providing illumination for at least 90 minutes. The maintenance free and long life nickel cadmium battery
generates up to 500 lumens or 1400 lumens in emergency mode depending on model. The EBP series is UL924 listed
for field retrofit installation and is compatible with most linear fluorescent lamps and carries a 5 year limited warranty.
Catalog Number Product Description Voltage Watts Pallet Quantity UPC
EBP500 Emergency Battery Pack 120/277V 2.7 576 080083906741
EBP1400 Emergency Battery Pack 120/277V 3.8 432 080083912162
Cooperlighting.com/MarketPro
51
Page 5
APEL LED Emergency Lighting
All-Pro
The APEL Series is an UL 924 listed emergency light with a minimum of 90 minutes of run time.
Key features include LED heads, a no maintenance nickel cadmium battery and a 5-year fixture warranty.
The LED heads are fully adjustable to maximize design flexibility while the compact form factor optimizes aesthetics.
The universal j-box mounting pattern and snap-fit housing construction significantly reduce installation time.
Exit & Emergency
Catalog
Number
APEL 2 Head, NiCad White 2-5.4W Inc. Heads 17 ft. 120/277V 0.47W at 277V 384 080083566501
APELH2 2 Head, Nicad, Remote Capacity White 4-5.4 W INC Heads 34 ft. 120/277V 0.8 W at 277 V 512 080083804986
Product Description Finish Replaces Up To Coverage Voltage Watts
Pallet
Quantity
APX LED Exit Signage
All-Pro
The AP exit series is an economical LED exit for general purpose applications. The durable,
injection-molded, thermoplastic material resists discoloration due to UV radiation and the energy
efficient, low-maintenance LED’s provide bright illumination. All AP series exits offer universal
configurations (single- and double-face) and have universal mounting capability (ceiling, wall and end).
Catalog Number Product Description Finish Voltage Watts Pallet Quantity UPC
APX7G Self Powered, Unv. Green White 120/277V 1.05W at 277V 270 080083566549
APX7R Self Powered, Unv. Red White 120/277V 1.14W at 277V 270 080083566532
UPC
APC LED EM Combo Light
All-Pro
The APC Series is an economical LED combo unit (including LED emergency light heads)
for general purpose applications. The durable, injection-molded, thermoplastic material
resists discoloration due to UV radiation and the energy-efficient, low-maintenance LED’s
provide bright illumination. All AP series combo units offer universal configurations (single
and double-face) and have universal mounting capability (ceiling, wall and end).
Catalog
Number
APC7G 2 Heads, Unv. Green White 2-5.4W Inc. Heads 17 ft. 120/277V 1.68W at 277V 192 080083567164
APC7R 2 Heads, Unv Red White 2-5.4W Inc. Heads 17 ft. 120/277V 1.68W at 277V 192 080083566556
APCH7G 2 Heads, Unv Green, Remote Cap. White 4-5.4W Inc. Heads 34 ft. 120/277V 1.68W at 277V 192 080083567188
APCH7R 2 Heads, Unv. Red, Remote Cap. White 4-5.4W Inc. Heads 34 ft. 120/277V 1.68W at 277V 192 080083567171
Product Description Finish Replaces Up To Coverage Voltage Watts
Pallet
Quantity
UPC
APWR LED Remote Heads
All-Pro
The APWR LED remote series is a UL 924 code compliant solution for emergency lighting.
It operates on 3.6 volts and can be powered from the APCH combo series. It is wet location
listed and can be used indoors or outdoors. The two-head versions will create 17 feet of
emergency egress coverage.
Catalog
Number
APWR2 Remote Emergency Lamps, 2 Heads White 2-5.4W Inc. Heads 17 ft. 3.6V 1W 810 080083608584
52
Product Description Finish Replaces Up To Coverage Voltage Watts Pallet Quantity UPC
Cooper Lighting Solutions MarketPro Catalog
Page 6
ATLELDWA LED Emergency Lighting
AtLite
The AtLite ATLELDWA LED emergency light features a modern, architectural design with rotatable,
precision engineered AccuLED Optics™, providing up to 29 feet of emergency egress coverage and
allowing for an increase in spacing between units. UL 924 wet location listed and New York City
compliant for both indoor and outdoor applications. The family features a maintenance-free, nickel
cadmium battery; self-diagnostics that automatically performs all required tests to reduce labor; and an
EZ Hang feature that saves on installation time and cost. The series is offered in white, black and bronze.
Catalog Number Product Description Finish Replaces Up To Coverage Voltage Watts Pallet Quantity UPC
ATLELDWA100BZSD 2 Rotatable Heads, NiCad, Self Diag. Black 2-9 W INC Heads 29 ft. 120-277V 0.7 W at 277 V 240 080083821792
AUX LED Edge-Lit Exit Signage
AtLite
The New York City compliant AUX series is designed for seamless presence in architecturally
significant surroundings. The ordering and installation processes are greatly simplified as all
housing and lens options are included. In addition, Eagle Eye self- diagnostics are standard
on all self-powered units. Long life LED electronics coupled with nickel cadmium battery
technology greatly reduces maintenance.
Exit & Emergency
Catalog Number Product Description Finish Voltage Watts Pallet Quantity UPC
AUXSSD Unv. Self powered, Self Diag. Silver 120/277V 1.1 at 277 V 50 080083703296
Cooperlighting.com/MarketPro
53
