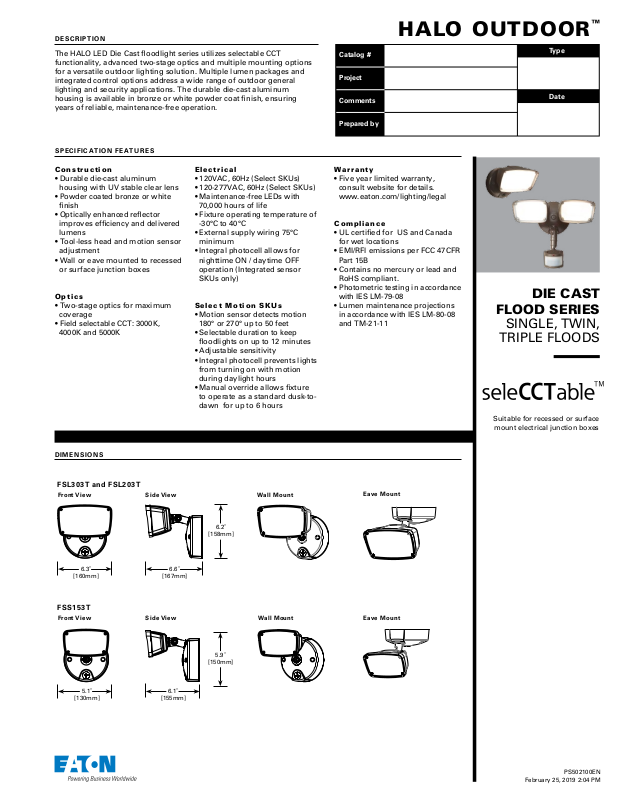

DESCRIPTION
The HALO LED Die Cast floodlight series utilizes selectable CCT
functionality, advanced two-stage optics and multiple mounting options
for a versatile outdoor lighting solution. Multiple lumen packages and
integrated control options address a wide range of outdoor general
lighting and security applications. The durable die-cast aluminum
housing is available in bronze or white powder coat finish, ensuring
years of reliable, maintenance-free operation.
SPECIFICATION FEATURES
Catalog #
Project
Comments
Prepared by
HALO OUTDOOR
™
Type
Date
Construction
• Durable die-cast aluminum
housing with UV stable clear lens
• Powder coated bronze or white
finish
• Optically enhanced reflector
improves efficiency and delivered
lumens
• Tool-less head and motion sensor
adjustment
• Wall or eave mounted to recessed
or surface junction boxes
Optics
• Two-stage optics for maximum
coverage
• Field selectable CCT: 3000K,
4000K and 5000K
DIMENSIONS
Electrical
• 120VAC, 60Hz (Select SKUs)
• 120-277VAC, 60Hz (Select SKUs)
• Maintenance-free LEDs with
70,000 hours of life
• Fixture operating temperature of
-30°C to 40°C
• External supply wiring 75°C
minimum
• Integral photocell allows for
nighttime ON / daytime OFF
operation (Integrated sensor
SKUs only)
Select Motion SKUs
• Motion sensor detects motion
180° or 270° up to 50 feet
• Selectable duration to keep
floodlights on up to 12 minutes
• Adjustable sensitivity
• Integral photocell prevents lights
from turning on with motion
during daylight hours
• Manual override allows fixture
to operate as a standard dusk-to dawn for up to 6 hours
Warranty
• Five year limited warranty,
consult website for details.
www.eaton.com/lighting/legal
Compliance
• UL certified for US and Canada
for wet locations
• EMI/RFI emissions per FCC 47CFR
Part 15B
• Contains no mercury or lead and
RoHS compliant.
• Photometric testing in accordance
with IES LM-79-08
• Lumen maintenance projections
in accordance with IES LM-80-08
and TM-21-11
DIE CAST
FLOOD SERIES
SINGLE, TWIN,
TRIPLE FLOODS
Suitable for recessed or surface
mount electrical junction boxes
FSL303T and FSL203T
Front View Side View
6.3˝
[160mm]
FSS153T
Front View Side View
5.1˝
[130mm]
[167mm]
6.1˝
[155mm]
6.6˝
6.2˝
[158mm]
5.9˝
[150mm]
Wall Mount
Wall Mount Eave Mount
Eave Mount
February 25, 2019 2:04 PM
PS502100EN
Page 2
page 2
DIMENSIONS
MST203T MHS303T
Front View Side View
10.3˝
[261 mm]
ORDERING INFORMATION
Sample Number: FSS153T IB or MST20 3T18W
Module Lumens CRI/CC T Options Colors
FSS = Flood Single Small
FSL = Single L arge Flood
FTS = Flood Twin Small
FHS = Flood Triple Small
MSS = Motion Small Single
MST = Motion S mall Twin
MSH = Motion S mall Triple
15 = 1500 lumens (nomin al)
20 = 2000 l umens (nomi nal)
30 = 3000 l umens (nominal)
6.7˝
[170 mm]
Front View Side View
11.4˝
[291 mm]
3T = Selec table CCT
3000K, 4000K, & 5000K
I = Integrated Photocell
18 = 180* Motion Sens or
27 = 270* Motion Sensor
DIE CAST FLOOD SERIES
SINGLE, TWIN, TRIPLE FLOODS
8.72˝
[209 mm]
B = B ronze
W = White
PHOTOMETRY
FC
CB
W
L
Note: Specifications and Dimensions subject to
change without notice.
Area Coverage
Mounting
Height
MST203T
Series
10 ft.
15 ft.
20 ft.
Note: Bronze fixture at a typical mounting angle of 30° from vertical
All figures based on minimum footcandle (FC) of 0.5 and 4000K CCT.
Length
(L)
18
20
20
Width
(W)
40
40
40
Area
(Sq. Ft.)
720
800
800
Max FC
4.3
1.9
1.1
Area Coverage
FSL303T
Series
Mounting
Height
10 ft.
15 ft.
20 ft.
25 ft.
Length
(L)
22
28
32
35
Width
(W)
38
42
50
56
Area
(Sq. Ft.)
800
1150
1500
1800
FC
CB
Note: Specifications and Dimensions subject to change without notice.
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
W
L
Specifications and
dimensions subject to
change without notice.
FSL203T
Series
FSS153T
Series
Note: Bronze fixture at a typical mounting angle of 30° from vertical
All figures based on minimum footcandle (FC) of 0.5.
10 ft.
15 ft.
20 ft.
10 ft.
15 ft.
20 ft.
20
24
27
20
20
22
30
40
40
25
30
35
600
960
1040
400
500
560
February 25, 2019 2:04 PM
PS502100EN
Page 3
page 3
PHOTOMETRY
DIE CAST FLOOD SERIES
SINGLE, TWIN, TRIPLE FLOODS
Series Volt age Power (W)
Delivered
Lumens (Lm)
Effi cacy
(Lm/W)
CCT CRI Controls
FSS15 3TB 120-277V 17. 3 15 03 86.9 3000K,4000K,5000K 84 None
FSS15 3TW 120-277V 17. 3 15 03 86.9 3000K,4000K,5000K 84 None
FSS15 3TIB 120V 17. 3 15 03 86.9 3000K,4000K,5000K 84 Integrated Photocell
FSS15 3TIW 120V 1 7.3 1503 86.9 3000K,4000K,5000K 84 Integrated Photocell
FSL203TB 120-277V 22.5 1916 85.2 3000K,4000K,5000K 84 None
FSL203TW 120-277V 22.5 1916 85.2 3000K,4000K,5000K 84 None
FSL203TIB 120V 22.5 1916 85.2 3000K,4000K,5000K 84 Integrated Photocell
FSL203TIW 120V 22.5 1916 85.2 3000K,4000K,5000K 84 Integrated Photocell
FSL303TB 120-277V 31.6 2900 91.8 3000K,4000K,5000K 84 None
FSL303TW 120-277V 31.6 2900 91.8 3000K,4000K,5000K 84 None
FSL303TIB 120V 31.6 2900 91.8 3000K,4000K,5000K 84 Integrated Photocell
FSL303TIW 120V 31. 6 2900 91.8 3000K,4000K,5000K 84 Integrated Photocell
FTS203TB 120-277V 22.8 2034 89.2 3000K,40 00K,5000K 84 None
FTS203TW 120-277V 22.8 2034 89.2 3000K,4000K,5000K 84 None
FHS303TB 120-277V 31.8 2853 89.7 3000K,4000K,500 0K 84 None
FHS303TW 120-277V 31.8 2853 89.7 3000K,40 00K,5000K 84 None
MSH303T18B 120V 31.8 2853 89.7 3000K,4000K,50 00K 84 180* Motion Sensor
MSH303T18W 120V 31.8 2853 89.7 3000K,400 0K,5000K 84 180* Motion Sensor
MSS153T18B 120V 1 7. 3 1503 86.9 3000K,4000K,50 00K 84 180* Motion Sensor
MSS153T18W 120V 1 7. 3 1503 86.9 3000K,4000K,50 00K 84 180* Motion Sensor
MST203T18B 120V 22.8 2034 89.2 3000K,4000K,500 0K 84 180* Motion Sensor
MST203T18W 120V 22.8 2034 89.2 3000K,4000K,500 0K 84 180* Motion Sensor
MST203T27B 120V 22.8 2034 89.2 3000K,4000K,500 0K 84 270* Motion Sensor
MST203T27W 120V 22.8 2034 89.2 3000K,4000K,500 0K 84 270* Motion Sensor
