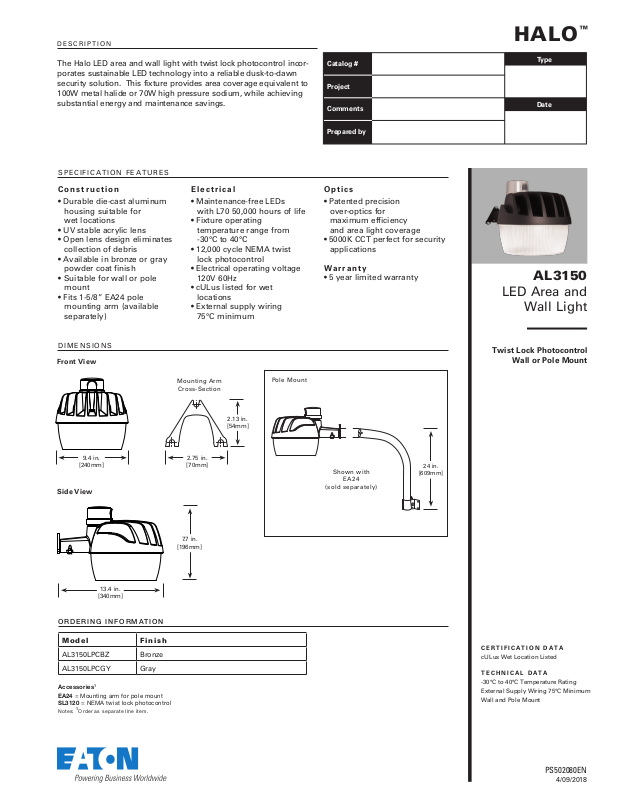

Page 1
DESCRIPTION
The Halo LED area and wall light with twist lock photocontrol incorporates sustainable LED technology into a reliable dusk-to-dawn
security solution. This fixture provides area coverage equivalent to
100W metal halide or 70W high pressure sodium, while achieving
substantial energy and maintenance savings.
SPECIFICATION FEATURES
Construction
• Durable die-cast aluminum
housing suitable for
wet locations
• UV stable acrylic lens
• Open lens design eliminates
collection of debris
• Available in bronze or gray
powder coat finish
• Suitable for wall or pole
mount
• Fits 1-5/8” EA24 pole
mounting arm (available
separately)
Electrical
• Maintenance-free LEDs
with L70 50,000 hours of life
• Fixture operating
temperature range from
-30°C to 40°C
• 12,000 cycle NEMA twist
lock photocontrol
• Electrical operating voltage
120V 60Hz
• cULus listed for wet
locations
• External supply wiring
75°C minimum
Catalog #
Project
Comments
Prepared by
Optics
• Patented precision
over-optics for
maximum efficiency
and area light coverage
• 5000K CCT perfect for security
applications
Warranty
• 5 year limited warranty
HALO
™
Type
Date
AL3150
LED Area and
Wall Light

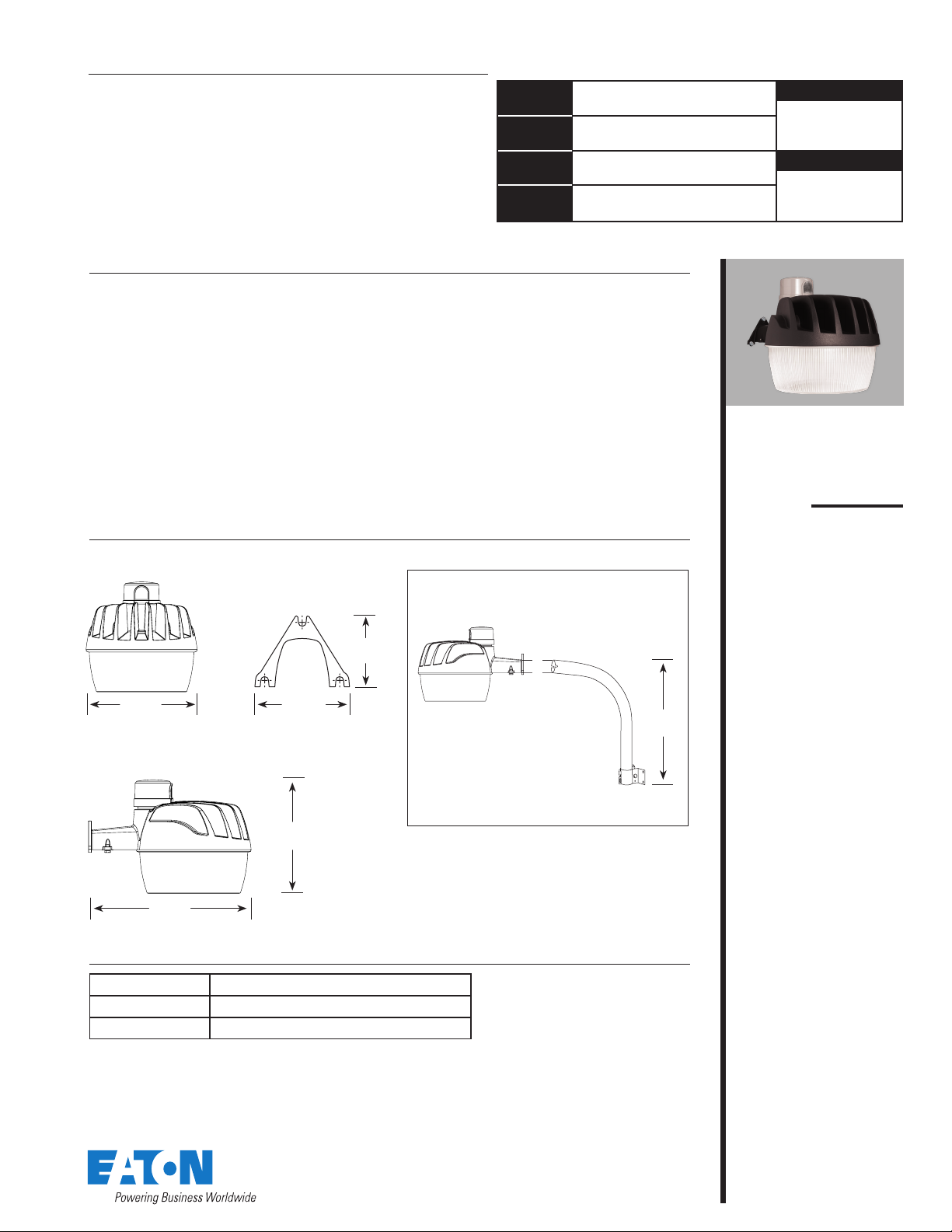

DIMENSIONS
Front View
9.4 in.
[240mm]
Side View
13.4 in.
[340mm]
ORDERING INFORMATION
Mounting Arm
Cross-Section
2.75 in.
[70mm]
7.7 in.
[196mm]
2.13 in.
[54mm]
Pole Mount
Shown with
EA24
(sold separately)
24 in.
[609mm]
Twist Lock Photocontrol
Wall or Pole Mount
Model Finish
AL3150LPCBZ Bronze
AL3150LPCGY Gray
Accessories
EA24 = Mounting arm for pole mount
SL3120 = NEMA twist lock photocontrol
Notes: 1Order as separate line item.
1
CERTIFICATION DATA
cULus Wet Location Listed
TECHNICAL DATA
-30°C to 40°C Temperature Rating
External Supply Wiring 75°C Minimum
Wall and Pole Mount
PS502080EN
4/09/2018
Page 2

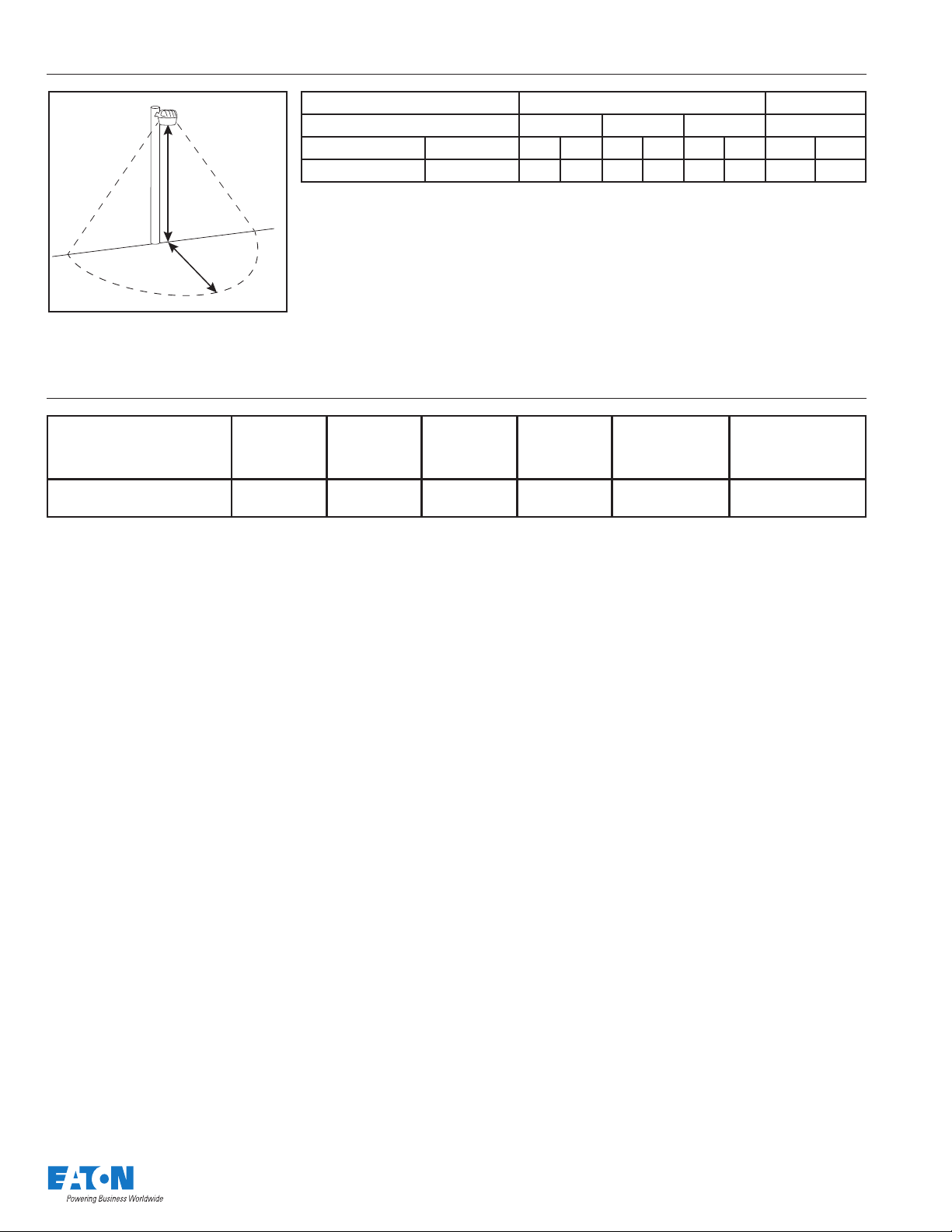

PHOTOMETRICS
LED AREA AND WALL LIGHT
Minimum Footcandles (FC) 0.50 FC 0.35 FC
Mounting Height (Z) 8’ 12’ 16’ 20’
Catalog Number Lumens X Y X Y X Y X Y
Z
AL3150 3500 23’ 46’ 30’ 60’ 32’ 64’ 40’ 80’
Y
X = Forward Throw
Y = Wall Spread
Z = Mounting Heights
X
Notes:
Forward throw X = 1/2 Y for wall-mount applications
See IES files for detailed photometry
TECHNICAL INFORMATION
LED Color
Series v(V)
Power
(W)
Delivered
Lumens
Efficacy
(Lum/Watt)
Temperature
(K)
Photocontrol
Options
AL3150 120 33.4 3500 104.8 5000K Twist Lock
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
Eaton’s lighting business
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.Eaton.com/lighting
© 2018 Eaton
All Rights Reserved
Printed in USA
Publication No. PS502044EN
April 2018
Specifications and
dimensions subject to
change without notice.
PS502080EN
4/09/2018
