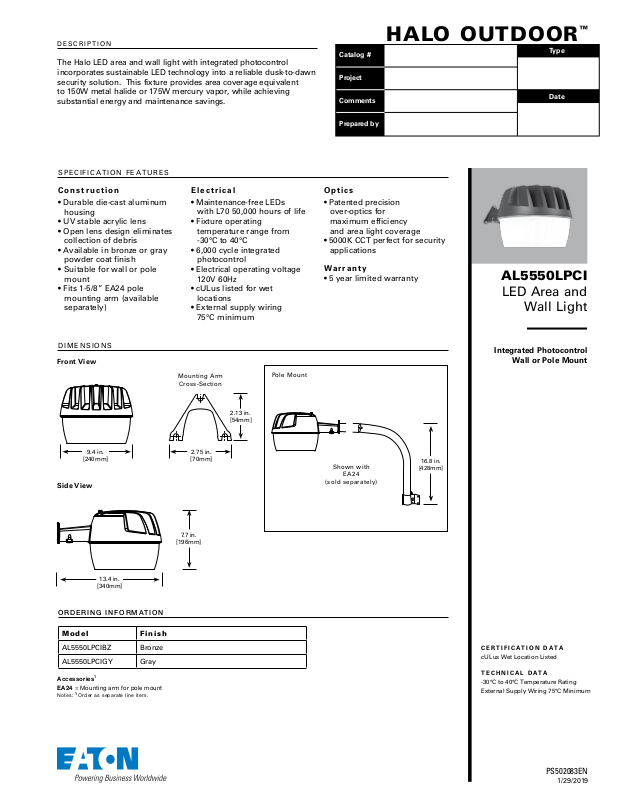

DESCRIPTION
The Halo LED area and wall light with integrated photocontrol
incorporates sustainable LED technology into a reliable dusk-to-dawn
security solution. This fixture provides area coverage equivalent
to 150W metal halide or 175W mercury vapor, while achieving
substantial energy and maintenance savings.
SPECIFICATION FEATURES
Catalog #
Project
Comments
Prepared by
HALO OUTDOOR
™
Type
Date
Construction
• Durable die-cast aluminum
housing
• UV stable acrylic lens
• Open lens design eliminates
collection of debris
• Available in bronze or gray
powder coat finish
• Suitable for wall or pole
mount
• Fits 1-5/8” EA24 pole
mounting arm (available
separately)
DIMENSIONS
Front View
9.4 in.
[240mm]
Side View
Electrical
• Maintenance-free LEDs
with L70 50,000 hours of life
• Fixture operating
temperature range from
-30°C to 40°C
• 6,000 cycle integrated
photocontrol
• Electrical operating voltage
120V 60Hz
• cULus listed for wet
locations
• External supply wiring
75°C minimum
Mounting Arm
Cross-Section
2.75 in.
[70mm]
2.13 in.
[54mm]
Pole Mount
Optics
• Patented precision
over-optics for
maximum efficiency
and area light coverage
• 5000K CCT perfect for security
applications
Warranty
• 5 year limited warranty
Shown with
EA24
(sold separately)
16.8 in.
[428mm]
AL5550LPCI
LED Area and
Wall Light
Integrated Photocontrol
Wall or Pole Mount
13.4 in.
[340mm]
ORDERING INFORMATION
Model Finish
AL5550LPCIBZ Bronze
AL5550LPCIGY Gray
Accessories
EA24 = Mounting arm for pole mount
Notes: 1Order as separate line item.
1
7.7 in.
[196mm]
CERTIFICATION DATA
cULus Wet Location Listed
TECHNICAL DATA
-30°C to 40°C Temperature Rating
External Supply Wiring 75°C Minimum
PS502083EN
1/29/2019
Page 2
PHOTOMETRICS
LED AREA AND WALL LIGHT
Minimum Footcandles (FC) 0.50 FC 0.35 FC
Mounting Height (Z) 8’ 12’ 16’ 20’ 25’
Catalog Number Lumens X Y X Y X Y X Y X Y
AL5550LPCI 5500 25’ 50’ 31’ 62’ 36’ 72’ 40’ 80’ 48’ 96’
Z
Y
X = Forward Throw
Y = Wall Spread
Z = Mounting Heights
X
Notes:
Forward throw X = 1/2 Y for wall-mount applications only
See IES files for detailed photometry
TECHNICAL INFORMATION
LED Color
Series
Voltage
(V)
Power
(W)
Delivered
Lumens
Efficacy
(Lum/Watt)
Temperature
(K) CRI
Photocontrol
Options
AL5550LPCI 120 53.3 5500 103.2 5000K 73 Integrated
