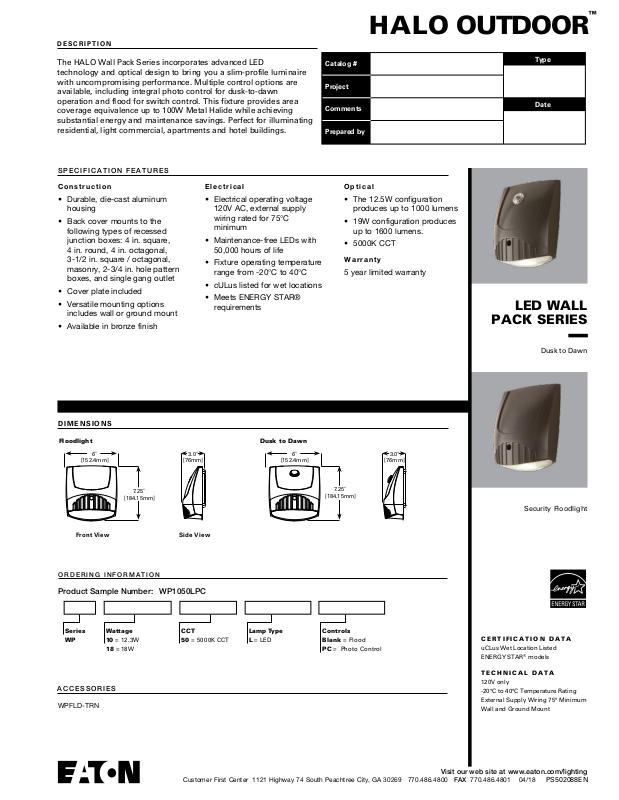

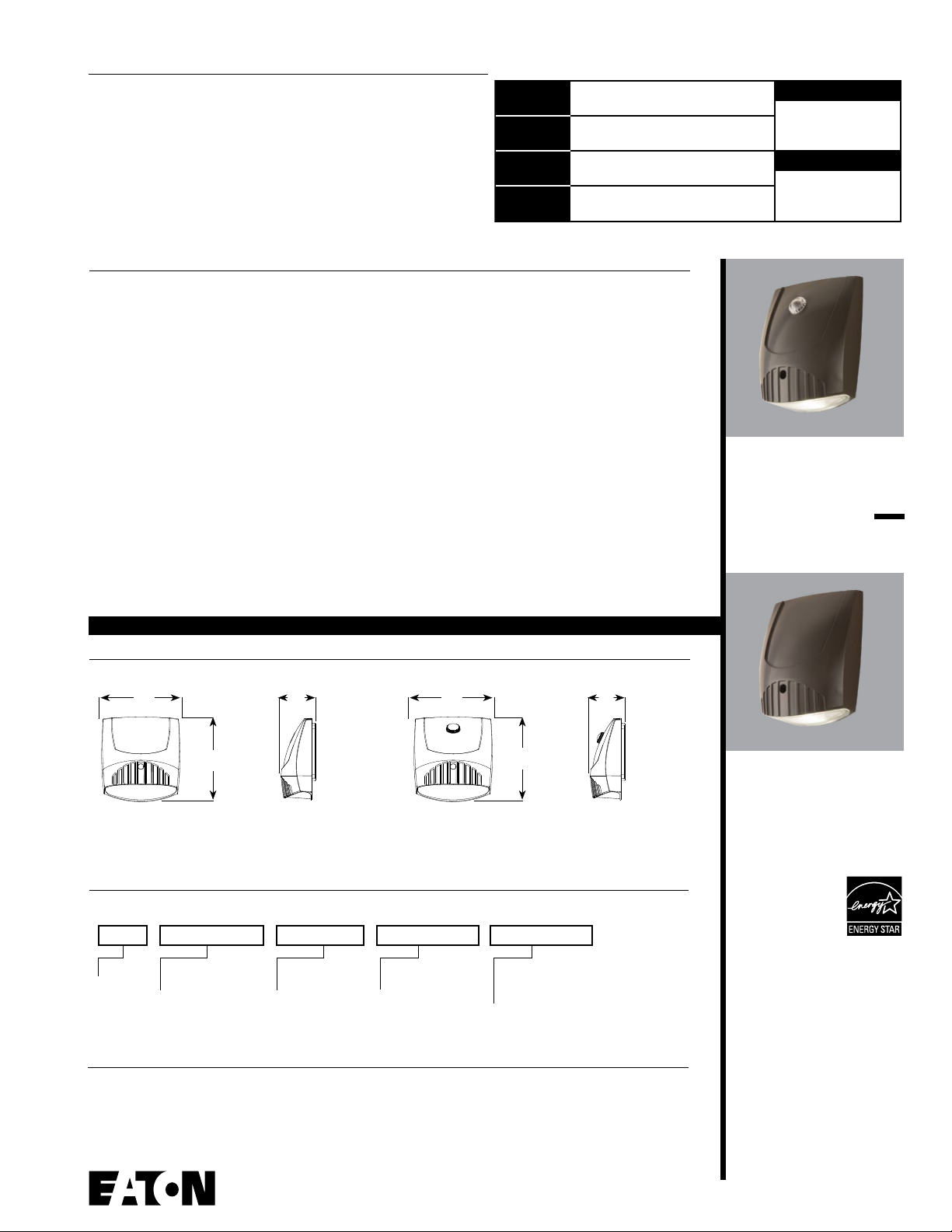

DESCRIPTION
The HALO Wall Pack Series incorporates advanced LED
technology and optical design to bring you a slim-profile luminaire
with uncompromising performance. Multiple control options are
available, including integral photo control for dusk-to-dawn
operation and flood for switch control. This fixture provides area
coverage equivalence up to 100W Metal Halide while achieving
substantial energy and maintenance savings. Perfect for illuminating
residential, light commercial, apartments and hotel buildings.
SPECIFICATION FEATURES
Construction
• Durable, die-cast aluminum
housing
• Back cover mounts to the
following types of recessed
junction boxes: 4 in. square,
4 in. round, 4 in. octagonal,
3-1/2 in. square / octagonal,
masonry, 2-3/4 in. hole pattern
boxes, and single gang outlet
• Cover plate included
• Versatile mounting options
includes wall or ground mount
Electrical
• Electrical operating voltage
120V AC, external supply
wiring rated for 75°C
minimum
• Maintenance-free LEDs with
50,000 hours of life
• Fixture operating temperature
range from -20°C to 40°C
• cULus listed for wet locations
• Meets ENERGY STAR®
requirements
• Available in bronze finish
HALO OUTDOOR
Catalog #
Project
Comments
Prepared by
Optical
• The 12.5W configuration
produces up to 1000 lumens
• 19W configuration produces
up to 1600 lumens.
• 5000K CCT
Warranty
5 year limited warranty
™
Type
Date
LED WALL
PACK SERIES
DIMENSIONS
Floodlight
6˝
[152.4mm]
7.25˝
[184.15mm]
Front View
ORDERING INFORMATION
3.0˝
[76mm]
Side View
Product Sample Number: WP1050LPC
Series
WP
ACCESSORIES
WPFLD-TRN
Wattage
10 = 12.3W
18 = 18W
CCT
50 = 5000K CCT
Dusk to Dawn
Lamp Type
L = LED
6˝
[152.4mm]
7.25˝
[184.15mm]
Controls
Blank = Flood
PC = Photo Control
3.0˝
[76mm]
Dusk to Dawn
Security Floodlight
CERTIFICATION DATA
uCLus Wet Location Listed
ENERGY STAR® models
TECHNICAL DATA
120V only
-20°C to 40°C Temperature Rating
External Supply Wiring 75° Minimum
Wall and Ground Mount
Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX 770.486.4801 04/18
Visit our web site at www.eaton.com/lighting
PS502088EN
Page 2
TECHNICAL INFORMATION
LED WALL PACK
Model Voltage Power Delivered
Lumens
Efficacy
Lumen/ Watt
LED Color
Temperature (K)
WP1050 120V 12.3 1000 81.3 5000K 73
WP1850 120V 18.7 1600 85.6 5000K 73

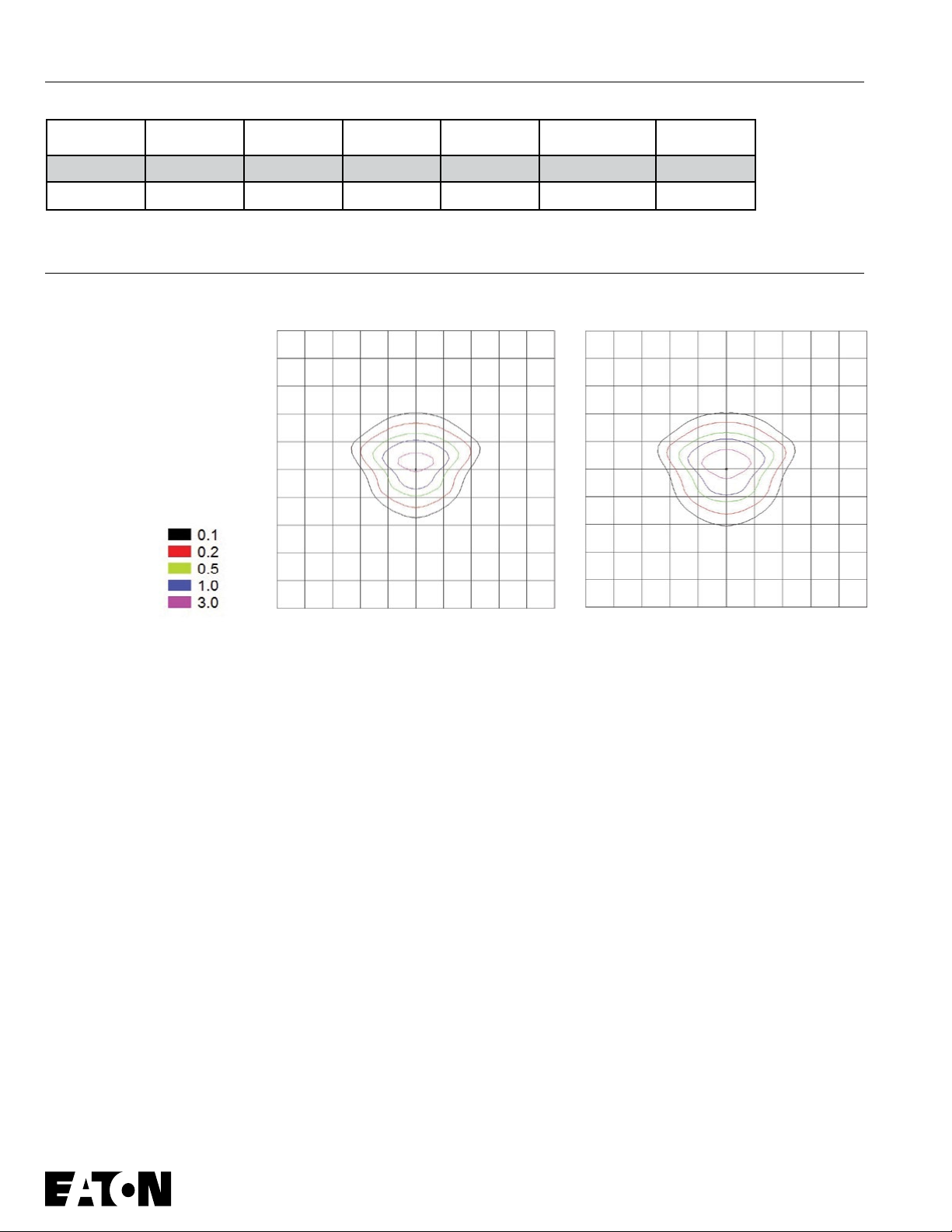

OPTICAL PERFORMANCE
Optics provide highly
directional and controlled
1000 LUMEN CONFIGURATION
1600 LUMEN CONFIGURATION
area coverage.
Photometry assumes 10’
mounting height over a
level surface.
ILLUMINANCE
(Footcandles)
CRI
For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Eaton Representative for availability and ordering information.
Visit our web site at www.eaton.com/lighting
Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX 770.486.4801 04/18
PS502088EN
