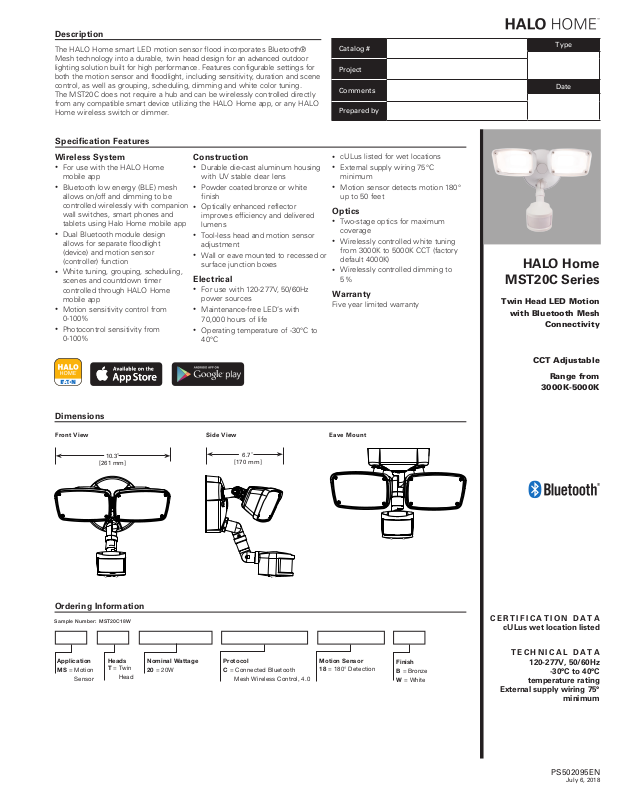

Description

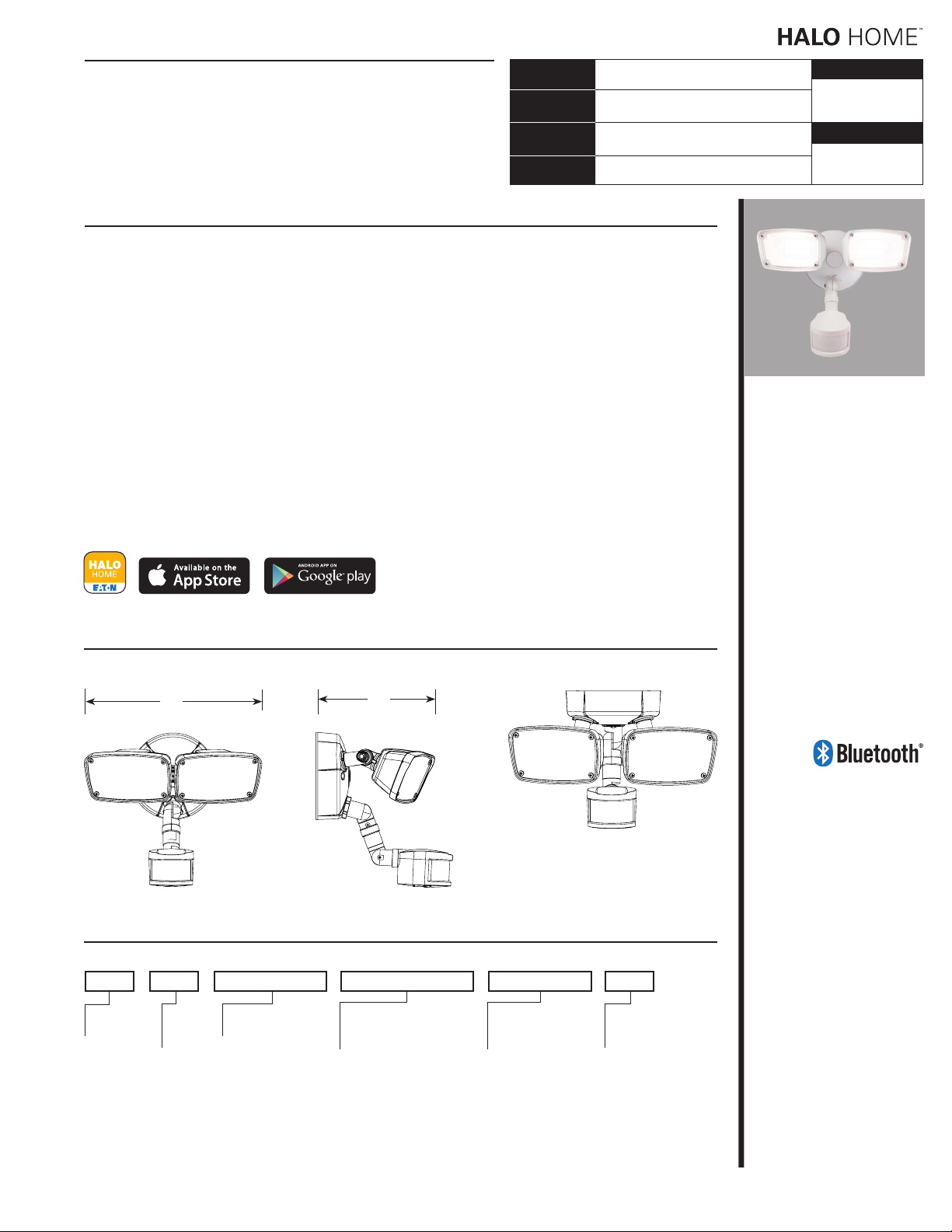

The HALO Home smart LED motion sensor flood incorporates Bluetooth®
Mesh technology into a durable, twin head design for an advanced outdoor
lighting solution built for high performance. Features configurable settings for
both the motion sensor and floodlight, including sensitivity, duration and scene
control, as well as grouping, scheduling, dimming and white color tuning.
The MST20C does not require a hub and can be wirelessly controlled directly
from any compatible smart device utilizing the HALO Home app, or any HALO
Home wireless switch or dimmer.
Specification Features
Wireless System
•
For use with the HALO Home
mobile app
•
Bluetooth low energy (BLE) mesh
allows on/off and dimming to be
controlled wirelessly with companion
wall switches, smart phones and
tablets using Halo Home mobile app
•
Dual Bluetooth module design
allows for separate floodlight
(device) and motion sensor
(controller) function
•
White tuning, grouping, scheduling,
scenes and countdown timer
controlled through HALO Home
mobile app
•
Motion sensitivity control from
0-100%
•
Photocontrol sensitivity from
0-100%
Construction
•
Durable die-cast aluminum housing
with UV stable clear lens
•
Powder coated bronze or white
finish
•
Optically enhanced reflector
improves efficiency and delivered
lumens
•
Tool-less head and motion sensor
adjustment
•
Wall or eave mounted to recessed or
surface junction boxes
Electrical
•
For use with 120-277V, 50/60Hz
power sources
•
Maintenance-free LED’s with
70,000 hours of life
•
Operating temperature of -30°C to
40°C
Catalog #
Project
Comments
Prepared by
•
cULus listed for wet locations
•
External supply wiring 75°C
minimum
•
Motion sensor detects motion 180°
up to 50 feet
Optics
•
Two-stage optics for maximum
coverage
•
Wirelessly controlled white tuning
from 3000K to 5000K CCT (factory
default 4000K)
•
Wirelessly controlled dimming to
5%
Warranty
Five year limited warranty
Type
Date
HALO Home
MST20C Series
Twin Head LED Motion
with Bluetooth Mesh
Connectivity
Dimensions
Front View Side View
10.3˝
[261 mm]
Ordering Information
Sample Number: MST20C18W
Application
MS = Motion
Sensor
Heads
T = Twin
Head
Nominal Wattage
20 = 20W
Protocol
C = Connected Bluetooth
Mesh Wireless Control, 4.0
6.7˝
[170 mm]
Eave Mount
Motion Sensor
18 = 180° Detection
Finish
B = Bronze
W = White
CCT Adjustable
Range from
3000K-5000K
CERTIFICATION DATA
cULus wet location listed
TECHNICAL DATA
120-277V, 50/60Hz
-30°C to 40°C
temperature rating
External supply wiring 75°
minimum
PS502095EN
July 6, 2018
Page 2

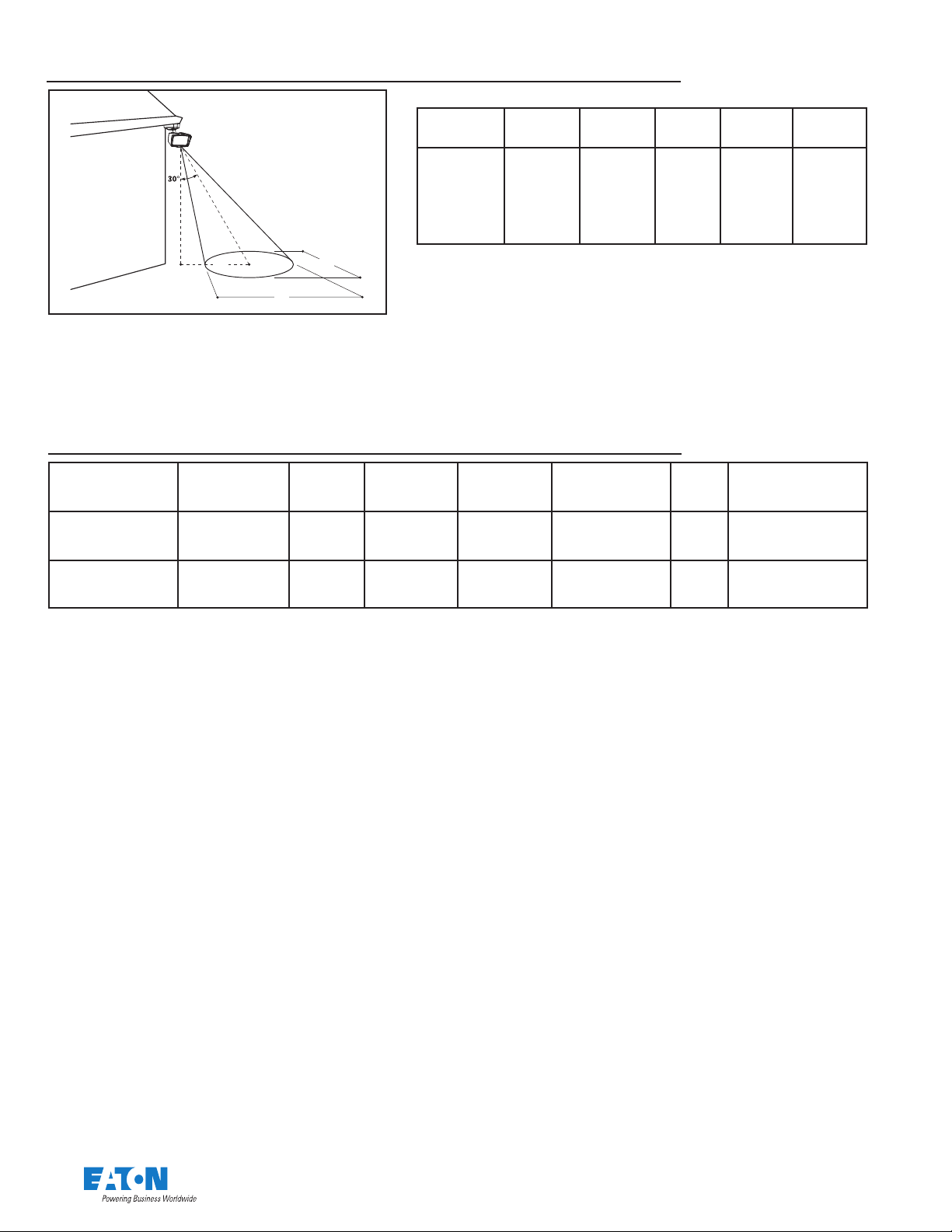

Photometrics
Area Coverage
Mounting
Height
Length
(L)
Width
(W)
Area
(Sq. Ft.)
Halo Home MST20C
Max FC
FC
CB
Note: Specifications and Dimensions subject to
change without notice.
W
L
Technical Information
Series Voltage
MST20C18B
MST20C18W
* Based on factory default setting of 4000K CCT
120-277V,
50/60Hz
120-277V,
50/60Hz
Power
(W)
22.8 2034 89.2
22.8 2034 89.2
MST20C
Series
Note: Bronze fixture at a typical mounting angle of 30° from vertical
All figures based on minimum footcandle (FC) of 0.5 and 4000K CCT.
Delivered
Lumens
Efficacy
(lm)*
10 ft.
15 ft.
20 ft.
(lm/W)
Variable,
3000K - 5000K
Variable,
3000K - 5000K
18
20
20
40
40
40
720
800
800
CCT CRI* Motion Sensor
84
84
Single PIR, 180°
Detection
Single PIR, 180°
Detection
4.3
1.9
1.1
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
