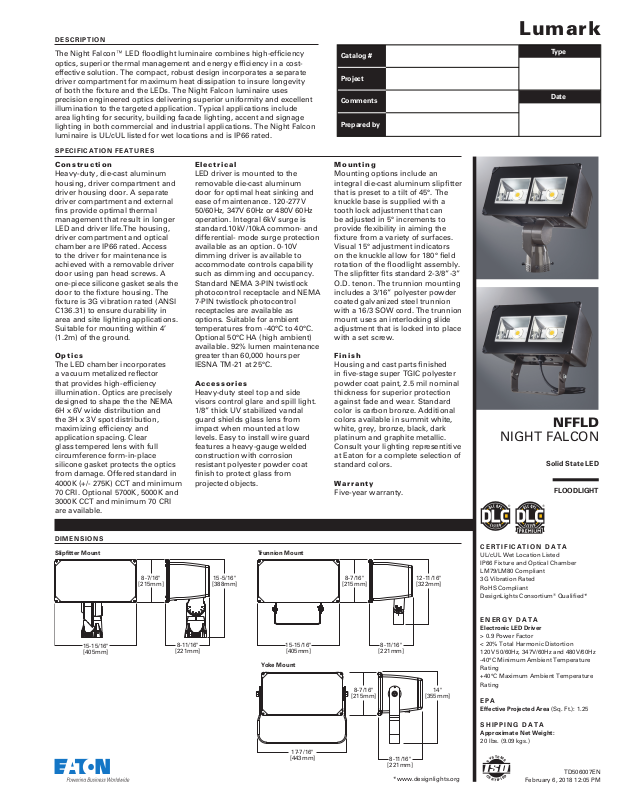

Cooper Lighting LLC CPK10050 Specifications

DESCRIPTION

S

T

E

R

T

I

F

I

Slipfitter Mount

Trunnion Mount

[355mm]

[221mm]

*www.designlights.org

The Night Falcon™ LED floodlight luminaire combines high-efficiency
optics, superior thermal management and energy efficiency in a cost­effective solution. The compact, robust design incorporates a separate
driver compartment for maximum heat dissipation to insure longevity
of both the fixture and the LEDs. The Night Falcon luminaire uses
precision engineered optics delivering superior uniformity and excellent
illumination to the targeted application. Typical applications include
area lighting for security, building facade lighting, accent and signage
lighting in both commercial and industrial applications. The Night Falcon
luminaire is UL/cUL listed for wet locations and is IP66 rated.

SPECIFICATION FEATURES

Construction

Heavy-duty, die-cast aluminum
housing, driver compartment and
driver housing door. A separate
driver compartment and external
fins provide optimal thermal
management that result in longer
LED and driver life.The housing,
driver compartment and optical
chamber are IP66 rated. Access
to the driver for maintenance is
achieved with a removable driver
door using pan head screws. A
one-piece silicone gasket seals the
door to the fixture housing. The
fixture is 3G vibration rated (ANSI
C136.31) to ensure durability in
area and site lighting applications.
Suitable for mounting within 4’
(1.2m) of the ground.

Electrical

LED driver is mounted to the
removable die-cast aluminum
door for optimal heat sinking and
ease of maintenance. 120-277V
50/60Hz, 347V 60Hz or 480V 60Hz
operation. Integral 6kV surge is
standard.10kV/10kA common- and
differential- mode surge protection
available as an option. 0-10V
dimming driver is available to
accommodate controls capability
such as dimming and occupancy.
Standard NEMA 3-PIN twistlock
photocontrol receptacle and NEMA
7-PIN twistlock photocontrol
receptacles are available as
options. Suitable for ambient
temperatures from -40°C to 40°C.
Optional 50°C HA (high ambient)
available. 92% lumen maintenance

Optics

The LED chamber incorporates

greater than 60,000 hours per

IESNA TM-21 at 25°C.
a vacuum metalized reflector
that provides high-efficiency
illumination. Optics are precisely
designed to shape the the NEMA
6H x 6V wide distribution and
the 3H x 3V spot distribution,
maximizing efficiency and
application spacing. Clear
glass tempered lens with full
circumference form-in-place
silicone gasket protects the optics
from damage. Offered standard in
4000K (+/- 275K) CCT and minimum
70 CRI. Optional 5700K, 5000K and
3000K CCT and minimum 70 CRI

Accessories

Heavy-duty steel top and side

visors control glare and spill light.

1/8” thick UV stabilized vandal

guard shields glass lens from

impact when mounted at low

levels. Easy to install wire guard

features a heavy-gauge welded

construction with corrosion

resistant polyester powder coat

finish to protect glass from

projected objects.

are available.

Catalog #

Project

Comments

Prepared by

Mounting

Mounting options include an
integral die-cast aluminum slipfitter
that is preset to a tilt of 45°. The
knuckle base is supplied with a
tooth lock adjustment that can
be adjusted in 5° increments to
provide flexibility in aiming the
fixture from a variety of surfaces.
Visual 15° adjustment indicators
on the knuckle allow for 180° field
rotation of the floodlight assembly.
The slipfitter fits standard 2-3/8”-3”
O.D. tenon. The trunnion mounting
includes a 3/16” polyester powder
coated galvanized steel trunnion
with a 16/3 SOW cord. The trunnion
mount uses an interlocking slide
adjustment that is locked into place
with a set screw.

Finish

Housing and cast parts finished
in five-stage super TGIC polyester
powder coat paint, 2.5 mil nominal
thickness for superior protection
against fade and wear. Standard
color is carbon bronze. Additional
colors available in summit white,
white, grey, bronze, black, dark
platinum and graphite metallic.
Consult your lighting representitive
at Eaton for a complete selection of
standard colors.

Warranty

Five-year warranty.

Lumark

Type

Date

NFFLD

NIGHT FALCON

Solid State LED

FLOODLIGHT

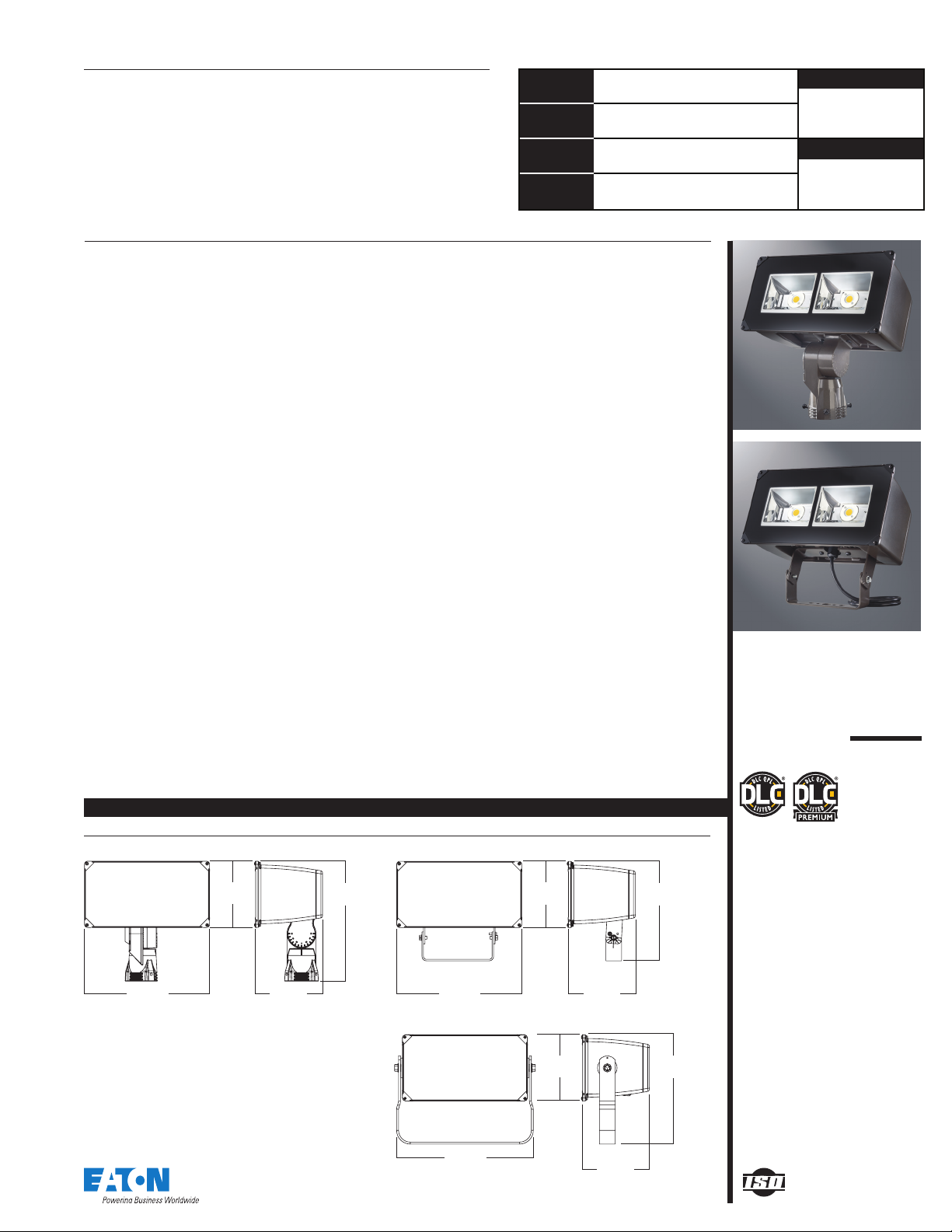

DIMENSIONS

15-15/16"
[405mm]

8-7/16"

[215mm]

8-11/16"

[221mm]

15-5/16"

[388mm]

15-15/16"
[405mm]

Yo ke Mount

17-7/16"

[443mm]

8-7/16"

[215mm]

8-7/16"

[215mm]

8-11/16"

[221mm]

8-11/16"

12-11/16"
[322mm]

14"

CERTIFICATION DATA

UL/cUL Wet Location Listed
IP66 Fixture and Optical Chamber
LM79/LM80 Compliant
3G Vibration Rated
RoHS Compliant
DesignLights Consortium

ENERGY DATA

Electronic LED Driver

> 0.9 Power Factor
< 20% Total Harmonic Distortion
120V 50/60Hz, 347V/60Hz and 480V/60Hz

-40°C Minimum Ambient Temperature
Rating
+40°C Maximum Ambient Temperature
Rating

EPA

Effective Projected Area (Sq. Ft.): 1.25

SHIPPING DATA

Approximate Net Weight:

20 lbs. (9.09 kgs.)

M

S

Y

S

C

D

E

E

®

Qualified*

February 6, 2018 12:05 PM

TD506007EN

page 2

NFFLD NIGHT FALCON

POWER AND LUMENS

6x6 3x3

C25 LED NFFLD-C25 NFFLD-C25-7030 NFFLD-C25-7050 NFFLD-C25-7060 NFFLD-C25 NFFLD-C25-7030 NFFLD-C25-7050 NFFLD-C25-7060

Delivered Lumens 10,530 10,122 10,383 10,217 10,272 9,874 10,128 9,967

CCT (Kelvin) 4000K 3000K 5000K 5700K 4000K 3000K 5000K 5700K

CRI (Color Rendering Index) 70 70 70 70 70 70 70 70

Power Consumption (Watts) 85W 85W 85W 85W 93W 93W 93W 93W

C40 LED NFFLD-C40 NFFLD-C40-7030 NFFLD-C40-7050 NFFLD-C40-7060 NFFLD-C40 NFFLD-C40-7030 NFFLD-C40-7050 NFFLD-C40-7060

Delivered Lumens 16,932 16,268 16,686 16,421 14,113 13,567 13,916 13,694

CCT (Kelvin) 4000K 3000K 5000K 5700K 4000K 3000K 5000K 5700K

CRI (Color Rendering Index) 70 70 70 70 70 70 70 70

Power Consumption (Watts) 128W 128W 128W 128W 143W 143W 143W 143W

C55 LED NFFLD-C55 NFFLD-C55-7030 NFFLD-C55-7050 NFFLD-C55-7060

Delivered Lumens 19,943 19,407 20,144 20,285

CCT (Kelvin) 4000K 3000K 5000K 5700K

CRI (Color Rendering Index) 70 70 70 70

Power Consumption (Watts) 145W 145W 145W 145W

C70 LED NFFLD-C70 NFFLD-C70-7030 NFFLD-C70-7050 NFFLD-C70-7060

Delivered Lumens 23,797 23,157 24,037 24,205

CCT (Kelvin) 4000K 3000K 5000K 5700K

CRI (Color Rendering Index) 70 70 70 70

Power Consumption (Watts) 184W 184W 184W 184W

CURRENT DRAW

Model Series

Voltage (V)

NFFLD-C25 NFFLD-C40 NFFLD-C55 NFFLD-C70 NFFLD-C25 NFFLD-C40

6x6 3x3

Current (A) Current (A) Current (A) Current (A) Current (A) Current (A)

120V 0.708 1.070 1.2299 1.5695 0.778 1.190

277V 0.340 0.465 0.535 0.6726 0.340 0.531

347V 0.251 0.377 0.4213 0.5334 0.271 0.419

480V 0.195 0.273 0.3044 0.3831 0.207 0.320

LUMEN MULTIPLIER

Ambient

Temperature

TM-21 Lumen

Maintenance

(60,000 Hours)

10°C 1.03

15°C 1.02

25°C 1.0 0

40°C 0.97

50°C 0.96

LUMEN MAINTENANCE

Ambient

Temperature

6H x 6V (Wide)

25°C > 94.55% > 388,000

40°C > 93.58% > 327,000

50°C -- --

3H x 3V (Spot)

25°C >92.18% >262,000

40°C >91.81% >249,000

TM-21 Lumen

Maintenance

(60,000 Hours)

Theoretical L70 (Hours)

Eaton

1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting

Specifications and
dimensions subject to
change without notice.

February 6, 2018 12:05 PM

TD506007EN

page 3

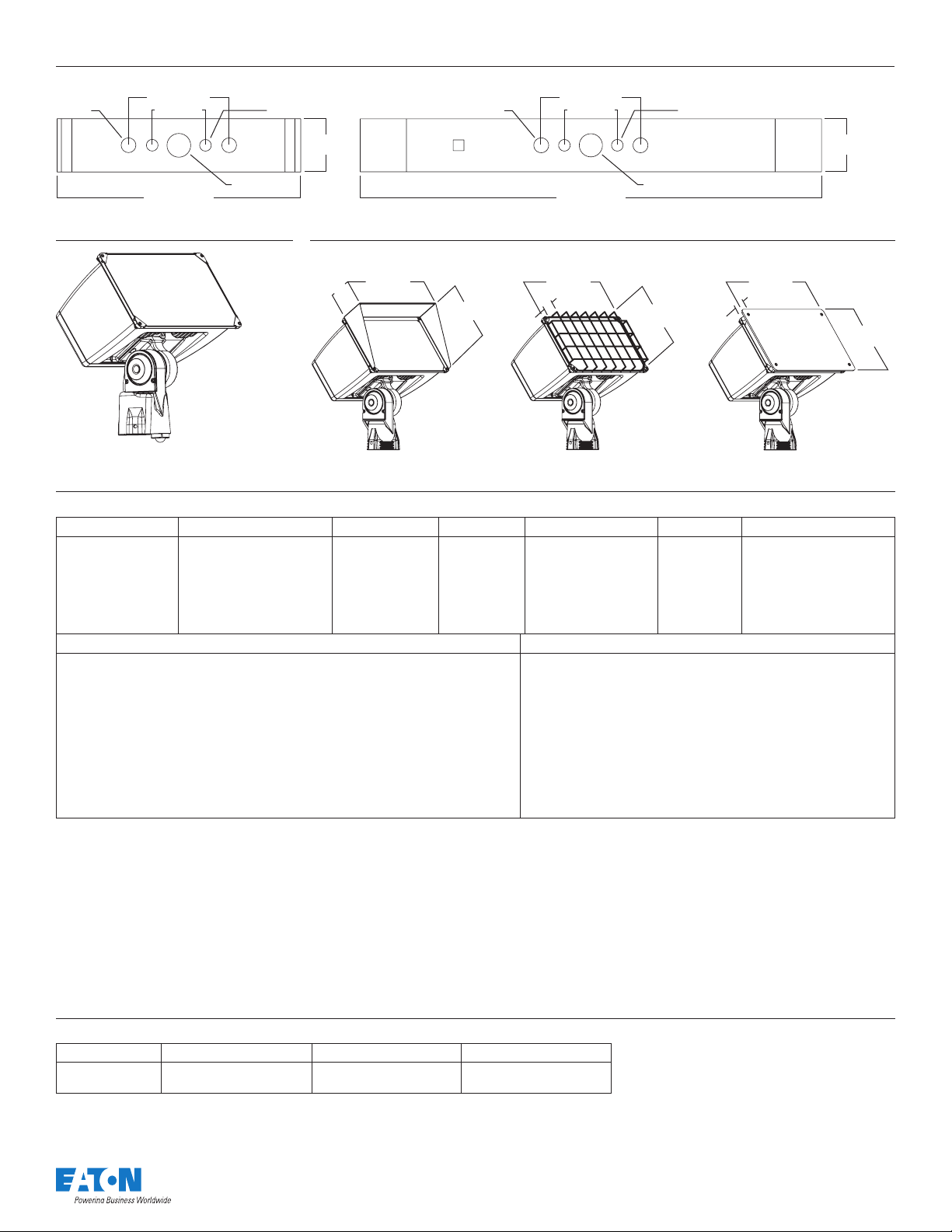

[77mm]

Top and Side Visors

Wire Guard

Vandal Shield

(2) 9/16"
[14mm]

9-1/8" [232mm]

[51mm]

17-3/8" [443mm]

Trunnion Mount Yo ke Mount

DRILLING PATTERNS

NFFLD NIGHT FALCON

3-3/4" [95mm]

2" [51mm] 2" [51mm]

(2) 7/16"
[11mm]

2"

[51mm]

(2) 9/16"
[14mm]

7/8" [22mm]

3-3/4" [95mm]

(2) 7/16"
[11mm]

7/8" [22mm]

ACCESSORIESOPTIONAL INTEGRATED SENSOR

15-15/16"

3"

[405mm]

8-1/2"

[215mm]

1-1/16"

[27mm]

15-7/8"

[404mm]

8-3/4"

[222mm]

1-1/16"

[27mm]

[432mm]

ORDERING INFORMATION

Sample Number: NFFLD-C40-E-UNV-66-S-CB-PER

Prod uct Fam ily

NFFLD= Night Falcon

1

LED Floodlight

Light Engine

C25=10,500 Nominal Lumens
C40=16,900 Nominal Lumens
C55=20,000 Nominal Lumens
C70=24,000 Nominal Lumens

Options (Add a s Suffi x) Accessories (Order Separately)

7030=70 CRI / 300 0K
7050=70 C RI / 500 0K
7060=70 C RI / 5700 K
PER=NEMA 3-P IN Twistlock Pho tocon trol Recepta cle
PER7=NEMA 7-PIN Twis tlock P hotoc ontrol R ecep tacle
10K=10kV/10kA UL 14 49 Surge Prote ctiv e Devic e
HA=50 °C High Ambient Temp erature
D10=< 10% Dimmin g
MS P/DI M- L12 =Inte grate d Senso r for Dimming Oper ation, 8 ' - 12' Mounting Heigh t
MS P/DI M-L 30 =Integrate d Sensor for Dimm ing Operation , 12' - 30' Moun ting Height
MS P-L1 2= Integr ated Sensor fo r ON/OF F Opera tion, 8' - 12' M ountin g Height
MSP-L30 =Int egrat ed Sens or for ON/OFF Ope ration, 12' - 30' Mou nting He ight

NOTES:

1. DesignLights Consor tium® Qualifi ed. Refer to w ww.des ignlights.o rg Qualifi ed Produ cts Lis t under Family Mo dels for de tails.

2. Stan dard 4000 K CCT and min imum 70 CRI. C onsult IES file f or actual l umen output .

3. Cons ult factor y for drive r surge pro tection valu es.

4. Not re commended f or use wit h unground ed, delta con figured syst ems.

5. Only av ailable in C 25 adn C40 ligh t engines .

6. Fits 2 -3/8" t o 3" O.D. tenon, wir e leads run thro ugh slipfitt er.

7. Ex tended lead t imes appl y. Use de dicate d IES files fo r 3000K a nd 5700K when p erforming la youts. Thes e files are publi shed on the N ight Falc on luminaire pro duct page on th e websit e.

8. Must o rder with dimm ing driver.

9. 0-10V dimm ing driver r equired. Int egrated sen sor option only a vailable in slip fitter mo unting.

10. Not ava ilable wi th Photoc ontrol.

11. Re place X X with col or design ation. Ad ditional brac kets and adap tors availabl e on the pole s product pag e on the website .

12. Not av ailable wi th tenon mount .

13. Not ava ilable wi th slipfitte r mount.

14. Cann ot combine TS2 ( Top and Sid e Visor), VS ( Vandal Shiel d), or WG (Wire Guar d), limited t o one external g uard per fixt ure.

7

7

7

8

2

8

3

Drive r

E=Non-D imming
D=Dimming (0 -10V)

9, 10

Volt age Distribution Mounting Color

UNV= 120-277V
347=347V
480=480V

9, 10

9, 10

9, 10

66= N EMA 6H x 6V W ide

4

33= N EMA 3H x 3V W ide

4

FA63= 3" O.D. Surfac e Mount B racke t
OA12 23=10k V/10kA U L 1449 Sur ge Prot ecti ve Device Repla cement
OA/R A1013=Photocontrol Shorting Cap
OA /R A1014 =NEMA Photoc ontro l - 120V
OA /R A1016 =NEM A Photocontrol - Multi-Tap
OA /R A1027 =NEMA P hotoc ontro l - 480V
OA/RA1201=NEMA Photocont rol - 347 V
RAB -XX= Right A ngle Pip e Brack et for Slipfitt er
SAB -XX=S teel Angle Bra cket for Trunnion
TYS -XX= Slipfit ter Adapter fo r 2-3/8 ", 3" or 3-1/2" O.D. Tenon
TS2/NFFLD-XX=Top and Side V isors
VS/NFFLD=Vandal Shield
WG/NFFLD=Wir e Guard
ISHH- 01=Integrated Sensor Programming Remote

5

14

14

S= Slipfitter
T=Trunnion
Y=Yoke

11

12

14

6

CB= Carb on Bronze (Standard)
BK=Black
BZ=Bronze
AP= Grey
WH=Whi te
WHT= Summit W hite
DP= Dark Platinum
GM= Graphite Metallic

17"

2"

9-1/2"

[241mm]

13

Stoc k Sampl e Numbe r: NFFLD-C40-S

Series Light Engine Mounting Volt age

NFFLD=Night

Falcon

NOTES: Optio ns not availabl e with sto ck product s. Order acc essori es as sepa rate ite ms for field i nstalla tion. Refer to s tandard ord ering inf or­mation t o add options. R efer to In-St ock Guide for ava ilability. Sto ck fixture is 4 000K, non -dimming, 120 -277V or 3 47V 6Hx6V, carb on bronze
only.

C25= 10,500 Nominal Lumens
C40= 16,900 Nominal Lumens

Eaton

1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting

S= Slipfitter
T=Trunnion

Specifications and
dimensions subject to
change without notice.

STOCK ORDERING INFORMATION

[BLANK] =120-277V
347=347V

February 6, 2018 12:05 PM

TD506007EN
