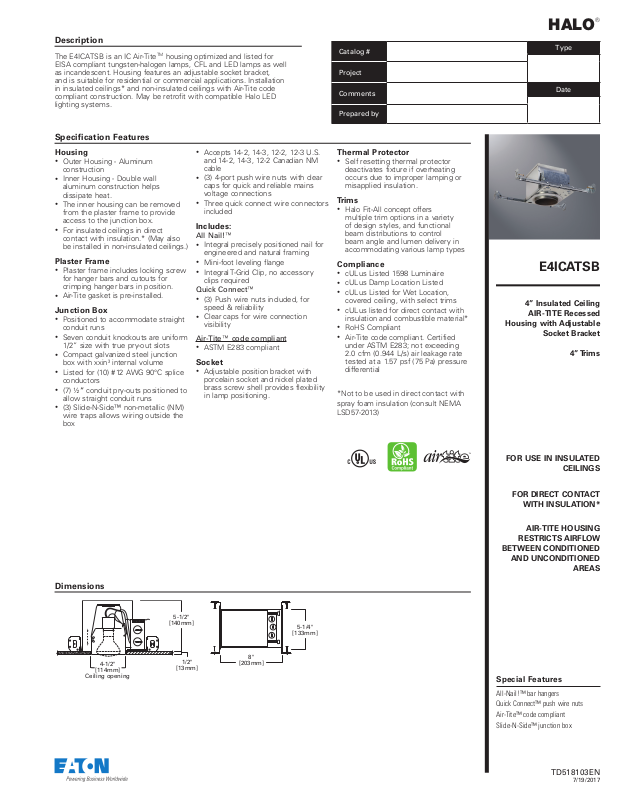

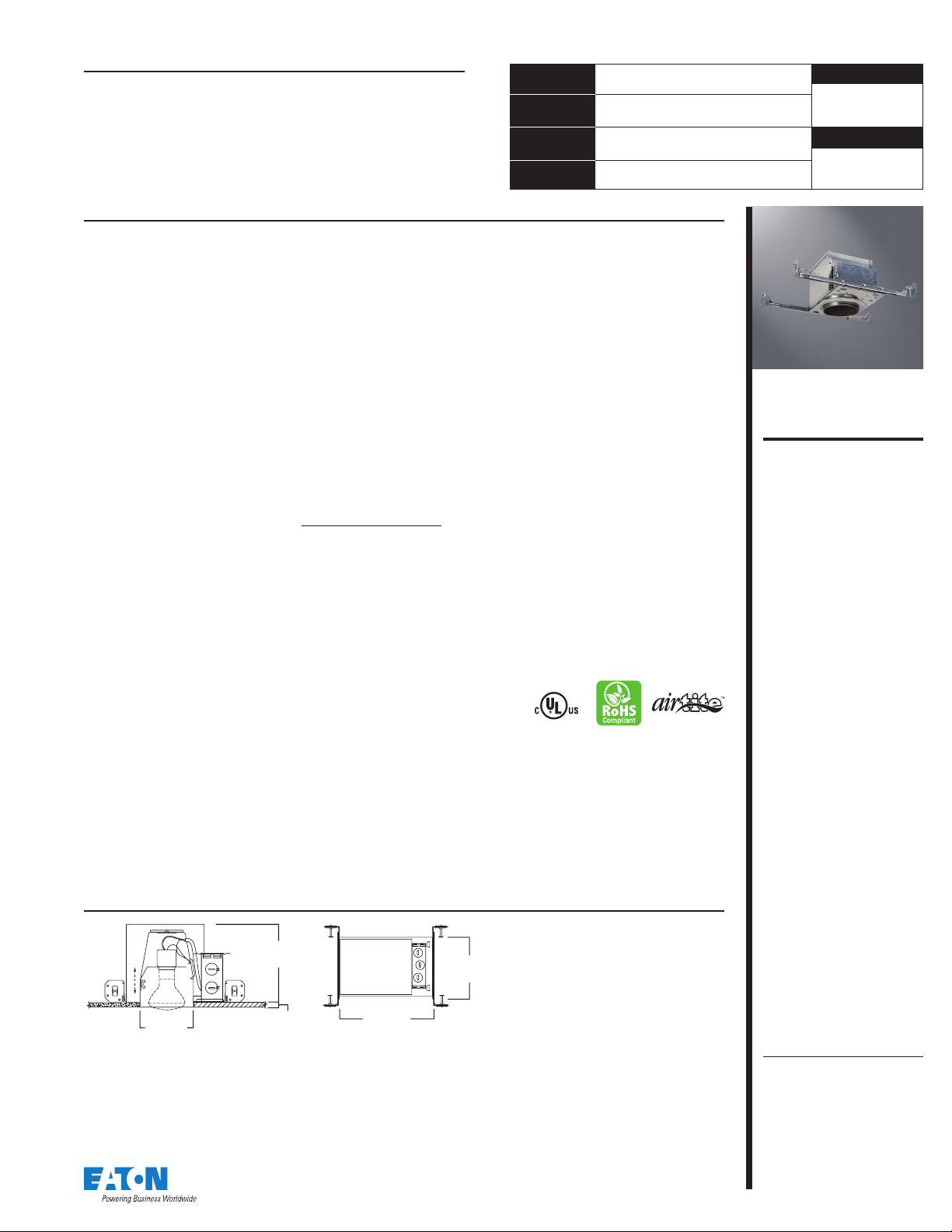

Page 1
Description
[13mm]
4-1/2"
[114mm]
Ceiling opening
5-1/2"
[140mm]
1/2"
[13mm]
The E4ICATSB is an IC Air-TiteTM housing optimized and listed for
EISA compliant tungsten-halogen lamps, CFL and LED lamps as well
as incandescent. Housing features an adjustable socket bracket,
and is suitable for residential or commercial applications. Installation
in insulated ceilings* and non-insulated ceilings with Air-Tite code
compliant construction. May be retrofit with compatible Halo LED
lighting systems.
Specification Features
•
Housing
•
Outer Housing - Aluminum
construction
•
Inner Housing - Double wall
aluminum construction helps
dissipate heat.
•
The inner housing can be removed
from the plaster frame to provide
access to the junction box.
•
For insulated ceilings in direct
contact with insulation.* (May also
be installed in non-insulated ceilings.)
Plaster Frame
•
Plaster frame includes locking screw
for hanger bars and cutouts for
crimping hanger bars in position.
•
Air-Tite gasket is pre-installed.
Junction Box
•
Positioned to accommodate straight
conduit runs
•
Seven conduit knockouts are uniform
1/2” size with true pry-out slots
•
Compact galvanized steel junction
box with xxin³ internal volume
•
Listed for (10) #12 AWG 90°C splice
conductors
•
(7) ½” conduit pry-outs positioned to
allow straight conduit runs
•
(3) Slide-N-Side™ non-metallic (NM)
wire traps allows wiring outside the
box
Accepts 14-2, 14-3, 12-2, 12-3 U.S.
and 14-2, 14-3, 12-2 Canadian NM
cable
•
(3) 4-port push wire nuts with clear
caps for quick and reliable mains
voltage connections
•
Three quick connect wire connectors
included
Includes:
All Nail!™
•
Integral precisely positioned nail for
engineered and natural framing
•
Mini-foot leveling flange
•
Integral T-Grid Clip, no accessory
clips required
Quick Connect™
•
(3) Push wire nuts included, for
speed & reliability
•
Clear caps for wire connection
visibility
Air-Tite™ code compliant
•
ASTM E283 compliant
Socket
•
Adjustable position bracket with
porcelain socket and nickel plated
brass screw shell provides flexibility
in lamp positioning.
Catalog #
Project
Comments
Prepared by
Thermal Protector
•
Self resetting thermal protector
deactivates fixture if overheating
occurs due to improper lamping or
misapplied insulation.
Trims
•
Halo Fit-All concept offers
multiple trim options in a variety
of design styles, and functional
beam distributions to control
beam angle and lumen delivery in
accommodating various lamp types
Compliance
•
cULus Listed 1598 Luminaire
•
cULus Damp Location Listed
•
cULus Listed for Wet Location,
covered ceiling, with select trims
•
cULus listed for direct contact with
insulation and combustible material*
•
RoHS Compliant
•
Air-Tite code compliant. Certified
under ASTM E283; not exceeding
2.0 cfm (0.944 L/s) air leakage rate
tested at a 1.57 psf (75 Pa) pressure
differential
*Not to be used in direct contact with
spray foam insulation (consult NEMA
LSD57-2013)
HALO
Type
Date
E4ICATSB
4” Insulated Ceiling
AIR-TITE Recessed
Housing with Adjustable
Socket Bracket
4” Trims
®
Dimensions
[114mm]
Ceiling opening
4-1/2"
5-1/2"
[140mm]
1/2"
8"
[203mm]
5-1/4"
[133mm]
FOR USE IN INSULATED
CEILINGS
FOR DIRECT CONTACT
WITH INSULATION*
AIR-TITE HOUSING
RESTRICTS AIRFLOW
BETWEEN CONDITIONED
AND UNCONDITIONED
AREAS
Special Features
All-Nail!™ bar hangers
Quick Connect™ push wire nuts
Air-Tite™ code compliant
Slide-N-Side™ junction box
TD518103EN
7/19/2017
Page 2

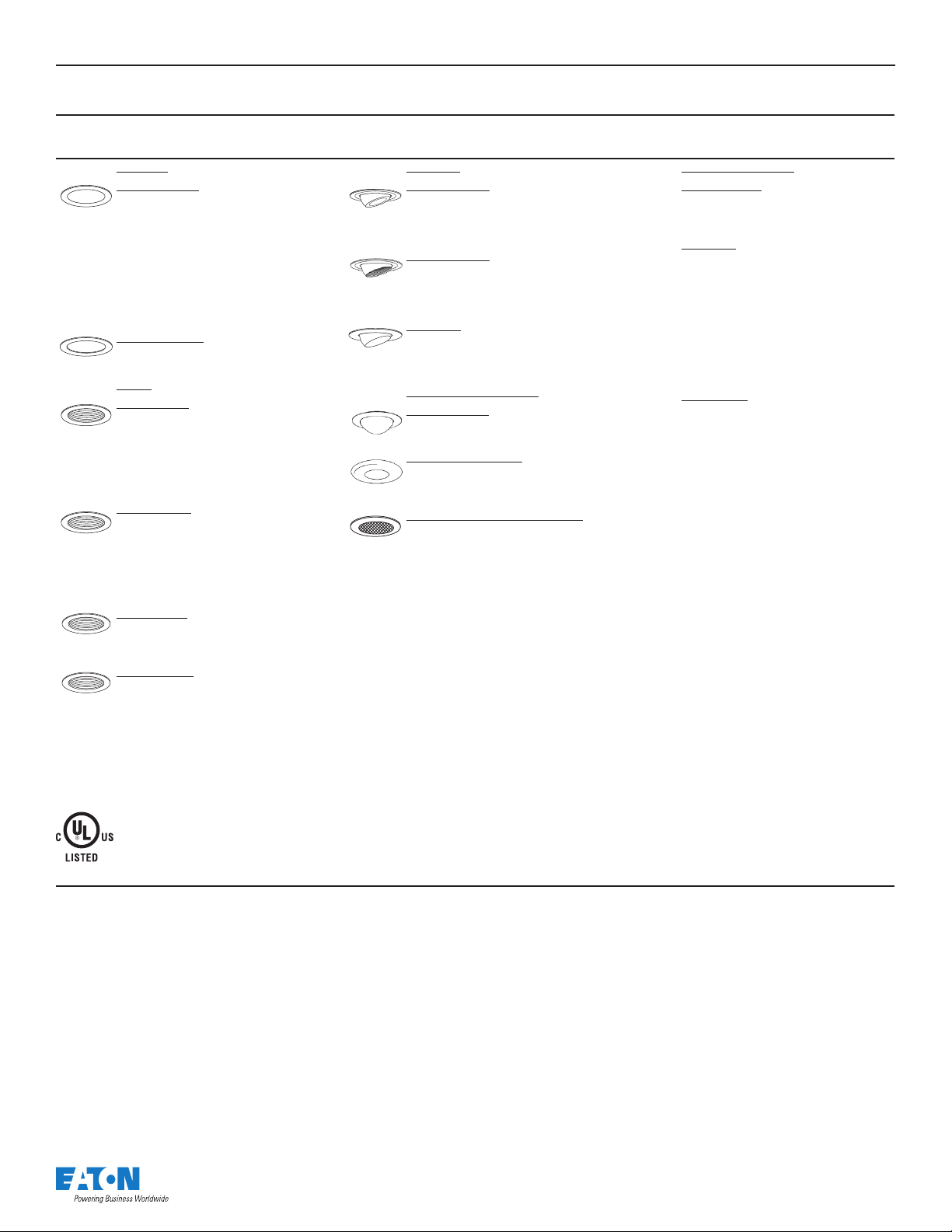

Ordering Information
Sample Number: E4ICATSB 4003SC
Order housing, trim and lamp (by others) separately for a complete luminaire.
Housing
E4ICATSB = 4”insulated ceiling AIR-TITE housing with adjustable socket bracket
Trims
Reflectors
999 Reflector Cone
OD: 5-1/16” [129mm]
999P=Specular Clear, White Trim Ring
999RG=Residential Gold, White Trim Ring
999W=White Reflector, White Trim Ring
999H=Haze Reflector, White Trim Ring
999MB=Specular Black Reflector,
White Trim Ring
999SN=Satin Nickel Reflector with Satin
Nickel Trim Ring
999TBZ=Tuscan Bronze Reflector with
Tuscan Bronze Trim Ring
4003 Reflector Cone
OD: 4-3/4” [120mm]
4003SC=Specular Clear Reflector, White Trim Ring
Baffles
953 Metal Baffle
OD: 5-1/16” [129mm]
953P=Black Baffle with White Trim Ring
953W=White Baffle with White Trim Ring
953SN=Satin Nickel Baffle with Satin Nickel
Trim Ring
953TBZ=Tuscan Bronze Baffle with Tuscan
Bronze Trim Ring
993 Coilex Baffle
OD: 5-1/16” [129mm]
993P=Black Baffle with White Trim Ring
993W=White Baffle with White Trim Ring
993SN=Black Baffle with Satin Nickel
Trim Ring
993TBZ=Black baffle with Tuscan
Bronze Trim Ring
4001 Step Baffle
OD: 4-3/4” [120mm]
4001BB=Black Plastic Baffle, White Trim Ring
4001WB=White Plastic Baffle, White Trim Ring
4010 Metal Baffle
OD: 5” [127mm]
4010BB=Black Metal Baffle, White Trim Ring
4010WB=White Metal Baffle, White Trim Ring
Adjustable
996 Eyeball 15° Tilt
OD: 5-1/16” [129mm]
996P=White Eyeball
996SN=Satin Nickel Eyeball
996TBZ=Tuscan Bronze Eyeball
998 Eyeball 30° Tilt
OD: 5-1/16” [129mm]
998P=White Eyeball
998SN=Satin Nickel Eyeball
998TBZ=Tuscan Bronze Eyeball
4002 Eyeball
OD: 4-3/4” [120mm]
4002WH=White Eyeball
Lens / Wet Location Listed
952 Cone Reflector
952PS=White Trim Ring, Dome Lens
Shower Light
945 Metropolitan Ice Light
OD: 5-5/16” [135mm]
945=Clear Frosted
945Blue=Blue Frosted
4055 Prismatic Glass Lens Shower Light
OD: 4-3/4” [120mm]
4055WH=Shower Light, White Trim Ring,
Prismatic Flat Glass Lens
E4ICATSB
Mounting Accessories
Filters and Lenses
The following filters and lenses can be
substituted for the cover glass supplied for use
with MR16 lamps.
Color Filters
L112=Red Gel Filter
L114=Ultraviolet Dichroic Filter
L120=Red Dichroic Filter
L121=Amber Dichroic Filter
L122=Yellow Dichroic Filter
L123=Green Dichroic Filter
L124=Daylight Blue Dichroic Filter
L125=Blue Dichroic Filter
L127=Cosmetic (2700°K) Dichroic Filter
L121=Yellow Gel Filter
L121=Amber Gel Filter
Optical Lenses
L100N=Diffuse Sand Blasted Lens. Provides
an even beam spread from MR16 lampsespecially useful in wall washing.
L111=Soft Focus Lens. Smoothes irregular
beam pattern while maintaining high
controlled illumination levels and beam
angles.
L113=Prismatic Spread Lens. Provides a
symmetrical broadening of MR16 lamp beams.
L115=Fans the MR16 beam to produce a wide
rectangular illumination pattern.
For use in Halo listed housings.
Can also be used with the following LED Modules:
LT4 = 4” LED retrofit module
RL4 = 4” all-purpose retrofit LED retrofit module
RA4 = 4” adjustable gimbal all-purpose LED retrofit module
ML4 = 4” LED module (see ML4 spec sheets for trim options)
SLD4 = 4” surface LED downlight
SMD4 = 4” surface mount LED downlight
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
